Dometic FW3000 User manual

FW 3000
Under-bench air conditioner
Operating manual . . . . . . . . . . . . . . . . . . . . .7
Staukastenklimaanlage
Bedienungsanleitung . . . . . . . . . . . . . . . . . 31
Climatiseur de coffre
Notice d’utilisation . . . . . . . . . . . . . . . . . . .56
Equipo de aire acondicionado de
cajón
Instrucciones de uso . . . . . . . . . . . . . . . . . . 81
Sistema de climatização para caixa de
arrumação
Manual de instruções . . . . . . . . . . . . . . . . 107
Climatizzatore per vano di carico
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . .132
Airco onder de bank
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 157
Klimaanlæg til montering i et
magasin
Betjeningsvejledning . . . . . . . . . . . . . . . . 181
Klimatanläggning för
förvaringsutrymmen
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . 205
Takboksklimaanlegg
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . 227
Kaappi-ilmastointilaite
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . 250
Встраиваемый в багажный ящик
кондиционер
Инструкция по эксплуатацииИнструкция по
монтажу . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Klimatyzator umieszczany w schowku
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 298
Klimatizačné zariadenie do úložného
priestoru
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 323
Klimatizace do zavazadlového
prostoru
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 347
Tárolóládás klímaberendezés
Használati utasítás. . . . . . . . . . . . . . . . . . .369
Klima-uređaj za montažu ispod klupe
Upute za uporabu . . . . . . . . . . . . . . . . . . .394
Zemin tipi klima
Kullanma Kılavuzu . . . . . . . . . . . . . . . . . . . 418
Klimatska naprava za vgradnjo pod
klop
Navodilo za uporabo . . . . . . . . . . . . . . . . 440
Aparat de aer condiţionat cu montare
sub banchetă
Instrucţiuni de operare . . . . . . . . . . . . . . . 464
Климатик за монтиране под пейка
Инструкция за експлоатация. . . . . . . . . . 490
Põrandale paigaldatav kliimaseade
Kasutusjuhend. . . . . . . . . . . . . . . . . . . . . . 516
Κλιματιστικό κάτω πάγκου
Οδηγίες χειρισμού . . . . . . . . . . . . . . . . 540
Grindinis oro kondicionierius
Naudojimo vadovas . . . . . . . . . . . . . . . . . 568
Zem krēsla uzstādāms gaisa
kondicionētājs
Lietošanas rokasgrāmata . . . . . . . . . . . . . 591
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
HR
TR
SL
RO
BG
ET
EL
LT
LV
AIR CONDITIONERS
FRESHWELL
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 1 Friday, January 13, 2023 3:23 PM

© 2023 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 2 Friday, January 13, 2023 3:23 PM

FreshWell3000
3
1
2
6
5
3
4
7
8
9
10
4
1
5
1
2
3
4
2
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 3 Friday, January 13, 2023 3:23 PM

FreshWell3000
4
1
7
6
13
12
15
14
2
4
311
10
9
5
8
3
1
2
4
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 4 Friday, January 13, 2023 3:23 PM

FreshWell3000
5
1
2
1.
2.
4.
5.
3.
5
400 628
286
6
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 5 Friday, January 13, 2023 3:23 PM

FreshWell3000
6
7
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 6 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000
7
Original instructions
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
documents.dometic.com.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Operating the under-bench air conditioner . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Cleaning the under-bench air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Maintenance of the under-bench air conditioner . . . . . . . . . . . . . . . . . . . . 25
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Find the full operating manual online on
documents.dometic.com/
?object_id=51383
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 7 Friday, January 13, 2023 3:23 PM

EN
Explanation of symbols FreshWell3000
8
1 Explanation of symbols
!
!
A
I
2 Safety instructions
This product is only suitable for the intended purpose and application in accordance
with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
In particular, the manufacturer will not be liable for any consequential damage,
especially consequential damage caused by failure of the under-bench air
conditioner.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 8 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Safety instructions
9
Note the following basic safety information when using electrical devices to protect
against:
• Electric shock
•Firehazards
•Injury
2.1 General safety
!WARNING!
• This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
• Cleaning and user maintenance must not be carried out by children
without supervision.
• Children must not play with the device.
• Children must be supervised to ensure that they do not play with the
device.
• Always keep and use the device out of the reach of children under the
age of 8 years.
• Only use the device as intended.
• Do not make any alterations or conversions to the device.
• Installation, maintenance and repairs of the under-bench air
conditioner must only be carried out by qualified personnel who are
familiar with the risks involved when handling refrigerant and air
conditioning systems as well as the relevant regulations. Inadequate
repairs may cause serious hazards. For repair service, please contact
the service center in your country (addresses on the back page).
• Do not use the under-bench air conditioner near flammable fluids.
• Make sure no combustible objects are stored or installed near the air
outlet. A distance of at least 50 cm must be kept.
• Do not reach into air outlets or insert any foreign objects in the under-
bench air conditioner.
•Donot undo the upper cover of the under-bench air conditioner in
the event of a fire. Use approved extinguishing agents instead. Do not
use water to extinguish fires.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 9 Friday, January 13, 2023 3:23 PM

EN
Target group for this manual FreshWell3000
10
• A damaged supply cord must be replaced by the manufacturer or a
qualified person in order to avoid a hazard.
ANOTICE!
• If faults occur in the under-bench air conditioner's refrigerant circuit,
the under-bench air conditioner must be checked by a specialist com-
pany and properly repaired. The refrigerant must never be released
into the air.
• Do not apply heavy objects or pressure on the device.
2.2 Operating the device safely
!WARNING!
• Always disconnect the power supply when working on the device.
!CAUTION!
• Do not touch the device during operation. The device contains hot
and cold components, moving parts and electrical items which may
cause injury.
ANOTICE!
• The under-bench air conditioner isnot suitable for use in agricultural or
construction vehicles.
• Operate the device only if you are certain that the housing and the
cables are undamaged.
3 Target group for this manual
This operating manual is for the user of the under-bench air conditioner.
4Scopeofdelivery
• Dometic FreshWell under-bench air conditioner
• Operating manual
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 10 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Intended use
11
5 Intended use
The Dometic FreshWell3000 under-bench air conditioner is designed for use in
motor caravans, caravans and other vehicles with habitation compartments only. It is
not suitable for houses and apartments.
The under-bench air conditioner is not suitable for installation in construction
machines, agricultural machines or similar equipment. It will not work properly if
exposed to strong vibrations.
The operating mode of FreshWell3000 is guaranteed for temperatures between
0°Cand52°C.
6 Technical description
The under-bench air conditioner supplies the interior with cool dehumidified air
without dust and dirt.
The under-bench air conditioner is operated with the remote control.
I
6.1 Components

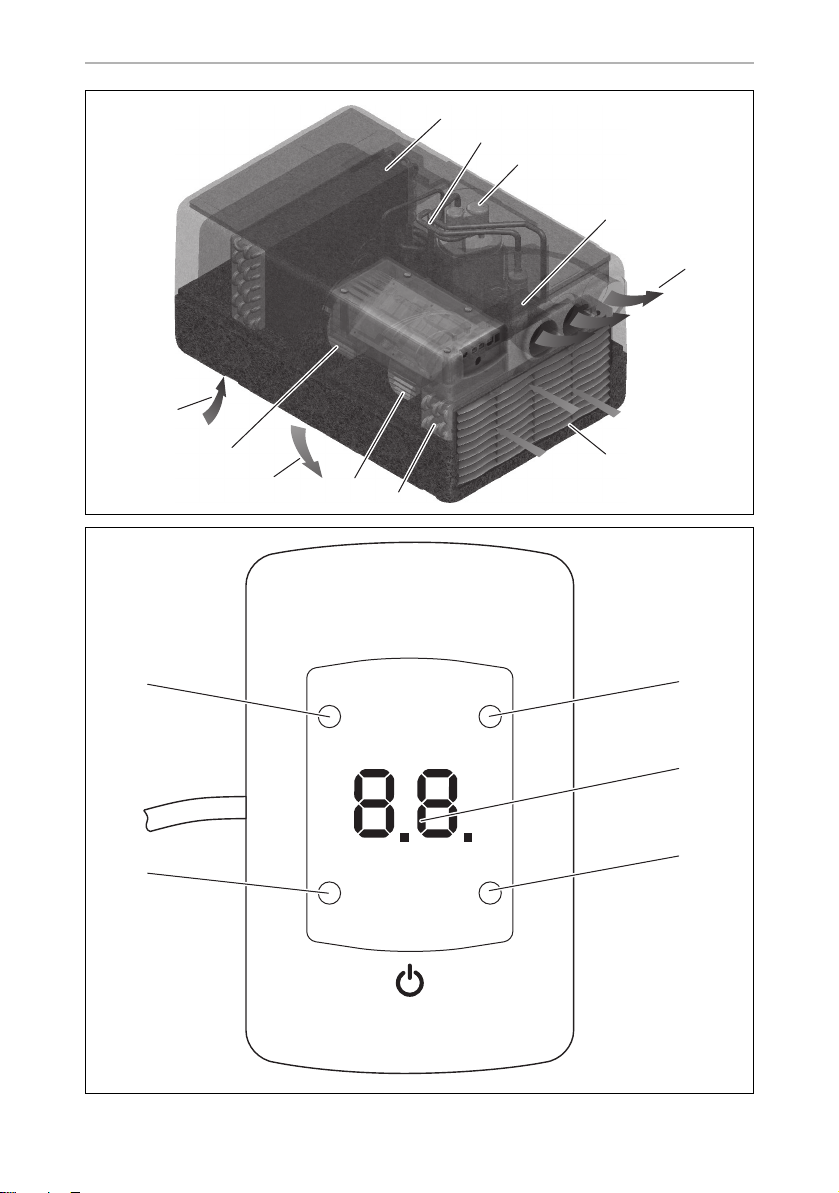

The refrigerant circuit of the under-bench air conditioner consists of the following
main components (fig. 1, page 3):
•Compressor (1)
The compressor draws in the refrigerant used and compresses it. This raises the
pressure and therefore the temperature of the refrigerant.
•Condenser (2)
The built-in liquefier works like a cooler or heat exchanger. The air flowing past
absorbs the heat and the hot refrigerant gas cools down and becomes liquid.
•Evaporator (3)
NOTE
The under-bench air conditioner can lower the temperature within the
vehicle to a certain level. The temperature depends on the type of
vehicle, the ambient temperature and the cooling capacity of your
under-bench air conditioner.
Below an outer temperature of 16 °C the under-bench air conditioner
doesn’t cool anymore. In this case only use the air conditioning mode
“Circulating air” ( ).
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 11 Friday, January 13, 2023 3:23 PM

EN
Technical description FreshWell3000
12
The evaporators cool down and dehumidify the air flowing past them. The
refrigerant absorbs the heat and vaporises.
•Blower(4)
A blower distributes the cooled or heated air within the vehicle through an air
outlet unit.
• 4-way valve (5)
The 4-way valve reverses the cooling circuit. Thus the internal register of the
evaporator becomes a condenser and heats the air passing through.
• Electric heating element (6)
The electric heating element increases the heating effect when the outer
temperature is low.
• Air inlet (7), air outlet (8) for external heat exchanger
Air is sucked into the device through the air inlet and escapes through the air
outlet.
• Air inlet (9), air outlet (10) for internal heat exchanger
Air is sucked into the device through the air inlet and escapes through the air
outlet. The internal heat exchanger treats the air in order to be cold or hot
depending on active mode.
6.2 Receiver
The receiver (fig. 2, page 3) contains the following control and display elements:
No. Explanation
1 Digital display Displays the room temperature.
2 Red/green LED Constantly lit, red: the stand-by mode is active
Constantly lit, green: any other mode is active
Flashing, red/green: the under-bench air conditioner is on,
but the supply voltage is not present
3 Blue LED Constantly lit: the cooling mode is active
Flashing: the dehumidification mode is active
Off: any other mode is active
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 12 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Technical description
13
In case of an alarm the display shows an error code to identify the fault:
6.3 Remote control
All settings of the device (e. g. temperature settings, timer programming) are
transmitted to the under-bench air conditioner by remote control.
4 Orange LED Constantly lit: the heating mode is active
Flashing: the heating mode is active, but the air conditioner is
not yet producing hot air, because the defrost function or the
preventing cold air function is active
The defrost function prevents ice on the external battery
exchanger while in heating mode.
The preventing cold air function prevents that cold air is blown
into the vehicle while in heating mode.
Off: any other mode is active
5YellowLED Constantly lit: the timer mode is active
Off: the timer mode is not active
Code Explanation
E1 Room temperature probe fault
E2 Indoor battery temperature probe fault
E3 Outdoor battery temperature probe fault
E4 Control card communication fault (control card failure)
No. Explanation
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 13 Friday, January 13, 2023 3:23 PM

EN
Technical description FreshWell3000
14
The following control and display elements are available on the remote control
(fig. 3, page 4) :
No. Explanation
1Digital display:
Displays the following:
•Time
•Selected room temperature (target value) in °C or °F
•Actual room temperature
•Air conditioning mode
•Blower level
•Symbols for active additional functions
•Battery status
2button:
Switches the air conditioner and remote control on or to stand-by mode
3button:
Selects the blower setting
4MODE button:
Selects the air conditioning mode
5button:
Activates the sleep function. The sleep function automatically modifies the target
value to provide a pleasant sleeping temperature.
6button:
Press once: Displays the current interior temperature (symbol is dis-
played).
Press again: Displays the set temperature.
7button:
No function assigned yet
8°C/°F button:
Switches between temperature units Celsius (°C) and Fahrenheit (°F).
9button:
Sets the timer and the clock.
10 SET button:
Confirms and saves settings.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 14 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Technical description
15
6.4 Air conditioning modes
The under-bench air conditioner has the following air conditioning modes:
11 button:
No function assigned yet
12 +button:
Increases the value
13 –button:
Reduces the value
14 Symbol (batteries empty)
Is displayed when the batteries in the remote control are empty. If this happens,
replace the batteries, see chapter “Replacing the remote control batteries” on
page 23.
15 Symbol (transmitting values)
Is displayed briefly when the remote control is transmitting values to the under-
bench air conditioner.
Air conditioning
mode
Display
message Explanation
Automatic In this mode the air conditioner sets the temperature
(setpoint) automatically and managesthecompressor,
heat pump and fan speed by comparing the set point
with the room temperature and it sets the
corresponding conditioning mode (see following
table).
The , +and –buttons are deactivated in this mode.
Cooling You specify the temperature and blower settings, and
the air conditioner cools the interior to this tempera-
ture.
Heating You specify the temperature and blower settings, and
the air conditioner heats the interior to this tempera-
ture.
No. Explanation
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 15 Friday, January 13, 2023 3:23 PM

EN
Technical description FreshWell3000
16

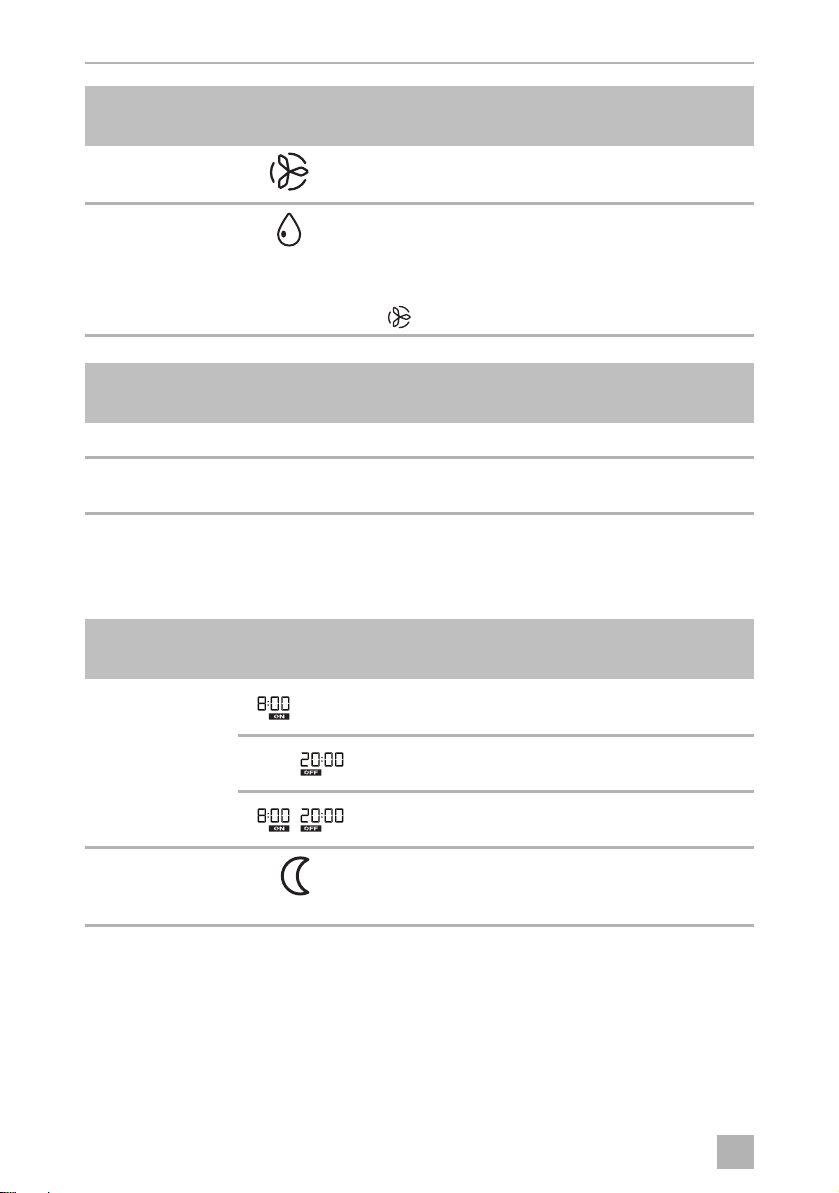

6.5 Additional functions
The under-bench air conditioner has the following additional functions:
Circulating air You specify the blower level, and the air conditioner
blows air into the interior.
Dehumidification You specify the temperature, and the air conditioner
cools the interior to this temperature and controls the
necessary blower output and dehumidify the interior
(Circulating air mode).
The button is deactivated in this mode.
Current room
temperature ϑϑ ≤ 20 °C 22 °C < ϑ< 25 °C ϑ≥ 25 °C
Setpoint: 20°C 22°C 25°C
Conditioning
mode:
Heating or
Circulating air
Dehumidification or
Circulating air
Cooling
Additional
function
Display
message Explanation
Timer The air conditioner is switched on at the specified
time.
The air conditioner is switched off at the specified
time.
The air conditioner is switched on and off at the
specified times.
Sleep The set temperature is modified by 1 °C after one hour
and by 2 °C after two hours to generate a pleasant
temperature for sleeping.
Air conditioning
mode
Display
message Explanation
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 16 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Before initial use
17
7 Before initial use
Inspection before starting up
Before you switch on the under-bench air conditioner, observe the following:
➤Check whether the supply voltage and frequency correspond to the values
specified in the technical data, see page 29.
➤Ensure both the air intake opening and the air nozzles are free. All ventilation
grilles must always be kept free to ensure that the under-bench air conditioner is
able to operate at maximum capacity.
!
Setting the time
➤Set the current time: see chapter “Setting the time” on page 24.
Set the remote control
➤Insert the batteries (see chapter “Replacing the remote control batteries” on
page 23).
✔The display shows all symbols for 5 seconds.
➤Press simultaneously the button and the button during this 5 seconds.
✔The display shows the default model number.
➤Press simultaneously +and –button within 3 seconds to select the model
number:
– FreshWell3000: 02
–FreshJet:07
–FreshLight:11
✔The display shows all symbols for 5 seconds.
✔The remote control is ready for operation.
CAUTION! Beware of injury
Do not insert your fingers or objects into the air nozzles or the intake
grille.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 17 Friday, January 13, 2023 3:23 PM

EN
Operating the under-bench air conditioner FreshWell3000
18
8 Operating the under-bench air
conditioner
8.1 Basic notes on operation
The under-bench air conditioner has three operating modes:
The receiver switches on when it receives pulses from the remote control. The
display shows (flashing) the temperature setting, after 10 seconds the display shows
the room temperature, then it switches off.
You can use the remote control to
• switch the under-bench air conditioner to and from stand-by mode.
• adjust the settings
• select additional functions
8.2 Using the remote control
The remote control must be pointed at the IR receiver (fig. 24, page 3) on the
receiver during operation.
When a button is pressed, the value is transmitted directly to the under-bench air
conditioner. The under-bench air conditioner confirms the receipt of data with ahigh
note.
Switching only the remote control to or from stand-by
In stand-by mode, the remote control display shows only the time.
If the remote control is not pointing to the IR receiver (fig. 24, page 3) on the
control panel, you can activate the remote control or switch it to stand-by
independently from the under-bench air conditioner:
➤Press the button.
Operating mode Features
Stand-by The under-bench air conditioner is ready for operation and can be
switched on with the remote control.
On The under-bench air conditioner is conditioning the air in the interior.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 18 Friday, January 13, 2023 3:23 PM

EN
FreshWell3000 Operating the under-bench air conditioner
19
8.3 Hint for improved use
The following hints will optimize the performance of your under-bench air
conditioner:
• Improve the heat insulation of your vehicle by sealing gaps and hanging reflective
blinds or curtains on your windows.
• If the vehicle has been subjected to direct sunlight for a long time: Operate the
under-bench air conditioner in the “Circulating air” ( ) mode with the windows
open for a while before switching on the “Cooling” ( ) air conditioning mode.
• Avoid opening doors and windows as far as possible in the “Cooling” ( )
mode.
• Select an appropriate temperature and blower speed.
• Align the air nozzles sensibly.
• Make sure the air nozzles and intake grille are not covered by cloths, paper or
other objects.
• Clean the air filter periodically.
8.4 Switching the under-bench air conditioner on and off
I
When you switch on the under-bench air conditioner, the device waits a few minutes
before operating the compressor.
8.5 Selecting the air conditioning mode
I
➤Select the air conditioning mode of your choice using the MODE key, see
chapter “Air conditioning modes” on page 15.
NOTE
• When it is switched on, it begins tocondition the air to the values that
were set most recently.
• You can use the remote control to switch the under-bench air
conditioner to and from stand-by mode. Press the button.
• You can operate the under-bench by remote control and via LIN bus.
If you use LIN bus control the receiver is not required.
• Don‘t use the under-bench air conditioner if the vehicle is tilted more
than 10°.
NOTE
The under-bench air conditioner must be switched on.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 19 Friday, January 13, 2023 3:23 PM

EN
Operating the under-bench air conditioner FreshWell3000
20
✔The under-bench air conditioner confirms the receipt of the values with a high
note.
✔The under-bench air conditioner is switched to the selected air conditioning
mode.
8.6 Selecting the blower setting manually
I
The blower controls the strength of the air supply.
In the “Cooling” ( ) and “Circulating air” ( ) modes, the blower levels can be
selected manually. In the other air conditioning modes, the under-bench air
conditioner controls the blower level automatically.
➤Use the button to select the desired blower level.
✔The under-bench air conditioner confirms the receipt of the values with a high
note.
✔The new blower level has been set.
8.7 Setting the temperature
I
NOTE
The under-bench air conditioner must be switched on.
Display message Explanation
Low blower level
Medium blower level
High blower level
not available in the “Cooling” ( ) mode
Automatic mode, only available in the “Cooling” ( ), “Heating”
( ) and “Dehumidifying” ( ) modes.
NOTE
The under-bench air conditioner must be switched on.
FreshWell3000_OPM_4445101821_EMEA16_20xx-xx-xx.book Page 20 Friday, January 13, 2023 3:23 PM
