English
1 Important notes
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to
ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand
and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and ap-
plication and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance
with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury
to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instruc-
tions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product informa-
tion, please visit documents.dometic.com.
2 Full installation and operation manuals
Find the full installation manual online on qr.dometic.com/bdjN2o.
Find the full operation manual online on qr.dometic.com/bdjN0x.
3 Safety instructions
WARNING! Failure to obey these warnings could result in death or serious injury.
•Electrical appliances are not toys. The appliance is not to be used by persons (includ-
ing children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they are under supervision or have been given instruction.
•Children should be supervised to ensure that they do not play with the appliance.
•This appliance can be used by children aged from 8 years and above and persons with re-
duced physical, sensory or mental capabilities or lack of experience and knowledge if they
are under supervision or have been given instruction concerning use of the appliance in a
safe way and understand the hazards involved.
•Cleaning shall not be performed by children without supervision.
•Any person who is involved with working on or
breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accred-
13

ited assessment authority, which authorises their
competence to handle refrigerants safely in ac-
cordance with an industry recognised assess-
ment specification.
•Maintenance shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other qualified personnel shall be car-
ried out under the supervision of the person competent in the use of flammable refrigerants.
•Repair of the appliance may only be carried out by qualified personnel who are familiar with
the risks involved and the relevant regulations. Inadequate repairs may cause serious haz-
ards. For repair service, contact the service center in your country (see dometic.com/deal
er).
•Always disconnect the power supply when working on the appliance.
•The appliance shall be stored in a room without
continuously operating ignition sources such as
open flames, an operating gas appliance or an
operating electric heater.
•Do not pierce or burn the appliance.
•Be aware that refrigerants may not contain an odor.
•Do not use the appliance near flammable fluids or in closed rooms.
•Ensure that no combustible objects are stored or installed near the air outlet. A distance of
at least 50 cm must be kept.
•Keep the ventilation openings clear of obstruction.
•Do not damage the refrigerant circuit.
•Under no circumstances shall potential sources
of ignition be used in the searching for or detec-
tion of refrigerant leaks. A halide torch (or any
other detector using a naked flame) shall not be
used.
•The roof air conditioner shall be installed in a vehicle with a floor area larger than 4 m².
•Do not use means to accelerate the defrosting process or to clean, other than those recom-
mended by the manufacturer.
CAUTION! Failure to obey these cautions could result in minor or moderate injury.
•Do not reach into air outlets or insert any foreign objects in the appliance.
•Do not undo the upper cover of the appliance in the event of a fire. Use approved extin-
guishing agents instead. Do not use water to extinguish fires.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified personnel in order to avoid a hazard.
14

•In case that the appliance contains an ionizer, consult your physician if you have a medical
condition. The ionizer can produce ozone (O3) in small quantities. If you suffer from lung
disease, asthma, heart disease, respiratory disease, respiratory problems, or have an ozone
sensitivity, consult your physician to determine whether the use of this device is safe for you.
NOTICE! Damage hazard
•The appliance shall be stored so as to prevent mechanical damage from occurring.
•Do not make any alterations or conversions to the appliance.
•Never drive through automatic car washes when the appliance is mounted.
•If faults occur in the refrigerant circuit, the appliance must be checked and repaired by the
manufacturer, its service agent or similarly qualified personnel in order to avoid a hazard.
4 Intended use
The roof air conditioner is only designed for installation on the roof of a caravan or recreational vehicle to provide
cooling and heating.
The roof air conditioner is not suitable for trains, houses and apartments. The roof air conditioner is not suitable
for installation in construction machines, agricultural machines or similar equipment.
This product is only suitable for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or operation of the product. Poor
installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible
failure.
The manufacturer accepts no liability for any injury or damage to the product resulting from:
•Incorrect assembly or connection, including excess voltage
•Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product specifications.
5 Explanations of symbols on the appliance
Warning! Low burning velocity material.
Read operating manual.
Read service manual.
15

6 List of models
The models are differentiated between mechanical, fixed-speed and inverter models.

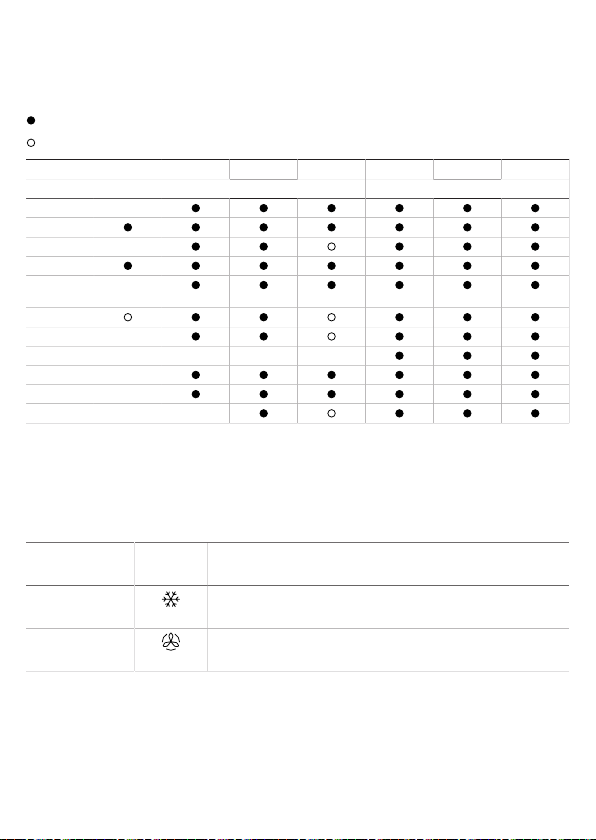

The following table shows which function applies to a specific model:
Feature is available
Feature is upgradable
FJX4233M FJX4233EEH FJX4333EEH FJX4333E FJX7333IHP FJX7337IHP FJX7457IHP
Mechanical Fixed-speed Inverter
Automatic
Cooling
Heating
Ventilation
Dehumifica-
tion
Air purifier
ADB light
External light
Timer
Sleep
So start
7 Air conditioning modes
Air conditioning modes of mechanical models
The roof air conditioner has the following air conditioning modes:
Air conditioning
mode
Displayed
symbol
Description
Cooling You specify the temperature and fan settings, and the roof air conditioner cools
the interior to this temperature.
Ventilation You specify the fan settings, and the roof air conditioner circulates air without
heating or cooling.
16

Air conditioning modes of fixed-speed and inverter models
Air conditioning
mode
Displayed
symbol
Description
Automatic You specify the temperature, and the roof air conditioner brings the interior to this
temperature by heating or cooling and by controlling the necessary fan speed.
Cooling You specify the temperature and fan settings, and the roof air conditioner cools
the interior to this temperature.
Heating You specify the temperature and fan settings, and the roof air conditioner heats
the interior to this temperature. The fan will only start after 2 min (on Low speed)
and then after around 5 min will go to the set fan speed (after the evaporator
reaches temperature).
Only available for models with heating mode.
Ventilation You specify the fan settings, and the roof air conditioner circulates air without
heating or cooling.
Dehumidifying The roof air conditioner removes moisture from the air without heating or cooling
the interior thus decreasing the relative air humidity.
Air purifier The roof air conditioner ionizes the air, thus collecting dust and particles including
to viruses and bacteria out of the air.
Only available for models with air purification mode.
8 Before initial use
1. Ensure that both the air intake openings and the air nozzles are free. All ventilation grilles must always be
kept free to ensure that the roof air conditioner is able to operate at maximum capacity.

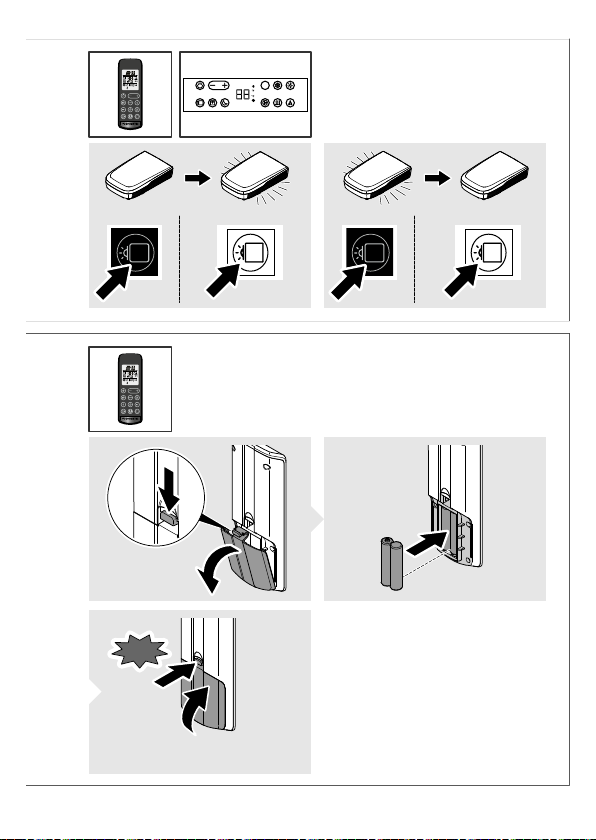

2. Insert the batteries into the remote control (only FreshJet FJX4233EEH/FJX4333E(EH)/FJX7333IHP/
FJX7337IHP/FJX7457IHP).

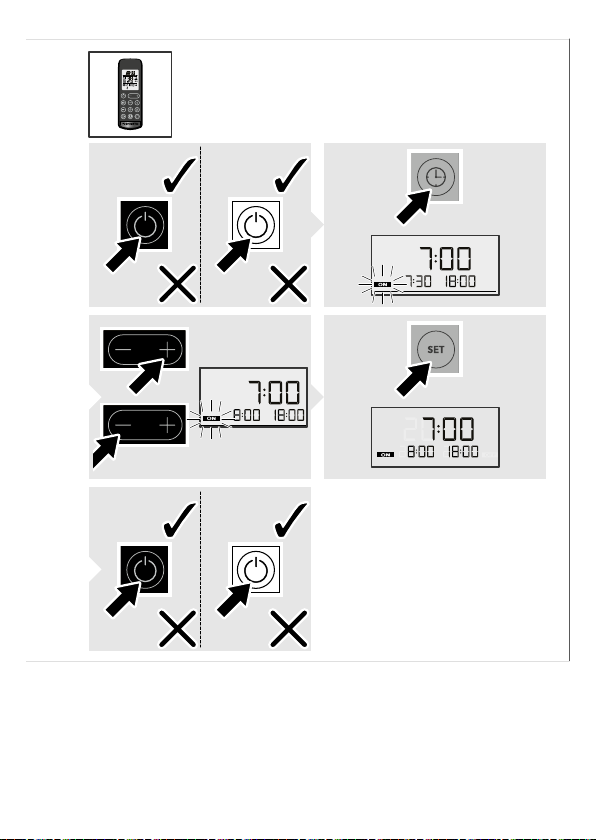

3. Set the current time (only FreshJet FJX4233EEH/FJX4333E(EH)/FJX7333IHP/FJX7337IHP/FJX7457IHP).
9 Operation
9.1 Dometic FreshJet FJX4233M
The given information in this chapter applies only to the FJX4233M roof air conditioners.
Switching the roof air conditioner on and choosing the air conditioning mode:

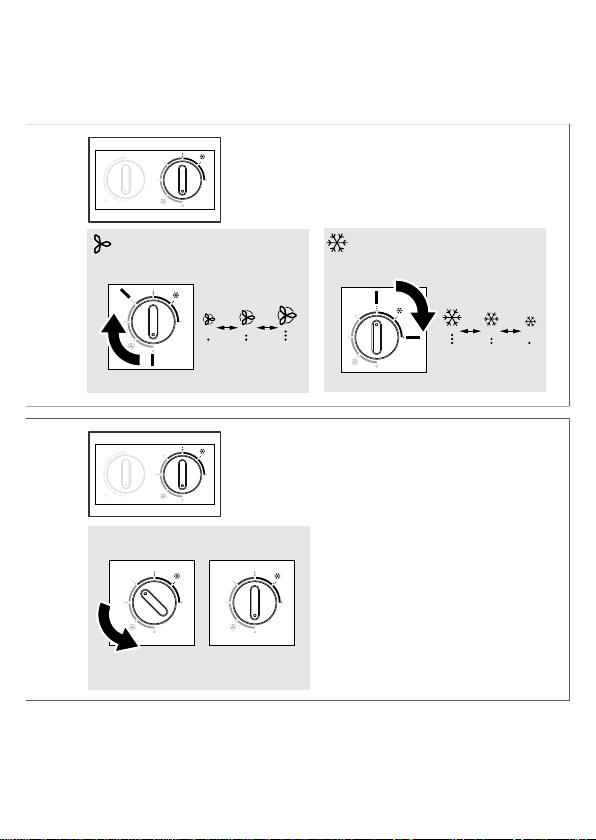

Fig. on page1
Switching the roof air conditioner off:
Fig. on page1
17

Setting the temperature:

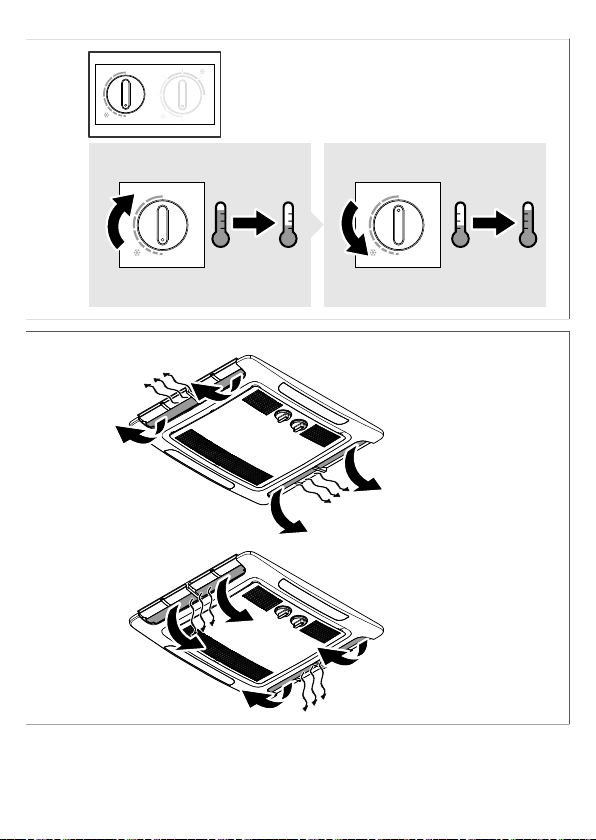

Fig. on page2
Regulating air supply within the vehicle:
Fig. on page2
9.2 FreshJet FJX4233EEH/FJX4333E(EH)/FJX7333IHP/FJX7337IHP/
FJX7457IHP
WARNING! Risk of injury
By law it is forbidden to use the external lights when driving the vehicle.
The given information in this chapter applies only to the FreshJet FJX4233EEH/FJX4333E(EH)/FJX7333IHP/
FJX7337IHP/FJX7457IHP roof air conditioners.
You can operate the roof air conditioner either with the remote control or with the control panel. Some functions
can only be opreated with the remote control. The figures indicate this with the following symbols:
•
AUTO
: Operate with remote control or control panel
•
: Operate with remote control only
Switching the roof air conditioner on and to standby:
Fig. on page3
Selecting the air conditioning mode:
Fig. on page3

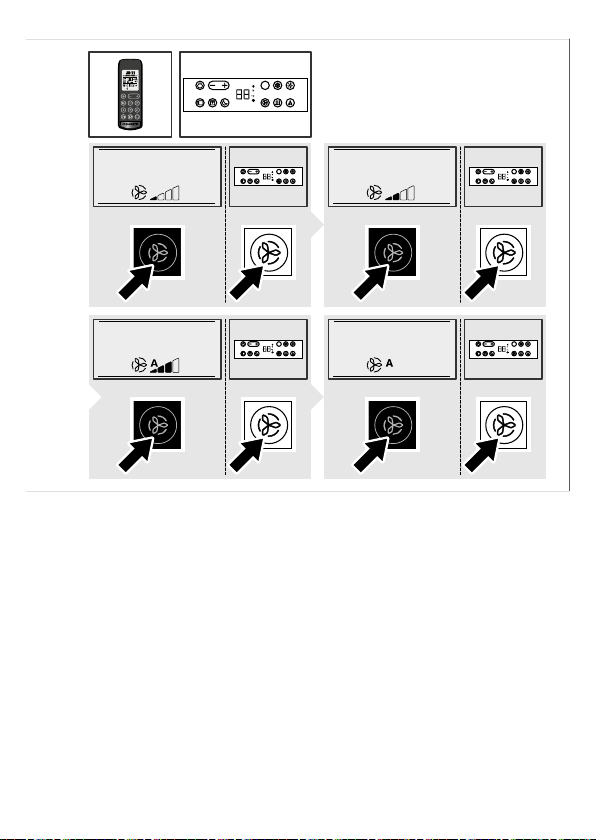

Selecting the fan speed manually:
Fig. on page4
Setting the temperature:
Fig. on page5

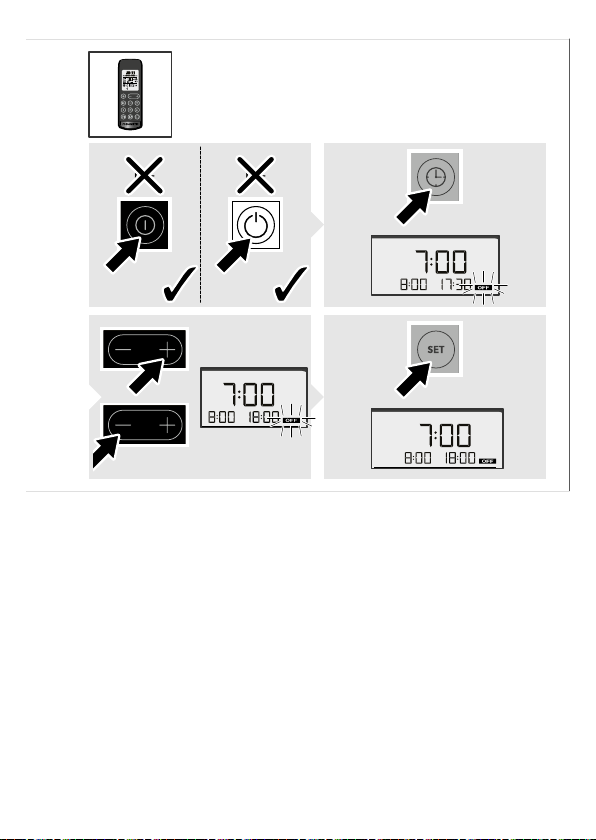

Setting the current time:
Fig. on page6
Setting the switch-on timer:
Fig. on page7
Setting the standby timer (the roof air conditioner cannot be completely switched off):
Fig. on page8
Setting the switch-on and the standby timer at the same time:
Fig. on page9
18
