Dometic CK2000 User manual
8251286-00
Type: CK2
MO-M 0751
CK2000 CIRCULAIR
I
N
T
E
R
T
E
K
DE
EN
ES
FI
Fr
It
Nl
No
SE
- 3 -
PRODUKTÜBERSICHT____________________5
MONTAGEANLEITUNG____________________6
BETRIEBSANLEITUNG ____________________8
PRODUKTPFLEGE _______________________9
ANHANG _______________________________75
ACHTUNG
!
WARNUNG
!
ACHTUNG
ACHTUNG
- 4 -
•
•
•
•
•
•
•
•
•
•
•
- 5 -
MONTAGEABLAUF
1
2
1
3
4
2
3
- 6 -
- 7 -
Einige Tipps und Ratschläge
•
•
•
WARNUNG
!
- 8 -
WARNUNG
!
- 9 -
- 10 -
- 11 -
PRODUCT OVERVIEW ___________________12
INSTALLATION INSTRUCTIONS ___________13
OPERATING INSTRUCTIONS _____________15
Indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in mi-
nor or moderate injury.
Used without the safety alert symbol indicates, a potentially hazardous situation
which, if not avoided may result in property damage.
Step-by-step instructions
Information
The following symbols are used throughout the manual:
CAUTION
!
WARNING
!
To avoid the risk of accidents or damage to the appliance it is essential to
read these instructions before it is installed or used for the first time. Keep
the manual in a safe place and ensure that all users are familiar with the
contents. Pass them on to any future owner of the appliance.
CAUTION
CAUTION
PRODUCT CARE ________________________16
APPENDIX ______________________________75
- 12 -

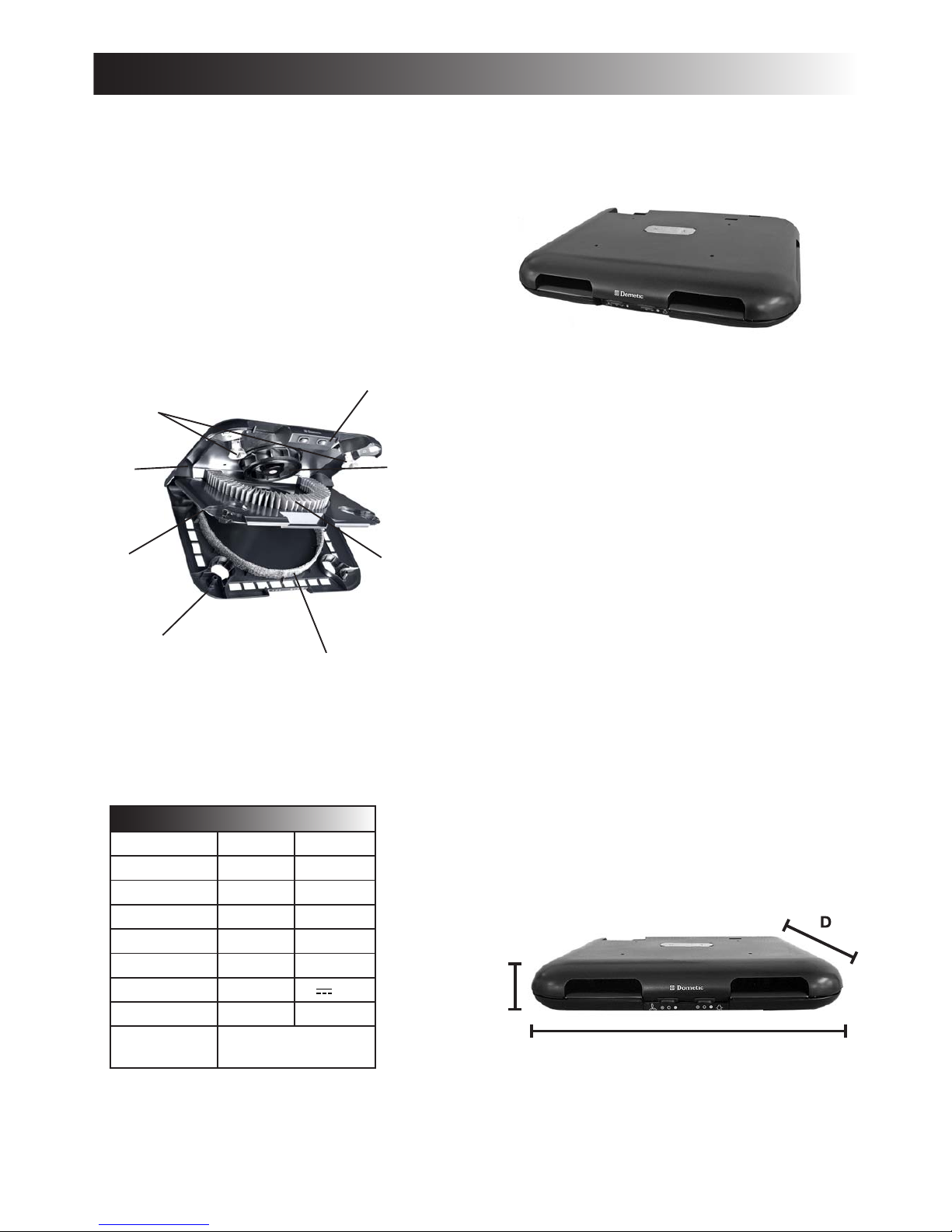

Height (H) 56 mm
Width (W) 400 mm
Depth (D) 280 mm
Weight 2200 g
Motor power 5 W
Power max. 25 W
Voltage 12 V
Capacity 45 m3/h
Halogen
lights 2x 10W, 12V GU4
CK2000 Circulair is an air recirculating carbon
filter cooker hood which enables cooking without
odours. It is intended for use in caravans, motor-
homes and boats. The hood is designed to be
installed underneath the cupboard above the food
preparation area and at a minmum distance of
65 cm from any open flame. The hood is easy to
install and you do not need to cut out a hole for a
roof ventilator.
CK2000 Circulair helps maintaining a clean at-
mosphere in the mobile home. A roof-mounted
ventilator is not necessary as the cleaned air is
returned downwards while the suction is concen-
trated along the edges. This creates an air-dome
which stops fumes escaping and at the same time
ensures excellent suction performance.
Features:
Quick and easy to install.
Lateral air suction ensures high performance of
45 m3/h.
Air dome prevents cooking-fumes from escaping
Fire and heat resistant.
Space-saving mounting under cupboard.
Adjustable two-speed fan.
Easy access to grease filter, carbon filter and
lamps.
Low weight (2,2 kg), sound level (50 dB at
1meter) and DC-consumption (5 W).
Two detachable filters: A grease filter which remo-
ves steam and grease from the air and a carbon
filter that removes odours.
Washable grease filter and screen.
Two switches (3 positions: high/full, low and off).
2 built-in halogen lights (2 x 10 W).
•
•
•
•
•
•
•
•
•
•
•
•
Thank you for choosing this quality cooker hood, CK2000 Circulair! It has been designed to give years of
troublefree service, provided it is installed and maintained correctly.
CONTROL
PANEL
RADIAL
FAN
CARBON
FILTER
GREASE
FILTER
HALOGEN
LAMPS
TOP
COVER
MIDDLE
COVER
BOTTOM
COVER
- 13 -
Detach middle cover and put it aside.
INSTALLATION PROCEDURE
TO INSTALL THE COOKER HOOD, FOLLOW THESE
STEPS:
Before installing, disconnect from mains
power and the 12 V supply.
Locate the two screws at the bottom of
the cooker hood. Use a Phillips-head
screwdriver and remove the screws and
washers. (Save for later use.)
Disengage the bottom cover and put it
aside.
1
2
3
4
1
2
3
- 14 -
Locate the terminal block at the back of
the top cover. Connect the red and black
wires: red to red and black to black/blue.
Mount the top cover under the cupboard.
Use a Phillips-head screwdriver and se-
cure the top cover with the four provided
screws.
Hook on the cover and snap into place.
Finally, hook on the bottom cover and
secure with the two screws and washers
saved earlier.
The cooker hood is now ready for use.
- 15 -

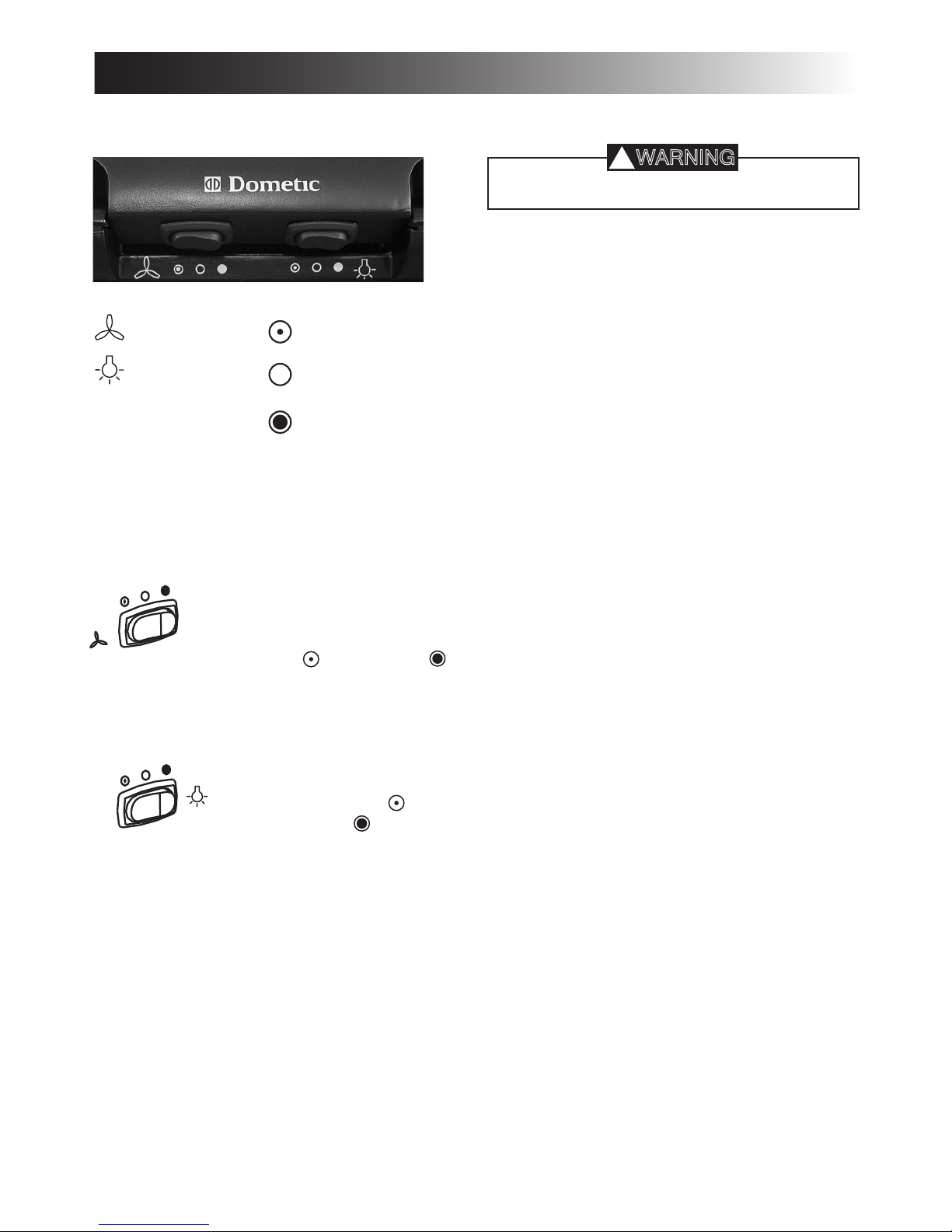

Fan motor
Light
Low speed
Low light
Off
High speed
Full light
Some tips and advice
Using the low light option will extend the life of
the lamps.
Always turn hood ON when cooking at high
heat. You will find it helpful to turn the cooker
hood on a few minutes before you start coo-
king. This starts to move the air in the kitchen
and will speed up the elimination of cooking
odours.
It is advisable to run the fan for a few minutes
after cooking is finished to neutralise any ling-
ering odors in the air.
•
•
•
Press the switch
to turn the cooker hood on/off.
Depending on the intensity of
the cooking vapours, select
low speed or high speed .
Press the switch to
turn the light on/off.
Select low light setting
or full light setting .
WARNING
!
- 16 -

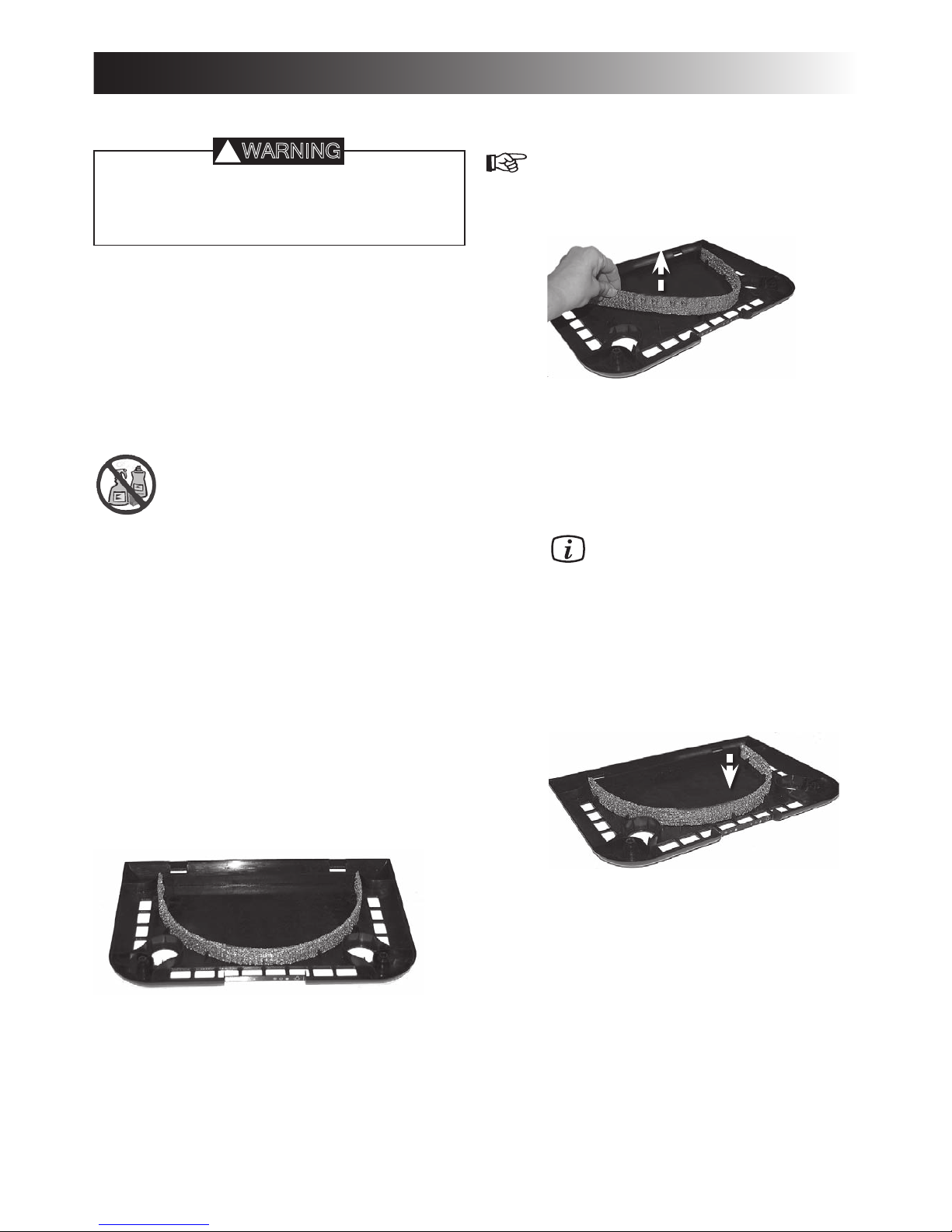

The filter absorbs grease in cooking fumes and re-
quires cleaning now and then. How often depends
on how much the cooker is used and for how much
the fan is in operation.
Remove and clean the filter regularly and do not
wait until the suction power of the fan begins to de-
crease noticeably. Note that an oversaturated filter
is a fire hazard.
The grease filter is mounted on the bottom cover.
TO CLEAN THE FILTER, FOLLOW THESE STEPS:
Disengage the bottom cover as described
in “Installation procedure”, steps 1-3.
Observe how the filter is installed before
removing. Lift filter straight up to remove.
Clean the filter. Either by hand, using a soft
nylon brush, warm water and a little wash-
ing up liquid - or - in a dishwasher where
the filter should be placed with the short
side upright in the lower basket, ensuring
the spray arm is not obstructed. Wash using
a 65 °C (145-150 °F) programme.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface. Ho-
wever, this will not affect the
functioning of the filters in any way.
Allow the filter to dry.
Put back the filter.
Put back the cover and secure with the
two screws and washers.
WARNING
!
Please observe that the surfaces and controls are
susceptible to scratches and abrasions. All external
surfaces and controls can be cleaned using warm
water with a little washing-up liquid applied with a
sponge or cloth. Wipe the surfaces dry using a soft
cloth.
Do not use cleaning agents contain-
ing soda, acids, chlorides or solvents.
Avoid abrasive cleaning agents, e.g.
powder cleaners or cream cleaners and
abrasive sponges as these will damage
the surface material.
- 17 -

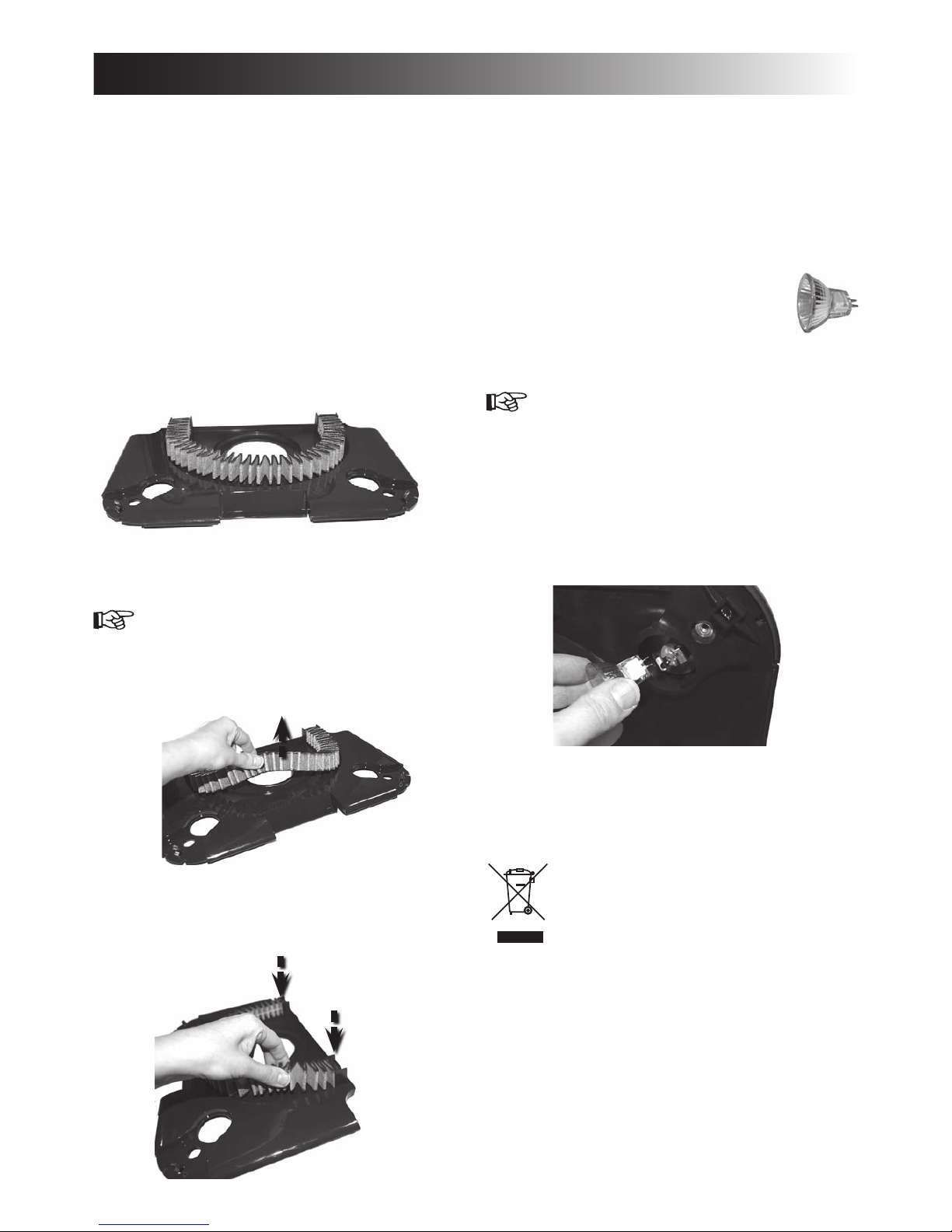

Reinstall the middle cover and snap into
place.
Reinstall the bottom cover and secure
with the two screws.
Halogen lamps get very hot during use
and remain hot for some time after being
switched off. Please allow the halogene
lamps to cool before removing.
TO CHANGE THE LAMP, FOLLOW THESE STEPS:
The lamps are mounted on the top cover.
In order to replace the lamps you need to
disengage the bottom and middle covers.
For instructions, see “Installation proce-
dure”, steps 1-4.
Gently pull to remove the lamps from their
sockets.
Replace with halogen lamps of the same
specification (10W, 12V GU4) and put
back the cover.
Appliances bearing this symbol must
be deposited at the designated local
reception point for the disposal of
electrical and electronic equipment.
It is not permitted that this product
be disposed of by way of the normal
household refuse collection system.
The carbon (charcoal) filter is used to neutralise
odours when your hood is recirculating air around
the living area.
The charcoals many small pores form a very fine
filter. Many gases are carbon based and thus, char-
coal filters are very good at removing odors, such
as cigarette smoke, cooking odors, and fumes.
Over time the carbon filter becomes less efficient,
because the small pores in the charcoal gradually
get filled. The carbon filter therefore needs at some
stage to be replaced. Under normal operating con-
ditions it should be replaced every 6 months.
The carbon filter is mounted on the middle cover.
TO REPLACE THE FILTER, FOLLOW THESE STEPS:
Disengage the bottom and middle covers
as described in “Installation procedure”,
steps 1-4.
Observe how the filter is installed before
removing. Lift filter straight up to remove.
Replace with a new filter. Note that the
carbon filter must be in place for the
cooker hood to operate.
- 18 -
In the event of a fault which you cannot correct
yourself, or if the appliance is under guarantee,
please contact your nearest Service Center.

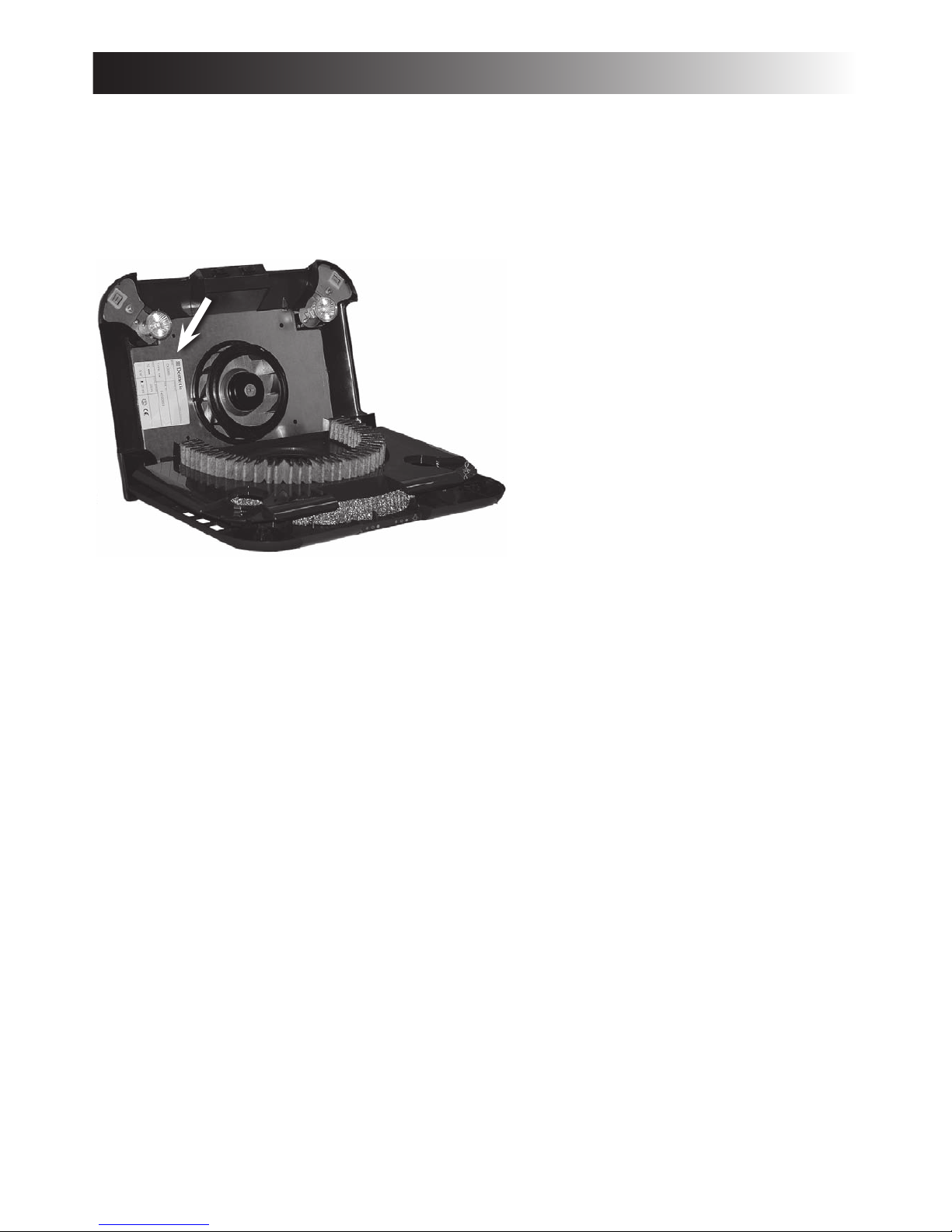

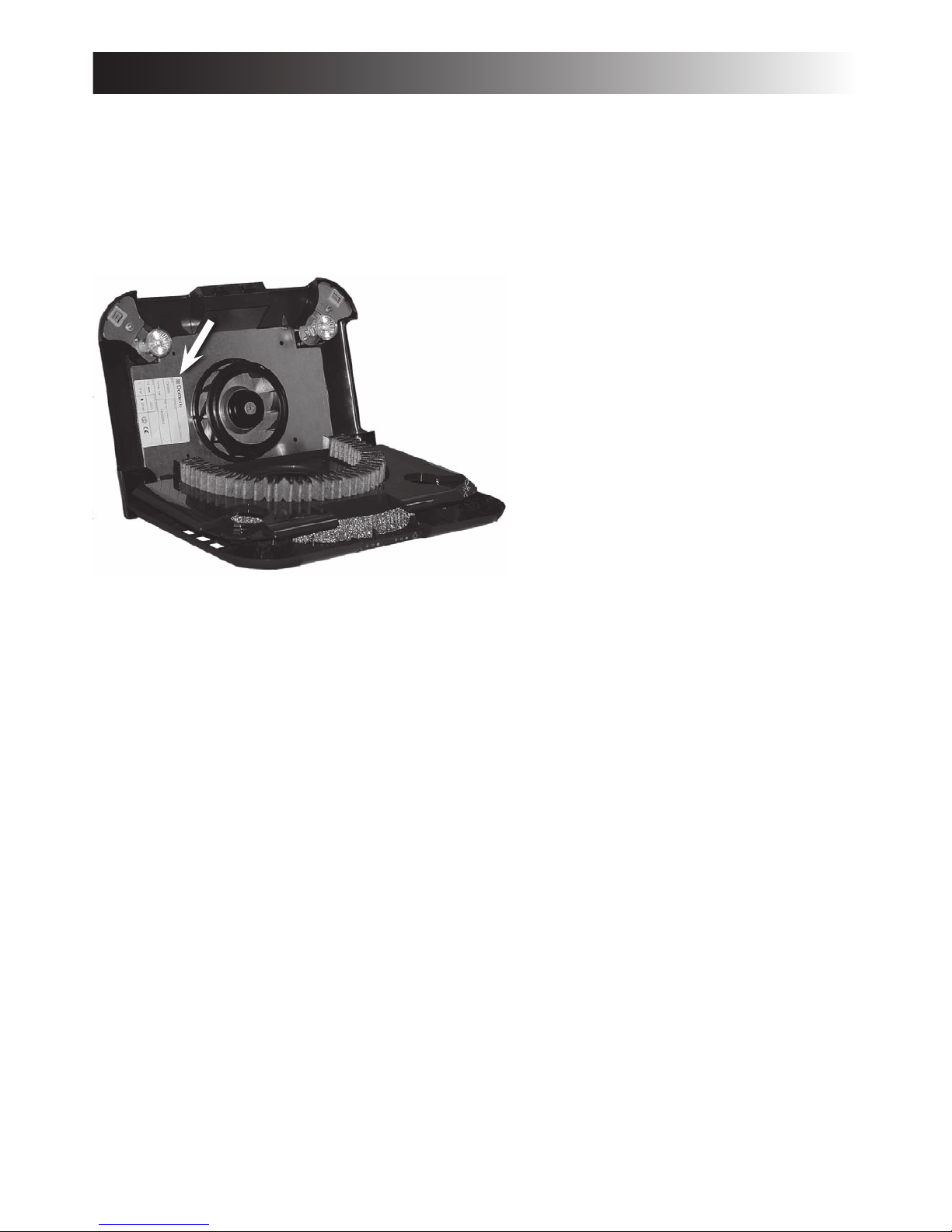

The model and serial numbers are shown on the
data plate which is located on the upper cover.
For your convenience, make a note of the
information here:
Model ...................................
Product No...............................
SerialNo.................................
- 19 -
DESCRIPCIÓN GENERAL DEL PRODUCTO_20
INSTRUCCIONES DE INSTALACIÓN _______21
INSTRUCCIONES DE FUNCIONAMIENTO __23
MANTENIMIENTO DEL APARATO _________24
ATENCIÓN
!
ATENCIÓN
ADVERTENCIA
!
ATENCIÓN
- 20 -
•
•
•
•
•
•
•
•
•
•
•
•
