domi LGMF1595 User manual

ASSEMBLY MANUAL
12'×20' Metal Patio Gazebo
d mi
o u t d o o r l i v i n g
Missing part? Damaged? Contact us via email at
[email protected]
Copyright 2022-2024 domi LLC. I All Rights Reserved.
©
MODEL#: LGMF1595

Use bolts to secure the frame to the ground to against the strong wind.
！

Pole Beam
BeamBeam
Beam
Corner Roof Bar
Solidfying BarSolidfying Bar
Finishing Bar
Finishing Bar Finishing Bar
Beam
Corner Roof Bar Connector Roof Bar
Solidfying Bar
Beam

Finishing Bar Finishing Bar
Finishing Bar
Finishing Bar
Finishing Bar
Finishing Bar
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Finishing
Bar
Finishing Bar
Finishing Bar Finishing Bar
Finishing
Bar

Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel

Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel
Roof Panel Net Frame
Net FrameNet FrameNet Frame
Base Joint Cover Joint Cover
Union Bar Corner
Solidifying Bar
Corner
Solidifying Bar
Inside Roof
Connector
Base
Outside Roof
Connector J-Hook Bracket Bracket

Bracket
Bracket Joint Cover Bracket
Hook Spacer Bracket Corner Cover
Finishing End Solid Sidewall
(need to buy extra)
Finishing End Mosquito
Sidewall
Plastic Bracket Plastic Bracket
Plastic Bracket Plastic Bracket Plastic Bracket
Mosquito
Sidewall
Solid Sidewall
(need to buy extra)

(3) Attach Part #B to Part #A
with 3 Bolts #8.
(4) Repeat the above procedures to assemble the other 3 Part #A.
(1) Attach 2 Part #B1 to Part #A
with 4 Bolts #8.
(2) Attach 2 Part #B2 to Part #A
with 4 Bolts #6.

(1) Attach 2 Part #B1 to Part #A1
with 4 Bolts #8.
(2) Attach Part #B3 to Part #A1
with 4 Bolts #8.
(3) Repeat the above procedures to assemble another Part #A1.

(1) Insert Part #C2 into Part #C1
and secure with 3 Bolts #8.
(2) Insert the other side of
Part #C2 into Part #C and
secure with 3 Bolts #8.
(4) Insert Part #X into the beam
and secure with 1 Bolt #8.
(3) Connect Part #C1 and
Part #C through Part #C2.
(6) Repeat the above procedures to assemble the other Part #C and Part #C1.
(5) Secure the bottom of Part #X
and Part #C/C1 with 3 Bolts #8.

(1) Insert Part #C2 into Part #D,
and secure with 3 Bolts #8.
(2) Insert the other side of
Part #C2 into Part #D2 and
secure with 3 Bolts #8.
(3) Connect Part #D and
Part #D2 through Part #C2.
(4) Insert Part #X into the beam
and secure with 1 Bolt #8.
(5) Secure the bottom of Part #X
and Part #D/D2 with 3 Bolts #8.
(6) Repeat the above procedures to assemble the other Part #D & #D2.
20x

11

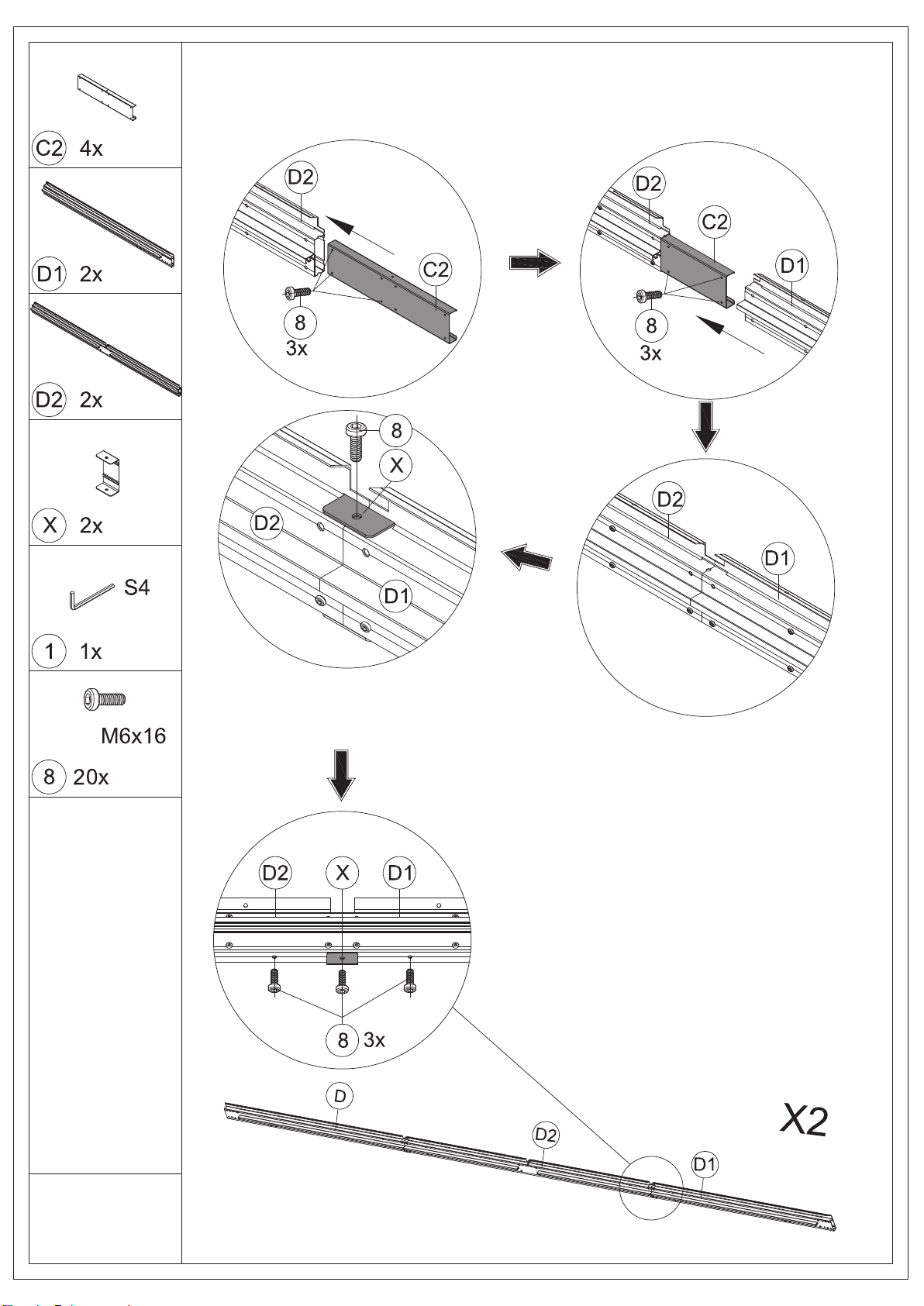

(1) Insert Part #C2 into Part #D2,
and secure with 3 Bolts #8.
(2) Insert the other side of
Part #C2 into Part #D1 and
secure with 3 Bolts #8.
(3) Connect Part #D2 and
Part #D1 through Part #C2.
(4) Insert Part #X into the beam
and secure with 1 Bolt #8.
(5) Secure the bottom of Part #X
and Part #D2/D1 with 3 Bolts #8.
(6) Repeat the above procedures to assemble the other Part #D2/#D1.

(1) Connect Part #C and #D to Part #A with 8 Bolts #4.
(From Outside)
(2) Repeat the above procedures to assemble the other 3 corners.
Please don't tighten all bolts.
12

(1) Connect Part #C and #D to Part #A with 4 Bolts #8.
(From Inside)
Repeat the above procedures to assemble the other 3 corners.
Please don't tighten all bolts.
13

(1) Connect Part #A1 to the middle of Part #D2 with 5 Bolts #8.
Repeat the above procedures to assemble the opposite side.
Please don't tighten all bolts.
14

(1) Affix Part #R and Part #R1 to the frame with 8 Bolts #8.
Repeat the above procedures to assemble the other 3 corners.
Please don't tighten all bolts.
15

Tighten all bolts.
(1) Cover the corner with Part #X1. (2) Secure with 2 Self-tapping
Screws #3. (from top to bottom)
(3) Secure with 2 Self-tapping
Screws #3. (from bottom to top)
Repeat the above procedures to assemble the other 3 corners.
16

Assemble the 4 Corner Roof Bars:
(1) Connect Part #E1 and Part #E with 2 Bolts #8 .
(2) Attach Part #U to Part #E with Bolt #8 .
(3) Repeat the above procedures to assemble the other
3 corner roof bars.
17
