Doran DS4500 User manual

DS4500
Infant Lactation Scale
Technical Manual
MAN0348 –Rev 1 Doran Scales, Inc. www.doranscales.com

Section 1. Unpacking and Installation 1
Introduction ..................................................................................................................1
Unpacking....................................................................................................................1
Cautions and Warnings................................................................................................1
Care & Cleaning...........................................................................................................1
Installation....................................................................................................................2
Battery Installation........................................................................................................2
Section 2. Scale Operation......................................................................3
Display Pushbuttons.....................................................................................................3
Weighing a Patient.......................................................................................................5
Zero Operation.............................................................................................................5
Reweigh Operation.......................................................................................................5
Feed Function ..............................................................................................................6
Section 3. Scale Calibration....................................................................7
Multiple Point Calibration..............................................................................................7
Calibration Troubleshooting .........................................................................................7
Section 4. Parameter Setup.....................................................................9
Entering and Exiting Setup Mode.................................................................................9
Setup Mode Navigation................................................................................................9
Calibration Weight Selection ........................................................................................9
Calibration Mode Selections.........................................................................................9
Start Up Zero..............................................................................................................10
Automatic Shutoff Timer.............................................................................................10
Raw Counts................................................................................................................10
Section 5. Specifications........................................................................11
Section 6. Troubleshooting...................................................................12
General Problem Resolution ......................................................................................12
Error Messages..........................................................................................................13

Section 1. Unpacking and Installation
Introduction
Thank you for purchasing a Doran scale. This product has been designed with
the highest level of technology. We are dedicated to deliver a superior product
that will provide many years of trouble free service.
As an ISO9000 registered company, Doran Scales is dedicated to delivering
products built with strict compliance to our high quality standards. If you have
any questions regarding your scale, please contact Doran Scales, Inc.
Unpacking
Carefully remove the scale from the shipping carton. If you notice any shipping
damage, notify the shipper immediately. Be sure to retain all shipping materials
in case the scale must be shipped elsewhere.
Cautions and Warnings
Your new scale is a durable industrial grade product, but it is also a sensitive
weighing instrument. Normal care should be taken when handling and using this
product. Improper handling or abuse can damage the scale and result in costly
repairs that may not be covered by the warranty. Please observe the following
precautions to insure years of trouble free service from your new scale.
Do not use sharp objects to press any of the buttons.
Do not use the scale if the scale is damaged in any way.
Do not leave patients unattended on the scale.
Do not exceed the scale capacity.
Do not drop the scale.
Do not drop objects on the scale.
When transporting, do not hit other objects, walls or doorframes with the
scale.
Care & Cleaning
With reasonable care, this product will last for many years. Here are some tips to
care for your scale. Failure to comply with these guidelines may void the
warranty.
Hand clean the scale platform and indicator with a moist cloth.
Only clean with a mild detergent.
Do not get water inside the scale.
Do not use strong solvents or abrasive cleaners as this can damage the touch
panel or other plastic parts.
Do not immerse.
Examine the scale periodically for damage and wear and tear before use.
Remove batteries during long periods of non-use.
Installation
Place the scale on a stable flat surface. The scale should rest evenly on all four
feet.

2
Battery Installation
The DS4500 comes with the ability to take four AA alkaline batteries. These
batteries supply a year’s of typical use with the standard Automatic Shutoff Timer
settings. The standard Automatic Shutoff Timer setting is 10 seconds.
The batteries can be accessed on the bottom of the scale. To access the battery
compartment, turn the scale upside down and open the battery compartment
door. When installing the new set of batteries, be sure the batteries are oriented
properly.

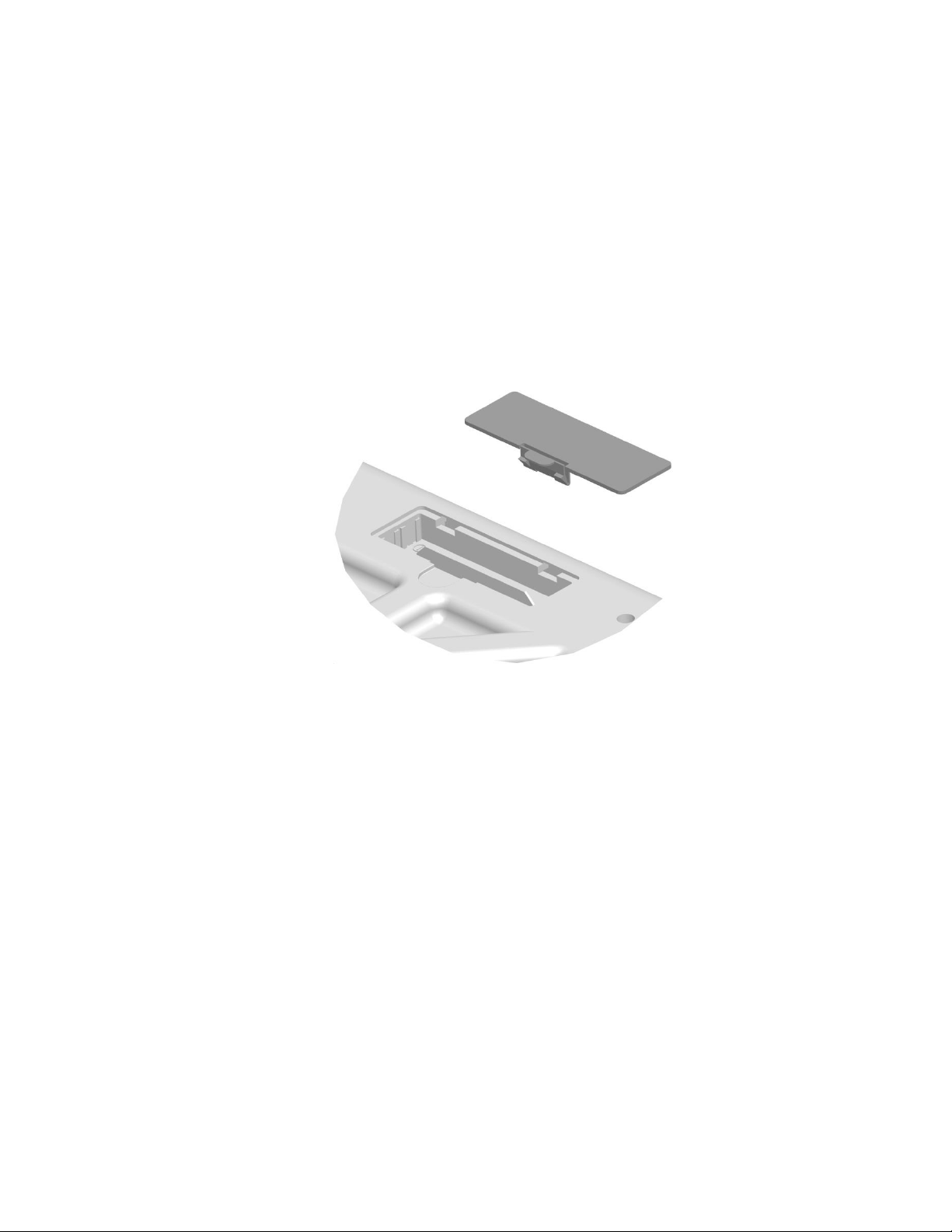

Fig. 1 Battery Door

3
Section 2. Scale Operation

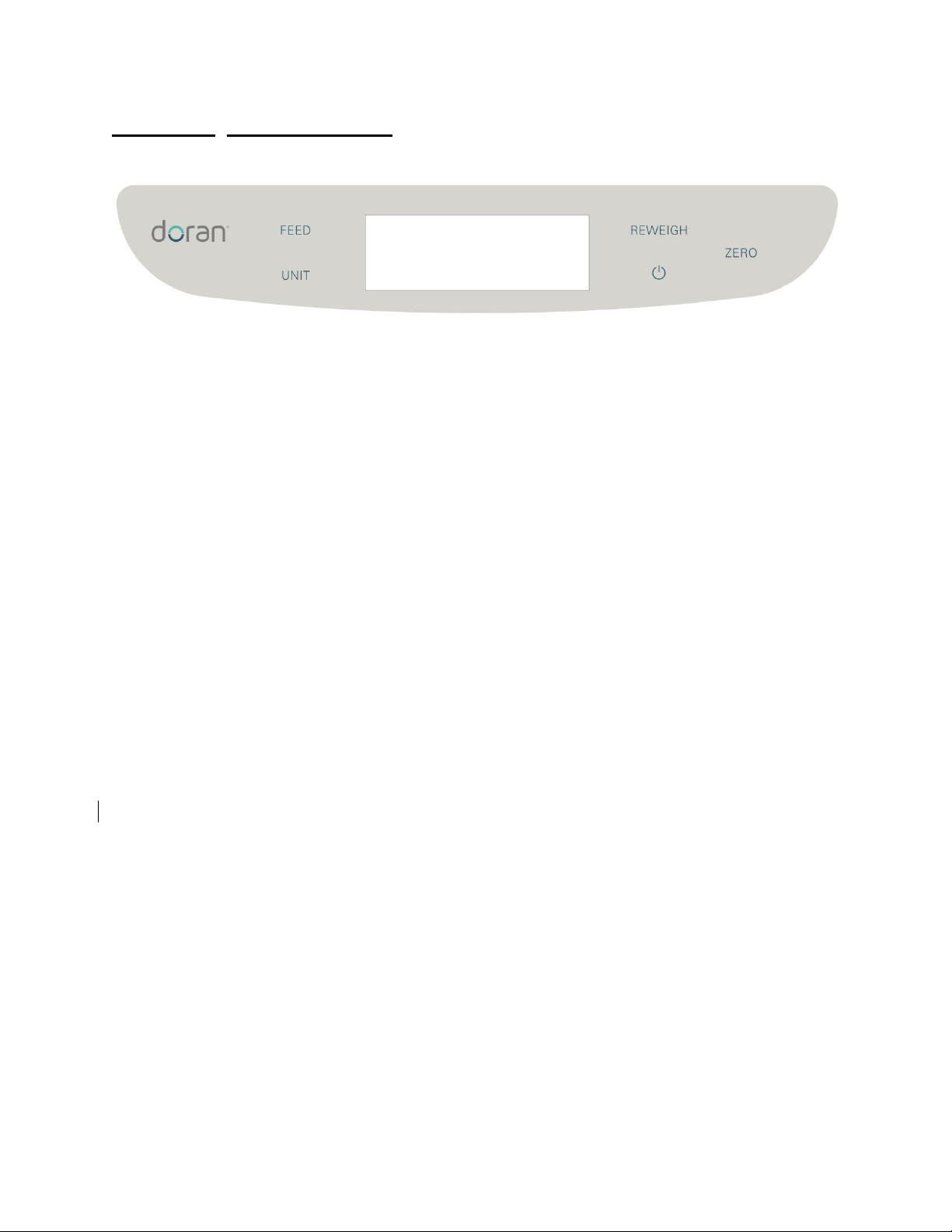

Fig. 2 DS4500 Front Panel
Display Pushbuttons
The Model DS4500 controls consist of FEED, UNIT, REWEIGH, POWER and
ZERO buttons. The display is used to provide weight indications and operator
messages indicating scale operation.
Power On/Off
Press the Power button to turn on and off the scale. The scale has an adjustable
Automatic Shutoff Timer that will power down the scalewhen not in use.
Zero When the zero button is pressed, the scale will be reset to zero weight. This
feature can be used to zero out any weight not desired to be part of the patient
weight.
Unit Press to cycle between lb, lb:oz and kg. The current unit will be displayed to the
right of the weight digits.
Note: Each unit can be disabled individually with the units enable / disable
parameters.
Reweigh
To reinitiate the weighing process, press REWEIGH. This will allow a weighment
to be reinitiated without the patient having to get off the scale platform.
Feed Activates the feed function. See feed function section below.

4
Display Annunciators
The display annunciators will indicate the scale status.
Center of Zero (►0◄)
Indicates that the scale has an accurate zero reading.
Hold Indicates a stable weight has been achieved and held on the display. This
indicates an accurate weight has been achieved.
Low Batt
Indicates when the batteries require replacement.
BEFORE FEED
Indicates the next held weight recorded will be recorded for BEFORE FEED data
string.
AFTER FEED
Indicates the next held weight recorded will be recorded for AFTER FEED data
string.
AMOUNT FED
Indicates the amount of food the baby has retained is displayed and transmitted.

5
Weighing a Patient
1. Press On/Off. The scale will turn on and display a zero weight.
2. Place patient on the scale.
3. When a stable weight is reached the display will lock and the HOLD
annunciator will be displayed.
4. The weight will be locked until the scale shuts off.
Zero Operation
1. With the scale off, place item to be zeroed out on the scale platform.
2. Press On/Off. The scale will turn on and display a zero weight. If the item is
removed, a negative weight will be displayed.
Note: Each time the scale is powered up, the zero point is reset.
3. Place the patient on the scale and the patient’s weight, less the item’s weight
will be displayed.
OR
1. With the scale on, press ZERO.
2. The display will display dashes.
3. When scale becomes stable, the display will read zero.
Reweigh Operation
With the patient on the scale platform, press REWEIGH to reinitiate the weighing
process.

6
Feed Function
Accurately measuring infant milk intake during breastfeeding is important in the
management of infants, as well as in addressing breastfeeding concerns with
healthy infants at home
(Amount fed weight = After feed weight –Before feed weight)
When Before Feed annunciator is activated, the automatic shutoff timer is
deactivated.
Instructions for Weighing
1. Turn on scale
2. Press Feed
3. Place infant on the scale
4. BEFORE FEED and HOLD annunciator is activated and scale beeps.
Display reads infant weight.
5. Remove the infant from the scale and feed the infant.
6. Place infant on the scale.
7. Press Feed –AFTER FEED annunciator is activated
8. Hold annunciator is activated and scale beeps. Display reads post infant
weight
9. Press Feed –Amount fed is displayed, and AMOUNT FED annunciator is
activated
10.Operator must press on/off to turn off scale

7
Section 3. Scale Calibration
Multiple Point Calibration
This scale requires multipoint calibration. Do not attempt to calibrate this scale
without using calibrated test weights in the amounts stated below. This calibration
sequence will result in the most accurate calibration possible. CAUTION: Calibrating
this scale improperly will void the warranty and will require field service or return of
the scale to the factory.
1. Turn the scale on by pressing the ON/OFF button.
2. To calibrate in pounds, press FEED. To calibrate in kilograms, press UNIT.
3. Press and hold ZERO and REWEIGH simultaneously.
4. When the display reads Cal 25 lb (CAL10 kg), release ZERO and REWEIGH.
5. Press and hold the FEED button until the display reads CALSP.
6. Press UNIT and the display will read CAL 0.
7. Remove all weight from the scale.
NOTE: During calibration be sure vibration and air currents are not present.
8. Press FEED. The display will count down to zero. The counter will reset if too
much vibration is present.
9. Once the zero calibration is successful, the display will read 10 lb (5 kg).
10.Place 10 lb (5 kg) on the scale and press FEED.
11.When successful, the display will read 20 lb or 10 kg.
12.Place 20 lb (10 kg) on the scale and press FEED.
13.When successful, the display will read 30 lb or 15 kg.
14.Place 30 lb (15 kg) on the scale and press FEED.
15.When successful, the display will read 40 lb or 20 kg.
16.Place 40 lb (20 kg) on the scale and press FEED FEED.
17.When successful, the scale will return to the weigh mode.

8
Calibration Troubleshooting
If Err 0 appears on the display during step 8, the calibration zero is out of range.
Remove all weight from the platform and press FEED to perform the zero calibration
again.
If ErrSp appears on the display during step 10,12, 14 or 16, the span calibration is
out of range. Place the proper weight on the platform and press FEED to perform
the span calibration again.
If scale is unable to calibrate contact Doran’s Technical Assistance department at
630-879-1288.

9
Section 4. Parameter Setup
The DS4500 offers the ability to change the shutoff timer settings. Parameter settings
shown in bold are the default settings.
Entering and Exiting Setup Mode
To enter setup mode from the front panel, press and hold REWEIGH and then
press and hold ZERO. Release both buttons when the display reads CAl 25 if
the scale is in lb units and display CAL 10 if the scale is in kg units.
To exit the setup mode, press UNIT until the display returns to the weigh mode.
Setup Mode Navigation
1. Press UNIT to change the current parameter.
2. Press FEED to change the parameter setting.
Calibration Weight Selection
Cal
25 (10 kg)
25 LB (10 kg)
45 (20 kg)
45 LB (20 kg)
Calibration Mode Selections
CAL
Zero Calibration Point
0
Press ZERO to calibrate zero point
NOTE: This parameter is only visible when
in the calibration mode.
CAL
Span Calibration Point
25
25 LB
45
45 LB
NOTE: This parameter is only visible after a
zero calibration is performed.

10
Start Up Zero
SU0
On
Scale automatically zeros when the scale is
turned on.
of
Scale will not zero when the scale is turned
on.
Automatic Shutoff Timer
Ao
Automatic shutoff timer. The timer
controls the period of time the scale
stays on after non-use.
10
10 seconds
30
30 Seconds
60
1 minute
120
2 minutes
180
5 minutes
300
10 minutes
600
15 minutes
of
Automatic shutoff timer disabled.
LB Units Enable / Disable
on
Scale can read lb units
off
Scale can not read lb units
lb:oz Units Enable / Disable
on
Scale can read lb:oz units
off
Scale can not read lb:oz units
KG Units Enable / Disable
on
Scale can read kg units
off
Scale can not read kg units

11
Section 5. Specifications
Scale Dimensions
25” L x 13.75” W x 3.75” H
Power
4 AA Alkaline Batteries
One year battery life with 10 second
Automatic Shutoff Timer setting.
Displayed Units
lb, lb:oz, kg
Capacity
45 lb x 0.1 oz
45 x 0.005 lb
20 kg x 2 g
Construction
ABS Plastic Housing
Options
Carrying Case
AC Adapter

12
Section 6. Troubleshooting
General Problem Resolution
Problem
What to Do or Check
Weight reading will not repeat or
scale does not return to zero when
weight is removed.
Person or object other than that being
weighed is touching the scale.
Verify that there is nothing caught in the
feet area or interfering with the feet.
Scale overloads before scale
capacity is reached.
Verify scale calibration is correct. If
problem persists, recalibrate the scale.
Scale will not come to zero when the
ZERO button is pressed.
Make sure that the scale is stabilizing.
After pressing the ZERO button, the scale
should zero as soon as it becomes stable.
Weight readings are not correct.
Verify the scale calibration with an
accurate test weight. If the readings are
not correct, recalibrate.
Be sure the platform is on a flat surface
and all four feet are touching the surface.
Scale drifts off zero.
Check for air currents and/or vibration
around the scale.
Scale shuts itself off or will not turn
on.
Press the On/Off button to turn on the
indicator.
Check that new batteries are installed
properly in the battery tray.

13
Error Messages
Error Message
What to Do or Check
Er EP
The setup parameters loaded in nonvolatile memory
have become corrupted.
If this problem persists, contact Doran Technical
Support for assistance.
Er Ad
The A/D communication is not detected. Ensure the
wire harness was not pinched during assembly.
If this problem persists, contact Doran Technical
Support for assistance.
Err 0
The calibration zero is out of range.
Error is displayed after a zero calibration attempt.
Refer to the Calibration Troubleshooting section for
additional information. If this problem persists,
contact Doran Technical Support for assistance.
Errsp
The span calibration is out of range.
Error is displayed after a span calibration attempt.
Refer to the Calibration Troubleshooting section for
additional information. If this problem persists,
contact Doran Technical Support for assistance.
ou ld
The scale is in overload. The load on the scale
platform exceeds the scale capacity by more than
105%.
Remove excess weight from scale platform.
If problem persists, recalibrate. If this problem still
persists, contact Doran Technical Support for
assistance.
Gs ol
The scale is in an extreme overload condition. The
load on the scale platform exceeds the scale
capacity by more than 150%.
Immediately remove excess weight from scale
platform as damage not covered under the warranty
can occur. If problem persists, recalibrate. If this
problem still persists, contact Doran Technical
Support for assistance.

Doran Scales, Inc.
883 Enterprise Court
St. Charles, IL 60174
www.doranscales.com
630-879-1200
