Dormakaba ED900 User manual

ED900
Low Energy Swing Door Operator
(Fine cover)
Single door
Installation Instructions
08125310 – 02-2020
| EN |

2ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Table of Contents
Table of contents 
 General information 
. General information 
. ED Arm configurations 
 Product description 
. Product description 
. Handing of door 
 Safety information 
 ED Product overview 
. ED push arm system 
. ED pull arm system 
. ED operator RH door configurations 
. ED operator LH door configurations 
. ED operator full length cover options 

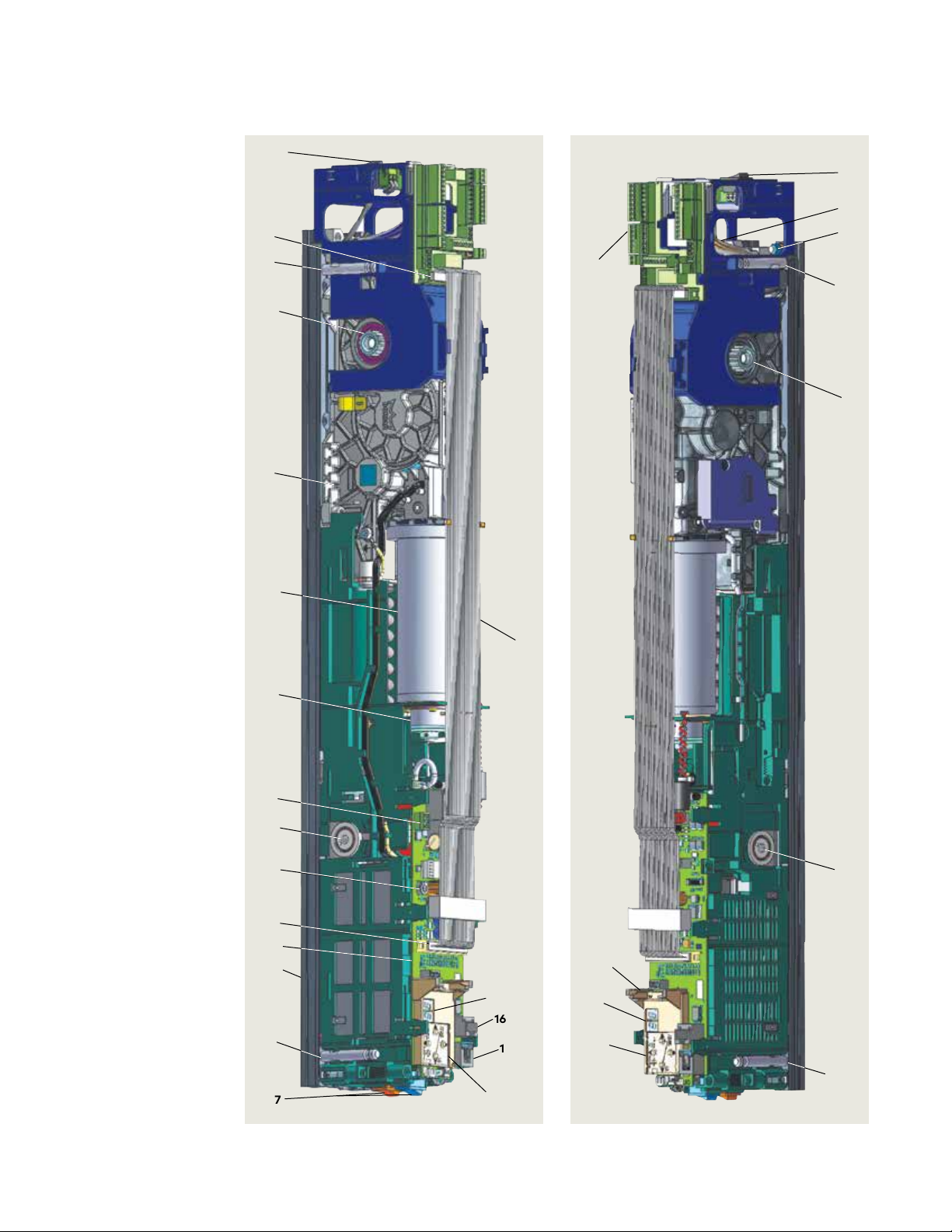

. ED operator component views 
 ED hardware – double door 

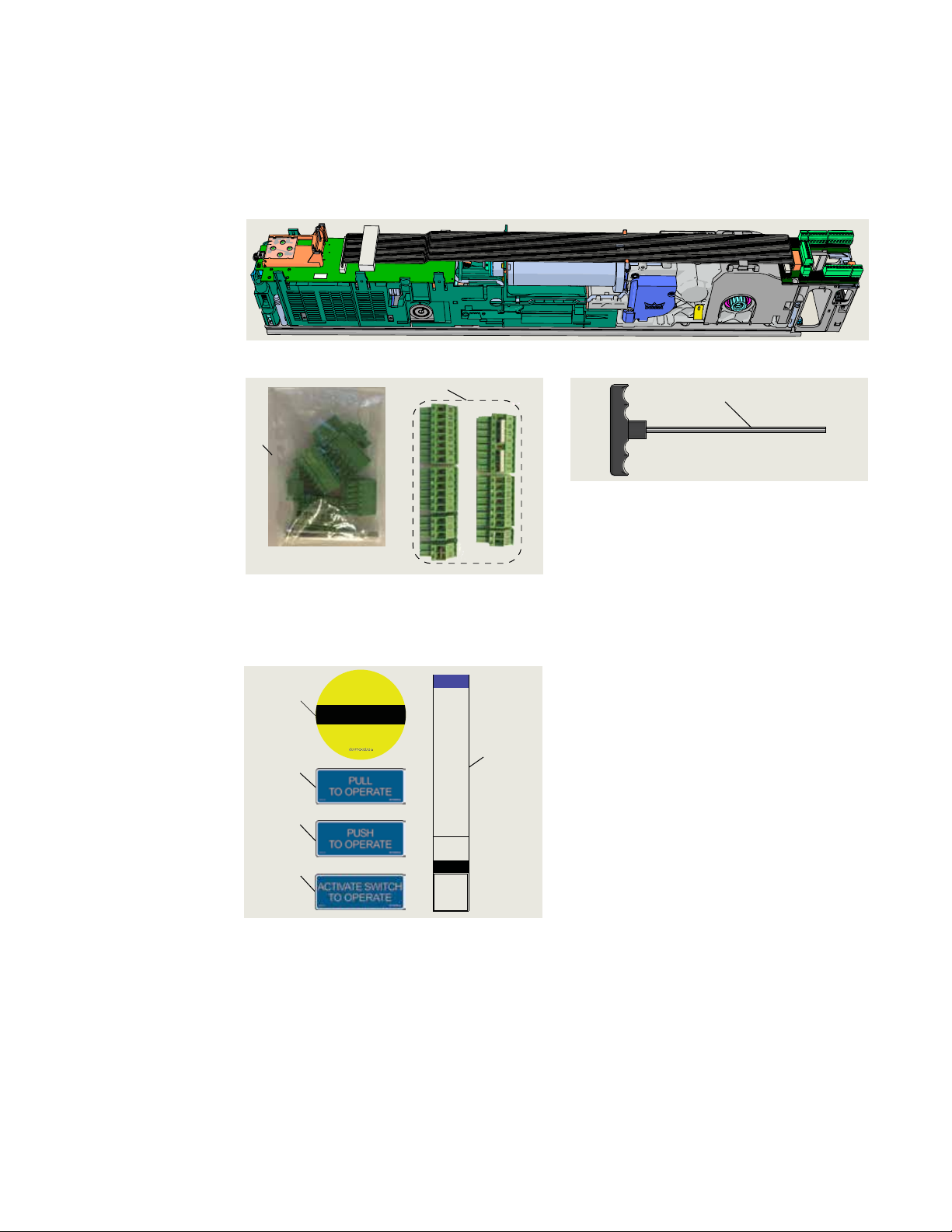

. ED operator and mounting plate 
. Door decal kit, low energy 

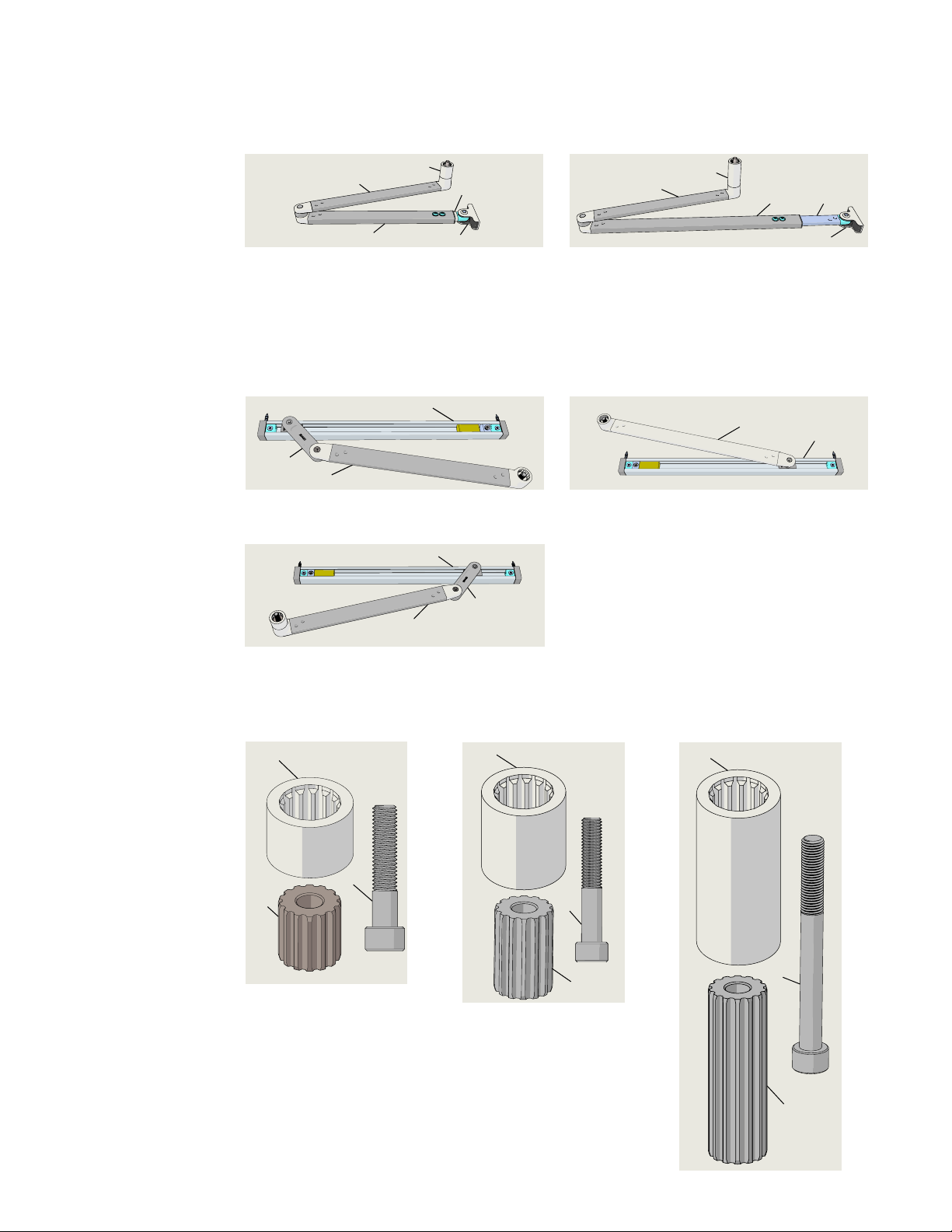

. Arm assemblies 
. Axle extension sleeves and extensions 

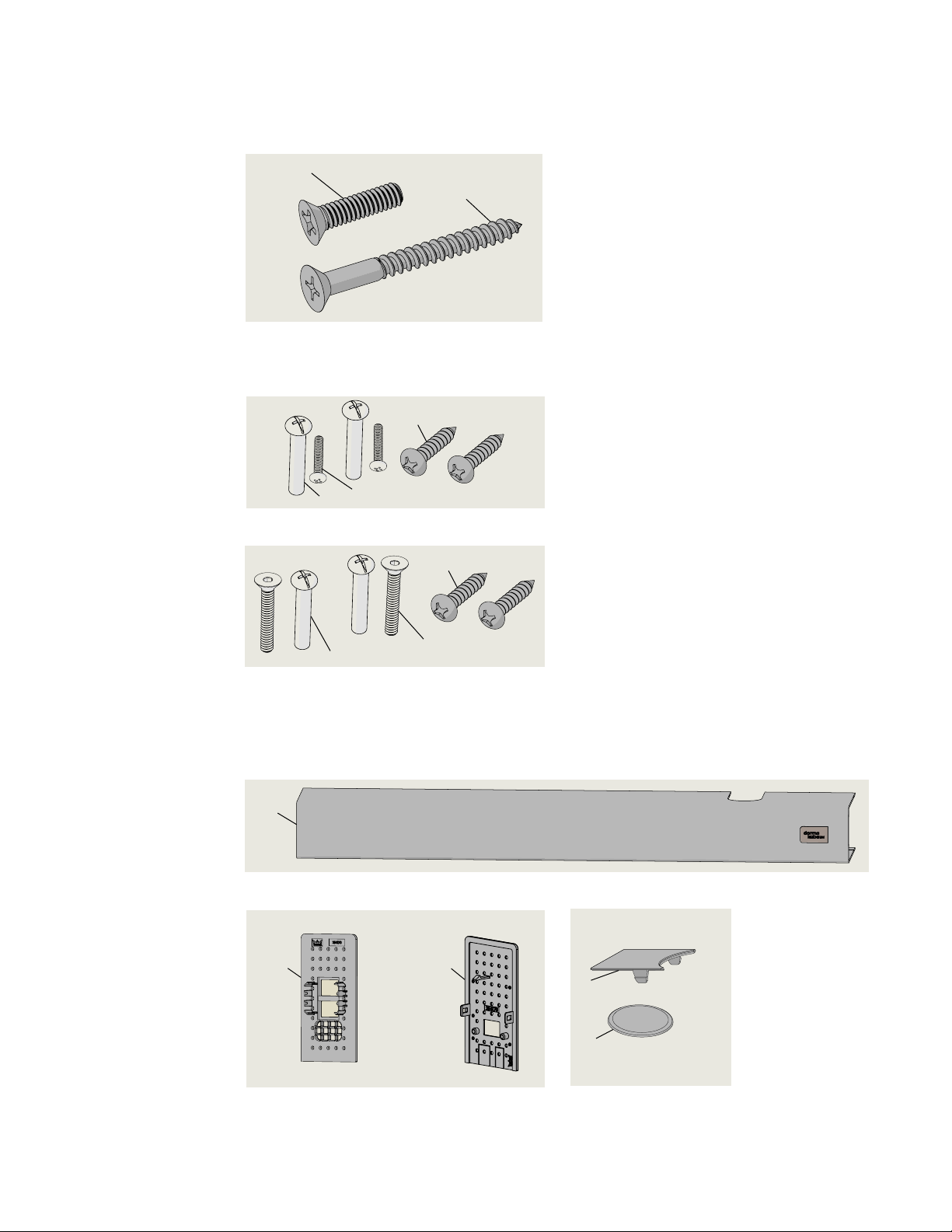

. ED mounting plate screw kit 
. ED arm mounting screw kits 
. ED standard cover kit 
. ED full width cover kit – option 
. Key switch panels – option 
. Push arm door stop - option 
. Conduit box and wiring kit – options 
 Technical data 
. ED Technical data 
. Operating specifications 
 Operational mode overview 
. ED door closer modes 
. Low energy product 
 User interface 
. Overview 
.  button keypad and display 
. Program and Exit Only switches 
. Operator status LEDs 
 System accessories 
. System accessory electrical connections 
. System accessories 
. ED terminal board interfaces 
 ED door signage 
. Low energy operator 
. Door signage, low energy single swing
door 
. Safety Information label, low energy
swing doors 
 Recommended tools and torque chart 
. Recommended tools 
. Standard tightening torque 
. Drill bits 
Table of contents
 ED installation overview 
. Installation preparation 
 ED installation templates 
. Installation templates – pull arm 
. Installation templates – pull as push 
. Installation templates – push arm 
 ED operator and mounting plate
preparation 
. Remove mounting plate from ED
operator 
. Options – Customer  Vac connection
to terminal blocks 
 ED mounting plate and operator
installation 
. Mounting plate attachment to jamb or
wall 
. Connect customer  Vac to ED
mounting plate terminal block 
. Route accessory wiring to mounting plate 
. Remove protective film strips from
operator 
. Install ED operator onto mounting
plate 
. Full width cover (option) installation
instructions 
 J/Push arm installation 
. Push arm installation templates 
. Push arm installation 
 Arm with track mount installation 
. Arm with track installation 
. Splined arm and track assemblies 
. Splined arm and track hardware 
. Slide shoe assembly 
. Install hardware into track 
. Fasten track assembly to door 
.7 Arm assembly 
.8 Arm assembly with CPD lever 
. Fasten arm to ED operator 

3
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Table of Contents
 Measure door width, reveal depth 
. Door width parameter Tb 
. Record door width measurement, Tb value 
. Tb parameter values 
. Reveal depth parameter rd 
. Measure and record reveal depth 
. rd parameter values 
 Operator spring tension 
. Set ED operator spring tension 
 Braking circuit plug 
. Braking circuit plug position 
 Power fail closing speed 
. Set power fail closing speed 
 Parameters 
. Parameters 
 Single door first commissioning 
. First commissioning 
. Set configuration parameters 
. Set parameter PS, program switch type 
. Perform learning cycle 
 Connect accessory wiring and test 
. Install accessory wiring 
. Test all accessories 
 Set track bumper stop 
. Set track bumper stop position 
 Install push arm door stop 
. Install push arm door stop
(optional assembly) 
 Install ED cover, end caps and spindle
caps 
. Install cover and end caps 
. Optional full length cover 
. Install spindle caps 
 Install door signage 
. Install door signage 
 ANSI/BHMA standards 
. A. Low energy power operated doors 
 Upgrade cards 
. Upgrade cards 
. Container module 
. Installing upgrade cards 
 Maintenance 
. Safety label, low energy swing doors 
. ED environment and cleaning 
. Yellow LED, service level 
. Pull arm maintenance 
. Arm fasteners – torque requirements 
. Push arm maintenance 
. ED brake maintenance 
Appendix A – Driving parameters – detail 
A. Driving parameters detail 
Appendix B – Troubleshooting 
B. Red LED status codes 
B. Troubleshooting chart, "ln" codes 
B. Troubleshooting chart, "E" codes 
Appendix C – dormakaba handheld 
C. dormakaba handheld terminal 
C. dormakaba handheld; configuration
parameters 
C. dormakaba handheld; driving parameters 
C. dormakaba handheld; special functions
(Upgrade cards) ED 
C. dormakaba handheld; diagnostics 
C. New dormakaba handheld; language
change to English 
C. dormakaba handheld; firmware update 
Appendix D - Wiring diagrams 
D. Key Switch Panel with RJ connector 
D. Key Switch Panel 

4ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 1
.. Installation Instructions
This manual provides installation instructions for
ED low energy swing door operators used in single
door installations.
.. Manual storage
This document must be kept in a secure place, and
accessible for reference as required.
If the door system should be transferred to another
facility, insure that this document is transferred as well.
.. dormakaba.com website
Manuals are available for review, download, and printing
on the dormakaba.com/us website.
.. Dimensions
Unless otherwise specified, all dimensions are given in
inches (“).
.. Building codes and standards
ED installation: observe applicable national and local
building codes.
 General information
. General information
.. Symbols used in these instructions.
WARNING
This symbol warns of hazards which could result
in personal injury or threat to health.
CAUTION
This symbol warns of a potentially unsafe
procedure or situation.
NOTICE
Draws attention to important information
presented in this document.
TIPS AND RECOMMENDATIONS
Clarifies instructions or other information
presented in this document.
.. Arm configurations.
ED is suitable for installation using the following arm
configurations:
• J – Standard push arm,  - " reveal
• J – Deep reveal push arm, " - " reveal
. ED Arm configurations
• T– Arm and track,  - " reveal
• T – Deep reveal arm and track, " -  /" reveal

5
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 2
 Product description
.. Intended use.
The ED is a low energy electromechanical operator
used exclusively for opening and closing interior swing
doors.
The ED operator must be installed on an interior
building surface.
.. Low energy operator.
ED is supplied only as a low energy operator.
• The operator is supplied with a reduced power motor
and a brake (Para. . - component view).
• The brake is used during door hold open time.
WARNING
To reduce risk of injury to persons, use this
ED900 operator only with a swing door for
which the ED900 is designed for.
• Reference Chapter , Technical data.
TIPS AND RECOMMENDATIONS
Insure operator door configuration is qualified
for use on the respective smoke or fire rated
door.
.. ED maximum door specifications.
Reference Para. ., Operating specifications.
.. Hardware as shipped, single swing door.
Reference Chapter  for ED hardware overview.
Hinge Hinge
Exterior side of door
Interior side of door
Left hand door (LH)
Left hand reverse door (LHR) Right hand reverse door (RHR)
Right hand door (RH)

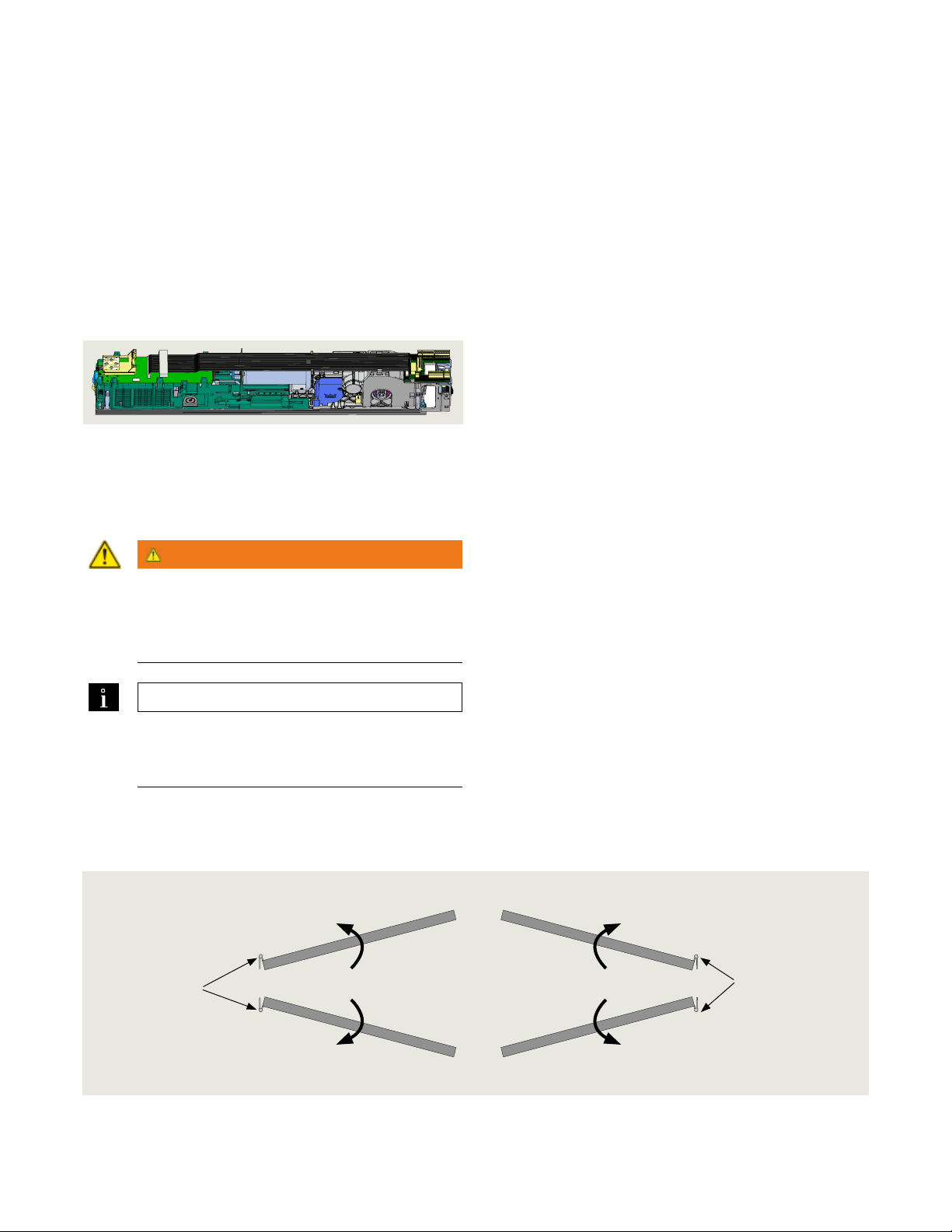

.. Handing of door.
. Product description
. Handing of door
Fig. 2.1.1 ED900 operator

6ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 3
. Safety instructions.
This document contains important instructions for
installation of the ED swing door operator.
Review these instructions thoroughly prior to
installation, and follow them carefully during installation,
commissioning, troubleshooting and maintenance.
. Door signage requirements.
Proper signs and labels, per ANSI/BHMA A.
Standard for Power Assist and Low Energy Power
Operated Doors, shall be applied and maintained on the
door controlled by the ED swing door operator.
• Reference Chapter , ED Door Signage.
. Safety warnings.
WARNING
An incorrect installation may result in damage to
equipment or incorrect equipment operation.
WARNING
Hazard to mechanical processes by use of
control settings, elements, or procedures not
documented in this manual!
WARNING
Electric shock hazard!
By use of control elements, settings, or
procedures not documented in this manual!
WARNING
Work on electrical equipment and  Vac
wiring installation must be only be performed
by qualified personnel!
WARNING
Metallic doors must be grounded per national
and local codes!
 Safety information
WARNING
Hand pinch point and crushing hazards at door
closing edges!
WARNING
Crushing hazards at door closing edges!
. Residual hazards.
WARNING
After installation, hazards such as minor
crushing, impact with limited force, and risk to
unsupervised children may exist depending on
structural design of door area, type of door,
and any safeguards that have been
implemented.
WARNING
Hand pinch point and crushing hazards at
push arm and arm and track!
Fig. 3.1 Door closing edges
Fig. 3.3 Arm and track
Fig. 3.2 Push arm
Opposing
closing edge
Main
closing edge
Secondary
closing edge

7
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 4
 ED Product overview

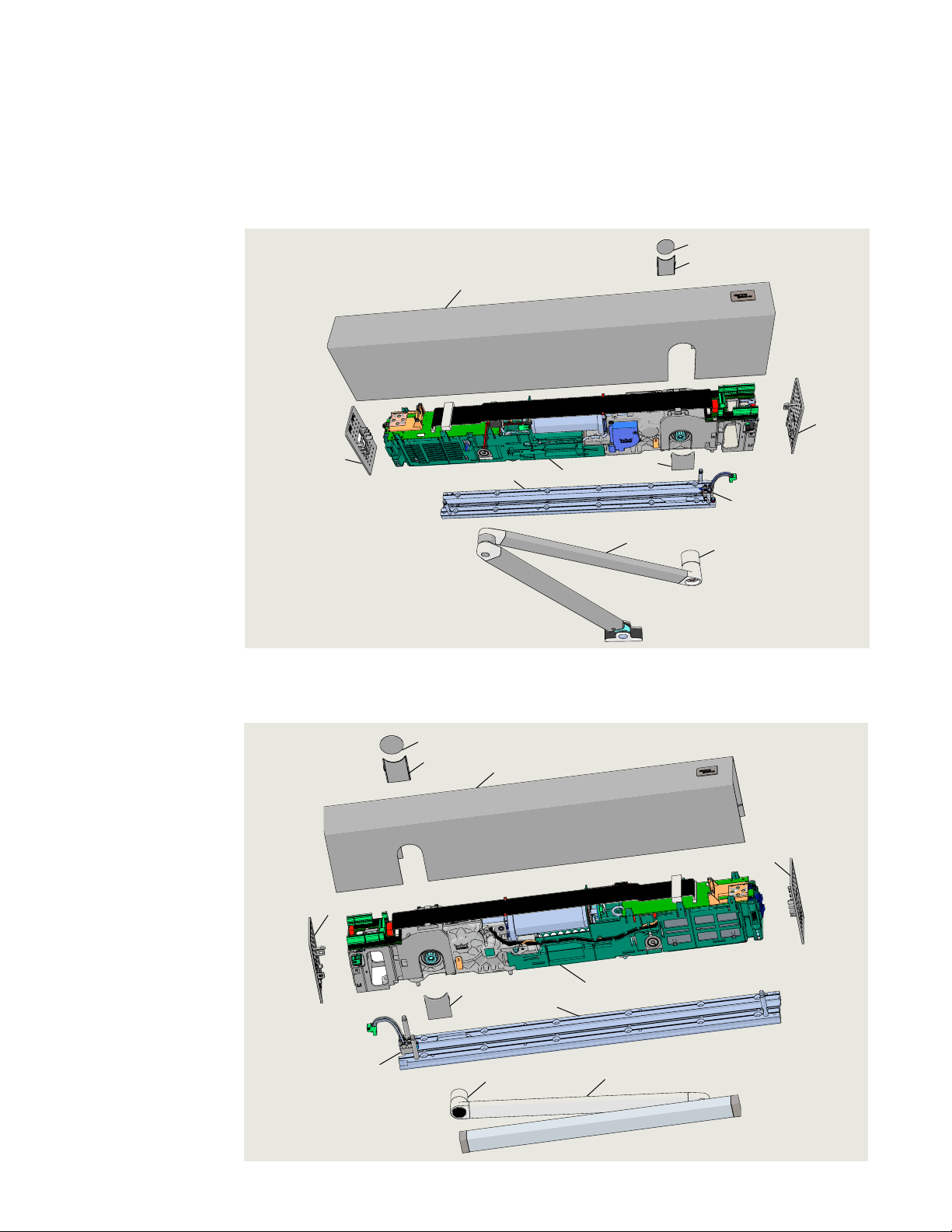

. ED push arm system
Fig. 4.1.1 ED900 RH push arm system example
. ED pull arm system
Fig. 4.2.1 ED900 RH pull arm system example
1ED900 operator
2T/track/arm
assembly
3Axle extension
4Standard cover
5End cap, program
switch
6End cap, power
switch
7Mounting plate
7.1 115 Vac terminal
block
8Spindle cap
9Spindle cap 1
2
3
4
5
6
7
7.1
8
8
9
1ED900 operator
2J/pull arm
assembly
3Axle extension
4Standard cover
5End cap, program
switch
6End cap, power
switch
7Mounting plate
7.1 115 Vac terminal
block
8Spindle cap
9Spindle cap 1
23
4
8
9
8
6
5
7
7.1

8ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 4
. ED operator RH door configurations
Fig. 4.3.1 ED900 J8 – Top jamb installation – RH push
Fig. 4.3.2 ED900 T – Track mount installation – RH pull
Fig. 4.3.3 ED900 J12 – Above jamb installation – RH push, deep reveal
Fig. 4.3.4 ED900 T275 – Above jamb installation – RH pull, track mount, deep reveal
27” [686]
Standard width cover
0 - 8”
[0 203]
5 1/8”
[130]
2 3/4”
[70]
18”
[457]
REF
8 - 12”
[203 - 304]
5 1/8”
[130] 2 3/4”
[70]
REF
26”
[660]
2 3/4”
[70]
0 - 2 3/4”
[0 - 70]5 1/8”
[130]
2 3/4”
[70]
5 1/8”
[130]
0 - 1”
[0 - 25]

9
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 4
. ED operator LH door configurations
Fig. 4.4.1 ED900 J8 – Top jamb installation – LH push Fig. 4.4.3 ED900 T – Track mount installation – LH pull
Fig. 4.4.2 ED900 J12 – Above jamb installation –
LH push, deep reveal
Fig. 4.3.5 ED900 T275 – Track mount installation –
RH pull as a push
Fig. 4.4.4 ED900 T275 – Track mount installation –
LH pull, deep reveal
Fig. 4.4.5 ED900 T275 – Track mount installation –
LH pull as a push

10 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 4
Fig. 4.5.9 J12/LH deep push
Fig. 4.5.3 T275/RH deep pull
. ED operator full length cover options
Fig. 4.5.1 T/ LH pull
Fig. 4.5.2 T/RH pull
Fig. 4.5.4 T275/LH deep pull
Fig. 4.5.8 J12/RH deep push
Fig. 4.5.6 J/ LH push
Fig. 4.5.7 J/ RH push
Fig. 4.5.5 T275/LH pull as push Fig. 4.5.10 T275/RH pull as push

11
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 4
22
4
24
5
28
12
6
11
22
27
7
15
16
18
1
20
21
8
9
20
1Power switch
2120 Vac cable
4Splined shaft
spindle
5Operator (motor,
gear, spring)
6Spring tension
adjustment,
closing force
7Program switches
84 button user
interface
9Information
display
11 Potentiometer,
power fail closing
speed adjustment
12 Terminal jumper
socket, push or pull
mounting
15 RJ45 socket, double
door operator
synchronization
16 Com 1 service
connector
17 Accessories terminal
board
18 Mounting plate
19 Customer ground
terminal
20 Guide pin
21 Ribbon cable
22 Ribbon cable socket
23 Upgrade card socket
24 Motor
25 Encoder socket and
cable
26 Motor socket and
cable
27 Control board
28 Motor brake
Fig. 4.6.1 ED900 component view 1
. ED operator component views
Fig. 4.6.2 ED900 component view 2
4
17
6
9
8
20
23
20
1
19
2

12 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
 ED hardware – double door
Fig. 5.1.1 Two - ED900 operator and mounting plate
1Terminals for
accessory wiring
2Bag containing
terminals and third
guide pin*
3Guide pin
45 mm T-handle hex
key 08120720
* Included with operator
Fig. 5.1.2 Accessory terminals
. ED operator and mounting plate
2
14
Fig. 5.1.3 5 mm T-handle hex key
Fig. 5.2.1 Decal kit, low energy
08087770
1Decal, Automatic
Caution door
(both sides)
2Decal, Activate
Switch to Operate
3Decal, Push to
Operate
4Decal, Pull to
Operate
5Decal, AAADM
safety Information
label, low energy
CAUTION
DOOR
AUTOMATIC
DD0586-010
SAFETY INFORMATION
Low Energy Swinging
Doors
1
. Activatethe door.Door
shouldopen at a slow
smoothpace (4or more
seconds), andstopwithout
impact.
2
. Doormust remain fully open
for a minimumof5 seconds
beforebeginningtoclose.
3
. Doorshould closeat a slow,
smooth pace(4or more
seconds),andstopwithout
impact.
4
. Inspect theoor area.It
should be clean with no
loosepartsthat mightcause
userto tripor fall. Keep
tracpathclear.
5
. Inspect door‘s overall
condition. Theappropriate
signage shouldbepresent
and thehardwareshould
be ingood condition.
6
. Have door inspectedby an
AAADMcertied inspector
at least annually.
AAADM
American Association o f Automatic
Door Manufacturer s
ANNUAL COMPLIANCE
INSPECTION
INSPECT FOR AND
COMPLIES WITH ANSI
A156.19 ON:
DATE:______________
by AAADM Certified
Inspector
Number:___________
AAADM-3044
DO NOT USE DOOR if it fails
any of these safety checks of if
it malfunctions in any way. Call
a qualied automatic door
service company to have door
repaired or serviced.
See Owner’s manual or
instructions for details on
each of these and other
safety items. If you need
a copy of the manual,
contact the manufacturer.
These minimum safety checks,
in addition to those in the
Owner’s Manual, should be
made each day and after any
loss of electrical power .
1
3
4
2
8
. Door decal kit, low energy

13
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
Fig. 5.4.3 T275 – Splined pull arm assembly,
LH, 1 - 2 3/4" reveal
. Arm assemblies
1Drive arm
2.1 Adjustment shaft
tube, 225 mm
2.2 Adjustment shaft,
225 mm
3Shoe
4Axle extension
5.1 Adjustment shaft
tube, 450 mm
5.2 Adjustment shaft,
450 mm
1Drive arm
2CPD lever
3 Track
Fig. 5.4.4 T275 – Splined pull arm assembly,
RH, 1 - 2 3/4" reveal
Fig. 5.4.5 T – Splined pull arm assembly,
0 - 1" reveal
1Drive arm
2CPD lever
3 Track
1
4
2.1
2.2
3
Fig. 5.4.1 J8 – Splined push arm assembly,
225 mm, 0 - 8" reveal
Fig. 5.4.2 J12 – Splined push arm assembly,
500 mm, 8" - 12" reveal
1
2
3
1
2
3
1
3
1
5.1 5.2
3
4
. Axle extension sleeves and extensions
Fig. 5.5.1 [20 mm]
08125201
Fig. 5.5.2 [30 mm]
08125202
Fig. 5.5.3 [60 mm]
08125203
120 mm axle
extension sleeve
1.1 20 mm axle
extension
2M8 -1.25 x 40
SHCS
330 mm axle
extension sleeve
3.1 30 mm axle
extension
4M8 -1.25 x 50
SHCS
560 mm axle
extension sleeve
5.1 60 mm axle
extension sleeve
6M8 -1.25 x 80
SHCS
1
1.1
2
5
5.1
6
3
3.1
4

14 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
Fig. 5.7.1 Two sets -Push arm screw kit
Fig. 5.7.2 Two sets -Pull arm screw kit
. ED mounting plate screw kit
Fig. 5.6.1 Two sets - Mounting plate
fasteners
. ED arm mounting screw kits
3
2
Fig. 5.8.2 ED900 operator end caps
Fig. 5.8.1 ED900 standard width 27" cover
3
3Standard width
cover
Fig. 5.8.3 Spindle cops
. ED standard cover kit
2End cap, program
switches
3End cap, power
switch
4Spindle cap
5Spindle cap
4
5
10 Pull arm screw kit
08122740
10.1 10-24 x 1 1/2" barrel
nut
10.2 10-24 x 1 1/4" FHSCS
(flat head socket
screw
10.3 #14 x 1 1/4" pan
head wood screw
15,16 Mounting plate
fastener kit
08120570
15 1/4-20 x 1" FH
machine screw
16 No. 14 x 2 1/2" FH
wood screw
9Push arm screw kit
08120550
9.1 10-24 x 1 1/2" barrel
nut
9.2 10-24 x 1" PPHMS
9.3 #14 x 1 1/4" pan
head wood screw
(12) 15
(12) 16
9.2
9.1
9.3
10.1
10.2
10.3

15
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
. ED full width cover kit – option
.. Full width cover kit.
Single door, from " [] to " [].
Fig. 5.9.1 Full width cover kit 08125259
1Fine cover single
08120350
3End and spindle
cap set
08121260
3.1 Program switch
end cap
3.2 Power switch end
cap
3.3 Spindle cap
3.4 Spindle cap
4Front cover
extension
08121870
5Cover bracket
08125240
8dormakaba logo
plate
08125241
11 Program switches
with cable
08122770
14 Wire retainer
08125242
15 1/4-20 x 1" FH
machine screw
16 No. 14 x 1 "FH wood
screw
1
5
14
11
8
3
3.1 3.2
3.3
3.4
4
(4) 16
(4) 15

16 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
. Push arm door stop - option
Fig. 5.11.1 Door stop assembly
Door stop assembly
/" thick plate

Door stop assembly
/" thick plate

1Plate, bumper
mounting,
1/4" thick
08120774
2Plate, bumper
mounting,
1/2" thick
08120770
3Rubber bumper
08120750
4Shoulder bolt
08104231
5.1 1/4-20 x 1 1/4"
Phillips FHS, black
oxide, SS
5.2 No. 14 x 1 1/4"
Phillips FHMS for
sheet metal, zinc
plated steel 5.1
5.2
1 or 2
3
4
2
3
2Key switch panel,
with RJ45
3Key switch panel
4Communication
cable for program
switch panel comm
port
Fig. 5.10.1 Key switch panels
Wiring diagrams:
Reference Appendix D
. Key switch panels – option
Fig. 5.10.2 Communication cable
4

17
ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 5
Fig. 5.12.2 Power cord wiring kit 08121110
1Power cord
08075390
2Wire nut
3Cord grip
08121130
4Conduit box
08120730
5120 Vac label
Fig. 5.12.1 Conduit box 08120730
4Conduit box
08120730
4 11/16”
[119]
2 3/4”
[70]
4
1
2
3
4
5
. Conduit box and wiring kit – options

18 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 6
 Technical data
Maximum wire size
Connector plug
screw size
 AWG
/”
Door
status
X
,,
Sr parameter
Door closed
Door open
Door closed, locked
Com, N.O., N.C.
contacts
.. Integrated functions.
Hold open time:
Automatic opening dd parameter  to  s
NIght / bank dn parameter  to  s
Manual opening do parameter  to  s
Door blocking
behavior hd parameter Automatic, manual
door modes
Electric strike
delayed opening for
locking mechanism
Ud parameter  to  s
Locking
device
feedback
X
,  Motor lock
Wind load control,
maximum Fo, Fc parameters . lb f
 N
Voltage independent
braking circuit Chapter  Adjustable with
potentiometer
LED status indicators
Chapter 
Green
Red
Yellow
 Vdc power
Error codes
Service interval
Program and Exit
Only switches Chapter  Auto, Close, Open
Exit only; Off, On
User interface Chapter   button keypad,
 digit display
Firmware update Appendix C Firmware update
TMP, temperature
management program Overload protection
IDC, initial drive control Driving phase optimization
Cycle counter CC parameter  to ,,
Power assist function hA, hF, hS
parameters
Drive support for
manual opening of
door
Push & go function PG parameter Auto opening of
door at ° open
. ED Technical data
.. Required operating conditions.
Ambient temperature  to  °F
Suitable for dry
rooms only
Relative air humidity:
% maximum, non-condensing
Power supply  Vac ±%, / Hz
. A maximum
Branch circuit
protection (provided
by others)
 A maximum,
dedicated branch circuit
Protection class NEMA 
Power wiring:
black, white, bare
copper (ground)
 AWG
maximum
Operating noise Maximum  db(A)
.. General specifications.
Operator dimensions
(W x H x D)
" standard cover
" x  / x  /",
[ x  x  mm]
Operator weight . lb [ kg]
Maximum door
opening angle  to ° depending on installation type
.. Inputs
Maximum wire size
Connector plug
screw size
 AWG
/”
Activation
inputs X* Interior, exterior N. O. contact
Safety
sensors X Swing, approach
sides
Night-bank
(intercom
system)
X
,
a
- Vdc/Vac +%
Night-bank
(key switch)
X
,  d parameter Configure for N.O.
or N.C. contact
Deactivation
of drive
function
X
, a d parameter Configure for N.O.
or N.C. contact
.. Outputs
TIPS AND RECOMMENDATIONS
• *X:terminal board numbers, reference
Chapter , System accessories.
• Parameters, reference Chapter .

19
ED900 02-202008125310
dormakaba ED900 Installation Instructions Chapters 6 and 7
Maximum power
consumption  watt
Opening force
N (lbf)
Fo parameter
Minimum
 (.)
Maximum
 (..)
Manual closing force
N (lbf)
Fc parameter
Minimum
 (.)
Maximum
 (.)
Maximum door
weight, pounds
 at "
door width
Depending on door
width and application
Door width Minimum
"
Maximum
"
Maximum opening
speed, °/s  May be limited by
door weight after
learning cycle.
Maximum closing
speed, °/s 
. Operating specifications
.. ED
 Operational mode overview
. ED door closer modes
.. Automatic mode.
Door closer mode parameter hd=.
Door opens automatically following pulse generation by
a knowing act device or by push/pull.
.. Manual mode.
Door closer mode parameter hd=.
Designed for doors primarily accessed manually.
. Low energy product
.. ANSI/BHMA ..
ED operator is configured to meet requirements of
a low energy application per ANSI/BHMA A., U.S.
Standard for Power Assist and Low Energy Power
Operated Doors.
.. Low energy power operated door.
A manual door with a power mechanism that opens the
door upon receipt of a knowing act activating signal,
does not generate more kinetic energy than specified in
ANSI 156.19, and is closed by a power mechanism or by
other means.
TIPS AND RECOMMENDATIONS
Parameter descriptions can be found in
Chapter 19; Parameters.
Axle extensions,
[mm] inches
[] /"
[]  /"
[]  /"
Reveal depth for pull
arm 1 3/16"
Reveal depth for pull
arm and CPD lever  /"
Reveal depth for
standard push arm  to  /"
Reveal depth for deep
push arm " minimum to  /"
.. Power assist.
• Available only in door closer mode (hd=), manual
opening drive support is automatically adjusted to
operator size.
• Parameter hA sets door activation angle for power
assist function. Once angle reached, drive support
provides easier manual opening of the door.
• Parameter hF, power assist function. Parameter
values greater than  provides additional opening
force.
• Parameter hS, power assist function support for
door in closed position.
Required system safety, as a low energy application, is
achieved utilizing the following design factors:
• Reduced dynamic door panel contact forces
• Reduced static door panel contact forces
• Low driving speeds
• Force limitation

20 ED900 02-202008125310
dormakaba ED900 Installation Instructions – Single door Chapter 8
 User interface
. Overview
Fig. 8.1.1 Operator keypad and display
12 digit display
24 button keypad
.. Operator user interfaces.
.  button keypad and  digit display.
•  button keypad; to select, input and
adjust door parameter values.
•  digit display; parameter values, error
and information codes.
Fig. 8.2.1 Door hinge side on right
22 digit display
5Button legend
Fig. 8.2.2 Door hinge side on left
.  button keypad and display
Right button
. Access parameter menu,
press button >  seconds.
. Edit selected parameter.
. Save changed value.
Left button . Reset, > s
. Quit process, <  s.
Both buttons
together
. Acknowledge errors,
press both buttons <  s.
. Reset, press both
buttons >  s.
Up button
. Scroll through parameters
and error messages.
. Increase parameter value.
Down button
. Scroll through parameters
and error messages.
. Reduce parameter value.
. Opening pulse, press
button <  s.
. Learning cycle, press
button >  s.
. Reset with factory setting,
press button >  s (program
switches off).
. Identify operator
orientation for display
22 digit display
6Button legend
rotated 180°
..  button keypad.
 button legend is orientated so buttons
have same function and position regardless
of operator orientation. Button legend can
be removed and rotated.
..  button keypad functions.
TIPS AND RECOMMENDATIONS
Symbols
• "<", Less than
• ">", Greater than
1
2
> 3s Reset
< 3s Quit
> 3s
PRG
< 3s LEARN
Fact-Setup
> 3s
> 8s
2
5
> 3s Reset
< 3s Quit
LEARN
< 3s
> 3s
Fact-Setup
PRG
> 3s
> 8s
6
2
