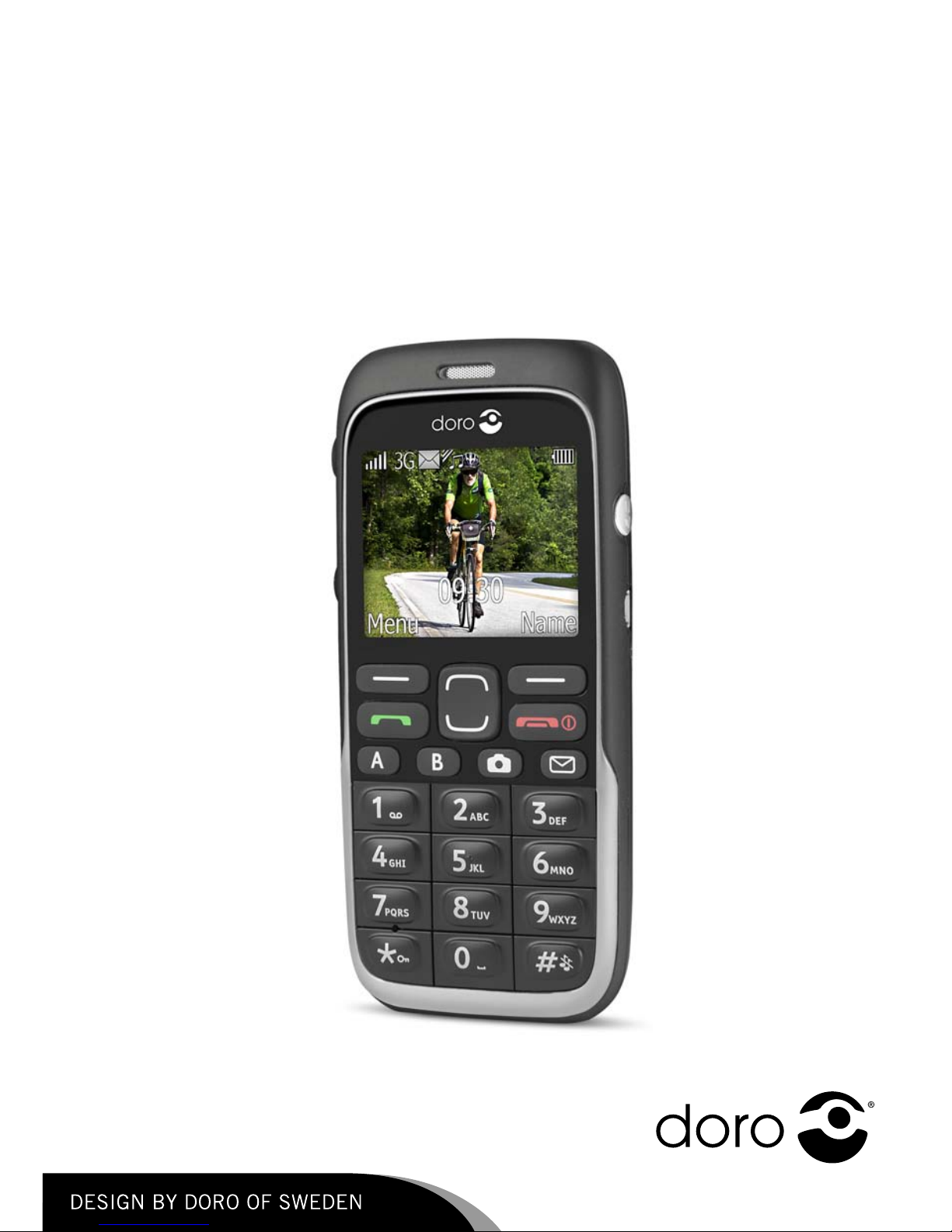

Doro PHONEEASY 520X User manual

DoroPhoneEasy®520X
English

22
2
313
1
4
7
511
14
12
10
9
8
6
16
18
17
15
19 2120 23

English

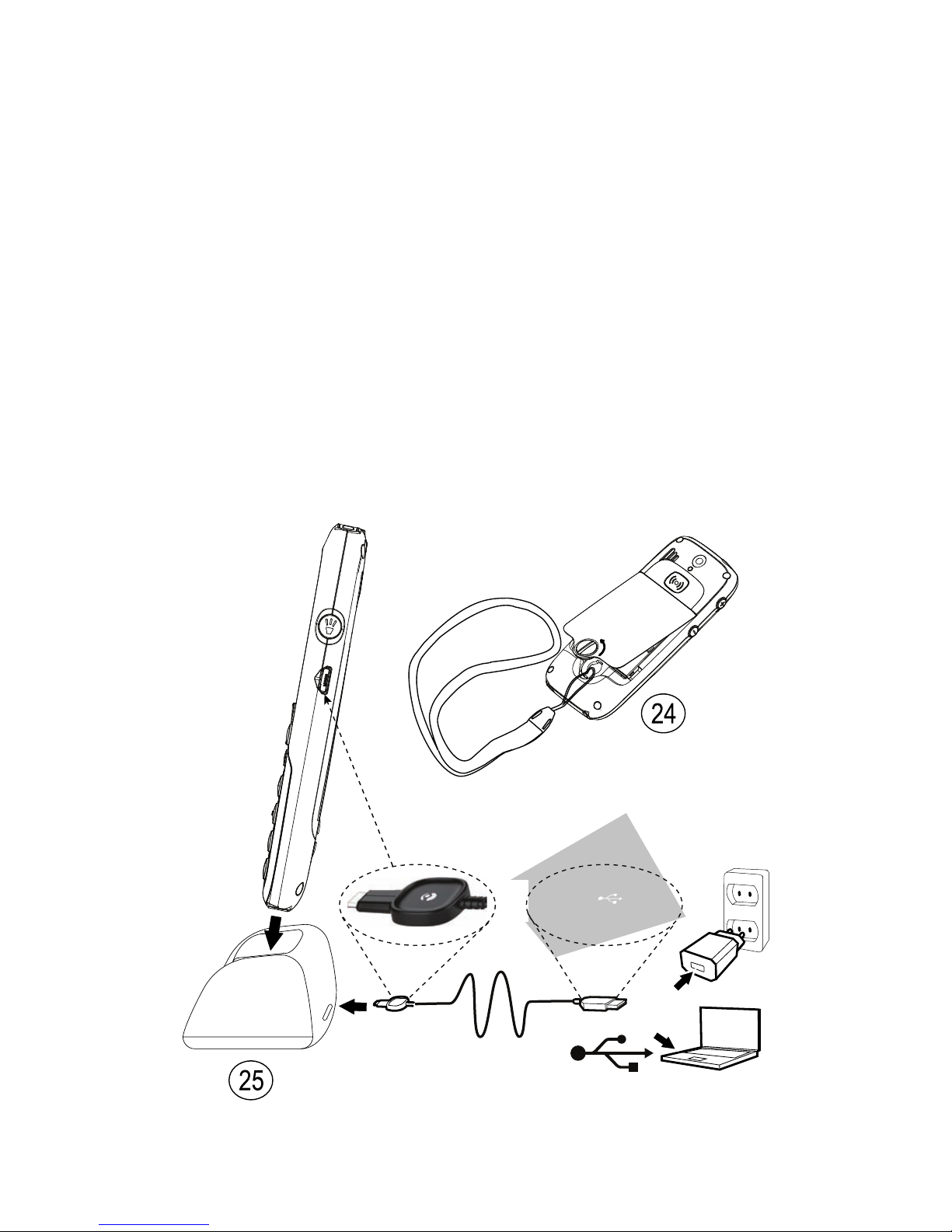

1.Volumecontrol
2.Headsetsocket
3.Leftselectionbutton
4.Callbutton
5.Speeddial
6.Voicemail
7.Keylock
8.Microphone
9.Silent/Inputmethod
10.Camerashortcut
11.SMSshortcut
12.Endcall/Poweron/off
13.Arrowbuttons
14.Rightselectionbutton
15.Earpiece
16.Torch
17.Torchbutton
18.Chargingsocket
19.Cameralens
20.Cameraash
21.Assistancebutton
22.Loudspeaker
23.Batterycover/lock
24.Lanyard
25.Chargingstand
25
24

English
Contents
Installation................................................................................1
InstallingtheSIMcard,memorycardandthebattery.............1
Charging....................................................................................2
Symbols....................................................................................3
Assistivefunctions...............................................................3
Displaystatussymbols.........................................................3
Displaymainsymbols...........................................................4
Operation...................................................................................5
Activatingthephone............................................................5
Makingacall.......................................................................6
MakingacallfromthePhonebook.........................................6
Receivingacall...................................................................6
Volumecontrol.....................................................................6
Enteringtext
...................................................................6
Calloptions.........................................................................7
Callwaiting.........................................................................8
Callinformation...................................................................8
Speeddial......................................................................9
Keylock..............................................................................9
Silent..................................................................................9
Headset..............................................................................9
SOScalls............................................................................9
Assistancebutton
............................................................10
Phonebook.................................................................................12
Creatingaphonebookentry...................................................12
CreatingICEentry(InCaseofEmergency)
.........................12
Managingphonebookentries.................................................12
ICE(InCaseofEmergency).....................................................14
Messages...................................................................................15
CreatingandsendingSMS....................................................15
Creatingandsendingvoicemessage......................................16
CreatingandsendingMMS...................................................16
Inbox,Sent,Outbox.............................................................17
Calllog......................................................................................19
Retrievinganddialling..........................................................19
Camera(takephotos)..................................................................19

English
Camera,options...................................................................20
Cameraadjustments.............................................................20
Imageviewer..............................................................................20
Imageviewer,options...........................................................21
Connectingthephonetoacomputer............................................22
Draganddropcontentbetweenphoneandacomputer...........22
DisconnecttheUSBcablesafely...........................................23
Settings.....................................................................................23
General...............................................................................23
Sound.................................................................................27
Display................................................................................29
Calls...................................................................................30
Messages............................................................................35
Camera...............................................................................38
Assistance
.......................................................................39
Bluetooth®...........................................................................41
Security..............................................................................42
Filemanager.......................................................................45
Additionalfunctions....................................................................47
Alarm..................................................................................47
Organizer............................................................................47
Calculator............................................................................48
FMradio.............................................................................49
Status.................................................................................51
InstructionsfortheREMOTEUSER.......................................51
Troubleshooting..........................................................................55
Safetyinstructions......................................................................56
Networkservicesandcosts...................................................57
Operatingenvironment.........................................................57
Medicalunits......................................................................57
Areaswithexplosionrisk......................................................58
Li-ionbattery.......................................................................58
Protectyourhearing.............................................................58
Emergencycalls...................................................................59
Vehicles..............................................................................59
Careandmaintenance................................................................60
Warranty....................................................................................60
Specications............................................................................60

English
Hearingaid.........................................................................61
SpecicAbsorptionRate(SAR).............................................61
DeclarationofConformity.....................................................61

English
Installation
IMPORTANT!
Turnoffthephoneanddisconnectthechargerbeforeremovingthe
batterycover.
InstallingtheSIMcard,memorycardandthebattery
TheSIMandmemorycardholder’sarelocatedinsidethebattery
compartment.
1234
GB
1.Removethebatterycoverandthebatteryifitisalreadyinstalled.
Unlockthebatterycoverbyturningthescrewaquarterofaturn
counterclockwise.
2.Optional:InsertthememorycardintotheslotundertheSIM
cardholder.Makesurethatthememorycardcontactsarefacing
inwardsandpushthecardin,untilyouhearaclick.Takecare
nottoscratchorbendthecontactsonthecard.Toremoveor
replacethecard,pushthecardinuntilyouhearaclickand
thenpullthecardout.
3.InserttheSIMcardbygentlyslidingitintotheholder.Makesure
thattheSIMcard’scontactsarefacinginwardsandthatthecut
offcornerispointingdownwards.Takecarenottoscratchor
bendthecontactsontheSIMcard.
4.Insertthebatterybyslidingitintothebatterycompartmentwith
thecontactsfacingupwardstotheleft.Replacethebatterycover
andlockitbyturningthescrewaquarterofaturnclockwise.
1

English
IMPORTANT!
Useonlycompatiblememorycardsforusewiththisdevice.Compatible
cardtype:microSD,microSDHC.
Incompatiblecardsmaydamagethecarditself,thedeviceandcorrupt
datastoredonthecard.Dependingonthemarketsomephonesmay
haveapre-installedmemorycard.
Charging
CAUTION
Onlyusebatteries,chargerandaccessoriesthathavebeenapprovedfor
usewiththisparticularmodel.Connectingotheraccessoriesmaybe
dangerousandmayinvalidatethephonestypeapprovalandguarantee.
Whenthebatteryisrunninglow, isdisplayedandawarningsignal
isheard.Tochargethebattery,connectthemainsadaptertoawall
socketandtothechargingsockety.
isdisplayedbrieywhenthechargerisconnectedtothephone,
and
whenitisdisconnected.Thebatterychargeindicatorwill
beanimatedwhilecharging.Ittakesapproximately3hourstofully
chargethebattery.
isdisplayedonthescreenwhenchargingiscompleted.Ifthe
phoneisturnedoffwhenthechargerisconnectedtothephoneonly
thebatterychargeindicatorwillbeshownonthedisplay.
Note!
TosavepowertheLCDbacklightgoesoffafterawhile.Pressanybutton
toilluminatethedisplay.Fullbatterycapacitywillnotbereacheduntil
thebatteryhasbeencharged3–4times.Batteriesdegradeovertime,
whichmeansthatcalltimeandstandbytimewillnormallydecrease
withregularuse.
Saveenergy
Whenyouhavefullychargedthebatteryanddisconnectedthecharger
fromthedevice,unplugthechargerfromthewalloutlet.
2

English
Symbols
Assistivefunctions
Thefollowingsymbolsindicateinformationinthemanualabout
assistivefunctionsfor:
Seeing Handling
Hearing Safety
Displaystatussymbols
Signalstrength
Nonetworkcoverage
Ringonly5UnreadmessageinInbox
Ring+vibration Alarmactive
Vibrationonly
Batterylevel
Silent Callforwardactivated
Roaming(inothernetwork)
Bluetoothon,visibleto
others
Missedcall
Bluetoothon,invisibleto
others
Headsetconnected Bluetoothconnected
Voicemailmessage
received
3

English
Displaymainsymbols
Mute
Chargerconnect
Messagesendingsuccess Chargerremoved
Messagesendingfailed Headsetin
Error Headsetout
Warning Speakeron
Query Speakeroff
Done(conrmed) Incomingcall
Newmessage
Outgoingcall
Batterylevellow
Callended
Searching
Missedcall.PressReadto
seethemissedcalls.
Emergencycall
Callon-hold
vCardmessage SOScallsonly
Volumecontrol
Processing,pleasewait
4

English
Operation
Activatingthephone
Pressandholdtheredbutton
onthephonetoturniton/off.
ConrmwithYestopoweroff.
IftheSIMcardisvalidbutprotectedwithaPINcode(Personal
IdenticationNumber),PINisdisplayed.EnterthePINcodeand
pressOK(upperleftcornerofkeypad).DeletewithClear(
upperrightcornerofkeypad).
Note!
IfPINandPUKcodeswerenotprovidedwithyourSIMcard,please
contactyourserviceprovider.
Attempts:#showsthenumberofPINattemptsleft.Whennomore
attemptsremain,PINblockedisdisplayed.TheSIMcardmustnow
beunlockedwiththePUKcode(PersonalUnblockingKey).
1.EnterthePUKcodeandconrmwithOK.
2.EnteranewPINcodeandconrmwithOK.
3.Re-enternewPINcodeandconrmwithOK.
Start-upwizard
Whenstartingthetelephoneforthersttime,youcanusethe
Start-upwizardtosetsomebasicsettings.
PressYestochangeorNoifyoudonotwanttochange.
Tip:
YoucanruntheStart-upwizardlaterifyouwant,seeStart-upwizard,
p.24.
Standby(Idlemode)
Whenthephoneisreadytouse,andyouhavenotkeyedinany
characters,thephoneisinstandby.
LeftselectionbuttoninstandbyisMenu.
RightselectionbuttoninstandbyisName.
Tip:
Youcanalwayspress toreturntostandby.
5

English
Changingthelanguage,timeanddate
ThedefaultlanguageisdeterminedbytheSIMcard.SeeGeneral,
p.23onhowtochangelanguage,timeanddate.
Makingacall
1.Enterthephonenumberincludingtheareacode.Deletewith
Clear.
2.Press
todial.PressAborttocanceldialling.
3.Presstoendthecall.
Tip:
Forinternationalcalls,alwaysuse+beforethecountrycodeforbest
operation.Press*twicefortheinternationalprex+.
MakingacallfromthePhonebook
1.PressNametoopenthephonebook.
2.Usethearrowbuttons
/ toscrollthroughthephonebook,or
quicksearchbypressingthekeycorrespondingtotherstletter
oftheentry,seeEnteringtext
,p.6.
3.PressCalltodialtheselectedentry,orpressBack.
Receivingacall
1.Presstoanswer,orpressSilenttoswitchofftheringsignal
andthenRejecttorejectthecall(busysignal).
Alternatively,press
torejectthecalldirectly.
2.Presstoendthecall.
Volumecontrol
Usethesidebuttons+/–toadjustthesoundvolumeduringacall.
Thevolumelevelisindicatedonthedisplay.Ifyouusehearing
aidorhavehearingdifcultieswhenusingthetelephoneinnoisy
environment,youcancustomizethephone'saudiosettings,seeAudio
setup,p.27.
Enteringtext
Pressanumericalkeyrepeatedlyuntilthedesiredcharacterisshown.
Waitafewsecondsbeforeenteringthenextcharacter.
6

English
Press*foralistofspecialcharacters.Selectthedesiredcharacter
with
/ andpressOKtoenterit.
Usethesidekeys+/–or
/ tomovethecursorwithinthetext.
Press#tocycleuppercase,lowercaseandnumerals.
Pressandhold#tochangeinputlanguage.
Enteringtextwithpredictivetext
InsomelanguagesyoucanusetheSmartABC(eZiType™)input
methodwhichusesadictionarytosuggestwords.SeePredictivetext
,p.35onhowtoactivatepredictivetext.
Presseachkeyonce,evenifthedisplayedcharacterisnottheone
youwant.Thedictionarywillsuggestwordsbasedonthekeysyou
havepressed.
1.Towritetheword“Fred”,press3,7,3,3.Completethe
wordbeforelookingatthesuggestions.
2.Use
/ toviewthesuggestedwords.
3.PressSelectandcontinuewiththenextword.
Alternatively,press0tocontinuewiththenextword.
Ifnoneofthesuggestedwordsarecorrect,usemanualinputmode.
Theicononthetopleftofthedisplayindicatestheinputmode:
AbcSentencecasewithpredictivetext
ABCUPPERCASEwithpredictivetext
abclowercasewithpredictivetext
AbcSentencecase
ABCUPPERCASE
abclowercase
123Numerals
Calloptions
Duringacalltheselectionbuttons1(
)giveaccesstoadditional
functions:
1.selectionbuttonshavemultiplefunctions.Thecurrentkeyfunctionis
shownabovetheselectionbuttononthedisplay.
7

English
Options(leftselectionbutton)
Amenuwiththefollowingoptionsisdisplayed:
Holdsingle
call/Retrieve
single
Hold/retrievethecurrentcall.
Endsingle
call
Endthecurrentcall(sameas ).
NewcallCallanothernumber(Conference).
PhonebookSearchthephonebook.
MessagesWriteorreadSMSmessages.
MuteDisablethemicrophone.
SPKon(rightselectionbutton)
Activateshandsfreemode,whichallowsyoutospeakwithoutholding
thephone.Speakclearlyintothemicrophoneatamaximumdistance
of1m.Usethesidekeys+/–toadjusttheloudspeakervolume.Press
SPKofftoreturntonormalmode.
Note!
Thehandsfreefunctionallowsonlyonepersonatatimetotalk.
Switchingbetweentalk/listenistriggeredbythesoundoftheperson
talking.Loudnoises(music,etc.)inthebackgroundmayinterfere
withthefunction.
Callwaiting
Analerttonewillbeheardifthereisanincomingcallwhiletalking.
Toputthecurrentcallonholdandanswertheincomingcall,press
Options,selectAnswerandthenOK.
Tip:
Callwaitingmustbeactivated,seeCallsetup,p.33.
Callinformation
Duringacall,theoutgoingorincomingphonenumberandthe
elapsedcalltimeisdisplayed.Iftheidentityofthecalleriswithheld,
Unknownisdisplayed.
8

English
Speeddial
YoucanusekeysAandB B
Bandyoucanalsousethenumericalkeys
0and2–9.Tospeeddialanentryfromstandby,pressandhold
thecorrespondingkey.SeeSpeeddial
,p.31.
Keylock
Youcanlockthekeypadtopreventthekeysbeingaccidentally
pressed,forexample,whenyourphoneisinyourhandbag.
Pressandhold*tolock/unlockthekeypad.
Incomingcallscanbeansweredbypressing
evenifthekeypad
islocked.Duringthecall,thekeypadisunlocked.Whenthecallis
endedorrejected,thekeypadislockedagain.SeeKeypadlock,p.43.
Note!
Theemergencynumbercanbedialledwithoutunlockingthekeypad.
Silent
SilentisaxedprolewithKeypadtone,MessagetoneandRingtone
disabled,whileVibration,TasksandAlarmareunchanged.
Tip:
Pressandholdshortcutbutton#toactivate/deactivateSilent.
Headset
Whenaheadsetisconnected,theinternalmicrophoneinthephoneis
automaticallydisconnected.
Whenreceivingacallyoucanusetheanswerkeyontheheadset
cable(ifithasone)toanswerandendcalls.
CAUTION
Usingaheadsetathighvolumemaydamageyourhearing.Adjustthe
volumelevelcarefullywhenusingaheadset.
SOScalls
Aslongasthephoneisswitchedon,itisalwayspossibletoplace
anSOScallbyenteringthemainlocalemergencynumberforyour
presentlocationfollowedby
.
9

English
Somenetworksacceptcallstoemergencynumberswithoutavalid
SIMcard.Contactyourserviceproviderformoreinformation.
Assistancebutton
IMPORTANT!
AlwaysinformrecipientsintheNumberlistthattheyarelistedasyour
assistancecontacts.
CAUTION
Whenanassistancecallisactivatedthephoneispre-setto
handsfree/speakerphonemode.Donotholdthedevicenearyourear
whenthehandsfreemodeisinuse,becausethevolumemaybe
extremelyloud.
TheAssistancebuttonallowseasyaccesstocontactyourpredened
helpnumbers(Numberlist)shouldyouneedhelp.TheAssistance
functionmayneedtobeactivatedbeforeuse.SeeAssistance
,
p.39onhowtoactivateasdescribedorwith3buttonpresses,howto
enterrecipientsinthenumberslist,andhowtoeditthetextmessage.
•PressandholdtheAssistancebuttonfor3seconds,orpressit
twicewithin1second.Theassistancecallbeginsafteradelayof
5seconds.Inthistimeyoucanpreventapossiblefalsealarm
bypressing.
•AnassistanceSMSissenttoallrecipients.
•Therstrecipientsinthelistisdialled.Ifthecallisnot
answeredwithin25seconds,thenextnumberisdialled.Dialling
isrepeated3timesoruntilthecallisanswered,oruntil
ispressed.
•Theassistancefunctionmaybeconguredsothatthereceiver
ofthecallmustpress"0"(zero)toconrm,inordertostopthe
alarmsequence.Ifthereisariskthattheassistancecallwillbe
answeredbyavoicemail/answeringservice,pleaseactivatethe
functionConrmwith"0".SeeConrmwith"0",p.40.
10

English
Note!
Someprivatesecuritycompaniescanacceptautomaticcallsfromtheir
clients.Alwayscontactthesecuritycompanybeforeusingtheirphone
number.
IMPORTANT!
Informationtothereceiver ofanassistancecall,whenConrmwith
"0"isactivated:
•Afterreceivingtheassistancemessage,eachnumberinthe
Numberlistwillbecalledsequentially.
•Toconrmtheassistancecall,thereceiver
needstopress0.
•Ifthereceiverdoesn’tpress0within60seconds(after
answering)thecallwillbedisconnectedandthenextnumber
insequencewillbecalled.
•Ifthereceiverpresses0within60seconds,thecallis
conrmedandnofurthercallattemptswillbemade(assistance
sequenceinterrupted).
11

English
Phonebook
Thephonebookcanstore300entrieswith3phonenumbersineach
entry.
Creatingaphonebookentry
1.PressMenu,scrolltoandpressOK.
2.Select-Newcontact-andpressAdd.
3.EnteraNameforthecontact,seeEnteringtext ,p.6.
DeletewithClear.
4.Use/ toselect Mobile,Homeor Ofce,andenter
thephonenumber(s)includingtheareacode.
5.SelectPictureandpressEdittoassociateapicturetothe
contact.
Thispicturewillbedisplayedwhenthecorrespondningcontact
iscallingyouandmayalsobevisibleinthephonebook,see
Phonebookpicture,p.27.
•SelectTakepictureandpressOKforusingthecamerato
takeapicture.
•SelectMypicturesandpressOKtoselectanexistingpicture.
6.PressSave.
Tip:
Forinternationalcalls,alwaysuse+beforethecountrycodeforbest
operation.Press*twicefortheinternationalprex+.
CreatingICEentry(InCaseofEmergency)
Withthisadditionalinformationandmedicalinformation,rst
responderscanaccessthisinformationfromthevictim'sphonein
caseofemergency.Intheeventofatrauma,itiscriticaltohavethis
informationasearlyaspossiblewhichcanincreasethechancesof
survival.Alleldsareoptional,butthemoreinformationprovidedthe
better.SeeICE(InCaseofEmergency)
,p.14onhowtocongure
yourICEinformation.
Managingphonebookentries
1.PressMenu,scrolltoandpressOK.
12

English
2.SelectacontactandpressOptions.
3.SelectoneofthefollowingoptionsandpressOK.
View
Showdetailsfortheselectedcontact.
Edit
1.Use
/ tomovethecursor.DeletewithClear.
2.PressSave.
Add
SeeCreatingaphonebookentry,p.12.
Call
PressOKtocallthecontact.
Top10
PressOKtosettheentryasoneoftherst10contactslistedinthe
phonebook,seeTop10
,p.31.
SendSMS
PressOKtowriteaSMSmessage,seeCreatingandsendingSMS,
p.15.
SendMMS
PressOKtowriteaMMSmessage,seeCreatingandsendingMMS,
p.16.
Delete
PressOKtodeletetheselectedphonebookentry.PressYestoconrm
orNotoabort.
Deleteall
SelectFromSIMorFromphoneandpressOKtodeleteallphonebook
entriesfromtheSIMcardorphonememory.
EnterthephonecodeandpressOKtoconrm.Thedefaultphone
codeis1234.
13

English
Copyall
SelectFromSIMandpressOKtocopyallphonebookentriesfromthe
SIMcardtothephonememory.PressYestoconrmorNotoabort.
SelectFromphoneandpressOKtocopyallphonebookentriesfrom
thephonememorytotheSIMcard.PressYestoconrmorNoto
abort.
SendvCard
SelectSendbySMSandpressOKtosendtheselectedphonebook
entryasavCardviaSMS.Enterthephonenumberoftherecipient.
Alternativelyusethearrowkeys
/ toscrollthroughthe
phonebook,orquicksearchbypressingthekeycorrespondingtothe
rstletteroftheentry,seeEnteringtext
,p.6.PressOKtosend.
SelectSendbyMMSandpressOKtosendtheselectedphonebook
entryasavCardviaMMS.Typeyourmessage,thenpressOptions.
AdditemstoyourmessagefromtheoptionsAddsubjectandAdd
picture.AddrecipientswithToandSendwhenready.
SelectSendbyBluetoothandpressOKtosendtheselected
phonebookentryasavCardviaBluetooth®.SeeBluetooth®,p.41on
howtoconnectwithBluetooth.
ICE(InCaseofEmergency)
Firstresponderscanaccessadditionalinformationsuchasmedical
informationfromthevictim'sphoneincaseofemergency.Inthe
eventofatrauma,itiscriticaltohavethisinformationasearlyas
possibletoincreasethechancesofsurvival.Alleldsareoptional,
butthemoreinformationprovidedthebetter.
1.PressMenu,scrollto
andpressOK.
2.SelectandpressOK,thenuse / toscrollthelistof
entries.
3.PressEdittoaddoreditinformationineachentry,seeEntering
text,p.6.DeletewithClear.PressSavewhendone.
Name:Yourownname.
Birth:Yourdateofbirth.
14
