Doyon CPF412 User manual

BREAD SLICER
CPF412, CPF416, CPF422, CPF512, CPF516, CPF522
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
TABLE OF CONTENTS
SECTION « A » DESCRIPTION PAGE
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Installation warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A4
Operation of the bread slicer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A5
Instructions to remove the blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A8
For more information, please contact our office : . . . . . . . . . . . . . . . . . . . A9
SECTION « B » DIMENSIONS
CFP412, 416 & 422. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B1
CPF512, 516 & 522. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B2
SECTION « E » COMPONENT PARTS
CFP412, 416 , 422 & CFP512, 516, 522 . . . . . . . . . . . . . . . . . . . . . . . . . . E1
SECTION « G » ELECTRIC SCHEMATIC
CPF412, 416, 422 & CPF512, 516, 522 . . . . . . . . . . . . . . . . . . . . . . . . . . . G1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CPF1-A.DOC Rev. 05-2007

A1
INTRODUCTION
CAUTION
READ ALL INSTRUCTIONS
The manufacturer suggests to read this manual carefully.
This bread slicer is manufactured with first quality material by experienced technicians. Proper
installation and maintenance will guarantee a reliable service for years to come.
A nameplate fixed to the slicer specifies the model number, serial number, voltage and amperage.
ATTENTION
DOYON is not responsible for damages to the property or the equipment caused
by personnel who is not certified by known organisations. The customer is
responsible for finding qualified technicians in electricity.

A2
CONSTRUCTION
You just bought the most advanced bread slicer in the world, "DOYON" technology at its best. This
slicer is manufactured using the highest quality components and material.
SHIPPING
For your safety, this equipment has been verified by qualified technicians and carefully crated before
shipment. The freight company assumes full responsibility concerning the delivery in good condition
of the equipment in accepting to transport it.
IMPORTANT
RECEPTION OF THE MERCHANDISE
Take care to verify that the received equipment is not damaged before signing the delivery receipt. If
a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after the carrier has
left, contact immediately the freight company in order that they do their inspection.
We do not assume the responsibility for damages or losses that may occur during transportation.

A3
INSTALLATION WARNINGS
POWER FAILURE WARNING
WHEN YOU HAVE A POWER FAILURE, SHUT OFF THE BREAD SLICER POWER
SWITCH TO PROTECT THE ELECTRIC COMPONENTS WHEN THE POWER COMES
BACK.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY APPLIANCE.
INSTALLATION AND SERVICE
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
Installation and service must be done by specialised technicians. Contact a certified electrician.
The bread slicer must be connected to the utility and electrically grounded in conformity to the
effective local regulations. If these are not established, the oven must be connected according to the
Canadian Electrical Code (CSA-C22.1-XX) or National Electrical Code (NFPA 70-XX). Refer to
last edition year for XX. Installation must also allow proper access for service (24 inches each side
and back).

A4
INSTALLATION
IN GENERAL
Take off the packaging material with care. Take off all the material used for packing and
accessories.
1. To the electrician
Electrical supply installation must be in accordance with the electrical rating on the nameplate.

A5
OPERATION OF THE BREAD SLICER
Adjust the position of the finger at high or low position according with your bread, with the black
adjustment screw. (picture A)
1. Turn the main switch to the [ I ] position.
2. Twist out the emergency stop switch.
3. Push the lever partway.
4. Insert the bread.
5. Push the lever again all the way back to start the slicer.
6. Let go and restrain the lever tension as not to crush the bread.
7. When the bread is sliced, the slicer stops working.
8. Remove bread from the outlet.
21
4
3
56
6 7 8
A

A6
9. Place it on the bagger.
10. Slip the bag around the bread.
11. Remove the bag with the bread and tie the bag.
Remove the crumbs drawer to empty.
910 11

A7
INSTRUCTIONS TO REMOVE THE BLADES
1. Remove the top cover.
2. Remove the front plate cover (picture 2) to have access to the bottom blade frame. To remove
this plate cover, take out all front screws and loose the two screws at the other side of the blade
frame (picture 2A).
3. Loose the blade screws and pull out the blades (picture 3).
4. Install the new blades and reinstall everything back.
1 1
2
3
2A

A8
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
ANSWERS TO MOST FREQUENT QUESTIONS
Questions Solutions
The bread slicer does not turn on. Check the breakers of the building.
Check the power on the wall outlet for the
slicer.
Check if the main switch of the slicer is at
position [ I ].
Check if the emergency stop is twisted out.
Check the lever micro switch underneath the
bread infeed plate.
Push the lever all the way back to start the
slicer.
The bread does not have a nice cut. Check and replace blades.
The lever is too hard or too loose. Adjust the spring tension underneath the bread
infeed plate.
CAUTION
SAVE THESE INSTRUCTIONS

A9
FOR MORE INFORMATION,
PLEASE CONTACT OUR OFFICE:
DOYON EQUIPMENT INC.
1255, rue Principale
Linière, Qc, Canada G0M 1J0
Tel. : [phone]
Canada : 1 [phone]
U.S. : 1 [phone]
FAX : [phone]
Internet: http://www.doyon.qc.ca
E-Mail : [email protected]

SECTION
B
DIMENSIONS

B1

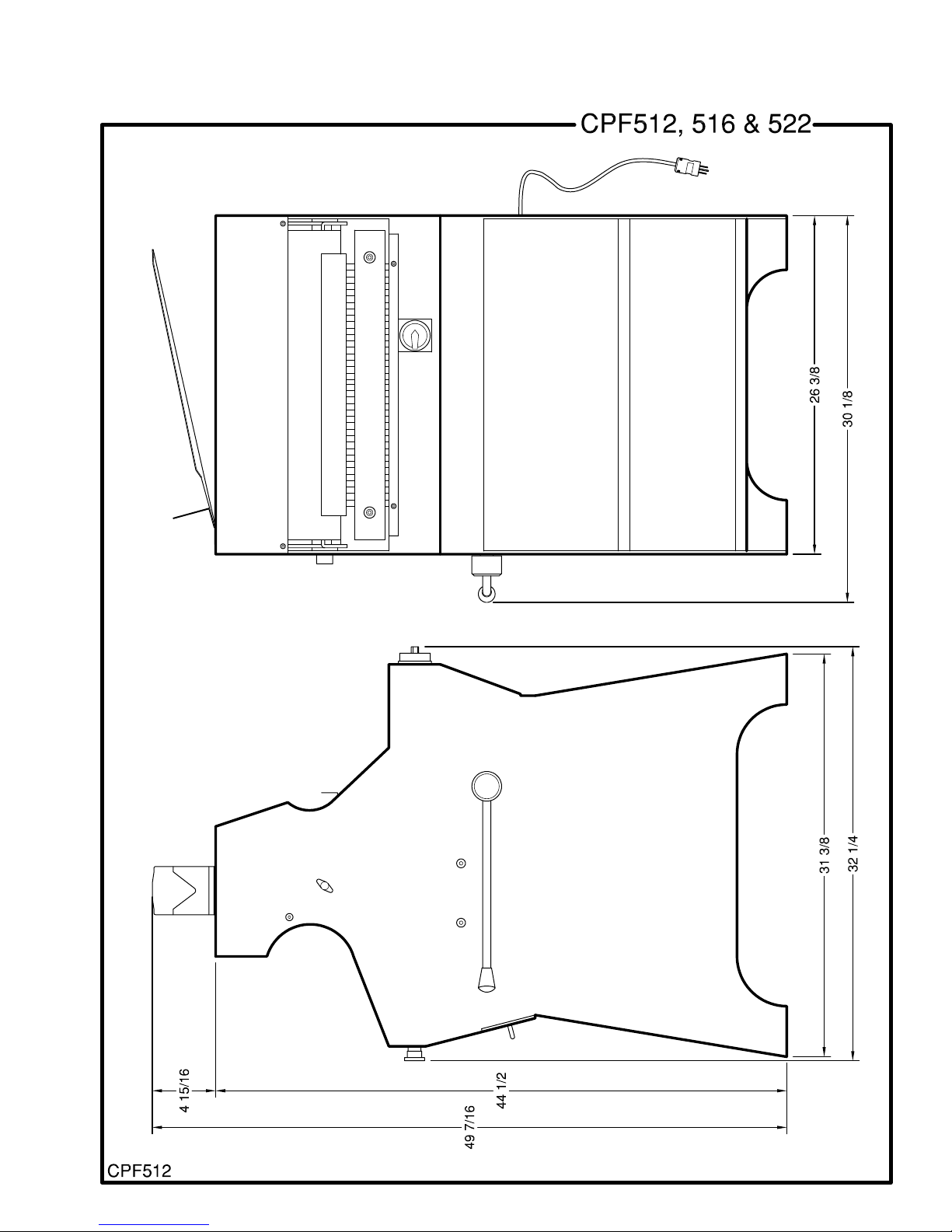

B2

SECTION
E

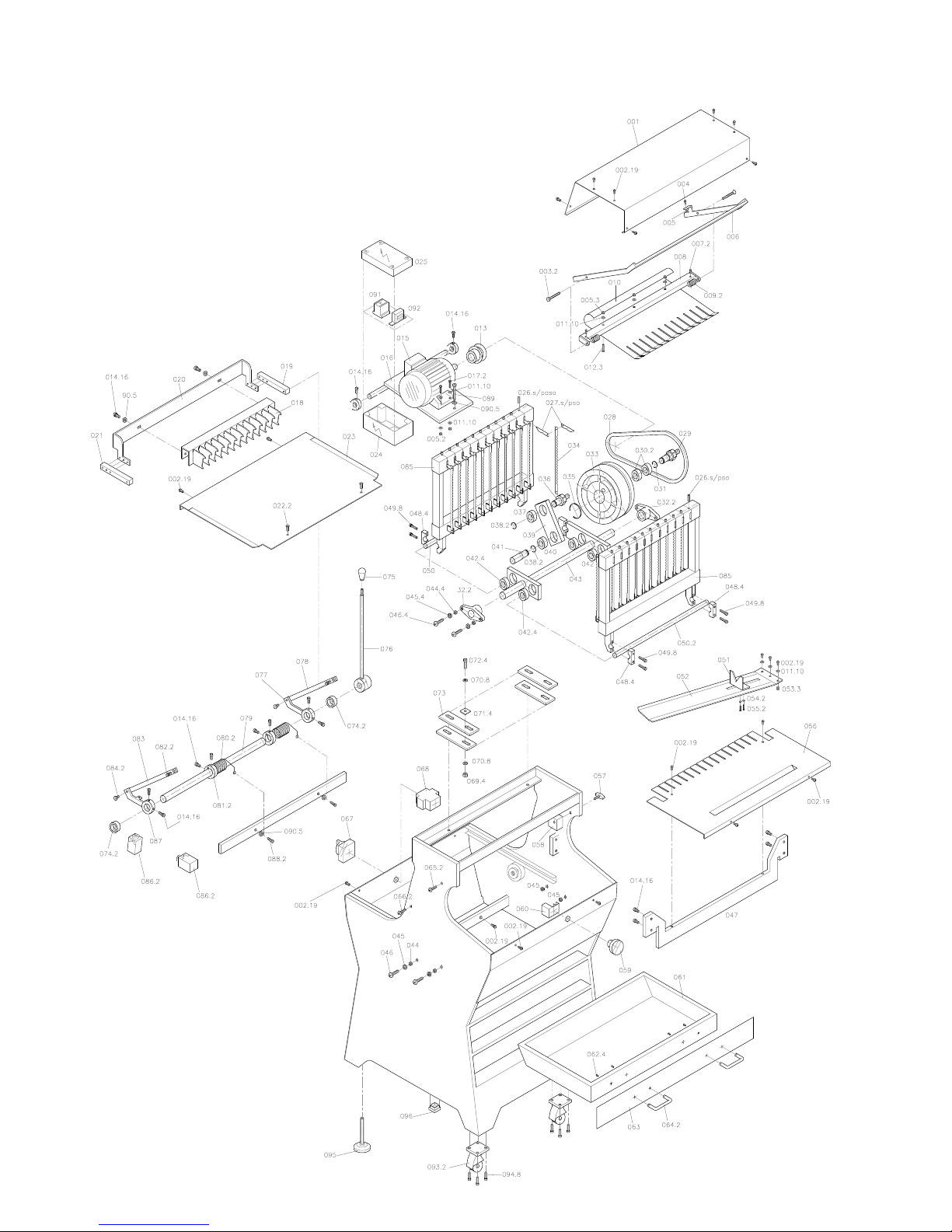

COMPONENT PARTS

E1

SECTION
G

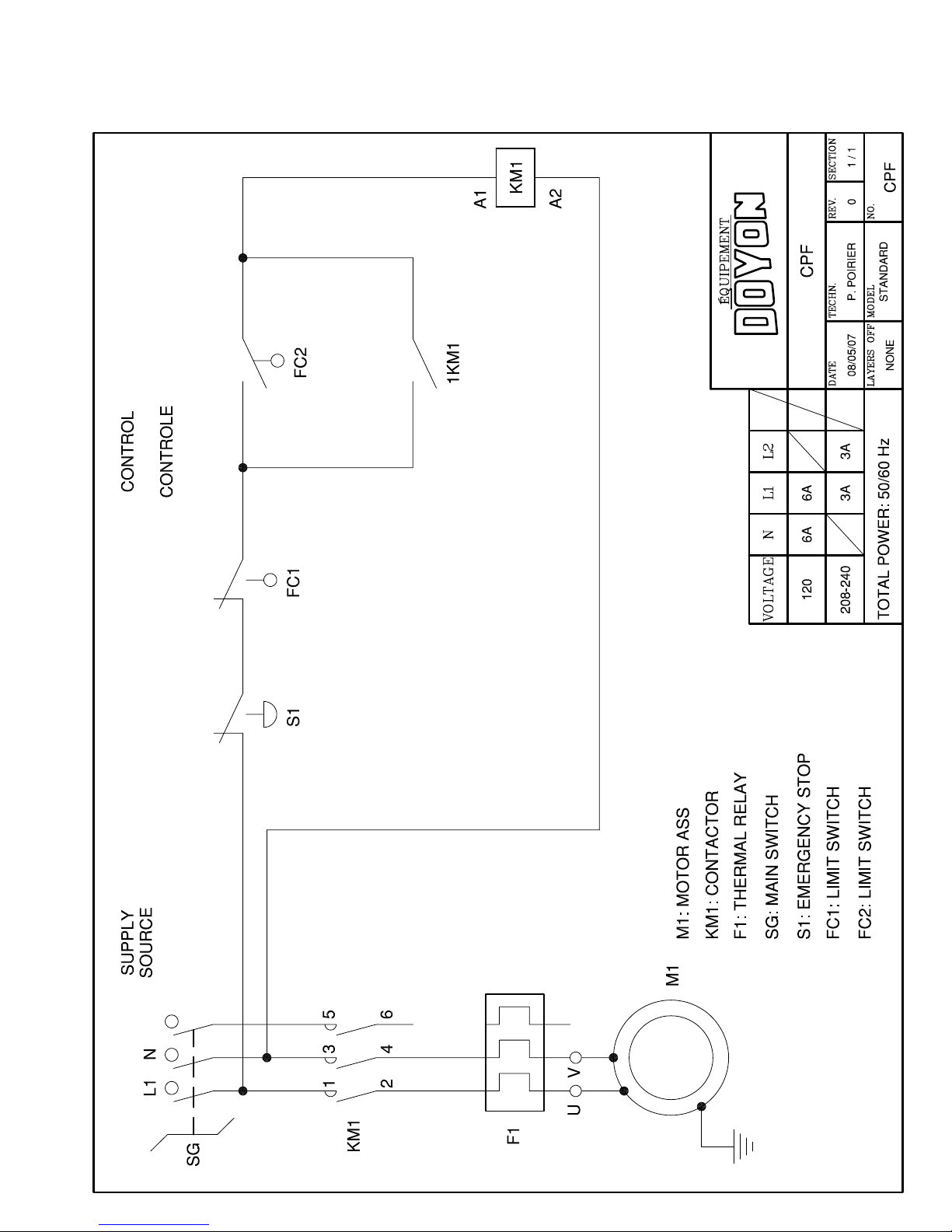

ELECTRIC SCHEMATIC

G1

LIMITED WARRANTY
(Continental United States Of America And Canada Only)
Doyon Equipment Inc. guarantees to the original purchaser only that its product are free of defects in
material and workmanship, under normal use.
This warranty does not cover any light bulbs, thermostat calibration or defects due to or resulting
from handling, abuse, misuse, nor shall it extend to any unit from which the serial number has been
removed or altered, or modifications made by unauthorized service personnel or damage by flood,
fire or other acts of God. Nor will this warranty apply as regards to the immersion element damaged
by hard water.
The extent of the manufacturer’s obligation under this warranty shall be limited to the replacement
or repair of defective parts within the warranty period. The decision of the acceptance of the
warranty will be made by Doyon Equipment service department, which decision will be final.
The purchaser is responsible for having the equipment properly installed, operated under normal
conditions with proper supervision and to perform periodic preventive maintenance.
If any parts are proven defective during the period of one year from date of purchase, Doyon
Equipment Inc. hereby guarantees to replace, without charge, F.O.B. Linière, Quebec, Canada, such
part or parts.
Doyon Equipment Inc will pay the reasonable labor charges in connection with the replacement
parts occurring within one year from purchase date. Travel over 50 miles, holiday or overtime
charges are not covered. After one year from purchase date, all labor and transportation charges in
connection with replacement parts will be the purchaser’s responsibility.
Doyon Equipment Inc. does hereby exclude and shall not be liable to purchaser for any
consequential or incidental damages including, but not limited to, damages to property, damages for
loss of use, loss of time, loss of profits or income, resulting from any breach or warranty.
In no case, shall this warranty apply outside Canada and continental United States unless the
purchaser has a written agreement from Doyon Equipment Inc.
