Doyon DL12S User manual

DOUGH SHEETER
DL12S & DL18S
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
SECTION « A » DESCRIPTION PAGE
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A4
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A4
Foot Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A5
For more information, please call our office: . . . . . . . . . . . . . . . . . . . . . . . A6
SECTION « B » DIMENSIONS

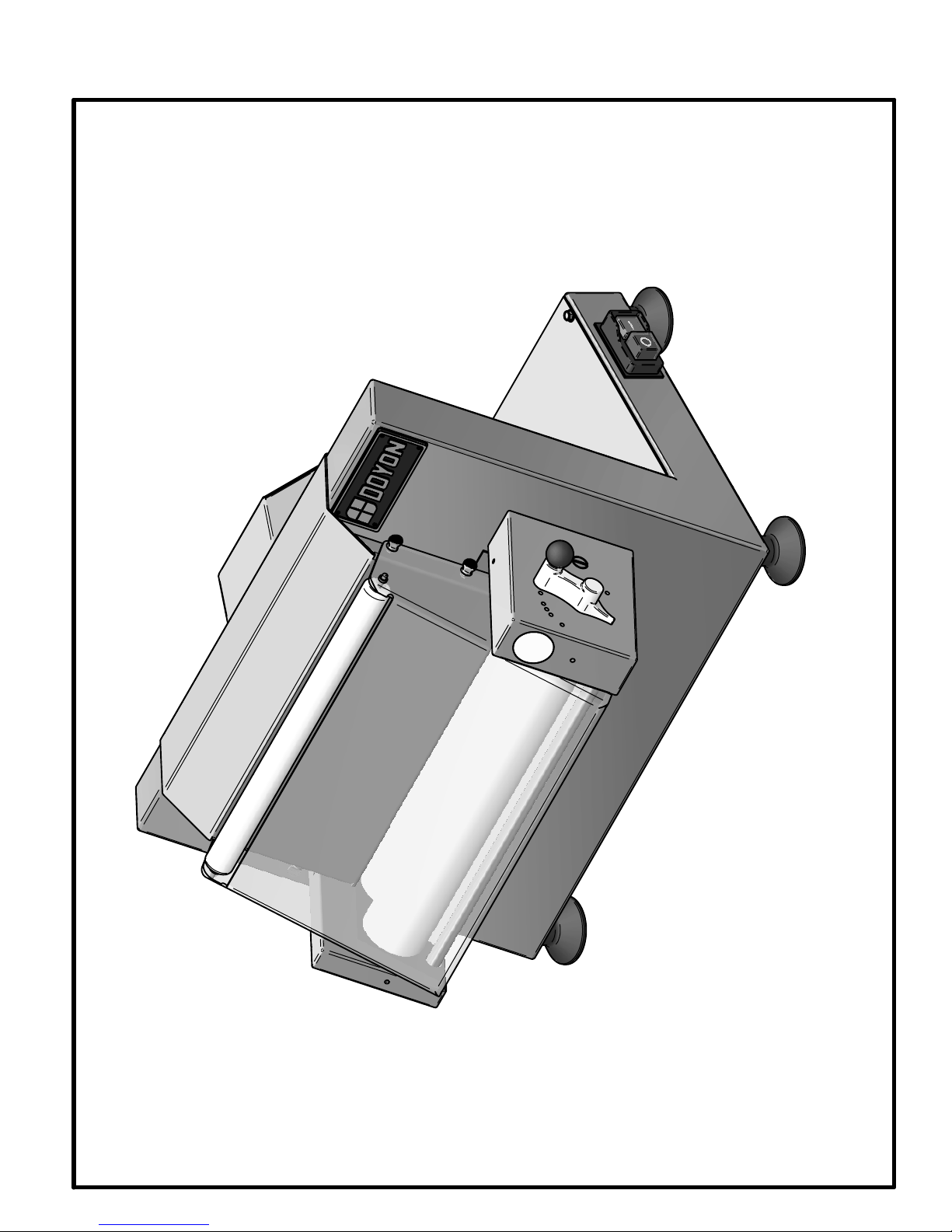

DL12S 3D DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B1
DL12S FRONT & SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B2
DL18S 3D DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B3
DL18S- FRONT & SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B4
SECTION « E » COMPONENT PARTS
DL12S- COMPONENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E1
DL18S- COMPONENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL12S&DL18S-A.DOC Rev. 05/2007

A1
CAUTION
READ ALL INSTRUCTIONS
INTRODUCTION
This dough sheeter is manufactured with first quality material by experienced technicians. Proper
installation and maintenance will guarantee a reliable service for years to come.
A nameplate specifies the model number, serial number, voltage, amperage, frequency and
manufacturing date.
Drawings, electrical diagram and replacement part numbers are included in this manual.
WARNING
DOYON is not responsible for damages to the property or the equipment caused
by personnel who is not certified by known organisations.

A2
SHIPPING
For your safety, this equipment has been verified by qualified technicians and carefully crated before
shipment. The freight company assumes full responsibility concerning the delivery in good condition
of the equipment in accepting to transport it.
IMPORTANT
RECEPTION OF THE MERCHANDISE
Take care to verify that the received equipment is not damaged before signing the delivery receipt. If
a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after the carrier has
left, contact immediately the freight company in order for them to their inspection.
We do not assume the responsibility for damages or losses that may occur during transportation.
IN GENERAL
Take off the packaging material with care. Take off all the material used for packing and
accessories.
This equipment can be plugged on any network offering a protection of 15 amps.
INSTALLATION WARNINGS
INSTALLATION AND SERVICE
The dough sheeter must be connected to the utility and electrically grounded in conformity to the
effective local regulations. If these are not established, the dough sheeter must be connected
according to the National Electrical Code (NFPA 70-XX). This equipment has a male plug that
meets those requirements.

A3
IMPORTANT SAFEGUARDS
Read all instructions.
Do not use outdoors.
Do not let cord hang over edge of table or counter or touch hot surfaces.
Save these instructions.
To protect against electrical shock, do not immerse cord, plugs, portable appliance in water or
other liquids.
Remove plug from the outlet when the appliance is not in use, before putting on or taking off
parts, and before cleaning.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions
or is dropped or damaged in any manner. Return appliance to the nearest authorized service
facility for examination, repair or electrical or mechanical adjustment.
Do not place on or near a hot gas or electric burner or in a heated oven.
The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
Always check if the control switch is OFF before plugging cord into wall outlet. To disconnect,
turn the control switch to OFF, then remove plug from wall outlet.
Do not use appliance for other than intended use.
Avoid contacting moving parts.

A4
DL12S OPERATION
1Press the green button to start the machine. (A pilot light will light up when the machine is on.)
2Adjust the opening of the roller to obtain the desired dough thickness.
3Put some flour in the chute and on the rollers to prevent the dough from sticking on the rollers.
4Flatten the dough ball with your hands before.
5Cover the dough with flour.
6Put the dough in the chute.
7When the dough comes out of the rollers, finish it manually at desired size, or do a second pass
in the roller to have a round shape if needed.
8To stop the machine, press the red button.
DL18S OPERATION
1Press the green button to start the machine. (A pilot light will light up when the machine is on.)
2Adjust the opening of the roller to obtain the desired dough thickness.
3Put some flour in the chute and on the rollers to prevent the dough from sticking on the rollers.
4Flatten the dough ball with the hands before.
5Cover the dough with flour.
6Put the dough in the chute.
7When the dough comes out of the first set of rollers, guide the dough with your hand to the second
set of rollers to obtain a round shape when the dough comes out of the second set of rollers.
8When the dough comes out, finish it manually at desired size, if needed.
9To stop the machine press the red button.
WARNING
Never remove the safety guard on the machine. Never try to push or remove the dough from
the rollers with your hands. Always turn off the power on the machine before cleaning or
trying to take out some dough.
MAINTENANCE AND CLEANING
Remove the plastic security cover on the rollers to clean the rollers.
Clean the machine with a brush or a vacuum to take out the excess flour. Remove stain with soap
and water.

A5

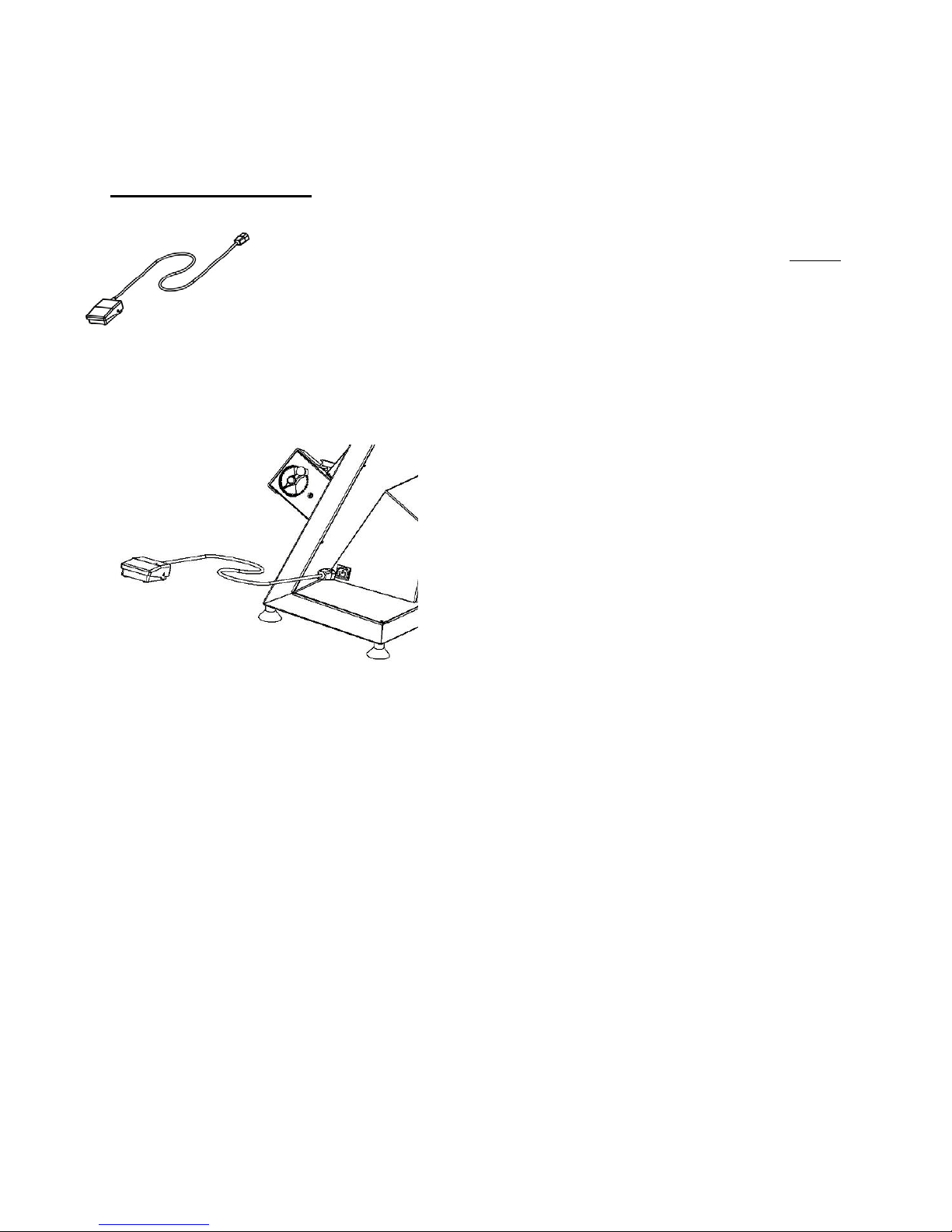

FOOT PEDAL ( optional)
The pedal connects by a special non-invertible tri-polar connector to the
electric/electronic circuit (low voltage) of the rolling machine.
After connecting the pedal control to the rolling machine, it is always
necessary to press the green start button to confirm the operation. The
machine is now ready and when the pedal is pressed one gives the start
command to release the stop. The socket next to the machine has been
positioned to protect it from blows; disconnection of the plug from the
socket during operation will cause the machine to stop.

A6
FOR MORE INFORMATION,
PLEASE CONTACT OUR OFFICE:
DOYON EQUIPMENT INC.
1255, rue Principale
Linière, Qc, Canada G0M 1J0
Tel. : [phone]
Canada : 1 [phone]
U.S. : 1 [phone]
FAX : [phone]
Internet: http://www.doyon.qc.ca
E-Mail : [email protected]

SECTION
B
DIMENSIONS

B1

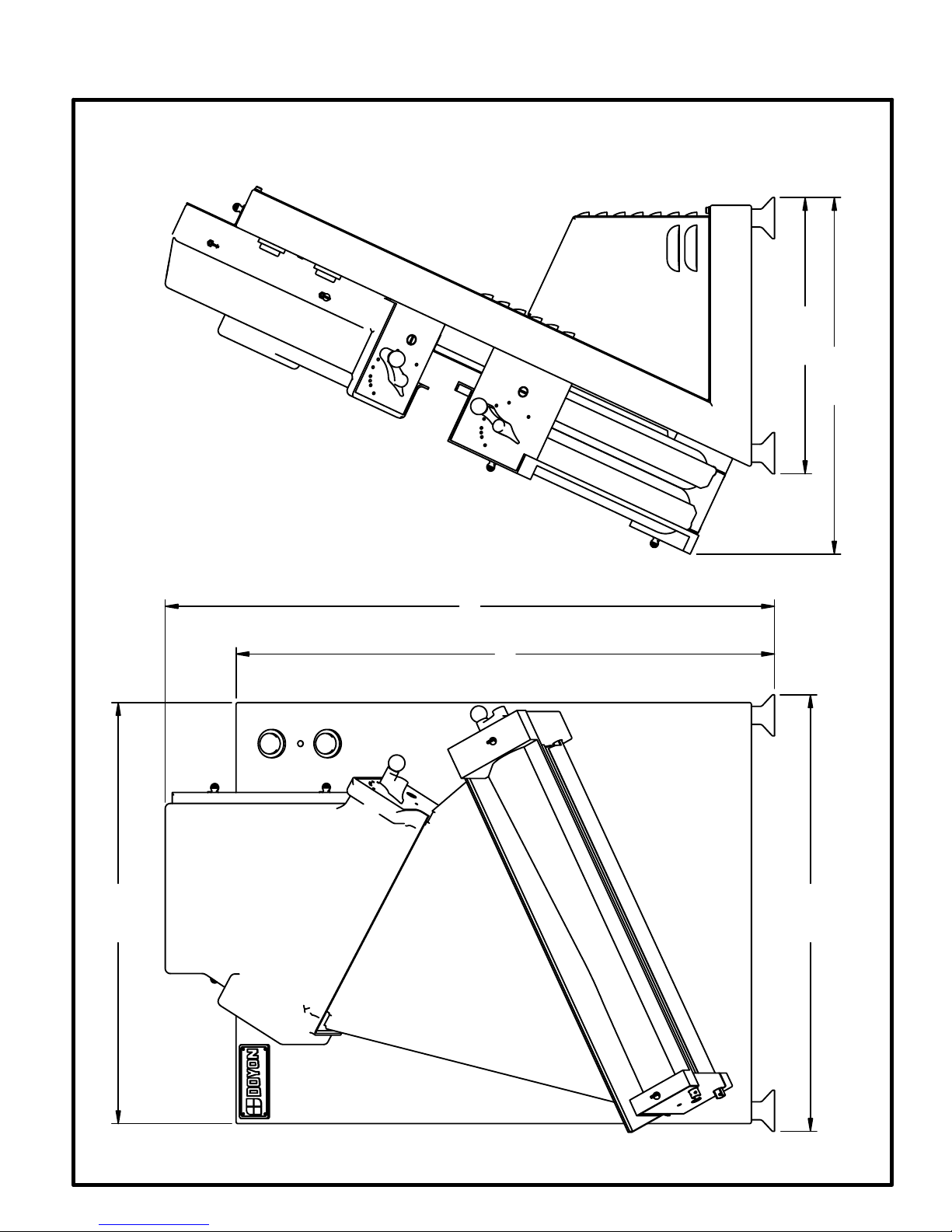

G:\ACAD10\DL12\DL12S.dft
DL12S

B2
G:\ACAD10\DL12\DL12S.dft
DL12S
16 7/8
12 1/8
18 1/8
13
15
17 5/8

B3
G:\ACAD10\DL18\DL18S.dft
DL18S

B4
G:\ACAD10\DL18\DL18S.dft
DL18S
26 1/4
29 5/8
20 1/2
13 1/2
17 3/8
21 1/4

SECTION
E
COMPONENT PARTS

E1
DL12S

E2
DL12S
No. CODE DESCRIPTION QTY
1PC/10-0011-1 ROLLER ASSEMBLY 1
2PC/10-0118 FRAME BODY 1
3PC/10-0030 TOP MOTOR SUPPORT 1
4PC/10-0120-2 STAINLESS STEEL CHUTE 1
5PC/10-0390 BACK LID 1
6PC/10-0157 DRIVING BELT 1
7PC/10-0046 RUBBER LEGS 4
8PC/10-0045 USA CAPACITOR 16 uF 250VOLTS 1
OR PC/10-0045 CAPACITOR 8 uF 400VOLTS 1
9PC/10-0073-N MOTOR 120 VOLTS 60 HZ 1
OR PC/10-0073-M MOTOR 240 VOLTS 50 HZ 1
10 MP/100113/USA 120 VOLTS 60Hz POWER SWITCH 1
OR MP/100113 240 VOLTS 50Hz POWER SWITCH 1
11 PC/10-0310 CAUTION BEFORE CLEANING 1
12 PC/10-0213-3 PLASTIC PROTECTOR 1
13 PC/10-0041 BOTTOM MOTOR SUPPORT 1

E3

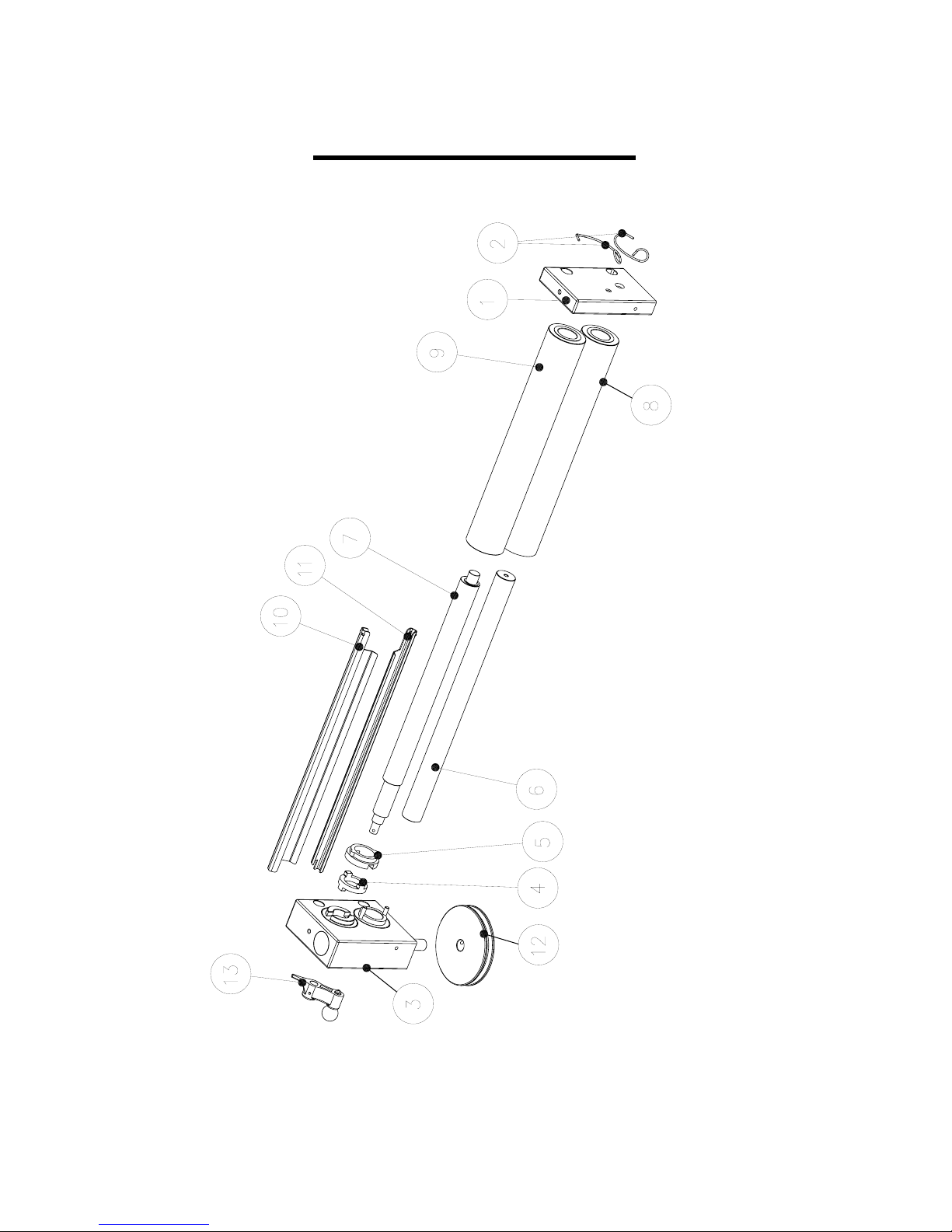

ROLLER DL12S

E4
ROLLER DL12S
No. CODE DESCRIPTION QTY
1PC/10-0013 ROLLER HOLDER 1
2PC/10-0052-2 BACK ROLLER SCRAPER SPRING SX 1
AND PC/10-0052-1 FRONT ROLLER SCRAPER SPRING DX 1
3PC/10-0020-I ROLLER GEAR BOX 1
4PC/10-0024 ECCENTRIC 1
5PC/10-0024-1 FRONT ROLLER COUPLING 1
6PC/10-0018 BACK ROLLER INSIDE SHAFT 1
7PC/10-0019 FRONT ROLLER INSIDE SHAFT 1
8PC/10-0035 BACK ROLLER DL12S 1
9PC/10-0036 FRONT ROLLER DL12S 1
10 PC/10-0026 FRONT ROLLER SCRAPER DL12S 1
11 PC/10-0025 BACK ROLLER SCRAPER DL12S 1
12 PC/10-0040 PULLEY 1
13 PC/10-0022-1 ROLLER OPENING ADJUSTMENT LEVER 1

E5
DL18S

E6
DL18S
No. CODE DESCRIPTION QTY
1MP/100112 CLEAR RUBBER POWER SWITCH COVER 2
2PC/10-0011-2 BOTTOM ROLLER ASSEMBLY 1
3PC/10-0012-2 TOP ROLLER ASSEMBLY 1
4PC/10-0074 FRAME BODY 1
5PC/10-0082 CENTER DOUGH SLIDER 1
6PC/10-0083-1 TOP DOUGH SLIDER 1
7PC/10-0076-1 BACK LID 1
8PC/10-0072 BOTTOM ROLLER PLASTIC COVER 1
9PC/10-0071 TOP ROLLER PLASTIC COVER 1
10 PC/10-0090 DRIVING BELT 1
11 PC/10-0030 TOP MOTOR SUPPORT 1
12 MP/100111 GREEN START BUTTON 1
13 MP/100110 RED STOP BUTTON 1
14 PC/10-0046 FOOT PEDAL SWITCH OUTLET 1
15 PC/10-0046 RUBBER LEGS 4
16 PC/10-0310 CAUTION BEFORE CLEANING 2
17 PC/10-0385 CONTROL BOARD 120 Volts 60Hz 1
OR PC/10-0380 CONTROL BOARD 240 Volts 50Hz 1
18 PC/10-0073-N MOTOR 120 Volts 60Hz 1
OR PC/10-0073-M MOTOR 240 Volts 50Hz 1
19 PC/10-0045-USA CAPACITOR 16 Uf 250 volts for 120 volts motor 1
OR PC/10-0045 CAPACITOR 8 Uf 400 volts for 240 volts motor 1
20 PC/10-0079 BOTTOM MOTOR SUPPORT 1

E7

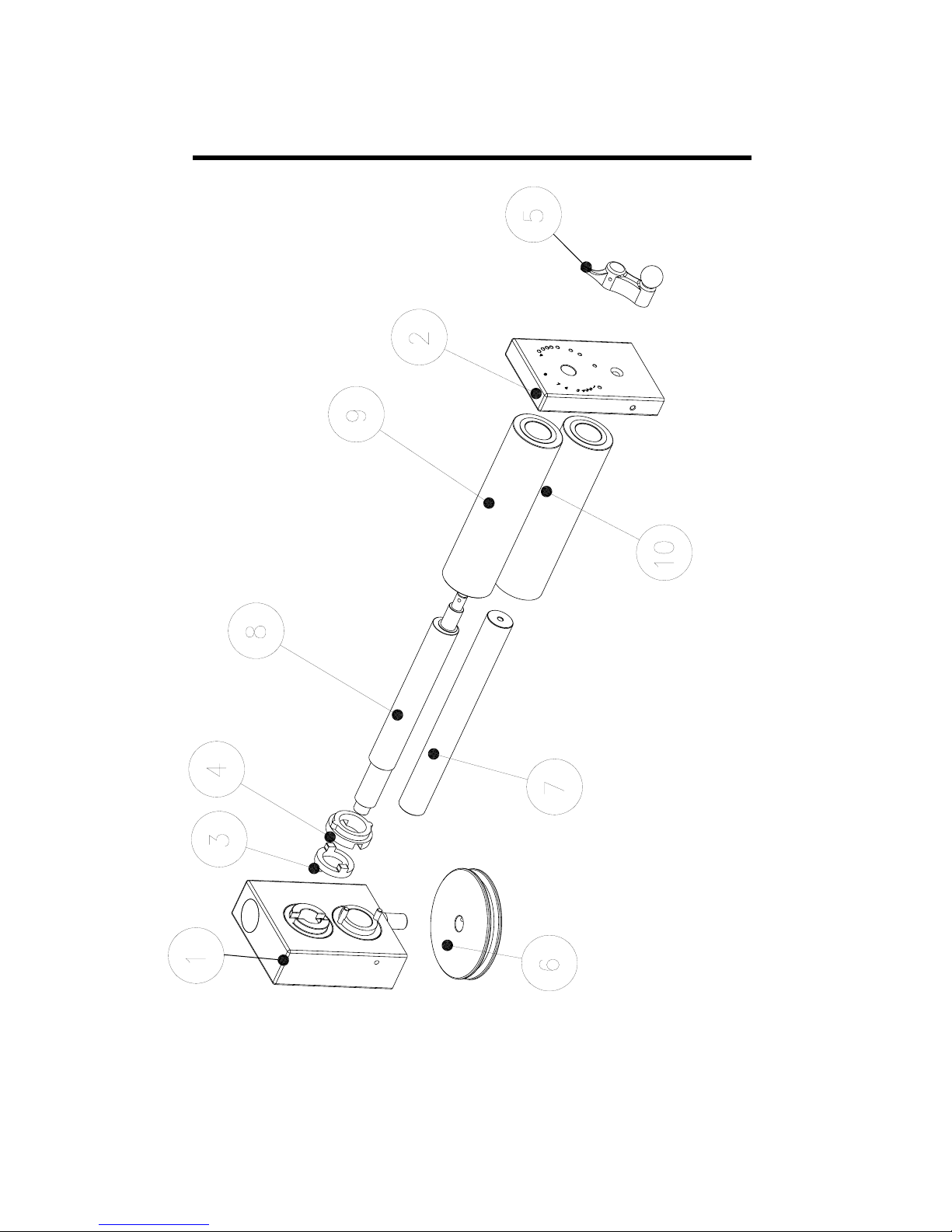

SUPERIOR ROLLER DL18S
