Doyon SM-302 Manual

BREAD SLICER
SM-302
120 Volts
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
TABLE OF CONTENTS
DESCRIPTION PAGE
Installation and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Construction and shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before calling for service - Answers to most frequent questions . . . . . . . 5
Slicer cleaning and maintenance 5
Slicer description and changing blades . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
For more information, please call our office . . . . . . . . . . . . . . . . . . . . . . . 9
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Component parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electric schematic - 120Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SM302.DOC
REV. 06-2004

1
INSTALLATION AND MAINTENANCE MANUAL
The manufacturer suggests to read this manual carefully.
The bread slicer is manufactured with first quality materials by experienced technicians. Normal use
and adequate maintenance will guarantee a reliable service for years to come.
The SM302 bread slicer is available in four different slice thickness (1/2, 5/8, 3/4 and 1 inch).
A nameplate fixed to the left side of the slicer specifies the serial number, model number, amperage,
voltage and frequency.
Drawings, electrical diagrams and replacement part numbers are included in this manual.
ATTENTION
ÉQUIPMENT DOYON INC. is not responsible for damages to the property or
the equipment caused by non certified personnel. The customer is responsible
for finding a qualified electrician for the installation of the slicer.

2
C O N S T R U C T I O N
You have now the most performant bread slicer on the market in its category. This bread slicer is
manufactured using the highest quality components and materials.
S H I P P I N G
For your safety, this equipment has been verified by qualified technicians and carefully crated before
shipment. The freight company takes full responsibility for the delivery of this equipment in good
condition, by accepting to transport it.
IMPORTANT
RECEPTION OF THE MERCHANDISE
Take care to verify that the received equipment is not damaged before signing the delivery receipt. If
damage or loss is noticed, write it clearly on the receipt and have the carrier sign it. If the damage is
noticed after the carrier left, contact the freight company immediately so that they may inspect.
We do not take responsibility for damages or losses that may occur during transportation.

3
W A R N I N G
FOR YOUR SAFETY
BEFORE USING THE BREAD SLICER, VERIFY THAT NOTHING OBSTRUCTS THE
CHUTE BLADE AND TIGHTEN THE GUIDE ADJUSTMENT.
IMPORTANT
INSTALLATION AND SERVICE
A qualified technician must do servicing.
The bread slicer must be connected to the utility and electrically grounded in conformity to the
effective local regulations. If these are not established, the oven must be connected according to the
Canadian Electrical Code (CSA-C22.1-XX) or National Electrical Code (NFPA 70-XX). Refer to
last edition year for XX.

4
I N S T A L L A T I O N
IN GENERAL
Open the crate and remove all materials used for packing as well as the accessories.
Put the slicer on a stable table or counter and make sure the slicer is on level.
Each unit is set up to be used with the electrical supply specified on the nameplate fixed on the left
side of the slicer.
To the electrician
The electrical supply installation must be in accordance with the electrical rating on the nameplate.
SLICER OPERATION
1. Make sure there are no obstructions in the chute.
2. Adjust the side and top guide a 1/2 inch from each side of the bread and a 1/2 inch from the top.
3. Use only cold bread in the slicer.
4. Start the slicer with the main switch on the left side.
5. Put the bread in the chute and by using the wood bread presser exert pressure on the bread. When
the bread comes out, remove it and put it on the bread support on the top of the slicer. Take a bag
and insert over the support and bread; then remove them and close the bag.
WARNING
NEVER TRY TO PUSH OR PULL OUT THE BREAD WITH YOUR HANDS WHEN
THE SLICER IS ON. ALWAYS DISCONNECT THE ELECTRIC CORD OR MAIN
POWER BREAKER.
POWER FAILURE
When you have a power failure take care to switch off the slicer otherwise it start to work when the
power comes back on.

5
BEFORE CALLING FOR SERVICE
ANSWERS TO MOST FREQUENT QUESTIONS
Always cut off the main power before replacing any parts.
Questions Solutions
The slicer does not turn on when powered. Check if the electric cord is connected.
Check the breaker of the building.
Check the breaker on the side of the slicer.
If the slicer is still not working, call a
technician or us.
The slicer does not slice properly. Make sure the bread is not hot.
Check if the blade is clean.
Check the guide adjustment.
If the slicer still does not slice properly, change
the blade.
SLICER CLEANING AND MAINTENANCE
We recommend cleaning the slicer every day to prevent accumulation of bread pieces. Use a
small vacuum to clean the breadcrumbs.

6
SLICER DESCRIPTION AND CHANGING BLADES
DESCRIPTION
Bread width: 15 inches max.
Bread height: 5 inches max.
Capacity: 240 breads per hour.
Bread slice thickness: 5/8 (optional: 1/2, 3/4 or 1 inch).
Length of the chute: 22 inches.
Motor: 1/4 Hp, 120 Volts, 60 Hz.
Weight: 200 pounds.

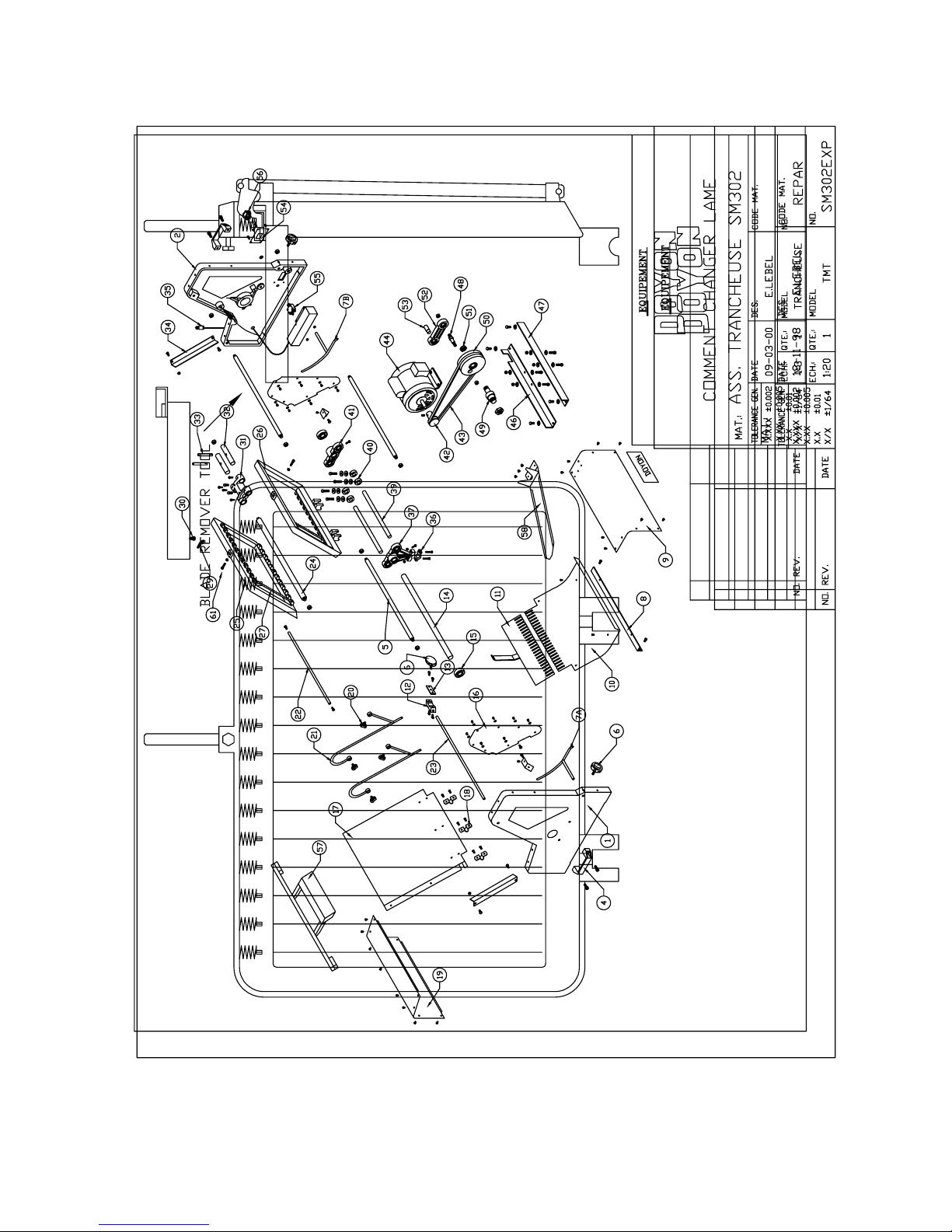

TO REMOVE THE BLADES
1. Remove the top cover (9) and the guide (11).
2. Remove the exit chute (10).
3. Remove the support angle on each side of the chute (10) (10mm key).
4. Unscrew bolt (31).
5. Unscrew the bottom bolt on the blade frame.
6. Turn the frame cam wheel (37 and 41) with the v belt.
7. Use the special tool to remove the blades one by one.
TO INSTALL THE NEW BLADES
1. Use the special tool to install the blades one by one.
2. Install the blade frame (25 and 26) tighten the bottom bolt (31) and make sure the frames are
aligned.
3. Install the angle support on each side of the chute (10) (10mm key).
4. Install the exit chute (10).
5. Install the top cover (9) and the guide (11).

7

8

9
FOR MORE INFORMATION,
PLEASE CONTACT OUR OFFICE :
DOYON EQUIPMENT INC.
1255, rue Principale
Linière, QC, Canada G0M 1J0
Tel. : [phone]
Canada : 1-800-463-1636
U.S. : 1-800-463-4273
FAX : [phone]
Internet: http://www.doyon.qc.ca
E-mail : [email protected]

10

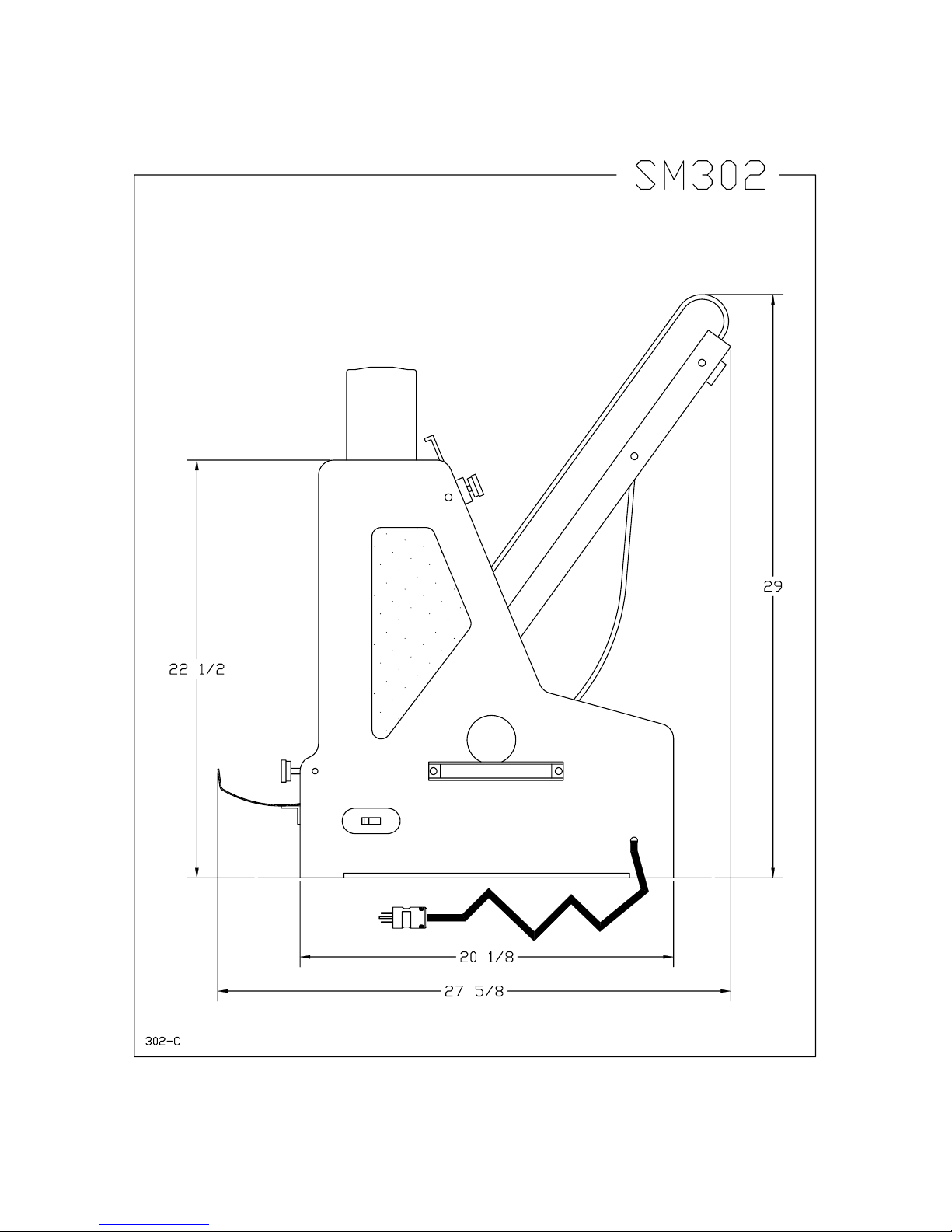

DIMENSIONS

11

12

13
COMPONENT PARTS

14

15
Item Part Number Description Quantity
1 302001 LEFT FRAME 1
2 302002 RIGHT FRAME 1
4 302004 HANDLE 2
5 302005 LOWER CHUTE SUPPORT ROD 1
6 302006 ADJUSTMENT HANDLE 2
7 302007A OUTGOING GUIDE LEFT 1
& 302007B OUTGOING GUIDE RIGHT 1
8 302008 FIXING ANGLE 1
9 302009 FRONT COVER 1
10 302010 OUTGOING CHUTE (1/2", 5/8", 3/4" OR 1") 1
11 302011 COMB (1/2", 5/8", 3/4" OR 1") 1
12 302012 COMB HOLDER 1
13 302013 PLATE FOR ADJUSTMENT SCREW FOR PRESSER 1
14 302014 CRANK SHAFT 1
15 302015 BEARING (#6204) QURB10 1
16 302016 WINDOW 2
17 302017 CHUTE 1
18 302018 BRAKET FOR CHUTE 3
19 302019 TOP COVER 1
20 302020 ADJUSTMENT SCREW FOR GUIDE 4
21 302021 GUIDE FOR BREAD 2
22 302022 UPPER AJUSTABLE ROD FOR GUIDE 1
23 302023 LOWER AJUSTABLE ROD FOR GUIDE 1
24 302024 FRAME GUIDE SHAFT 1
25 302025 RIGHT SIDE BLADE FRAME (1/2", 3/4", 5/8" OR 1") 1
26 302026 LEFT SIDE BLADE FRAME (1/2", 5/8", 3/4" OR 1") 1
27 302027 BLADES R-347(1/2" 29 blade, 5/8" 23 blade ,3/4" 19 blade,1" 15 blade) 0
29 302029 BLADE FIXING (2 per blade) 2
30 302030 SPRING(per blade) 1
31 302031 GUIDE 1
32 302032 TEFLON FRAME GUIDE 2
33 302033 FRAME GUIDE 2
34 302034 CHUTE SUPPORT 2
35 302035 ELECTRIC PLUG 1
36 302036 BRAKET FOR SHAFT #14 1
37 302037 LEFT CRANK 1
39 302039 SHAFT FOR CRANK 2
40 302040 FRAME FIXING 4
41 302041 RIGHT CRANK 1
42 302042 MOTOR PULLEY 1
43 302043 "V" BELT 4L29 1
44 302044 MOTOR 1
46 302046 MOTOR BRAKET 1
47 302047 MOTOR BRAKET 1
48 302048 ROD WITH PULLEY 1
49 302049 PULLEY SHAFT 1
50 302050 PULLEY 1
51 302051 NUT 1
52 302052 PULLEY GUIDE WITH BEARING 1
53 302053 ROD FOR SHAFT 1
54 302054 SWITCH PLATE 1

16
55 302055 10 AMP. BRAKER 1
56 302056 MAIN SWITCH 1
57 PPTMT WOOD BREAD PUSHER 1
58 302058 MANUEL BAGER 1
60 302060 BLADE REMOVER 1
Model : Bread slicer SM302 View : Explode

17
ELECTRIC SCHEMATIC
120 VOLTS

18

19
LIMITED WARRANTY
(Continental United States Of America
And Canada Only)
Doyon Equipment Inc. guarantees to the original purchaser only that
its product are free of defects in material and workmanship, under
normal use.
This warranty does not cover any light bulbs, thermostat calibration or
defects due to or resulting from handling, abuse, misuse, nor shall it
extend to any unit from which the serial number has been removed or
altered, or modifications made by unauthorized service personnel or
damage by flood, fire or other acts of God. Nor will this warranty
apply as regards to the immersion element damaged by hard water.
The extent of the manufacturer’s obligation under this warranty shall
be limited to the replacement or repair of defective parts within the
warranty period. The decision of the acceptance of the warranty will
be made by Doyon Equipment service department, which decision
will be final.
The purchaser is responsible for having the equipment properly
installed, operated under normal conditions with proper supervision
and to perform periodic preventive maintenance.
If any parts are proven defective during the period of one year from
date of purchase, Doyon Equipment Inc. hereby guarantees to replace,
without charge, F.O.B. Linière, Quebec, Canada, such part or parts.
Doyon Equipment Inc will pay the reasonable labor charges in
connection with the replacement parts occurring within one year from
purchase date. Travel over 50 miles, holiday or overtime charges are
not covered. After one year from purchase date, all labor and
transportation charges in connection with replacement parts will be the
purchaser’s responsibility.
Doyon Equipment Inc. does hereby exclude and shall not be liable to
purchaser for any consequential or incidental damages including, but
not limited to, damages to property, damages for loss of use, loss of
time, loss of profits or income, resulting from any breach or warranty.
In no case, shall this warranty apply outside Canada and continental
United States unless the purchaser has a written agreement from
Doyon Equipment Inc.
