DP Audio Video DP351X User manual

MADE IN CHINA
In-Dash Mobile Video System
PUSH
ENTER
VOL
IR
ADJ
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
DP351X
DP Video
User Manual
Designed in the USA

1
Band
Band tuner
APS/ST
Warnings and Precautions...........................................2
Electric Connection .... 4........................................... .....
Installation.................................................................5
General Features........................................................6
System setting............................................................14
Radio Operation ........................................ ..............16
Remote Control..........................................................7

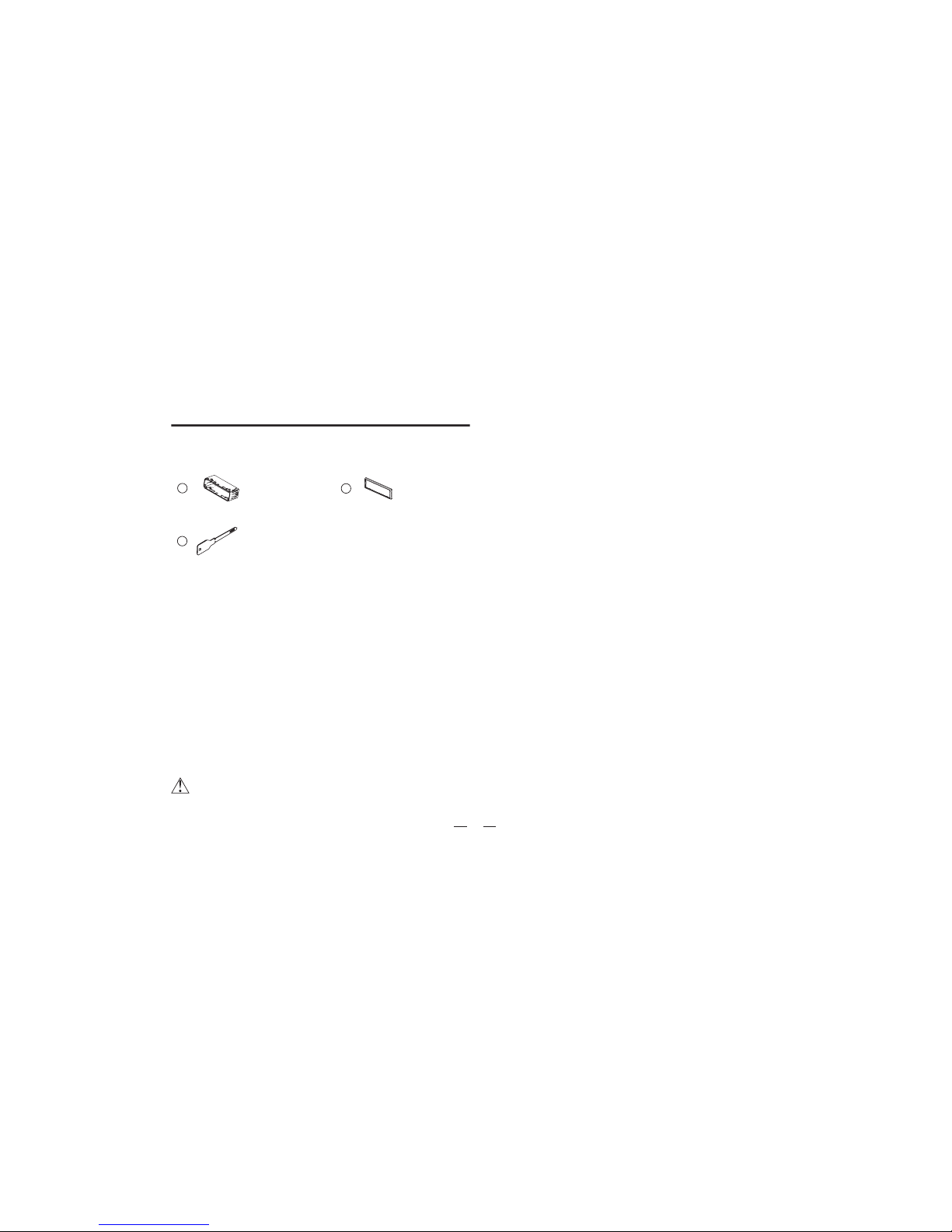

Accessories............................................................17
Specifications ................................................. ........23
Video
Audio
System
Contents
Reception collection
Speaker collection
Install the unit
Remove the unit
Loading and Replacing the battery
Basic operation
USB/SD operation.......................................................13
USB/SD PLAYER
TV tuner...................................................................15
Play Operation...........................................................10
.
Troubleshooting......................................................18
Familiar characters and their meanings
General problems
TFT Monitor
Radio Tuner
Mp3 playback
DVD player
.

2
Warnings and Precautions
1Only connect the unit to a 12V power supply with negative grounding.
Never install the unit where the operation for safety driving is restrained.
Never use the video display function in the front when driving to prevent the violation of laws
regulations and also to reduce the risk of traffic accident except using for rear view video camera.
Never expose the unit, amplifier, speakers to moisture or water to prevent electronic sparks or fires.
Please don't change the fuse in the power cord without professional guidance, improper fuse may
cause damage to this using unit or even cause fire.
Please power off the unit at once and send it back to the after-sales service center or the dealer/
distributor yo purchased from if one of the following symptoms is found:
(a)NO audio output; (b)NO image output;(c)Water or other obstacle enters the unit; (d)Smoking;
(e)Peculiar smell.
To ensure safe driving, please adjust the volume to a safe and comfort level in case of emergency
situations.
2
3
4
5
6
7
Warnings

3
1
2
3
4
5
6
7
8
9
10
11
Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop/
dealer for inquiry.
If the front panel or the TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot.
Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the
applicant.
If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is
found , please press the [RESET] key on the front panel to resume factory default.
If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal
before operating the unit.
Using in-car heater in low temperature environment may result in beads coagulate inside the unit. DO NOT use the unit in this
situation, eject the disc and wipe off the bead on the disc. If the unit still doesn
No fierce impact to the LCD monitor when it is in open position for preventing the damage to any mechanisms inside.
To prevent the damage to the screen, avoid touching it with sharp objects.
The monitor employs auto motorizing mechanism, please do
To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations
are used. However, these illustrations are some different from the actual images displayed in the unit.
During operation the unit," "is displayed if the particular operation is not available or illegal.
Operate the unit correctly according to this manual to prevent. Unnecessary problem. The guarantee won
't work after a few hours, please contact with
after-sales service center.
n't push, pull, or swivel the monitor manually to prevent damage
to any mechanisms inside.
't be valid if the
problem is caused by inappropriate operation.
Precautions
Warnings and Precautions

Electric Connection
White/Black
Gray
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
Green
Ignition wire(Red)
Battery wire(Yellow)
Ground wire(Black) (To car chassis)
Fuse(10A)
Battery
Car fuse box
(Main fuse)
Ignition key
sw tchi
White
Gray/Black
Green/Black
Purple
Purple/Black
10
(RED)
(WHITE)
Light wire
Gray
Gray
BROWN
SUBWOOFER
AUXLEFTIN
AUX RIGHT IN
VIDEO IN
(YELLOW)
BACK A CAR VIDEO IN(GREEN)
Connect control for antenna
Back car detecting wire
Brake detecting wire
Remote control for amplifier.
FRONT RIGHT RCA OUT
FRONT LEFT RCA OUT (WHITE)
(RED)
VIDEO OUT (YELLOW) Gray
Gray
Brown
Pink
Blue
Orange
Front.L
Front.R
Rear.L
Rear.R
FM/AM antenna input
Warning
Before installation, pls make
conference to the chart.
Breaking wire: The unit will without display
if not connect with the breaking wire.
TV ANTENNA PLUG
(Without TV tuner,
without this wire.)
4

5
Before installing the receiver, fit it in the suitable place of your car. Then connect the
corresponding speakers and electrical connections. When your
system is operated properly, follow the
instructions installation
1) Adapter
(not supplied)
2)Bend over the slices
(supplied)
Slices
(supplied)
3) Two keys for releasing
the unit (supplied)

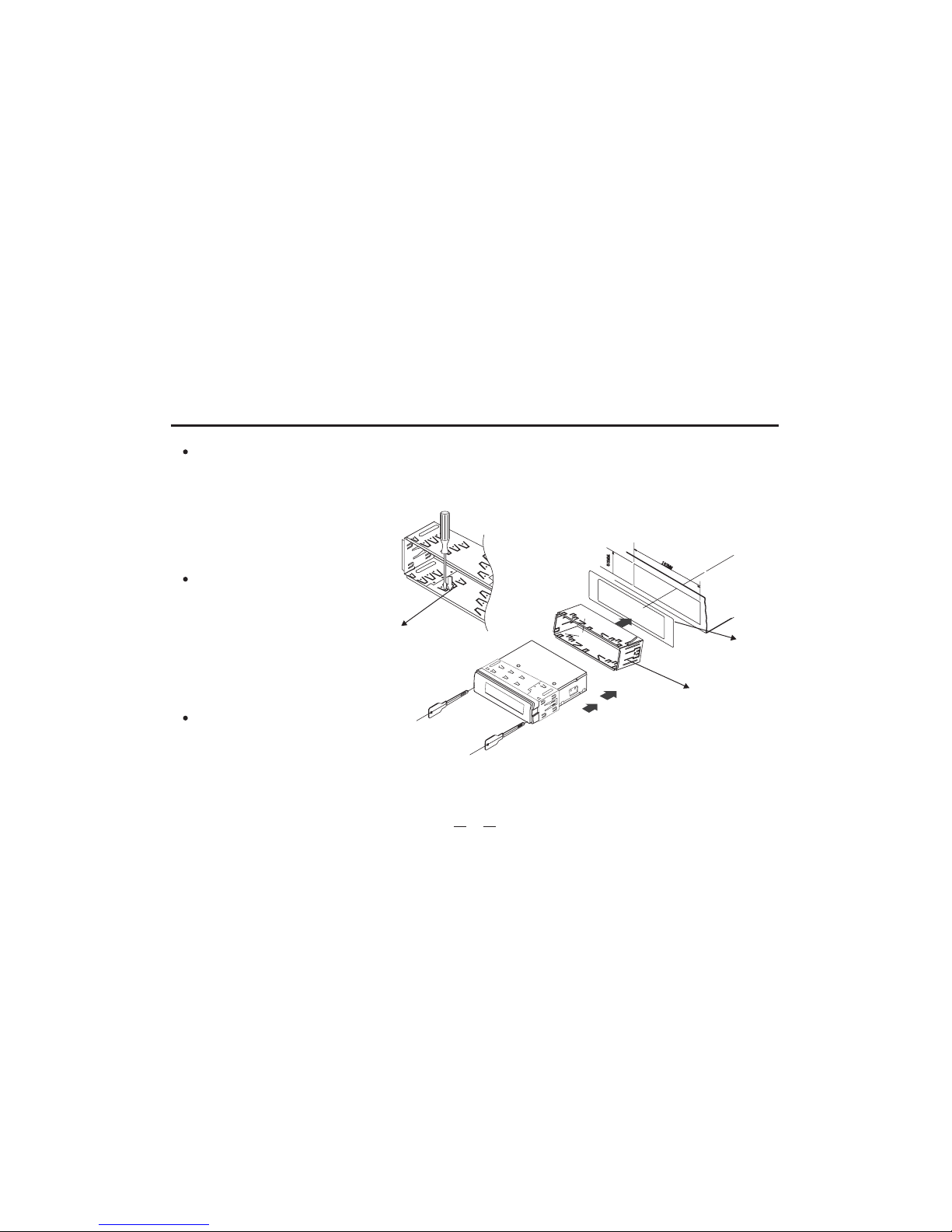

INSTALL THE UNIT
1)Install the bracket
2)Bend over some slices to secure the
installation of bracket inside of dash.
3)To avoid shake of the receiver, make
sure to install the fixation strap behind
the receiver.
Insert the keys into the small gaps in
the right and left sides of the unit at
the same time. Link the keys to the
slices and then pull out the unit lightly
to remove it from your car, and then
pull out the connection plugs.
REMOVE THE UNIT
Installation

General Features
6
13
12
34
5
78
910
6
SPUSH
ENTER
VOL
IR
ADJ
MIC
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
ADJ
11 12
14
15

7

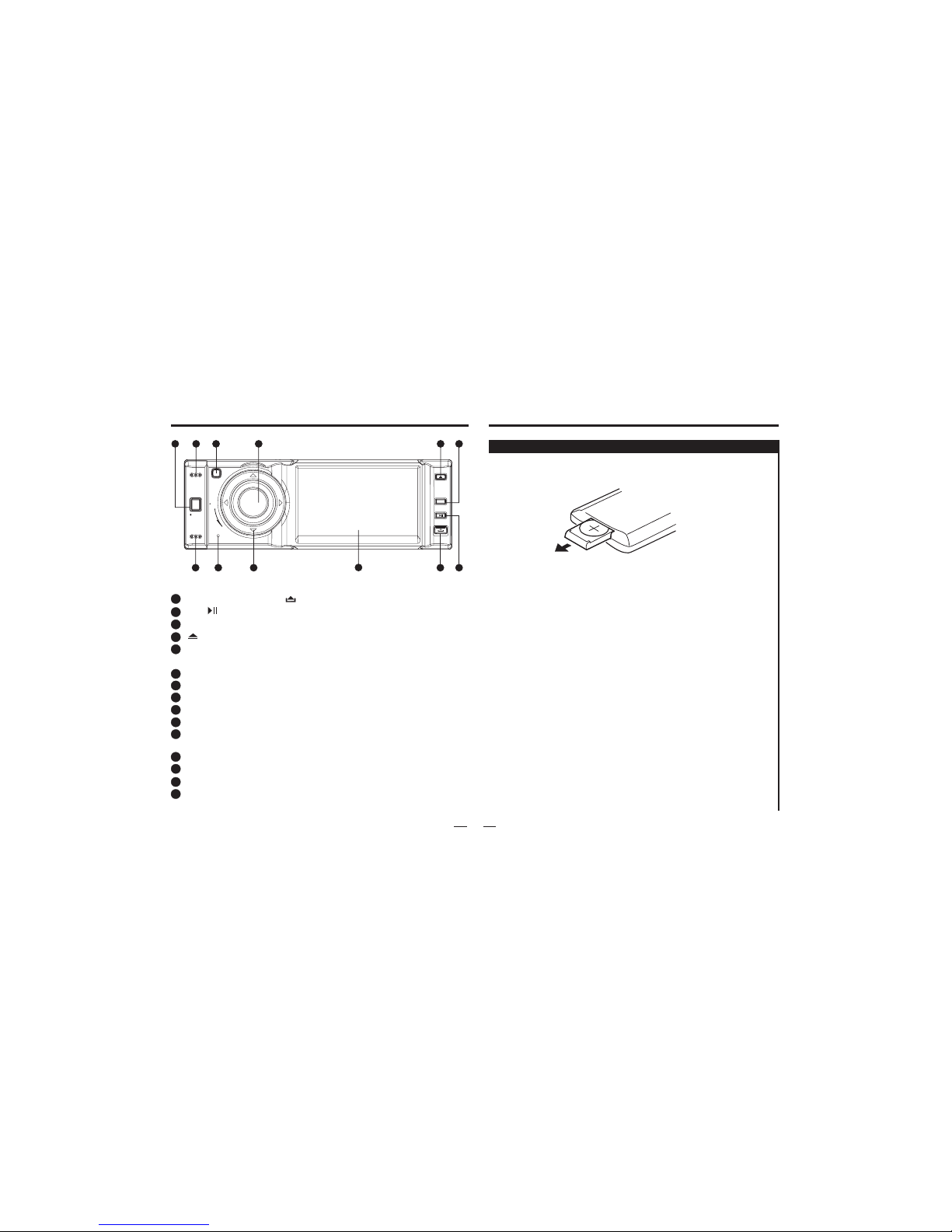

General Features
Pull out
Loading and replacing the battery
Remote Control
Notes of remote control using:
Aim the remote controller at the remote sensor on the unit.
Remove the battery from the remote control or insert a
battery insulator if the battery has not been used for a
month or longer.
DO NOT store the remote control under direct sunlight
or in high temperature environment, or it may not function
properly.
The battery can work for 6 months under normal condition.
If the remote control can't work, please change the battery.
Use(button shaped) lithium battery(CR-2025)only.
DO NOT recharge, disassemble, heat or expose the battery
in fire.
Insert the battery in proper direction according to the
1)
2)
3)
4)
5)
6)
7) (+)
and(-)poles.
Store the battery in a place where children cannot reach to
avoid risk of accident.
8)
10
1
2
3
4
5
6
7
8
9
12
15
13
11
14
10
12
34
5
78
910
6
SPUSH
ENTER
VOL
IR
ADJ
MIC
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
ADJ
11 12
Remove Panel: Press[ ]to remove the panel.
APS/ Button: Play/Pause/Reception Scan.
ADJ Button:
[ ]Button: To eject the DISC.
VOL Button: Rotate the VOL button to adjust the volume;
press it to make confirmation.
Signal received window.
MENU Button: System setting.
SOURCE Button: Play source switch/ON/OFF.
BAND Button: Band switch.
MIC.
Four Directions Button: Select the menu through up/down/
left/right direction.
TFT-LCD screen.
SD Slot.
Reset Button.
USB Port.
Display position adjustment.

Remote Control
MUTE
Sub-T
BAND
APS
EQ ST
S T
DI- DI+
SOURCE
PWR
1 2 34
56 7 8
9 0 10
+
GOTO
ENTER
SEL
CLK
Title
Setup
OSD
N/P
R/L
AF TA PTY
RDM
PRG
RPT
ANGLE
LANGUAGE
PBC
Button and Function [BAND/RDM] Button: Band switch/Play randomly
[APS/PRG] Button: Scan/Program
[ST/RPT] Button: Stereo switch/Repeat
[ ]Button: Play/Pause
[ ]Button: Stop
[Setup] Button: Menu setting
[Title] Button: Title Menu
[ENTER] Button: Play/Confirm
[ ][ ][ ][ ]Button: Up/down/left/right button
[0~9]Button:0~9
[GOTO] Button: GOTO search
[AF] Button: Search stations automatically
[TA] Button: Traffic broadcast
[PTY] Button: Program style
[N.P/ANGLE] Button: Video switch/Angel Adjustment
[R.L/LANGUAGE] Button: Left/right sound track switch
dialogue language.
[OSD] Button: Screen Display
[ ]Button: Forward/Next chapter
[ ]Button: Rewind/Last chapter
[DI+]Button: Next disc
[DI-]Button:Last disc
[+/-]Button: Increase/recluce volume
[SEL] Button: System setting
[CLK] Button: Clock display
[EQ] Button:
(Time adjust, turn to P14,system setting.)
Sound effect
[PWR] Button: Power
[Sub-T]Button: Language switch
[MUTE] Button: Mute
[SOURCE] Button: Play source switch
8
Note: Remote picture just for confernce.
Note: This unit doesn't have CDC function, DI-/DI+ neither.
5
1
3
4
2
7
6
1
2
3
4
5
6
7

AF(Alternative Frequency)
TA(Traffic announcement)
Turn on "TA ", the unit will prior to seek the traffic information. If
the machine receives the traffic information, it will choose this
signal and quit other radio signal or CD program. If press TA
again, other program will recover and the traffic information
program will quit.
PTY(Program type)
Turn on "PTY ", then press "PTY"and 1-6 buttons to choose
one certain program style . After this, the unit will scan the
same style programs automatically. Such as select News
programs. The unit will only scan News programs.
AmongAF,TAandPTY,TAhastheabsoluteprioritytobechosen.
Turn on "AF",the unit will switch to the stronger signal of the
same station automatically.
Remote Control
Note: This unit doesn't have RDS function, AF/TA/PTY neither.
9

SRC/PWR
Press[ ] to eject the disc.
Eject
EJECT:
About 10 seconds after the disc ejected ,if not
taken out, the disc will be absorbed in again.
NOTE:
Press [SRC] button shortly will turn the unit on. Hold [SRC]
button down will turn the unit off.
Volume
Increasing Volume:
Decreasing Volume:
Rotate the VOL button in .counterclockwise direction
NOTE: When the power is on, press [SRC] button will show the
following picture, touch the certain icon to select the exact function
needed.
Rotate the VOL button in anticlockwise direction.
Press [APS/ ] button to play or pause.
Play/pause:
PLAY/PAUSE
NOTE:
Press [VOLUME] button can play too.
Gray icon can not use.
NOTE:
10
Play operation
Press [SRC] button to switch the following if the unit is without
touch function.
RADIO DVD
SD
AUX
USB
TV
SOURCE/ON/OFF
/APS
MENU
SPUSH
ENTER
VOL
IR
ADJ
MIC
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
ADJ
VOLUME

REP ONE REP DIR REP ALL REP OFF
11

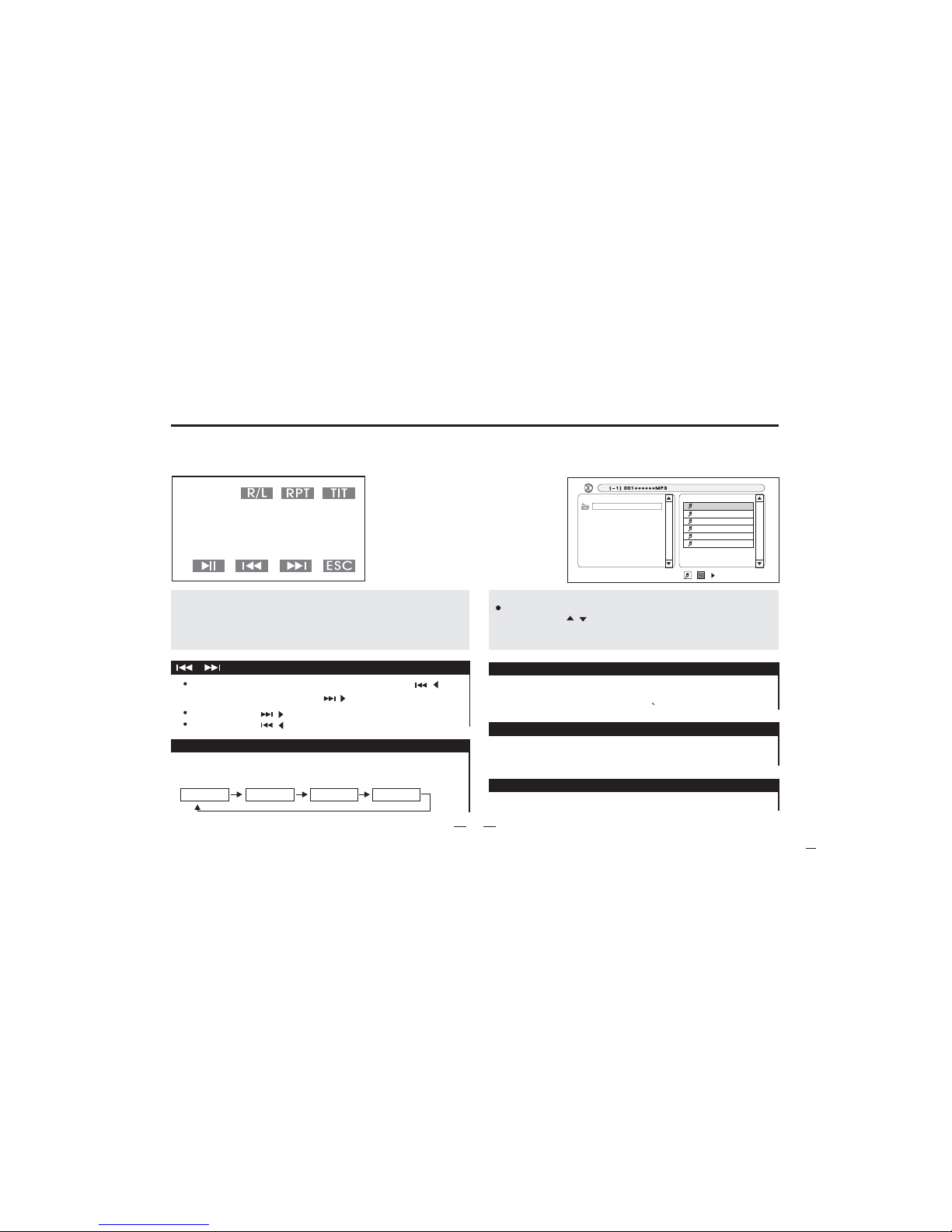

Play operation
Hold [ / ] button down;
Select chapter or section: In the DVD mode, press [ / ] to
choose the last chapter; press [ / ] to choose the next chapter.
Forward:
Rewind: Hold [ / ] button down.
In the play mode, press[ RPT ] on the screen or on the
remote control to transit among the following status.
Repeat
Repeat:
TIT
Title:
In play mode, press [TIT] on the screen or remote control to
back to the title menu, and re-select the items needed.
R/L
R/L:
In VCD/CD/DVD mode, press [R/L]on the screen or remote
to switch among mono L mono R or stereo.
control
ESC
Esc:
In play mode, press this button to exit the playing.
Insert MP3 disc, and TFT will show the menu as follows:
In this menu, the menu on the right side is the sub-menu.
Youcanpress tubuttontoselectthefileanditems
you like.
[]
[]
1-001_______MP3
2-002_______MP3
3-004_______MP3
01
XXXXX_______XXX
XXXXX_______XXX
XXXXX_______XXX
Insert DVD/VCD/CD disc, touchscreen will show menu as follows:
Note:Because the different situation of Disc REC, some of the CD-R,
CD-RW,DVD-R,DVD-RW,DVD+R,DVD+RW Disc may can not be readed.
And the Disc without final treatment can not be readed too. Regarding the
final treatment, please make conference to the guide of REC set or
REC manual.
Note: Without touch function, without this display.

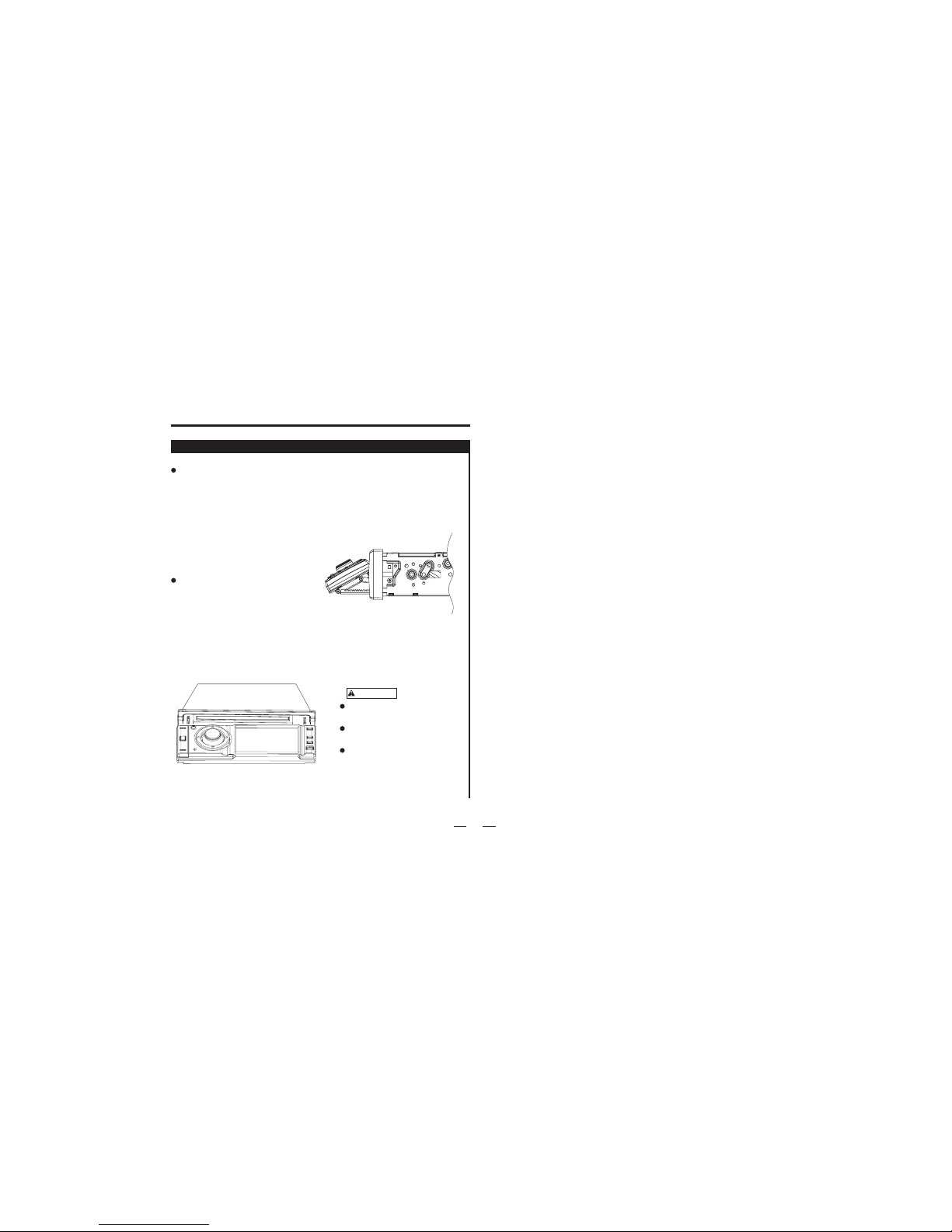

Display position adjustment
Press button repeatedly can adjust the
screen angle gradually. The unit has 3 angles for
adjustment. Each time you press the
button, the screen will move from one angle
to another angle on the same direction. The
screen angle will move on the
opposite direction if you
operate it again.
[ADJ]
Press [ADJ] button can adjust angle of screen :
CAUTION
Do not place any object on
the screen, or push it rudely.
Do not move the screen
rudely.
The movable range of the
screen may be limited to
different types of car and
install positions, etc.
Turn on the unit again, the
angle will back to original
setting.
Play operation
12
Adjust Angle

USB/SD operation
13
Under USB or SD play mode, press[ ] button to select
tracks.
Press [ST/RPT] button to repeat the playing.
Play operation
Press [ ] button to play or pause.
,
REP ONE REP DIR REP ALL
Press button to play the disc randomly.[BAND]
RDM OFF RDM ON
PLAY/PAUSE:
Select:
REPEAT:
BAND:
REP OFF
Inserting the USB device
Press the OPEN button on the panel.
Remove the panel.
Insert the SD/MMC card into SD/MMC compartment on the
inner side. Then the playing mode will be changed into SD
mode automatically. The first card track playback will start.
Insert the USB device into the USB slot on the front panel.
Then the playing mode will be changed into USB mode
automatically. The first USB device track playback will start.
Inserting the SD/ MMC card
USB
SD

14
Press[ MENU ]button
MENU
V d o mode:ie Menu operation
Audio mode:
System mode:
Vd osetupie
Bright Color Contrast Tint
Vmode
STAN USER
BRIG SOFT
Audio setup
Audio setup Bass Treble Balance Fader
setup between 0~14.
EQ setting
NORM ROCK
CLAS POP
System setup
Loud ON and OFF
Beep ON and OFF
TOPIC: can set the receive topic as RED /YELLOW
BLUE /GREEN .
Time Display ON and OFF
Time Adjust press [ ] or[ ] button to select hour/minute
then press [ ]or [ ]button to setup.
System setting
ENTER MENU:
Menu operation
Menu operation
15
VIDEO AUDIO SYSTEM
BRIGHT
COLOR
CONTRAST
TINT
VMODE
13
14
14
15
STAN
ESC
Vd oie Audio System
0
0
0
0
NORM
ESC
Vd oie Audio System
ESC
Press[ ] to adjust.
Press to confirm and exit.[]
Clicks on the menu option
ESC
Press[ ] to adjust.
Press to confirm and exit.[]
Clicks on the menu option
ESC
Press[ ] to adjust.
Press to confirm and exit.[]
Clicks on the menu option
ESC
BASS
TREBLE
BALANCE
FADER
EQ
LOUD
BEEP
TOPIC
TIME DISP
TIME ADJ
OFF
ON
GREEN
OFF
00:00

15
[ ](CHANNEL):up
[ ](CHANNEL):down
TV tuner
Preparation:
TV tuner
To receive TV broadcasts, install the TV antenna.
For receiving TV broadcasts, stop your car where there is no
obstacle to broadcast reception around.
Press [SRC] button or touch [AMS] can scan and store TV
program automatically.
TV Scanning:
Channel Selection
Direct Channel Selection
(Only for remote control)
Enter a channel number by pressing [0]to[9].
Channel Search
Press the [ APS ] button can search and store TV station
automatically.
ESC
TV
AMS
Note: If the unit does not have this function, pls skip this page.
Without touch function, without these icons.
SOURCE
SPUSH
ENTER
VOL
IR
ADJ
MIC
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
ADJ

16
FM 01 FM 02
AM 01AM 02
FM 03
BAND
Short press[ ]/[ ]button can search higher frequency and
stop when get one ,long Press[ ]/[ ]button can store the
station.
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Radio Operation
Long press[ ]button can adust to higher frequency.
Long press[ ]button can adjust to lower frequency.
Manual tune:
Automatically tune:
Band tuner
AS/PS
Short press[ ]/[ ]button can search lower frequency and
stop when get one , long press[ ]/[ ]button can store the
station.
Select Stations
Press[ ]or[ ] button can select 1-6 stations.
Long press [ ] button for more than 3 seconds can
search stations and store them in 1-6,FM1,FM2,FM3 and
Am1,Am2 automatically.
Search Stations
Scan Stations
Press [ ] button can scan and play every stored
station for about three seconds, if you want to listen to the
recently station, pls press the button to stop scanning.
6 stations can be stored in each FM1,FM2,FM3 and Am1,
Am2atmost.
/APS
/APS
Press [ST] switch between [ MO] and [ST].While
receiving the signal,[ST] back light turns blue.
button,
Long press [ST], switch between LOC and DX.
ST
Stereo
Loc/DX
APS
BAND
SPUSH
ENTER
VOL
IR
ADJ
MIC
APS
EJECT
SOURCE
ON/OFF
BAND
MENU
ADJ

17
13
............1............1
............2
2
Accessories
External view
........ Number of items
External view
........ Number of items
The use of any accessories except of those provided might result
in damage to the unit .Make sure only to use the accessories
shipped with the unit ,as shown above.

What appears to be trouble is not always serious. Please check the following points before calling a service center.
Characters
Troubleshooting
Familiar characters and their meanings
Causes Remedies
NO Disc
Bad Disc
Unkown Disc
Region Error
Disc is too dirty.
Disc is inserted upside down.
No disc in the unit.
Disc is extreme dirty.
Disc is inserted upside down.
The disc is not compatible with
the unit.
Thedisc'sregioncodeisnotthe
same as the unit's.
Clean the disc or change the disc.
Insert the disc correctly.
Insert a disc.
Clean the disc or change the disc.
Insert the disc correctly.
Clean the disc.
Clean the disc.
18

Troubleshooting
General problems
The fuse of the unit has been broken.
Remedies
Symptoms
The unit cannot be
powered on.
Remote controller does
not work.
No sound comes out or
it's hard to hear.
Poor sound quality or
sound distortion.
User preset information is
lost when ACC is off.
False operations and etc.
The fuse of car battery has been broken.
Battery has been exhausted.
Battery is not installed correctly.
Causes
Audio output connection is not correct.
The volume level is set to the minimum level.
The audio channel outputs are not balanced.
The speaker cord is contacted with the
bodywork.
Piraticdiscisused.
The speakers power rating does not fit into
the unit output power.
The speakers are connected incorrectly.,
The speaker cord is contacted with the
bodywork.
ACC and BATT are connected incorrectly.
The speakers have been damagedl.
Install a new fuse with correct rating.
Install a new fuse with correct rating.
Reset the unit.
Change the battery.
Install the battery correctly.
Correct the connection according to(Electrical
Connections Overall Diagram).
Adjust the volume to the optimum level.
Use insulating cord for connection.
Use original copy disc.
Change the speakers.
Correct the connection according to(Electrical
Connections Overall Diagram).
Use insulating cord for connection.
Check the speakers.
Adjust the balance of audio channel outputs. Please
refer to (Audio control).
Correct the connection according to(Electrical
Connections Overall Diagram).
19
