DP Audio Video DZP905 User manual

IR
V
O
L
SRC
PWR
BAND DVD
MUTE
EJECT
RESET
AUX IN
7 Fully Motorized Wide Touchscreen DVDReceiver
DZP905
DP VideoDP Video
ADJ
CLOCK ST
STOP RPT Adjust angle
IR
V
O
L
SRC
PWR
BAND DVD
MUTE
EJECT
RESET
AUX IN
DZP905
DP VideoDP Video
MADE IN CHINA
Designed in the USA
DZP905
In-Dash Mobile Video System
TOUCH SCREEN 7 TFT LCD USB/SD DVD PLAYER
User Manual

1
Contents
Open/Close
Source/Power
Mute
play/pause
Eject
RPT
TIT
TFT-LCD adjustment
Display position adjustment
Loading and Replacing the battery
Basic operation
Receiption collection
Speaker collection
Install the unit
Remove the unit
Warning and Precautions.........................................2
Electric Connection.................................................4
Installation..............................................................5
General Features.....................................................6
Setup Operation.....................................................11
Remote Control.......................................................7
Play Operation........................................................9
General operation
Video operation
Audio operation
Band
Band tuner
AS/PS
Radio Operation...................................................12
Accessories.........................................................17
Specifications......................................................23
Troubleshooting...................................................18
Familiar characters and their meanings
General problems
TFT Monitor
Radio Tuner
Mp3 playback
DVD player
TV ........................................................16Operation
Sound Operation..................................................14
SD/USB...............................................................15

2
Warnings and Precautions
1Only connect the unit to a 12V power supply with negative grounding.
Never install the unit where the operation for safety driving is restrained.
Never use the video display function in the front when driving to prevent the violation of laws
regulations and also to reduce the risk of traffic accident except using for rear view video camera.
Never expose the unit, amplifier, speakers to moisture or water to prevent electronic sparks or fires.
Please don't change the fuse in the power cord without professional guidance, improper fuse may
cause damage to this using unit or even cause fire.
Please power off the unit at once and send it back to the after-sales service center or the dealer/
distributor yo purchased from if one of the following symptoms is found:
(a)NO audio output; (b)NO image output;(c)Water or other obstacle enters the unit; (d)Smoking;
(e)Peculiar smell.
To ensure safe driving, please adjust the volume to a safe and comfort level in case of emergency
situations.
2
3
4
5
6
7
Warnings
8Warning: It is illegal to Watch TV and Drive at the same time.

3
1
2
3
4
5
6
7
8
9
10
11
Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop/
dealer for inquiry.
If the front panel or the TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot.
Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the
applicant.
If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is
found , please press the [RESET] key on the front panel to resume factory default.
If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal
before operating the unit.
Using in-car heater in low temperature environment may result in beads coagulate inside the unit, DO NOT use the unit in this
situation, eject the disc and wipe off the bead on the disc. If the unit still doesn
No fierce impact to the LCD monitor when it is in open position for preventing the damage to any mechanisms inside.
To prevent the damage to the screen, avoid touching it with sharp objects.
The monitor employs auto motorizing mechanism, please do
To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations
are used. However, these illustrations are some different from the actual images displayed in the unit.
During operation the unit," "is displayed if the particular operation is not available or illegal.
Operate the unit correctly according to this manual to prevent. Unnecessary problem. The guarantee won
't work after a few hours, please contact with
after-sales service center.
n't push, pull, or swivel the monitor manually to prevent damage
to any mechanisms inside.
't be valid if the
problem is caused by inappropriate operation.
Precautions
Warnings and Precautions

4
Electric Connection
TV ANTENNAPLUG
(Without TV tuner,
without this wire.)
To front left
speaker
To front right
speaker
To r e a r l e f t
speaker
To rear right
speaker
White/Black
White
Gray/Black
Gray
Green lack/B
Green
Purple/Black
Purple
Ignition key
sw tchi
Car fuse box
(main fuse)
Battery
ACC wire (Red)
Battery wire (Yellow)
Ground wire(Black) (To car chassis)
CAR ANTENNA
FRONT.L
FRONT.R
REAR.L
DIMMER
REAR.R
(Orange)
(Brown)
REVERSE
PARKING
Connect to Switched Side of Parking Brake Circuit (-) (Gray)
Connect control for antenna or remote control for amplifier (Blue)
FRONT LEFT RCA OUT
AUX LEFT IN
FRONT RIGHT RCA OUT
AUX RIGHT IN
VIDEO IN
VIDEO OUT
REAR RIGHT RCA OUT
REAR LEFT RCA OUT
BACK CAR VIDEO IN
SUBWOOFER
RED
WHITE
BLUE
PURPLE
YELLOW
WHITE
RED
YELLOW
YELLOW
BROWN

5
Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.
1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
Half sleeve
(supplied)
3) Two wrenches for releasing
the unit (supplied)

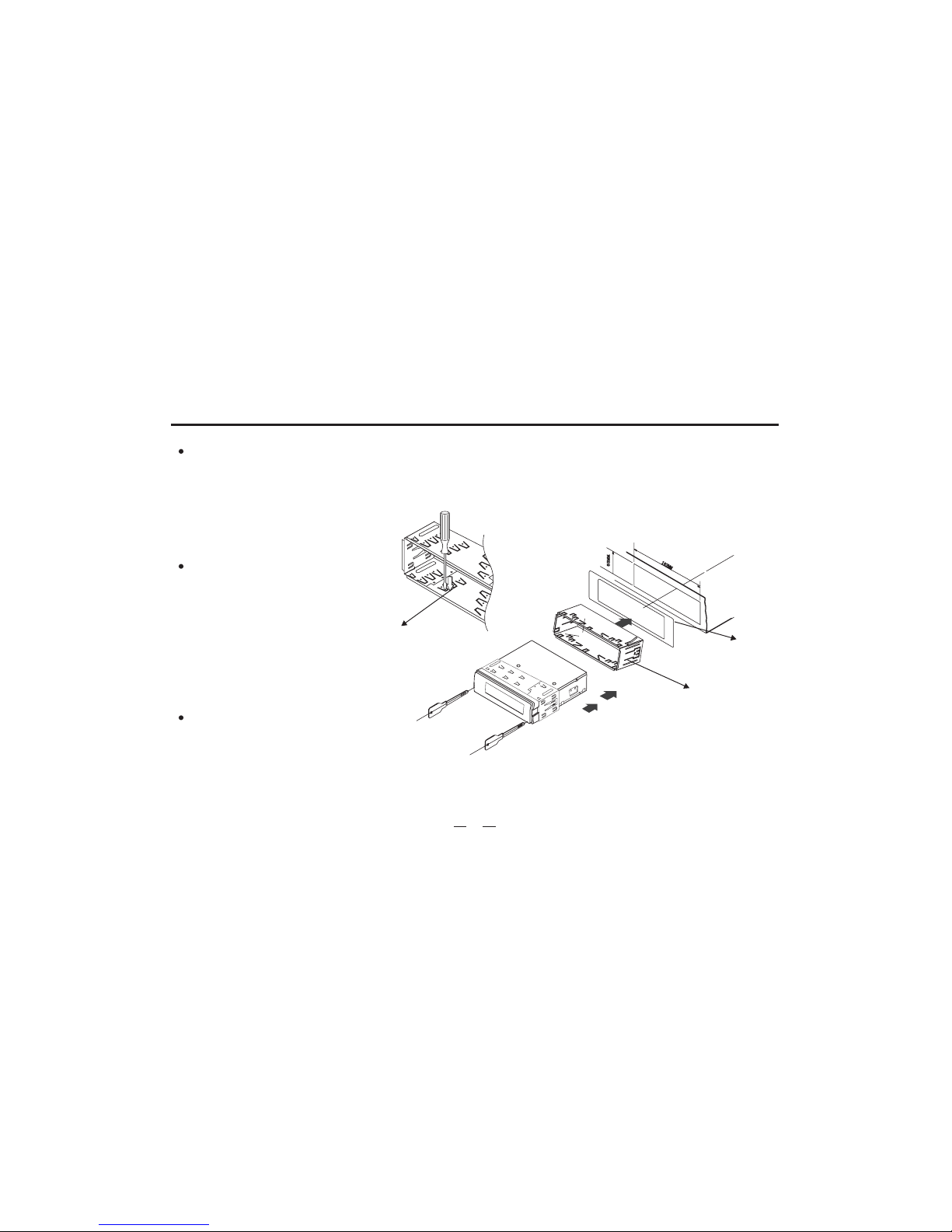

INSTALL THE UNIT
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure
the half sleeve inside of dash.
3) Support strap to be strutted
under dash, secure this strip to
avoid skipping of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
REMOVE THE UNIT
Installation

6
General Features
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjust angle
PWR
Stop/Clock Adjust angle RPT/ST
97
5
2
13
18
8
611 10
16
4
17 15
14
13
12

7
General Features
Pull out
Loading and replacing the battery
Remote Control
Notes of remote control using:
Aim the remote controller at the remote sensor on the unit.
Remove the battery from the remote control or insert a
battery insulator if the battery has not been used for a
month or longer.
DO NOT store the remote control under direct sunlight
or in high temperature environment, or it may not function
properly.
The battery can work for 6 months under normal condition.
If the remote control can't work, please change the battery.
Use(button shaped) lithium battery(CR-2025)only.
DO NOT recharge, disassemble, heat or expose the battery
in fire.
Insert the battery in proper direction according to the
1)
2)
3)
4)
5)
6)
7) (+)
and(-)poles.
Store the battery in a place where children cannot reach to
avoid risk of accident.
8)
10
1
23
4
5
6
7
8
9
12
15
13
11
14
10
VOL/SRC/PWR Button: Rotate the VOL button to adjust the
volume; press it to make confirmation./Play source switch.
[ ]/[ ]Button: Rewind, Last chapter/Forward,Next chapter.
Signal received window.
SD Slot.
To eject the DISC.
MUTE Button: Mute.
BAND Button: Band switch/Radio mode is random play.
DVD Button: switch to DVD play source directly.
EJECT Button: To eject the DISC.
AUX IN
USB Port.
Reset Button.
[ ]Button: Display Open/Close.
Adjust angle Button: Display position Adjustment.
TFT-LCD screen.
ST/RPT Button: Sound track switch/Repeat.
CLOCK/STOP Button: Clock/Stop.
16
17
18
/
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjustangle
PWR
Stop/Clock Adjust angle RPT/ST
97
5
2
13
18
8
611 10
16
4
17 15
14
13
12

Remote Control
8

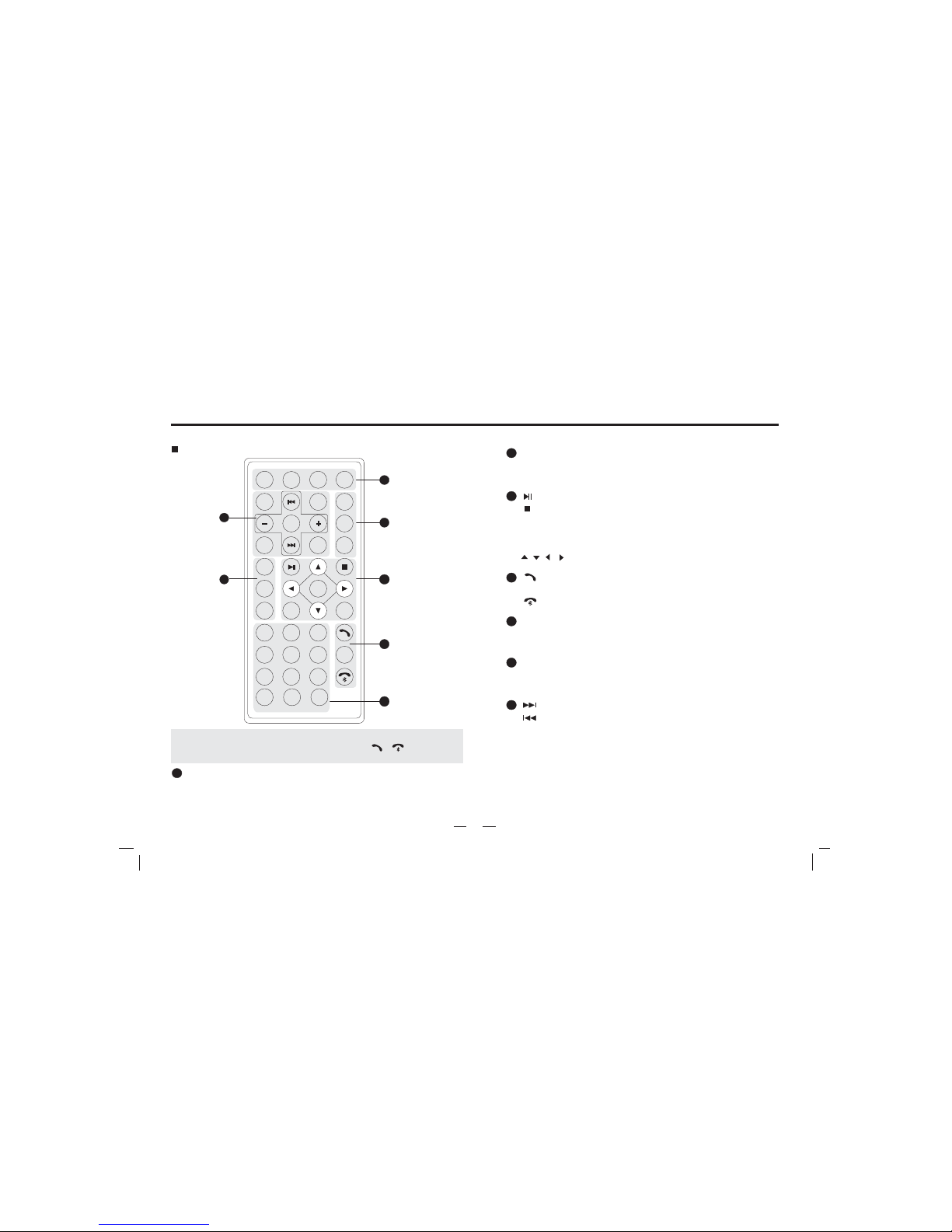

Button and Function
5
1
3
4
2
Mute
Sub-T
Band
APS
EQ ST
S T
R/L N/P
SRC
PWR
123
45 6
78 9
0
Enter
SEL
CLK
Title
Setup
AF
TA
PTY
RDM
PRG
RPT
PBC
OSD
ID3ID3
#
ABC DEF
GHI JKL MNO
PQRS
TUV
WXYZ
GotoRO/SN
10+
*
Language Angle
7
6
[BAND/RDM] Button: Band switch/Play randomly
[APS/PRG] Button: Scan/Program
[ST/RPT] Button: Stereo switch/Repeat
[ ]Button: Play/Pause
[ ]Button: Stop
[Setup] Button: Menu setting
[Title] Button: Title Menu
[ENTER] Button: Play/Confirm
[ ][ ][ ][ ]Button: Up/down/left/right button
[0~9]Button:0~9
[GOTO] Button: GOTO search
[RO/SN] Button: Radio scan
[AF] Button: Search stations automatically
[TA] Button: Traffic broadcast
[PTY] Button: Program style
[ ]Button: Forward/Next chapter
[ ]Button: Rewind/Last chapter
[+/-]Button: Increase/recluce volume
[SEL] Button: System setting
[CLK] Button: Clock display
[EQ] Button: Sound effect
[N.P/ANGLE] Button: Video switch/Angel Adjustment
[R.L/LANGUAGE] Button: Left/right sound track switch
dialogue language.
[PWR] Button: Power
[REC/Sub-T]Button: Transfer recording/Language switch
[MUTE] Button: Mute
[SRC] Button: Play source switch
Note: This unit doesn't have RDS function, AF/TA/PTY neither.
This unit doesn't have bluetooth function, [ ]/[ ] neither.
If the unit hasn't some functions , some buttons won't be affected.
1
2
3
4
5
6
7
[ ] Button: Ring on
[OSD/ Id3] Button: Screen Display/ Select chapter
[ ] Button: Ring off
REC

9
Play operation
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjust angle
PWR
Stop/Clock Adjust angle RPT/ST
ON.OFF
Press[ ] to eject the disc.
Eject
EJECT:
Note: About 10 seconds after the disc ejected ,if not taken out, the
disc will be absorbed in again.
Press [PWR] button shortly will turn the unit on. Hold [PWR]
button down will turn off the unit.
Volume
Increasing Volume:
Decreasing Volume:
Rotate the VOL button in .counterclockwise direction
NOTE: When the power is on, the screen enters RADIO mode
automatically; press [ ] button to go back to the main menu;
press [SRC] button shortly to switch to other modes.
Rotate the VOL button in anticlockwise direction.
Open screen:
Close screen:
Press [ ] to open.
Press [ ] to close.
Flex screen( )
Note:
If the screen stop when out press[ ] to hide the screen, then press
[ ] again the screen will out.
When power off, the screen will hide.
Stop/Clock
STOP:
CLOCK:
Press[STOP]buttontostopwhenDVDplaying.
Press [CLOCK] to switch between radio frequency and
clock, when radio playing.

ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUXIN
SRC
STOP RPT
AVH-7073 Adjustangle
PWR
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjustangle
PWR
Stop/Clock Adjust angle RPT/ST
Display position Adjustment
CAUTION
For smooth adjustment, make sure that you return the lateral
angle to the neutral position and then adjust the tilt angle.
Avoid physical shock on the display.
Do not place any object on
the display forcefully, or
subject it to undue force.
Do not move the display
forcibly.
The monitor's movable range
may be limited by the type of
car, a position where the
display is mounted, etc.
Tilt angle
Press [ADJ] button ,it can adjust the
screen angle gradually.
Theunithas4grades
for adjustment ,and each time you
press the button ,it can move one
grade down along indication; it can
resume up along indication.
When you turn on the unit again, the angle
will be the same as the last angle that
you set.
ADJ ANGLE
10
Play operation
MUTE
MUTE: Short press this button to mute the sound, short press
MUTE button again or press any other button to resume
the normal listening.
Stop/ClockStop/Clock Adjust angleAdjust angle RPT/STRPT/ST
Stop/ClockStop/Clock RPT/STRPT/ST
Stop/Clock RPT/ST
Adjust angle
Adjust angle
Adjust angle
DVD
When the unit have disc or have usb card, press [DVD]
button, it can switch to sound out.

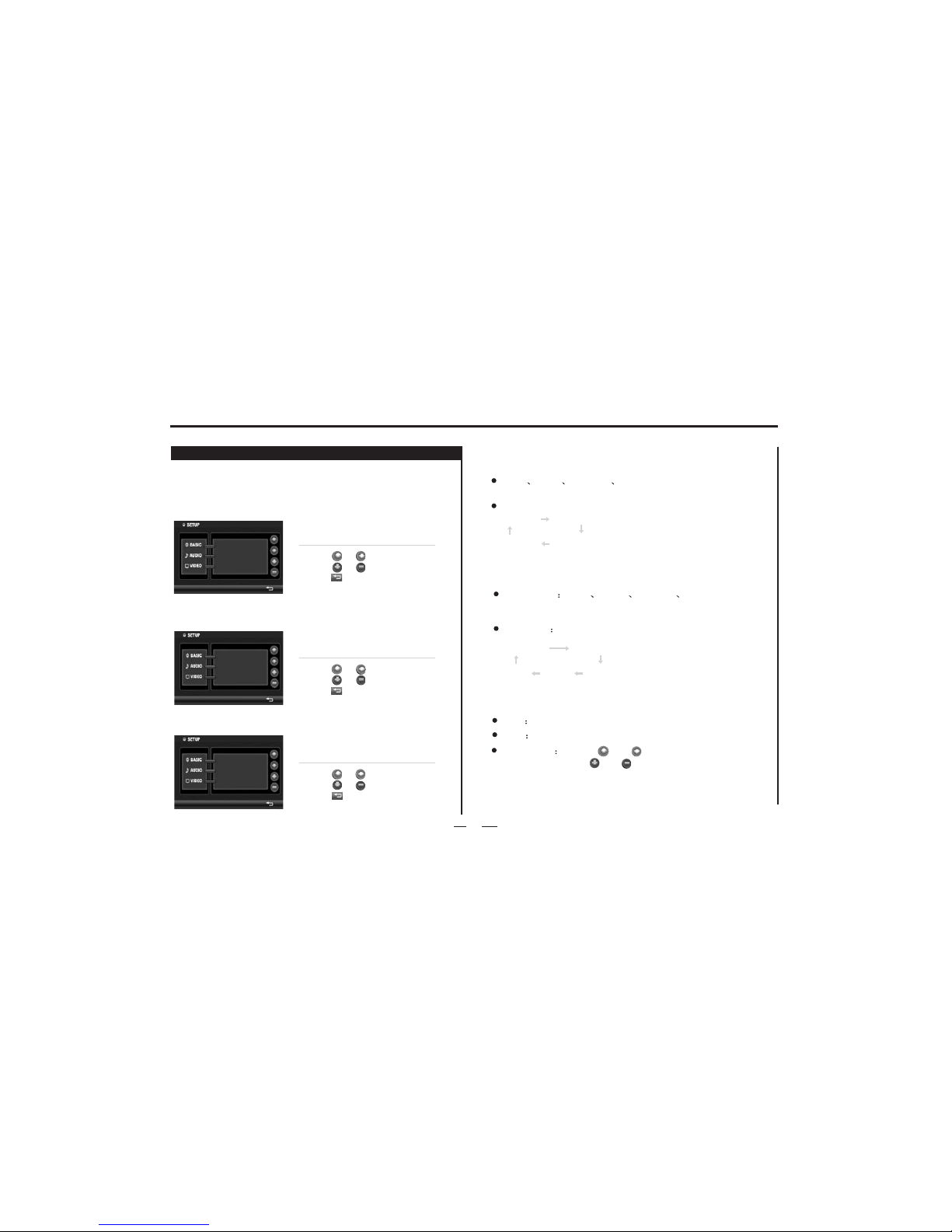

Setup Operation
11
ENTER MENU: Press [MENU] button, then touch setting button, it
will show in screen follows:
MENU
Video mode:
Menu operation
Audio mode:
BASIC mode:
BASS 0
TREBLE
-07
BALANCE R06
AUDIO
FADER R06
EQ FLAT
LOUD OFF
BEEP ON
CLOCK 00:00
BASIC
BRIGHT 14
COLOR
14
CONTRAST 13
VIDEO
TINT 15
VMODE STND
Vd osetupie
Bright Color Contrast Tint
Vmode
STAD USER
BRIG SOFT
Audio setup
Audio setup Bass Treble Balance Fader
setup between 0~14.
EQ setting
FLAT
System setup
Loud ON and OFF
Beep ON and OFF
Time Adjust press [ ] or[ ] button to select hour/
minute then press [ ]or [ ]button to setup.
Touch [ ]/[ ] to choose menu.
Touch [ ]/[ ]to adjust parameter.
Touch [ ] to back main menu.
Menu operation
Touch [ ]/[ ] to choose menu.
Touch [ ]/[ ]to adjust parameter.
Touch [ ] to back main menu.
Menu operation
Touch [ ]/[ ] to choose menu.
Touch [ ]/[ ]to adjust parameter.
Touch [ ] to back main menu.
ROCK
POP
CLAS
NORM

Band
Press [BAND] button to transfer band.
FM1 FM2
AM1AM2
FM3
Band Tune
Manually Tune
Automatically Tune
Press[ ] button: adjust to higher frequency.(such as
87.5,87.55...)
Press[ ] button: adjust to lower frequency(such as
105.5,105.0...)
Holding down the [ ] button: search higher frequency
station, and will stop when meeting one.
Holding down the [ ] button: search lower frequency
station, and will stop when meeting one.
Press [AS/PS] button
Seek Tune:
In radio playing mode, holding down the [AS/PS] icon will
seek and store strong frequency stations automatically.
Select station
Note: FM band can store 18 stations; AM band can store 12 stations.
Radio Operation
Press [SCAN] button
Browse station
Press [SCAN] button to scan the existing station.
12
Note: If the unit doesn't have RDS function, the touch-screan
won't show "AF, TA and PTY".
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjust angle
PWR
Stop/Clock Adjust angle RPT/ST
AF TA PTY

Radio Operation
AF(Alternative Frequency)
Press AF and then press[ ],the machine will scan signal get
the best frequency of the local radio station. If meet a stronger
signal of the same program. letter TP will appear on LCD,
and unit will automatically choose the stronger signal sought.
TA(Traffic announcement)
Press TA, the unit will prior to seek the traffic information. If the
machine receives the traffic information, it will choose this
signal and quit other radio signal or CD program. If press TA
again, other program will recover and the traffic information
program will quit.
PTY(Program type)
Press PTY, the unit will begin to receive program as news,
current affairs ,music, etc. The unit will seek the program
automatically and will quit CD player if it gets the right program.
If press PTY again, PTY function will quit and other program will
play as before.
Among AF, TA and PTY, TA has the absolute priority to be chosen.
Before auto scan the radio station, please turn off AF
firstly.
Only remote control ( page8)
Only remote control ( page8)
Only remote control ( page8)
Note: If the unit is without RDS function, please skip this page.
13

14

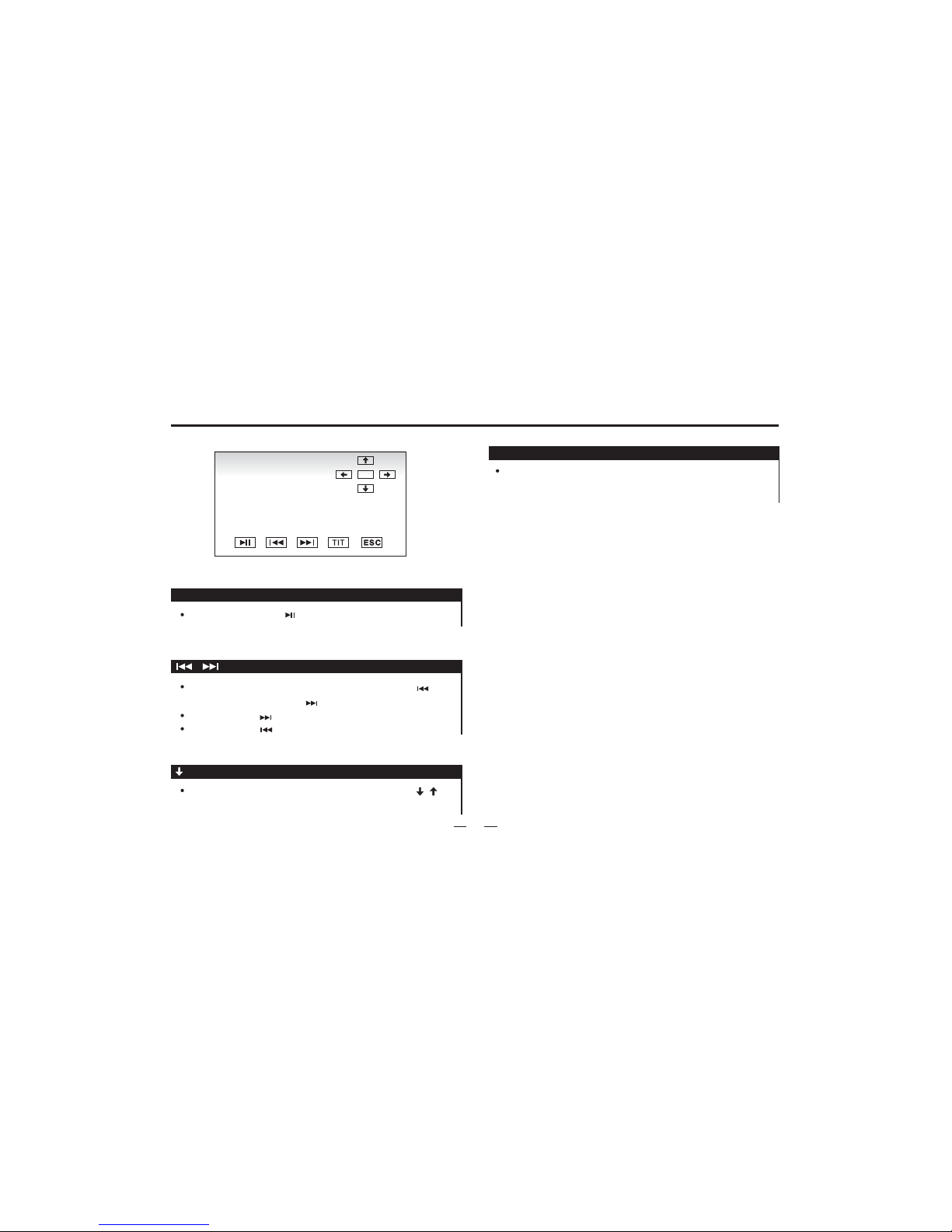

Sound Operation
Forward: Hold [ ] button down;
Select chapter or section: press [ ] to
choose last chapter, press [ ]to choose next.
In the DVD mode,
Rewind: Hold [ ] button down.
TIT
Play/pause
In play mode, press [ ] button to switch to play or pause
mode.
Five direction button: In play mode, you can touch[ ][ ]icon
to choose music, touch [ ] to play music.E
ETitle: In play mode, press [TIT] on the screen or remote control
to back to the title menu, and re-select the items needed.

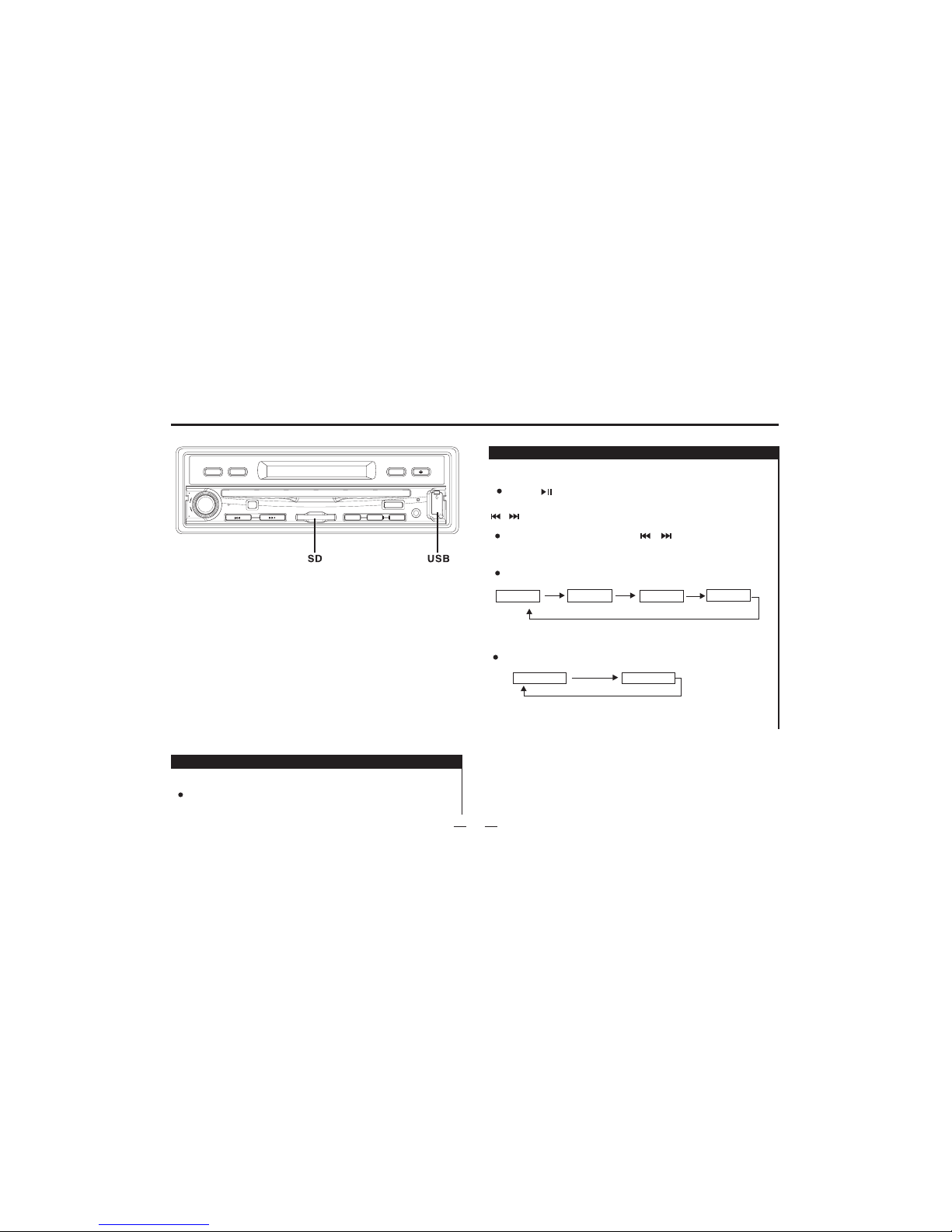

SD/USB Operation
USB/SD play operation
15
USB/SD mode
Inset USB/SD,the play will to the USB/SD playing mode
antomaticly.
USB/SD mode
Press [ ] button to play or pause.
PLAY/PAUSE:
Under USB or SD play, press[ , ]can select tracks.
Press [ST/RPT] button first to repeat the playing track
,
RPT ONE RPT ALL
RPT DIR RPT OFF
REPEAT:
Select:
Press button to play the disc randomly.[BAND]
RDM OFF RDM ON
BAND:
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjust angle
PWR

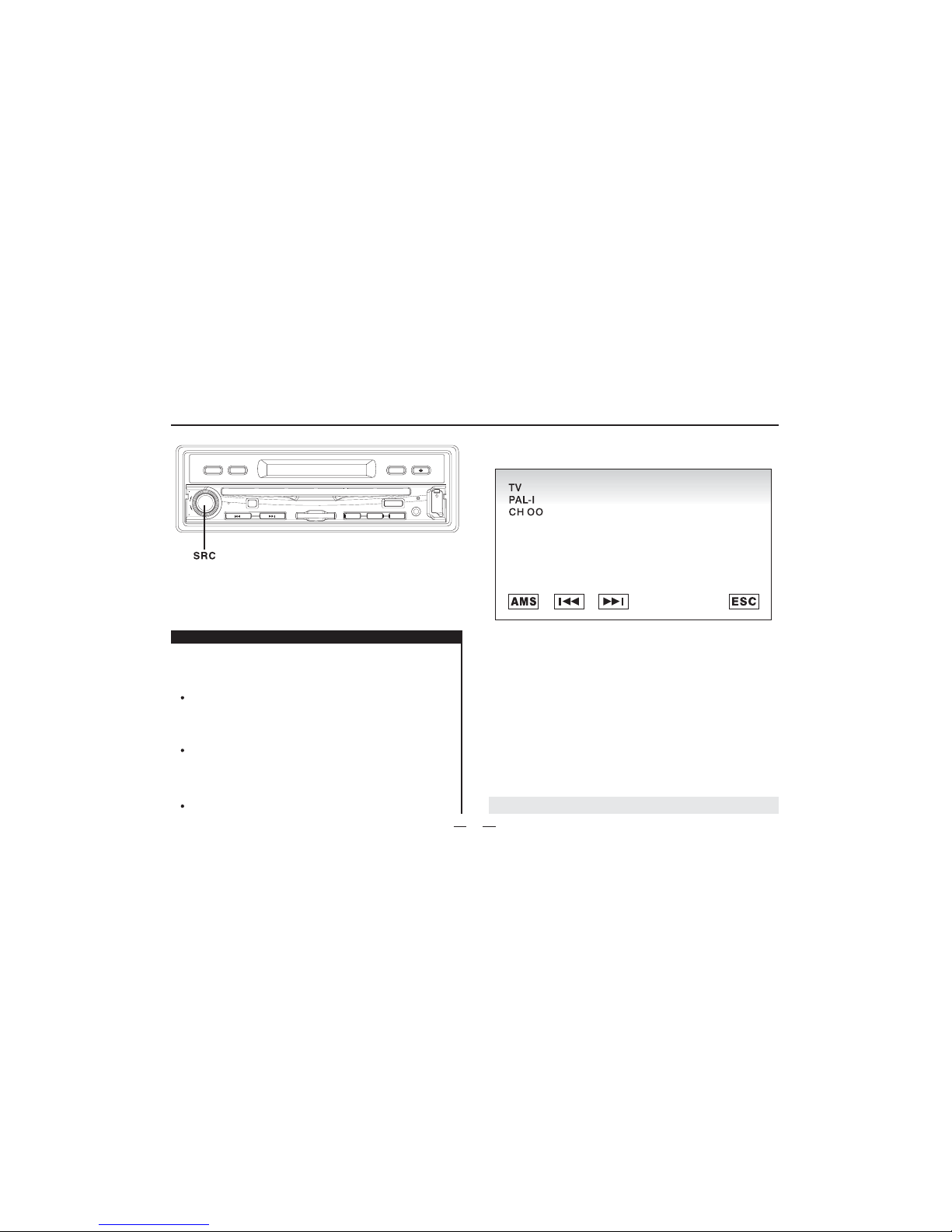

TV Operation
16
TV operation
Press [APS] or press [AMS] to search and store TV station
automatically.
Channel search:
Press [SRC] to enter main menu, then press TV icon on
TFT screen to enter.
TV mode:
You need install TV antenna, when receive program.
(Only for remote control)
Enter a channel number by pressing [0]to[9].
Direct Channel Selection:
Note: If the unit does not have this function, pls skip this page.
Without touch function, without these icons.
ADJ
CLOCK ST
BAND DVD
MUTE
EJECT
V
O
L
IR
RESET
AUX IN
SRC
STOP RPT
AVH-7073 Adjust angle
PWR

The use of any accessories except of those provided might
result in damage to the unit .Make sure only to use the
accessories shipped with the unit ,as shown above.
Accessories
17
The included attachments of the unit are as below sheet:
Keys ...................................................one pair
Mantle ...............................................one piece
Frame.......... ....................................one piece

18
What appears to be trouble is not always serious. Please check the following points before calling a service center.
Troubleshooting
Familiar characters and their meanings
Characters
Causes Remedies
NO Disc
Bad Disc
Unkown Disc
Region Error
Disc is too dirty.
Disc is inserted upside down.
No disc in the unit.
Disc is extreme dirty.
Disc is inserted upside down.
The disc is not compatible with
the unit.
Thedisc'sregioncodeisnotthe
same as the unit's.
Clean the disc or change the disc.
Insert the disc correctly.
Insert a disc.
Clean the disc or change the disc.
Insert the disc correctly.
Clean the disc.
Clean the disc.
Disc inject dead
Disc transparence fault press disc
button long time exit.
Then change the angle and inject
again or change another disc.

19
Troubleshooting
General problems
The fuse of the unit has been broken.
Remedies
Symptoms
The unit cannot be
powered on.
Remote controller does
not work.
No sound comes out or
it's hard to hear.
Poor sound quality or
sound distortion.
User preset information is
lost when ACC is off.
False operations and etc.
The fuse of car battery has been broken.
Battery has been exhausted.
Battery is not installed correctly.
Causes
Audio output connection is not correct.
The volume level is set to the minimum level.
The audio channel outputs are not balanced.
The speaker cord is contacted with the
bodywork.
Piraticdiscisused.
The speakers power rating does not fit into
the unit output power.
The speakers are connected incorrectly.,
The speaker cord is contacted with the
bodywork.
ACC and BATT are connected incorrectly.
The speakers have been damagedl.
Install a new fuse with correct rating.
Install a new fuse with correct rating.
Reset the unit.
Change the battery.
Install the battery correctly.
Correct the connection according to(Electrical
Connections Overall Diagram).
Adjust the volume to the optimum level.
Use insulating cord for connection.
Use original copy disc.
Change the speakers.
Correct the connection according to(Electrical
Connections Overall Diagram).
Use insulating cord for connection.
Check the speakers.
Adjust the balance of audio channel outputs. Please
refer to (Audio control).
Correct the connection according to(Electrical
Connections Overall Diagram).
