Zeus
Anesthetic workstation

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
I
Contents
General
1Symbols and Definitions 3
2Notes 3
3Abbreviations and Definitions 5
Function Description
1General information about Zeus 9
1.1 Intended use (summary from the Instructions for Use manual) ............................................. 9
1.2 Product classification .............................................................................................................. 9
1.3 Protection classes .................................................................................................................. 9
1.4 Brief description of the system ............................................................................................. 10
2Anaesthetic Gas Box 13
2.1 General introduction ............................................................................................................. 13
3PCB Box 15
3.1 DIANA PCB .......................................................................................................................... 15
3.2 VERONA PCB ...................................................................................................................... 16
3.3 Vent Power PCB ................................................................................................................... 18
3.4 External Flow PCB ............................................................................................................... 19
4CS Module 23
4.1 Purpose ................................................................................................................................ 23
4.2 Gas supply ........................................................................................................................... 23
4.3 DAGMAR mixed gas metering unit ...................................................................................... 26
5DIVA Anaesthetic Metering Unit 29
5.1 General introduction ............................................................................................................. 29
5.2 DIVA supply module .............................................................................................................30

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
II
Contents
5.3 DIVA metering module ..........................................................................................................33
6Zeus Gas Measuring Module (GMZ) 39
6.1 General introduction .............................................................................................................39
7Patient Gas Analyzer (PGA) 41
7.1 General .................................................................................................................................41
7.2 IRIA .......................................................................................................................................41
7.3 ILCA 2 ...................................................................................................................................43
7.4 Servomex or Pato ................................................................................................................44
8System Gas Analyser (SGA) 49
8.1 General introduction .............................................................................................................49
8.2 ILCA ......................................................................................................................................50
8.3 OxyTrace ..............................................................................................................................54
9Power supply unit 57
9.1 General .................................................................................................................................57
9.2 Mains power input ................................................................................................................57
9.3 Output voltages .....................................................................................................................58
9.4 Uninterruptible power supply ................................................................................................59
10 Dräger Water Trap 61
11 Blower 63
11.1 General introduction .............................................................................................................63
11.2 Function ................................................................................................................................63
12 Breathing System 67
12.1 General introduction .............................................................................................................67
12.2 Components in the breathing system and their functions ....................................................68
12.3 Function ................................................................................................................................70

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
III
Contents
13 Hermes Computer with Monitor 73
13.1 General ................................................................................................................................. 73
13.2 CPCI computer ..................................................................................................................... 73
13.3 Display screen ...................................................................................................................... 74
Maintenance Procedures
1Water trap 79
1.1 Replacement interval ............................................................................................................ 79
1.2 Replacing or draining the water trap .................................................................................... 79
2Blower spindle 81
2.1 Replacement interval ............................................................................................................ 81
2.2 Replacing the blower spindle ............................................................................................... 81
3Filter mat in the power supply unit 83
3.1 Replacement interval ............................................................................................................ 83
3.2 Location ................................................................................................................................ 83
3.3 Removing the cover .............................................................................................................83
3.4 Replacing the filter mat ......................................................................................................... 83
4Filter mat in the GMZ 85
4.1 Replacement interval ............................................................................................................ 85
4.2 Replacing the filter mat ......................................................................................................... 85
5Removing/fitting the breathing system 87
6Diaphragm mounts in the breathing system 89
6.1 Replacement interval ............................................................................................................ 89
6.2 Removing the breathing system ........................................................................................... 89
6.3 Replacing the diaphragm mount .......................................................................................... 89
6.4 Fitting the breathing system ................................................................................................. 91

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
IV
Contents
7Flow sensor “SpiroLife” in the breathing system 93
7.1 Replacement interval ............................................................................................................93
7.2 Replacing the “SpiroLife” flow sensor ...................................................................................93
8Sampling-gas return-line filter 95
8.1 Replacement interval ............................................................................................................95
8.2 Replacing the filter ................................................................................................................95
9Sintered-metal filters of the CS connections 97
9.1 Replacement interval ............................................................................................................97
9.2 Replacing the sintered-metal filters ......................................................................................97
10 Pressure regulators on the gas inlet block 99
10.1 Replacement interval ............................................................................................................99
10.2 Location ................................................................................................................................99
10.3 Disassembly .........................................................................................................................99
10.4 Replacing the pressure regulators ......................................................................................102
11 Batteries of the uninterruptible power supply 105
11.1 Replacement interval ..........................................................................................................105
11.2 Location ..............................................................................................................................105
11.3 Replacing the rechargeable batteries .................................................................................105

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
V
Contents
Schematics and Diagrams
1Schematics and diagrams 109
Annex
Technical Documentation acc. to EMV standard IEC/EN 60601-1-2: 2001
Test List
Spare Parts Catalogue

All rights reserved. Copyright reserved.
K5133001IECIVZ.fm 03.05.06
VI
Contents

1
General

2

5133.001
All rights reserved. Copyright reserved.
Version 3.0_ Released_Printed on_03.05.06_K5133001_General_Technical_Documentation.fm
3
Zeus General
1 Symbols and Defini-
tions
2Notes This Technical Documentation conforms to the IEC 60601-1 standard.
Read each step in every procedure thoroughly before beginning any test.
Always use the proper tools and specified test equipment. If you deviate from
the instructions and/or recommendations in this Technical Documentation,
the equipment may operate improperly or unsafely, or the equipment could
be damaged.
It is our recommendation to use only Dräger parts and supplies.
The maintenance procedures described in this Technical Documentation may
be performed by qualified service personnel only. These maintenance proce-
dures do not replace inspections and servicing by the manufacturer.
The information in this Technical Documentation is confidential and may not
be disclosed to third parties without the prior written consent of the manufac-
turer.
This Technical Documentation is for the purpose of information only. Product
descriptions found in this Technical Documentation are in no way a substitute
for reading and studying the Instructions for Use/Operating Manual enclosed
with the product at the time of delivery.
WARNING
A WARNING statement provides important information about a poten-
tially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION
A CAUTION statement provides important information about a potentially
hazardous situation which, if not avoided, may result in minor or moderate
injury to the user or patient or in damage to the equipment or other prop-
erty.
NOTE
A NOTE provides additional information intended to avoid inconvenience
during operation.
Definitions according to German standard DIN 31051:
Inspection = examination of actual condition
Maintenance = measures to maintain specified condition
Repair = measures to restore specified condition
Servicing = inspection, maintenance, and repair

All rights reserved. Copyright reserved.
Version 3.0_ Released_Printed on_03.05.06_K5133001_General_Technical_Documentation.fm
45133.001
General Zeus
Know-how contained in this Technical Documentation is subject to ongoing
change through research and development and Dräger Medical reserves the
right to make changes to this Technical Documentation without notice.
NOTE
Unless otherwise stated, reference is made to laws, regulations or stan-
dards (as amended) applicable in the Federal Republic of Germany for
equipment used or serviced in Germany. Users or technicians in all other
countries must verify compliance with local laws or applicable international
standards.

5133.001
All rights reserved. Copyright reserved.
Version 1.0_ Released_Printed on_03.05.06_F5133001_abbreviations.fm
5
Zeus Function Description
3 Abbreviations and
Definitions A-Box Anaesthetic Gas Box
APL Adjustable Pressure Limit
CAN Controller Area Network
CPCI Compact Peripheral Component Interconnect
DAGMAR Digital Advanced Gas Mixer for Anesthesia Require-
ments
DIANA DIgita ANaesthestic controller in A-Box
DIVA Digital Injection of Volatile Agent
DUMA Flowmeter for volatile anaesthetic
DVI Digital Video Interface
EEPROM Electrically Eraseable Programmable Read Only
Memory
Flash-ROM Flash Read Only Memory
GMZ Gas Measuring module Zeus
HERMES Display and operating unit of Zeus
ILCA Infrared Low Cost Analyzer
IRIA Infrared Rapidly Identifying Analyzer
MIB Management Information Base
MIR Mid Infrared Range
MISO Master Input Slave Output
MOSI Master Output Slave Input
NIR Near Infrared Range
PLD Programmable Logic Device
PWM Pulse Width Modulation
RAM Random Access Memory
SDRAM Synchronous Dynamic RAM
SNMP Simple Network Management Protocol
SPI Serial Peripheral Interface
SRAM Static RAM
TFT Thin Film Transistor
TIVA Total IntraVenous Anesthesia
UART Universal Asynchronous Receiver/Transmitter
USB Universal Serial Bus
UPS Uninterruptible Power Supply
Zeus Name of anaesthetic workstation

All rights reserved. Copyright reserved.
Version 1.0_ Released_Printed on_03.05.06_F5133001_abbreviations.fm
65133.001
Function Description Zeus

7
Function Description

8

5133.001
All rights reserved. Copyright reserved.
Version 2.0_ Released_Printed on_03.05.06_F5133001_ZEUS_General_about.fm
9
Zeus General
1 General information
about Zeus

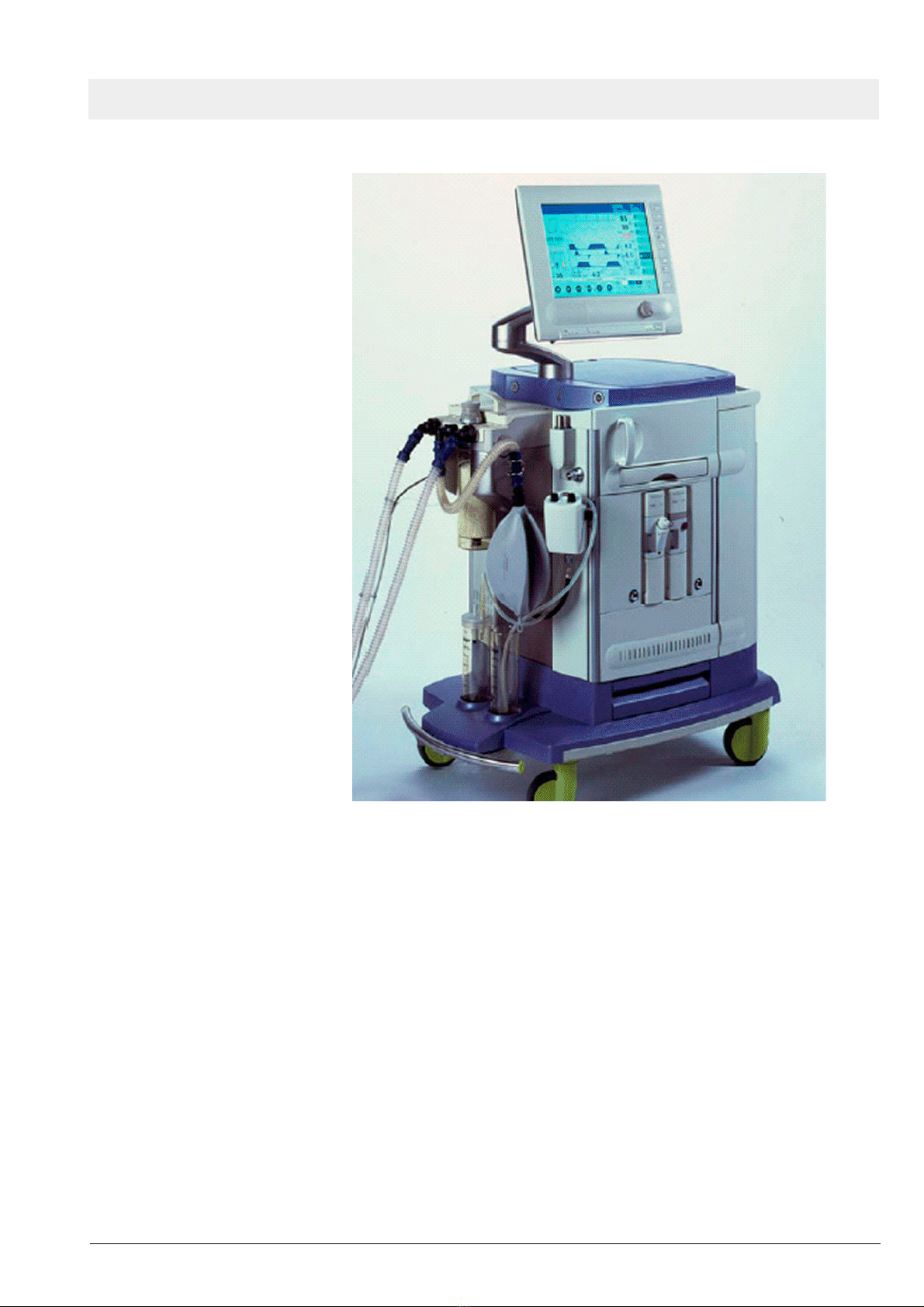

Figure 1 View of the Zeus anesthesia workstation
1.1 Intended use (sum-
mary from the
Instructions for Use
manual)
Zeus is an integrated anesthesia workstation for inhalation and intravenous
anesthesia. Zeus is used
– in operating rooms as well as in induction and recovery rooms
– in adults, children and neonates
– with anesthetic agents Isoflurane, Sevoflurane and Desflurane
– with gas mixtures O2/AIR, O2/N2O
– in partial rebreathing to complete rebreathing mode
– for operation with external fresh-gas outlet - non-rebreathing systems
– for inhalation anesthesia, balanced and intravenous anesthesia
1.2 Product classifica-
tion
Class II b according to the Directive 93/42 EEC, Annex IX.
1.3 Protection classes Class I according to EN 60601-1.

All rights reserved. Copyright reserved.
Version 2.0_ Released_Printed on_03.05.06_F5133001_ZEUS_General_about.fm
10 5133.001
General Zeus
1.4 Brief description of
the system
The integrated anesthetic workstation Zeus includes the following compo-
nents:
– Windows NT computer with system display unit for operation of therapy
control and monitoring
– electronic gas and anesthetic agent flow control with closed-loop control
system
– electronically controlled and driven blower with rebreathing system
– airway monitoring
– hemodynamics monitoring module
The following extensions are available as optional features:
– Dräger syringe pumps for intravenous anesthesia
1.4.1 Configuration The Zeus anesthesia workstation can be subdivided into the display and con-
trol unit HERMES and the anesthetic gas box (A-Box).
HERMES is a PC based system for display and control of the A-Box or other
connected front-end units, such as the parameter box for measurement of
hemodynamic values. In addition, HERMES provides all external interfaces
of the Zeus anesthesia workstation, e.g. printer and serial ports.
The anesthetic gas box (Figure 2) contains the actuators required for the sys-
tem, the mixed-gas flow control, the anesthetic-agent flow-control, the breath-
ing system, the lung ventilator and the monitoring system. The anesthetic gas
box also comprises slots and interfaces for future optional features.
1.4.2 The most important
external characteristics
The anesthetic workstation Zeus has an excellent ergonomic design. This
includes, for example:
– A system display unit mounted on a hinged arm that allows a 180° rota-
tion. A second flat display (optional feature) can be arranged on top of the
system display unit.
– A housing shape that is suitable both for left-hand/right-hand operation.
This includes, besides the rotatable system display unit, a push-through
work top and a push-through drawer. The absorber can be viewed easily
from both sides.
– Concealed, left-hand and right-hand rails for mounting of accessories.
– O2 flush buttons that can be operated on left-hand side and right-hand
side.
– A central locking brake for trolley castors that can be operated from both
sides.

5133.001
All rights reserved. Copyright reserved.
Version 2.0_ Released_Printed on_03.05.06_F5133001_ZEUS_General_about.fm
11
Zeus General

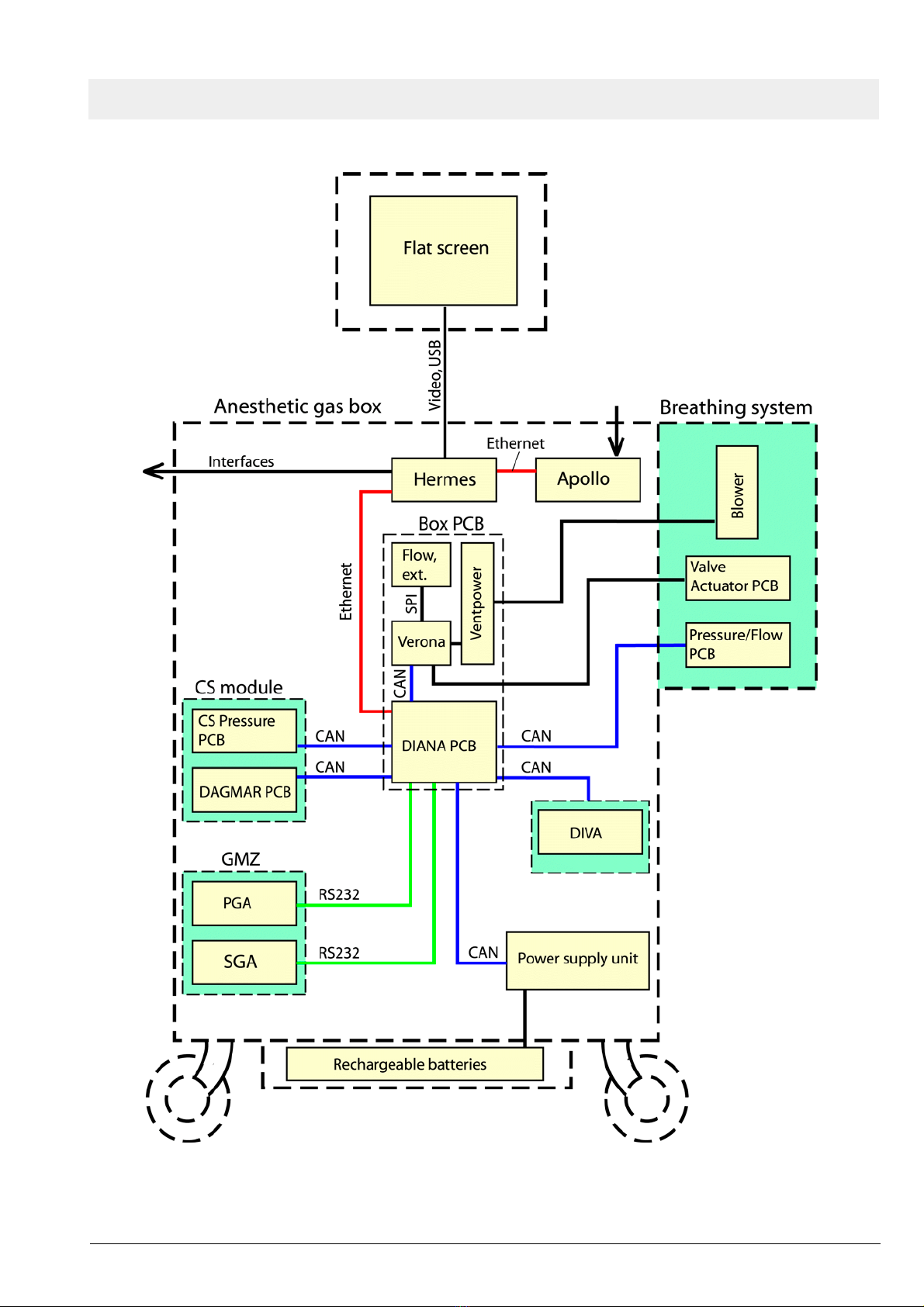

Figure 2 System overview

All rights reserved. Copyright reserved.
Version 2.0_ Released_Printed on_03.05.06_F5133001_ZEUS_General_about.fm
12 5133.001
General Zeus
