Dragino LSN50 LoRa User manual

www.dragino.com
LSN50 LoRa Sensor Node User Manual 1/ 60
LSN50 LoRa Sensor Node User Manual
Document Version: 1.6.1
Image Version: v1.6
Version
Description
Date
1.0
Release
2018-Dec-4
1.1
Add steps of install STM320x; Add ST-Link Upload firmware method
2018-Dec-27
1.2
Add trouble shooting for UART upload, Add change log for firmware v1.4
2019-Jan-23
1.2.1
More detail description for 8 channel mode and trouble shooting for using in
US915/AU915
2019-Feb-21
1.2.2
Modify trouble shooting for upload via Flashloader
2019-Mar-13
1.2.3
Add ISP Mode / Flash mode different/
Add working flow diagram (Chapter 2.1 how it works)
Add FAQ for how to configure the Keys
2019-Apr-1
1.5.0
Upgrade to v1.5 version firmware
Add ultrasonic sensor support and description.
Add downlink description
Change decoder for v1.5
Add working flow chart
Add Mydevices support
2019-Apr-19
1.5.1
Improve Interrupt feature, change interrupt example to use door sensor
1.5.2
Various minor text and format edits.
2019-Jun-10
1.6.0
Update to firmware v1.6 version, add 3ADC mode
2019-Aug-7
1.6.1
Trouble shooting for AT Command input
Add support for 3 * DS18B20 (MOD4)
2019-Sep-18

www.dragino.com
LSN50 LoRa Sensor Node User Manual 2/ 60
1. Introduction 4
1.1 What is LSN50 LoRa Sensor Node 4
1.2 Specifications 5
1.3 Features 6
1.4 Applications 6
1.5 Pin Definitions 7
1.6 Hardware Change log 8
1.7 Hole Option 9
2. Use LSN50 with LoRaWAN firmware 10
2.1 How it works 10
2.2 Quick guide to connect to LoRaWAN server (OTAA) 11
2.3Working Mode & Uplink Payload 14
2.3.1 MOD=1 (Default Mode) 14
2.3.2 MOD=2 (Distance Mode) 15
2.3.3 MOD=3 (3 ADC + I2C) 16
2.3.4 MOD=4 (3 x DS18B20) 17
2.3.5 Decode payload in The Things Network 18
2.4 Payload Explanation and Sensor Interface 21
2.4.1 Battery Info 21
2.4.2 Temperature (DS18B20) 21
2.4.3 Digital Input 21
2.4.4 Analogue Digital Converter (ADC) 22
2.4.5 Digital Interrupt 23
2.4.6 I2C Interface (SHT20) 25
2.4.7 Distance Reading 26
2.4.8 Ultrasonic Sensor 26
2.4.9 +5V Output 27
2.5 Downlink Payload 28
2.6 Show Data in Mydevices IoT Server 29
2.7 Firmware Change Log 32
2.8 Battery Analysis 34
2.8.1 Battery Type 34
2.8.2 Power consumption Analyze 34
2.8.3 Battery Note 35
2.8.4 Replace the battery 35
3. Using the AT Commands 36
3.1 Access AT Commands 36
3.2 Common AT Command Sequence 38
3.2.1 Multi-channel ABP mode (Use with SX1301/LG308) 38
3.2.2 Single-channel ABP mode (Use with LG01/LG02) 38
4. Upload Firmware 39
4.1 Upload Firmware via Serial Port 39
4.2 Upload Firmware via ST-Link V2 42
5. Developer Guide 44
5.1 Source Code 44
5.2 Compile Source Code 44

www.dragino.com
LSN50 LoRa Sensor Node User Manual 3/ 60
5.2.1 Set up Keil Compile Environment 44
5.2.2 Install STM32L0 Series Device 48
5.2.3 Compile Source Code 50
6. FAQ 52
6.1 Why there is 433/868/915 version? 52
6.2 What is the frequency range of LT LoRa part? 52
6.3 How to change the LoRa Frequency Bands/Region? 52
6.4 Can I use Private LoRa protocol? 52
6.5 How to set up LSN50 to work in 8 channel mode 53
6.6 How to set up LSN50 to work with Single Channel Gateway such as
LG01/LG02? 55
6.7 How to configure the EUI keys in LSN50? 56
7. Trouble Shooting 57
7.1 Connection problem when uploading firmware. 57
7.2 Why I can’t join TTN in US915 / AU915 bands? 57
7.3 AT Command input doesn’t work 58
8. Order Info 59
9. Packing Info 59
10. Support 60
11. References 60

www.dragino.com
LSN50 LoRa Sensor Node User Manual 4/ 60
1. Introduction
1.1 What is LSN50 LoRa Sensor Node
LSN50 is a Long Range LoRaWAN Sensor Node. It is designed for outdoor data logging and
powered by Li/SOCl2 battery for long term use and secure data transmission. It is designed
to facilitate developers to quickly deploy industrial level LoRa and IoT solutions. It helps
users to turn the idea into a practical application and make the Internet of Things a reality. It
is easy to program, create and connect your things everywhere.
It is based on SX1276/SX1278 allows the user to send data and reach extremely long ranges
at low data-rates. It provides ultra-long range spread spectrum communication and high
interference immunity whilst minimizing current consumption. It targets professional
wireless sensor network applications such as irrigation systems, smart metering, smart cities,
smartphone detection, building automation, and so on.
LSN50 uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xx
microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0
crystal-less) with the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a
32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (192
Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an
extensive range of enhanced I/Os and peripherals.
LSN50 is an open source product, it is based on the STM32Cube HAL drivers and lots of
libraries can be found in ST site for rapid development.

www.dragino.com
LSN50 LoRa Sensor Node User Manual 5/ 60
1.2 Specifications
Micro Controller:
●STM32L072CZT6 MCU
●MCU: STM32L072CZT6
●Flash: 192KB
●RAM: 20KB
●EEPROM: 6KB
●Clock Speed: 32Mhz
Common DC Characteristics:
●Supply Voltage: 2.1v ~ 3.6v
●Operating Temperature: -40 ~ 85°C
●I/O pins: Refer to STM32L072 datasheet
LoRa Spec:
●Frequency Range,
○Band 1 (HF): 862 ~ 1020 Mhz
or
○Band 2 (LF): 410 ~ 528 Mhz
●168 dB maximum link budget.
●+20 dBm - 100 mW constant RF output vs.
●+14 dBm high efficiency PA.
●Programmable bit rate up to 300 kbps.
●High sensitivity: down to -148 dBm.
●Bullet-proof front end: IIP3 = -12.5 dBm.
●Excellent blocking immunity.
●Low RX current of 10.3 mA, 200 nA register retention.
●Fully integrated synthesizer with a resolution of 61 Hz.
●FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
●Built-in bit synchronizer for clock recovery.
●Preamble detection.
●127 dB Dynamic Range RSSI.
●Automatic RF Sense and CAD with ultra-fast AFC.
●Packet engine up to 256 bytes with CRC.
●LoRaWAN 1.0.2 Specification
Battery:
●Li/SOCI2 un-chargeable battery
●Capacity: 4000mAh
●Self Discharge: <1% / Year @ 25°C
●Max continuously current: 130mA
●Max boost current: 2A, 1 second
Power Consumption
●STOP Mode: 2.7uA @ 3.3v
●LoRa Transmit Mode: 125mA @ 20dBm 44mA @ 14dBm

www.dragino.com
LSN50 LoRa Sensor Node User Manual 6/ 60
1.3 Features
●LoRaWAN 1.0.2 Class A,Class C
●STM32L072CZT6 MCU
●SX1276/78 Wireless Chip
●Pre-load bootloader on USART1/USART2
●MDK-ARM Version 5.24a IDE
●I2C, LPUSART1, USB, SPI2
●3x12bit ADC, 1x12bit DAC
●20xDigital I/Os
●LoRa™ Modem
●Preamble detection
●Baud rate configurable
●CN470/EU433/KR920/US915/IN865
●EU868/AS923/AU915
●Open source hardware / software
●Available Band:433/868/915/920 Mhz
●IP66 Waterproof Enclosure
●Ultra Low Power consumption
●AT Commands to change parameters
●4000mAh Battery for long term use
1.4 Applications
●Smart Buildings & Home Automation
●Logistics and Supply Chain Management
●Smart Metering
●Smart Agriculture
●Smart Cities
●Smart Factory

www.dragino.com
LSN50 LoRa Sensor Node User Manual 7/ 60
1.5 Pin Definitions
Pin No.
Signal
Direction
Function
Remark
1
VCC(2.9V)
OUTPUT
VCC
Directly connect to main
power for board
2
PA0
In/Out
Directly from STM32 chip
Used as ADC in LSN50 image
3
PA1
In/Out
Directly from STM32 chip
4
PA2
In/Out
Directly from STM32 chip, 10k
pull up to VCC
Used as UART_TXD in LSN50
5
PA3
In/Out
Directly from STM32 chip, 10k
pull up to VCC
Used as UART_RXD in LSN50
6
PB6
In/Out
Directly from STM32 chip, 10k
pull up to VCC
7
PB7
In/Out
Directly from STM32 chip, 10k
pull up to VCC
8
PB3
In/Out
Directly from STM32 chip, 10k
pull up to VCC
9
PB4
In/Out
Directly from STM32 chip
10
PA9
In/Out
Directly from STM32 chip, 10k
pull up to VCC
11
PA10
In/Out
Directly from STM32 chip, 10k
pull up to VCC
12
GND
Ground
13
VCC(2.9V)
OUTPUT
VCC
Directly connect to main
power for board
14
Jumper
Power on/off jumper
15
PA4
In/Out
Directly from STM32 chip
16
NRST
In
Reset MCU

www.dragino.com
LSN50 LoRa Sensor Node User Manual 8/ 60
17
PA12
In/Out
Directly from STM32 chip
18
PA11
In/Out
Directly from STM32 chip
19
PA14
In/Out
Directly from STM32 chip
20
PB13
In/Out
Directly from STM32 chip
21
PB12
In/Out
Directly from STM32 chip
22
PB15
In/Out
Directly from STM32 chip
23
PB14
In/Out
Directly from STM32 chip
24
PA13
In/Out
Directly from STM32 chip
25
PA8
In/Out
Directly from STM32 chip
Default use to turn on/off LED1
in LSN50 image
26
GND
Ground
27
+5V
Out
5v output power
Controlled by PB5(Low to
Enable, High to Disable)
28
LED1
Controlled by PA8
Blink on transmit
29
BOOT MODE
Configure device in working
mode or ISP program mode
Flash: Normal Working mode
and send AT Commands
ISP: UART Program Mode
30
NRST
In
Reset MCU
1.6 Hardware Change log
LSN50 v1.2:
●Add LED. Turn on for every LoRa transmit
●Add pin PA4, PB13, NRST
●Add 5V Output, on/off control by PB5(Low to Enable, High to Disable)
LSN50 v1.3:
●Add P-MOS to control 5V output

www.dragino.com
LSN50 LoRa Sensor Node User Manual 9/ 60
1.7 Hole Option
The LSN50 provides different hole size options for different size sensor cable. The options
provided are M12, M16 and M20. The definition is as below:

www.dragino.com
LSN50 LoRa Sensor Node User Manual 10 / 60
2. Use LSN50 with LoRaWAN firmware
2.1 How it works
The LSN50 is pre-loaded with a firmware and is configured as LoRaWAN OTAA Class A mode
by default. It has OTAA keys to join LoRaWAN network. To connect a local LoRaWAN
network, you just need to input the OTAA keys in the LoRaWAN IoT server and power on the
LSN50. It will automatically join the network via OTAA.

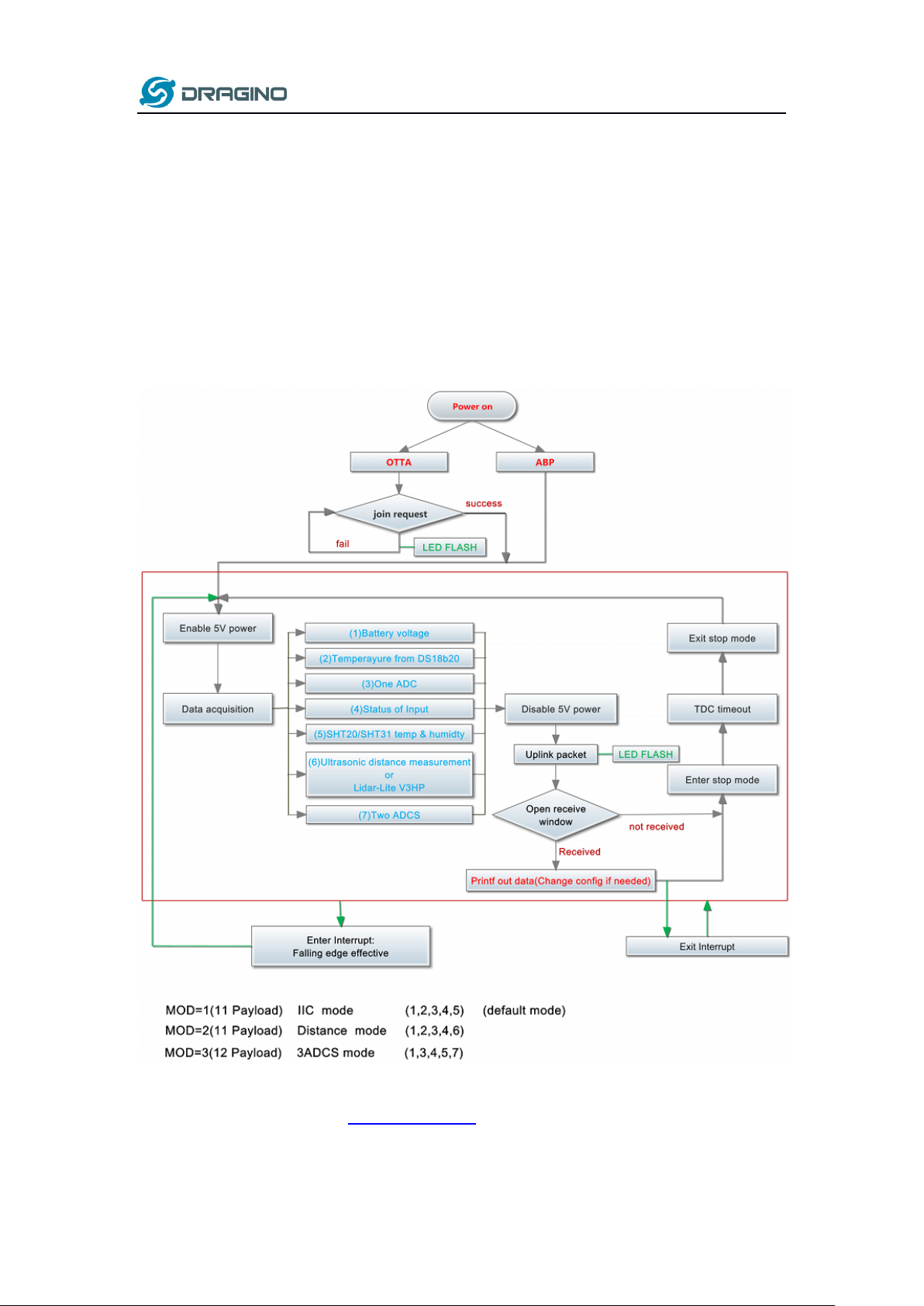

The diagram below shows the working flow in default firmware (Ver 1.6):
In case you can’t set the OTAA keys in the LoRaWAN OTAA server, and you have to use the
keys from the server, you can use AT Commands to set the keys in the LSN50.

www.dragino.com
LSN50 LoRa Sensor Node User Manual 11 / 60
2.2 Quick guide to connect to LoRaWAN server (OTAA)
Following is an example for how to join the TTN LoRaWAN Network. Below is the network
structure; we use the LG308 as a LoRaWAN gateway in this example.
The LG308 is already set to connected to TTN network , so what we need to now is configure
the TTN server.
Step 1: Create a device in TTN with the OTAA keys from LSN50.
Each LSN50 is shipped with a sticker with the default device EUI as below:

www.dragino.com
LSN50 LoRa Sensor Node User Manual 12 / 60
You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot:
Add APP EUI in the application
Add APP KEY and DEV EUI

www.dragino.com
LSN50 LoRa Sensor Node User Manual 13 / 60
Step 2: Power on LSN50
Put a Jumper on JP2 to power on the device.

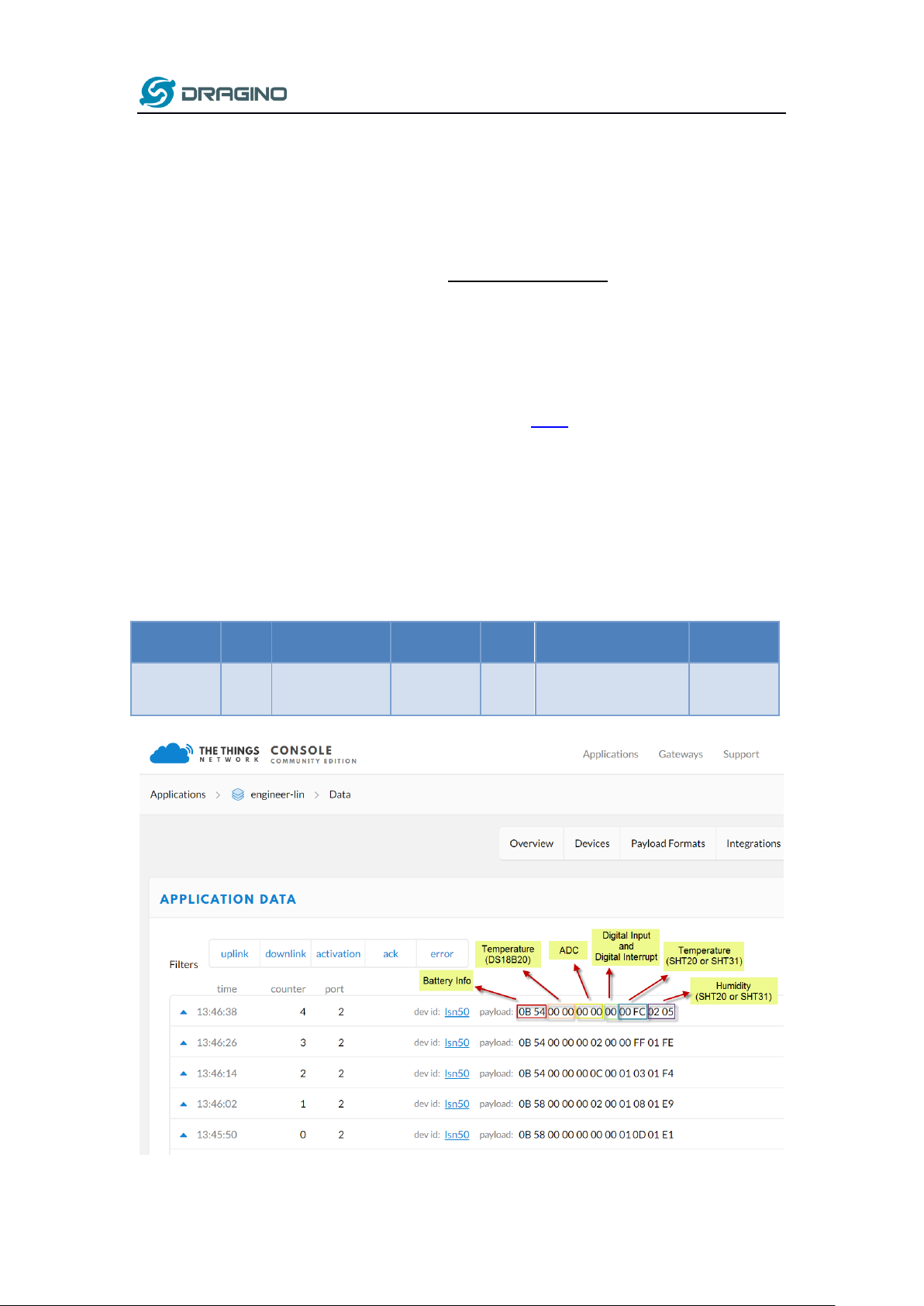

Step 3: The LSN50 will auto join to the TTN network. After join success, it will start to upload
messages to TTN and you can see the messages in the panel.

www.dragino.com
LSN50 LoRa Sensor Node User Manual 14 / 60
2.3 Working Mode & Uplink Payload
LSN50 has different working mode for the connections of different type of sensors. This
section describes these modes. Use can use the AT Command AT+MOD to set LSN50 to
different working modes.
For example:
AT+MOD=2 // will set the LSN50 to work in MOD=2 distance mode which target to measure
distance via Ultrasonic Sensor.
NOTE:
1. Some working modes has payload more than 12 bytes, The US915/AU915/AS923
frequency bands’definition has maximum 11 bytes in DR0. Server sides will see NULL
payload while LSn50 transmit in DR0 with 12 bytes payload.
2. All modes share the same Payload Explanation from HERE.
3. By default, the device will send an uplink message every 10 minutes.
2.3.1 MOD=1 (Default Mode)
In this mode , uplink payload includes in total 11 bytes. Uplink packets use FPORT=2.
Size(bytes
)
2
2
1
2
2
2
Value
BAT
Temperature
(DS18B20)
Digital in &
Digital
Interrupt
ADC
Temperature
(SHT20 or SHT31 or
Ultrasonic Sensor)
Humidity
(SHT20)

www.dragino.com
LSN50 LoRa Sensor Node User Manual 15 / 60
2.3.2 MOD=2 (Distance Mode)
This mode is target to measure the distance. The payload of this mode is totally 11
bytes. The 8th and 9th bytes is for the distance.
Connection of LIDAR-Lite V3HP:
Size(bytes)
2
2
1
2
2
2
Value
BAT
Temperature
(DS18B20)
Digital in &
Digital
Interrupt
ADC
Distance measure by:
1) LIDAR-Lite V3HP
Or
2) Ultrasonic Sensor
Humidity
(SHT20)

www.dragino.com
LSN50 LoRa Sensor Node User Manual 16 / 60
Connection to Ultrasonic Sensor:
While connecting to Ultrasonic sensor, the sleep current will jump to 250uA. It is
recommend to use external power source for ultrasonic sensor.
2.3.3 MOD=3 (3 ADC + I2C)
This mode has total 12 bytes. Include 3 x ADC + 1x I2C
Size(bytes)
2
2
2
1
2
2
1
Value
ADC1
(Pin PA0)
ADC2
(PA1)
ADC3
(PA4)
Digital in &
Digital
Interrupt
Temperature
(SHT20 or
SHT31)
Humidity
(SHT20 or
SHT31)
BAT

www.dragino.com
LSN50 LoRa Sensor Node User Manual 17 / 60
2.3.4 MOD=4 (3 x DS18B20)
This mode is supported in firmware version since v1.6.1
Hardware connection is as below, (Note: R3 & R4 should change from 10k to 4.7k to
support DS18B20, Software set to AT+MOD=4)
This mode has total 11 bytes. As shown below:
Size(bytes)
2
2
2
1
2
2
Value
BAT
Temperature1
(DS18B20)
(PB3)
ADC
Digital in &
Digital
Interrupt
Temperature2
(DS18B20)
(PA9)
Temperature3
(DS18B20)
(PA10)

www.dragino.com
LSN50 LoRa Sensor Node User Manual 18 / 60
2.3.5 Decode payload in The Things Network
While using TTN network, you can add the payload format to decode the payload.
The payload decoding function is as follows:
function Decoder(bytes, port) {
// Decode an uplink message from a buffer
// (array) of bytes to an object of fields.
if(bytes[6] & 0x10)
{
var mod4="3DS18B20"; //work mode
}
else if(bytes[6] & 0x08)
{
var mod3="3ADC"; //work mode

www.dragino.com
LSN50 LoRa Sensor Node User Manual 19 / 60
}
else if(bytes[6] & 0x04)
{
var mod2="Distance"; //work mode
}
else if(!(bytes[6] & 0x04))
{
var mod1="IIC"; //work mode
}
if(mod3=="3ADC")
{
var adc_ch0=(bytes[0]<<8 | bytes[1])/1000;//PA0,ADC Channel 0,units:V
var adc_ch1=(bytes[2]<<8 | bytes[3])/1000;//PA1,ADC Channel 1,units:V
var adc_ch4=(bytes[4]<<8 | bytes[5])/1000;//PA4,ADC Channel 4,units:V
var switch_=(bytes[6] & 0x80)? "CLOSE":"OPEN";//PB14,GPIO_MODE_IT_FALLING
var digital_IS=(bytes[6] & 0x02)? "H":"L";//PA12，Digital Input Status
var exti_trigger=(bytes[6] & 0x01)? "TRUE":"FALSE";//PB14,GPIO_MODE_IT_FALLING
value=bytes[7]<<8 | bytes[8];
if(bytes[7] & 0x80)
{value |= 0xFFFF0000;}
var temp_SHT=(value/10).toFixed(2);//SHT20,temperature,units:℃
value=bytes[9]<<8 | bytes[10];
var hum_SHT=(value/10).toFixed(1);//SHT20,Humidity,units:%
var batV= bytes[11]/10;//Battery,units:V
}
else if((mod1=="IIC")||(mod2=="Distance")||(mod4=="3DS18B20"))
{
var value=bytes[0]<<8 | bytes[1];
batV=value/1000;//Battery,units:V
value=bytes[2]<<8 | bytes[3];
if(bytes[2] & 0x80)
{value |= 0xFFFF0000;}
var tempc1=(value/10).toFixed(2);//DS18B20,PB3,units:℃
adc_ch0=(bytes[4]<<8 | bytes[5])/1000;//PA0,ADC Channel 0,units:V
switch_=(bytes[6] & 0x80)? "CLOSE":"OPEN";//PB14,GPIO_MODE_IT_FALLING
digital_IS=(bytes[6] & 0x02)? "H":"L";//PA12，Digital Input Status
exti_trigger=(bytes[6] & 0x01)? "TRUE":"FALSE";//PB14,GPIO_MODE_IT_FALLING
if(mod1=="IIC")
{
value=bytes[7]<<8 | bytes[8];
if(bytes[7] & 0x80)
{value |= 0xFFFF0000;}
temp_SHT=(value/10).toFixed(2);//SHT20,temperature,units:℃
value=bytes[9]<<8 | bytes[10];

www.dragino.com
LSN50 LoRa Sensor Node User Manual 20 / 60
hum_SHT=(value/10).toFixed(1);//SHT20,Humidity,units:%
}
else if(mod2=="Distance")
{
value=bytes[7]<<8 | bytes[8];
var distance=(value/10) .toFixed(1); // Distance,units:cm
}
else if(mod4=="3DS18B20")
{
value=bytes[7]<<8 | bytes[8];
if(bytes[7] & 0x80)
{value |= 0xFFFF0000;}
var tempc2=(value/10).toFixed(2);//DS18B20,PB3,units:℃
value=bytes[9]<<8 | bytes[10];
if(bytes[9] & 0x80)
{value |= 0xFFFF0000;}
var tempc3=(value/10).toFixed(2);//DS18B20,PB3,units:℃
}
}
return {
BatV:batV,
TempC1:tempc1,
TempC2:tempc2,
TempC3:tempc3,
ADC_CH0V:adc_ch0,
ADC_CH1V:adc_ch1,
ADC_CH4V:adc_ch4,
Digital_IStatus:digital_IS,
EXTI_Trigger:exti_trigger,
Door_status:switch_,
MOD1:mod1,
MOD2:mod2,
MOD3:mod3,
MOD4:mod4,
Distance: distance,
TempC_SHT:temp_SHT,
Hum_SHT:hum_SHT
};
}
