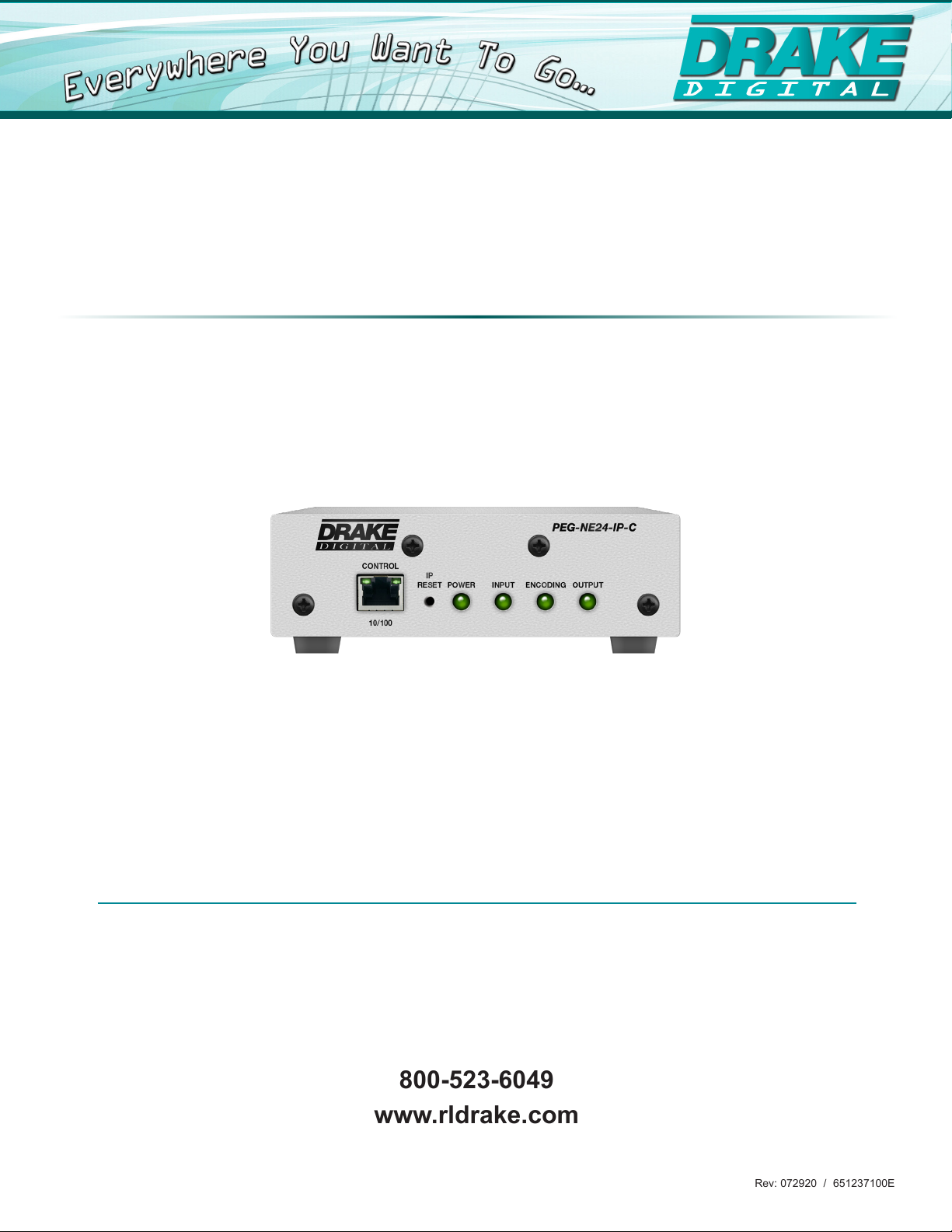

DRAKE PEG-NE24-IP User manual

800-523-6049
www.rldrake.com
Rev: 072920 / 651237100E
PEG-NE24-IP & PEG-NE24-IP-C Models
Public Educational & Governmental Access Encoder
INSTRUCTION MANUAL
© 2018 R.L. Drake Holdings, LLC.
Model Item # Description
PEG-NE24-IP 1002606A HD PEG Channel Encoder with HD-SDI Input and IP Output
PEG-NE24-IP-C 1002613 HD PEG Channel Encoder with HD-SDI or Composite Video Input
with L/R Audio and IP Output

2
800-523-6049 | www.rldrake.com
We recommend that you write the following information in the spaces provided below.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Reverse engineering or disassembly is prohibited.
Purchase Location Name:
Purchase Location Telephone Number:
PEG-NE24 Serial Number:
Manual Revision
This instruction manual was updated on 08/17/17 with changes made in firmware release Version 2.6.3.
For more information regarding product firmware releases, please visit our website at
www.rldrake.com. You may also contact Technical Assistance at 800-523-6049 or by
email: [email protected]

3
800-523-6049 | www.rldrake.com
Table of Contents
GENERAL & SAFETY INFORMATION
SAFETY INSTRUCTIONS & CAUTION STATEMENTS ......................................................................................................... 4
SPECIFICATIONS .................................................................................................................................................................... 6
GENERAL DESCRIPTION & FEATURES............................................................................................................................... 7
FRONT AND REAR PANEL OPERATION .............................................................................................................................. 8
INSTALLATION & SETUP
INSTALLATION & POWER-UP................................................................................................................................................ 9
LOGIN SCREEN ..................................................................................................................................................................... 10
UNIT CONFIGURATION
STATUS TAB ...........................................................................................................................................................................11
ENCODER TAB ...................................................................................................................................................................... 12
BASIC SCREEN .................................................................................................................................................................................... 12
COMPOSITING SCREEN...................................................................................................................................................................... 16
ADVANCED SETTINGS SCREEN ........................................................................................................................................................ 18
SYSTEM CONFIGURATION TAB .......................................................................................................................................... 20
NETWORKING....................................................................................................................................................................................... 20
REMOTE MANAGEMENT..................................................................................................................................................................... 22
LOG SCREEN ........................................................................................................................................................................ 24
FIRMWARE UPDATES
UPDATE TAB ......................................................................................................................................................................... 24
ADMINISTRATION PANEL
ADMIN SCREEN .................................................................................................................................................................... 25
SERVICE & WARRANTY
SERVICE.................................................................................................................................................................................. 30
WARRANTY............................................................................................................................................................................. 31

4
800-523-6049 | www.rldrake.com
Important Safety Instructions
1. Read Instrucons—All the safety and operang instrucons should be read before the
product is operated.
2. Retain Instrucons—The safety and operang instrucons should be retained for future
reference.
3. Heed Warnings—All warnings on the product and in the operang instrucons should be
adhered to.
4. Follow Instrucons—All operang and use instrucons should be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleansers. Use a damp cloth for cleaning.
6. Aachments—Do not use aachments that are not recommended by the product manu-
facturer as they may cause hazards.
7. Water and Moisture—Do not use this product near water—for example, near a bathtub,
wash bowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool; and
the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or
table. The product may fall, causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounng of the product should follow the
manufacturer’s instrucons, and should use a mounng accessory recommended by the
manufacturer.
9. A product and cart combinaon should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and cart combinaon to overturn.
10. Venlaon—Slots and openings in the cabinet are provided for venlaon and to ensure
reliable operaon of the product and to protect it from overheang, and these openings
must not be blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or similar surface. This product should not be placed in a built-in
installaon such as bookcase or rack unless proper venlaon is provided or the manufac-
turer’s instrucons have been adhered to.
11. Power Sources—This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supplied to your
home, consult your product dealer or local power company. For products intended to oper-
ate from baery power, or other sources, refer to the operang instrucons.
12. Grounding or Polarizaon—This product may be equipped with a polarized alternat-
ingcurrent line plug (a plug having one blade wider than the other). This plug will t into
the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should sll fail to t, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug. Alternate Warnings—If this product is equipped with a three-wire grounding-type
plug, a plug having a third (grounding) pin, the plug will only t into a grounding-type power
outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
13. Power-Cord Protecon—Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying parcular
aenon to cords at plugs, convenience receptacles, and the point where they exit from the
product.
14. Outdoor Antenna Grounding—If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as to provide some protecon
against voltage surges and built-up stac charges. Arcle 810 of the Naonal Electrical Code,
ANSI/NFPA 70, provides informaon with regard to proper grounding of the mast and sup-
porng structure, grounding of the lead-in wire to an antenna discharge unit, size of ground-
ing conductors, locaon of antenna-discharge unit, connecon to grounding electrodes, and
requirements for the grounding electrode. See Figure A.
15. Lightning—For added protecon for this product during a lightning storm, or when it
is le unaended and unused for long periods of me, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
16. Power Lines—An outside antenna system should not be located in the vicinity of over-
head power lines, other electric light or power circuits, where it can fall into such power lines
or circuits.
17. Overloading—Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of re or electric shock.
18. Object and Liquid Entry—Never push objects of any kind into this product through open-
ings as they may touch dangerous voltage points or short-out parts that could result in a re
or electric shock. Never spill liquid of any kind on the product.
19. Servicing—Do not aempt to service this product yourself as opening or removing cov-
ers may expose you to dangerous voltage or other hazards. Refer all servicing to qualied
service personnel.
20. Damage Requiring Service—Unplug this product from the wall outlet and refer servicing
to qualied service personnel under the following condions:
a. When the power-supply cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d. If the product does not operate normally by following the operang instrucons. Adjust
only those controls that are covered by the operang instrucons as an improper adjust-
ment of other controls may result in damage and will oen require extensive work by a
qualied technician to restore the product to its normal operaon,
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a disnct change in performance—this indicates a need for
service.
21. Replacement Parts—When replacement parts are required, be sure the service techni-
cian has used replacement parts specied by the manufacturer or have the same characteris-
cs as the original part. Unauthorized substutes may result in re, electric shock or other
hazards.
22. Safety Check—Upon compleon of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operang
condion.
23. Wall or Ceiling Mounng—The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
24. Heat—The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including ampliers) that produce heat.
NOTE TO CATV SYSTEM INSTALLERS:
THIS REMINDER IS PROVIDED TO CALL THE CATV
SYSTEM INSTALLER’S ATTENTION TO ARTICLE 820 - 40
OF THE NEC WHICH PROVIDES GUIDELINES FOR PROPER
GROUNDING AND, IN PARTICULAR, SPECIFIES THAT
THE CABLE GROUND SHALL BE CONNECTED TO THE
GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO
THE POINT OF CABLE ENTRY AS PRACTICAL.
FIGURE A
Example of antenna grounding as per Naonal Electrical Code, ANSI/NFPA 70
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMPS
GROUND CLAMP
NEC - NATIONAL ELECTRIC CODE
WARNING: TO PREVENT FIRE OR
ELECTRICAL SHOCK DO NOT
EXPOSE TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE POWER SUPPLY COVERS
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
! CAUTION !
CAUTION STATEMENT
An appliance and cart combinaon should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the appliance and cart combinaon to overturn.
The exclamaon point within an equilateral triangle is intended to alert the user to
the presence of important operang and maintenance (servicing) instrucons in the
literature accompanying the appliance.
The lightning ash with arrow head symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constute a risk of electric shock to
persons.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

5
800-523-6049 | www.rldrake.com
Importantes De Sécurité
1. Lire les direcves—Toutes les direcves de sécurité et d’ulisaon devraient être lues
avant de mere l’appareil en opéraon.
2. Conserver les direcves—Les direcves de sécurité et d’ulisaon devraient être con-
servées pour consultaon future.
3. Tenir compte des averssements—Tous les averssements apparaissant sur l’appareil et
dans les consignes d’ulisaon devraient être respectés.
4. Suivre les direcves—Toutes les direcves d’opéraon et d’ulisaon devraient être
suivies.
5. Neoyage—Débrancher l’appareil de la prise électrique murale avant le neoyage. Ne pas
uliser de neoyants liquides ou aérosols. Employer un linge humide pour le neoyage.
6. Fixaon—Ne pas uliser d’autres xaons que celles recommandées par le manufacturier;
elles pourraient être source de dangers.
7. Eau et humidité—Ne pas uliser cet appareil près de l’eau. Par exemple, près d’une
baignoire, d’un bac de lavage, d’un évier de cuisine ou d’une cuvee de lessivage; dans un
sous-sol humide; ou à proximité d’une piscine; et autres environnements similaires.
8. Accessoires—Ne pas installer cet appareil sur un chariot, un socle, un trépied, un support
ou une table instables. L’appareil pourrait tomber, entraînant des blessures graves à un
enfant ou à un adulte, et des dommages importants à l’appareil. Employer seulement avec
un chariot, un socle, un trépied, un support, ou une table recommandés par le fabricant ou
vendu avec l’appareil. Toute installaon de l’appareil devrait être conforme aux direcves du
manufacturier et devrait uliser des accessoires d’installaon recommandés par celui-ci.
9. Un chariot supportant l’appareil devrait être déplacé avec précauon. Les arrêts brusques,
la force excessive et les surfaces inégales peuvent renverser le chariot.
10. Venlaon—Des fentes et ouvertures dans le châssis sont prévues pour la venlaon
de l’appareil, pour en assurer la abilité d’opéraon et le protéger contre la surchaue.
Ces ouvertures ne doivent pas être bloquées ou recouvertes. Ces ouvertures ne devraient
jamais être bloquées en plaçant l’appareil sur un lit, un sofa, une couverture, ou une surface
semblable. Cet appareil ne devrait pas être installé dans un meuble encastré comme une bib-
liothèque ou une étagère à moins de lui fournir une venlaon adéquate ou que l’installaon
soit conforme aux direcves du manufacturier.
11. Sources d’alimentaon électrique—Cet appareil devrait être ulisé seulement avec
le type d’alimentaon électrique inscrite sur l’équee. Si vous n’êtes pas certain du type
d’alimentaon électrique fourni à votre maison, consultez le vendeur de l’appareil ou
l’entreprises d’énergie locale. Pour des appareils alimentés par une baerie ou d’autres
sources, se référer aux consignes d’ulisaon.
12. Mise à la terre ou Polarisaon—Cet appareil est équipé avec un cordon d’alimentaon
à trois ls. Il est a brancher sur une prise ayant un connecteur a la terre. Assurez-vous que la
connecon a la terre ne manque pas.
13. Protecon du cordon d’alimentaon—Les cordons d’alimentaon devraient être dispo-
sés de façon à ce qu’on ne puisse marcher dessus ou qu’ils soient suscepbles d’être coincés
par des arcles placés sur ou contre eux. Une aenon parculière doit être portée aux
ches, prises de courant, et aux points où ils sortent de l’appareil.
14. Mise à la terre de l’antenne extérieure—Si un système extérieur d’antenne ou de câble
est relié à l’appareil, s’assurer que le système d’antenne ou de câble est muni d’une mise à la
terre an de fournir une certaine protecon contre les surtensions et les charges d’électricité
staque. L’arcle 810 du code électrique naonal, ANSI/NFPA 70, fournit l’informaon néces-
saire en ce qui concerne la mise à la terre appropriée du mât et de la structure porteuse,
la mise à la terre du câble de connexion à une unité de décharge d’antenne, le calibre des
conducteurs de mise à la terre, la locaon de l’unité de décharge d’antenne, le raccordement
aux électrodes de mise à la terre et les spécicaons pour les électrodes de mise à la terre.
Voir la gure A.
15. Foudre—Pour une protecon supplémentaire de cet appareil pendant un orage élec-
trique, ou quand il est laissé sans surveillance et inulisé pendant de longues périodes, le
débrancher de la prise électrique murale et déconnecter le système d’antenne ou de câble.
Ceci préviendra les dommages à l’appareil dus à la foudre et aux surtensions.
16. Lignes électriques—Un système d’antenne extérieur ne devrait pas être situé à proximité
de lignes électriques aériennes ou de tout autre circuit électrique, où il pourrait tomber sur
de tels circuits ou lignes électriques. Lors de l’installaon d’un système d’antenne extérieur,
d’extrêmes précauons devraient être prises an de prévenir tout contact avec des lignes ou
circuits électriques. Entrer en contact avec de tels circuits ou lignes électriques pourrait être
fatal.
17. Surcharge—Ne pas surcharger les prises de courant murales, les rallonges électriques ou
les prises de courant intégrées. Un risque d’incendie ou de choc électrique pourrait résulter
d’une telle surcharge.
18. Inseron d’objet ou de liquide—Ne jamais insérer d’objet par les ouvertures de cet
appareil. Il pourrait toucher des points de voltage dangereux ou court-circuiter des pièces,
ce qui pourrait résulter en incendie ou en choc électrique. Ne jamais verser de liquide sur
l’appareil.
19. Entreen—Ne pas essayer de faire soi-même l’entreen de cet appareil. En ouvrir ou en
rerer les couvercles pourrait vous exposer à des voltages dangereux ou à d’autres dangers.
Coner tout entreen à un personnel de service qualié.
20. Dommage exigeant un entreen—Débrancher cet appareil de la prise de courant élec-
trique et coner l’entreen au personnel de service qualié dans les éventualités suivantes:
a. Quand le cordon d’alimentaon ou sa che sont endommagés,
b. Si des objets sont tombés dans l’appareil, ou si du liquide y a été renversé,
c. Si l’appareil a été exposé à la pluie ou à l’eau,
d. Si l’appareil ne fonconne pas normalement en suivant les consignes d’ulisaon.
Ajuster seulement les commandes qui sont menonnées dans le guide d’opéraon. Un
mauvais ajustement des autres commandes pourrait causer des dommages à l’appareil et
souvent exiger un travail supplémentaire de la part d’un technicien qualié pour remere
l’appareil en état normal d’opéraon.
e. Si l’appareil a été échappé ou endommagé de n’importe quelle façon, et
f. Quand l’appareil montre un changement notable de performance – ceci indique qu’un
entreen est nécessaire.
21. Pièces de rechange—Si des pièces de rechange sont nécessaires, s’assurer que le tech-
nicien de service a employé des pièces de rechange spéciques du manufacturier ou ayant
les mêmes caractérisques que les pièces originales. L’ulisaon de pièces de rechange non
autorisées pourrait résulter en incendie, choc électrique ou autres dangers.
22. Véricaon de sécurité—À la suite de toute réparaon ou entreen de cet appareil,
demander au technicien de service d’exécuter des véricaons de sécurité an de s’assurer
que l’appareil est en condion normale de fonconnement.
23. Montage au mur ou au plafond—L’appareil ne devrait être monté au mur ou au plafond
qu’uniquement de la façon recommandée par le manufacturier.
24. Chaleur—L’appareil devrait être situé loin de sources de chaleur telles que des radia-
teurs, des registres de chaleur, des fourneaux, ou d’autres appareils (y compris amplica-
teurs) produisant de la chaleur.
NOTE AUX INSTALLATEURS DE SYSTÈME DE CATV:
CE RAPPEL EST FOURNI POUR PORTER À L’ATTENTION DES
INSTALLATEURS DE SYSTÈME DE CATV, L’ARTICLE 820 - 40 DU
NEC QUI DONNE DES DIRECTIVES POUR UNE MISE À LA TERRE
APPROPRIÉE ET, EN PARTICULIER, SPÉCIFIE QUE LE CÂBLE DE
MISE À LA TERRE DEVRAIT ÊTRE RACCORDÉ AU SYSTÈME DE
MISE À LA TERRE DU BÂTIMENT LE PLUS PRÈS POSSIBLE DE
L’ENTRÉE DU CÂBLE.
FIGURE A
Exemple de mise à la terre d’antenne selon le Code Électrique Naonal, ANSI/NFPA 70
ANTENNA
LEAD IN
WIRE
UNITÉ DE DÉCHARCHE D’ANTENNE
(NEC SECTION 810-20)
CONDUCTEURS DE MISE À LA TERRE
(NEC SECTION 810-21)
SYSTÈME DE MISE À LA TERRE DU BÂTIMENT
(NEC ART 250, PART H)
APPAREILS
ÉLECTRIQUES
DE SERVICE
ATTACHES DE
MISE À LA TERRE
ATTACHES DE
MISE À LA TERRE
NEC - CODE ÉLECTRIQUE NATIONAL
AVERTISSEMENT: AFIN D’ÉVITER TOUT RISQUE D’INCENDIE
OU D’ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA
PLUIE OU À L’HUMIDITÉ.
RISQUE DE CHOC ELECTRIQUE -
NE PAS OUVRIR
ATTENTION: POUR RÉDUIRE LE RISQUE D’ÉLECTROCUTION, NE PAS
ENLEVER LE DOS DE L’APPAREIL NI OUVRIR LE BOÎTIER. AUCUNE PIÈCE N’EST
RÉPARABLE PAR L’UTILISATEUR À L’INTÉRIEUR. SE RÉFÉRER UNIQUEMENT À
DES TECHNICIENS QUALIFIÉS POUR L’ENTRETIEN.
! AVERTISSEMENT !
Une combinaison de l’appareil et chariot doit être déplacé avec précauon. Des arrêts
brusques, une force excessive et des surfaces inégales peuvent causer la combinaison
de l’appareil et le chariot.
Le point d’exclamaon à l’intérieur d’un triangle équilatéral est desné à alerter
l’ulisateur sur la présence d’opéraons d’entreen importantes au sujet desquelles des
renseignements se trouvent dans le manuel d’instrucons.
Le symbole de l’éclair à l’intérieur d’un triangle équilatéral est desné à alerter
l’ulisateur sur la présence d’une “tension dangereuse” non isolée dans le boîer du
produit. cee tension est susante pour provoquer l’électrocuon de personnes.
ATTENTION DÉCLARATION
AVERTISSEMENT: AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU D’ÉLECTROCUTION, NE PAS
EXPOSER CET APPAREIL À LA PLUIE OU À L’HUMIDITÉ. NE PAS OUVRIR LE
BOÎTIER, CONFIER TOUS TRAVAUX À DU PERSONNEL TECHNIQUE QUALIFIÉ.
CAUTION: POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE
POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

6
800-523-6049 | www.rldrake.com
Optional SFP Plug-ins (1000 BT copper)
STOCK# MODEL DESCRIPTION
1002620 SFP-C-10/100/1000 TRANSCEIVER 10/100/1000BASE-T SFP, RJ-45, 100M, COPPER
1002621 SFP-MM-850-550M 1000BASE-SX SFP, 850NM, 550M, MMF, DDM
1002622 SFP-SMF-1310-10KM 1000BASE-LX SFP, 1310NM, 10KM, SMF, DDM
1002623 SFP-SMF-1550-80KM 1000BASE-ZX SFP, 1550NM, 80KM, SMF, DDM
1002624 SFP-SMF-CWDM-1470NM-80KM 1.25GBASE-CWDM-SFP, 1470NM, 80KM, SMF, DDM
1002625 SFP-SMF-CWDM-1490NM 80KM 1.25GBASE-CWDM-SFP, 1490NM, 80KM, SMF, DDM
1002626 SFP-SMF-CWDM-1510NM-80KM 1.25GBASE-CWDM-SFP, 1510NM, 80KM, SMF, DDM
1002627 SFP-SMF-CWDM-1530NM-80KM 1.25GBASE-CWDM-SFP, 1530NM, 80KM, SMF, DDM
1002628 SFP-SMF-CWDM-1550NM-80KM 1.25GBASE-CWDM-SFP, 1550NM, 80KM, SMF, DDM
1002629 SFP-SMF-CWDM-1570NM-80KM 1.25GBASE-CWDM-SFP, 1570NM, 80KM, SMF, DDM
1002630 SFP-SMF-CWDM-1590NM-80KM 1.25GBASE-CWDM-SFP, 1590NM, 80KM, SMF, DDM
1002631 SFP-SMF-CWDM-1610NM-80KM 1.25GBASE-CWDM-SFP, 1610NM, 80KM, SMF, DDM
1002632-XX SFP-SMF-DWDM-CHXX-40KM 1.25GBASE-DWDM-SFP, CH. 20-59 ,40KM, SMF, DDM
1002633-XX SFP-SMF-DWDM-CHXX-80KM 1.25GBASE-DWDM-SFP, CH. 20-59, 80KM, SMF, DDM
Last 2 numbers indicate channel number (20-59).
PEG-NE24-IP Item # 1002606A
HD PEG Encoder with HD-SDI Input, and IP Output
Specifications
INTERFACE
VIDEO INPUTS: SD/HD-SDI BNC Type Input Connection
Closed Caption Support (embedded only)
AUDIO INPUTS: SD/HD-SDI with PCM Embedded Audio
VIDEO OPTIONS
INPUT VIDEO MODES: 480i (640x480/720x480 @ 30FPS)
720p (1280x720 @ 60FPS)
1080i (1920x1080 @30FPS)
AUTO-SCAN for Input Resolution
VIDEO FORMAT: MPEG-2 OR H.264
H.264 PROFILE SUPPORT: Baseline, Main, High
AUDIO OPTIONS
ENCODER FORMAT: Dolby® Digital, AAC or MPEG1-Layer 2
OUTPUT BITRATE: AC3: 128, 192, or 384 Kbps
AAC/MP2: 128, 192, 320, or 384 Kbps
Manufactured under license from Dolby Laboratories
OUTPUT
VIDEO OUTPUT: SFP Port IP SPTS (SFP module is required)
PACKET FORMAT: UDP SPTS (1xHD, 1xSD)
PHYSICAL SPECIFICATIONS
TEMPERATURE RATING: 0 - 50° C Ambient
FORM FACTOR: Desktop Modulator
DIMENSIONS: Approximately 7.5” D X 1.15” H X 3.5” W
WEIGHT: 1.15 lbs
POWER REQUIREMENTS: 100-120 VAC/60 Hz
for supplied AC adapter
INTERFACE
VIDEO INPUTS: SD/HD-SDI BNC Type Input Connection
Composite Video RCA Input Connector
Closed Caption Support
AUDIO INPUTS: SD/HD-SDI with PCM Embedded Audio
Analog Audio (L, R) 2xRCA Input Connectors
VIDEO OPTIONS
INPUT VIDEO MODES: 480i (640x480/720x480 @ 30FPS)
720p (1280x720 @ 60FPS)
1080i (1920x1080 @ 30FPS)
AUTO-SCAN for Input Resolution
VIDEO FORMAT: MPEG-2 OR H.264
VIDEO ADJUSTMENTS: Brightness, Contrast, Hue, Saturation
H.264 PROFILE SUPPORT: Baseline, Main, High
AUDIO OPTIONS
ENCODER FORMAT: Dolby® Digital, AAC or MPEG1-Layer 2
OUTPUT BITRATE: AC3: 128, 192, or 384 Kbps
AAC/MP2: 128, 192, 320, or 384 Kbps
Manufactured under license from Dolby Laboratories
OUTPUT
VIDEO OUTPUT: SFP Port IP SPTS (SFP module is required )
PACKET FORMAT: UDP SPTS (1xHD, 1xSD)
PHYSICAL SPECIFICATIONS
TEMPERATURE RATING: 0 - 50° C Ambient
FORM FACTOR: Desktop Modulator
DIMENSIONS: Approximately 7.5” D X 1.15” H X 3.5” W
WEIGHT: 1.15 lbs
POWER REQUIREMENTS: 100-120 VAC/60 Hz
for supplied AC adapter
PEG-NE24-IP-C Item # 1002613
HD PEG Encoder with HD-SDI or Composite Video with
L/R Audio Input, and IP Output
Specicaons and availability are subject to change without noce or obligaon.

7
800-523-6049 | www.rldrake.com
The PEG-NE24-IP/PEG-NE24-IP-C is a High Definition (HD)/Standard Definition (SD) video encoder with IP output.
The PEG encoder has two IP output streams available, one HD or SD and one SD based on the Composite or HD/
SD-SDI input source resolution. For each output stream, UDP is encapsulated SPTS (single program transport stream).
The PEG-NE24 is controlled through a web page interface. The web page provides remote monitoring and updating
capabilities and SNMP traps for status updates.
•Encodes a HD & SD stream of the same content in either MPEG-2 or H.264 formats
•Optional In-band management with VLAN support on SFP output
•GUI-based menu for local & remote configuration (Password Protected)
•Configuration and shutdown control via HTTP server UI and programmable API
•Unicast or Multicast is defined by the IP address
•Compositing allows rendering static images over video frames
•Supports PNG images including alpha channel/transparency
General Description & Features

8
800-523-6049 | www.rldrake.com
FRONT PANEL
Ethernet Control: 10/100 Ethernet wired connection for local and remote management
IP Reset Button: When pressed for >2 seconds, the IP address of the control port will enable to the default factory
IP address (172.16.70.1, Subnet Mask 255.255.255.0) The login credentials will also be enabled to the default
username admin and password pass.
Note: The old IP address, login, and password will still be present in the encoder settings.
Status LEDs: Provides a status of tasks performed by the PEG encoder in real-time:
Power: The LED is illuminated when the power is ON.
Input: The LED is illuminated when input video is being received from the HD/SD SDI or Composite input.
Encoding: The LED is illuminated when the internal encoder is operational.
Output: The LED is illuminated when the copper or optical SFP is connected to a network.
Front and Rear Panel Operation
REAR PANEL
NTSC Composite Video/Audio In: Analog video with Left and Right Audio. PEG-NE-24-IP-C model only.
HD-SDI IN: Digital video HD/SD SDI input source
SFP Ethernet Output: Optical or Copper SFP IP video and audio output
5VDC Power Port: Accepts five-volt power to the device
3
142 5 6
8 9 10
7
3
4
5
6
9
7
1
10
8
2

9
800-523-6049 | www.rldrake.com
Unpacking
You will find the following items in the box:
• PEG Encoder Unit (QTY = 1)
• Power Adapter (QTY = 1)
Installation
The PEG Encoder is designed to be mounted on a desk-top or table-top in the close proximity to a 120 VAC – 60 HZ
power plug.
A 1RU (1.75”) open space must be provided above the PEG encoders when mounted in a 19 inch rack or cabinet to
allow air flow for encoder heat dissipation. Drake’s PEG-RP-3/PEG-RK-KIT accessories or a standard 19” rack shelf can
be used for mounting 3 encoder modules in 1RU. See image below.
Power-Up
Plug the Power Adapter into a power plug (120 VAC – 60 HZ). Plug the power pin into the back of the PEG unit at the
input marked “DC Power”.
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
PEG-NE24-IP
POWER
IP
RESET
OUTPUTENCODING
DRAKE
D I G I T A L
PEG RACK ELEVATION DRAWING
FRONT VIEW
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
PEG-NE24-IP
POWER
IP
RESET
OUTPUTENCODING
DRAKE
D I G I T A L
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
POWER
IP
RESET
OUTPUTENCODING
10/100
INPUT
CONTROL
PEG-NE24-IP
POWER
IP
RESET
OUTPUTENCODING
DRAKE
D I G I T A L
For safe and reliable operation, only use the power adapter supplied with the PEG Encoder.
For safe and reliable operation, do not place objects within 1 inch of the unit that block airflow.
Installation & Power-Up

10
800-523-6049 | www.rldrake.com
Login Screen
First, connect the appropriate input and output video cables and plug in the PEG-NE24 power cable.
ETHERNET ACCESS:
Local or remote communication with the unit is only possible through a GUI-based menu via any standard web
browser Chrome or Firefox is recommended, for IE use IE8 minimum. Before you can communicate with the unit
you must configure your computers Local Area Network connection to confirm with the PEG-NE24 default IP of
172.16.70.1. To do so, follow these steps:
Connect an Ethernet cable from your computer to the Control 10/100 port of the PEG-NE24.
1. The following steps explain how to do this for a computer with Windows XP operating software:
a) On your computer, open the "Control Panel"
b) Double-click on "Network Connections"
c) Right-click on the "Local Area Connection", and then click on the "properties".
d) A dialog box entitled "Local Area Connection Properties" will appear. In this box, double-click on the "Internet
Protocol (TCP/IP)".
e) A dialog box entitled "Internet Protocol (TCP/IP) Properties" will appear. Select the "Use the following IP
address" option and enter the following addresses:
IP address: 172.16.70.2
Subnet mask: 255.255.255.0
No need to enter a value for the Default Gateway for local access.
Click OK to close the dialog box. Now your computer is ready to communicate with the unit.
- OR -
2. The following steps explain how to do this for a computer with Windows 7, Windows 8.x or Windows 10
operating software:
a) On your computer, navigate to the "Network and Sharing Center".
(Note: This can be found using the search box in the Start Menu or for Windows 8.x, the Start Screen)
b) Once open, click on “Change Adapter Settings” on left hand side of the window.
c) Right-click on the "Local Area Connection", and then click on the "Properties".
d) A dialog box entitled "Local Area Connection Properties" will appear. In this box, double-click on the
"Internet Protocol Version 4 (TCP/IPv4)".
e) A dialog box entitled "Internet Protocol Version 4 (TCP/IPv4) Properties" will appear. Select the
"Use the following IP address" option and enter the following addresses:
IP address: 172.16.70.2
Subnet mask: 255.255.255.0
No need to enter a value for the Default Gateway for local access.
Click OK. Now your computer is ready to communicate with the unit.
Open a Chrome or Firefox web browser on your computer and enter the
following URL address (http://172.16.70.1). Once the PEG-NE24 web
server has been loaded from your browser, you should see the login dialog.
Enter the username and password and click LOG IN. The default username
is "admin" (in lower case letters) and the default password is "pass" (in
lower case letters).
NOTE: If you have any issues connecting to the PEG-NE24 encoder, we
recommend clearing the cache in the browser’s settings. Figure 1 - "Login" Screen

11
800-523-6049 | www.rldrake.com
Status Tab
The status tab provides the following information (View only):
System Information
CPU Usage: Indicates the total usage of CPU resources and the encoder CPU usage.
Serial Number: Indicates serial number of PEG-NE24 encoder
Hardware Version: Indicates the hardware version of the PEG-NE24 encoder
Software Version: Indicates the software version of the unit
Unit Name and Location: Indicates user-defined unit constants set under the "System Tab: Networking" section.
Up-Time: Indicates the uptime of the unit expressed in days, hours, minutes, and seconds.
System Time (UTC): The system time can be synced up with the browser time by using the controls under the
System menu and will be displayed in UTC time format.
Encoder Status
Source Lock: Indicates if the video source is Locked or unlocked. Unlocked means no input or input not supported.
Locked means encoder is locked to a video source.
Source Format: Indicates the video source format, for example 1080i60.
Embedded Audio: Will show Yes or No. Yes, indicates embedded audio on the SDI stream. No, indicates no audio
on the SDI source or not supported audio on the SDI stream.
1
2
5
6
3
7
8
9
10
4
2
1
3
4
6
7
5
8
Figure 2 - "Status" Tab (Read-Only)
9
10

12
800-523-6049 | www.rldrake.com
Encoder Tab: Basic Screen
2
2a
1
3
Figure 3 - "Encoder" Tab - Basic Settings

13
800-523-6049 | www.rldrake.com
Allows the user to set Global, Primary Steam, SD-only Stream Settings for their PEG encoder.
Global Configuration: Sets global settings that apply to both streams and the possible outputs
Video Source:Displays only on PEG-NE24-IP-C model. Video input selection of SDI or Composite. PEG-NE24
IP is SDI input only.
Audio Source:Displays only on PEG-NE24-IP-C model. Audio input selection of SDI or Analog (L/R). PEG-
NE24-IP is SDI input only.
Audio Synchronization: A/V lip-sync adjustment used to adjust your audio to video synchronization. For
example, you may need to delay or lag your audio if your video input is SDI and your audio source is analog.
Stream Enable: Stream combinations available.
Disable: Encoder is not streaming
Native: Encoder is streaming HD or SD stream depending on the video input HD or SD source.
SD Only: The encoder is streaming a SD stream no matter if the encoder input is HD or SD source.
Native + SD: Encoder is streaming a HD and SD stream or a SD stream and SD stream depending on your
video input HD or SD source.
Native Resolution: The Primary stream settings sets parameters for streaming HD or SD stream
depending on the video input HD or SD source.
Video Settings:
Video Encoder Format:MPEG-2 or MPEG-4/H.264
SD Video Bitrate (Mbps):2 to 8 incremented by 0.1 in MPEG2, and 1 to 4 in H.264
HD Video Bitrate (Mbps) (Primary Stream Settings): 8.5 to 19.0 incremented by 0.1 in MPEG2 and
3.5 to 13.0 in H.264
NOTE: Once an input is applied, only the detected resolution will be displayed. Both SD & HD video
bitrates are displayed only when no input is detected.
Video Mode Flag:Frame-only and Field-only, adjusts video encoder modes for decoder compatibility
Frame-Only: Frame encoding mode. Use Frame-Only mode when video input is progressive for example
720P. Frame-Only mode can be used to encode interlaced video, for example 480i or 1080i.
Field-Only: Field encoding mode. Use Field-Only mode when video input is interlaced for example 480i or
1080i. Some decoders may have compatibility issues when decoding field encoding.
NOTE: If the video input is 720P the encoding mode will automatically default to Frame-only mode, even if
Field-Only mode is selected in the menu.
Aspect Ratio:Affects only SD 480i inputs. Video display can be set for 4:3 (normal SD) or 16:9 (widescreen)
Audio Settings:
Audio Encoder Format:Select MP2 for MPEG-1 Audio Layer 2; AC-3 for Dolby Digital AC-3; AAC (Advanced Audio
Coding)
Audio DialNorm:Adjustable from -1 to -31 dB. Provides meta-data for audio playback gain for Dolby AC-3
compression.
Audio Bitrate:128, 192, 320, or 384 Kbps. Note: 320 Kbps is not available under AC-3 encoding.
Encoder Tab: Basic Screen
1
2
2a

14
800-523-6049 | www.rldrake.com
Transport Stream Settings:
SD TS Bitrate (Mbps):2 to 25 incremented by .125
HD TS Bitrate (Mbps) (Primary Stream Settings):0.415 to 25 incremented by 0.125 (TS bitrate must be
greater than 0.400 Mbps + audio bitrate + video bitrate)
Stuffing Output:Enable or Disable, Enable will include transport stream null packet stuffing to produce a
fixed-bitrate TS.
IP Settings:
Destination IP / Destination Port:User defined unicast or muliticast IP address and port number determined
by downstream network connectivity device.
IP Stream TTL:1 to 255, determined by application
SD-only Stream Settings: Provides a SD stream of the video input source.
Video Settings:
Video Encoder Format:MPEG-2 or MPEG-4/H.264
SD Video Bitrate (Mbps):2 to 8 incremented by 0.1 in MPEG-2, and 1 to 4 in H.264
Video Mode Flag:Frame-only and Field-only, adjusts video encoder modes for decoder compatibility
Frame-Only: Frame encoding mode. Use Frame-Only mode when video input is progressive for example
720P. Frame-Only mode can be used to encode interlaced video, for example 480i or 1080i.
Field-Only: Field encoding mode. Use Field-Only mode when video input is interlaced for example 480i or
1080i. Some decoders may have compatibility issues when decoding field encoding.
NOTE: If the video input is 720P the encoding mode will automatically default to Frame-only mode, even if
Field-Only mode is selected in the menu.
Aspect Ratio: When native resolution is 720p or 1080i, the SD only output can be set as the following:
Audio Settings:
Audio Encoder Format:Select MP2 for MPEG-1 Audio Layer 2; AC-3 for Dolby Digital AC-3; AAC (Advanced Audio
Coding)
Audio DialNorm:Adjustable from -1 to -31 dB. Provides meta-data for audio playback gain for Dolby AC-3
compression.
Audio Bitrate:128, 192, 320, or 384 Kbps. Note: 320 Kbps is not available under AC-3 encoding.
Transport Stream Settings:
SD TS Bitrate (Mbps):2 to 25 incremented by .125
Stuffing Output:Enable or Disable; Enable will include transport stream null packet stuffing to produce a
fixed-bitrate TS
Encoder Tab: Basic Screen
16:9 4:3 Squeeze - 640 x 480
4:3 4:3 Letterbox - 640 x 480
4:3 Letterbox - 720 x 480 4:3 Center - 640 x 480
4:3 Center - 720 x 480
3

15
800-523-6049 | www.rldrake.com
Encoder Tab: Basic Screen
IP Settings:
Destination IP / Destination Port:User defined unicast or muliticast IP address and port number determined
by downstream network connectivity device.
IP Stream TTL:1 to 255, determined by application

16
800-523-6049 | www.rldrake.com
Encoder Tab: Compositing Screen
1
2
Figure 4 - "Encoder" Tab - Compositing

17
800-523-6049 | www.rldrake.com
Encoder Tab: Compositing Screen
Compositing allows rendering static images over video frames before compression. It supports PNG images
including alpha channel / transparency.
Displays only when an image file has been uploaded.
PLEASE NOTE:
1. It takes some time for the image to be uploaded via the web form, pre-processed (making the thumbnail, padding
if necessary) and then loaded by the encoder. It takes about 8-10 seconds for a 720x480 image via gigabit LAN.
2. In addition to uploading the image, "Enable Overlay" under "Overlay Placement" on the right must be set to
"Enabled".
3. "Overlay for No Input (480i)," the image resolution must be no larger than 720x480, "Overlay for (720p)," image
resolution must be no larger than 1280x720, and "Overlay for (1080i)," image resolution must be no larger than
1920x1080.
1
2

18
800-523-6049 | www.rldrake.com
Encoder Tab: Advanced Settings Screen
2
1
4
6
7a 7b
5
9
8
10
3
Figure 5 - "Encoder" Tab - Advanced Settings

19
800-523-6049 | www.rldrake.com
User may configure the following previously fixed-value parameters:
Transport Stream ID - Configures the transport stream ID number used Program Specific Information (PSI) tables in the stream.
MPEG Program Number - Configures the MPEG Program used in all PSI tables for this stream.
PMT, Video, and Audio PIDs:
•Configures the Packet Identifier (PID) used to transmit all Program Map Tables in the stream.
•Configures the PID used to transmit Video and associated data.
•Configures the PID used to transmit audio and associated data.
All PIDs are displayed in Hex format. If you type a decimal format into the field, the GUI will automatically convert
your decimal format to a Hex value. PIDs are expressed in both decimal & hex formats to the right of the entry field.
Audio Language Descriptor - Configures the ISO 639 audio language. Use 3-character "Alpha-3" code for this setting.
P-Frames per GOP - Specifies total number of P frames in a Group-of-Pictures (GOP).
B-Frames between I/P- Specifies number of B frames between each I or P frame in a GOP.
Native Res. Advanced Settings - Video GOP Settings: When streaming H.264 HD stream the default
P-Frame per GOP is 14 and the default B-Frame between I/IP is 3, which gives you a default Total GOP
Length of 60.
SD Only Advanced Settings - Video GOP Settings: When streaming MPEG-SD stream the default
P-Frame per GOP is 4 and the default B-Frame between I/IP is 2, which gives you a default Total GOP
Length of 15.
Service Info Type:
If Service Info Type is set to "DVB (NIT+SDT)" it also enables the fields:
•DVB Network Name - Specifies the "Network Name" in the DVB NIT table.
•DVB Service Name - Specifies the "Service Name" in the DVB SDT table.
•DVB Provider Name - Specifies the "Provider Name" in the DVB SDT table.
If Service Info Type is set to "ATSC (MGT+VCT)":
•VCT Short Name: 7-letter name for the channel.
Major Channel Number / Minor Channel Number: Specifies the two-part channel number in the VCT, typically
displayed in the format major-minor, for example "2-1".
DiffServ / DSCP - Configures the value of the differentiated services code point (DSCP) field in the IPv4 header for
the video output stream. The format of this field is specified by IETF RFC2474, but actual values are specified by
several related RFCs. The encoder does not support explicit congestion notification (ECN) which makes use of the
lower 2 bits of this header field.
VLAN PCP / QoS - Configures the value of the Ethernet-frame level Priority Code Point in the IEEE802.1q VLAN
tag as specified by IEEE 802.1p. This setting only applies when the SFP video network has VLAN tagging enabled.
These values should be left at their default values unless the user has a specific reason to change them.
Encoder Tab: Advanced Settings Screen
1
2
3
4
5
6
9
8
7a
7b
10

20
800-523-6049 | www.rldrake.com
System Configuration Tab: Networking
Figure 6a - "System" Tab - Networking (Part 1)
2
3
1
1a
2a
4
