Draper Bunker 29779 User manual

Preparing 5 / 7
Drawer Trolley
1. Attach Handles
Attach handles to front angled side
with 4 pieces of M8 x 20mm bolt.
Do not fully tighten.
2. Attach Bumpers
Attach bumpers to side panel with
4 pieces of M4 x 10mm bolt.
Do not fully tighten.
3. Attach Castors
Attach castors to the bottom of unit
with 16 pieces of M8 x 20mm bolt.
Do not fully tighten.
Stock No.
29779 / 29792
To make assembly easier we recommend having two
persons aid one another in assembly.

REMOVING AND REPLACING THE DRAWERS:
• Pull the drawer completely out
• Press down the left tab and lift up the right tab
• Pull drawer o sliders
• To reinstall the drawer, realign with the internal drawer slider and push in until locked in place
CASTOR MAINTENANCE
Grease the castors annually using high-quality bearing grease.
CARE AND CLEANING
Periodically the surfaces should be cleaned with a mild detergent and water. Grease and oil can be removed with
most standard cleaning uids. For safety, use a non-ammable cleaning uid.
Auto wax will preserves the storage unit’s luster nish and protects against scratches.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.

Stock No.
33165
Preparing 1 Door
Tall Cabinet
Item Description Quantity
1 Top Panel 1
2 Bottom Panel 1
3 Left Side Panel 1
4 Right Side Panel 1
5 Back Panel 1
6 Door 1
7 Front Kick Panel 1
8 Side Kick Panel 2
9 Shelf Panel 4
10 Foot Holder 4
11 Leg Leveller 4
12 M8 x 16mm bolt 16
13 M6 x 16mm bolt 12
14 12 x 7 x 5mm
Flat Washer 1
1
2
3
4
5
6
7
8
10
9
11
12 13 14
CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with phillips screwdriver
(not included).
Note: remove the drawers and open the
doors before cabinet connection.
To make assembly easier we recommend having two
persons aid one another in assembly.

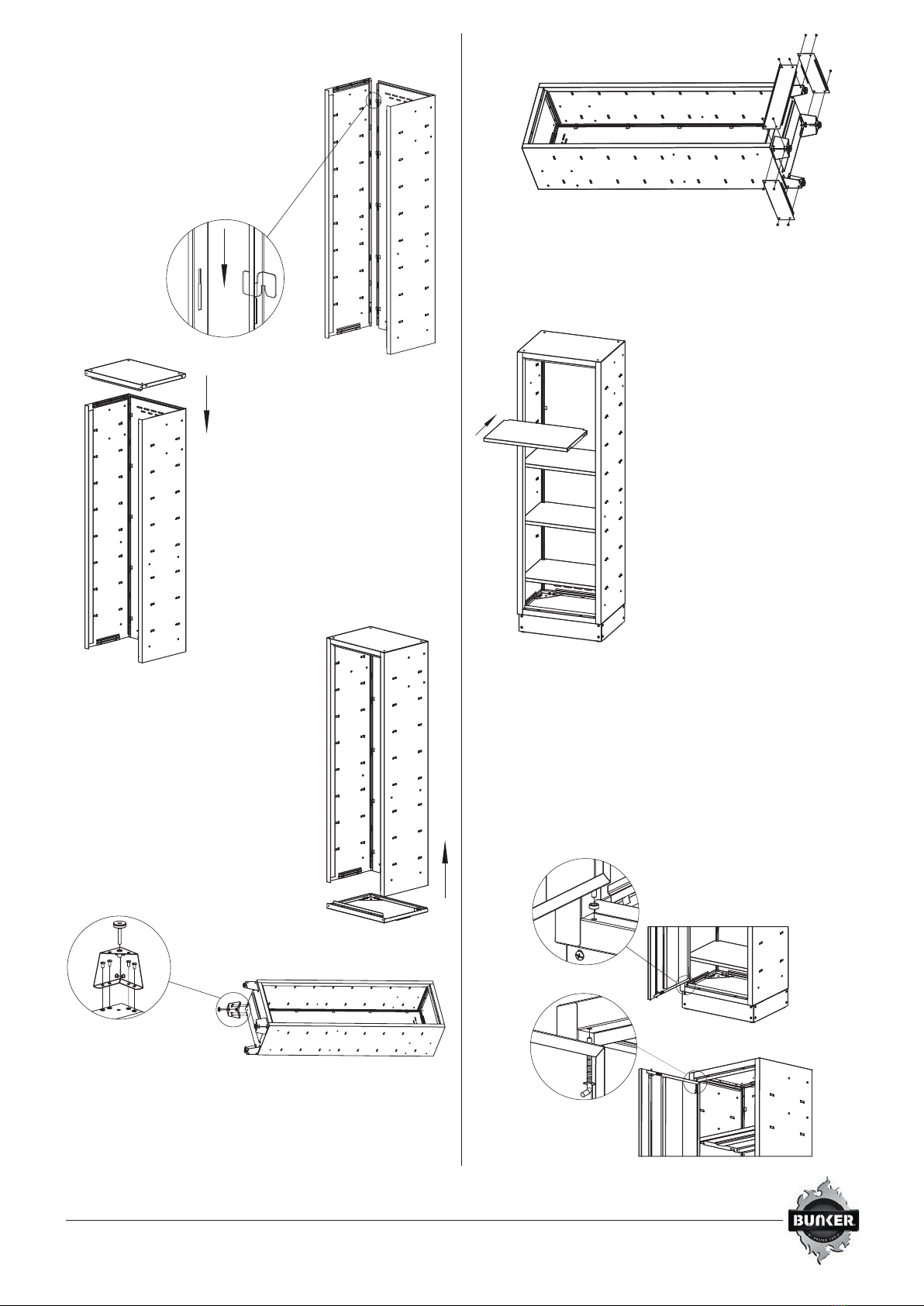

STEP 1:
Attach back panel (item 5)
to left and right side panels
(item 3 and 4) by engaging the
holes on the left and right side
panels with the corresponding
hooks on back panel.
STEP 2:
Insert the top panel (item 1)
into the side and back panels.
Lay the cabinet at on the ground if
necessary.
STEP 3:
Insert the bottom panel
(item 2) into the side and back
panels. Lay the cabinet at on
the ground if necessary.
STEP 4:
Use packaging material to protect the unit. Attach
the leg leveller (item 11) to foot holder (item 10).
Insert bolt M8 x 16mm (item 12) through the foot holder
into the cabinet.
STEP 5:
Attach the front and side kick panel (item 7 and 8)
to foot holder with bolt M6 x 16mm (item 13).
STEP 6:
Obliquely place the four shelf
panels (item 9) in the cabinet,
secure the shlef panels at four
desired heights by carefully
inserting the shelf edges into
the anges on left and right
side panels. Make sure each
shelf is level.
STEP 7:
Place the at washer (item 14) into the hinge pin, algin
the hinge pin on the bottom of the door with the hole on
bottom panel, slowly and carefully insert the hinge pin
into the hole. Algin the hinge pin on the top of the door
with the hole on top panel, slowly and carefully insert the
hinge pin into the hole.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.

Stock No.
33171, 33172, 33178, 33180,
33182, 33192, 33203, 33210
Installing
Worktop
Place the worktop on cabinets, align the pre-drilled holes in worktop with holes in cabinets, secure
bolt M6 x 16mm through the top of the cabinets into the worktop pre-drilled holes.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.
To make assembly easier we recommend having two persons aid one another in assembly.

Stock No.
33196 / 33162
Installing Back Panel /
Wall Cabinet with Wall
Brackets (Single & Double)
STEP 1:
Attach wall bracket (single and double) to cabinet
with bolt M8 x16mm, washer 18 x 8 x 1mm and spring
washer 14 x 8.8 x 2.6mm, and tighten with wrench
(not included).
STEP 2:
Attach back panel to wall bracket (single and double)
with bolt M6 x 16mm, nut M6 and spring washer
12 x 6.5 x 0.8mm, and tighten with wrench
(not included).
To make assembly easier we recommend having two persons aid one another in assembly.

drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.
STEP 3:
Attach wall cabinet to wall bracket (single and double) with bolt M8 x 16mm, at washer 8 x 8 x 1mm
and spring washer 14 x 8.8 x 2.6mm, and tighten with wrench (not included)
STEP 4:
Connect the side panels of two cabinets with M6 x 16mm and nut M6, and tighten with wrench (not included).
tall cabinet
wall cabinet
floor cabinet
CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with wrench (not included).
Note: remove the drawers and open the
doors before cabinet connection.

Stock No.
33197, 33198
Installing
Wall Bracket
• Attach wall bracket (double) to back panel with (10)
bolt M6 x 16mm, nut M6 and at washer 12 x 6.5 x
0.8mm, and tighten with wrench
(not included).
• Attach wall bracket (double) to wall cabinets and
base cabinets / trolley with (8) bolt M8 x 16mm, at
washer 18 x 8 x 1mm and spring washer
14 x 8.8 x 2.6mm, and tighten with wrench
(not included).
• Attach wall bracket (single) to back panel with (5)
bolt M6 x 16mm, nut M6 and at washer
12 x 6.5 x 0.8mm,and tighten with wrench
(not included).
• Attach wall bracket (single) to wall cabinets and
base cabinets / trolley with (4) bolt M8 x 16mm,
at washer 18 x 8 x 1mm and spring washer
14 x 8.8 x 2.6mm, and tighten with wrench
(not included).
