Dreamland R6705 User manual

Instructions for use
REVIVE ME
HEAT PAD
TYPE R6705
R6707
R6717
MI004052_R6705-07.indd 1MI004052_R6705-07.indd 1 03/01/22 10:0403/01/22 10:04

1
EN

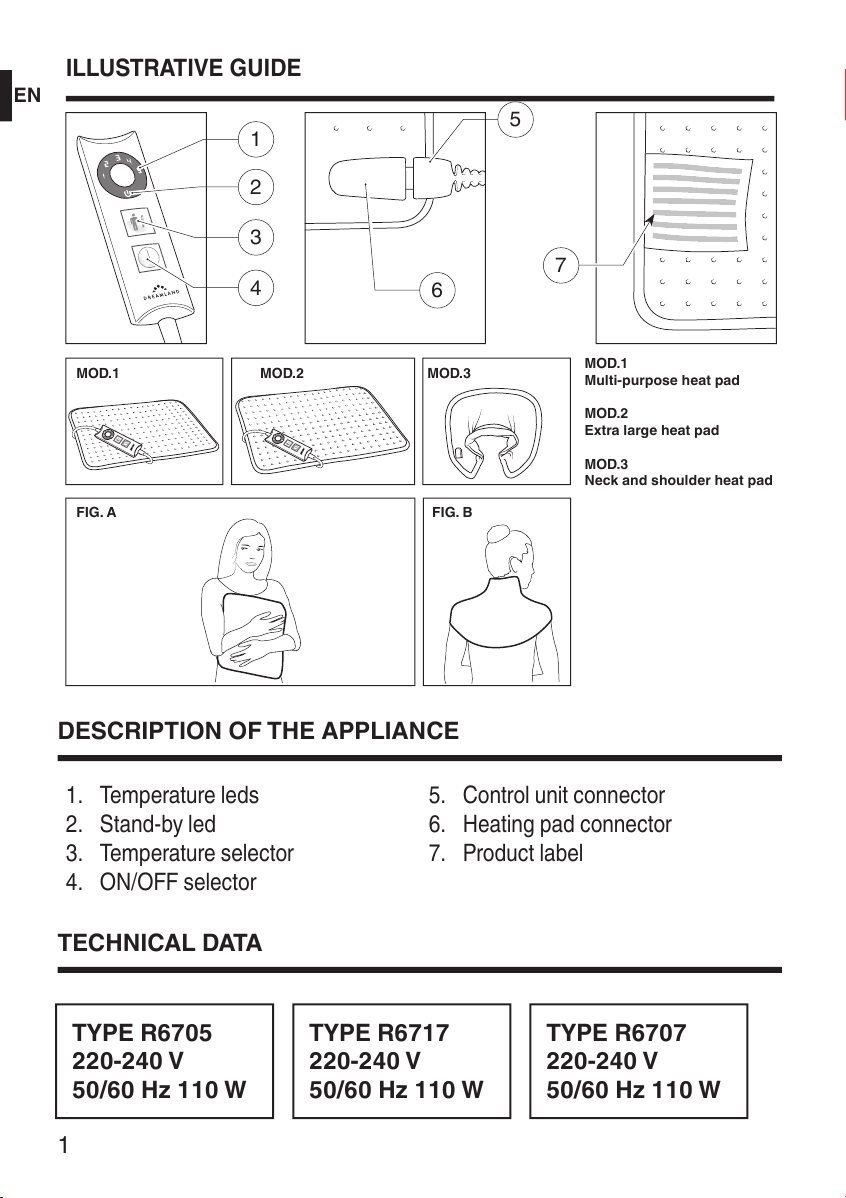

ILLUSTRATIVE GUIDE
DESCRIPTION OF THE APPLIANCE
1. Temperature leds
2. Stand-by led
3. Temperature selector
4. ON/OFF selector
5. Control unit connector
6. Heating pad connector
7. Product label
TECHNICAL DATA
TYPE R6705
220-240 V
50/60 Hz 110 W
TYPE R6717
220-240 V
50/60 Hz 110 W
TYPE R6707
220-240 V
50/60 Hz 110 W
15
2
3
46
MOD.1
FIG. A FIG. B
MOD.2 MOD.3
7
MOD.1
Multi-purpose heat pad
MOD.2
Extra large heat pad
MOD.3
Neck and shoulder heat pad
MI004052_R6705-07.indd 1MI004052_R6705-07.indd 1 03/01/22 10:0403/01/22 10:04

2
EN
Dear Customer, thank you for choosing our product. We feel certain
you will appreciate its quality and reliability as it was designed and
manufactured with customer satisfaction in mind. These instructions
for use are compliant with the European Standard EN 82079.
INDEX
Illustrative guide page 1
Description of the appliance page 1
Technical data page 1
Symbols page 2
Important instructions page 3
Use page 6
Cleaning and maintenance page 7
Storing the heating pad page 8
Troubleshooting page 8
Disposal page 9
Guarantee page 9
SYMBOLS
Protection class II Prohibited
Carefully read the instruction
manual Important note
Warning Not suitable for children
under the age of 3
Do not insert pins Do not bleach
Wash at 30°C Do not dry-clean
Dry in a tumble dryer on a cycle
at a moderate temperature
Do not iron
MI004052_R6705-07.indd 2MI004052_R6705-07.indd 2 03/01/22 10:0403/01/22 10:04

3
EN IMPORTANT INSTRUCTIONS.
RETAIN FOR FUTURE USE.
WARNING! Instructions and warnings for safe use.
Before using this appliance, carefully read the
instructions for use and in particular the safety
notes and warnings, which must be complied
with. Keep this manual together with its
illustrative guide for future consultation. Should
you transfer the appliance to another user, make
sure you hand over this documentation as well.
NOTE: should any part of this manual be difficult to
understand or any doubt arise, contact the company at the
address indicated on the last page before using the appliance.
NOTE: Persons with impaired vision may consult these
instructions for use in digital format at the website
www.dreamlanduk.co.uk
• After unpacking, make sure the appliance is intact, complete
with all its parts as shown in the illustrative guide and with no
sign of damage. If in any doubt, do not use the appliance and
contact an authorised service centre.
WARNING! Risk of suffocation.
Children shall not play with the packaging. Keep the
plastic bag out of the reach of children.
• This appliance must be used only for the purpose for which it
was designed, namely as a pad for home use. Any other use is
considered not compliant with the intended use and therefore
dangerous.
• Before connecting the appliance to the mains supply, make
sure that the voltage and frequency indicated on the technical
MI004052_R6705-07.indd 3MI004052_R6705-07.indd 3 03/01/22 10:0403/01/22 10:04

4
EN
data of the appliance correspond to those of the mains supply.
The rating is on the appliance or on the power supply unit, if
any (see illustrative guide and technical data).
• This appliance can work automatically at a frequency of 50 Hz
or 60 Hz.
• This appliance is only to be used with the types of detachable
control unit that are marked on the appliance.
Children under the age of three are not to use this
appliance due to their inability to react to overheating.
• This appliance can be used by children older than 3 years and
younger than 8 years under supervision and with the control
always set to minimum temperature (heat setting 1).
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• This appliance must not be used by persons insensitive to
heat and other very vulnerable persons who are unable to
react to overheating.
• The cable and control unit of the appliance can give rise to
risks of entanglement, strangulation, tripping or treading if
not correctly arranged. The user shall make sure that electric
cords shall be arranged in a safe way.
• Always disconnect the appliance from the mains supply before
cleaning or performing maintenance and when the appliance
is not in use.
• Examine the appliance frequently for signs of wear or damage.
lf there are such signs, if the appliance has been misused or
does not work, contact an authorised technical service centre
before switching it on again.
• If the supply cord is damaged, take the whole appliance to an
MI004052_R6705-07.indd 4MI004052_R6705-07.indd 4 03/01/22 10:0403/01/22 10:04

5
EN
authorised technical service centre for the replacement of the
control unit, so as to prevent all risks.
• This appliance is not intended for medical use in hospitals.
• DO NOT use if wet.
DO NOT INSERT PINS OR NEEDLES.
When operating the appliance over a prolonged period
of time DO NOT exceed the temperature levels stated for
continuous usage.
If the appliance is set and used at a temperature higher
than those indicated for continuous usage over an
extended period of time, the user may suer from skin
burns or heat-related injuries.
• When storing the appliance, allow it to cool down before folding.
WARNING! DO NOT crease the appliance by placing
items on top of it during storage.
WARNING! Follow indications in the relevant chapters
of this manual on how to use, clean, maintain or store
the appliance.
WARNING! DO NOT let the heating pad come into
direct contact with the skin.
• The use of creams or ointments combined with the heat of the
appliance may increase the risk of skin burns.
• Persons with a pacemaker must NOT use this appliance.
• DO NOT use the appliance with wet hands, damp feet or
barefoot.
• DO NOT pull the supply cord or the appliance itself to
remove the plug from the socket.
• DO NOT pull or lift the appliance by the supply cord.
• DO NOT expose the appliance to humidity, to the effects of
weather (rain, sun, etc.) or to extreme temperatures.
• If the appliance is faulty or malfunctions, switch it off and do
MI004052_R6705-07.indd 5MI004052_R6705-07.indd 5 03/01/22 10:0403/01/22 10:04

6
EN
not tamper with it. Contact an authorised technical service
centre for any repairs.
• This appliance shall not come into contact with water, other
liquids, sprays, steam. For any cleaning and maintenance
operation refer to the instructions in the relevant chapter.
• DO NOT use this appliance to warm animals.
• See the external packaging for the characteristics of the
appliance.
USE
• Insert the control unit connector (5) into the heating pad connector (6)
to connect the control to the heating pad.
• Insert the plug in the mains socket.
• Place the heating pad (MOD.1 or MOD.2) on the part of the body that is
to be heated (FIG. A). Place the neck and shoulder heat pad (MOD.3)
around your neck and secure in place with the velcro fastening (FIG.B).
SWITCHING ON AND SELECTING THE RIGHT TEMPERATURE
The control unit can be set to the following temperature levels:
5: Fast pre-heat temperature
4-3-2: Medium temperatures
1: Temperature for prolonged use
• Switch the heating pad on by pressing the ON/OFF button (4). The
temperature is automatically set at level 5, so LED 5 (1) will light up on
the control unit.
• To heat the heating pad quickly, use the maximum temperature 5. You
can then set a lower temperature level, depending on the degree of heat
required. To change the temperature, press the temperature selector (3)
until the LED (1) corresponding to the required level lights up on the control
unit. The higher the number selected, the higher the temperature.
• If the heatpad is used for a prolonged time, or when it’s likely that you might
fall asleep with the heatpad still switched on, use temperature level 1.
AUTOMATIC SHUTDOWN
• The heating pad will provide a 3 hour heat treatment, then it will
automatically shut off. The standby led (2) will light up after the 3
hours of operating to indicate that the product has switched off
automatically.
MI004052_R6705-07.indd 6MI004052_R6705-07.indd 6 03/01/22 10:0403/01/22 10:04

7
EN
• To switch the appliance back on by pressing the ON/OFF selector
(4) twice and select the desired temperature once again.
SWITCH-OFF
• Switch the heating pad off by pressing the ON/OFF selector (4) when
it is no longer used.
• Remove the plug from the mains socket.
CLEANING AND MAINTENANCE
The heating pad can be washed. Refer to the washing symbols on the
product and cover labels for the washing instructions.
WARNING! Always disconnect the appliance from the
mains and disconnect the control connector from the
appliance before cleaning or performing maintenance.
BEFORE WASHING
• Disconnect the power cable from the socket.
• Disconnect the heating pad connector (6) from the control unit
connector (5).
MACHINE WASHING
• The heating pad can be machine washed at 30°C with a normal cycle.
• Use the gentle spin cycle only. DO NOT run an additional spin cycle.
TUMBLE DRYING
• The heating pad can be dried in a tumble dryer on a delicate cycle,
but at the end of the drying cycle it must be air-dried to allow it to dry
completely.
• Remove the heating pad from the tumble dryer at the end of the drying
cycle and reshape it to its original size.
• Allow the heatpad to fully air-dry before using it again.
AIR DRYING
• Lay the heating pad flat on a clothes airer until completely dry.
WARNING! Dry the appliance flat without using pegs
to avoid damaging it. Leave it to dry, laid out flat on a
clothes airer, not in direct sunlight.
• DO NOT iron the heating pad.
MI004052_R6705-07.indd 7MI004052_R6705-07.indd 7 03/01/22 10:0403/01/22 10:04

8
EN
STORING THE HEATING PAD
Store this appliance as follows when not used:
• Wait for the heating pad to be completely dry if previously washed.
• It is recommended to place the heating pad in the package provided
upon purchase for better storage.
• When storing the appliance, allow it to cool down before folding.
• Store the heating pad in a dry place.
Examine the appliance and its supply cord frequently for signs
of wear or damage. lf there are such signs or in the case of
malfunction, contact an authorised technical service centre.
TROUBLESHOOTING
This chapter describes the most common problems that can arise using
the appliance.If the problems cannot be solved with the information below,
please contact the Authorised Service Centre.
Problem Solution
The LEDs on the control unit do not light
up.
Check that the control unit plug is fully inserted in the socket. If the
LEDs remain off, remove the control unit plug from the socket and
return the underblanket to an authorised technical service centre.
The blue warning light is flashing.
Turn the control unit off and remove the plug from the socket. Check
that the control unit connector (5) is fully inserted in the heating pad
connector (6) and reinsert the plug in the socket. If the standby LED
continues to flash, return the heating pad to an authorised technical
service centre.
Temperature LED 1 (1) is flashing.
Return the heating pad to an authorised technical service centre to
be checked.
The product has been used incorrectly or
is damaged.
The power cable or another internal wire
is damaged.
The control unit is damaged.
There are holes or tears in the fabric or
stubborn creases that do not spread out.
MI004052_R6705-07.indd 8MI004052_R6705-07.indd 8 03/01/22 10:0403/01/22 10:04

9
EN
DISPOSAL
The packaging of the appliance is made of recyclable materials. Dispose of the
packaging in accordance with the environmental protection regulations.
Pursuant to Directive 2012/19/EU on waste electrical and electronic equipment (WEEE),
the crossed bin symbol on the appliance or its packaging indicates that the appliance
must be disposed of separately from other waste at the end of its useful life.
The user must therefore take the appliance to an appropriate recycling centre for
electrical and electronic equipment. Alternatively, instead of handling the disposal, the user
can hand over the appliance to the retailer when a new, equivalent one is purchased. The
user can hand over electronic products measuring less than 25 cm to retailers of electronic
products having a sales area of at least 400 m2free of charge and with no obligation to buy.
Proper waste sorting prior to sending the equipment no longer used for recycling, processing
and disposal in a manner that respects the environment contributes towards avoiding negative
impacts on the environment and on health and promotes the reuse and/or recycling of the
equipment’s material.
GUARANTEE
This product is guaranteed for a period of 3 years from the date of purchase against material,
mechanical and electrical defects. The guarantee is binding if it is accompanied by a valid
receipt of payment. This guarantee is only valid if the appliance is used solely for domestic
purposes in accordance with the instructions provided that is not connected to an unsuitable
electricity supply, dismantled, interfered with in any way damaged, through misuse, fair wear
and tear. Under this guarantee we undertake to repair or replace free of charge any parts
found to be defective.
PLEASE NOTE, THE COST OF A SAFETY INSPECTION IS NOT COVERED BY THIS
GUARANTEE. A CHARGE WILL BE MADE IN RESPECT OF ANY PRODUCT RETURNED
UNDER THIS GUARANTEE, WHERE NO FAULT IS FOUND.
This guarantee is offered as an extra benefit and does not affect your statutory rights as a
consumer.This guarantee does not confer any rights other than those expressly set out above
and in particular we shall not be liable for any indirect or consequential loss or damage.Nothing
in this guarantee or the instructions relating to the product excludes, restricts or otherwise
affects your statutory rights. In line with our policy of continuous development, we reserve the
right to change this product, packaging and documentation without notice. If a defect appears
and after checking that the blanket is being used properly in accordance with the instructions,
return it with a valid proof of purchase, as soon as possible to the manufacturer’s Service
Centre.This guarantee is valid in the UK only.
SERVICE CENTRE
PO Box 166 – Middlewich – Cheshire – CW10 0ZU - Tel: [phone]
E-mail: [email protected]
www.dreamlanduk.co.uk
MI004052_R6705-07.indd 9MI004052_R6705-07.indd 9 03/01/22 10:0403/01/22 10:04

MI004052_R6705-07.indd 10MI004052_R6705-07.indd 10 03/01/22 10:0403/01/22 10:04

MI004052
161221
MI004052_R6705-07.indd 11MI004052_R6705-07.indd 11 03/01/22 10:0403/01/22 10:04
