Dreamland RELAXWELL F2001 User manual

RELAXWELL
LUXURY HEATED
THROW
TYPE F2001
F2002
F2003

I
DIAGRAMS
12
3 4
56
7
 


THROW
220-240 V 50Hz 150W
THROW
220-240 V 50Hz 150W
TYPE F2001
TYPE F2003
TYPE F2002
THROW
220-240 V 50Hz 150W


1
OPERATING INSTRUCTIONS FOR USE
OF LUXURY HEATED THROW
Dear Customer, IMETEC would like to thank you for purchasing this product. We are
convinced that you will appreciate the quality and reliability of this appliance, which was
developed and manufactured with customer satisfaction always in mind.
These operating instructions were created based on the European standard EN 62079.
IMPORTANT INSTRUCTIONS
RETAIN FOR FUTURE REFERENCE
¡WARNING! Instructions and information for safe use.
Please read these instructions completely and in particular the safety
instructions before using your appliance and follow these instructions carefully.
Keep these instructions and the associated image section in a convenient
location for reference over the entire service life of your appliance and be sure
to include it if you pass the appliance on to another user. Should certain parts
of this booklet be difficult to understand or should doubts arise, contact the
company before using the product, at the address indicated on the last page.
CONTENTS
SAFETY INSTRUCTIONS page 1
SYMBOL KEY page 3
POSITIONING AND FITTING INSTRUCTIONS page 3
USING YOUR THROW page 3
CLEANING AND MAINTENANCE page 4
STORAGE page 5

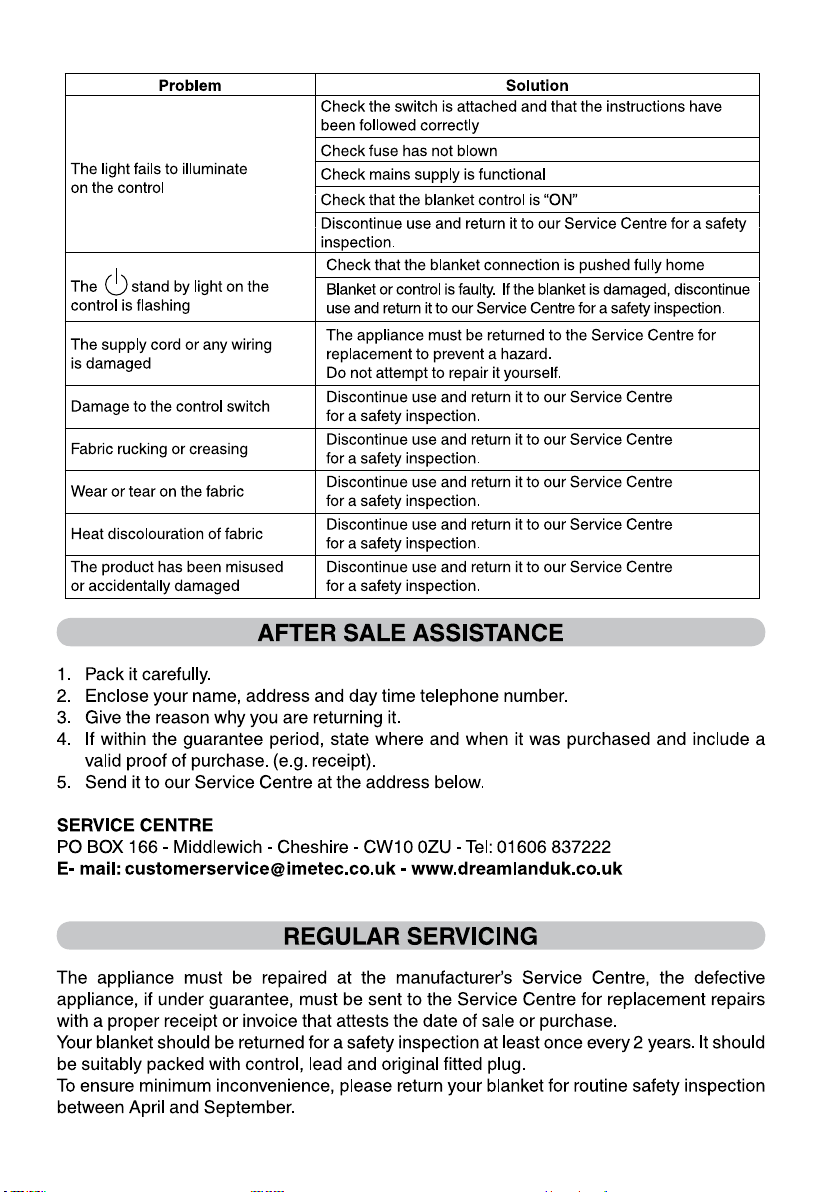

TROUBLE SHOOTING page 5
AFTER SALE ASSISTANCE page 6
REGULAR SERVICING page 6

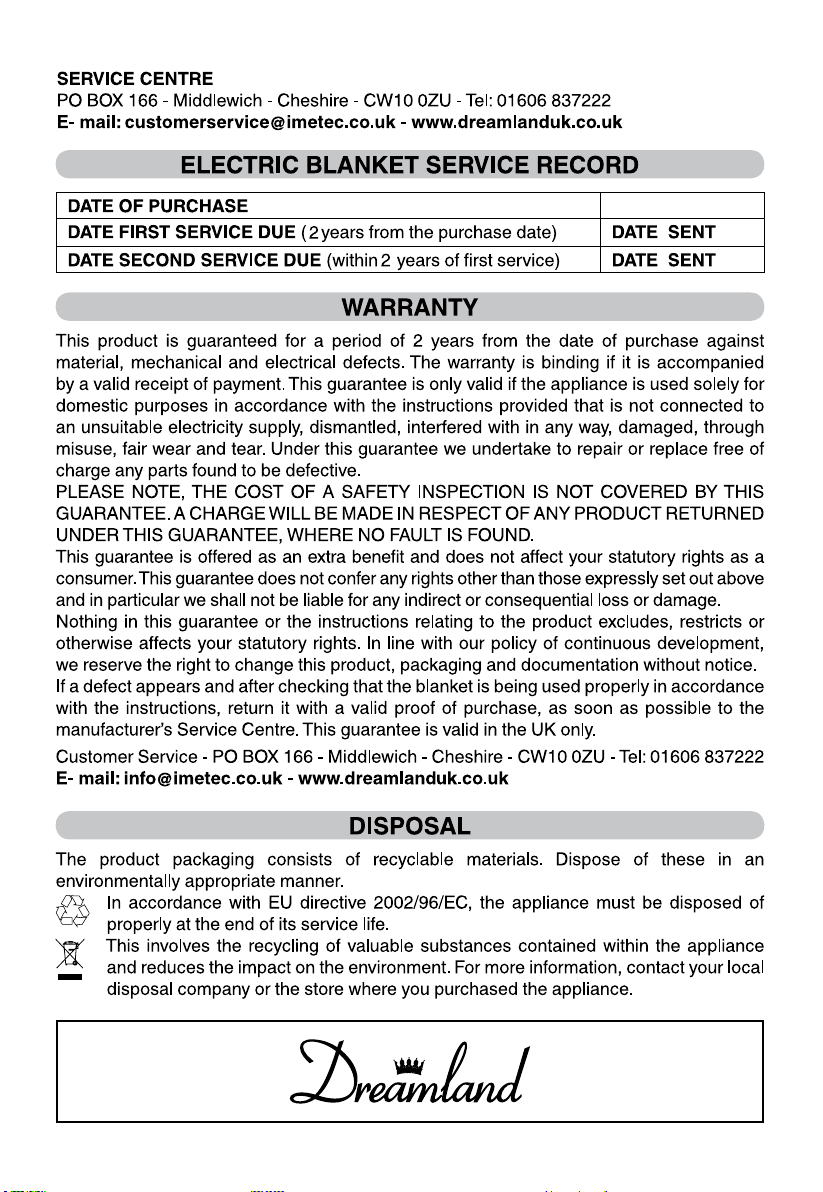

ELECTRIC BLANKET RECORD page 7
 page 7
DISPOSAL page 7
DIAGRAMS I
SPECIFICATIONS I
SAFETY INSTRUCTIONS
• After unpacking, make sure that the appliance is intact with no visible
signs of damage caused during transport. Should you have any doubts,
do not use the appliance and return it to the authorized Service Centre.
• Packaging materials are not toys! Keep plastic bags away from
babies and small children as they pose a suffocation risk!


2
• Before connecting the appliance, check that the label specifications
correspond to the electrical mains supply; the rating is located on
the label stitched onto the appliance.
• This appliance must only be used as an heated throw for domestic use as
indicated in the instructions. Any other use is to be considered hazardous.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not be done by
children without supervision.
• Particularly do not use the throw with the infirm, infants or persons
insensitive to heat.
• The appliance is not to be used by young children unless the controls
have been pre-set by a person or guardian, or unless the child has been
adequately instructed on how to operate the controls safely.
NOT to be used by very young children (0-3 years). Children under
the age of three are not to use this appliance due to their inability
to react to overheating.
• DO NOT handle the control switch with wet hands.
• DO NOT pull the power cord or the appliance to remove the plug
from the socket.
• Always disconnect the appliance from the mains supply before
carrying out any maintenance or cleaning.
• Should the appliance protection fuse break down and/or fail to work
properly, turn off the appliance and check the fuse, but do not tamper
with it. For any repairs, return it to the authorized Service Centre.
• If the supply cord is damaged, the control unit must be replaced by
the authorized Service Centre in order to avoid a hazard.
• The appliance must only be used with the type of controls which are
marked on the label of the appliance.
• Avoid placing the control switch below the pillow or between the
sheets or blankets when the appliance is connected.
• Examine the appliance frequently for signs of wear or damage. If
there are such signs or if the appliance has been misused, return in
to the supplier prior to any further use.


3
ATTENTION!
It is recommended that people with pacemakers do not use
the heated throw.
ATTENTION!
If the appliance is used on an adjustable bed, check that
the throw and cord do not become trapped or rucked, for
example in hinges.
• DO NOT tuck in.
• This appliance is not designed for medical use in hospital.
• DO NOT use if wet.
• DO NOT allow pets on the appliance.
• DO NOT insert needles or pins.
SYMBOL KEY
Protection class II / Double insulated Forbidden
Caution Temperature selection
OFF position ON position
Stand by
POSITIONING AND FITTING INSTRUCTION
POSITIONING THE THROW (DIAGRAM A)
1. Sit on your sofa and place your throw over you for blissful comfort.
2. You may wish to wrap the throw around you but do not wrap tightly or sit on the
throw as this may cause the overheat protection system to activate.
FITTING INSTRUCTION
Join the connector(s) (2) of the control unit to the connector (1) on the throw. Ensure the
connector is pushed in until the locking catch engages. (Diagram [B]).
USING YOUR THROW
1. To operate the throw, insert the plug into the mains power supply and switch on the
socket. If the lead does not reach your socket, you can increase the cable length by
adding a BSI or ASTA approved extension cable, available from all good electical
retaillers.





4


• Connect the plug into the mains socket.
• Switch on the throw, from the back of the control, by positioning the switch ON (I) (7)
(Diagram [C]).
• When the controller is turned ON, the heat level setting defaults to setting 6 (FAST
PREHEAT) (red light).
• For continuous use, just select your preferred temperature setting from 1-5 by simply
pushing the temperature button (5) (Diagram [C]) until the temperature setting desired
will light up on the temperature display (3) with an orange glow.

• ON – To switch the electric throw on, switch to ON position (I) on the back of the control
(7) (Diagram [C]), and select your required temperature.
• OFF – To switch off the electric throw, switch to OFF position (O) (7) (Diagram [C]), on
the back of the control.

• The appliance is fitted with an AUTOMATIC SHUT OFF system of 3 hours. When the
timer period time has elapsed, the throw will switch off and the stand-by indicator (6)
will turn (light blue).

• To disconnect your throw from the mains, switch the control to OFF position (O) (7)),
and then safely disconnect the plug from the main socket.

The throw has a detachable control which allows the electric throw to be washed.The throw
may be disconnected from the control switch by separating (1) and (2) (See Diagram B).
Press retaining clips at the side of the connector with thumb and forefinger and remove
control unit with your other hand.
CLEANING AND MAINTENANCE
WASHING INSTRUCTIONS
The Dreamland throw is suitable for washing.
WASHING
1. Prior to washing disconnect the control lead from the throw, as in Diagram [B].
2. Before washing the throw it is essential that you measure it, to ensure that it is
stretched to approximately its original size during the drying process.
MACHINE WASH
The throw may be washed in a washing machine at 40° C on a wool programme.
NEVER DRY CLEAN
Spin dry on wool programme only. DO NOT use an extra spin cycle.
HAND WASH
1. Use a mild washing powder or detergent and luke warm water to soak your throw
for 15 minutes. After soaking, gently wash the throw and rinse thoroughly with clean,
lukewarm water.
2. Allow the excess water to drain from the throw. It may also be gently squeezed, but


5
never wring the throw.
DRYING
1. Tumble dry on low settings.
2. Air dry on a clothes line, but do not use clothes pegs on the wired area of the throw
as they may damage it.
3. DO NOT use your throw until it is completely dry.
NO BLEACH
Do not iron
STRETCHING
1. The throw must be stretched back to approximately its original size during the drying
process. This is best done whilst damp, working from side to side, stretching a strip at
a time. This procedure may need to be repeated a few times until fully dry.
2. Inspect the throw to ensure that none of the wires have formed into loops, or become
twisted back on themselves. Holding the throw up to the light will make it easier to
inspect the wires.
3. If any problems with the wires persist after the stretching process, or the throw does
not return to close to its original size, return it along with the control to our Service
Centre for a safety inspection.
STORAGE
When not in use store as follows:
ATTENTION!
When storing the appliance, allow it to cool down before folding.
ATTENTION!
Avoid creasing the appliance.
ATTENTION!
Do not place heavy items on the blanket when in storage, as deep
creases or folds may damage the wiring.
ATTENTION!
Do not use any moth proofing chemicals.



6


7
MI001137
0413 (MMYY)
