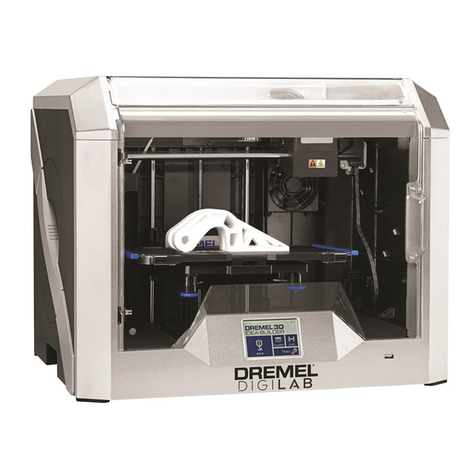

Dremel DigiLab 3D40 FLEX User manual

ENGLISH
3D40 FLEX Quick Start Guide
STEP 1: GO TO
Digilab.Dremel.com/GetStarted
to set up your printer, download our free slicing software, and access all the
features available with your 3D printer.
WARNING
READ ALL OPERATING/SAFETY INSTRUCTIONS IN THE MANUAL AND FAMILIARIZE YOURSELF WITH THE DREMEL
3D40 BEFORE SETUP AND USE. FAILURE TO COMPLY WITH THE WARNINGS AND INSTRUCTIONS MAY RESULT IN
FIRE, EQUIPMENT DAMAGE, PROPERTY DAMAGE, OR PERSONAL INJURY.
WAITING FOR FLEX PLATE
IMAGE FROM KARAN

1
2
3
4
1
2
3
4
STEP 2: Unbox Your Printer KIT CONTENTS
STEP 3: Complete Setup
Go To: Digilab.Dremel.com/GetStarted
to complete your setup. If you do not have internet
access, turn to the reverse side.
Dremel DigiLab
3D40 FLEX
Flexible Build Plate and
Build Plate Holder
Filament Spool*
Build Tape Object Removal Tool Power Cable
USB Cable Instruction Manual USB Flash Drive
Unclog Tool
1-844-4DRML3D(1-844-437-6533) www. dremel. com
P.O.Box081126 Racine, WI 53408-1126
3D40
IdeaBuil der
Operating/Safety Instructions
Consignesd’utilisation/desécurité
Instruccionesdefuncionamientoyseguridad
ForEnglishVersion
Seepage 2
Versionfrançaise
Voirpage16
Versiónenespañol
Verla página 30
IMPORTANT
ReadBefore Using
IMPORTANT
Lireavantusage
IMPORTANTE
Leerantes deusar
CallTollFr eeforConsumerInformation& Service Locations
Pourobtenirdesinformationsetlesadressesdenoscentresdeserviceaprès-vente,appelezcenumérogratuit
Llamegratisparaobteneri nformaciónpara elconsumidory ubicacionesdeservicio
* Quantities may vary
depending on kit

OFFLINE SETUP (No Internet Access)
STEP 1: Ensure the power switch is in the off position.
STEP 2:
Install the build
plate holder
using the build
platform clips.
STEP 5:
STEP 4:
Insert filament
from the guide
tube into the
extruder intake.
Guide Tube Filament Extruder Intake
Turn on the power switch and the printer will
guide you through the setup process.
STEP 3:
Twist spool door
counter-clockwise
to remove. Place
spool onto holder
with filament being
fed from the
bottom towards
the back. Thread
filament through
guide tube.
2610053097 09/18
WARNING
READ ALL OPERATING/SAFETY INSTRUCTIONS IN THE MANUAL AND
FAMILIARIZE YOURSELF WITH THE DREMEL 3D40 BEFORE SETUP AND USE.
FAILURE TO COMPLY WITH THE WARNINGS AND INSTRUCTIONS MAY RESULT
IN FIRE, EQUIPMENT DAMAGE, PROPERTY DAMAGE, OR PERSONAL INJURY.
Spool
Holder
FIG
. 1
Open
Close
Filament Filament
Guide Tube

FILAMENT LEVEL
!
OFFLINE BUILDING
STEP 1:
On the main screen,
tap “Build”. Tap the
machine icon to print
from pre-installed
models.
STEP 3:
Flex the build
plate!
Make sure to
point the part
away from
yourself and
from other
people.
STEP 2:
Remove the flexible
build plate by:
(A) Rotating the
latches
(B) Lifting the
flexible build
plate up by the
blue handles
and pulling
it out
AA
B B
GO TO:
Digilab.Dremel.com/GetStarted
for access to the latest new features, more setup
information, our slicing software, guides to printing
your own files, tips and tricks on 3D printing,
troubleshooting help, customer support,
and much more!
Detailed information on setup and maintenance can
also be found in the Operating/Safety Instructions
Manual.
