Dualtron EY2 User manual

IMPORTANT INFORMATION




*The pictures shown are for illustration purposes only. The actual product or app interface may vary.

Dashboard
01
Riding mileage
Gear
Remaining mileage
Safe mode
Speed unit selection.
Time/ odo mileage
Battery percentage voltage
Battery level
*Working temperature -20 to 80 degrees Celsius.
Minimotors EY2 smart digital screen（size：47*50mm)
Error Symbol
ECO mode
Bluetooth

P
Symbol Name Meaning Description
Power Button
Starting Effect
PAS
EBS
ABS
Battery Save Mode
Drive Mode
Speed Limit
Battery Unit
1.Press and hold the Power button to turn on/off the scooter.
2.Press the button to adjust the speed gear.
Kick start,scooter cannot be directly accelerated
to start.(Default OFF)
Powerfully start and gently start selection.
EBS strength selection.
ABS function control.
Relational torque and power consumption speed.
Select driving mode according to road conditions.
System speed control.(Percentage of max speed)
The symbol displays the remaining battery power in battery bar.
APP operation. 0 means function off and 1 means function on. The default is 0.
App operation. "Max Save" means max power save and weak torque,about 50% of the
maximum torque. "Normal Save" means normal power save and normal torque,about 75%
of the maximum torque. "No Save" means no power save and max torque.
APP operation.The parameter is adjustable from 5% to 100%, and the default is 100%.
APP operation .When PAS turns on, PAS symbol will appear in the LCD screen.
APP operation."0" means the most powerfully start,it will have a strong impact.
"1" means 0.5s gentler start,"2" means 1s gentler start, and so on.
"5" means the gentlest start. The default is 2,1s gentler start.
APP operation. 0-5 strengths can be selected, 0 is the weakest, no EBS function,
and 5 is the strongest. The default is 1.
APP operation. When the function is turned on, you need to enter the password to ride.The initial
password is 0000. Note: If the user has turned on the protection and the app is certified as the
owner, when the owner approaches the scooter,it can be unlocked automatically.
APP operation. City Walk Mode is selected by default. Kind Reminder: If you ride
continuously for a long time in Climbing Mode,the temperature of the motor will rise quickly
and easy to trigger ECO.
Dashboard
02
Password protection.
(You need to enter the correct password to drive.)
Protection
(Password)
Change Password Reset a password.
APP operation. Press the POWER to change the password. When the display shows 1, enter the
initial password, press the POWER to confirm. And when the display shows 2, please enter the
new password, and press the POWER to confirm.At this moment, the display will show 3, please
enter the new password again and press the POWER. Then the Password is changed
successfully. Note:The owner can connect to the APP directly without entering the password to
unlock the scooter and reset the password on the mobile.

Symbol Name Meaning Description
Safe Mode
CCS
Prevent BMS CUT
Auto Power-off
LCD Brightness
Imperial/Metric
Wheel Diameter
Battery Voltage
Pole Pairs Motor pole pair number of the scooter.
Drive at a constant speed without stepping
on the accelerator or brake.
APP operation. Turn on/off the cruise control mode. Default OFF. (The scooter maintains a
fixed speed for more than 8s ,speed cruise work automatically)
Dashboard
Prevent the scooter from starting when the
accelerator is accidentally touched.
APP operation.When the scooter is turned on and stays in the static state for N seconds (no operation,
no speed), it will switch to the safe mode automatically. In SAFE mode, this symble will appear on the
screen. (N seconds ranges from 0 to 300 seconds. 0 seconds means SAFE mode is not enabled.)
03
APP operation. Turn on/off Prevent BMS CUT mode. The default is off. When scooter enter the
ECO in this mode, the ECO can not be manually closed; if you want to manually close the ECO in
the current mode, you need to close the Prevent BMS CUT mode first.
Auto shutdown when the EY2 is not operated. APP operation. Automatic shutdown time Settings adjustable range from 1-30 minutes. The default
is 5 mins. Note: When the scooter has no operation and no speed, the timing starts.
APP operation. Adjust from 0 to 5, the default is 5.
APP operation. "0" means metric,it is km/h; "1" means imperial,it is mph.The default is 0.
Different scooters have different default diameters. They are set at the factory.
Any modification is forbidden.
Different scooters have different default voltages. They are set at the factory.
Any modification is forbidden.
Speed unit selection.
Wheel diameter of the scooter.
Voltage of the scooter.
Different scooters have different motor pole pair numbers. They are set at the factory.
Any modification is forbidden.
Adjust the LCD backlight brightness.
When battery capacity less than 20%, scooter
enters ECO mode automatically.

Trademark And Copyrights
Dualtron is the trademarks of Zhejiang Dualtron Escooter Co. Ltd. ; Android is the trademark of Google Inc., App Store is a service mark of Apple Inc. The respective owners reserve the
rights of their trademarks and copyrights, etc. referred to in this manual.
We have attempted to include descriptions and instructions for all the functions of the scooter at the time of printing.
However, due to constant improvement of product features and changes of design, your scooter may differ slightly from the one shown in this document. Scan the QR Code on the cover of
this manual, or visit the www.dual-tron.com to download the latest electronic version. Please note that there are multiple models with different functions, and some of the functions
mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the scooter product and document without prior notice.
2022 Zhejiang Dualtron Escooter Co. Ltd. All rights reserved.
（※The Dualtron App can support scooter with built-in Bluetooth）
Common Failures and Solutions
Throttle failure
Motor failure
Controller failure
Over-temperature protection
Please contact after-sales service or an authorized dealer.
Please contact after-sales service or an authorized dealer.
Please contact after-sales service or an authorized dealer.
Please try to apply heat dissipation for the scooter.
Error Symbol Possible causes Solution
04
Duration voltage
GPS
SPEED
When the scooter breaks down,the LCD appears the service symbol . In this case, you need to check the APP to view the specific error code. The APP will
display the following four error symbols. When there is a fault, please contact after-sales service or an authorized dealer.

Safety instructions
Riding Safety
1.Scooters are not a means of transportation and are prohibited from riding on public transport roads. Please abide by local laws,
regulations and policies when riding.
2.Scooter is an entertainment product. You need to master the riding skills through practice. Dualtron will not be liable for any damage caused by
inexperience of riders or failure to use this product according to this manual.
3.In order to reduce the risk of injury, please read and follow all the "CAUTION" and " WARNING" in this manual. Do not exceed the speed limit.
In any case don't drive on the road where there are motor vehicles.
4.Following the tips and warnings in this manual can reduce risks, but not eliminate all risks. Please remember that you may be at risk of injury or death due to loss
of control, collision and fall when using the scooter. The scooter is only suitable for flat and hard roads, and it is recommended to use it in a relatively closed and
open road environment. Do not pass through places with obstacles and protrusions. When entering a strange environment, keep alert and slow down.
Please do not accelerate or decelerate suddenly. When riding, please always hold the handlebars with both hands and stand on the pedals with both feet.
Please do not drive at a speed exceeding the limit of the scooter, otherwise you may lose control, collide and fall.
In order to avoid distraction when riding a scooter, do not wear earphones, earplugs, make calls, take photos, take videos or do any activities unrelated to
riding, so as to monitor the external environment well when riding.
For whatever reason, please do not ride the scooter under the conditions of snow, rain, wet, muddy and ice. When riding in rainy and snowy days, water may
enter the scooter, leading to the risk of functional damage, fire and even explosion caused by the damp battery. Damages and losses caused by water ingress
are not covered by the warranty.
This product is suitable for users aged between 14 and 60.
Riders should wear helmets, knee pads, elbow pads and other safety protective equipment. Please use a qualified bicycle or scooter helmet and tie the strap
at a suitable position on your chin.
High heels, slippers and open toed shoes are prohibited. Long hair needs to be tied up to avoid accidents due to the fact that the hair blocks the sight and
affects the normal riding.
Before riding the skateboard vehicle, please carefully check the vehicle body to ensure that there is no sign of looseness or damage in any part including
wheels, brakes, screws, etc., and that the vehicle is in a proper waiting state.
Only use parts and accessories specified or approved by dualtron. Do not modify your scooter. The modification of the scooter may affect the operation of the
scooter, resulting in serious damage and warranty invalidation.
1.
2.
3.
4.
5.
6.
7.
8.
05

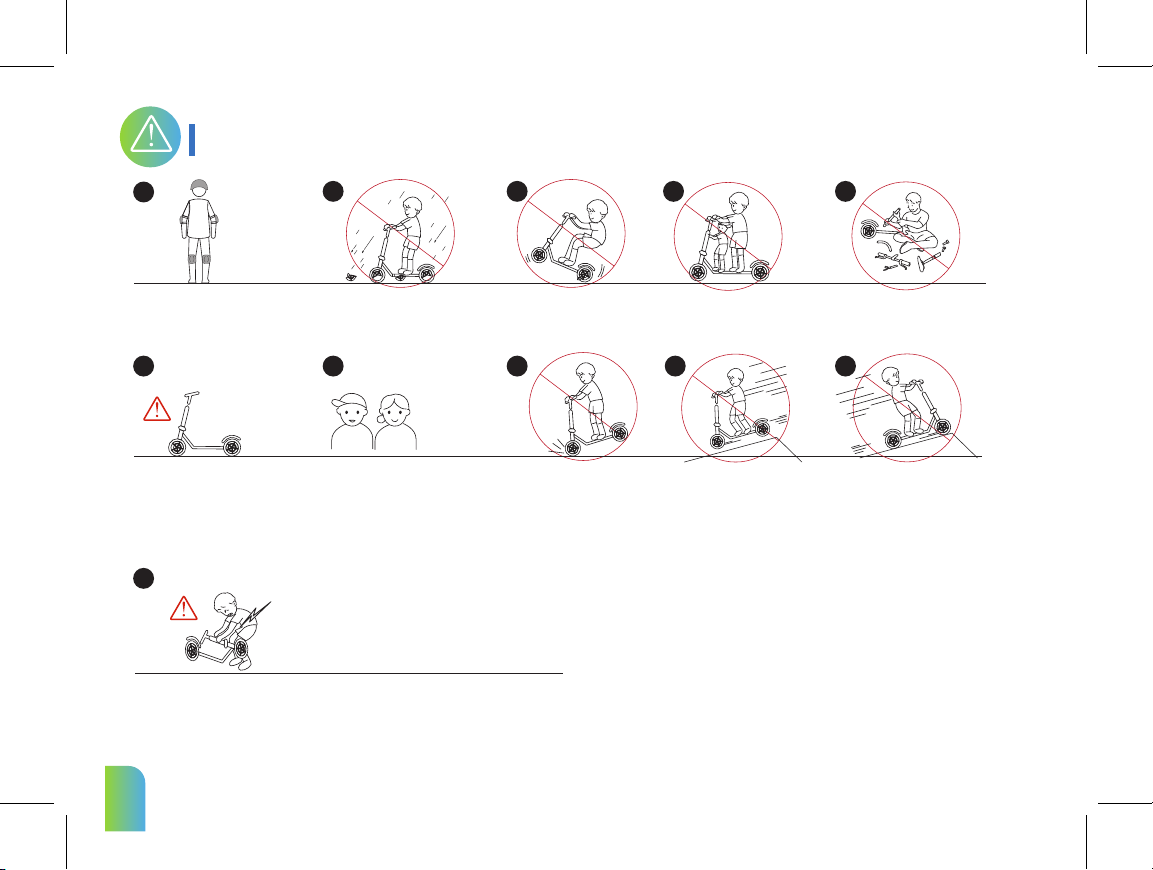

Warnings
Be careful of water! Don’t tune by yourself！Be sure to wear safety equipment！No acrobatics No companion boarding
This product and components are not
waterproof. Don’t let water get into the
product and components.
Do not open or tune the electric parts
(battery, controller or motor system.
Do not accelerate downhill
Slow down at downhill. When
reducing the speed, to prevent
brake overheat, use the brakes
properly to reduce the heat on the
disk with proper brake use.
Comply with local laws
Unlicensed, driving after drinking,loading
cargo on the scooter is prohibited. (More
than bike or bicycle license is required)
Please comply with the Road Traffic.Act
and related laws and regulations
according to the place of use.
Always wear a helmet, elbow
pads and knee pads when riding.
DO NOT ride up and down
stairs or jump over obstacles.
DO NOT carry any passengers
01 02 05
0906
driving at low speed
Beginners who are not accustomed
to use the product, seniors and
others should avoid high speed
mode driving and recommend low
speed driving.
Do not suddenly brake
with front brake
If there is a risk of overturning,
sudden deceleration should be
done safely.Do not apply any
unusual behaviors or artificial
forces, such as stopping with
your feet.
07 08
03 04
Do not drive on steep slopes
Each product has a different degree
of acceptable climbing, do not ride
excessively on mountain roads.
Safety warning when lifting the product
If the product is lifted by holding only the handle, there is a possibility that the product may be
damaged due to deformation of the folding part due to load or movement of the product. When
lifting the product, be sure to hold the product's body (footrest) with one hand and hold the
handle with the other hand so that you do not get hurt in your back or knees.
10
11
06

* Failure of the charger and abnormal conditions can cause electric shock and fire.
Learn the correct usage and prevent safety accidents in advance.
1. Open the charger port cap and connect it to the connector of the charger and connect it to the
household outlet.
1. Manufacturers and sellers are
not responsible for any problems
arising from any disassembly,
modification, or mixing with other
chargers.
3. The charger is not waterproof. It is
thoroughly controlled to prevent
moisture from entering the charger.
5. If the charger lamp does not light,
charger fall down, strong external
shock, long time charge, or cable cover
damage, discontinue use immediately
and contact the service center.
7. Use only genuine charger.
9. Do not remove the terminal during charging. Otherwise you may charge the internal circuit of the charger and cause malfunction.
6. Unplug the charger when
you are away from the home
for long periods.
8. Do not touch the plug for about 10 seconds after unplugging the charger. There is a risk of electric shock from instantaneous discharge.
2.1 Charging status indicator (Red)Charging , (Green)Charging complete.
2.2 Charging status indicator (Red)Charging, (Red off)Charging complete, (Red blinks)Charger
malfunction.Only suitable for 36V or 48V chargers.
3. Be sure to close the charger port cap when driving or storing except when charging.
4. When connecting the connector to the charger port, there may be metallic sparks due to voltage
difference, but this is normal.
2. The charger is forbidden to be used
in places subject to high humidity,
heat, flammable materials, confined
spaces, or where there is no ventilation
such as in a car.
4. Children and pets should not
be allowed to approach the
charger when they come into
contact with them, as they may
cause an electric shock.
10. Do not operate the product during charging.
11. Charging terminals should be firmly contacted during charging and should not be used if terminals are corroded or damaged.
12. When disconnecting the charger from the product, it is safe to hold the terminal without holding the wire.
13. Be sure to keep the charger disconnected from the product after the charging is complete.The charger must be disconnected if it is not used for longer than a few
days, as there is a risk of overcharging when charging more than the time indicated on the product specifications.
Charging
Basic charging method
07

Basic charging method
Battery disassembly prohibited
Battery disassembly, modification, and repair are not covered under warranty.
Safety precautions for Lithium battery
1) Care Lithium batteries should be protected from direct exposure to children and pets.
2) Performance 1. Lithium battery is affected by external temperature. In the winter, when the temperatures are low, the performance of the battery may be temporarily deteriorated and the mileage and power
output is reduced.
2. Lithium battery has a characteristic that discharge performance is reduced by more than 15% when charging / discharging 300 times or more. If usage time is shortened due to long usage, it should be
replaced with a genuine one through the nearest point.
3) Charging 1. Lithium battery should be used only with genuine battery and charger supplied from the manufacturer. Any problems caused by use of battery made by the manufacturer, mixed use, or using the
charger are not covered by the manufacturer.
2. Charging the lithium battery with a non-genuine charger may cause malfunction or fire.
3. The lithium battery should be charged in a well-ventilated, dry place and around the charger in a place where there is no flammable material.
4. Lithium battery should be charged at 0 ~ 45°C and discharged within -10 ~ 60°C . The sub-battery must be charged at 0 to 50°C and discharged within -20 to 75°C. Charging or discharging at a temperature
outside this range may cause malfunction, fire or explosion.
5. In case of moving from cold outside to warm indoor, please charge it after 1 ~ 2 hours. This is to prevent condensation from occurring inside the product due to the temperature difference.
4) Storage 1. Lithium batteries should be kept away from snow, rain and direct sunlight. Do not store or charge them in a trunk or hot room. Select a dry place and store at room temperature (10 ~ 20℃).
2. When storing for more than 3 months, charge the remaining battery levelto 70 ~ 80% (do not store full charge).
5) Trouble symptom, safety 1. Lithium battery should be discontinued immediately if it is damaged or there is leakage of battery, sour odor, appearance deformation, etc. Please contact the place of purchase to
get technical support and service.
2. If overheat, smoke, or ignition is detected in a product with lithium battery, immediately stop charging and use, move the product outdoors as soon as possible, and then use a fire extinguisher to extinguish
flames. Do not spray water or immerse the product in any situation, which can lead to more danger.
3. Lithium battery pack has very high energy density, so if you charge the battery for a long time and there is a case of short-circuit, leakage, bad battery, etc., it can lead to ignition. Therefore,you should
avoidcharging for a longtimewithout a personbeing present to avoid therisk of unexpected fire.
6) Misuse If the lithium battery is short-circuited, the polarity is changed, or if the battery is impacted, malfunction or fire may result. If you think that the battery has been impacted, you should stop charging and
using it and visit the nearest service center for inspection.
7) Water inflow It should be controlled to prevent water inflow into the lithium battery. There is a risk of fire or electric shock if the charger is connected while moisture is present.
8) Caution Disconnect the battery from the main unit except when recharging and reinstalling. Do not use for any other purpose.
9) Disposal When disposing of the lithium battery, the battery should be separated from the product at the point of purchase or near the service center and the charge and discharge terminals are not
shortcircuited. Dispose of it as industrial waste.
Lithium
DANGER
08

Maintenance and Care
Recommended Maintenance Schedule
WARNING
Sun exposure and extreme temperature conditions (overheating and supercooling) will accelerate the aging of plastic parts and may lead to a decrease in battery life.
For your riding safety, please be sure to maintain and check your scooter regularly. You are familiar with and understand the frequency, condition and place of use of
your scooter, and are responsible for regular inspection of your scooter. If any abnormality is found, please stop using it immediately and go to the authorized outlet
for inspection and maintenance in time. The following table is our recommended regular maintenance items and cycles.
Item Component
Mainframe parts Use a soft, wet cloth to wipe the mainframe clean.
Tire pressure Inflate tires to 32–38 psi. Note: Remember to screw the valve cap after inflating!
Tire wear
Screws on the
stem top
Mainframe
maintenance
Check if the tires are cracked, deformed, or significantly worn.
Tighten the screws fixed with the handlebar and the stem.
The suggested torque is 6–8 N·m.
Tighten the screw on the throttle. The suggested torque is 4–4.5 N·m.
Tighten the screws on the brake levers. The suggested torque is 8.5±0.5 N·m.
Tighten the screws on the stem top. The suggested torque is 2.4 N·m.
Maintenance Method
Every 3
months
Every 6 months
or every 310
miles (500 km)
After 1 year or the
total mileage>1864
miles(3000km)
√ √ √
√ √ √
√ √ √
√ √
√ √
09

Maintenance and Care
Mainframe
maintenance
Screws on the
folding
mechanism
Brake disc
3rd-gen
replaceable
suspension
assembly
Item Component
Hub motor
Rear wheel
maintenance
Brake
adjustment
Brake pads
To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds.
Check if the rear wheel is stalled or gets shaky, or the axis shaft is unbalanced.
Function
Inspection
Maintenance Method
Every 3
months
Every 6
months or
every 310
miles (500
km)
√√
√√
√√
√√
√
√
√
√√
√
Tighten the screws for folding mechanism. The suggested torque is 15±1 N·m.If the stem
gets shaky when riding, tighen the screws on the folding mechanism when the scooter is
in folded state.
Tighten the screws on the brake disc assembly. The suggested torque is 8.5±0.5 N·m.
If the suspensions are not smooth or much harder when riding, add lubricant to
suspension internal structure parts.
1) Squeeze the brake levers, repeat 5 to 8 times, to enable the caliper fitted with the brake
pads grabs the rotor.
2) Tighten the bolts on the caliper. The suggested torque is 8.5±0.5 N·m.
3) Release the brake levers, spin the wheels. If the brake pads make contact with the rotor,
loosen the bolts on the caliper and repeat step 1.
4) The pushrod can be adjusted by a 2 mm wrench if necessary. Rotate the pushrod
clockwise to increase the length between the brake lever and the handlebar. Rotate the
pushrod counterclockwise to decrease the length.
The disc brake has the function of self-repairing. But when the brake pads are significantly
worn, they need to be replaced.
If the brake levers feel spongy when you squeeze them and the rotor makes abnormal
sounds, please stop riding immediately and replace them with the new brake pads.
10
After 1 year or the
total mileage>
1864miles
(3000km)

Maintenance and Care
Item Component
Hydraulic
brake
Brake rotor
Taillight Squeeze the brake levers, the taillight works normally.
Maintenance Method Every 3
months
Headlight Check the headlight and see if it lights brightly.
Dashboard Power on the scooter, the dashboard works properly.
Horn Press the button, the sound is loud.
Throttle
Charging
Turning
Control switches
Fault detection
Fault
detection
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
√√
Spin the wheels, the caliper should be aligned with the rotor and they shouldn't rub on the
brake pads.
WARNING: DO NOT touch the disc brake after riding or braking Function because it can
get hot.
Twist the throttle and release it, checking for acceleration and deceleration.
Note: Release it, check if the throttle handle will back to the position.
After connecting with the Dualtron app:
1) Update the firmware to the latest version.
2) Check if the notification of the corresponding error code and possible causes will
prompt when the scooter detects an error.
Charge the scooter:
1) Check the charging indicator on the dashboard.
2) Check the LED indicator on the battery charger.
Charging: red, Fully charged: green.
Press or rotate the left/right control switches 3 times without failure.
Test with left turns and right turns .No resistance or lag when turning.
If you experience poor brake performance, it's recommended to contact the after-sale
service or an authorized dealer to replace the brake fluid (Mineral oil model: BK407).
11
After 1 year or the
total mileage>1864
miles(3000km)
Every 6 months
or every 310
miles (500 km)

Every 6 After 2 years or
Item Component
Battery
assembly
Controller
The battery need to be replaced when it is charged and
discharged for 500 times or the total mileage is more than
6213 miles (10000 km).
Note: It is recommended to charge once every 60 days for
long-term storage.
It is required that original Dualtron parts shall be used for
repairs and replacements.
Functional
parts
Important
parts
Maintenance Method Every 3 months
Every 6 months or
every 310 miles
(500 km)
Hub motor
Rear wheel
assembly
Throttle &
Brake levers
Front fork
assembly
Folding
mechanism
Brake rotor
Disc brake
assembly
Dashboard
√
Maintenance and Care
12
After 1 year or the
total mileage>1864
miles(3000km)

Legal Statement
Every 6 After 2 years or
IMPORTANT: A user shall carefully read the entire User Manual and fully understand it (especially for the content related to warnings, caution statements, product
operation and safety), and adhere to the foregoing instructions herein before using this scooter. A user shall always use his / her common sense and best judgment
when using the product. An owner of this product shall not allow anyone and/or cause another person to use it unless that person is clearly informed of the foregoing
warnings and agrees to comply with it.
Before using this product, riders must carefully read this manual to ensure the correct use of this product. If the rider cannot ride in full accordance with the instructions
in this manual, please do not try to ride the scooter.
You have the obligation to know all the relevant laws and regulations on riding scooters in your area, and strictly abide by the applicable laws, regulations and policies
when riding this product.
Do not ride scooters in areas prohibited by local laws. When riding in countries and regions where there are no relevant regulations on electric scooters, please strictly
abide by the safety requirements for riders in this manual. Dualtron will not assume any responsibility for any property loss, personal injury / death, accident or legal
dispute caused by the use behavior violating the safety tips in this manual.
When you receive this product, please immediately check whether the product and accessories are intact and complete. All components must be correctly installed in
accordance with the instructions. Improper installation may lead to the risk of runaway, collision or falling.
Please avoid using non original batteries and accessories. It is forbidden to disassemble, crack and modify this product and components without authorization. Any
damage and loss caused thereby will be borne by you.
The data and parameters of the scooter are different with different models, and are subject to change without notice.
1.
2.
3.
5.
6.
Thank you again for your choice and trust in this product.
Please purchase insurance in time after purchasing the product, so as to minimize the use risk.
13
