Dualtron Mini User manual

User Manual

Company Introduction
Brand Introduction
'DUALTRON' is a breakthrough product that combines the world's first dual drive system
and the new rubber suspension technology (patent application). It is a proud Korean
luxury brand that has won the world electric scooter market exported to more than 20
countries.
®
‘DUALTRON’ brand is a worldwide electric scooter brand name that Electier
Co.LTD., designed.
Do not use the product until you understand its functions.
Do not rent the productto anyonewho can’t operate the product.
*For the first time, the user should use it with a slow speed’ for safety.
Please read the user manual carefully.
MINIMOTORS
Co.,Ltd.
Minimotors Co. LTD., has been making the electric mobility brand <DUALTRON> to
meet the world people with the aim of making more innovative, more sensuous, and more
convenient personal mobility from 1999 to the present and making a product that is loved
by people in the world. Minimotors Co. LTD., Is doing its best to become the world best
electric mobility company.
Minimotors Co. LTD., is a company who manufacture and distributepersonal
mobility with aprofessional production system since 1999.

Dualtron Mini user manual contents
This manual contains important information to help you to use your product more
safely. For safe use, it is marked as 'Danger', ‘Caution’and 'Warning' depending
on the degree of danger and the meaning is as below.
Danger: Indicates a hazardous situation that could be a result of serious injury.
Before Reading Manual
Warning: Indicates a potentially hazardous situation that could be a result in light injury.
Caution: Indicates a potentiallyhazardous situation that could be a resultinserious injury.
Danger
Warning
Caution
01. Safety guidelines and restrictions ······································································
04
02. Product structure ·································································································
06
03. Name of each part ·································································································
07
04. Product components ····························································································
08
05. How to use the product ························································································
09
06. How to use the instrument panel ··········································································
12

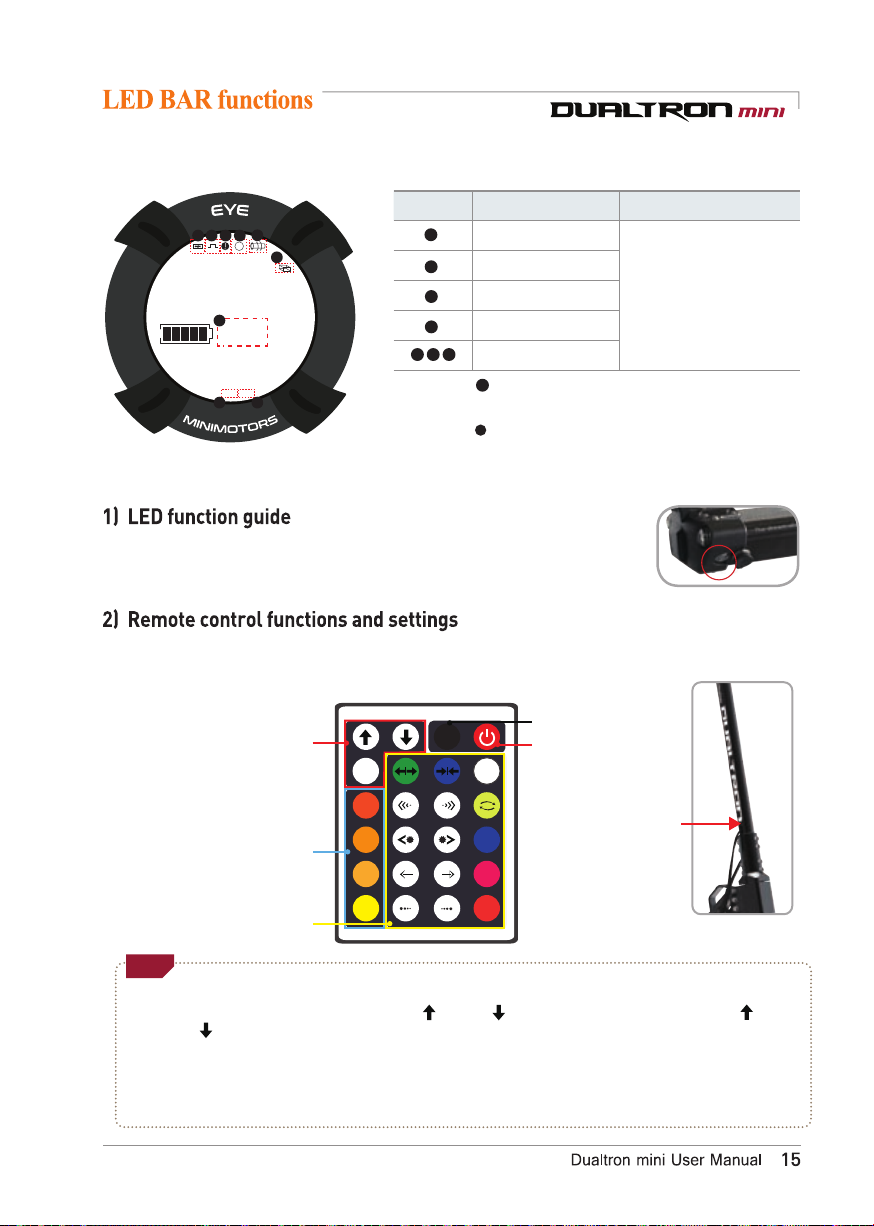

07. LED BAR funtions ···································································································
15
08. How to use the charger correctly ·········································································
16
09. Safety precautions for Lithium-ion battery ··························································
17
10. Safety guidelines before driving ············································································
18
11. Maintenance ···········································································································
19
12. Important checklist ·······························································································
20
13. Product specifications ··························································································
22
DUALTRON MINI

Before Reading Manual
Please read this manual carefully
before using this product
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
1. Be careful of water!
This product and componentsare not waterproof. Don’t let the water get into
the productand components.
*Neveruse it, if the road is wet due to the rain, snow, hailstone.
*If you wash orspread water to electric devices, itcan resultin malfunction or fire.
2. Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or folding
parts of the product, this maylead to severe injuries. Pleasebe careful.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
5. Don’t tune by yourself
Do notopen or tune the electric
parts (battery, controller or
motorsystem).
관계법 준수
Slow mode is recommended
ElderlyNovice
7. Beginners and seniors are
encouraged to use atlowspeed
Beginners who are not accustomed to use the product, seniors and others
shouldavoid high speed mode driving and recommend low speed driving.
In addition, pleaseuse after practice how to ride safely in a wide place.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
3. No acrobatics
Stunts and jumps such as jumping
and dropping are prohibited as
they can cause a great impact
on the product and can cause of
malfunction and accidents.
4.No companion boarding
This product is intended for
one adult only, so children,
infants, or two people are
prohibited from boarding.
Complywith
the related laws
Slow mode is recommended
ElderlyNovice
* Even if the it is within the warranty period, you maybe liableforanyaccidentcaused by anyof thefollowingcauses.
Comply with
the related laws
Slow modeis recommended
ElderlyNovice
Do notsuddenbrake
8. Do not sudden brake withfront brake
If there is a risk of overturning, sudden deceleration should be done safely.
Do not apply any unusual behaviors or artificial forces, such as stopping with
yourfeet.
Comply with
the related laws
Slow modeis recommended
ElderlyNovice
9. Do not accelerate downhill
Slow down at downhill. When reducing the speed, to prevent brake
overheat, use the brakes properly to reduce the heat on the disk with
proper brake use.
Slow mode is recommended
ElderlyNovice
Do not sudden brake
Caution
6. Comply with the related laws
Unlicensed, driving after
drinking, loading cargo on
the scooter is prohibited.
(More than bike or bicycle
license is required)
Please comply with the Road Traffic
Act and related laws and regulations
according to the placeof use.
1) Safety guidelines and restrictions

Slow mode is recommended
ElderlyNovice
Do notsudden brake
11. Safety warning when lifting the product
If the product is lifted by holding only the handle, there is a possibility that
the product may be damaged due to deformation of the folding part due to
load or movement of the product. When lifting the product, be sure to hold
the product's body (footrest) with one hand and hold the handle with the
otherhand so that you do notget hurt in your back or knees.
2) Precaution before driving
Slow mode is recommended
ElderlyNovice
Do notsudden brake
10. Do not drive onsteepslopes
Acceptable gradeabilityis different for each product. Excessive hill roads
exceeding the specification may cause damage to the product(parts) due
to temperature cut, overcurrent or low voltage cut, which may cause the
product to malfunction.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
Do notsudden brake
12. Be sure to wear safety equipment
For the safety of passengers, be sure to wear a full face helmet and the
other protective gear(knee, elbow, hand, upper body) and do not wear shoes
such as slippers, high hills that interfere with driving.

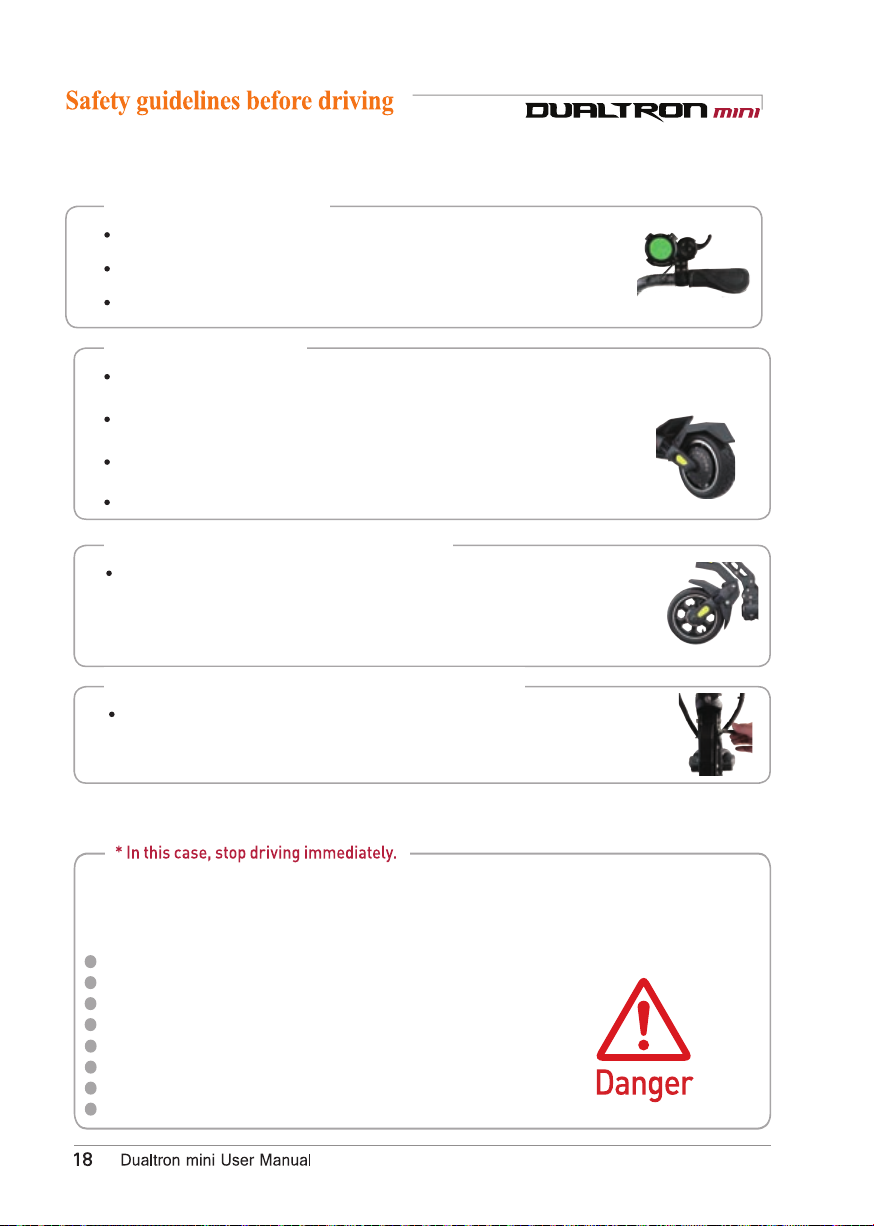

1. Night driving should be avoided in any case, besure to wearhelmets andother guards (knees,
elbows,hands, upperbody, etc.) and drivesafely.
2. Select the mode that suits you and drive. In order to cope with the sudden situation, exercise
to slow down to hold the brake atall times.
3. When turning left / right, slow down to avoid danger of overturning or slipping., And then
slowlyturn safely.
4. To go to backward, it is safe if you getting off from the productafter stopping before moving.
5. It is prohibited to use in a slippery place, a crowded place, a steep slope, roads with a risk of
accident,uneven road.
6. When crossing a pedestrian crossing, get off from the product for pedestrian safety.
7. Do not drive in a threat any other means of transport, such as animals, pedestrians, bicycles,
motorcycles, cars, etc.
8. If you pass the speed bumps and obstacles, be
sure to slow down.
9. When decelerating or braking, do not stop with
using foot, but stop with using brake appropriately.
10. Be careful that there is a risk of burns due to heat
from motor and brake (especially disk rotor) after
driving.
11. It is prohibited to drive with all the way by holding
thehandlewith one hand.
12. Do not ride ordrive when the kick stand is down.

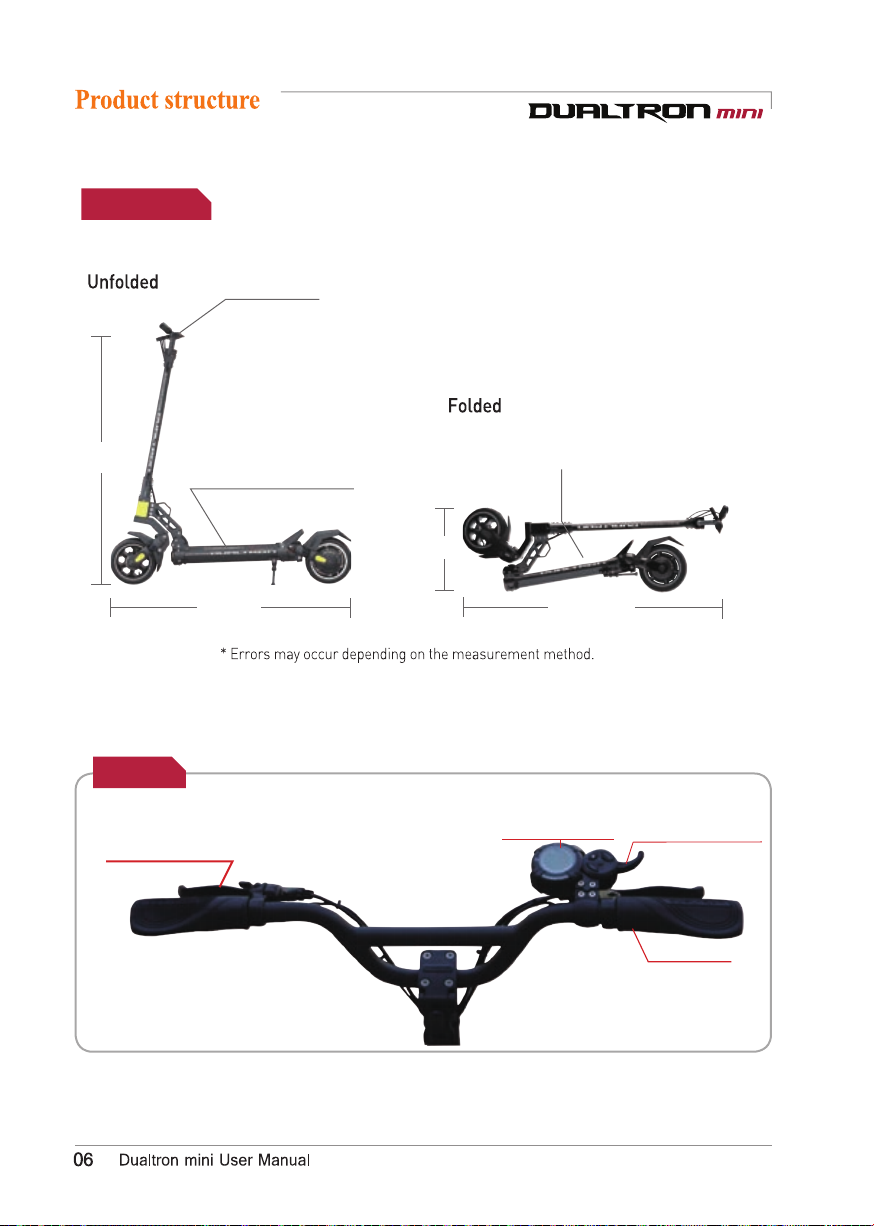

Standard
handle width
600mm
Footrest width 205mm Footrest width 205mm
EYE throttle LCD
instrument panel Index finder
throttle(Accellerator)
Handle grip
Brake lever
(+Electronic brake)
1170mm
1115mm 1110mm
410mm
Product size

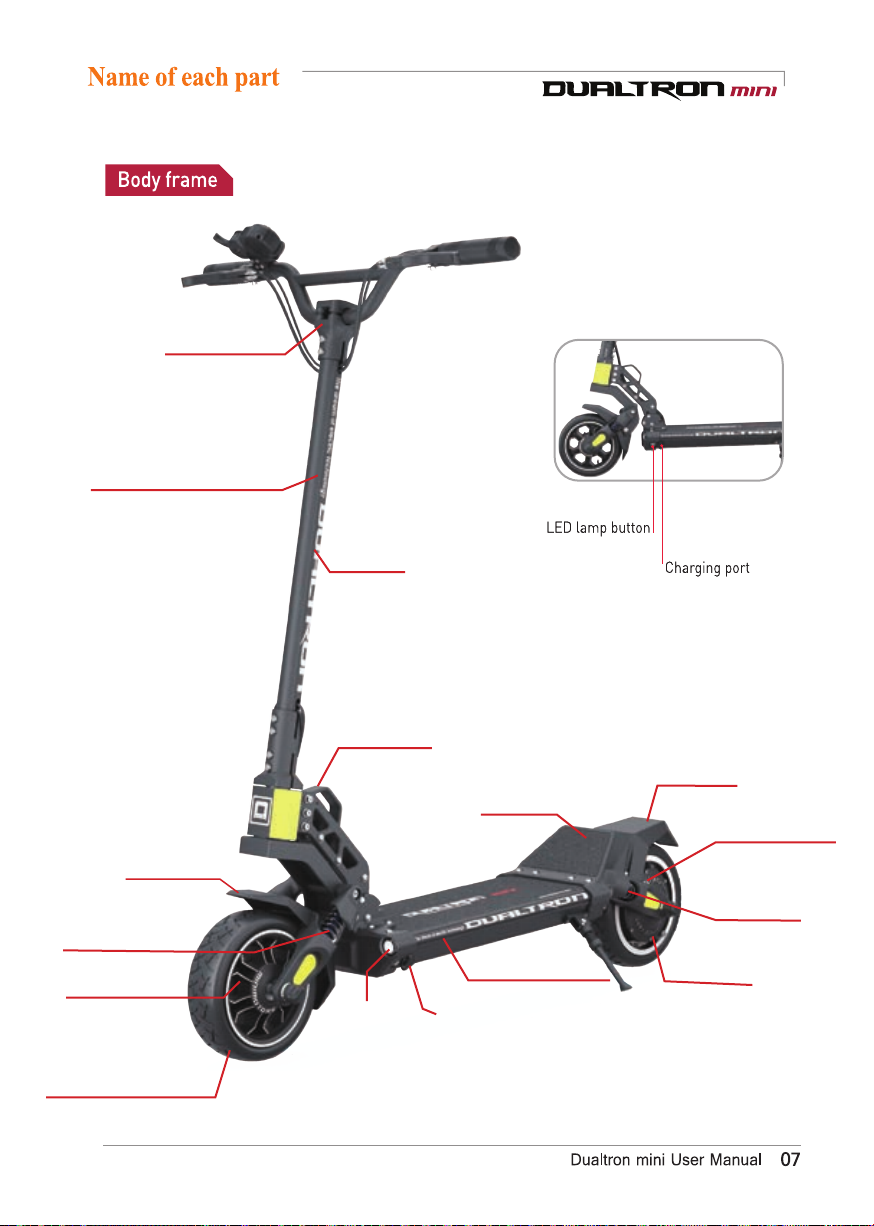

Handle

Front wheel Rear motor
Front & Rear 9” tube tire
Body side LED light
Front fender
Front spring&rubber
suspension
Rear spring&rubber
suspension
Footboard
Quick fold
(pull handle)
Rear fender
Handle post(Steering tube)
Handle stem
LED bar
Rear light(Brake light)
Head light Charging port

Charger plug
Charger
Nut caps
Basic tool
LED Remote control User manual
Top : Default battery charger(2A), Default tool, User manual，Remote control
Bottom : Body(Lithum battery included)
Assemblingof the instrument
panel, brake
-Locate the instrument panel and tighten
the fixing bolts.
-Adjust the position of the brake and
tighten the fixing bolts with a 5mm hexagon
wrench.
Make anote of the serial number.
The serial number can be used
to check information such as
date of purchase, warranty
period, etc., and product
information can be checked
even if the product is lost or
stolen.
(May vary depending on branch
office situation.)
Ejecting the productnumber.
Do not hold the handlebaronly when lifting the
productfrom thebox.
Please be careful that the fixing slide of the
folding partmay be damaged, and a safety
accidentsuch as a part of the body may be
caught.
Therefore, when lifting the product, it is
necessary to raise the handle barfirst, and then
slowly lift the body (footrest)of the product with
both hands and do not damagethe folding part
Caution

index pin
folding handle
folding plunger
f
Pull the index pin outward as the picture.Ihen Turn it a little, the index pin will get
stuck and the folding handle will work.Index pin is used to fix the folding handle to
prevent shaking and futher strenqthen the olding system.
Pull the folding handle,folding plunger will come out of the upper socket and
slip to lower socket.
Finish folding.
the folding plunger will get
stuck in lower socket. the
folding handle will reset in the
stem headset. lease remember
to insert the index pin back to
make this folding system
stronger.
1.Pull the index pin outward
1]Productun folding
2.Pull the folding handle
3.Folding,fix the parts

Step2. Stance for driving
Step1. Turning on the instrument panel
Step3. Acceleration
Before driving,be sure to check the folding part,the handle part and the part where the
main fixing part ot the product
are fastened well.And check the position of index pin and
the flding part fixing status.
Trottle maltunction caution
Regardless of whether the throttle Is operated or not. the motor sensor may continue
to operate, causing malfunctions such as sudden acceleration. In this case , holding the
brake lever to cancel the operation. This phenomenon may be caused by corrosion of
the throttle, immersion of the throttle, disconnection of the magnet, broken off levers,
and broken spring. Do not bounce the throttle lever stronqly.
Rear brake Index finger throttle
Press the POWER button on the instrument
panel for2 seconds to turn on the instrument panel.
You can set the start mode, cruise mode, electronic
brake,and ABS function.
*The power of the instrument panel will turn off
automatically after a few minutes of inactivity.
At this time,the LED lamp is also turned off,
so turn it off with the LED lamp button before
you turn it on again.
After tilting the kickstand, find a stable position on
the footrest and then hold the handle grip comfortably.
Be careful not to raise your foot on the rear fender.
Acceleration can be pertormed by using the throttle of
the instrument panel while driving, and the deceleration
or stop can be performed by holding the brakes on the handle.
