Dualtron REPTOR II User manual

PERSONAL MOBILITY
User Manual
The dream of electric technology

Company Introduction
Brand Introduction
'DUALTRON' is a breakthrough product that combines the world's first dual drive system
and the new rubber suspension technology (patent application). It is a proud Korean
luxury brand that has won the world electric scooter market exported to more than 20
countries.
®
‘DUALTRON’ brand is a worldwide electric scooter brand name that Electier
Co. LTD., designed.
Do not use the product until you understand its functions.
Do not rent the product to anyone who can’t operate the product.
*For the first time, the user should use it with a slow speed’ for safety.
Please read the user manual carefully.
MINIMOTORS
Co.,Ltd.
Minimotors Co. LTD., has been making the electric mobility brand <DUALTRON> to
meet the world people with the aim of making more innovative, more sensuous, and more
convenient personal mobility from 1999 to the present and making a product that is loved
by people in the world. Minimotors Co. LTD., Is doing its best to become the world best
electric mobility company.
Minimotors Co. LTD., is a company who manufacture and distributepersonal
mobility with a professional production system since 1999.
Dualtron raptor
Ⅱ
user manual contents
This manual contains important information to help you to use your product more
safely. For safe use, it is marked as 'Danger', ‘Caution’and 'Warning' depending
on the degree of danger and the meaning is as below.
Danger: Indicates a hazardous situation that could be a result of serious injury.
Before Reading Manual
Warning: Indicates a potentiallyhazardous situation that could be a result in light injury.
Caution: Indicates a potentially hazardoussituation that could be a result in serious injury.
Danger
Warning
Caution
01. Safety guidelines and restrictions ······································································
04
02. Product structure ·································································································
06
03. Name of each part ·································································································
07
04. Product components ····························································································
08
05. How to use the product ························································································
09
06. How to use the instrument panel ··········································································
12
08.
07 How to use the charger correctly ·········································································
14
09.
Safety precautions for Lithium-ion battery ··························································
15
10.
Safety guidelines before driving ············································································
16
11.
Maintenance ···········································································································
17
12.
Important checklist ·······························································································
18
Product specifications ··························································································
20

04 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 05

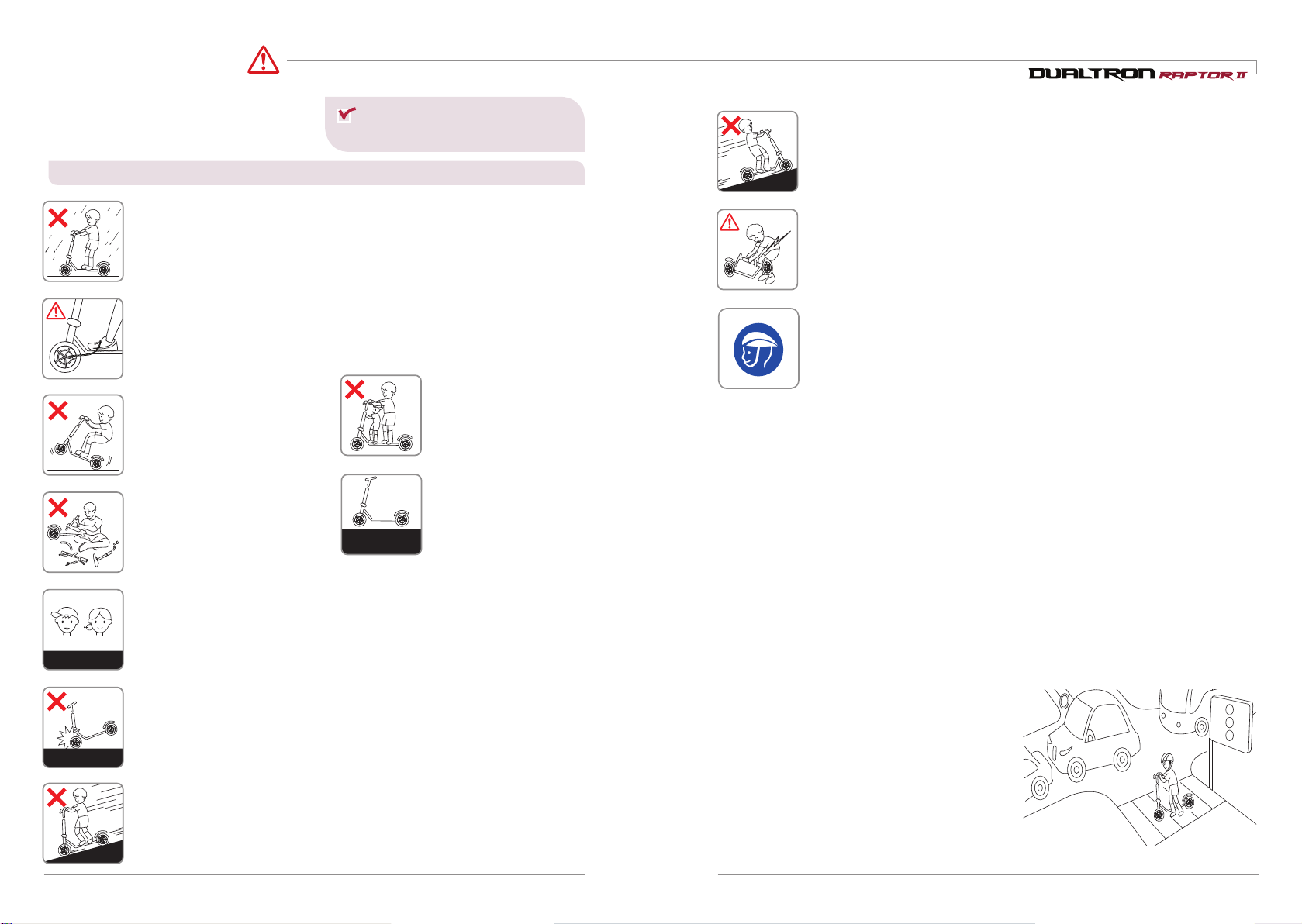

Before Reading Manual
Please read this manual carefully
before using this product
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
1. Be careful of water!
This product and componentsare not waterproof. Don’t let the water get into
the productand components.
*Neveruse it, if the road is wet due to the rain, snow, hailstone.
*If you wash orspread water to electric devices, itcan resultin malfunction or fire.
2. Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or folding
parts of the product, this maylead to severe injuries. Pleasebe careful.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
5. Don’t tune by yourself
Do notopen or tune the electric
parts (battery, controller or
motorsystem).
관계법 준수
Slow mode is recommended
ElderlyNovice
7. Beginners and seniors are
encouraged to use atlowspeed
Beginners who are not accustomed to use the product, seniors and others
shouldavoid high speed mode driving and recommend low speed driving.
In addition, pleaseuse after practice how to ride safely in a wide place.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
3. No acrobatics
Stunts and jumps such as jumping
and dropping are prohibited as
they can cause a great impact
on the product and can cause of
malfunction and accidents.
4.No companion boarding
This product is intended for
one adult only, so children,
infants, or two people are
prohibited from boarding.
Complywith
the related laws
Slow mode is recommended
ElderlyNovice
* Even if the it is within the warranty period, you maybe liableforanyaccidentcaused by anyof the followingcauses.
Comply with
the related laws
Slow modeis recommended
ElderlyNovice
Do notsuddenbrake
8. Do not sudden brake withfront brake
If there is a risk of overturning, sudden deceleration should be done safely.
Do not apply any unusual behaviors or artificial forces, such as stopping with
yourfeet.
Comply with
the related laws
Slow modeis recommended
ElderlyNovice
9. Do not accelerate downhill
Slow down at downhill. When reducing the speed, to prevent brake
overheat, use the brakes properly to reduce the heat on the disk with
proper brake use.
Slow mode is recommended
ElderlyNovice
Do not sudden brake
Caution
6. Comply with the related laws
Unlicensed, driving after
drinking, loading cargo on
the scooter is prohibited.
(More than bike or bicycle
license is required)
Please comply with the Road Traffic
Act and related laws and regulations
according to the placeof use.
1) Safety guidelines and restrictions
Slow mode is recommended
ElderlyNovice
Do notsudden brake
11. Safety warning when lifting the product
If the product is lifted by holding only the handle, there is a possibility that
the product may be damaged due to deformation of the folding part due to
load or movement of the product. When lifting the product, be sure to hold
the product's body (footrest) with one hand and hold the handle with the
otherhand so that you do notget hurt in your back or knees.
2) Precaution before driving
Slow mode is recommended
Do notsudden brake
10. Do not drive onsteepslopes
Acceptable gradeabilityis different for each product. Excessive hill roads
exceeding the specification may cause damage to the product(parts) due
to temperature cut, overcurrent or low voltage cut, which may cause the
product to malfunction.
Comply with
the related laws
Slow mode is recommended
ElderlyNovice
Do notsudden brake
12. Be sure to wear safety equipment
For the safety of passengers, be sure to wear a full face helmet and the
other protective gear(knee, elbow, hand, upper body) and do not wear shoes
such as slippers, high hills that interfere with driving.
1. Night driving should be avoided in any case, besure to wearhelmets andother guards (knees,
elbows,hands, upperbody, etc.) and drivesafely.
2. Select the mode that suits you and drive. In order to cope with the sudden situation, exercise
to slow down to hold the brake atall times.
3. When turning left / right, slow down to avoid danger of overturning or slipping., And then
slowlyturn safely.
4. To go to backward, it is safe if you getting off from the productafter stopping before moving.
5. It is prohibited to use in a slippery place, a crowded place, a steep slope, roads with a risk of
accident,uneven road.
6. When crossing a pedestrian crossing, get off from the product for pedestrian safety.
7. Do not drive in a threat any other means of transport, such as animals, pedestrians, bicycles,
motorcycles, cars, etc.
8. If you pass the speed bumps and obstacles, be
sure to slow down.
9. When decelerating or braking, do not stop with
using foot, but stop with using brake appropriately.
10. Be careful that there is a risk of burns due to heat
from motor and brake (especially disk rotor) after
driving.
11. It is prohibited to drive with all the way by holding
thehandlewith one hand.
12. Do not ride ordrive when the kickstand is down.

06 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 07
Product structure
Product size
1180mm
460mm
1040mm
Footrest width 243mm
* Errors may occur depending on the measurement method.
1040mm
Standard
handle width
605mm
Footrest width 243mm
Unfolded Folded
NEW EY3
Brake leve
Handle grip
r
(+Electronic brake)
Motor system
selection button
Driving mode
selection button
Handle
Main power
switch
Rear suspension
Rear fender
QR lever
Rear light(Brake light)
Charging port
Front lamp
locking slide
Front suspension
Front fender
8" Solid wide tire
Front motor
Rear motor
Handle stem
Handle post(Steering tube)
Name of each part
Body frame
Main power switch
LED lamp button
Emergency light

08 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 09
Product components
Checking the components inside of the box
Top : Default battery charger(2A), Default tool, User manual
Bottom : Body(Lithum battery included)
Charger
Basic tool
LED Remote
control
Main body
User manual
Assembling of the instrument
panel, brake
-Locate the instrument panel and tighten
the fixing bolts.
-Adjust the position of the brake and
tighten the fixing bolts with a 5mm hexagon
wrench.
Make a note of the serial number.
The serial number can be used
to check information such as
date of purchase, warranty
period, etc., and product
information can be checked
even if the product is lost or
stolen.
(May vary depending on branch
office situation.)
Ejecting the productnumber.
Do not hold the handlebar only when lifting the
product from the box.
Please be careful that the fixing slide of the
folding part may be damaged, and a safety
accident such as a part of the body may be
caught.
Therefore, when lifting the product, it is
necessary to raise the handle bar first, and then
slowly lift the body (footrest) of the product with
both hands and do not damage the folding part
Caution
How to use the product
1) Productun folding
QR lever
QR lever
Finishing screw
Finishing screw
Locking slide
Locking slide
2. Raising handle post(Steering tube)
When unfolding the steering tube, raise
the handlebar while pushing the deck with
foot, and then lower the loking slide down
completely and tighten the right finishing
screws.
3. Fixing the folding part
When the QR lever is locked inward as
shown in the picture, the handle unfolding
is completed. If the folding lever is not
completely locked, a safety accident while
driving can be occurred. Before and after
running, always check if there is a play
in the folding part, and a folding part or
handle part, the bolt&nuts of all the fixing
parts of the product are properly tightened
and the fastened parts are not loosened.
1. Raise the handle post(Steering tube)
Release the QR lever, raise the locking
slide upwards, raise the steering tube,
then lower the locking slide downward.

10 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 11
Tip
2) How to start
After tilting the kickstand, find a stable
position on the footrest and then hold the
handle grip comfortably. Be careful not to
raise your foot on the rear fender.
Step3. Stance for driving
Acceleration can be performed by using
the throttle of the instrument panel while
driving, and the deceleration or stop can
be performed by holding the brakes on the
handle.
Rear fende
Step4. Acceleration and deceleration
r
Brake
Step1. Turning onthe Power Button
Before driving, be sure to check the folding part, the handle part, the part where the
main fixing part of the product
is fastened well. And check the position of the fixing slide,
the QR lever locking status and the folding part fixing status.
Throttle malfunction cautio
Step2. Setting proper speed gear.
n
Regardless of whether the throttle is operated or not, the motor sensor may continue to
operate, causing malfunctions such as sudden acceleration. In this case, holding the brake
lever to cancel the operation. This phenomenon may be caused by corrosion of the throttling,
immersion of the throttle, disconnection of the magnet, broken off levers, and breakage of
the spring. Do not bounce the throttle lever strongly.
Caution
LEDLampbutton
Accelerator
How to use the product
3) How to stop
Step1
Be sure to use the rear brake first for decelerating when stopping while driving. For safe stop,
it is necessary to practice slow down after deceleration with rear brake.
Rear brake use
Step3
Set the use and strength of the electronic
brake among the detailed functions of the
instrument panel before driving. When the
brake lever works, the electronic brake works
together to increase the braking force.
Deceleration and braking using
electric brake
Step2
•For safe braking, check whether the brake lever and disc caliper connection (wire damage, external breakage,
etc.) are damaged before and after driving, and check brake wear and looseness of brake inner core(Inner wire).
In the case of hydraulic brakes.
operated as expected. The electronic brake and EBS functions are auxiliary functions to further increase the braking
Check for safe brakin
• Due to various factors such as road surface condition and speed, it may not be possible to stop when brake is
force and used. The user should understand thefunction and expect the operation timing when use this function.
g
Tip

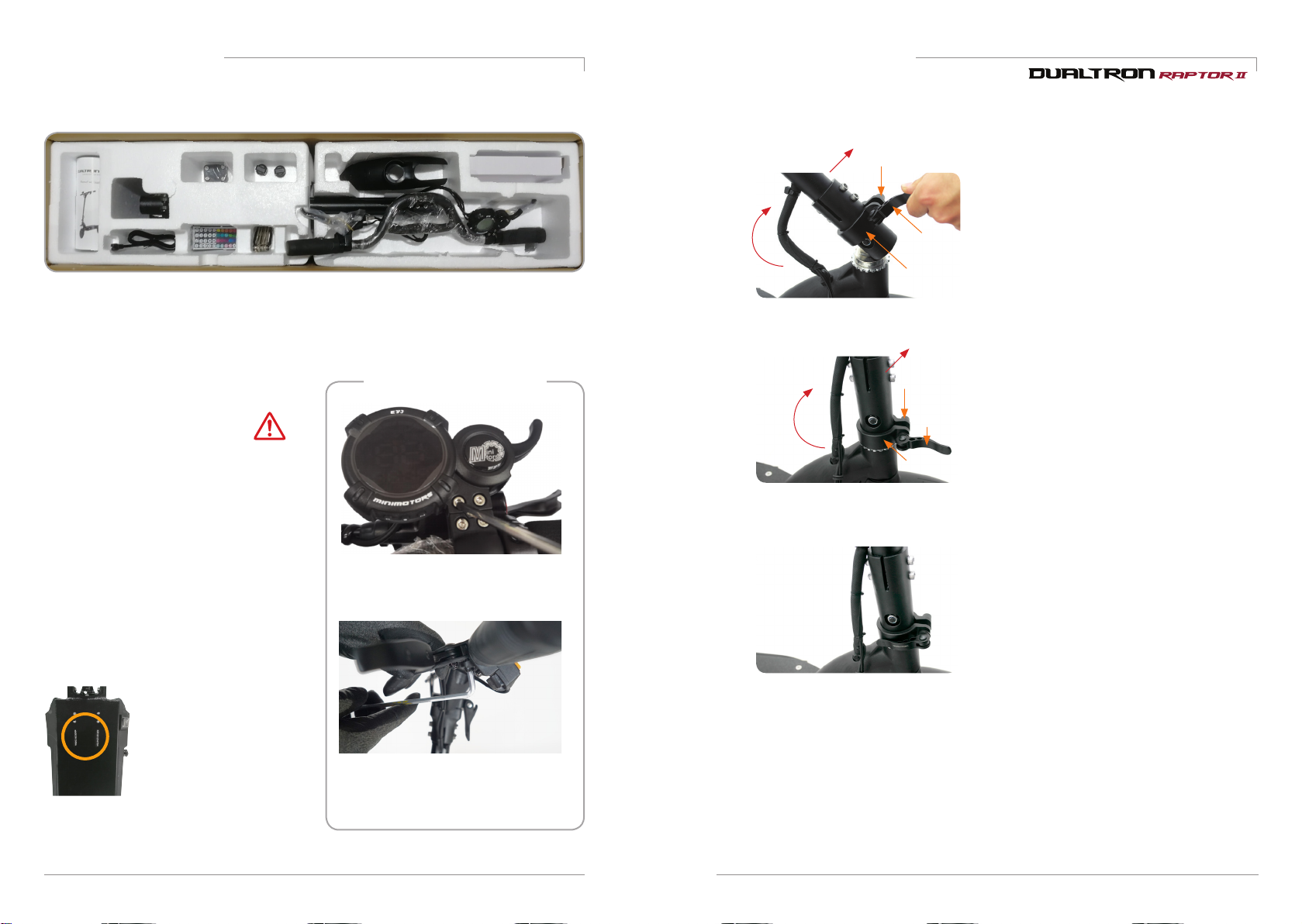

1. Releasing fixing folding part 2. Folding handle post 3. Fixing folding part
Unfold the QR lever
outwards and pull the
locking slide up, and then
lay the steering tube in the
direction of the arrow.
When folding the steering
tube, hold the post and lower
it toward the deck. Raise the
locking slide up and tighten
the right finishing screws.
Fold the QR lever inward
as shown in the picture
and fix it to complete the
product folding.
QR lever
Locking slide Steering tube

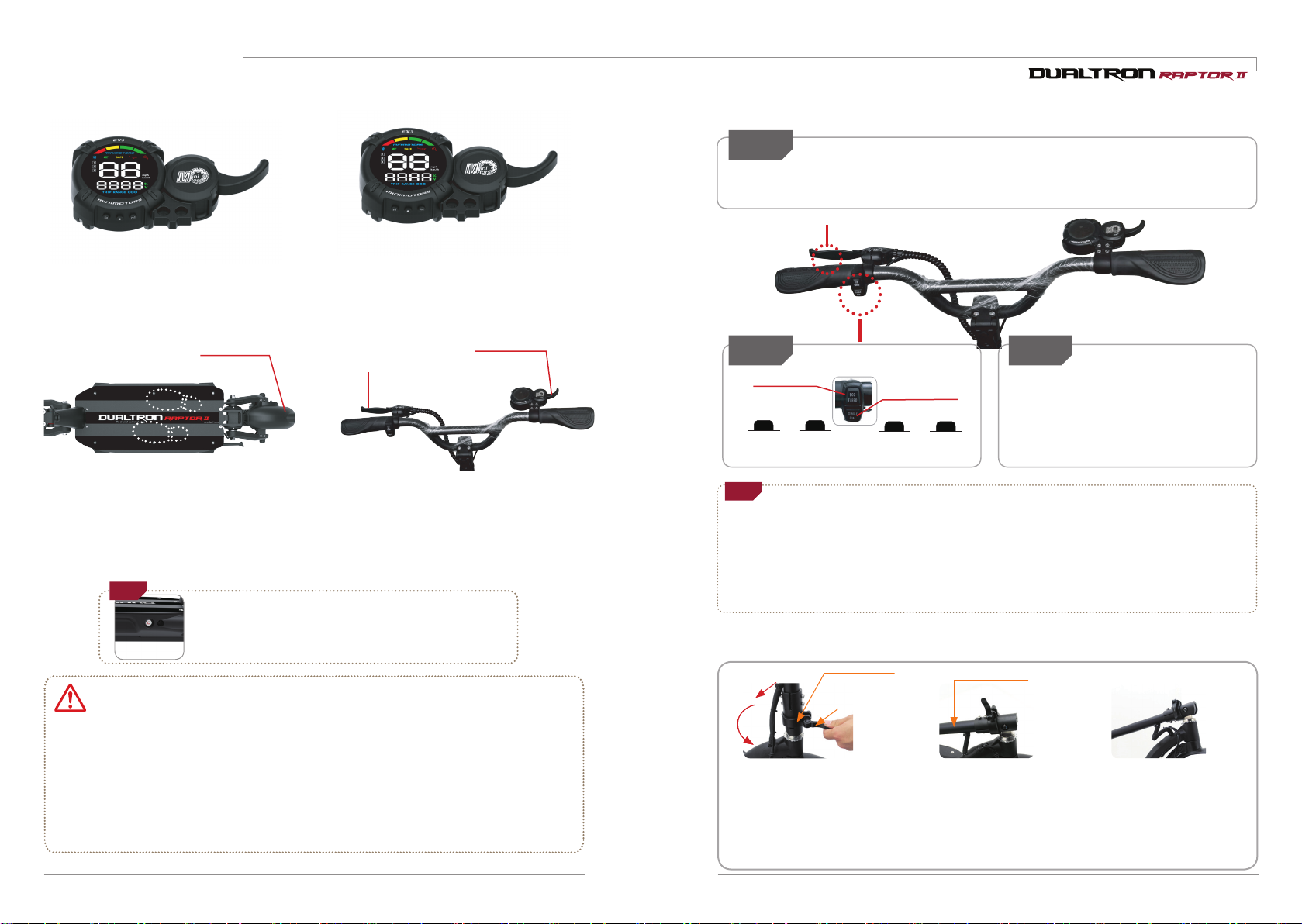

Drivingmodeandmotorsystemselection
4) Product folding
Motor system
Driving mode
Click
(Low speed)
Click again
(High speed)
ECO
TURBO
Unpressed Pressed
(Rear wheel
drive)
SINGLE DUAL
(Both wheel
drive)
When turning on the product, you can press
and hold the Power Button to turn on the
scooter.When driving is finished, press and
hold the Power Button to turn off the scooter.
Before driving,you can press the Power
Button to adjust the speed gear.
Checklist before turning on the product
Before turning on the product, turn on the power
with theLED lamp turned off .

12 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 13

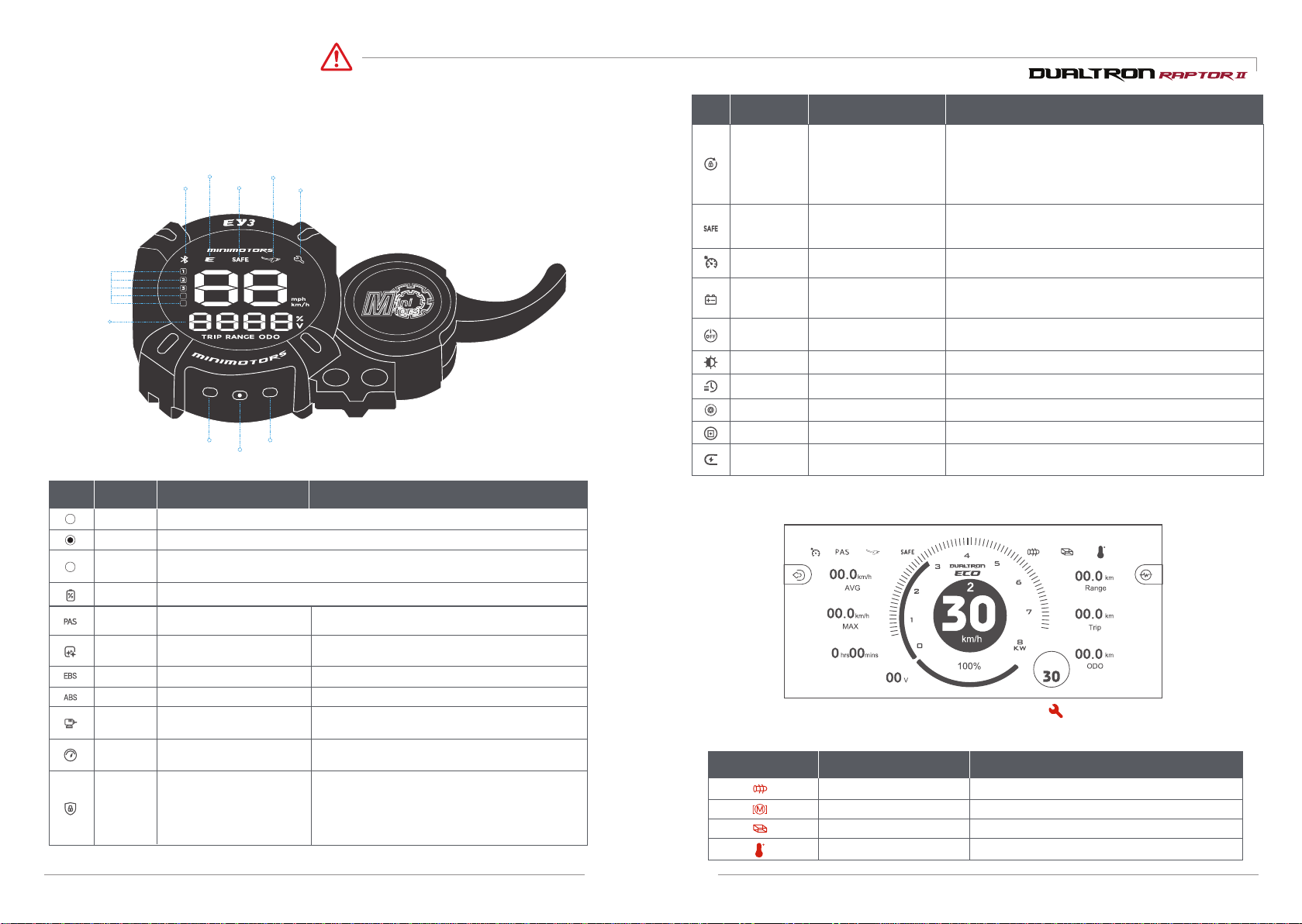

How to use the instrument panel Caution
Brake signal
Safe mode
Power button
Set button
Mode button
P
M
Error Symbol
EBS mode
Bluetooth
Battery
percentage
Gear
4
5
Dashboard
M
P
Symbol Name Meaning Description
Power Button
Set Button
Mode Button
Starting Effect
PAS
EBS
ABS
Battery
Save Mode
Speed Limit
Battery Display
1.Press and hold the Power button to turn on/off the scooter.
2.Press the button to adjust the speed gear.
1.Press and hold the Set button to enter/exit ECO mode.
2.Press the button to switch battery voltage/percent indication.
1.Press and hold the Mode button to enter/exit the mode setting,and automatically return to the main
interface after 30s.
2.Press the the Mode button to switch ODO/time indication.(Time defaults)
Powerfully start and gently
start selection.
EBS strength selection.
ABS function control.
Battery Save Mode set.
System speed control.
(Percentage of max speed)
The symbol displays the remaining battery power in battery bar.
Set in P4. 0 means function off and 1 means function on. The default is 0.
Set in P6.The parameter is adjustable from 5% to 100%,
and the default is 100%.
Set in P1 .When PAS turns on, PAS symbol will
appear in the LCD screen.
Set in P2."0" means the most powerfully start,it will have a strong impact.
"1" means 0.5s gentler start,"2" means 1s gentler start, and so on.
"5" means the gentlest start. The default is 2,1s gentler start.
Password protection.
(You need to enter the
correct password to drive.)
Protection
(Password)
Symbol Name Meaning Description
Change Password
Safe Mode
CCS
Prevent BMS CUT
Auto Power-off
LCD Brightness
Imperial/Metric
Wheel Diameter
Battery Voltage
Pole Pairs Motor pole pair number
of the scooter.
Reset a password.
Set in P13. Adjust from 0 to 5, the default is 5.
Set in P15. "0" means metric,it is km/h; "1" means imperial,it is mp/h.
The default is 0.
Different scooters have different default diameters.
They are set at the factory. Any modification is forbidden.
Different scooters have different default voltages.
They are set at the factory. Any modification is forbidden.
Speed unit selection.
Wheel diameter of the scooter.
Voltage of the scooter.
Different scooters have different motor pole pair numbers.
They are set at the factory. Any modification is forbidden.
Adjust the LCD backlight
brightness.
Throttle failure
Motor failure
Controller failure
Over-temperature protection
Please contact after-sales service or an authorized dealer.
Please contact after-sales service or an authorized dealer.
Please contact after-sales service or an authorized dealer.
Please try to apply heat dissipation for the scooter.
Error Symbol Possible causes Solution
Duration voltage
GPS
SPEED
New system of EY4 wide-screen LCD, only appears the the service symbol , when the scooter breaks down. In
this case, you need to check the APP to view the specific error code. The APP will display the following four error
symbols. When there is a fault, please contact after-sales service or an authorized dealer.
Common Failures and Solutions
Set in P8. Press the POWER to change the password. When the display shows
1, enter the initial password, press the POWER to confirm. And when the display
shows 2, please enter the new password, and press the POWER to confirm.At
this moment, the display will show 3, please enter the new password again and
press the POWER. Then the Password is changed successfully.
Note:The owner can connect to the APP directly without entering the password to
unlock the scooter and reset the password on the mobile.
Set in P9.When the scooter is turned on and stays in the static state for N
seconds (no operation, no speed), it will switch to the safe mode automatically.
In SAFE mode, this symble will appear on the screen. (N seconds ranges from
0 to 300 seconds. 0 seconds means SAFE mode is not enabled.)
Set in P10. Turn on/off the cruise control mode. Default OFF. (The scooter
maintains a fixed speed for more than 8s ,speed cruise work automatically)
Set in P11. Turn on/off Prevent BMS CUT mode. The default is off. When scooter
enter the ECO in this mode, the ECO can not be manually closed; if you want to
manually close the ECO in the current mode, you need to close the Prevent BMS
CUT mode first.
Set in P12. Automatic shutdown time Settings adjustable range from 1-30
minutes. The default is 5 mins. Note: When the scooter has no operation and no
speed, the timing starts.
Kick start,scooter cannot be directly
accelerated to start.(Default OFF)
Set in P3. 0-5 strengths can be selected, 0 is the weakest, no EBS
function, and 5 is the strongest. The default is 1.
Set in P5."1" means weak torque, about 50% of the maximum torque.
"2" means normal torque, about 75% of the maximum torque.
"3" means the maximum torque. The default is 2.
Set in P7. Press the SET button to switch ON/OFF, and click the
POWER button to confirm. If it is switched from OFF to ON, you need
to enter the original password. If the original password is entered
incorrectly, the setting is unsuccessful(The initial password is 0000).
Note: If the user has turned on the protection and the app is certified
as the owner, when the owner approaches the scooter,it can be
unlocked automatically.
Prevent the scooter from
starting when the accelerator is
accidentally touched.
Drive at a constant speed without
stepping on the accelerator or brake.
When battery capacity less than
20%, scooter enters ECO mode
automatically.
Auto shutdown when the EY4
is not operated.

14 Dualtron raptor 2 User Manual
Dualtron raptor 2 User Manual 15

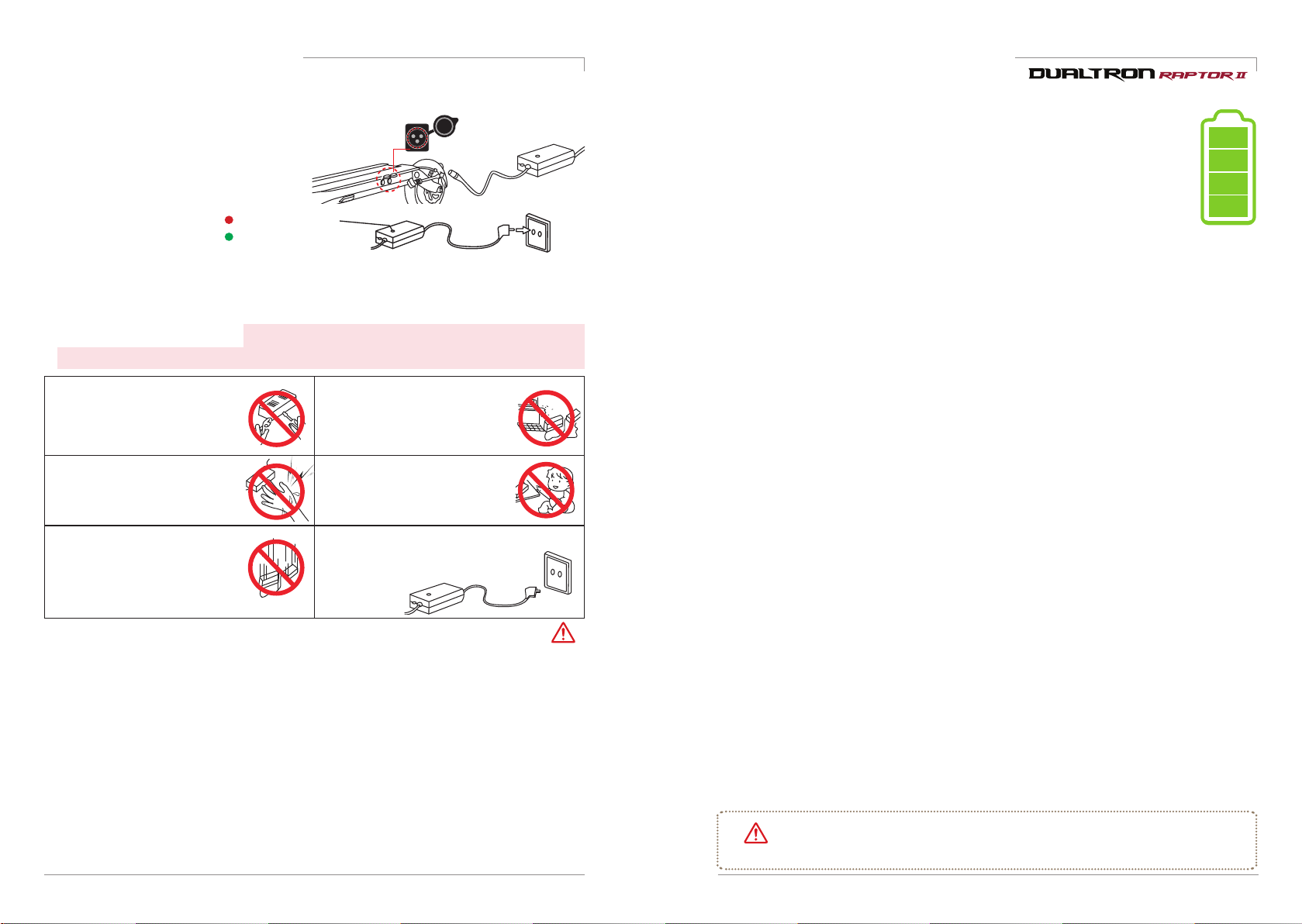

Safety precautions for Lithium battery
Lithium
Battery disassembly prohibited
Battery disassembly, modification andrepair arenotcovered under warranty.
Danger
1. Care
Lithium batteries should be protected from direct exposure to children and pets.
2. Performance
①Lithium battery is affected by external temperature. In winter, when
the temperature is low, the performance of the battery is temporarily deteriorated and
themileageand power output is reduced.
②Lithium battery has a characteristic that discharge performance is reduced by more
than 15% when charging / discharging 300 times or more. If usage time is shortened
due to long usage, it should be replaced with a genuineonethrough the nearest point.
3. Charging
①Lithium battery should be used only with genuine battery and charger
supplied from the manufacturer. Any problems caused by use of battery made by the manufacturer,
mixed use, or using the chargerarenot covered bythe manufacturer.
②Charging thelithium battery with a non-genuine charger may cause malfunction or fire.
③The lithium battery should be charged in a well-ventilated, dry place and around the charger in a
place where there is no inflammablematerial.
④Lithium battery should be charged at 0 ~ 45 ℃and discharged within -10 ~ 60 ℃. Charging or
discharging at a temperature outside this range may cause malfunction, fire or explosion.
⑤In case of moving from cold outside to warm indoor, please charge it after 1 ~ 2 hours. This is to
prevent condensation from occurring insidethe product dueto temperaturedifference.
4. Storage
①Lithium batteries should be kept away from snow, rain and direct sunlight. Do not store or
charge them in a trunkorhot room. Select a dry placeandstoreat room temperature (10 ~ 20 ℃).
②When storing for more than 3 months, charge the remaining battery level to 70 ~ 80% (do not
storefull charge).
5. Trouble symptom, safety
①Lithium battery should be discontinued immediately if it is damaged
or leakage of battery, sour odor, appearance deformation, etc., and contact the place of purchase to
get technical support and service.
②If overheat, smoke or ignition is detected in a product with lithium battery, immediately stop
charging and use, move the product outdoors as soon as possible, and then use a fire extinguisher
to evolve. Do not spray water or immerse the productin order to evolve, which is more dangerous.
③Lithium battery pack has very high energy density, so if you charge the battery for a long time
in case of short-circuit, leakage, bad battery, etc., there is a possibility of ignition. Therefore, you
should avoid charging for a long time without a person, and charging must be done while the person
is aware that the risk of unexpected fire can be avoided.
6. MisuseIf
the lithium battery is short-circuited or the polarity is changed, or if the battery is
impacted, malfunction or fire may result. If you think that the battery has been impacted, you should
stop charging and using it and visit thenearest point for inspection.
7. Water inflow
It should be controlled to prevent water inflow into the lithium battery. There is a risk
of fire or electric shock if the charger is connected while moistureis present.
8. Caution
Disconnect the battery from the main unit and prohibit recharging, reinstalling, or using
other applications.
9. Disposal
DisposalWhen disposing of the lithium battery, the battery should be separated from the
product at the point of purchase ornearthepoint so that the charge and discharge terminals are not
short-circuited. Disposeof it as industrial waste when disposing of it.
2) Basic charging method *Failure of the charger and abnormal conditions can cause
electric shockandfire. Learn thecorrect usage and prevent safety accidents in advance.
5. If the charger lamp does not light,
charger fall, strong external
shock, long time charge, or cable
cover damage, discontinue use
immediately and contact the service
center.
6. Unplug the charger when you are away from
the home for long periods of time.
1.Manufacturers and sellers are not
responsible for any problems
arising from any disassembly,
modification, or mixing with other
chargers.
2. The charger is forbidden to be used
in places subject to high humidity,
heat, flammable materials,
confined spaces, or where there
is no ventilation such as in a car.
3. The charger is not waterproof. It is
thoroughly controlled to prevent
moisture from entering the
charger.
4.Children and pets should not be
allowed to approach the charger
when they come into contact
with them, as they may cause an
electric shock.
7. Use only genuine charger.
8.Do not insert conductors into the charging port.
9. Do not touch the plug for about 10 seconds after unplugging the charger. There is a risk of
electric shock from instantaneous discharge.
10. Do not remove the terminal during charging. Charge the internal circuit of the charger and
cause malfunction.
11. Do not operate the product during charging.
12. Charging terminals should be firmly contacted during charging and should not be used if
terminals are corroded or damaged.
13. When disconnecting the charger from the product, it is safe to hold theterminal without holding thewire.
1) Basic charging method
1. Open the chargingport cap and connect
it to the connector of the charger and
connect it to the household outlet.
3. Be sure to close the chargingport cap when driving or storing except when charging.
4. When connecting the connector to the charging port, metallic sparks due to voltage
difference may be splashed, but this is normal
How to use a charger correctly
2. Charging status indicator
Charging port
(Red) Charging
(Green) Charging complete
Warning

16 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 17

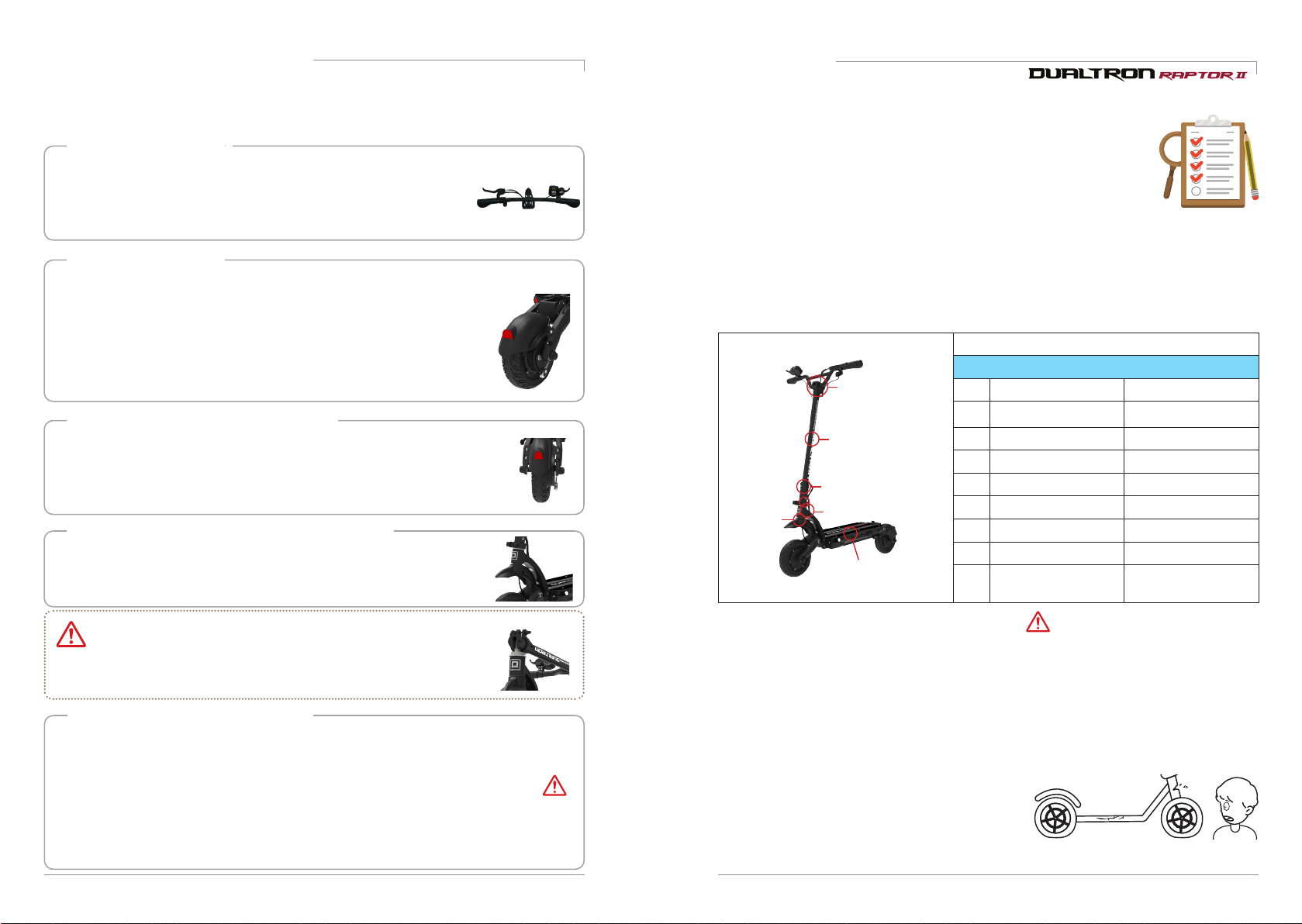

Maintenance
1. Check the replacement timing of consumable parts
CHECK LIST
2) Maintenance and self-maintenance
Electric products can be damaged by various factors. The life span of each part
varies depending on driving habits and driving environment. Parts that exceed the
service life may cause accidents. Let's manage various parts and prevent safety
accidents in advance.
※The rubber inside the rubber suspension is cured as the consumable parts are used, and the
performance of the suspension is slightly reduced because of the reduced elasticity.
2. External damage inspection by driving environment
①Replace parts that may be damaged by external driving environment, such as deformation of
parts, cracks due to compression, and signs of exceeding fine gold or life expectancy.
②If the product is exposed to strong sunlight for a long time, discoloration may occur.
③In case of heavy driving such as normal jumps, slight impacts such as turning, collision, etc.,
when driving frequently or for a long time in a poor road condition or driving for thousands
of kilometers or more, fatigue breakdown phenomena Please check and replace the parts
replacement schedule for each product for safety.
④Fatigue breakdown and maintenance parts may
differ from the example conditions depending
on the driving environment and the operating
conditions. Also check parts other than the
replacement cycle (maintenance parts) at all times to check for any signs of abnormality.
Fatigue failure parts and maintenance parts replacement cycle
DUALTRON RAPTOR 2
No. Parts name Replacement cycle / km
1 LOWER HINGE 2YEARS / 7,000
2 HIGHER HINGE 3YEARS / 20,000
3 HINGE BOLT 1YEAR / 5,000
4 STEERING TUBE 3YEARS/ 20,000
5 HANDLE STEM 3YEARS / 20,000
6 LOCKING SLIDE 2YEARS/ 10,000
7 BATTERY 2YEARS / 20,000
8 Other chassis
components
If the exterior is
damaged or deformed
⑥① inside
⑦ inside
③
②
④
⑤
Caution
①The components and suspension parts of the car swing arm, tires, tubes, wheels, bearings,
headset bearings, discs, brake pads, cables and folding parts, various brackets and other
consumable parts requiring periodic inspection and always check.
1) Required checking before use
Safety guidelines before driving
Danger
• Check the front and rear tires for wear and punctures and check the proper air pressure
(45 to 50 psi) for the tire. When the shortage of air is shortened, the possibility of
puncture increases, so check always.
• It is necessary to judge the replacement time by observing the appearance of the tire
such as tire damage, uneven wear.
3. Check tire pressure and uniaxial condition
• The brake braking force is sufficient to check the operating condition. If the braking force is significantly
lowered, use it immediately after inspection and action.
• Check that the brake pad is not worn, that the cable is not loose, that the cable is not
damaged, or that there is no leakage in the case of hydraulic brakes.
• If there is an unusual feeling or noise during operation, check for breakage, wear and
deformation of the inner wire of the brake cable.
• Check that the bolts and nuts of the brake fixing parts are not loose, and that the disc
is not deformed or damaged.
2. Check brake and cable
1. Check throttle and handle
• Operate the accelerator throttle lever about 2 ~ 3 times to check whether it returns
to the home position.
• Be careful that excessive throttle leaning and manipulation of the throttle can cause
malfunction due to internal parts damage.
• Check the fastening condition and clearance of the QR lever on the handle.
• Make sure that the bolts and nuts of all parts of the product are tight and free from
loosening. Check the fastening condition and clearance of the folding and fixing
parts of the handle (QR lever, fixed slide, hinge center bolt, headset nut, swing
arm, etc.).
4.Tightening check such as folding part and handle part
*If there is a folding clearance,
If there is a folding clearance, it can be adjusted with a tongue bolt. However, if
you pull it too hard, it will become stiff without a gap, but it may sound 'crackling'.
In this case, if you adjust the tune bolt properly, the noise disappears and the
clearance is also adjusted.
If you encounter any of the following situations while driving, stop driving immediately and
contact your nearest branch or service center for proper measures. If you provide pictures and
videos to get accurate diagnosis, professional counseling is available..
●Unusual heating of the motor
●Brake braking status error
●Error messages on the instrument cluster
●When the throttle is returned to its original position
* In this case, stop driving immediately.
Danger
●abnormal noise is generated
●Product smoke, ignition, sour odor
● When rain or wet with water or in a similar situation
●When other driving is judged to be unreasonable

18 Dualtron raptor 2 User Manual Dualtron raptor 2 User Manual 19
1. Brake adjustment method
As you continue to use the drum brakes, the brake pads become worn out and the gap between
the pads.
Important notice
3) Maintenance by self-maintenance
* Metal vibration may occur due to motor vibration, vibration of the brake disc and pad
during the load section that accelerates during driving. (About 15 ~ 30Km, different for
each product)
This is a phenomenon in which all revolutions (fans, automobiles, ships, etc.) are
vibrating at a specific rotational frequency (rpm) rather than the product. However, if the
continuous noise or metal noise is large, there is a possibility that the disk is bent and
deformed.
* Please note that after running, there is a risk of burns due to the heat on the motor and
brake (especially disk rotor) side.
* Remove the side cover for checking and repairing lights, charging sockets, power
switch, etc. When assembling, fasten the product with a standard bolt. Be careful of the
sheath of the wiring when tightening. When tightening with a bolt other than the rule bolt
(long bolt)
The battery casing (battery cell) is critically damaged, causing a fire or safety accident.
※Folding parts and joints where movement occurs due to product characteristics can naturally damage
surfaces or painted surfaces during use, especially when operating in incorrect motion and shape.
Important notice
If the braking force drops, use a hexagon wrench to loosen the
brake wire bolt tight it.
If the brake lever too hard, we loose the nut
2. Variable rear rubber suspension system (patent pending) adjustment
Designed by MINI Motors, 5-step adjustable rubber suspension system allows you to adjust the
suspension strength with rubber cartridge replacement (5 steps).
1. Remove the rear fender with a 3mm hex wrench,loosen the 12mm(motor sider),12mm(swing arm
side) nut, and then loosen the nut to remove the suspension arm.
2. Adjust the rubber cartridge replacement, and desired suspension strength.
■
Rubber Replacement (5th Stage): Replace Cartridge (Adjust height by weight)
Loosen both nuts with a wrench, loosen 3mm bolts and remove. Replace the cartridge
when it is missing.
(It can be changed depending on weight and taste)
3. Align both suspension arms to the desired angle and reassemble using Loctite (screw lock).

20 Dualtron raptor 2 User Manual
21
MEMO
Product Name DUALTRON RAPTORⅡNote
Motor
900 W BLDC DUAL HUB MOTOR
Battery type
Li-Ion battery pack
Battery capacity
Charging time (2A
60V 14Ah 840Wh
)
When using standard charger(2A7hr )
Maxmileage 75±5kg load, 25km/h flat road continuous ridin
45km g
Max Speed Around 25km/h
Speed adjustment function on the throt-
tle display. Single, Dual mode seletion
on the handlebar.(Single, Dual motor
selection function)
Folding
Handleposttwo touchdoublefolding Patent pending
Gradeability
Around 60% (30˚)
Weight,roadcondition,batterystatus,tem-
peraturecanaffecttothe gradeability
Max load
100kg
Product weight
Around 22.6kg
Unfolding size
1040 x 605 x 1180mm Length x Width x Height
Folding size
Length x Width x Heigh1040 x 605 x 460mm t
Dashboard
Ligh
New EY3 display(DUALTRON
APP available)
tDual LED lamp,
brake lightis built in DC to DC converter is built in(12V 3A output)
Brake Rear Drum brake and electric
brake (Front & Rear)+ABS Commonuseforfrontandrearwheel
Suspension
Rear-5 kinds of rubber cartridge
replaceable design
Rubber cartridge normal is applied by
default(Soft, medium soft, Hard, Medeum
hard cartridge are optional / Patended)
Tire
8” Solid wide tire
Product material
Frame and handle: Aviavion aluminum forging alloy, 6082-T6,
Shaft: SCM440, Covers: Polypropylene
*The specification can be changed by manufacturer without notice to improve the quality and safety for users.
*The distance can be affected by loaded weight, wind direct (wind speed), road condition, slope
and tire condition.
Dualtron raptor 2 User Manual

DUALTRON RAPTORⅡ
Electric Scooter
User Manual
ZHEJIANG DUALTRON ESCOOTER CO.,LTD.
No.111 Dengsheng Road Lanxi Economic
Development Zone Jinhua Zhejiang China
