DURACELL EV (1P-T)
INSTALLATION GUIDE
Version 1.0

Page 2 of 33
Contents
1 Safety and Warning.......................................................................................... 3
2 Introduction ..........................................................................................................4
2.1 Technical Specifications............................................................................................4
2.2 External Structure......................................................................................................5
2.3 Package Content ......................................................................................................6
3 Installation Instructions ........................................................................................ 7
3.1 Installation Preparation ............................................................................................7
3.1.1 Required Tools ................................................................................. 7
3.2 Installation Process ...................................................................................................7
3.2.1 Installation Notice........................................................................... 7
3.2.2 Checks before starting the installation process .........................................8
3.3 Installation Procedure ................................................................................8
4 Electrical Connection.......................................................................................... 10
5CT connection for DLB & Solar integration ......................................................... 11
6 EV Charger App ...................................................................................................13
7App Registration ..................................................................................................15
7.1 Register the homeowner on the PureCharger app.............................................15
7.2 Load balancing set up ............................................................................................22
7.3 Register the homeowner on the Duracell app...................................................23
7.4 Charging operations on PureCharger App .........................................................26
7.5 Charging with RFID Card .......................................................................................27
8 Configuration and Operation .............................................................................28
8.1 Checks before Power-on ...........................................................................28
8.2 Power-on status checking ........................................................................28
8.3 Charging Operation .................................................................................29
9 Troubleshooting ..................................................................................................30
9.1 Indicator status ........................................................................................................30
9.2 Error code and resolutions.....................................................................................31

Page 3 of 33
1 Safety and Warning
Save these instructions. Read all instructions before installing or using the charger.
1. Keep the charger away from explosive or flammable materials, chemicals, vapours, and
other hazardous objects.
2. Keep the charger socket clean and dry. If it gets dirty, please wipe it with clean, dry cloth.
3. Touching the socket core with fingers or foreign objects is strictly forbidden when the power
is on.
4. Do not use the charger in case of any device defects, crack, abrasion, bare leakage and so
on. Please contact the professional personnel if any of these conditions occur.
5. Do not attempt to disassemble, repair, or refit the charger. If necessary, please contact the
professional personnel. Improper operation will result in device damage, electric leakage,
etc.
6. If any abnormal condition happens, please immediately cut off all input and output power
supplies.
7. Please ensure the charger is not in use and protected in case of lightning and
thunderstorms.
8. Keep children away from the charger.
9. During charging, do not drive the EV. Charge only when the EV is stationary. For hybrid
cars, charge only when the engine is switched off.
10. Our packaging materials are environmentally friendly and can be recycled. Please put the
packaging in applicable containers to recycle it. Do not dispose of this device with
household waste. It should be taken to a suitable facility for recycling electrical and
electronic devices. For more detailed information about recycling this device, please
contact your local city/town council office or your household waste disposal service.
RED Declaration of Conformity
Puredrive Energy Ltd hereby declares that the product is in compliance with essential
requirements and other relevant provisions of directive 2014/53/EU, ETSI EN300 328 V2.2.2
(2019-07), ETSII EN 300 330 V2.1.1 (2017-02), ETSI EN 301 489-1 V2.2.3 (2019-11) & ETSI EN 301
489-3 V2.1.1 (2019-03). The original EU Declaration of Conformity may be found at:
https://duracellenergy.com/.
The input and output voltages of this device are high voltage, which
threatens the safety of human life. Please strictly observe all warnings on the
device and user manual. Unauthorized and non-professional service
personnel are forbidden to remove the cover of this device.

Page 4 of 33
2 Introduction
2.1 Technical Specifications
Product specification
Duracell EV (1P-T)
Electrical
Parameter
Power Supply Single Phase
Rated Power 7.4kW
Rated Voltage AC 230V ± 20%
Rated Current 32A
Frequency
50Hz/60Hz
Charging Mode
Mode 3 (EN/IEC 61851-1)
Charging Connector Type IEC 62196 Type 2 (Tethered)
Standby Power <1W
Status Indication 3 Coloured LED (Red, Yellow,
Green)
Mechanical
Parameter
Dimensions (H x W x D) 341 x 250 x 85 mm
Weight 3.2 kg
Cable Length 4m
Unit Material
ABS
Operating Temperature -30˚C ~+ 50 ˚C
Operating Humidity 5% ~ 95%
Communication
Communication W-Fi 2.4GHz, Bluetooth
(optional), RFID
Protocol OCPP 1.6 JSON (OCPP 2.0
Optional)
Safety
RCD 6mA DC Protection
Ingress Protection IP55
Flame Retardant UL 94V-0
Certification
CE, UKCA, EN/IEC 61851-1: 2017,
EN/IEC 61851-21-2: 2018, EN/IEC
61000-6-1:2019

Page 5 of 33
Electrical Protection
- Over current protection
- Residual current
protection
- Ground protection
- Surge protection
- Over/Under voltage
protection
- Over/Under frequency
protection
- Over/Under temperature
protection
Warranty
3 years

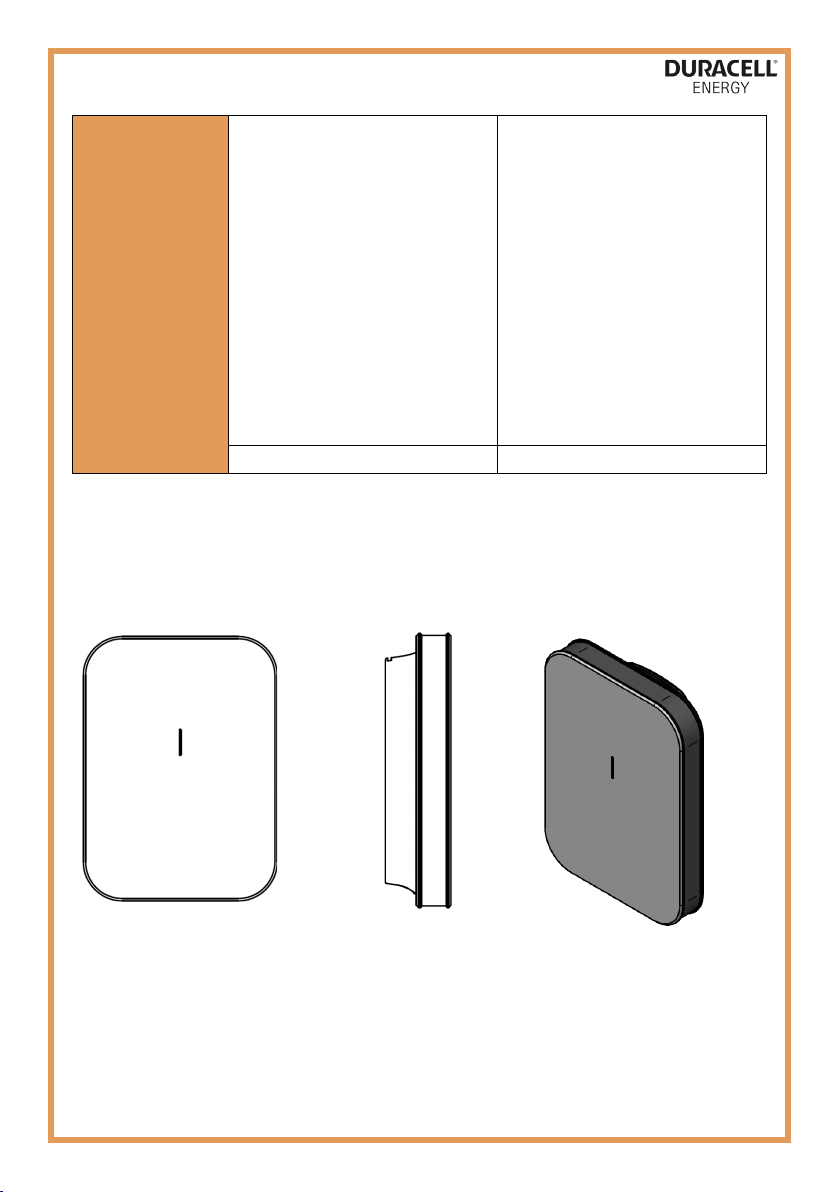

2.2 External Structure
180 mm
38 mm
324 mm

Page 6 of 33
2.3 Package Content
User Manual
(x1)
Ø 6 Expansion
Pipe (x6)
M4*32 Screw
(x6)
Mounting
Template (x1)
Duracell EV (1P-
T) Charger (x1)
M4 Wrench (x1) Sealed Cap (x1) Insulated
Terminal (x3)
CT Clamp (x1)

Page 7 of 33
3 Installation Instructions
3.1 Installation Preparation

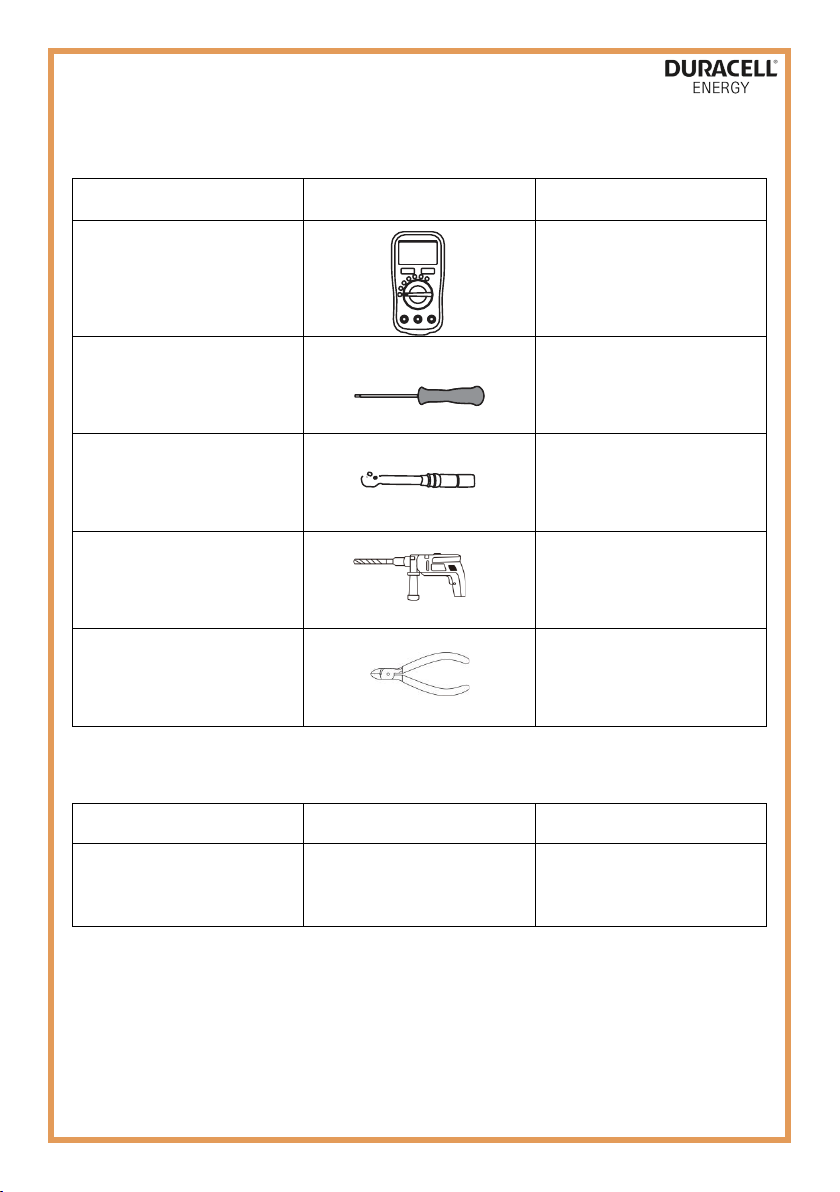

3.1.1 Required Tools
Tool Name
Function
Multimeter
Check the electrical
connection and electrical
parameter
Phillips Screwdriver
(PH2x150mm, PH3x250mm) Tighten the screws
Insulated Torque Wrench Tighten the bolts
Electric Drill Hole in the wall
Diagonal Pliers Cut cables
3.1.2 Recommended Cables
Name
Specification
Quantity
EV Ultra Cable 6.0mm 3 core + CAT5 Data
PVC
Depends on the Installation
requirement
3.2 Installation Process
3.2.1 Installation Notice
a. Electrical devices should only be installed, operated, and maintained by qualified
personnel. No responsibility is assumed by the manufacturer for any consequences arising

Page 8 of 33
out of the use of this device. A qualified person is one who has certified
skills and knowledge related to the construction, installation, and operation of this type of
electrical device and who has received safety training to recognise and avoid the hazards
involved.
b. All applicable local, regional, and national regulations must be applied when installing,
repairing, and maintaining this device.
c. This charger is integrated with an internal 6mA (DC) RCD, please install a Type A or Type B
breaker externally.
3.2.2 Checks before starting the installation process
a. Ensure that the location of the charger is convenient for operational access for normal use
and maintenance.
b. The AC input components within the premises’ s power supply are correctly fitted with
required protection items prior to installation of the charger.
3.3 Installation Procedure

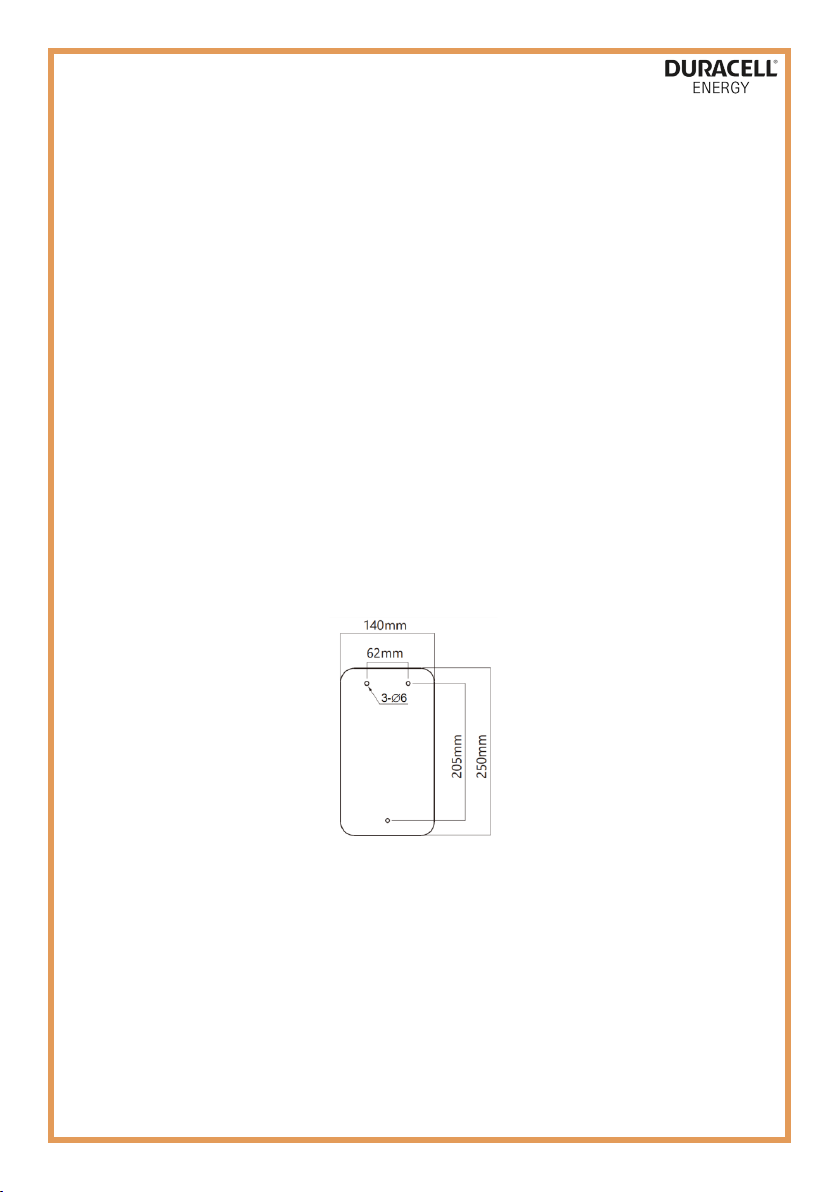

a. Based on the profile of the attached mounting template, drill 3 x Ø 6 x 35 mm holes in the
wall and insert the expansion pipe.
b. Lock the 2 x M4x32mm self-tapping screws into the expansion pipe, leaving a 5mm space,
between the screw head and the wall.
c. Open the front cover of the EV charger, hang it on the 2 M4x32 mm self-tapping screws,
lock it into the bottom M4x32 mm self-tapping screw and then cover the sealing cap.

Page 9 of 33
d. Connect wires to the connectors (refer to Section 4.3), close the upper cover, and lock it
with 2 M4x12mm screws.
3-M4*32 SCREW
Ø6 EXPANSION PIPE
SEALED CAP
2-M4*12 SCREW

Page 10 of 33
4 Electrical Connection
Note: Before inserting the power supply cable, cut the silicon-sealed loop as required to maintain the
IP55 rating.
a. Remove a length of 40mm of the cable jacket and strip the wire insulation to a length of
8~15mm.
b. Crimp the terminal as shown in Figure 1 below.
c. Terminate the connections as shown in Figure 2.

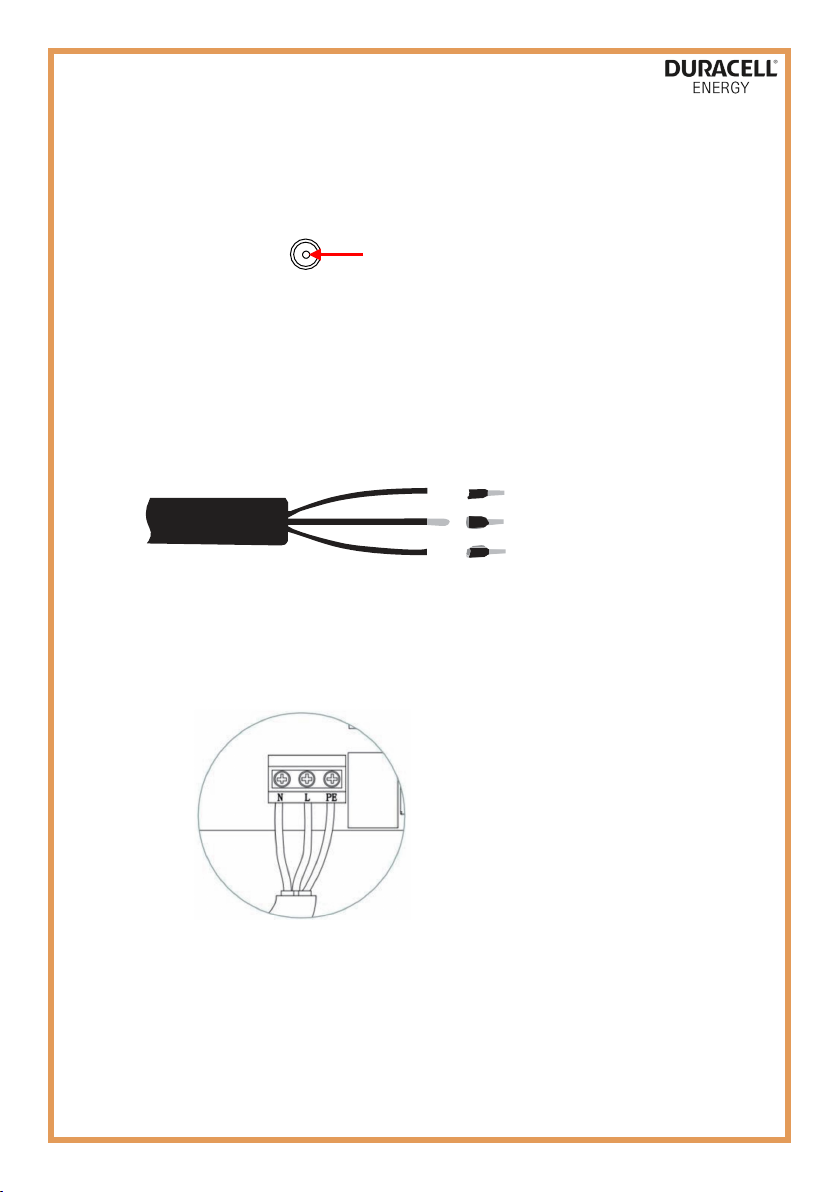

Cut along this circle
Figure 1: Single-Phase Cable
Figure 2: Single-Phase connection

Page 11 of 33
5CT connection for DLB & Solar integration
a. Screw in the CT wire (red and white) into the provided connector as shown below. Ensure
the red and white are terminated as below.
b. Insert the terminal block into CN13 (CT2) of the main PCB Board.
LED PCB
Connection
CT Connection

Page 12 of 33
c. After the CT is installed, Dynamic Load Balancing can be setup on the App.

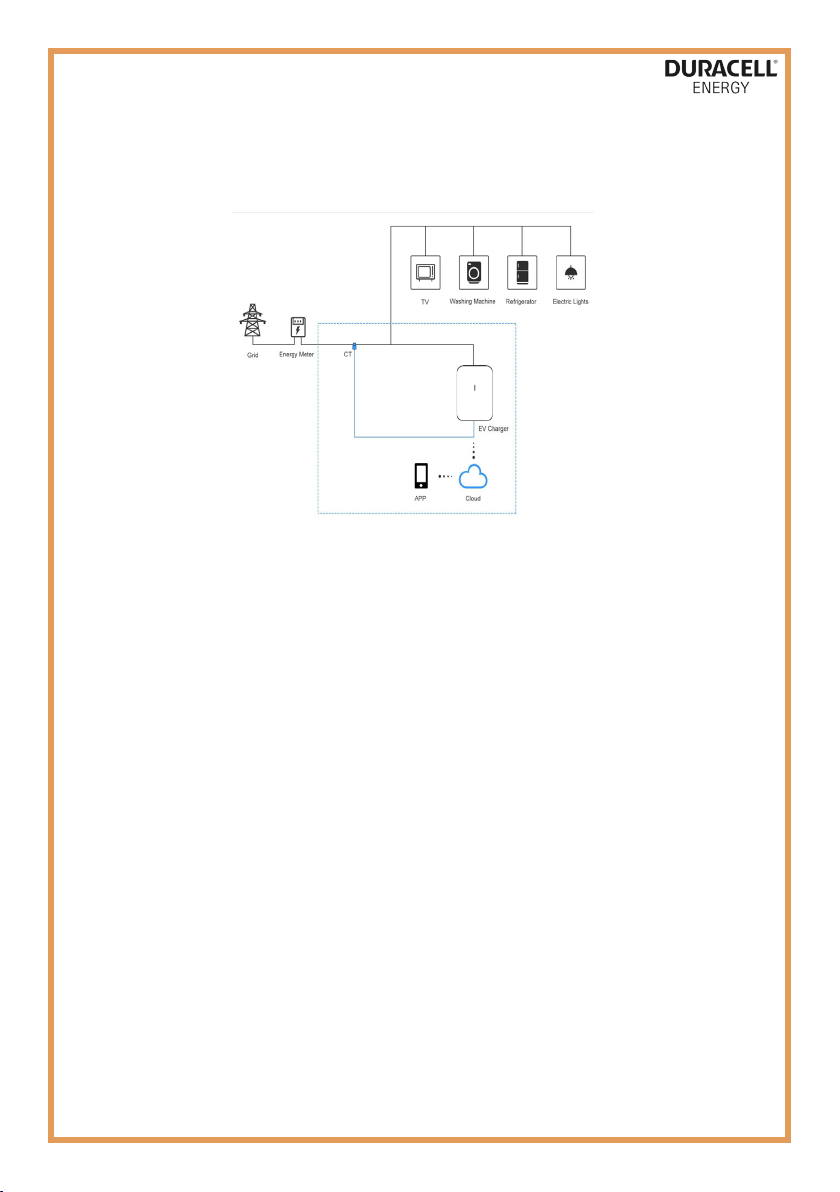

CT Connection Diagram (Single Phase Charger 7kW)

Page 13 of 33
6 EV Charger App
There are two different apps you need to download for your charger. Download these on the App
store or Google play store. Scan the shown QR codes to download the app.
PureCharger app:For the installer to set up the charger.
Duracell app:For the user, please download this Duracell app to operate the charger.
Apple
Android
Apple
Android
DISCLAIMER: QR CODES WILL BE
AVAILABLE UPON APPLICATION
LAUNCH

Page 14 of 33
PureCharger
Duracell Energy

Page 15 of 33
7App Registration
7.1 Register the homeowner on the PureCharger app
Use the PureCharger App to register the EV charger, the RFID cards, and to set up the dynamic
load balancing.
Download the PureCharger App from the App store
Sign up with the homeowner’s phone number to
register the EV charger
Confirm that your Bluetooth and location services are
turned on for the App

Page 16 of 33
Select user
Please select the
available charger
Charger
Management
Wait for Charger
to appear

Page 17 of 33
Please confirm the serial
number on the side panel
of your EV charger
Please open your
phone’s Wi-Fi setting

Page 18 of 33
Once you have successfully connected to the Charger’s Hotspot, please open the PureCharger app
and follow the next steps.
Please type in the
provided Pin Code
Connect to your
Charger’s Hotspot. This
is usually the serial
number of your
Charger
Password:
admin123

Page 19 of 33

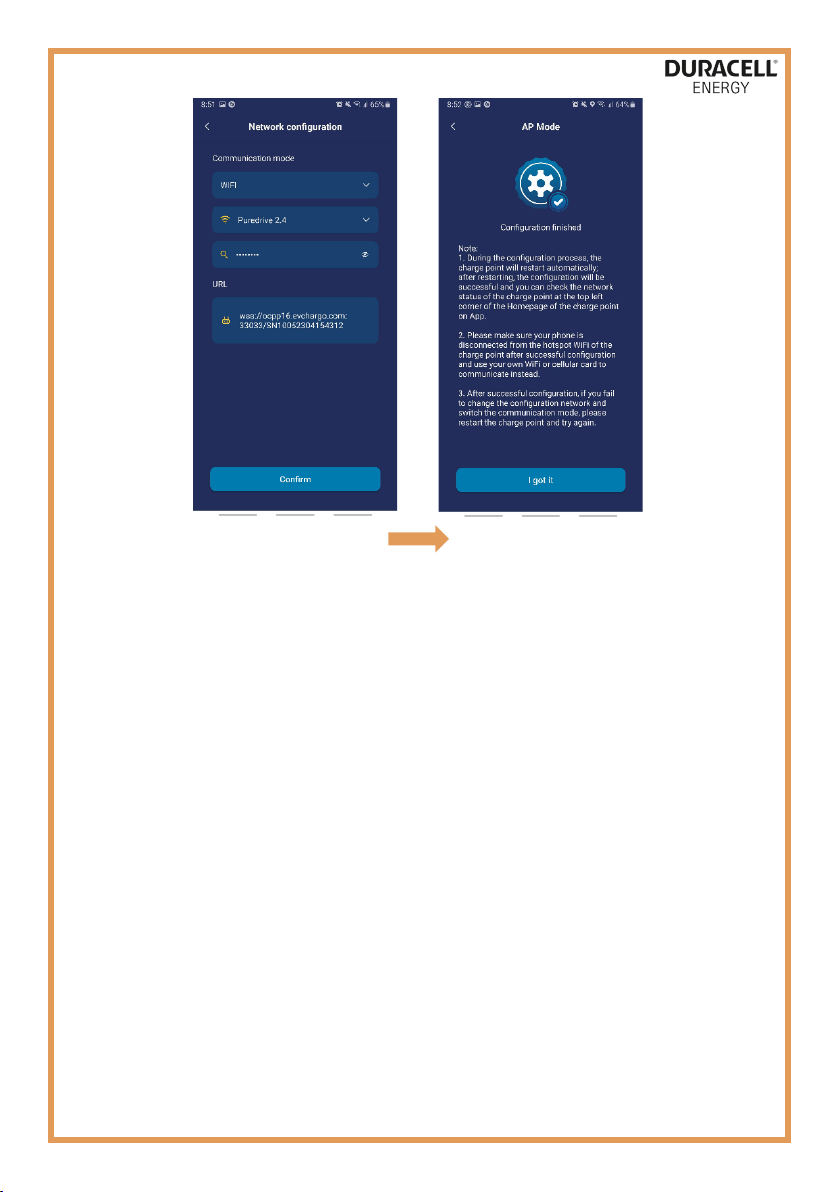

Complete the Wi-Fi
setup
Configuration Finished!

Page 20 of 33

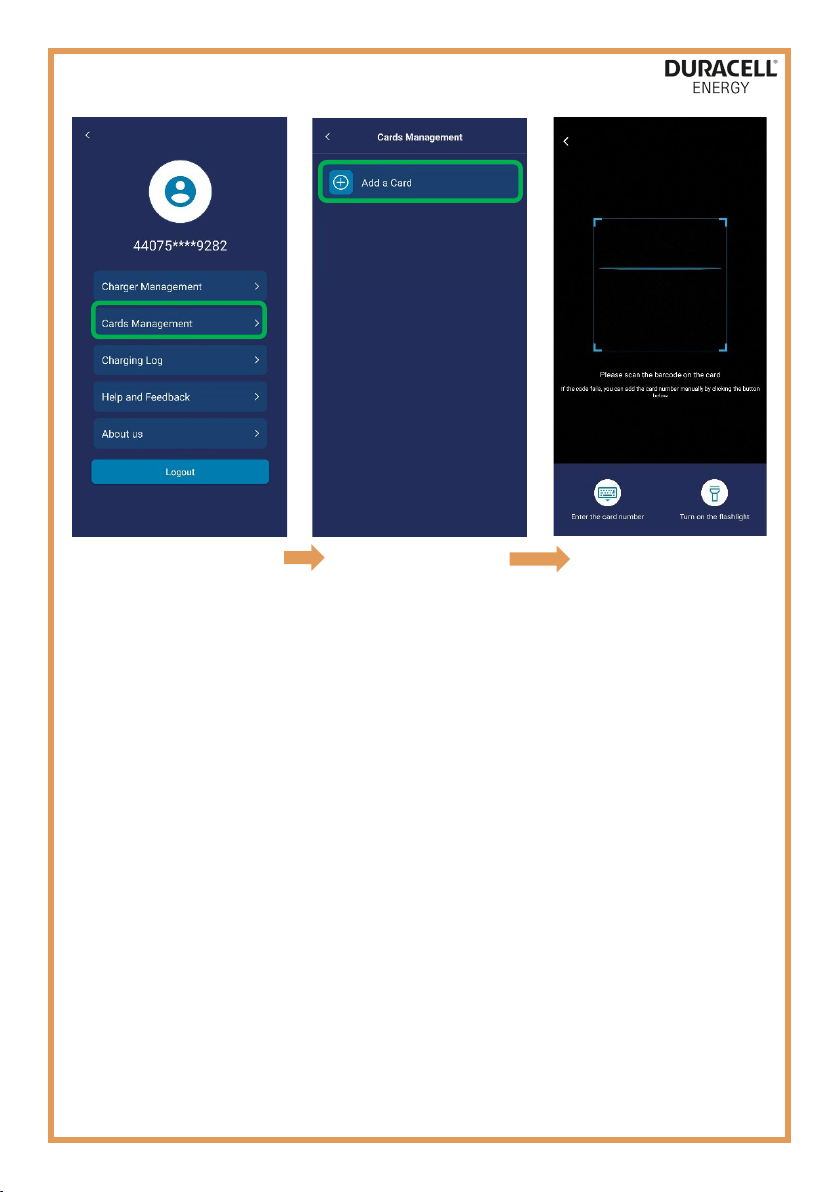

Scan the barcode on
your card
Select Add a Card.
To register your RFID card,
select
Cards
Management
