Pre-installation_Product Information 1
Placeofinstallation
Check the width of the doors to ensure that the bathtub will fit •
through and into the bathroom.
There must be no floor heating below the bathtub.•
The floor must be absolutely flat and horizontal.•
I n s t a l l• bathtubswithpanellingafter tiling.
I n s t a l l• bathtubswithoutpanellingeither before or after tiling.
• Whirltubs:depending on the combination of bathtub and whirl-
system, system components might protrude beyond the rim of the
bathtub. This is why we recommend installation in a bathtub casing.
Toleranceswithacrylic:• as a result of the manufacturing process,
deviations from the specified nominal dimensions are possible within
the scope of the tolerances as per DIN 198. Please take this into
account during planning.
Inspectionopeningsandventilationgrates
Tilingthebath
Provision must be made for the following inspection openings:•
Outlet and overflow fitting 200 x 200 mm•
Aggregates 500 x 500 mm•
For the position, see chapter “Whirl systems product information”.•
Whirl tub or bathtub with coloured light: for the air supply, allow an •
opening with an area of approx. 15 cm2 (e.g. 3 x 5 cm or 2 x 7.5 cm)
in the panel.
BathtubwithDuravitpanelling
It must be possible to remove the panelling for inspection purpo-•
ses. For this reason, allow a certain amount of space in front of the
panelling.
For the air supply, an opening is pre-installed in the panelling; this •
must not be covered.
Waterconnection
The water may only be connected by a qualified plumber. Country-spe-
cific standards and local regulations must be observed in full.
Waterconnection
Connect the inlet and outlet according to current standards and local •
regulations.
Ensure that the connecting sleeve is flush with the floor.•
Electricalinstallationforbathtubswithcolouredlight
andwhirltubs
The electricity may only be connected by a qualified electrician.
Country-specific standards, local regulations and low-voltage guide-
lines must be observed in full.
Electricalconnection
Electrical data
Whirlsystem Max. rated
power without
heating
Max. rated
power with
heating
Frequency
Voltage
Air 1,08 kW -
50 Hz:
2 3 0 V ~ A C
60 Hz:
2 2 0 V ~ A C
Jet 0,74 kW -
Combi P 2,19 kW -
Combi E 2,74 kW 3,50 kW
Combi L 2,38 kW 5,34 kW
Jet E 1,69 kW 2,69 kW
Jet L 1,36 kW 4,36 kW
Pote• ntial equalisation installed, 3000 mm
Install supply line in acc. with the following requirements (two supply •
lines for combi system L with temperature module):
Fuse protection I• N = 16 A,
RCD max. 30 mA
Switched via all-pole disconnecting mains switch, outside zones 0, •
1 and 2 (see Fig. I)
Cable length 3000 mm•
Importantplanninginformationforbathtubsandwhirltubs
I
2250
600
600
2 1
0

2Pre-installation_Product Information
Whirl-SystemsProductInformation
P = standard P = optional R = switch on and off separately R = adjustable · = not available
Support frame
Cable-driven waste and overflow
Cable-driven waste and overflow with integrated water inlet *
12 jets embedded in the floor (Air) **
6 side mounted jets (Air and water)
2 adjustable rotating foot-massage jets
3 adjustable rotating back-massage jets
Inline heater to compensate loss of temperature during whirl action
Heating module to heat the whirlpool to desired temperature
Pneumatic push-button integrated in the rim of the tub
Air control regulator integrated in the rim of the tub
Integrated control panel
Blue backlit LCD display integrated in the rim of the tub
1 underwater light, 50 W ***
Changing coloured light (instead of underwater light)
Full system drainage
Electronic cleaning system
UV Hygiene Management
Protection against overheating
Coloured light with remote control for whirltubsw
* except Blue Moon ** Blue Moon comes with 24 jets *** Blue Moon comes with 2 lights
This overview does not apply for D-Code Whirltubs
Equipment Air Jet CombiP CombiE CombiL
P
P
P
P
.
.
.
.
.
P
.
.
.
.
.
P
.
.
.
P
P
P
P
.
PR
.
.
.
.
P
P
.
.
.
.
P
.
.
.
P
P
P
P
P
PR
PR
.
.
.
P
P
.
.
.
.
P
.
.
.
P
P
P
P
PR
PR
PR
PR
P
.
.
P
P
.
P
.
P
P
.
P
P
P
P
P
PR
PR
PRR
PRR
.
P
.
.
.
P
P
P
P
.
P
P
.

Pre-installation_Product Information 3
Whirl-SystemsProductInformation
Whirlsystemsandadditionalmodules
Air-System
Warm air is injected into the bath by 12 (24 in Blue Moon) jets
embedded in the oor of the tub.
Jet-System
6 side mounted jets create maximum hydrotherapeutic action
with actuated intensity of the massage, freely regulated via an
air control regulator which is integrated in the rim of the tub.
Back-massage
Water-Air-jet
3 adjustable rotating jets have a benecial effect on the back.
Foot-massage
Water-Air-jet
2 adjustable rotating jets are stimulating the reex zones of
the foot.
LIght
1 (2 in Blue Moon) underwater light, 50 W halogen, creates a
cosy atmosphere in the bathroom.
Temperature
Electronically controlled thermal system to compensate for
loss of temperature during whirl action.w
HygieneManagement
Electronically controlled cleaning system for the
desinfection of the jets and pipes of the whirlsystem.
ColouredLight
Light from 5 (10 in Blue Moon) LED-spotlights set into the
side walls suffuses the water in alternating, bright colours.
A colour in accordance with the atmosphere. Halogen spot is
going to be replaced.
ColouredLightwithremotecontrolforbathtubsand
whirltubs
Light from 5 (10 in Blue Moon) LED-spotlights set into the
side walls suffuses the bath water in alternating, bright co-
lours. The 6 colours and white light plus 5 coloured lighting
programmes can be selected using the remote control. The
brightness of the colours can be dimmed. The LED coloured
lighting is not available for Combi L.
TemperatureL
Heating module with blue backlit LCD display and
control. This system can be used to adjust the whirltub to the
desired temperature.
UVHygieneManagement
Simple, environmentally-friendly hygiene by means of auto-
matic UV disinfection. Permanent monitoring of operation by
optical sensor.
Standard equipment: Full system drainage, cable-driven waste and overflow, chrome, support frame.

4Pre-installation_Product Information
Whirl-SystemsProductInformation
Equipment
6 side mounted jets (air + water)
Operating unit + Air control regulator
Jet-System(D-Code)
Equipment
6 side mounted jets (air + water)
Pneumatic regulator
Air control regulator
Accessories(optional)
Cable-driven waste and overow with integrated water inlet
(without image)
Coloured Light with remote control for whirltubs (without image)
Jet-System
Equipment
6 side mounted jets (air + water)
12 jets embedded in the oor (air)
Pneumatic regulator Jet-System
AIr control regulator Jet-System + foot-massage
Pneumatic regulator Air-System
2 adjustable rotating foot-massage jets
Accessories(optional)
Cable-driven waste and overow with integrated water inlet
(without image)
Coloured Light with remote control for whirltubs (without image)
Combi-SystemP
Air-System Equipment
12 jets embedded in the oor (air)
Pneumatic regulator
Accessories(optional)
Cable-driven waste and overow with integrated water inlet
(without image)
Coloured Light with remote control for whirltubs (without image)

Pre-installation_Product Information 5
Whirl-SystemsProductInformation
Combi-SystemL Equipment
3 adjustable rotating back-massage jets
12 jets embedded in the oor (air)
Control Panel Combi-System L
6 side mounted jets (air + water)
1 underwater light, 50 W
2 adjustable rotating foot-massage jets
Additionalmodules(optional)
Coloured Light (instead of underwater light) (without image)
UV-Hygiene management (without image)
Temperature L (to heat the whirltub to the desired temperature)
(without image)
Accessories(optional)
Cable-driven waste and overow with integrated water inlet (without image)
ControlPanelTemperatureL(optional)
ControlPanelCombi-SystemL
Blue backlit LCD display
The system is operated by pressing the raised symbols on the Control Panel.
The operating symbols are almost invisible at rst. By gently pressing the
area within the stainless steel frame, the lighting comes on gradually.
The functions are controlled via the now visible symbols.
Once the whirl action is over, the lighting dims completely.
Combi-SystemE Equipment
6 side mounted jets (air + water)
12 jets embedded in the oor (air)
Air control regulator back-massage (optional)
Control Panel Combi-System E
AIr control regulator Jet-System
AIr control regulator foot-massage (optional)
Additionalmodules(optional)
1 underwater light, 50 W
3 adjustable rotating back-massage jets
2 adjustable rotating foot-massage jets
Temperature (Inline heater to compensate loss of temperature during
whirl action) (without image)
Control Panel for electronic cleaning
Accessories(optional)
Cable-driven waste and overow with integrated water inlet
(without image)
Coloured Light with remote control for whirltubs (without image)
ControlPanelCombi-SystemE
The system is operated by pressing the raised symbol on the Control Panel.

6Pre-installation_Product Information

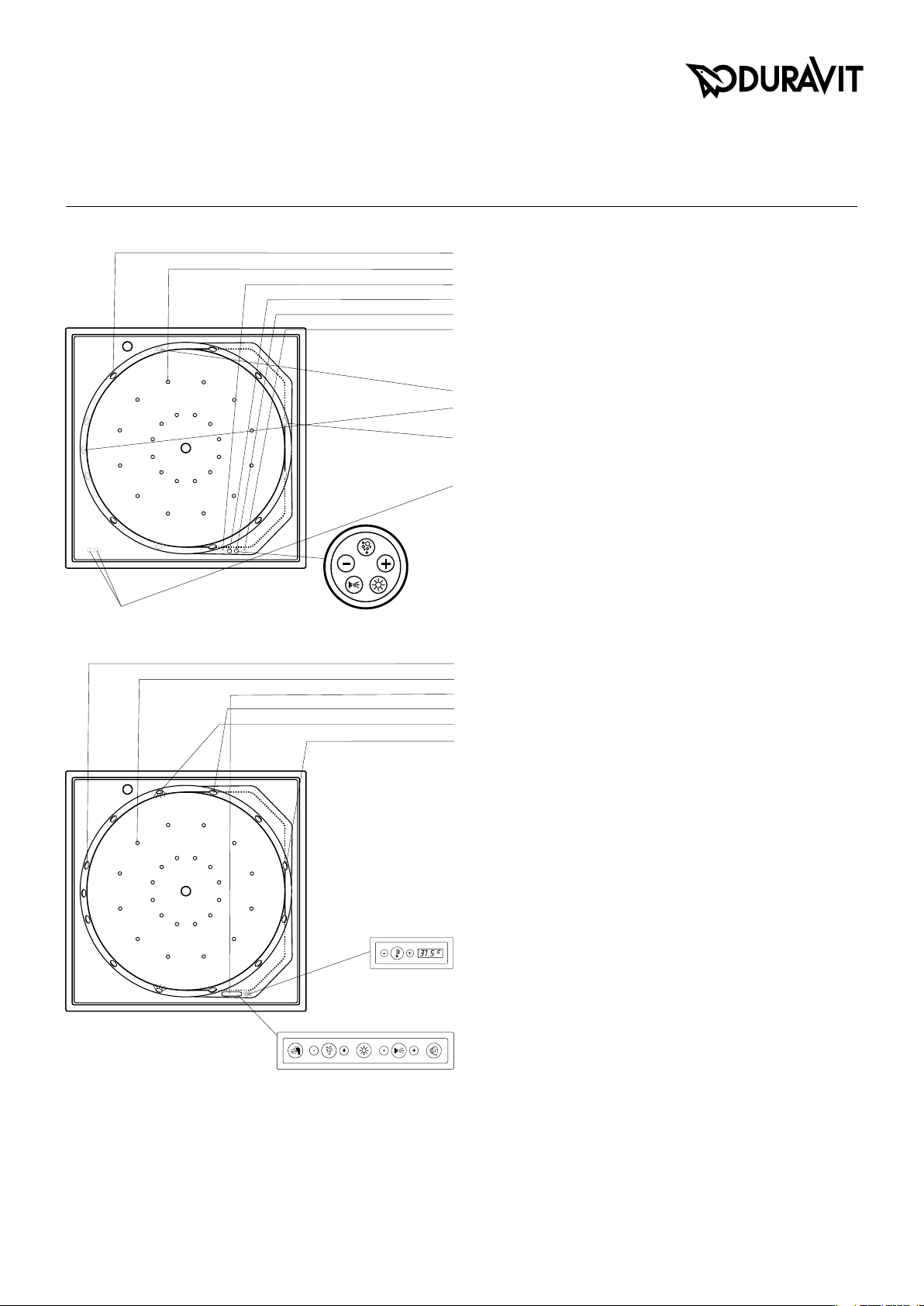

Whirl-SystemsProductInformation
Equipment
3 adjustable rotating back-massage jets (arranged in different heights)
24 jets embedded in the oor (air)
Control Panel Combi-System L
6 side mounted jets (air + water)
2 underwater lights, 50 W
2 adjustable rotating foot-massage jets
Additionalmodules(optional)
Coloured Light (instead of underwater light) (without image)
UV Hygiene Management (without image)
Temperature L (to heat the whirltub to the desired temperature)
(without image)
ControlPanelTemperatureL(optional)
ControlPanelCombi-SystemL
Blue backlit LCD display
The operating symbols are almost invisible at rst. By gently pressing the
area within the stainless steel frame, the lighting comes on gradually.
The functions are controlled via the now visible symbols.
Once the whirl action is over, the lighting dims completely.
Combi-SystemL(BlueMoon)
Combi-SystemE(BlueMoon) Equipment
6 side mounted jets (air + water)
24 jets embedded in the oor (air)
Air control regulator back-massage (optional)
Air control regulator Jet-System
Control Panel Combi-System E
Air control regulator foot-massage (optional)
Additionalmodules(optional)
2 underwater lights, 50 W
3 adjustable rotating back-massage jets
(arranged in different heights)
2 adjustable rotating foot-massage jets
Temperature (Inline heater to compensate loss of temperature during
whirl action) (without image)
Control Panel electronic cleaning system
Accessories(optional)
Coloured Light with remote control for whirltubs (without image)
ControlPanelCombi-SystemE
The system is operated by pressing the raised symbol on the Control Panel.

Pre-installation_Product Information 7

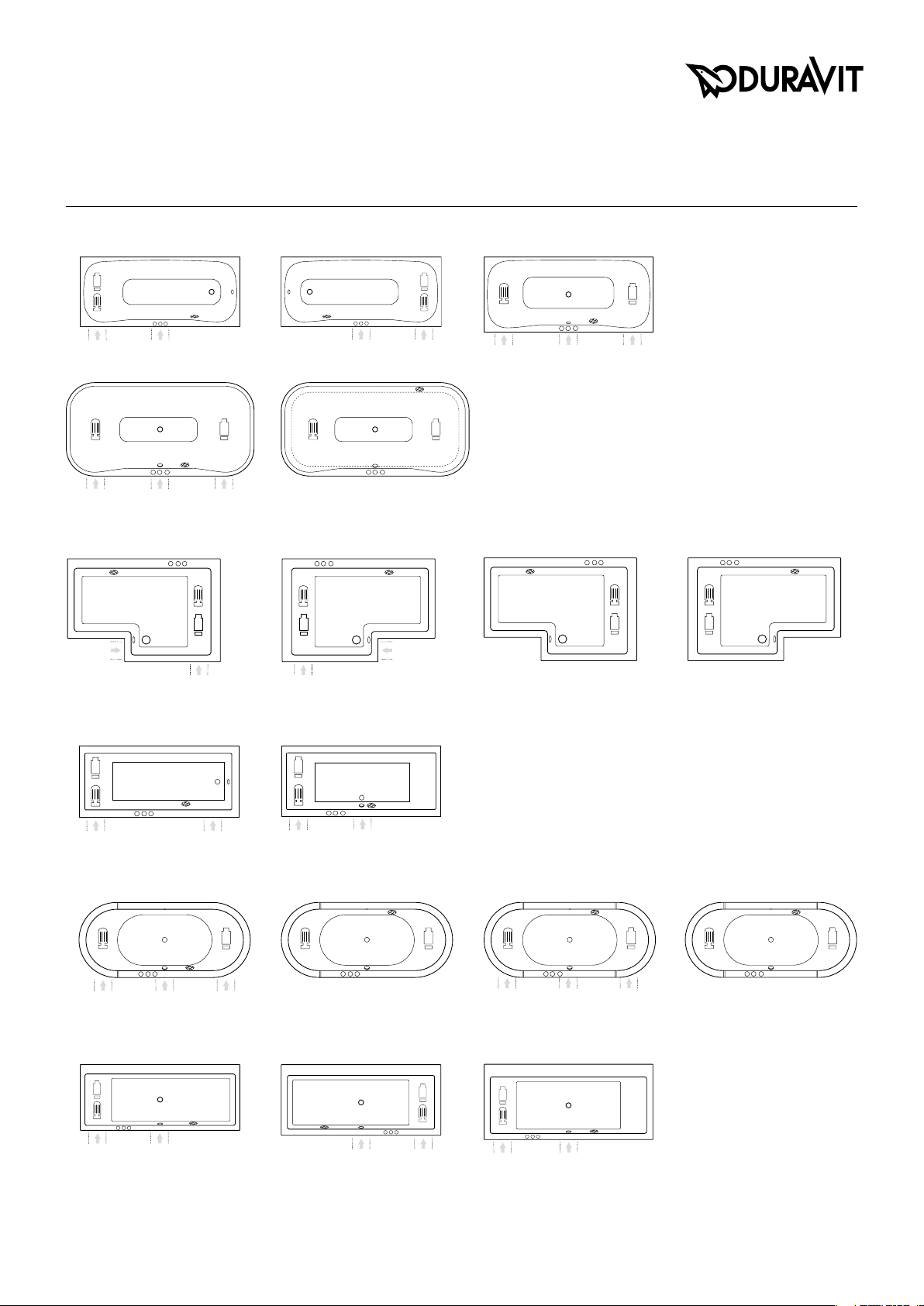

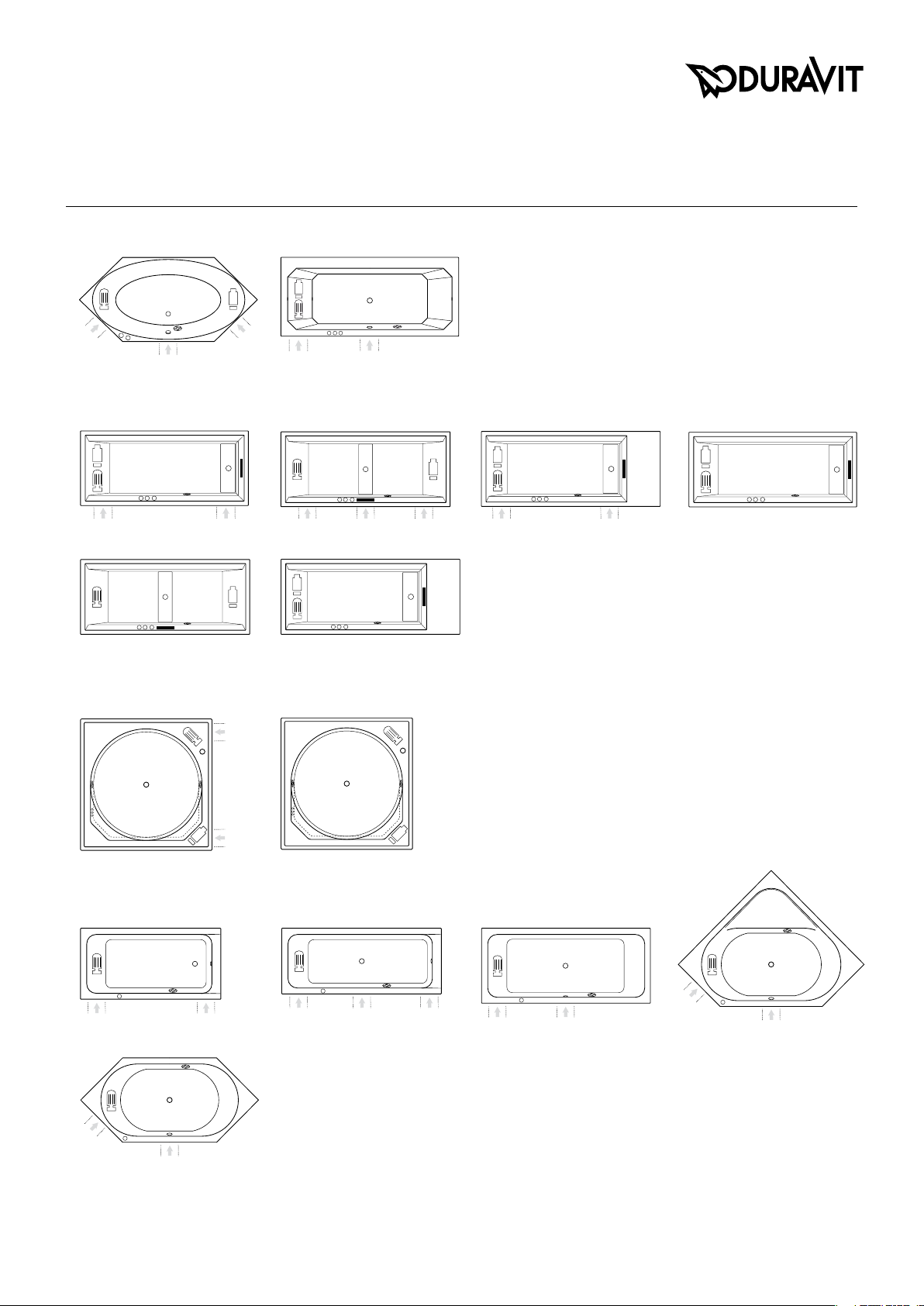

Whirl-SystemsProductInformation
Back
Back
# 710077
Back
# 710082
Back
Back
# 710023, # 710024 # 710156
# 710143 with Panel
Back
Back
2ndoor
Back
# 710081, # 710162, # 710163
Back
# 710073, # 710074, # 710075 # 710078, # 710079, # 710080# 710076, # 710160, # 710161
Back
PositioningoftheControlPanel
The directions are taken from the perspective of a person bathing.
In the standard conguration, the Control Panel is always on the right
hand side, as are the drain and overow ttings in 2-seater baths
(c.f. Image.).
On request, alternative positioning of the Control Panel or aggregates is
however possible. Please send us a sketch showing the desired layout.
Duravit will check and wherever possible conrm the feasibility.
1930Series2x3
# 740138
# 740137
# 710143 Built-in version
Back Back
BlueMoon
D-Code
Back
Back
# 740095, # 740096,
# 740098, # 740100
# 740097, # 740099
Back
# 740101

8Pre-installation_Product Information
Whirl-SystemsProductInformation
Paiova
Back
Back
Back
Back
Back
Back
# 710015
Back
# 710020
Back Back
Back Back
# 710018# 710017# 710016
Back
Back
# 710035, # 710037
# 710039, # 710041
# 710173
Back
# 710172# 71∫19
Back
Back
# 710180
Back
# 710179# 710174 # 710178
# 710090# 710089 # 710028, # 710052# 710027, # 710141, # 710050
# 710036, # 710038
# 710040, # 710042
InstallationforPaiovawithfurniturepanelling
Paiova Whirltub with furniture panelling:
Lower edge of siphon lies 45 mm below upper edge of tiles
Daro,StarckX
HappyD.

Pre-installation_Product Information 9
Whirl-SystemsProductInformation
Vero
Starck
Back
# 710010
Back
# 710009
Back
# 710011
Back
# 710012
Back
# 710001, # 710002, # 710003,
# 710117, # 710118, # 700091,
# 700092
Back
Back
# 710133
# 710111
Back
# 710004, # 710031, # 710032,
# 710119
Back
# 710135, # 710136
Back
# 710134
Seadream
Back
# 710112 # 710114
Back
# 710113
Back
Back
# 700185
Back
# 700181 # 700198 # 700182, # 700183
# 700184
PuraVida

10 Pre-installation_Product Information
Whirl-SystemsProductInformation
Sundeck
Back
# 710066, # 710128
# 710127
Whirl-Pump Blower ControlPanel SuctionScreen recommendedequipmentcovers
Please note that in case of cominating tubs and whirlsystems, single components may reach over the rim of the tub. Therefore, we suggest installation into a bathtub case.
Back
# 710127
Back
# 710066, # 710128
PositioningoftheControlPanelonthepillar:
Furniturepanellingforfreestandingversion,cornerrightand
back-to-wallversion:
Directions are as seen from the perspective of a person in the
tub. In the standard conguration, the right hand always ope-
rates the Control Panel (see Fig. 1).
Custom version on request. In this case, a sketch showing
the desired layout is required. Duravit will check and conrm
whether the desired location is possible.
Furniturepanelforcornerleft:
Directions are as seen from the perspective of a person in the
tub. In the standard conguration, the left hand always operates
the Control Panel (see Fig. 2).
Custom version on request. In this case, a sketch showing
the desired layout is required. Duravit will check and conrm
whether the desired location is possible.
Numberofcontrolpanelsonthepillar:
The number of control panels is determined by the system and
the additional modules selected.
Drillholesfortapsintheconsole:
On request, drill holes can be made at the factory for base plates
for rim-mounted tap ttings. Please state the desired base plate
when ordering. Duravit can supply a list of suitable pre-punched
sets on request.
Fig. 1 Freestanding version, corner
right, and back-to-wall version
Fig. 2 Corner left
Back
Legend

Pre-installation_PuraVida 1

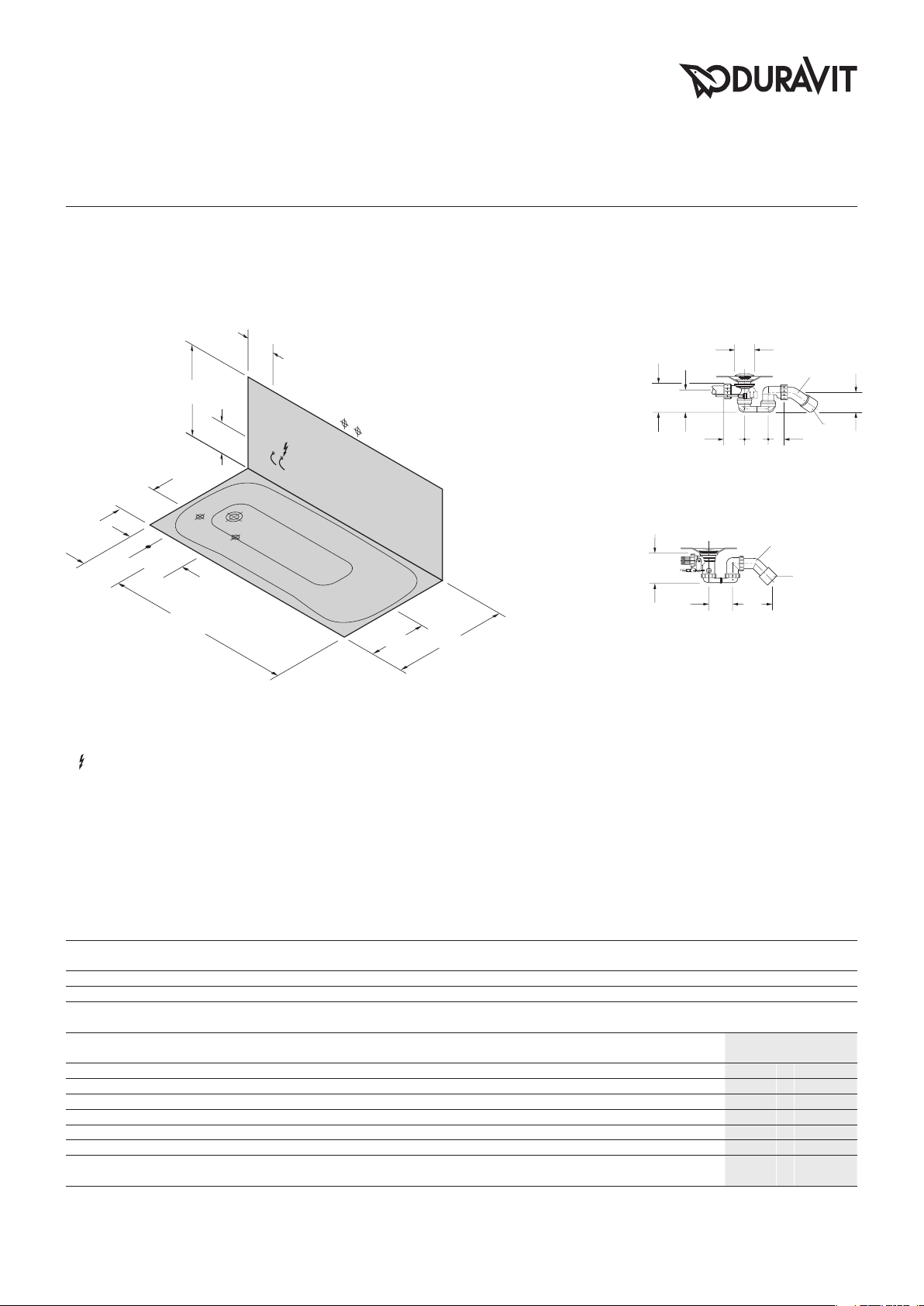

π 1700 x 750 x 460 ∏Pre-installation PuraVida # 700181/710181
1240 460
x
200
200
EC
HC
200550
D
150
MW
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
115
90 150
ø 50
ø 40
Siphon for whirltub # 710181
Siphon for bathtub # 700181
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 480 600 - 670 600 607 -
X Whirltub 480 600 - 635 - 607 -
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
25,0 198 40,0 120 x 80 x 205 3/4“, 1/2“ 700181 ∫ 0 00 0000
34,0 205 76,0 202 x 105 x 86 3/4“ Air-System 710181 ∫ 1 00 1000
34,0 205 76,0 202 x 105 x 86 3/4“ Jet-System 710181 ∫ 2 00 1000
54,0 220 96,0 202 x 105 x 86 3/4“ Combi-System P 710181 ∫ 3 00 1000
54,0 - 63,0 220 - 227 96,0 - 105,0 202 x 105 x 86 3/4“ Combi-System E 710181 ∫ 4 ∫ 1000
61,0 - 66,0 226 - 230 103,0 - 108,0 202 x 105 x 86 3/4“ Combi-System L 710181 ∫ 5 ∫ 1000
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110

2 Pre-installation_PuraVida
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 480 600 - 670 600 607 -
X Whirltub 480 600 - 635 - 607 -
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
25,0 198 40,0 120 x 80 x 185 3/4“, 1/2“ 700198 ∫ 0 00 0000
34,0 205 76,0 202 x 105 x 86 3/4“ Air-System 710198 ∫ 1 00 1000
34,0 205 76,0 202 x 105 x 86 3/4“ Jet-System 710198 ∫ 2 00 1000
54,0 220 96,0 202 x 105 x 86 3/4“ Combi-System P 710198 ∫ 3 00 1000
54,0 - 63,0 220 - 227 96,0 - 105,0 202 x 105 x 86 3/4“ Combi-System E 710198 ∫ 4 ∫ 1000
61,0 - 66,0 226 - 230 103,0 - 108,0 202 x 105 x 86 3/4“ Combi-System L 710198 ∫ 5 ∫ 1000
Siphon for whirltub # 710198
π 1700 x 750 x 460 ∏Pre-installation PuraVida # 700198/710198
375
750
250 1400
200
600
HC
200
200
EC
MW D
150 310
Siphon for bathtub # 700198
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
115
90 150
ø 50
ø 40
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110

Pre-installation_PuraVida 3
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 480 600 - 670 600 607 -
X Whirltub 480 600 - 635 - 607 -
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
27,0 197 42,0 120 x 80 x 185 3/4“, 1/2“ 700182 ∫ 0 00 0000
36,0 203 78,0 202 x 105 x 86 3/4“ Air-System 710182 ∫ 1 00 1000
36,0 203 78,0 202 x 105 x 86 3/4“ Jet-System 710182 ∫ 2 00 1000
56,0 217 98,0 202 x 105 x 86 3/4“ Combi-System P 710182 ∫ 3 00 1000
56,0 - 65,0 217 - 223 98,0 - 107,0 202 x 105 x 86 3/4“ Combi-System E 710182 ∫ 4 ∫ 1000
63,0 - 68,0 222 - 225 105,0 - 110,0 202 x 105 x 86 3/4“ Combi-System L 710182 ∫ 5 ∫ 1000

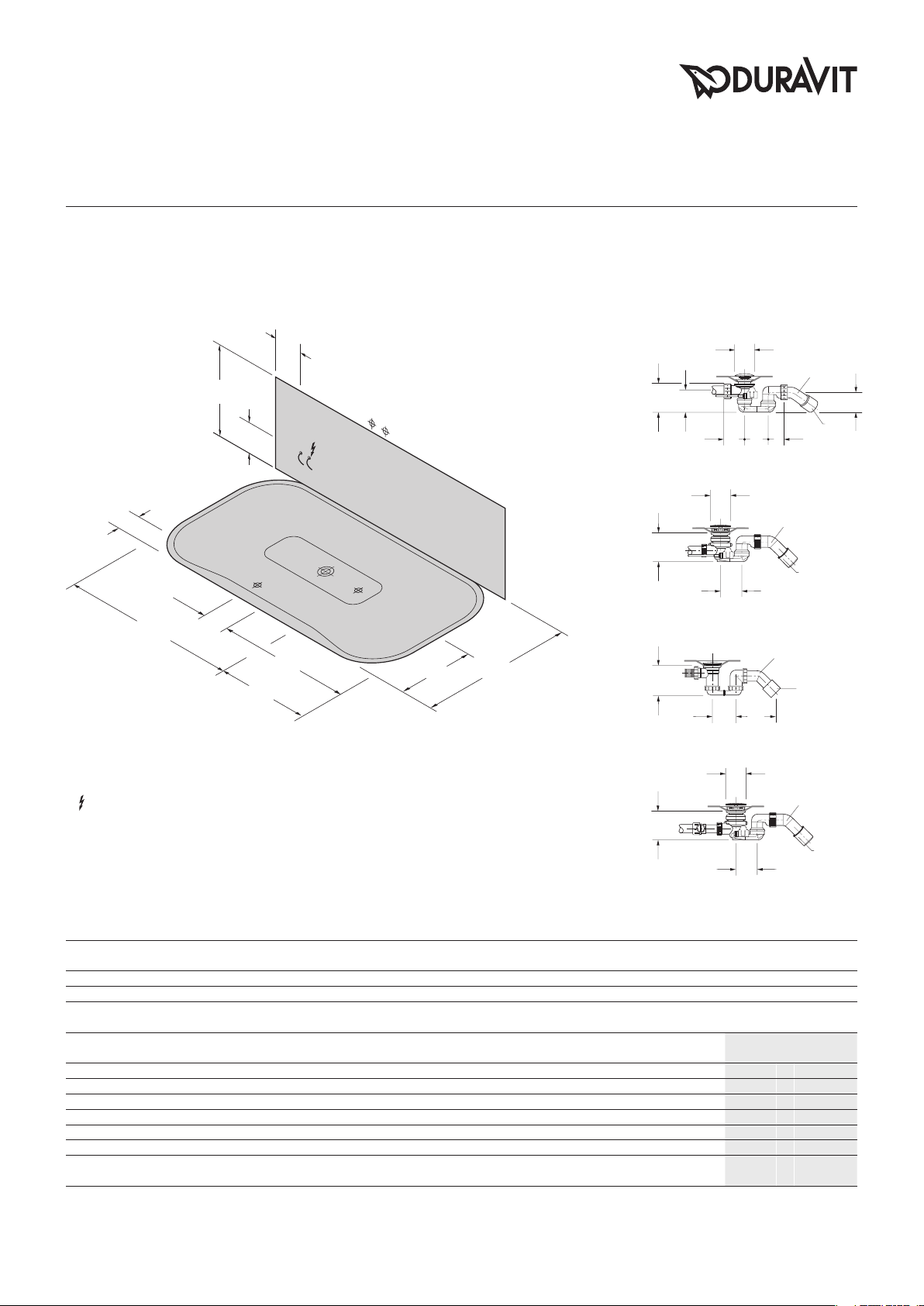

π 1800 x 800 x 460 ∏Pre-installation PuraVida # 700182/710182
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
400
800
150
600
HC
200
200
EC
1180
900
620
MW
D
150
115
90 150
ø 50
ø 40
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110
Siphon for bathtub # 700182
Siphon for Whirltub # 710182
Siphon with base inlet
for bathtub # 700182
Siphon with base inlet
for Whirltub # 710182
ø 75
ø 40
ø 50
8o,5
110
ø 75
ø 40
ø 50
8o,5
110

4 Pre-installation_PuraVida
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 480 600 - 670 600 607 -
X Whirltub 480 600 - 635 - 607 -
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
30,0 191 45,0 120 x 80 x 185 3/4“, 1/2“ 700183 ∫ 0 00 0000
39,0 196 81,0 202 x 105 x 86 3/4“ Air-System 710183 ∫ 1 00 1000
39,0 196 81,0 202 x 105 x 86 3/4“ Jet-System 710183 ∫ 2 00 1000
59,0 208 101,0 202 x 105 x 86 3/4“ Combi-System P 710183 ∫ 3 00 1000
59,0 - 68,0 208 - 213 101,0 - 110,0 202 x 105 x 86 3/4“ Combi-System E 710183 ∫ 4 ∫ 1000
66,0 - 71,0 212 - 215 108,0 - 113,0 202 x 105 x 86 3/4“ Combi-System L 710183 ∫ 5 ∫ 1000
π 1900 x 900 x 460 ∏Pre-installation PuraVida # 700183/710183
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
450
900
150
600
HC
200
200
EC
1230
950
670
MW
D
150
115
90 150
ø 50
ø 40
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110
Siphon for bathtub # 700183
Siphon for Whirltub # 710183
Siphon with base inlet
for bathtub # 700183
Siphon with base inlet
for Whirltub # 710183
ø 75
ø 40
ø 50
8o,5
110
ø 75
ø 40
ø 50
8o,5
110

Pre-installation_PuraVida 5
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 445 565 - 635 600 - -
X Whirltub 445 665 - 600 - - -
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
36,0 171 51,0 120 x 80 x 195 3/4“, 1/2“ 700184 ∫ 0 00 0000
45,0 175 87,0 202 x 105 x 86 3/4“ Air-System 710184 ∫ 1 00 1000
45,0 175 87,0 202 x 105 x 86 3/4“ Jet-System 710184 ∫ 2 00 1000
65,0 185 107,0 202 x 105 x 86 3/4“ Combi-System P 710184 ∫ 3 00 1000
65,0 - 74,0 185 - 190 107,0 - 116,0 202 x 105 x 86 3/4“ Combi-System E 710184 ∫ 4 ∫ 1000
72,0 - 77,0 189 - 191 114,0 - 119,0 202 x 105 x 86 3/4“ Combi-System L 710184 ∫ 5 ∫ 1000
π 2000 x 1000 x 420 ∏Pre-installation PuraVida # 700184/710184
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
1000
500
1000
150
600
HC
200
200
EC
150
1280 720
MW
D
115
90 150
ø 50
ø 40
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110
Siphon for bathtub # 700184
Siphon for Whirltub # 710184
Siphon with base inlet
for bathtub # 700184
Siphon with base inlet
for Whirltub # 710184
ø 75
ø 40
ø 50
8o,5
110
ø 75
ø 40
ø 50
8o,5
110

6 Pre-installation_PuraVida
Height including feet including support including
furniture panel
including
acrylic panel
X Bathtub 445 565 - 635 - - 570
X Whirltub 445 565 - 600 - - 570
Technical specifications
Net weight
kg
Floor load kg/m2Shipping weight
kg
Shipping dimensions
l x w x h (cm)
Water inlet
OD, ID
Whirlsystem Model-No.
72,0 189 87,0 120 x 80 x 205 3/4“, 1/2“ 700185 ∫ 0 00 0000
81,0 193 123,0 202 x 105 x 86 3/4“ Air-System 710185 ∫ 1 00 1000
81,0 193 123,0 202 x 105 x 86 3/4“ Jet-System 710185 ∫ 2 00 1000
101,0 203 143,0 202 x 105 x 86 3/4“ Combi-System P 710185 ∫ 3 00 1000
101,0 - 110,0 203 - 208 143,0 - 152,0 202 x 105 x 86 3/4“ Combi-System E 710185 ∫ 4 ∫ 1000
108,0 - 113,0 207 - 209 150,0 - 155,0 202 x 105 x 86 3/4“ Combi-System L 710185 ∫ 5 ∫ 1000
π 2000 x 1000 x 420 ∏Pre-installation PuraVida # 700185/710185
H Hot water connection
C Cold water connection
D Drain connection
MW Mixed water connection for outlet and
overow ttings with inlet function
EC Electricity connection
350
500
500
1280
1000
200
720
MW
D
350
EC
115
90 150
ø 50
ø 40
ø 75
ø 40
ø 50
75,5
91 60
79
84,6
110
Siphon for bathtub # 700185
Siphon for Whirltub # 710185
Siphon with base inlet
for bathtub # 700185
Siphon with base inlet
for Whirltub # 710185
ø 75
ø 40
ø 50
8o,5
110
ø 75
ø 40
ø 50
8o,5
110
