SensoWash®Slim
Operating instructions
Manual de instrucciones
Notice d’utilisation
Shower-toilet unit
Accesorio para el WC con ducha
Abattant WC douche

www.sensowash.us
A
I
H
B
G
C
E
D
F
5,55 mm 148 mm
148 mm135 mm
8
1
2
3
4
5
6
7

3
EN
1. Contents
. Brief overview................................................................... 
. Toilet unit.................................................................... 
. Remote control .......................................................... 
. Description of Symbols...................................................... 
. For your safety .................................................................. 
. Normal Use................................................................. 
. Safety instructions...................................................... 
. Basics of operation..........................................................
. Remote control .........................................................
. Status LEDs...............................................................
. Initial operation ..............................................................
Remote control .........................................................
Power supply ............................................................
Switch SensoWash®on..............................................
. Operating........................................................................
. Switching the SensoWash®on / off ...........................
. Shower functions......................................................
Activating / deactivating “Rearwash”........................
Activating / deactivating “Ladywash”........................
Activating / deactivating “Comfortwash”...................
Adjusting the water spray intensity...........................
Adjusting the spray wand position ............................
. Seat heating .............................................................
Adjusting the seat temperature ................................
. Settings ....................................................................
Adjusting the night light ...........................................
Energy saving mode..................................................
Activating / deactivating the confirmation tone ........
Lock / unlock the remote control..............................
. Cleaning and Care ...........................................................
. Seat and lid...............................................................
. Spray wand and nozzle.............................................
Manual cleaning of the spray wand and nozzle.........
Self-cleaning of the spray wand and nozzle..............
. Remote control .........................................................

4
EN
. Disposal ..........................................................................
. Troubleshooting support.................................................
. Technical Data ................................................................

5
EN
1. Brief overview
The overviews referred to are collected together on the fold out
page.
2. Description of Symbols
WARNING Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE Is used to address practices not related to
physical injury.
Hints and tips are provided here.
> This is a prompt requesting your input.
Acoustic signal.
Timed automatic function.

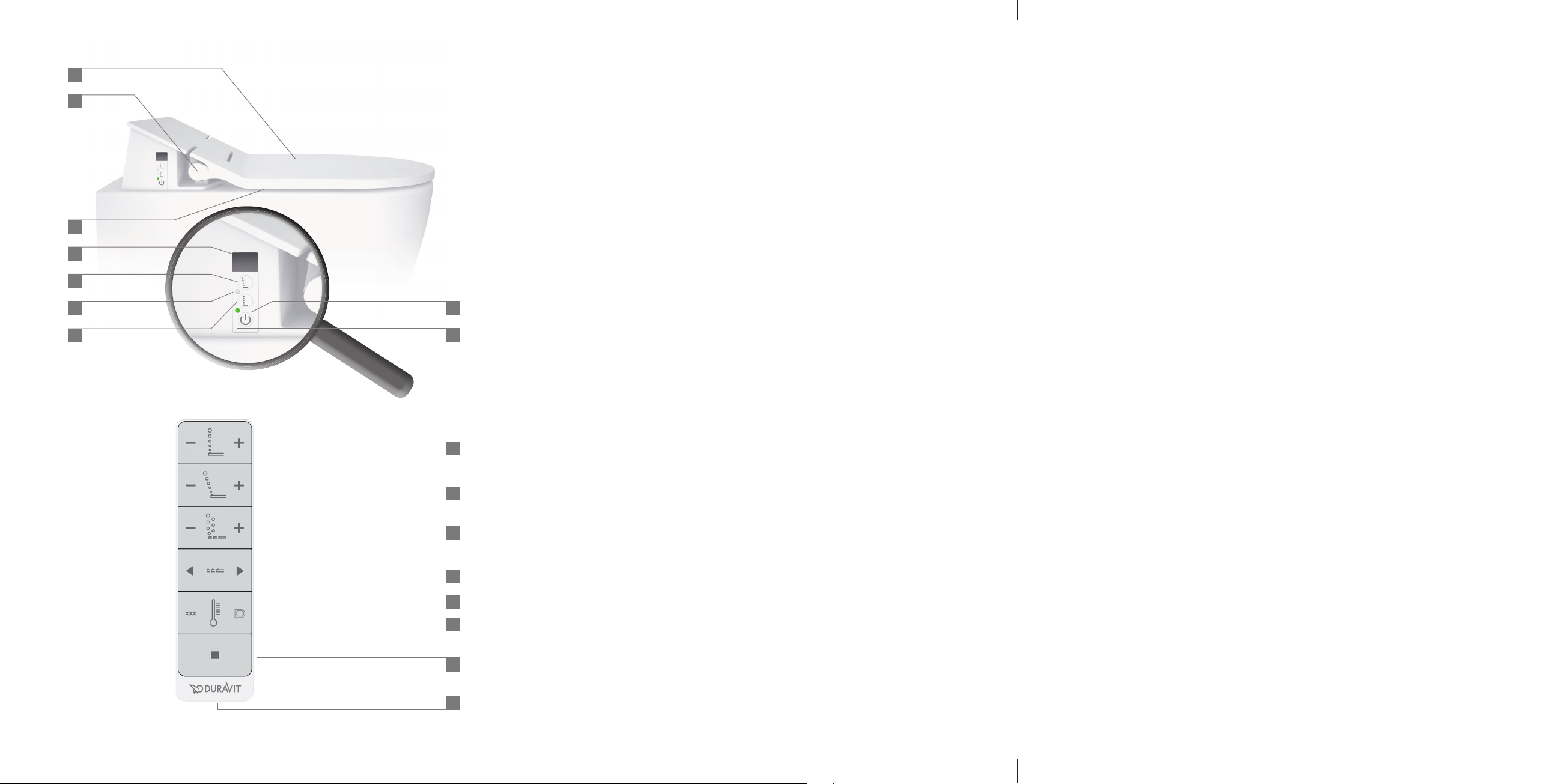

. Remote control
1Rearwash
2Ladywash
3Comfortwash
4Spray wand position
5Water temperature
6Seat temperature
7Stop
8Battery Compartment
. Toilet unit
APower
BStatus LED
CRearwash
DAmbient light sensor
ELadywash
FInfrared receiver
GNight light
HSoft closing mechanism
ISeat heating
. Disposal ..........................................................................
. Troubleshooting support.................................................
. Technical Data ................................................................

6
EN
3. For your safety
To ensure that you will enjoy your SensoWash®, read these oper-
ating instructions carefully, particularly the safety instructions.
Keep the operating instructions in a safe place and in the case of
a change in ownership, ensure they are given to the new owner.
These operating instructions correspond to the device’s state of
technology at the time of printing. Duravit reserves the right to
make changes in terms of further development.
. Normal Use
SensoWash®Slim is a shower toilet seat with spray attachment
for rearwash and ladywash cleansing functions and additional
comfort features. It can be used as a normal toilet at any time. Its
use is limited exclusively to enclosed spaces.
Any other usage will be deemed as not corresponding with
normal usage. Duravit undertakes no liability for abnormal usage.
. Safety instructions
Read and observe the following safety instructions carefully!
Requirements for the user
• Children and persons with insufficient knowledge or experience
in handling the device, or who have limited physical, sensory or
mental capabilities, may only use the device following proper
instruction or when supervised.
• Make sure that children shall not play with the SensoWash®.
WARNING Health damage!
The product must be grounded.
• Compare with the mounting instructions.
Only use the device when it is fully functional
• Make sure that the power cord is not damaged.
• The power cord must not become jammed or pinched.
• Keep the power cord away from hot surfaces and sharp edges.

7
EN
• Do NOT use the product if it is not working properly.
Disconnect from the power supply immediately. Close the stop
valve to interrupt the water supply. Contact [e-mail].
Avoid malfunctions and damage to the product as a result of
improper use.
CAUTION Health damage and potential product damage!
• Supply the device with cold drinking water from the main water
system.
• The new hose-sets supplied with the appliance are to be used
and old hose-sets should not be reused.
• The product itself does not have electrical leakage protection
function, it must be installed in circuit where there is leakage
protection device installed.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules and having a
contact separation in all poles that provide full disconnection
under overvoltage category III conditions.
• Wire specification of cable is cross section
1 – 2.5 mm2(17 – 14 AWG).
• Confirm that the grounding wire is 10 mm (⅜") longer than the
L and N wire.
• Confirm that the electric connection box must be fixed on wall
before installation.
• Do NOT sit, stand or lean on the lid.
• Do NOT connect any waste water, grey water, industrial water,
sea water or other untreated or semi-treated water.
• Do NOT detach seat and lid for any purpose
• Do NOT damage the surface of seat.
• If the surface of the seat is damage, contact [e-mail].
• DO NOT open and close seat and lid with excessive force.
• If the SensoWash®is moved from a cold location to a warm
location, condensation may form. Leave the unit switched off for
a few hours.
• Do NOT install the SensoWash®in rooms where there is a dan-
ger of frost. The room temperature must not be less than 4°C.

8
EN
• Do NOT place open fire sources, candles, cigarettes, or similar,
on the SensoWash®.
• Do NOT expose the SensoWash®directly to water or sunlight.
• Do NOT climb on or stand on the product.
• Do NOT place any heavy objects on the lid.
• Do NOT deliberately soil, spray or block the spray wand.
• Do NOT attempt to flush items other than bodily waste and toilet
paper (e.g. newspaper, disposal diapers or sanitary napkin), as
they can block the product.
• Do NOT use glue for fixation.
Repairs must only be carried out by a person with the
necessary expertise.
• Do NOT carry out modifications, tamper with, install additional
equipment or attempt to repair the SensoWash®.
• If the supply cord is damage, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Repairs must be carried out by qualified electricians or
technicians.
• Improperly performed repairs can lead to accidents, damage
and malfunctions.
• Do NOT use attachments not recommended by Duravit.
Use of batteries
Risk of fatal injury if swallowed/Chemical burn
hazard
This product contains coin/button cell batteries. Do not ingest
battery! If the cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death.
> Do NOT ingest battery, Chemical Burn Hazard.
> Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and
keep it away from children.
> If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
WARNING

9
EN
Damage to health caused by leaking battery
acid
> Avoid contact with skin, eyes and mucous membranes if battery
acid has leaked.
> In case of contact with the acid, flush the affected areas with
large amounts of clean water and consult a doctor immediately.
> Do NOT expose the batteries to extreme conditions: avoid contact
with hot surfaces or direct sunlight. Otherwise there is a risk of
leakage.
> The cells shall be disposed of properly, including keeping them
away from children. Even used cells may cause injury.
NOTICE Product and/or property damage
> Batteries may not be recharged, reactivated by other means,
dismantled or exposed to fire.
> The supply terminals are not to be short-circuited.
> Always remove empty batteries from the remote control
immediately. They may leak and cause damage.
> Do NOT insert new and old batteries together in the remote
control.
> Different types of batteries are not to be mixed.
> Clean the battery and contacts before inserting the battery.
> Batteries are to be inserted with the right polarity.
> Remove the batteries if you do not use the remote control for an
extended period.
IMPORTANT SAFEGUARDS
When using electrical products, especially when children are pre-
sent, basic safety precautions should always be followed, inclu-
ding the following:
READ ALL INSTRUCTIONS BEFORE USING
CAUTION

10
EN
DANGER
To reduce the risk of electrocution!
> Do not use while bathing.
> Do not place or store product where it can fall or be pulled into
a tub or sink.
> Do not place in or drop into water or other liquid.
> Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING To reduce the risk of burns, electrocution, fire,
or injury to persons!
> Close supervision is necessary when this product is used by, on,
or near children or invalids.
> Use this product only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
> Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped or damaged, or
dropped into water. Return the product to a service center for
examination and repair.
> Keep the cord away from heated surfaces.
> Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked.
> Keep the air openings free of lint, hair, and the like.
> Never use while sleeping or drowsy.
> Never drop or insert any object into any opening or hose.
> Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
> Connect this product to a properly grounded outlet only (For
cord-connected models only). See Grounding Instructions.
> Unplug this product before filling. Fill (reservoir) with water
only unless otherwise specified by manufacturer. Do not overfill
(or specify filling instructions).
SAVE THESE INSTRUCTIONS

11
EN
For all grounded, cord connected products:
GROUNDING INSTRUCTIONS
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
Improper use of the grounding plug can result
in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or wit-
hout yellow stripes is the grounding wire.
Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to
whether the product is properly grounded.
This product is for use on a nominal 120 V circuit, and has a
grounding plug that looks like the plug illustrated in sketch A in
Figure 75.1. A temporary adapter, which looks like the adapter
illustrated in sketches B and C, may be used to connect this plug
to a 2-pole receptacle as shown in sketch B if a properly grounded
outlet is not available. The temporary adapter should be used only
until a properly grounded outlet (sketch A) can be installed by a
qualified electrician. The green colored rigid ear, lug, and the like
extending from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover. Whenever
the adapter is used, it must be held in place by the screw.
DANGER

12
EN
For units converted into a permanently connected device:
GROUNDING INSTRUCTIONS
This product should be connected to a grounded, metallic,
permanent wiring system, or an equipment-grounding
conductor should be run with the circuit conductors and con-
nected to the equipment grounding terminal or lead on the pro-
duct.
FCC Compliance statement
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modification not expressly approved by the party
responsible for compliance could void the user‘s authority to ope-
rate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency ener-
gy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
(A)
(B)
(C)
Grounding pin
Grounded
outlet
Grounded
outlet box
Tab for
grounding screw
Metal screw
Adapter
NOTICE

13
EN
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be deter-
mined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for
help.
Industry Canada (IC) Compliance Statement
This device complies with Industry Canada’s licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including inter-
ference that may cause undesired operation of the device.
4. Basics of operation
. Remote control
SensoWash®is operated via the remote control. Settings are
altered via the remote control as well.
Press the respective button on the remote control to switch on a
function. The button lights up white briefly.
To switch off a shower function, press “Stop” 7on the remote
control.

14
EN
If the remote control is not available or the batteries are empty,
then basic functions can also be switched on or off from the side
control buttons.
. Status LEDs
Red illuminated: SensoWash® is in the „Standby mode“,
all functions cannot be used.
Orange illuminated: SensoWash® is in the „Energy saving mode“,
all functions can be used.
Green illuminated: SensoWash® is in the „On mode“,
all functions can be used.
Green flashing: SensoWash® is in the „Initialization“ process,
only „Power“ Aon the seat unit can work.
Red flashing: Malfunction. Disconnect main power supply
and proceed with chapter 9.
5. Initial operation
Remote control
> Press the lock of the “Battery Compartment” 8to open it.
> Remove the foil safety tag in the battery compartment.
> Close the “Battery Compartment” 8.
Power supply
> Connect the main power supply.
SensoWash®will start “Initialization” for about 15 seconds when
it is connected to the power supply. During this time the “Status
LED” Bflashes green and only “Power” Aon the seat unit can
work, all other operations will not work.
2
3
1

15
EN
Switch SensoWash®on
Requirement: SensoWash®is in the “Standby mode”, the “Status
LED” Bis red illuminated.
> Press “Power” Aon the seat unit.
SensoWash®is now switched on.
The “Status LED” Bis green illuminated.
All functions can be used.
6. Operating
. Switching the SensoWash®on / off
> Press “Power” Aon the seat unit to switch on SensoWash®.
A green Status LED indicates “On mode”.
> Press “Power” Aon the seat unit again to switch off Senso-
Wash®.
A red Status LED indicates “Standby mode”.
. Shower functions
SensoWash®automatically cleans the retracted spray wand
before and after washing functions are used. The shower
functions terminate automatically after 2 minutes or
immediately when “Stop” 7is pressed.

16
EN

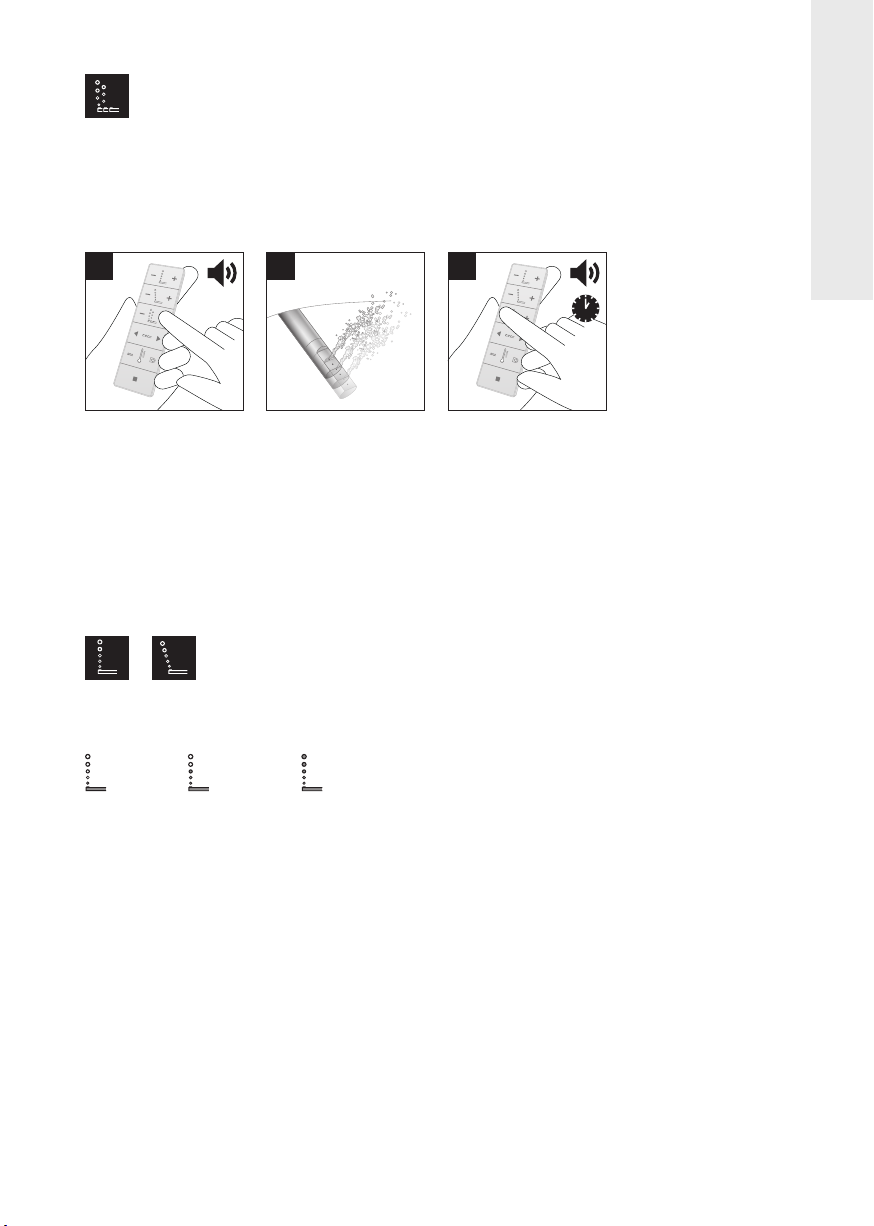

Activating / deactivating “Rearwash”
Gentle and safe rear cleansing.
1
Rearwash is
active, the
spray wand
extracts slowly
2 3
> Press Plus
or Minus to
activate
Rearwash.
> Press Stop to
end Rearwash
or after 2 min.
auto stop.
Alternatively press “Rearwash” Con the seat unit to activate
Rearwash. Press “Rearwash” Con the seat unit again to stop
Rearwash or after 2 min. auto stop.
Activating / deactivating “Ladywash”
Additional nozzle outlet for female intimate care.
2
Ladywash is
active, the
spray wand
extracts slowly
31
> Press Plus
or Minus to
activate
Ladywash.
> Press Stop to
end Ladywash
or after 2 min.
auto stop.
Alternatively press “Ladywash” Eon the seat unit to activate
Ladywash. Press “Ladywash” Eon the seat unit again to stop
Ladywash or after 2 min. auto stop.

17
EN
Activating / deactivating “Comfortwash”
Forward and backward movement of spray wand during use
of shower.
Requirement: Rearwash or Ladywash function is activated.
2
Comfortwash
is active.
31
> Press Plus
to activate
Comfortwash.
> Press Minus to stop
Comfortwash. The
function (Rear- or
Ladywash) that was
previously set is still
active. After 2 min.
auto stop.
Adjusting the water spray intensity
The water spray intensity can be set individually in 3 steps:
Low > Medium > High
Requirement: Rearwash or Ladywash unction is activated and the
icon illuminated.

18
EN

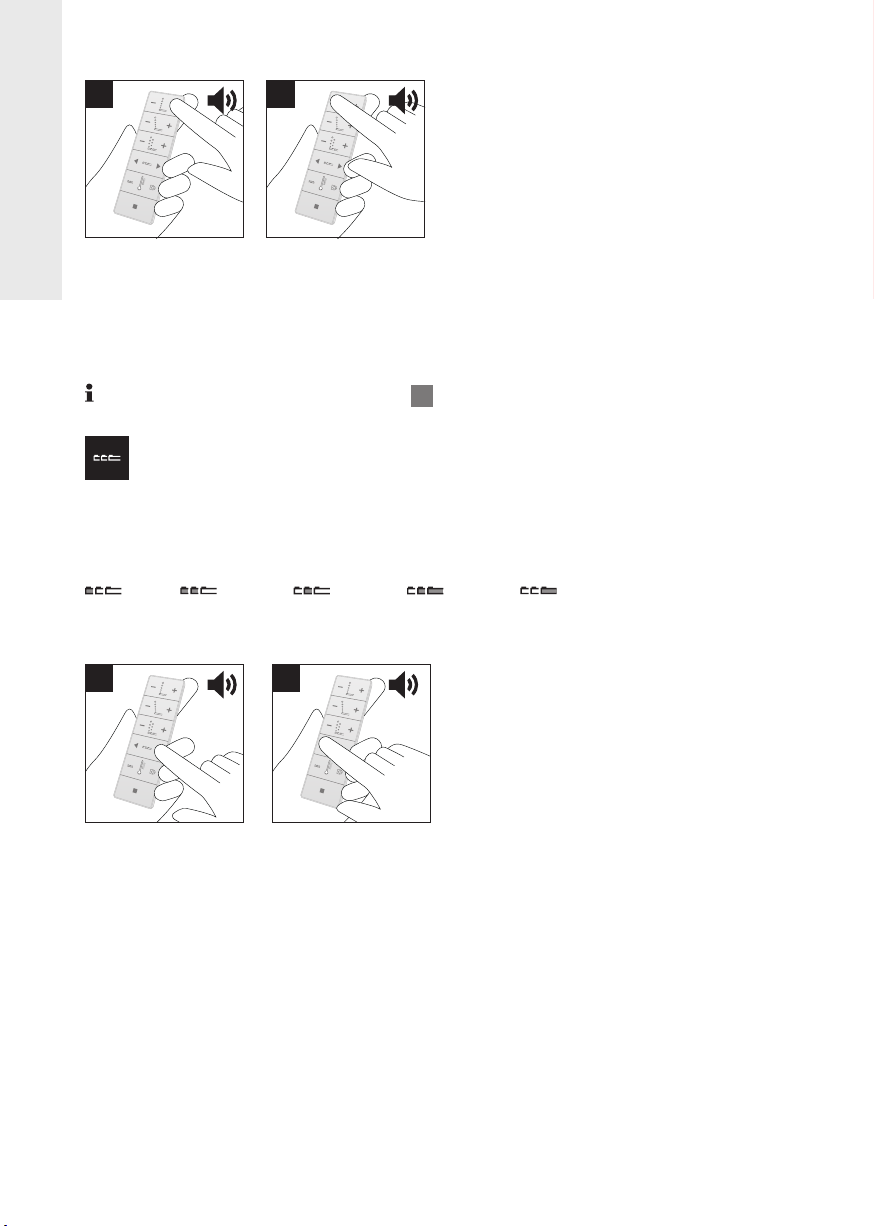

1
> Press Plus to
increase the
Rearwash
intensity.
2
> Press Minus
to decrease
the Rearwash
intensity.
Same action for “Ladywash” 2.
Adjusting the spray wand position
The spray wand position can be set individually to 5 different
positions:
Fr o n t < ––––––––––––––––––––––––––––––––––––––> R e a r
1
> Press Right
arrow to
retract the
spray wand.
2
> Press Left
arrow to
extract the
spray wand.

19
EN
Adjusting the water temperature
The water temperature can be individually adjusted in 4 levels:
Off > Low > Medium > High
1
> Press Water
Temperature
to cycle
through.
. Seat heating
Adjusting the seat temperature
The seat temperature can be individually adjusted in 4 levels:
Off > Low > Medium > High

20
EN
1
> Press Seat
Temperature
to cycle
through.
How to save energy see chapter 6.4 “Settings”.
. Settings
Adjusting the night light
Illuminated inner bowl for night mode orientation, also visible
with closed lid.
In the Auto mode the night light will be switched on and off
according to the surrounding brightness.
The night light can be set individually in 3 modes:
On > Auto > Off
Press the following button combination to cycle through the night
light settings.
1
> Press and
hold Stop.
2
> Press
Ladywash
Minus.
