Durr Dental VistaScan Nano Easy User manual

EN
1910V008
2160100227L02

Installation and operating instructions
VistaScan Nano Easy

2160100227L02 1910V008 1
Assembly
6 Requirements . . . . . . . . . . . . . . . . . . . . 17
6.1 Installation/setup room . . . . . . . . . 17
6.2 System requirements . . . . . . . . . . 17
6.3 Monitor . . . . . . . . . . . . . . . . . . . . . 17
7 Installation . . . . . . . . . . . . . . . . . . . . . . 17
7.1 Setting up the unit. . . . . . . . . . . . . 17
7.2 Electrical connections . . . . . . . . . . 18
7.3 Connecting the device to the net-
work . . . . . . . . . . . . . . . . . . . . . . . 19
8 Commissioning. . . . . . . . . . . . . . . . . . . 20
8.1 Configuring the network . . . . . . . . 20
8.2 Configuring the unit in VistaSoft. . . 21
8.3 Configuring the appliance in
DBSWIN . . . . . . . . . . . . . . . . . . . . 21
8.4 X-ray unit settings . . . . . . . . . . . . . 23
8.5 Acceptance tests . . . . . . . . . . . . . 24
Usage
9 Correct use of image plates . . . . . . . . . 25
10 Operation . . . . . . . . . . . . . . . . . . . . . . . 26
10.1 Changing the input unit cartridge. . 26
10.2 X-ray. . . . . . . . . . . . . . . . . . . . . . . 28
10.3 Scanning the image data. . . . . . . . 30
10.4 Erasing the image plate. . . . . . . . . 31
10.5 Switch off the unit. . . . . . . . . . . . . 31
11 Cleaning and disinfection. . . . . . . . . . . 32
11.1 Image plate scanner . . . . . . . . . . . 32
11.2 Light protection cover . . . . . . . . . . 32
11.3 Image plate. . . . . . . . . . . . . . . . . . 32
11.4 Storage box with image plate
storage tray . . . . . . . . . . . . . . . . . 33
12 Maintenance. . . . . . . . . . . . . . . . . . . . . 34
12.1 Recommended maintenance
schedule. . . . . . . . . . . . . . . . . . . . 34
EN
Contents
Important information
1 About this document . . . . . . . . . . . . . . . 3
1.1 Warnings and symbols . . . . . . . . . . 3
1.2 Copyright information . . . . . . . . . . . 4
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Intended purpose . . . . . . . . . . . . . . 4
2.2 Intended use. . . . . . . . . . . . . . . . . . 4
2.3 Improper use . . . . . . . . . . . . . . . . . 4
2.4 General safety information. . . . . . . . 5
2.5 Specialist personnel . . . . . . . . . . . . 5
2.6 Electrical safety. . . . . . . . . . . . . . . . 5
2.7 Essential performance character-
istics . . . . . . . . . . . . . . . . . . . . . . . . 6
2.8 Notification requirement of seri-
ous incidents . . . . . . . . . . . . . . . . . 6
2.9 Only use original parts. . . . . . . . . . . 6
2.10 Transport . . . . . . . . . . . . . . . . . . . . 6
2.11 Disposal . . . . . . . . . . . . . . . . . . . . . 6
2.12 Protection from threats from the
Internet . . . . . . . . . . . . . . . . . . . . . . 6
Product description
3 Overview. . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Scope of delivery . . . . . . . . . . . . . . 8
3.2 Accessories . . . . . . . . . . . . . . . . . . 8
3.3 Optional items. . . . . . . . . . . . . . . . . 8
3.4 Consumables . . . . . . . . . . . . . . . . . 8
3.5 Wear parts and replacement
parts. . . . . . . . . . . . . . . . . . . . . . . . 9
4 Technical data . . . . . . . . . . . . . . . . . . . 10
4.1 Image plate scanner . . . . . . . . . . . 10
4.2 Image plate. . . . . . . . . . . . . . . . . . 13
4.3 Light protection cover . . . . . . . . . . 13
4.4 Type plate . . . . . . . . . . . . . . . . . . . 14
4.5 Evaluation of conformity . . . . . . . . 14
5 Operation . . . . . . . . . . . . . . . . . . . . . . . 14
5.1 Image plate scanner . . . . . . . . . . . 14
5.2 Cartridges (S0-S2) . . . . . . . . . . . . 15
5.3 Image plate. . . . . . . . . . . . . . . . . . 16

2 2160100227L02 1910V008
Contents
Troubleshooting
13 Tips for operators and service techni-
cians. . . . . . . . . . . . . . . . . . . . . . . . . . . 35
13.1 Poor X-ray image . . . . . . . . . . . . . 35
13.2 Software error. . . . . . . . . . . . . . . . 39
13.3 Fault on the unit . . . . . . . . . . . . . . 40
Appendix
14 Scanning times. . . . . . . . . . . . . . . . . . . 42
15 File sizes (uncompressed) . . . . . . . . . . 43
16 Handover record . . . . . . . . . . . . . . . . . 44
EN

2160100227L02 1910V008 3
The signal word differentiates between four
levels of danger:
– DANGER
Immediate danger of severe injury or death
– WARNING
Possible danger of severe injury or death
– CAUTION
Risk of minor injuries
– NOTICE
Risk of extensive material/property damage
Other symbols
These symbols are used in the document and
on or in the unit:
Note, e.g. specific instructions regarding
efficient and cost-effective use of the unit.
Order number
Serial number
Medical device
Lot designation
CE labelling
CE labelling with the number of the noti-
fied body
Manufacturer
Dispose of correctly in accordance with
EU Directive 2012/19/EU (WEEE).
Refer to the accompanying electronic
documents.
Please read all of the accompanying doc-
uments.
Refer to Operating Instructions.
Wear protective gloves.
Disconnect all power from the unit.
1 About this document
These installation and operating instructions
represent part of the unit.
If the instructions and information in
these installation and operating instruc-
tions are not followed, Dürr Dental will
not be able to offer any warranty or as-
sume any liability for the safe operation
and the safe functioning of the unit.
The German version of the installation and oper-
ating instructions is the original manual. All other
languages are translation of the original manual.
These operating instructions apply to the follow-
ing VistaScan Nano Easy units:
Item number:
– 2160100500
– 2160100501
– 2160100503
– 2160100505
.
1.1 Warnings and symbols
Warnings
The warnings in this document are intended to
draw your attention to possible injury to persons
or damage to machinery.
The following warning symbols are used:
General warning symbol
The warnings are structured as follows:
Description of the type and source of
danger
Here you will find the possible conse-
quences of ignoring the warning
iFollow these measures to avoid the
danger.
Important information
EN

4 2160100227L02 1910V008
Important information
2 Safety
Dürr Dental has designed and constructed this
unit so that when used properly and for the in-
tended purpose it does not pose any danger to
people or property.
Despite this, the following residual risks can
remain:
– Personal injury due to incorrect use/misuse
– Personal injury due to mechanical effects
– Personal injury due to electric shock
– Personal injury due to radiation
– Personal injury due to fire
– Personal injury due to thermal effects on skin
– Personal injury due to lack of hygiene, e.g.
infection
2.1 Intended purpose
VistaScan Nano Easy
The unit is intended exclusively for use in dental
applications for the scanning and processing of
image data on an image plate.
Light protection cover
The functions of the Light Protection Cover are:
– to protect the image plate from light and
therefore against accidental erasure
– to protect against cross-contamination
2.2 Intended use
VistaScan Nano Easy
The unit may only be operated using accesso-
ries and optional articles manufactured by or
branded with Dürr Dental.
The unit may only be cleaned using the disin-
fectants and cleaning agents approved by and
specified by the manufacturer.
Light protection cover
The Light Protection Cover is a disposable item.
The Light Protection Cover is designed exclu-
sively for use with image plate scanners manu-
factured by or branded with DürrDental and im-
age plates manufactured by or branded with
DürrDental.
2.3 Improper use
Any other usage or usage beyond this scope is
deemed to be improper. The manufacturer ac-
cepts no liability for damages resulting from im-
proper usage. The user bears the sole risk.
Do not reuse
Health Industry Bar Code (HIBC)
DC current
Non-ionizing electromagnetic radiation
Warning – dangerous high voltage
Warning - laser beam
This way up / store and transport in an
upright position
Keep dry
nStacking limits
xx %
xx %
Lower and upper humidity limits
XX
YY
Lower and upper temperature limits
XX
YY Lower and upper atmospheric pressure
limits
Fragile, handle with care
Keep away from sunlight
1.2 Copyright information
All circuits, processes, names, software pro-
grams and units mentioned in this document are
protected by copyright.
The Installation and Operating Instructions must
not be copied or reprinted, neither in full nor in
part, without written authorisation from Dürr
Dental.
EN

2160100227L02 1910V008 5
Important information
iReplace any damaged cables or plugs imme-
diately.
Observe the EMC rules concerning medical
devices
iThe unit is intended for use in professional
healthcare facilities (in accordance with IEC
60601-1-2). If the appliance is operated in an-
other environment, potential effects on elec-
tromagnetic compatibility must be taken into
account.
iDo not operate the unit in the vicinity of HF
surgical instruments or MRT equipment.
iMaintain a minimum distance of at least 30
cm between the unit and other electronic de-
vices.
iKeep a minimum distance of 30cm between
the unit and mobile radio devices.
iNote that cable lengths and cable extensions
have effects on electromagnetic compatibility.
iNo maintenance measures are required to
maintain the EMV basic safety.
NOTICE
Negative effects on the EMC due to
non-authorised accessories
iUse only Dürr Dental parts or acces-
sories specifically approved by Dürr
Dental.
iUsing any other accessories may re-
sult in increased electromagnetic in-
terference emissions or the unit hav-
ing reduced electromagnetic immuni-
ty, leading to an erroneous operation
mode.
NOTICE
Erroneous operation mode due to
use immediately adjacent to other
devices or with other stacked de-
vices
iDo not stack the unit together with
other devices.
iIf this is unavoidable, the unit and oth-
er devices should be monitored in or-
der to ensure that they are working
correctly.
VistaScan Nano Easy
This unit is not suitable for monitoring patients
over longer periods of time. This unit must not
be operated in operating theatres or similar
rooms, in which dangers may arise from the
combustion of flammable materials.
Light protection covers
Especially: The multiple use of this accessory
and reprocessing contrary to the instructions of
the manufacturer.
The use of the accessory in combination with
other than image plate scanners manufactured
by or branded with Dürr Dental and image
plates manufactured by or branded with Dürr
Dental.
2.4 General safety information
iAlways comply with the specifications of all
guidelines, laws, and other rules and regula-
tions applicable at the site of operation for the
operation of this unit.
iCheck the function and condition of the unit
prior to every use.
iDo not convert or modify the unit.
iComply with the specifications of the Installa-
tion and Operating Instructions.
iThe Installation and Operating Instructions
must be accessible to all operators of the unit
at all times.
2.5 Specialist personnel
Operation
Unit operating personnel must ensure safe and
correct handling based on their training and
knowledge.
iInstruct or have every user instructed in han-
dling the unit.
Installation and repairs
iInstallation, readjustments, alterations, up-
grades and repairs must be carried out by
Dürr Dental or by qualified personnel specifi-
cally approved and authorized by Dürr Dental.
2.6 Electrical safety
iComply with all the relevant electrical safety
regulations when working on the unit.
iNever touch the patient and unshielded plug
connections or metallic parts of the device at
the same time.
EN

6 2160100227L02 1910V008
Important information
iDo not expose the unit to any strong vibra-
tions or shocks.
2.11 Disposal
An overview of the waste keys for Dürr
Dental products can be found in the
download area at www.duerrdental.com
(document no. P007100155).
Unit
The unit must be disposed of properly.
Within the European Union, the unit must
be disposed of in accordance with EU
Directive 2012/19/EU (WEEE).
iIf you have any questions about the correct
disposal of parts, please contact your dental
trade supplier.
Image plate
The image plate contains barium compounds.
iDispose of the image plate properly in accord-
ance with the locally applicable regulations.
iIn Europe, dispose of the image plate in ac-
cordance with waste code 090199 "Wastes
not otherwise specified". Disposal as domes-
tic waste is possible.
2.12 Protection from threats from
the Internet
The unit is to be connected to a computer that
can be connected to the Internet. Therefore, the
system needs to be protected from threats from
the Internet.
iUse antivirus software and update it regularly.
Look for evidence of possible virus infection
and, if applicable, check with the antivirus
software and remove the virus.
iPerform regular data backups.
iRestrict access to units to trustworthy users,
e.g. via a user name and password.
iMake sure that only trustworthy content is
downloaded. Only install software and
firmware updates that have been authenticat-
ed by the manufacturer.
2.7 Essential performance charac-
teristics
The VistaScan Nano Easy unit does not pos-
sess any significant performance characteristics
as set out in IEC60601-1 (EN60601-1) section
4.3.
The unit complies with the requirements accord-
ing to IEC60601-1-2:2014.
2.8 Notification requirement of seri-
ous incidents
The operator/patient is required to report any
serious incident that occurs in connection with
the device to the manufacturer and to the com-
petent authority of the Member State in which
the operator and/or patient is established/resi-
dent.
2.9 Only use original parts
iOnly use Dürr Dental parts or accessories and
special accessories specifically approved by
Dürr Dental.
iOnly use only original wear parts and replace-
ment parts.
Dürr Dental accepts no liability for dam-
ages or injury resulting from the use of
non-approved accessories or optional
accessories, or from the use of non-origi-
nal wear parts or replacement parts.
The use of non-approved accessories,
optional accessories or non-genuine
wear parts / replacement parts
(e.g.mains cable) can have a negative
effect in terms of electrical safety and
EMC.
2.10 Transport
The original packaging provides optimum pro-
tection for the unit during transport.
If required, original packaging for the unit can be
ordered from Dürr Dental.
Dürr Dental will not accept any responsi-
bility or liability for damage occurring dur-
ing transport due to the use of incorrect
packaging, even where the unit is still un-
der guarantee.
iOnly transport the unit in its original packag-
ing.
iKeep the packing materials out of the reach of
children.
EN

2160100227L02 1910V008 7
3 Overview
back
IQ
2
*+E24721301042100/$+01234567F*
1
3
4
7
2
5
8
6

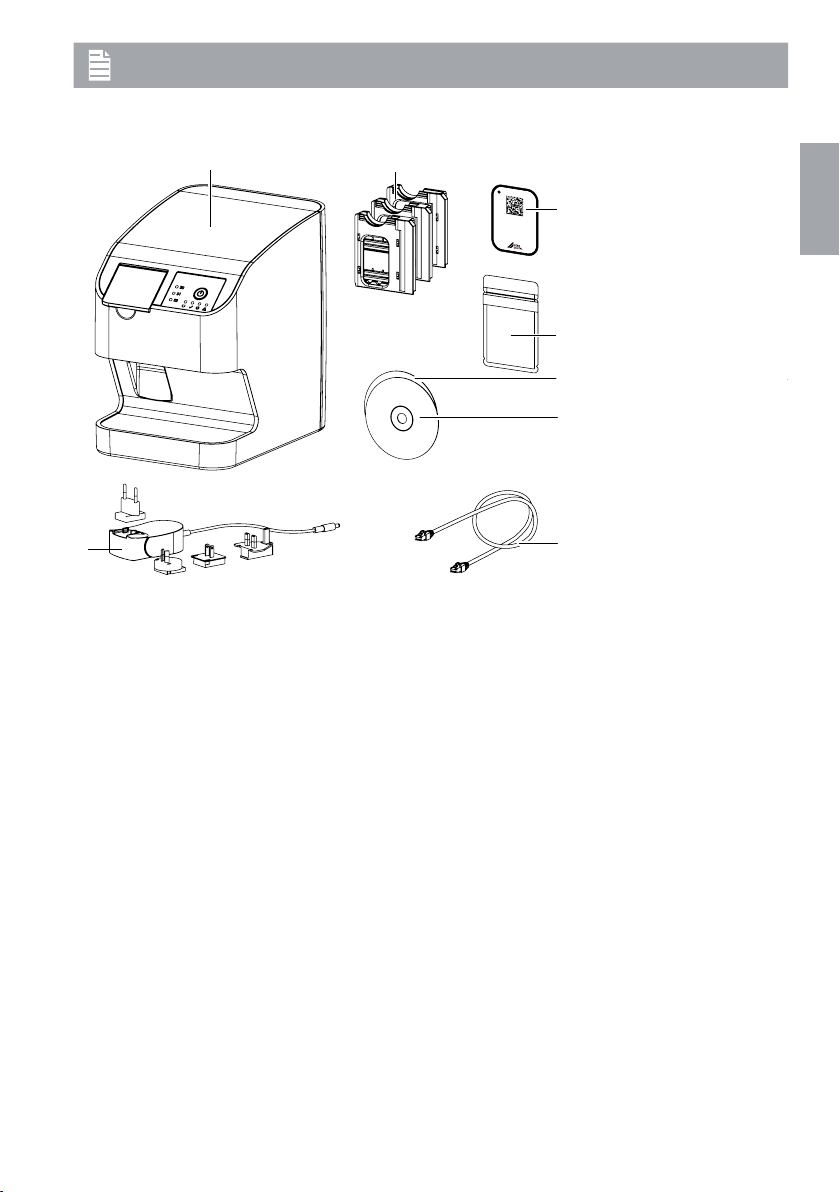

1 VistaScan Nano Easy image plate scanner
2 Cartridge for image plates (S0 up to S2)
3 IQ image plate
4 Light protection cover Plus
5 DBSWIN imaging software DVD
6 VistaSoft imaging software DVD
7 Network cable (3 m)
8 Power supply unit with country-specific adapter
Product description
EN

8 2160100227L02 1910V008
Product description
Storage box . . . . . . . . . . . . . . . . . 2141-002-00
Image plate and film holder system set
2130100015
Image plate and film holder system
conversion set for endo-exposures 2130100014
Mobile Connect (for using apps for
mobile appliances, e.g.Dürr Dental
Imaging iPad app) . . . . . . . . . . .2100-725-12FC
Commissioning and intraoral constancy tests
Intra / extra digital test body . . . . . 2121-060-54
3.4 Consumables
The following materials are consumed during
operation of the device and must be reordered
separately:
Cleaning and disinfection
Image plate cleaning wipes (10pcs.) . .
CCB351B1001
FD 333 forte wipes for quick-acting
disinfection . . . . . . . . . . . . . . . . CDF33FW0150
FD 350 Classic
disinfection wipes . . . . . . . . . . . CDF35CA0140
FD 333
rapid surface disinfection . . . . . CDF333C6150
FD 322
rapid surface disinfection . . . . . CDF322C6150
FD 366 rapid disinfectant for sensitive
surfaces . . . . . . . . . . . . . . . . . . CDF366C6150
ID 212
Instrument disinfection . . . . . . . . CDI212C6150
ID 212 forte
Instrument disinfection . . . . . . . . CDI212F6150
ID213
Instrument disinfection . . . . . . . . CDI213C6150
Light protection covers
Light Protection Cover Plus size 0
2 x 3 cm (100 pcs.) . . . . . . . . . . . . 2130-080-00
Light Protection Cover Plus size 1
2 x 4 cm (100 pcs.) . . . . . . . . . . . . 2130-081-00
Light Protection Cover Plus size 2
3 x 4 cm (300 pcs.) . . . . . . . . . . . . 2130-082-00
Light Protection Cover Plus size 2
3 x 4 cm (1000 pcs.) . . . . . . . . . . . 2130-082-55
Light Protection Cover Plus size 0,
white
2 x 3 cm (100 pcs.) . . . . . . . . . . . . 2130-080-50
Light Protection Cover Plus size 2,
white
3 x 4 cm (300 pcs.) . . . . . . . . . . . . 2130-082-50
3.1 Scope of delivery
The following items are included in the scope of
delivery (possible variations due to country-spe-
cific requirements and/or import regulations):
VistaScan Nano Easy
image plate scanner . . . . . . . . . . 2160110001
VistaScan Nano Easy
image plate scanner . . . . . . . . . . 2160110005
VistaScan Nano Easy
image plate scanner . . . . . . . . . . 2160110011
VistaScan Nano Easy
image plate scanner . . . . . . . . . . 2160110012
VistaScan Nano Easy
image plate scanner . . . . . . . . . . 2160110013
– VistaScan Nano Easy basic unit
– Power supply unit
– Network cable (3 m)
– Collector mat (mounted in the device)
– VistaSoft imaging software DVD
– DBSWIN imaging software DVD
– Cartridge for image plate size 2
– IQ image plates:
- Size 2
– Light protection covers Plus:
- Size 2
– Installation and operating instructions
– Quick start instructions
3.2 Accessories
The following items are required for operation of
the device, depending on the application:
Image plates
– IQ image plate, size 0
– IQ image plate, size 1
– IQ image plate, size 2
Light protection covers
– Light Protection Cover Plus, size 0
– Light Protection Cover Plus, size 1
– Light Protection Cover Plus, size 2
– Light Protection Cover Plus, size 0, white
– Light Protection Cover Plus, size 2, white
3.3 Optional items
The following optional articles can be used with
the unit:
Wall bracket . . . . . . . . . . . . . . . . . 2160100210
EN

2160100227L02 1910V008 9
Product description
3.5 Wear parts and replacement
parts
Image plates
Image plate IQ, size 0
2 x 3 cm (2 pcs.) . . . . . . . . . . . . . . 2130104050
Image plate IQ, size 1
2 x 4 cm (2 pcs.) . . . . . . . . . . . . . . 2130104150
Image plate IQ, size 2
3 x 4 cm (4 pcs.) . . . . . . . . . . . . . . 2130104250
Image plate IQ, size 2
3 x 4 cm (12 pcs.). . . . . . . . . . . . . 2130104255
Cartridges
Cartridge for image plate S0 . . . . . 2160100246
Cartridge for image plate S1 . . . . . 2160100247
Cartridge for image plate S2 . . . . . 2160100248
Information about replacement parts is
available from the portal for authorised
specialist dealers at:
www.duerrdental.net.
EN

10 2160100227L02 1910V008
Product description
4 Technical data
4.1 Image plate scanner
Electrical data for the unit
Rated voltage V DC 24
Max. current consumption A 0.5
Max. power consumption W < 12
Electrical data – power supply unit
Nominal input voltage V AC 100 - 240
Frequency Hz 50/60
Nominal output voltage V DC 24
Max. output current A 0.5
General technical data
Dimensions (W x H x D) mm 167 x 231 x 216
in 6.57 x 9.09 x 8.50
Weight kg approx. 4
lb approx. 8.82
Duty cycle % 100
Max. theoretical resolution Line pairs/
mm (Lp/mm) approx. 16.7
Noise level
During scanning dB(A) approx. 45
Network connection
LAN technology Ethernet
Standard IEEE 802.3u
Data rate Mbit/s 100
Connector RJ45
Type of connection Auto MDI-X
Cable type ≥CAT5
Ambient conditions during operation
Temperature °C +10 to +35
°F +50 to +95
Relative humidity % 20 - 80
Air pressure hPa 750 - 1060
Height above sea level m < 2000
ft < 6562
Ambient conditions during storage and transport
Temperature °C -18 to +60
°F -4 to +140
Humidity % 10 - 95, non-condensing
Air pressure hPa 500 - 1060
EN

2160100227L02 1910V008 11
Product description
Classification
Medical product class I
Laser class (unit)
In accordance with IEC60825-1:2014 1
Laser source
Laser class
In accordance with IEC60825-1:2014 3B
Wavelength lnm 635
Output mW <10
Technical data for the RFID module
Frequency MHz 13.56
Modulation ASK
Max. power mW 400
Electromagnetic compatibility (EMC)
Interference emission measurements
High-frequency emissions in accordance with CISPR11 Group 1
Class B
Interference voltage at the power supply connection
CISPR11:2009+A1:2010 Compliant
Electromagnetic interference radiation
CISPR11:2009+A1:2010 Compliant
Electromagnetic compatibility (EMC)
Interference immunity measurements cover
Immunity to interference, discharge of static electricity
IEC61000-4-2:2008
± 8 kV contact
± 2 kV, ± 4 kV, ± 8 kV, ± 15 kV air
Compliant
Immunity to interference, high-frequency electromagnet-
ic fields
IEC61000-4-3:2006+A1:2007+A2:2010
3 V/m
80 MHz - 2.7 GHz
80 % AM at 1 kHz
Compliant
Immunity to interference, near fields of wireless HF com-
munication devices
IEC61000-4-3:2006+A1:2007+A2:2010
See immunity to interference table, near fields of wire-
less HF communication devices
Compliant
Immunity to interference table, near fields of wireless HF communication devices
Radio service Frequency band
MHz
Test level
V/m
TETRA 400 380 - 390 27
GMRS 460
FRS 460 430 - 470 28
EN

12 2160100227L02 1910V008
Product description
Immunity to interference table, near fields of wireless HF communication devices
Radio service Frequency band
MHz
Test level
V/m
LTE band 13, 17 704 - 787 9
GSM 800/900
TETRA 800
iDEN 820
CDMA 850
LTE band 5
800 - 960 28
GSM 1800
CDMA 1900
GSM 1900
DECT
LTE band 1, 3, 4, 25
UMTS
1700 - 1990 28
Bluetooth
WLAN 802.11 b/g/n
RFID 2450
LTE band 7
2400 - 2570 28
WLAN 802.11 a/n 5100 - 5800 9
Electromagnetic compatibility (EMC)
Interference immunity measurements supply input
Immunity to interference, rapid transient bursts – AC
voltage grid
IEC61000-4-4:2012
± 2 kV
100 kHz repetition frequency
Compliant
Immunity to interference, surges
IEC61000-4-5:2005
± 0.5 kV, ± 1 kV
Compliant
Immunity to interference, line-conducted disturbances
induced by high-frequency fields – AC voltage grid
IEC61000-4-6:2013
3 V
0.15 - 80 MHz
6 V
ISM frequency bands
0.15 - 80 MHz
80 % AM at 1 kHz
Compliant
Immunity to interference due to voltage dips, short inter-
ruptions and voltage variations
IEC61000-4-11:2004
Compliant
EN

2160100227L02 1910V008 13
Product description
Electromagnetic compatibility (EMC)
Interference immunity measurements SIP/SOP
Immunity to interference, discharge of static electricity
IEC61000-4-2:2008
± 8 kV contact
± 2kV, ± 4 kV, ± 8 kV, ± 15 kV air
Compliant
Immunity to interference, rapid transient bursts – I/O,
SIP/SOP ports
IEC61000-4-4:2012
± 1 kV
100 kHz repetition frequency
Compliant
Immunity to interference, line-conducted disturbances
induced by high-frequency fields – SIP/SOP ports
IEC61000-4-6:2013
3 V
0.15 - 80 MHz
6 V
ISM frequency bands
0.15 - 80 MHz
80 % AM at 1 kHz
Compliant
4.2 Image plate
Classification
Medical devices class IIa
Ambient conditions during operation
Temperature °C 18 - 45
°F 64 - 113
Relative humidity % < 80
Ambient conditions during storage and transport
Temperature °C < 33
°F < 91
Relative humidity % < 80
Dimensions of intraoral image plates
Size 0 mm 22 x 35
inches 0.87 x 1.38
Size 1 mm 24 x 40
inches 0.94 x 1.57
Size 2 mm 31 x 41
inches 1.22 x 1.61
4.3 Light protection cover
Classification
Medical product class I
EN

14 2160100227L02 1910V008
Product description
5 Operation
5.1 Image plate scanner
2
3
4
1
1 Input unit
2 Cover (open)
3 Operating elements
4 Collection tray
The image plate scanner is used to read image
data stored on an image plate and to transfer
the data to the imaging software (e.g.VistaSoft)
on a computer.
The transport mechanism guides the image
plate through the device. The image plate is
read using a laser inside the scanner unit. The
scanned data is converted into a digital image
and transferred to the imaging software.
After scanning, the image plate runs through the
erasure unit. Image data still held on the image
plate is erased with the aid of bright light.
The image plate is then ejected for re-use.
4.4 Type plate
The type plate is located on the rear of the de-
vice.
REF Order number
SN Serial number
4.5 Evaluation of conformity
This device has been subjected to conformity
acceptance testing in accordance with the cur-
rent relevant European Union guidelines. This
equipment conforms to all relevant require-
ments.
Dürr Dental herewith declares that the radio
equipment "VistaScan Nano Easy" meets the
requirements of Directive 2014/53/EU.
The full text of the EU declaration of conformity
can be viewed online here: www.duerrdental.
com
EN

2160100227L02 1910V008 15
Product description
S2 Cartridge for S2 image plate is in
the device
Status LED flashing
Connections
The connections are located on the rear of the
unit, underneath the cover.
1
2
3
1 Network connection
2 Reset button
3 Connection for power supply unit
5.2 Cartridges (S0-S2)
According to the image plate used, the cartridge
corresponding to the size of the image plate
must be inserted in the device. The cartridge
that is currently in the device is indicated via the
LEDs on the device.
Operating elements
8
5
1
4 3 2
7
6
1 On / off switch
2 Error display yellow
3 Read display blue
4 Green status LED
5 Communication/standby display white
6 Display for cartridge S2
7 Display for cartridge S1
8 Display for cartridge S0
The status LEDs display the following status
messages:
Device starts
Communication display
Standby
Ready to scan
Image plate currently being proc-
essed
Cartridge for image plate missing
Error
A message is displayed in the
software
S0 Cartridge for S0 image plate is in
the device
S1 Cartridge for S1 image plate is in
the device
EN

16 2160100227L02 1910V008
Product description
5.3 Image plate
The image plate stores X-ray energy, which is
re-emitted in the form of light after excitation via
the laser. This light is then converted to image
information in the image plate scanner.
The image plate has an active side and an inac-
tive side. The image plate must always be ex-
posed on the active side.
When used properly, image plates can be ex-
posed, read and erased several hundred times
provided there is no mechanical damage. The
image plate must be replaced if there are any
signs of damage, e.g. if the protective layer is
damaged or there are visible scratches that
could interfere with the diagnosis.
Intraoral
Inactive side Active side
back
IQ
2
*+E24721301042100/$+01234567F*
White, printed with
the word "back" and
the size and manu-
facturer's information
Light blue, with posi-
tioning aid
The positioning aid is visible on the X-ray im-
age and makes it easier to align the image cor-
rectly during diagnosis.
Use only IQ image plates with the unit.
The unit is unable to read any other types
of image plates.
EN

2160100227L02 1910V008 17
7 Installation
7.1 Setting up the unit
NOTICE
Risk of damage to sensitive compo-
nents in the unit as a result of shocks
or vibrations
iDo not expose the unit to any strong
vibrations or shocks.
iDo not move the unit during opera-
tion.
Portable and mobile HF communication appli-
ances can interfere with the effectiveness of
electrical medical devices.
iDo not stack the unit next to or together with
other appliances.
iIf, however, this unit is operated next to other
units or stacked with other units, monitor the
unit carefully in the configuration selected in
order to ensure normal operation.

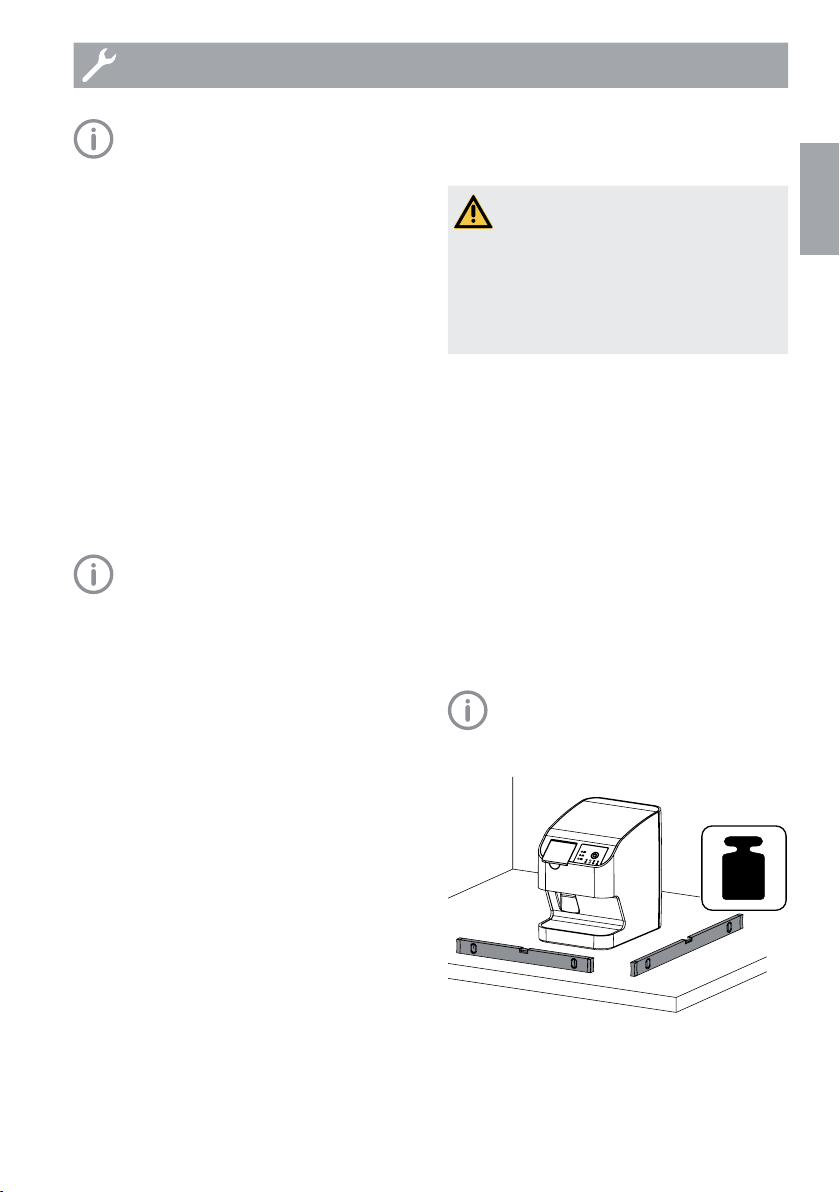

The unit can be set up as a tabletop unit or
mounted on a wall using the wall bracket.
The load-bearing capacity of the table or wall
must be suitable for the weight of the unit (see
"4 Technical data").
Setting the unit on a table
To prevent errors when scanning the im-
age data, install the unit so it is not ex-
posed to vibrations.
iPlace the unit on a firm, horizontal surface.
4 kg
8,8 lb
Installing the unit with the wall mounting
bracket
The unit can be mounted on a wall with the wall
mounting bracket (see "3.3 Optional items").
Only qualified specialists or employees
trained by Dürr Dental are permitted to
install, connect and start using the unit.
6 Requirements
6.1 Installation/setup room
The room chosen for set up must fulfil the fol-
lowing requirements:
– Closed, dry, well-ventilated room
– It should not be a room made for another
purpose (e.g.boiler room or wet cell).
– Max. light intensity 1000 Lux, no direct sun-
light at the place of installation of the unit
– There should be no large fields of interference
(e.g.strong magnetic fields) present that can
interfere with the correct operation of the unit.
– Refer to the requirements for environmental
conditions in "4 Technical data".
6.2 System requirements
The system requirements for the compu-
ter systems can be found in the down-
load area at www.duerrdental.com (doc-
ument no. 9000-618-148).
6.3 Monitor
The monitor must comply with the requirements
for digital X-ray with a high light intensity and
wide contrast range.
Strong ambient light, sunlight falling directly onto
the monitor and reflections can make it harder
or even impossible to perform a diagnosis
based on the X-ray images.
Assembly
EN

18 2160100227L02 1910V008
Assembly
iRemove the screw covers and screws from
the bottom of the device.
iRemove the cover from the rear of the device.
7.2 Electrical connections
Safety when making electrical connections
iThe device must only be connected to a cor-
rectly installed power outlet.
iDo not place non-fixed multi-socket units on
the floor. Follow the requirements in sec-
tion16 of IEC60601-1 (EN60601-1).
i
Do not operate any other systems using the
same multiple socket.
iMake sure that none of the electrical cables
leading to the unit are under any mechanical
tension.
iBefore initial start-up check that the mains
supply voltage and the voltage stated on the
type plate match (see also "4. Technical
data").
Connecting the unit to the mains supply
The unit has no main power switch. For
this reason it is important that the unit is
be set up in such a way that the plug can
be easily accessed and unplugged if re-
quired.
Requirements:
– Properly installed power outlet close to the
unit (observe the max. mains cable length)
– Easily accessible power outlet
– Mains voltage must match the information
shown on the type plate of the power supply
unit
Only the supplied power supply unit may
be used.
iAttach the matching country-specific adapter
to the power supply unit.
EN
