Preface
Thank you for purchasing our GSM SecurityAlarm System (“The System”)!
The System will keep your home and property safe around the clock.
The GSM Security Alarm (“The Alarm”) adopts the most advanced Israeli digital
security technology, with a high reliability and low false alarm rate; it has a
simple design, but powerful functions, such as fire prevention, burglary
prevention, gas leak prevention, housebreaking prevention, SOS for emergent
diseases, etc. Meanwhile, you can also equip wired or wireless detectors, which
feature functions like anti-interference, false alarm prevention, missing alarm
prevention, user-friendly operations, etc. It is widely used for networking alarm in
houses, shops, convenience stores, accounting offices, villas, residence
communities and cities.
For your safety and giving full play to the functions of the Alarm, please read the
user manual carefully before installation and operation; if you have any trouble
during installing or operating, please contact with local dealers or authorized
technology service centers for help. You can also call us to solve troubles by our
professional technical engineers.
Note: To get the complete after-sale service of “Three Guarantees”, please don’t
remove the Alarm cover to repair or rebuild by yourself; in such cases, the
warranty will be void and we shall not be liable for any damage and negative
results.
Please keep the user manual for reference in the future.
CONTENTS
Introduction to Functions-------------------------------------------------------------------4
Introduction to the Main device-----------------------------------------------------------5
Function Setting-----------------------------------------------------------------------------7
Initialization----------------------------------------------------------------------------------7
Setting-----------------------------------------------------------------------------------------8
Exiting from Setting------------------------------------------------------------------------8
Recovering the default password----------------------------------------------------------8
Recovering factory settings----------------------------------------------------------------9
Code Pairing for Remote Controller------------------------------------------------------9
Deleting Remote Controller----------------------------------------------------------------9
Code Pairing for Zones--------------------------------------------------------------------10
Deleting Zones-----------------------------------------------------------------------------10
Changing Password------------------------------------------------------------------------11
Clock Setting-------------------------------------------------------------------------------11
Timing Setting-----------------------------------------------------------------------------12
Alarm Telephone Setting-----------------------------------------------------------------13
Deleting Alarm-Receiving Telephones-------------------------------------------------13
SMS-Receiving Phone Setting-----------------------------------------------------------14
Deleting SMS-Receiving Phones--------------------------------------------------------14
Zone Programming ------------------------------------------------------------------------15
Home Arming Setting---------------------------------------------------------------------16
Manual Recording-------------------------------------------------------------------------16
SOS Siren on Remote Controller--------------------------------------------------------17
Warning Tone for Arming Operation----------------------------------------------------17
Enabling Landline Phone-----------------------------------------------------------------17
Ringtone Times for Landline Phone Alarm--------------------------------------------17
Wireless Signal Output from the Main Device----------------------------------------18
Networking Center Settings (networking functions customized)-------------------18
Main Device Status------------------------------------------------------------------------19

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
3 4
Daily Operations----------------------------------------------------------------------- -20
AwayArming ---------------------------------------------------------------------------20
Home Arming----------------------------------------------------------------------------20
Disarming---------------------------------------------------------------------------------21
Answering Call Alarm-------------------------------------------------------------------21
Remote Control--------------------------------------------------------------------------22
SOS---------------------------------------------------------------------------------------23
Maintenance------------------------------------------------------------------------------24
System Inspection-----------------------------------------------------------------------25
Precautions-------------------------------------------------------------------------------25
Technical Parameters: ------------------------------------------------------------------25
Introduction to Functions
With dual network of GSM + telephone cable, the System is more secure and
reliable.
With the quad-band GSM module for global use.
Includes 2wired zones and 99 wireless zones.
Supports code pairing with 8wireless remote controllers at the most.
LCD screen with a built-in clock.
With voice prompts for easy operations.
Supports an external intercom speaker.
Supports 3 groups of timed arming and 3 groups of timed disarming.
The main device can dial alarm calls to 6preset phone numbers.
The main device can send text alarm to 3preset phone numbers.
With 10-second manual recording function to leave messages.
With a built-in digital voice device to give voice alarm automatically.
With built-in SMS service to send alarm messages automatically.
Supports wireless alarm siren and control by wireless devices
(customization).
With the One-Key-Control function, you can conduct Away Arming, Home
Arming, Remote Control Arming or Off-site Telephone Arming.
Alarm Location Programming: Help, Fire, Gas Leak, Door Lock, Living
Room, Window, Balcony, and Perimeter Alarm.
Includes multiple zone programming functions like Real-Time, Delay, 24
Hour, Bypass.
With Wireless Self-learning Code Pairing, new accessories can be installed
conveniently, safely and effectively.
Off-site remote control allows Main Device Arming, Disarming, Monitoring,
Intercom etc.
Arming Modes: Remote Control Real-Time Arming, Away Delayed Arming,
Home (Stay) Arming, Timing Arming, Off-site Telephone Remote Arming.
Line Seizure: If an alarm happens, the main device will cut off the busy line

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
5 6
and give priority to make a call for the alarm.
With a built-in 7.2V lithium battery, it can power the Alarm during a
blackout.
Comply with the CCC Safety Standard and GB12663-2001 national
standard.
Compatible ADEMCO Contact ID protocol (customization).
Introduction to the Main device
To better receive the signals from all wireless detectors, the main device
should be installed in the center of the zone. Note that the main device should be
installed away from large metal objects or household appliances with
high-frequency interference, as well as barriers like reinforced concrete walls and
fireproof doors, etc.

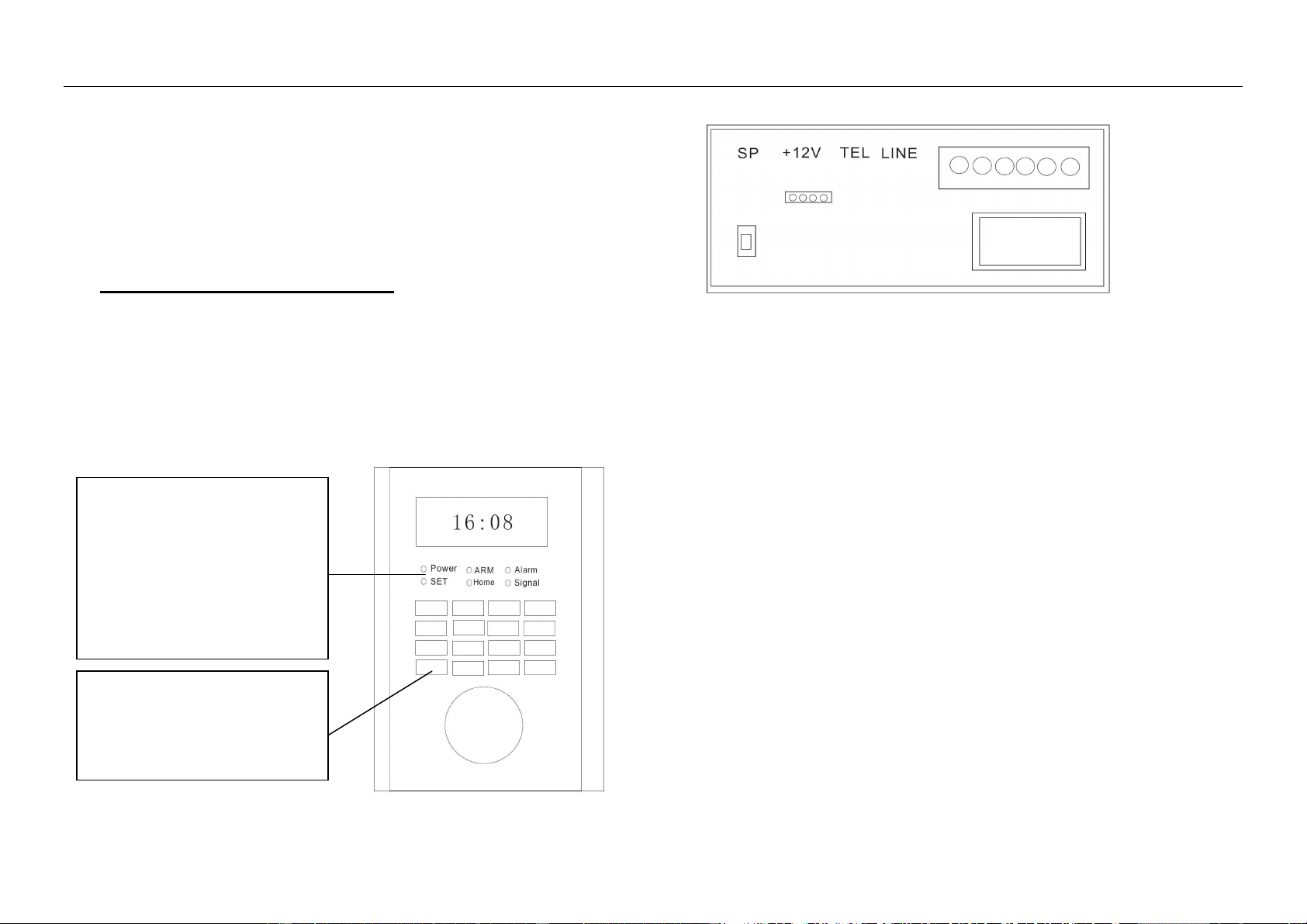

Panel Diagrammatic Sketch:
Back Diagrammatic Sketch:
Sockets:
SP: Alarm Siren +12V: Power Adapter TEL: Telephone LINE: Exterior
Line
Connection Ports:
ANT: Pole connector for external GSM antenna.
AND:external GSM antenna grounding.
Z1/Z2: Wired zone (short-circuit alarm; the Alarm will display zone 98/99)
GND: Ground wire zone.
+12V: Power output of wired zones
Power: power indicator lamp；
SET: setting status indicator
lamps;
ARM: away arming lamps;
Home: home arming lamps;
Alarm：alarm lamps;
Signal: signal lamps;
Delete Key：Press the key to clear
input errors; if no digit is input, it
will make a warning tone.
SIM card

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
7 8

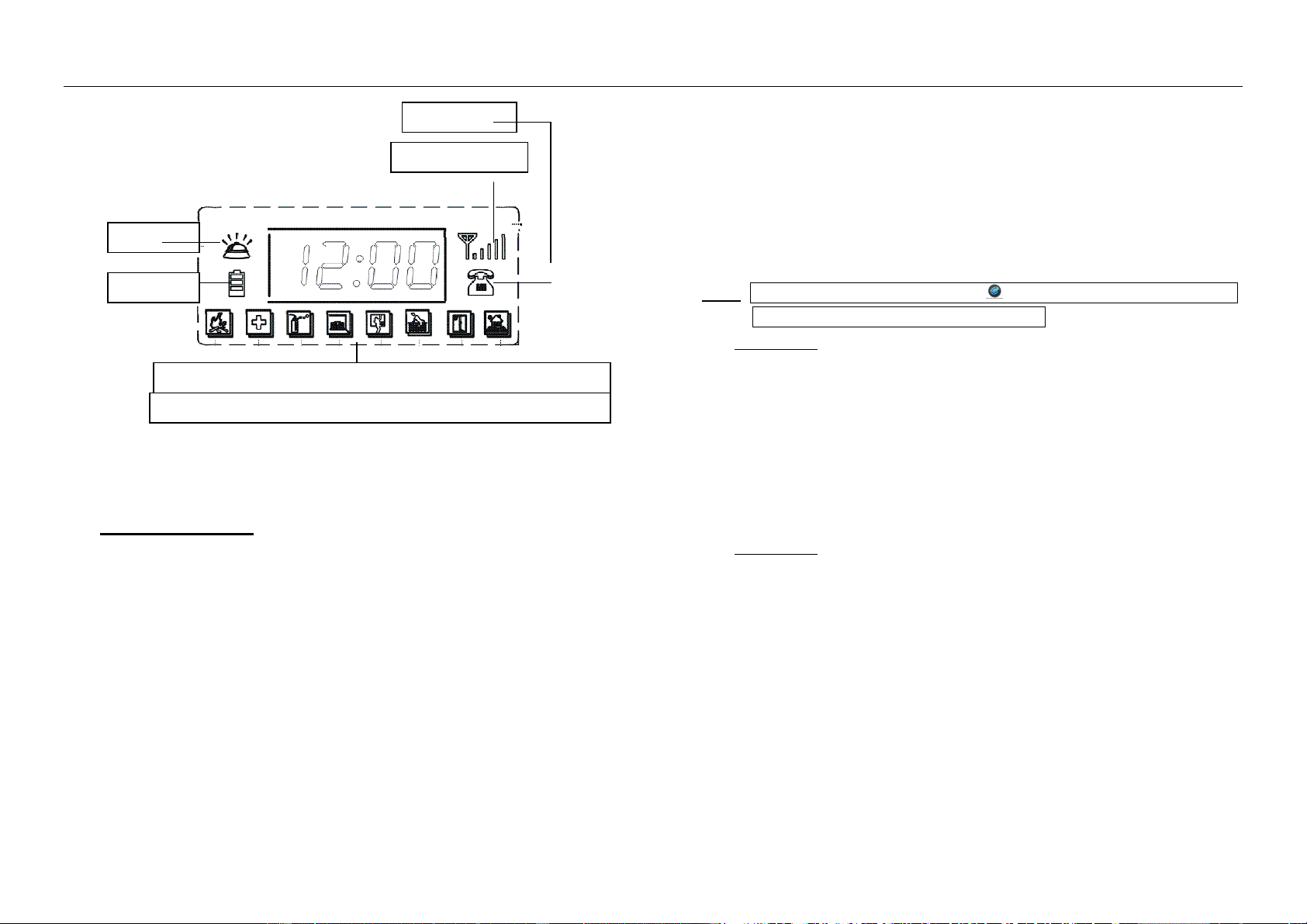

LCD Display:
Function Setting
Initialization
Install the SIM card to the main device, and connect the adapter to the main
device. After the LED lamp stays on and the icons on the LCD display for 2
seconds, the main device will gives a long beep, and then go into initialization.
After the System displays the correct time, it starts to detect the GSM network
until a normal network is obtained; then the main device gives a long beep, and
the signal strength will be displayed (a signal strength of at least 2 bars is
required), then the main device is in the state of disarming.
Finally, turn the switch of the backup battery to [ON].
Setting
Under the disarming state, input a four-digit password [XXXX], and press the [#]
key to confirm. When the main device makes a voice prompt “Please input
commands”, while the [SET] lamp stays on, and the LCD displays [Reset], it
indicates that the System is on the setting state. In this state, you can conduct
various function settings. If you don’t conduct any operation on the keypad for
over 40 seconds, the main device will auto exit from the setting state and return to
the disarming state.
Notes: Under the setting state, press the key to delete the input numbers.
The default ex-factory password is [8888].
Setting steps: 【XXXX】【#】
X: stands for a digit of the four-digit password, with the ex-factory value of
[8888].
Exiting from Setting
After completing the settings, press the [*] key and [#] key on the keypad
until you hear the sound of “Beep”, the System exits from the setting state. At this
time, the [SET] lamp goes off, and the System returns to the disarming state.
Setting steps: 【*】【#】
Recovering the default password
If you forget the password, we suggest you recover the ex-factory password,
and then set a new password for the main device.
Under the disarming state, input [95175308249], and press the [#] key to
confirm; after the [SET] indicator lamp stays on for 2 seconds, and the main
device gives a long beep, the ex-factory password is recovered, whereas all
settings remain the same.
Setting steps: [95175308249] 【#】
Dialing
Alarm
GSM Signal
Low
Zone Type
：
Fire, Emergency, Gas Leak,
Living room
, Window
Balcony
,
,
Gate Lock,
Perimeter

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
9 10
Recovering factory settings
If the System works unsteadily, or you have forgotten the previous setting
parameters, we suggest you recover the factory settings, and set new parameters
for the main device.
Under the disarming state, input [95175308246], and press the [#] key to
confirm; after the [LED] indicator lamps stay on for 2 seconds, and the main
device gives a long beep, the factory settings is recovered with all user settings
cleared.
Setting steps: [95175308246] 【#】
Code Pairing for Remote Controller
Code pairing shall be performed before the remote controller is used to
control the main device.
Under the setting state, input the address code [20], and press the serial
number of the remote controller with [1～
～～
～8] keys, and then press the [#] key to
confirm; at this time, the main device gives a long beep, and gives a voice prompt
of “Send codes by remote controller”; press a key on the remote controller to send
a wireless signal; after receiving the signal, the main device will gives a long beep,
and give a voice prompt of “Code pairing succeeded”.
Setting steps: 【
【【
【20】
】】
】【
【【
【A】
】】
】【
【【
【#】
】】
】
A: stands for the serial number of the remote controllers (1~8).
Deleting Remote Controller
After the remote controller is deleted, it cannot control the main device
any more.
Under the setting state, input the address code [21], and press the serial
number of the remote controller with [1～
～～
～8], and then press the [#] key to confirm.
After the main device gives a long beep and the [signal] lamp flashes once, the
System will give a voice prompt of “Successfully Deleted”. The deleted remote
controller will be out of work.
Setting steps: 【
【【
【21】
】】
】【
【【
【A】
】】
】【
【【
【#】
】】
】
A: stands for the serial number of the remoter controllers (1~8).
Code Pairing for Zones
Code pairing shall be performed between the wireless detectors and zones to
trigger alarm on the main device.
Under the setting state, input the address code [23], and press the serial
number of zone within [01~99], and then press the [#] key to confirm. After the
main device gives a long beep, the LCD screen displays the corresponding zone,
and the System will give a voice prompt of “Send codes by detector”; trigger the
detector you desire to match code, after the main device receives the signal, it will
gives a long beep, then the System will give a voice prompt of “Code pairing
succeeded”.
Setting steps: 【
【【
【23】
】】
】【
【【
【xx】
】】
】【
【【
【#】
】】
】
XX: stands for the serial number of the zone (01~99)
Deleting Zones
After a zone is deleted, it cannot trigger alarm on the main device any
more.
Under the setting state, input the address code [24], and press the serial
number of the zone you want to delete within [01~99], and then press the [#] key
to confirm. After the main device gives a long beep, the serial number of the
corresponding zone flashes once on the LCD, and the System will give a voice
prompt of “Successfully deleted”. The deleted zone cannot trigger alarm any
more.
Setting steps: 【
【【
【24】
】】
】【
【【
【xx】
】】
】【
【【
【#】
】】
】
XX: stands for the serial numbers of the zone (01~99)

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
11 12
Changing Password
1. User Password
The user password is the key to access the System when disarming or
conducting operations by the remote controller.
Under the setting state, input the address code [30], and input a four digit
password, and then press the [#] key to confirm; after the main device gives a
long beep, the System will give a voice prompt of “Successfully set”, then the
previous password has been changed.
Setting steps: 【
【【
【30】
】】
】【
【【
【XXXX】
】】
】【
【【
【#】
】】
】
XXXX: stands for the new four digit password.
Example: Change the password to 1012;
Setting steps: 【
【【
【30】
】】
】

【
【【
【1012】
】】
】

【
【【
【#】
】】
】
2. Engineering Password
The engineering password is the key to access function settings.
Under the setting state, input the address code [31], and input a four digit
password, and then press the [#] key to confirm; after the main device gives a
long beep, the System will give a voice prompt of “Successfully set”, then the
previous password has been changed.
Setting steps: 【
【【
【31】
】】
】【
【【
【XXXX】
】】
】【
【【
【#】
】】
】
XXXX: stands for the new four digit password.
Example: Change the password to 2846;
Setting steps: 【
【【
【31】
】】
】

【
【【
【2846】
】】
】

【
【【
【#】
】】
】
Notes: The engineering password cannot be the same as the user
password.
Clock Setting
Under the setting state, input the address code [32], and input digits of the
current hour (in 24-hour system) [AA]; and the minute [BB]; and then press the [#]
key to confirm. After the main device gives a long beep, the System will give a
voice prompt of “Successfully set”.
Setting steps: 【
【【
【32】
】】
】【
【【
【AA】
】】
】【
【【
【BB】
】】
】

【
【【
【#】
】】
】
AA: stands for the digits of hour of current time (in 24-hour system) .
BB: stands for the digits of minute of current time.
Example: the current time is 3:35 PM;
Setting steps: 【
【【
【32】
】】
】

【
【【
【15】
】】
】【
【【
【35】
】】
】

【
【【
【#】
】】
】
Timing Setting
1. Timing Arming
Under the setting state, input the address code [33~35], and input hour [AA]
and minute [BB] of the auto arming time, and then press the [#] key to confirm;
after the main device gives a long beep, the System will give a voice prompt of
“Successfully set”.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【AA】
】】
】【
【【
【BB】
】】
】

【
【【
【#】
】】
】
XX: stands for the address code of 3 groups of timing auto-arming (33, 34, and
35).
AA: stands for the hour of the auto-arming time.
BB: stands for the minute of the auto-arming time.
Example: the auto-arming time is 10:45 PM every day;
Setting steps: 【
【【
【33】
】】
】

【
【【
【22】
】】
】【
【【
【45】
】】
】

【
【【
【#】
】】
】
2. Timing Disarming
Under the setting state, input the address code [36~38], and press the hour
[AA] and the minute [BB] of the auto-disarming time, and then press the [#] key
to confirm; after the main device gives a long beep, the System will give a voice
prompt of “Successfully set”.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【AA】
】】
】【
【【
【BB】
】】
】

【
【【
【#】
】】
】
XX: stands for the address code of 3 groups of timing auto-disarming (36, 37,
and 38).
AA: stands for the hour of the auto-disarming.

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
13 14
BB: stands for the minute of the auto-disarming.
Example: the auto-disarming time is 7:55am per day;
Setting steps: 【
【【
【36】
】】
】

【
【【
【07】
】】
】【
【【
【55】
】】
】

【
【【
【#】
】】
】
3. Timing On/Off
Under the setting state, input the address code [39], and select the [1/0] key
to turn On/Off the timing arming/disarming function, and then press the [#] key to
confirm; after the main device gives a long beep, the System will give a voice
prompt of “Successfully set”. It is set to ON by default.
Setting steps: 【
【【
【39】
】】
】【
【【
【0/1】
】】
】【
【【
【#】
】】
】
0: stands for turning off all timing arming & disarming functions.
1: stands for turning on all timing arming & disarming functions.
Example: turn on the settings of the timing arming & disarming functions;
Setting steps: 【
【【
【39】
】】
】

【
【【
【1】
】】
】

【
【【
【#】
】】
】
Alarm Telephone Setting
Under the setting state, input the address code [51] ~ [56], and enter a cell
phone (landline phone) number, and then press the [#] key to confirm. After the
main device gives a long beep, and the [signal] lamp flashes once, the System
will give a voice prompt of “Successfully set”.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【YY…YY】
】】
】

【
【【
【#】
】】
】
XX: stands for the address codes for the 1~6 groups of alarm-receiving phone
( [51] ~ [56] )
YY…YY: stands for the set telephone number.
Example: set the 13811111111 as the first group of alarm telephone.
Setting steps : 【51】【13811111111】【#】
DeletingAlarm-Receiving Telephones
Under the setting state, input the address code [51] ~ [56], and press the [#]
key to confirm. After the main device gives a long beep, the System will give a
voice prompt of “Successfully set” and the [signal] lamp flashes once, indicating
the telephone number has been deleted.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【#】
】】
】
XX: stands for the address codes of the 1~6 group of alarm telephones ( [51] ~
[56] ).
Example: delete the third group of telephone number from the main device.
Setting steps: 【53】【#】
SMS-Receiving Phone Setting
If phones are set to receive text alarm, the System only sends an alarm
message to the 3 groups of cell phones (for example: zone 5, balcony alarm).
Under the setting state, input the address code [57] ~ [59], and input the cell
phone number, and then press the [#] key to confirm. After the main device gives
a long beep, the System will give a voice prompt of “Successfully set” and the
[signal] lamp flashes, indicating the SMS-receiving phone number has been set.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【YY…YY】
】】
】

【
【【
【#】
】】
】
XX: stands for the address codes of the 1~3 group of SMS phone ( [57] ~ [59] ).
YY…YY: stands for the set telephone number.
Example: set the 13822222222 as the first group of SMS phone.
Setting steps: 【57】【13822222222】【#】
Deleting SMS-Receiving Phones
Under the setting state, input the address code [57] ~ [59], and press the [#]
key to confirm. After the main device gives a long beep, the System will give a
voice prompt of “Successfully deleted” and the [signal] lamp flashes once,
indicating the phone number has been deleted.
Setting steps: 【
【【
【XX】
】】
】

【
【【
【#】
】】
】
XX: stands for the address codes of the 1~3 group of SMS -receiving phone ( [57]
~ [59] ). Example: delete the first group of SMS phone from the main device.
Setting steps: 【57】【#】

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
15 16
■
■■
■ Arm/Disarm for SMS notification
In setup state, use keypad to input [77],then choose command key [0/1]not
send/need send,press#,that means whether to sen SMS to user when Arm or
Disarm,the host make a long beep and voice "setting completed",finally press *#
exit.
Setting steps:8888[77] [1] [#]Arm/Disarm send the SMS to user.
8888[77] [0] [#] Arm/Disarm doesn’t send the SMS to user.
■
■■
■ Turn off/on keypad digital voice
Under the setting state, input the address code [78], select the [0/1] key to turn off
/ on the keypad digital voice, press * # exit.
Operating method:8888[78] [0] [#]Turn off keypad digital voice
8888[78] [1] [#]Turn on keypad digital voice
Zone Programming
By the Zone Programming, you can change the attributes of the zone alarm,
such as turning off the warning siren, etc. Under the setting state, input the
address code [60], enter the serial number of the zones [01~99], press the zone
type [1~4], and press the zone location [1~8], and select [0/1] to turn on/off the
warning siren, and then press the [#] key to confirm. After the main device gives a
long beep, the System will give a voice prompt of “Successfully set”.
Setting steps: 【60】【AA】【B】【C】【D】【#】
AA: stands for the serial number of the corresponding zone [01~99].
B: stands for the zone type, including [1] Real Time,［
［［
［2］
］］
］40s-Delay,［
［［
［3］
］］
］24h,
［
［［
［4］
］］
］Bypass.
C: stands for the installation location, including ［1］Help Alarm, ［2］Fire
Alarm,［3］Gas Leak Alarm,［4］Door Lock Alarm,［5］Living Room Alarm,
［6］WindowAlarm, ［7］Balcony Alarm, ［8］Perimeter Alarm.
D: stands for the alarm type, including［
［［
［0］
］］
］Alarm without warning siren, ［
［［
［1］
］］
］
Alarm with warning siren.
Example: set the alarm type for the Zone 12 as 24h, Fire Alarm, and Alarm
with Warning Siren.
Setting steps: 【
【【
【60】
】】
】

【
【【
【12】
】】
】

【
【【
【3】
】】
】

【
【【
【2】
】】
】

【
【【
【1】
】】
】

【
【【
【#】
】】
】
Home Arming Setting
By the Home Arming Setting function, you can set the working status for
detectors separately. Just conduct some settings for the home arming zones.
Under the setting state, input the address code [61], select the serial number
of the corresponding zone [01~99], and select the [0/1] key to turn on/off the
alarm, and then press the [#] key to confirm. After the main device gives a long
beep, the System will give a voice prompt of “Successfully set”.
Setting steps: 【
【【
【61】
】】
】

【
【【
【XX】
】】
】

【
【【
【A】
】】
】

【
【【
【#】
】】
】
XX: stands for the serial number of the corresponding zone [01~99].
A: stands for the alarm status, including [0] Home Arming without Alarm,
[1] Home Arming with Alarm.
Example: set the Zone 11 as Home Arming with Alarm.
Setting steps: 【
【【
【61】
】】
】

【
【【
【11】
】】
】

【
【【
【1】
】】
】

【
【【
【#】
】】
】
Example: set the Zone 12 as Home Arming without Alarm.
Setting steps: 【
【【
【61】
】】
】

【
【【
【12】
】】
】

【
【【
【0】
】】
】

【
【【
【#】
】】
】
Manual Recording
Under the setting state, input the address code [701], and press the [#] key to
confirm. After the main device makes a sound of “Beep”, the [signal] lamp
flashes once, the System starts to count down from 10s, and the recording starts:
please keep close to the main device (within 30 cm) and say your message; after
10s, the main device gives a sound of “Beep”, and the recording ends.
Setting steps: 【701】【#】

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
17 18
SOS Siren on Remote Controller
Under the setting state, input the address code [76] by the keypad of the main
device, select the [0/1] key to turn off/on the external siren for SOS alarm, and
press the [#] key to confirm. After the speaker gives a long beep, the System will
give a voice prompt of “Successfully set”. By default, the siren is off when
sending SOS alarm from the remote controller.
Warning Tone forArming Operation
Under the setting state, input the address code [75], select the [0/1] key to
turn off/on the external siren when conducting the operations of arming/disarming,
and press the [#] key to confirm. After the main device gives a long beep, the
System will give a voice prompt of “Successfully set”. If you turn on the warning
tone, the main device will sound once on arming, and twice on disarming. It is
convenient for users to make sure if the arming/disarming setting is successful
when using the remote control.
Enabling Landline Phone
Under the setting state, input the address code [71], select the [0/1] key to
turn off/on the landline phone alarm on the main device, and press the [#] key to
confirm. After the speaker gives a long beep, the System will give a voice prompt
of “Successfully set”. By default, only GSM Alarm is enabled. If you turn on the
Landline Phone Alarm, the main device will make an alarm by both ways,
offering higher grade of security.
Ringtone Times for Landline PhoneAlarm
Under the setting state, input the address code [72], press a key within [1-9]
to select the ringtone times, and press the [#] key to confirm. This setting is only
used for the landline phones.
Wireless Signal Output from the Main Device
Under the setting state, input the address code [41], select the [0/1] key to
turn off/on the wireless signal output from the main device, and press the [#] key
to confirm. After the speaker gives a long beep, the System will give a voice
prompt of “Successfully set”. If you turn on this option, the main device will send
out different wireless signals according to the following conditions (You need to
customize the hardware before setting this function).
1: Alarming
2: Disarming
3: Pressing the below key combinations on the keypad of the main device:
0*，0#；1*，1#；2*，2#；3*，3#；4*，4#；5*，5#；6*，6#；7*，7#；
8*，8#.
4: If you want to get wireless signal output from the main device when
conducting operations like SMS Control, Remote Control, you need to
customize the software.
5: The wireless signal is set to 315MHz /4.7MΩby default. If you want to
use other frequency or speed rate, you need to customize it.
Networking Center Settings (networking functions customized)
1:Arming/Disarming Report Center
Under the setting state, input the address code [74] by the keypad of the
main device, select the [0/1] key to turn off/on Arming/Disarming Report
Center, and press the [#] key to confirm. After the speaker gives a long beep,
the System will give a voice prompt of “Successfully set”. This function is
set to OFF by default.
2:Alarm Report Center
Under the setting state, input the address code [73] by the keypad of the

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
19 20
main device, select the [0/1] key to turn off/on Alarm Report Center, and
press the [#] key to confirm. After the speaker gives a long beep, the
System will give a voice prompt of “Successfully set”. This function is set
to OFF by default.
3: User Code
Under the setting state, input the address code [74] by the keypad of the
main device, and input a 4 digit user code [XXXX], and press the [#] key to
confirm. After the speaker gives a long beep, the System will give a voice
prompt of “Successfully set”.
4: Networking Center Phone Number
Under the setting state, input the address code [50] by the keypad of the
main device, and input a phone number [ XX…XX ] with 22 digits at most,
and then press the [#] key to confirm. After the speaker gives a long beep,
the System will give a voice prompt of “Successfully set”.
Main Device Status
The main device has four statuses in the normal conditions:
Arming Status: The zones (1~99) can give alarms.
Home Arming: Only the zones set as [Home Arming] are effective and
can give alarms.
Disarming Status: The zones (1~99) cannot give any alarm (24h zones
not included).
Setting Status: All zones don't give any alarm when the main device is in
setting status.
Power-failure Status: If the System is on the arming status, it will send
out a short message upon power failure, and the LCD screen displays in
the low battery mode.
Daily Operations
Users can use the remote controller to conduct operations (such as Away
Arming, Home Arming, Emergency Alarm, or Real Time Disarming, etc.)
to the main device from outdoors or over a long distance.
 AwayArming: press the [ ] key to enter the AwayArming status.
 Disarming: press the [ ] key to enter the Disarming status.
 Home Arming: press the [ ] key to enter the Home Arming status.
 Emergency Alarm: press the [ ] key to trigger the main device
immediately and give an emergency alarm.
Away Arming
When you’re away, it’s necessary to use the Away Arming function.
Under this status, all detectors are activated to arming. If any source like an
invader, fire, gas leak etc. triggers the detectors, the System will give an
alarm at once.
Setting steps: press the [ ] key on the keypad of the main device, the
main device will make a sound of “Beep” once per second. After the
specific time, the ARM indicator lamp will stay on. Now this function is
successfully activated.
Home Arming
When you’re at home, some detectors need to be activated, such as
doors, windows, balconies, perimeters etc. But there’s no need to keep other
detectors activated (e.g. you may trigger the detector in the living room).
Thus it is suitable to enable the Home Arming function.
Setting steps: press the [ ] key on the keypad of the main device, and

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
21 22
the corresponding indicator lamp stays on. Then this function is
successfully activated.
Operation on the main device: press the [ ] key to set the main device
to the Home Arming status.
Operation by the remote controller: press the [ ] key on the remote
controller.
Disarming
If this function is activated, the main device is out of alarm state. There
are two conditions to enter this state: 1. normal disarming after arming; 2.
disarming to stop an alarm. After disarming, the zones (excluding the 24h
zones) are idle.
Setting steps: input the [User Password] and press the [#] key to
confirm. After the [Away] or [Home] indicator lamp goes off, the function
is successfully activated.
Operations by the remote controller: press the [ ] key on the remote
controller.
Operations on the main device: [User Password] + [#]
Answering Call Alarm
After the main device gives an alarm, it makes a warning tone at once;
and auto dials the first preset mobile phone to make a voice alarm. If
nobody answers the phone call, the main device will auto dial the next
preset phone number and repeat the above process. It will call the 3 preset
numbers circularly for 3 rounds, with three calls for each preset phone.
If you answer the phone, the alarm recording will be delivered. At the
moment, you can activate different functions by your phone keypad:
Hang up: the main device will conduct the same operations as the
situation of no answer.
Press the [*] key: you can read the alarm SMS message.
Press the [1] key: the main device will stop the alarm, stay arming, and
stop dialing.
Press the [2] key: the main device will stop the alarm, stay in disarming,
and stop dialing.
Press the [3] key: the main device will turn off the warning ring and enter
listen-in state for 30s; if you need to extend the listen-in time, press the [3]
key again. You can check whether there is abnormal noise or any invader at
your home.
Press the [4] key: start the spot intercom function for 30s.
Remote Control
Dial the phone number bound with the main device by your cell phone;
after the preset ringtone times, you will hear the warning tone of “Please
input your password”. At the moment, input your password, if the password
is correct, and you will hear the voice prompt of “Press 1 for arming; 2 for
disarming, 3 for listen-in, and 4 for intercom”; if incorrect, you will hear the
warning tone of “your password is wrong, pleas enter it again”. In this
function, you can conduct remote control operations through the cell phone
keypad.
Press the [1] key: the main device will enter the arming state, and you
will hear the warning tone of “The System is on arming” from the handset.
Press the [2] key: the main device will enter the disarming state, and you
will hear the warning tone of “The System is on disarming” from the
handset.
Press the [3] key: the main device will enter the 30s listen-in state; to
extend the listen-in time, you can press the [3] key again to get another 30s
for listen-in.
Press the [4] key: start the intercom function for 30s.

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
23 24
SOS
Sometimes you need to make an emergency call (e.g.: 110) for help,
such as when the old or children struck by a sudden illness, a fire occurs,
robbers intrude into your home. In such cases, you just need to press the [ ]
key on the main device, or the [ ] key on the remote controller. The
System will give an alarm at once, and make emergency calls automatically.
Operation by the remote controller: press the [ ] key once.
Operation by the main device: press the [ ] key.
■ Add a wireless siren into system
This is an optional configuration . To add a wireless siren into this alarm
system needs a built -in RF remitting module ,which is not a standard
configuration . Please consult your sales representative or distributors for
detailed information.
①Enable the wireless control for wireless siren(The Host can not control
the wireless siren until enable the function):
In the status of programming, input the address code[41] on the Host, plus
[1/0]and then press [#] to confirm, there will be beep from the host when
the setting is completed.
Just make it as：【program password】+【41】+【0 or 1】+【#】
[0] means disable the function of connecting with wireless siren
[1] means enable the function of connecting with wireless siren
②Wireless Code encryption:
there may be disturb signal from the other devices, so it will be better to
encrypt the wireless code
How to encrypt the code: in setup state,input 43+(2 difital numbers)+#
③The method of matching:
a) Press the set key of wireless siren to make the sire in the status of
matching the code. Then it will wait for the signal from the host.(Please
take the manual for reference because different sires set up differently).
b) Press the"1234#"of the host, the "signal" of light will shine 5 seconds,
it will send the matching code signal to the wireless siren. After receiving
the signal, the sire will make a sound of “Di”,After the successful matching
of the wireless siren, when the host alarm, the sire will beep.
Maintenance
System Inspection
To make sure that the System runs steadily, reliably and safely, regular
maintenance and detection are a must. A full inspection to the main device
should be conducted every 3 months; and we suggest that the detector get
an inspection monthly or every 3 month at least.
Inspecting the main device:
1. Check whether it can arm or disarm normally.
2. Check whether it can make calls when alarming.
3. Check whether it can receive signals from detectors and whether the
backup battery is normal.
Inspecting the detectors:
1. Check whether the detectors can give a normal alarm by manually
triggering them.
2. Check whether all detectors to prevent low battery.
3. Check whether all wireless detectors can communicate with the
main device by testing the transmission condition.

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
25 26
Precautions
Don't dismantle, repair or rebuild the product on your own, or else
accidents or troubles may occur.
Protect the product from falling or impact to the floor or hard objects, or
else fault or damage may occur due to intensive impact.
Don’t set “110”, “119”, or the number of the police station as the alarm
report telephone without permission of related departments.
Technical Parameters:
Attached List 1:
Input Voltage: DC12V /1.5A
Standby Current: <55mA
Alarm Current: <450mA
Wireless Frequency: 315MHz，2262 / 4.7MΩ
GSM System: Quad-Band 850/900/1800/1900MHz
Backup Battery: 7.2V lithium battery
Alarm Siren Volume: 110dB
Attached List 2:
Zones Arming Home Type Alarm Type
Alarm
Siren
Zone 1 Effective Invalid Real
Time Door Lock
On
Zone 2 Effective Invalid Real
Time
Living
room On
Zone 3 Effective Effective
Real
Time Window On
Zone 4 Effective Effective
Real
Time Balcony On
Zone 5 Effective Effective
Real
Time Fire On
Zone 6 Effective Effective
Real
Time Gas Leak On
Emergency
Key Effective
Effective
Real
Time Help Off
7-99 Effective
Invalid Real
Time Help On
Wired Zone
（98-99）Effective
Invalid Real
Time Help On
Engineering
Password: 8888 Remote Control: GSM: On
Phone Line：Off
User Password: 1234 Warning Tone：Off
Alarm Duration: 180s Household
Appliance Control：
Optional

GSM SECURITY ALARM SYSTEM GSM SECURITY ALARM SYSTEM
27 28
Instruction Set: (All instructions should be ended with #)
Learning Remote Controller 20[1-8]
Deleting Remote Controller 21[1-8]
Learning Zone 23[01-99]
Deleting Zone 23[01-99]
Zone Programming 60[XX][A][B][C]
Home (Stay) Arming 61[XX][1/0]
Setting Telephone Number of
Networking Center 50[Tel. No.]
DeletingTelephone Number of
Networking Center 50#
Setting Telephone Number 51-6[Tel. No.]
DeletingTelephone Number 51-6#
Setting SMS-receiving
Telephone Number 57-9[Tel. No.]
Deleting SMS-receiving
Telephone Number 57-9#
Change User Password 30[XXXX]
ChangeEngineering Password 31[XXXX]
System Time 32[Hour : Minute]
Timing Arming 33-5[Hour : Minute]
Timing Disarming 36-8[Hour : Minute]
Timing On/Off 39 [1/0]
Recording 701
Enable Telephone Line 71 [1/0]
Ringtone Times 72 [1-9]
Alarm Report Center 73 [1/0]
Arming/Disarming Report Center 74 [1/0]
Operation Warning Tone 75 [1/0]
EmergencyAlarm Siren 76 [1/0]
User Code 76[XXXX]
Start Wireless Transmission 41[1/0]
Recover Factory Settings 95175308246
New command for wireless siren
encrypt
888843【XX】#
command for message alert upon
system arm and disarm setting.
8888771# turn on
8888770# turn off
Modify command of delay arming 888844【XX】#
Modify command of delay alarm 888845【XX】#
can shut down the voice prompt
broadcasting
8888781# turn on
8888780# turn off
Recover Password 95175308249
