Dear Clients,
Thank you for using our GSM Alarm System. We are committed to giving you the best home security
available today and ensure the safety of your home and family seriously. Our system allows you to
instantly arm and disarm your home properly, instantly change your system settings and find out
your system status and etc. For safety concerns, we suggest you change the default password as
soon as you begin to set up the system. This guide will help you through the easy set-up of your
system. We’ve already started with product customization and could turn the system to your
specifications. Everything is ready to go when you open the box.
Please keep this instruction manual well for future reference. Thanks again for choosing our
products and service.

Home Alarm System User Manual
2
Cautions
To avoid personal inquiry and the damage to the product, please take the following preventive
measures.
·Input voltage : DC5V 2.1A. Do not use power adapter with different specifications.
·Use the professional tools for assembling to avoid the damage to the main panel
·Press the touch keypad lightly
·Keep it away from the moist environment and flammable explosive environment
·Keep the product dry and clean
·An ideal place to mount the panel should be under the minimum RF signal interference and the
center of all defense zones , generally living room.
·Please change your password (default:888888) as soon as you get this alarm system .
·To obtain a high quality intercom voice, it is highly suggested to keep a 35cm distance to the Mic.
·Specifications are subject to changes without prior notice .

Home Alarm System User Manual
3
Features
1: Ultra-thin design ,14mm thickness, Menu user interface ,easy and comfortable
2: SMS/Bluetooth communication, RFID function
3: Easy to operate with in-built input systems.
4. Mute, Volume up /down
5: Up to 50 Defense Zones，each defense zone can be coded with Remote Controller or other
sensors/detectors, also they Can be named individually.
6: With the function of Automatic detection for the Doors/Windows ,the Main Panel Keeps Indicating
while arming the system if any Door/Window is open ,100% Security Guaranteed.
7: With the wireless Siren indicating, You will know the status of the alarm System
8：In order to operate the Alarm system quickly, you can set one preset telephone number as the
owner’s number , which can access to the Main Panel without
Password.
9: With the self-checking function, Reminder will be sent when the battery is low and should be
replaced.
10: Support CID.

Home Alarm System User Manual
4
11: New feature of Voice Prompt: The music goes on from the Main Panel when someone opens the
door.
12: In-built USB Slot: Easy to update the software for the latest functions and services.
13: In-built Engineering model：Easy for the malfunction examination & better maintenance.
Alarm Host Diagram

Home Alarm System User Manual
5
【GSM Signal Indicator】：No SIM card or searching network: flashes once per second ;GSM Signal
in normal: Flashes once per 3 seconds
【RF Signal Indicator】： Flashes while sending or receiving RF signals
【LCD Screen】：Display System Menu & Information.
【RFID Card Reader】：for the RFID card reading。
【Menu Operation Buttons】：To adjust the settings in the Options menu.

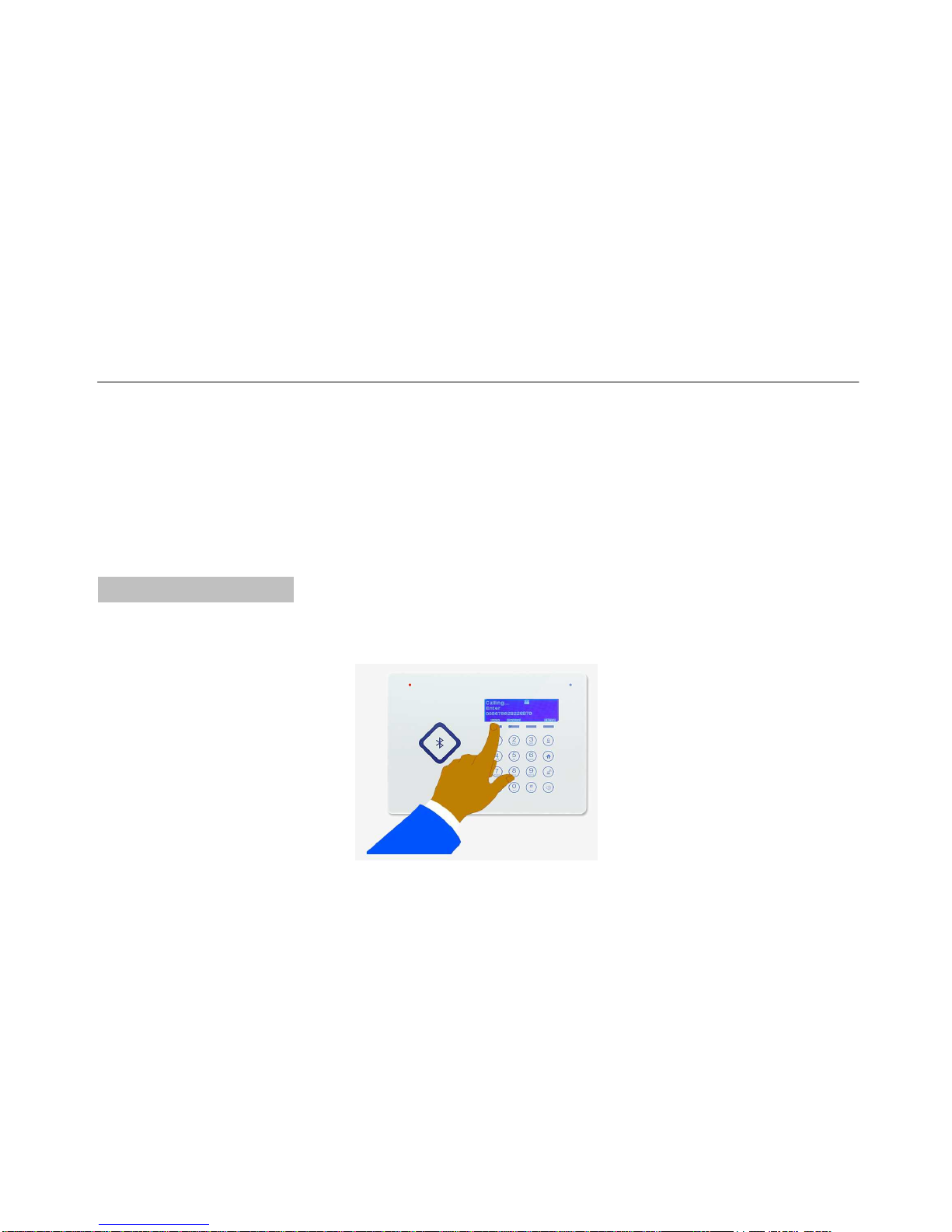

【Out Arm】: Press the [Out Arm] button, then input the password to Arm the System.
【Home Arm】: Press the [Home Arm] button, then input the password to Make the system into
Home Mode.
【Disarm】: Press the [Disarm] button, then input the password to disarm the system.
【Emergency/SOS】: Press the [Emergency/SOS] button, the Host alarms and calls the preset
phone numbers.
【Land Wire Slot】: For the A/C power cord.
【MIC】For a better effect, speak at 35cm away from the Host.
【Back Bracket】：Fix the backplane firstly, then Hang up the Host .
【SIM Card Slot】：To insert SIM Card before using.
【Debugging Interface】：For the Collecting information from the host and Correction Program by

Home Alarm System User Manual
6
Manufacturer as well.
【Battery Case】: For the back-up batteries.
【Upgrading switch】：Turn on the switch before updating the alarm system.
【Power switch】: Power on / off the back-up batteries.
【USB Slot】: For A/C adapter and upgrading system as well.
【Interface for the wired Defense Zones】:2 inputs for wired sensors.(2 Wired Defense Zones)
【Loudspeaker】: Host sound
Important Notice : This alarm system cannot work with a wired siren .

Home Alarm System User Manual
7
Chapter 1:Daily Operation
System Arm
In “ARM” status, any instruction signal will be sent to alarm controlling panel and alarm panel will
trigger the siren immediately.
There are 6 methods to arm the system.

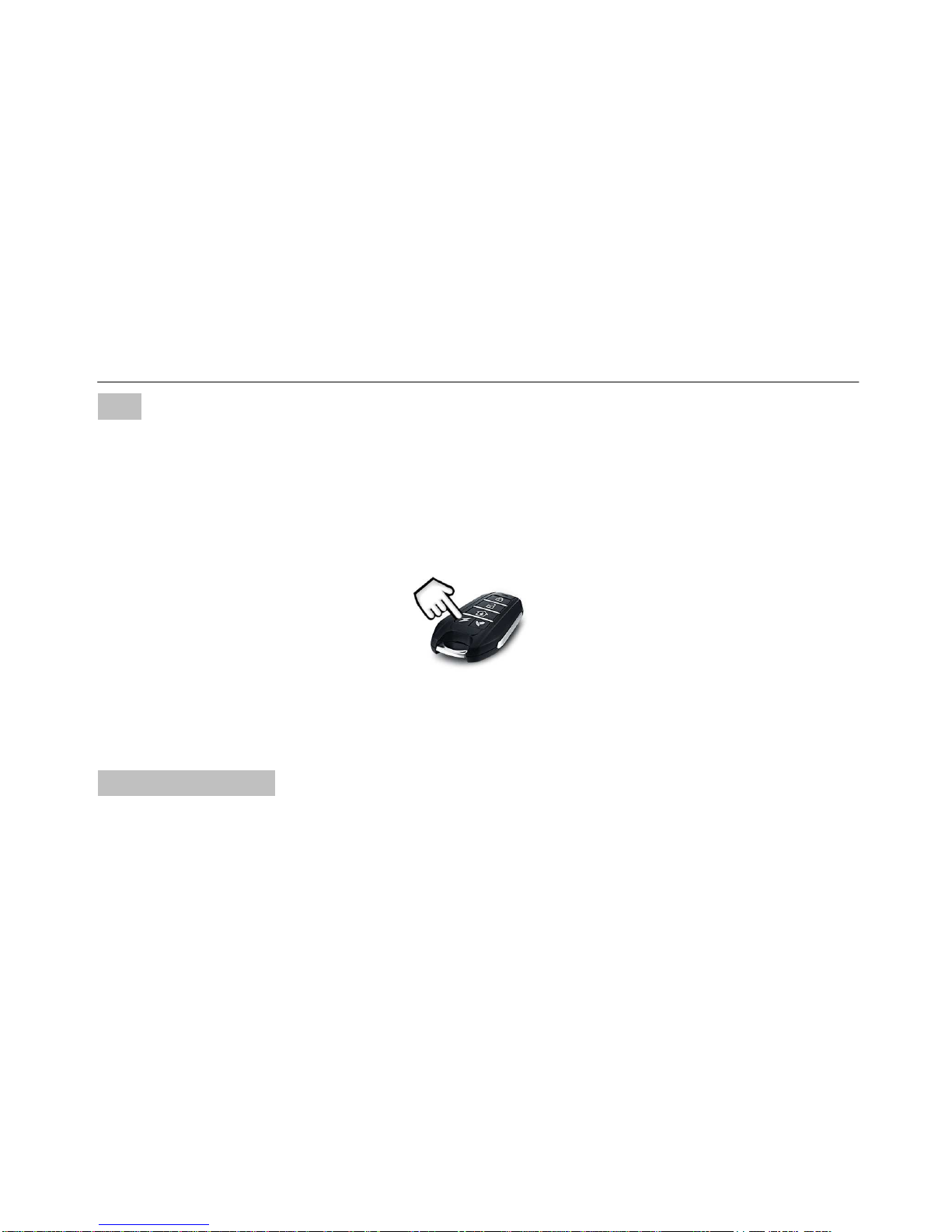

①Press “Arm” on remote control:

Home Alarm System User Manual
8
②Click “Arm” byAPP:

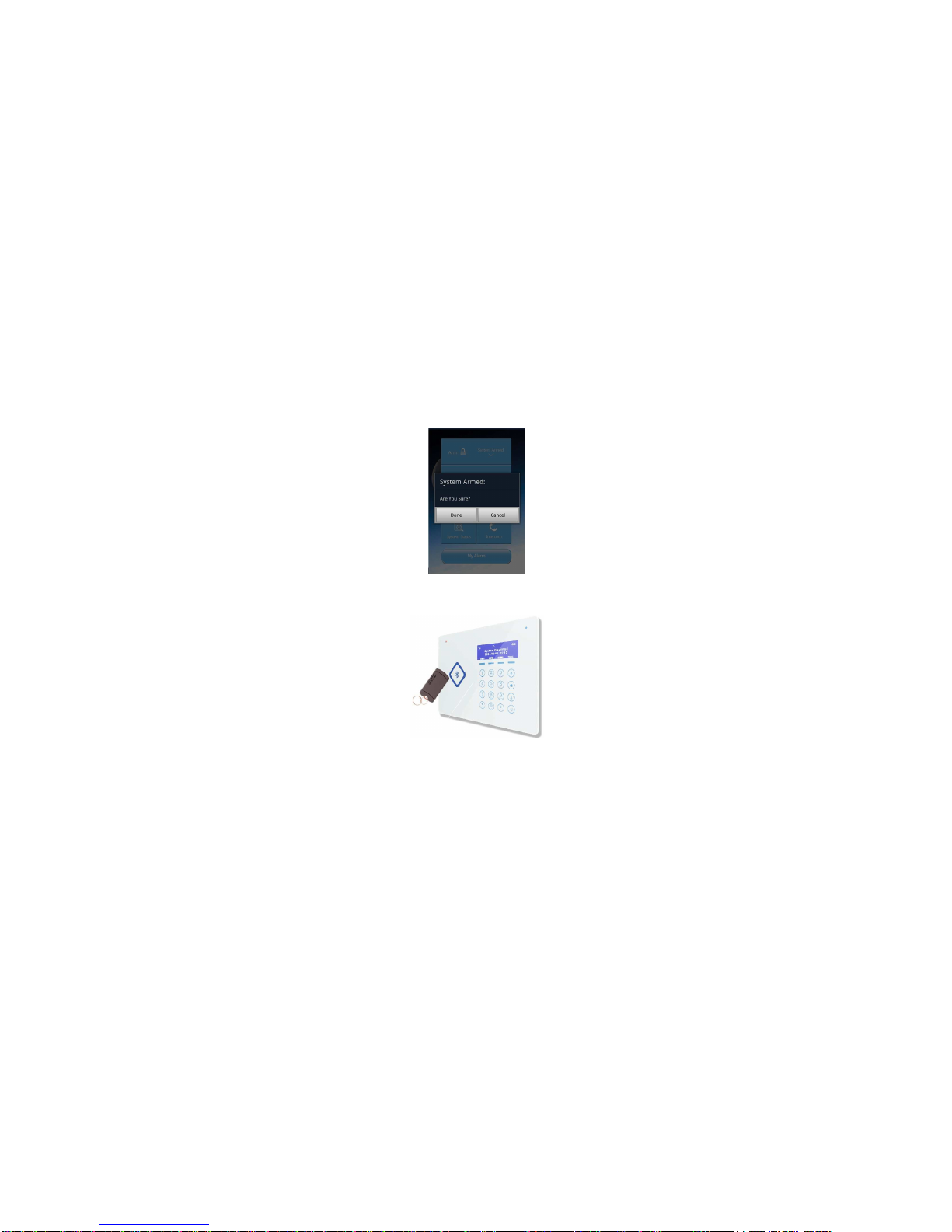

③“Arm” by swiping RFID card:
④Send message with content “8888881” to alarm panel. 8888881 :888888 represents six digits
password . If you have changed the password, please use your own password . For example ,if
new password is 112233, the message to alarm panel phone number should be 1122331.

Home Alarm System User Manual
9
⑤Use preset phone number (already add into system ) to dial your alarm panel phone number ,
input operate password as your alarm asks, and then press number key “1”.
⑥“Arm” by using Bluetooth（After the successful match of phone and system host, it can be used.
Please operate as the instruction of "Bluetooth Setting". With the successful connection to
Bluetooth, APP will choose Bluetooth to control first without any cost.）
System Disarm
In “Disarm” status, control panel is on rest .No intrusion signal will be processed by control panel.
There are 6 methods to disarm the system .
①Press “disarm” on remote control

Home Alarm System User Manual
10
②Click “Disarm” byAPP:
③“Disarm” by Swiping RFID card
④Send message with content “8888882” to alarm panel. 8888882 :888888 represents six digits
password . If you have changed the password, please use your own password . For example ,if
new password is 112233,the message to alarm panel phone number should be 1122332.

Home Alarm System User Manual
11
⑤Use preset phone number (already add into system ) to dial your alarm panel phone number ,
input operate password as your alarm asks, and press number key “2”.
⑥“Disarm” by using Bluetooth（After the successful match of phone and system host, it can be
used. Please operate as the instruction of "Bluetooth Setting", With the successful connection to
Bluetooth, APP will choose Bluetooth to control first without any cost.）
Home Arm
In home mode, pasts of sensors are armed and the rest of them disarmed. Generally sensors preset
as home zone are disarmed and those in normal zones are armed . By which, we can move freely
when we are at home and those zones such as gas detector, smoke detector should keep working .
There are 4 methods to start Home Mode .

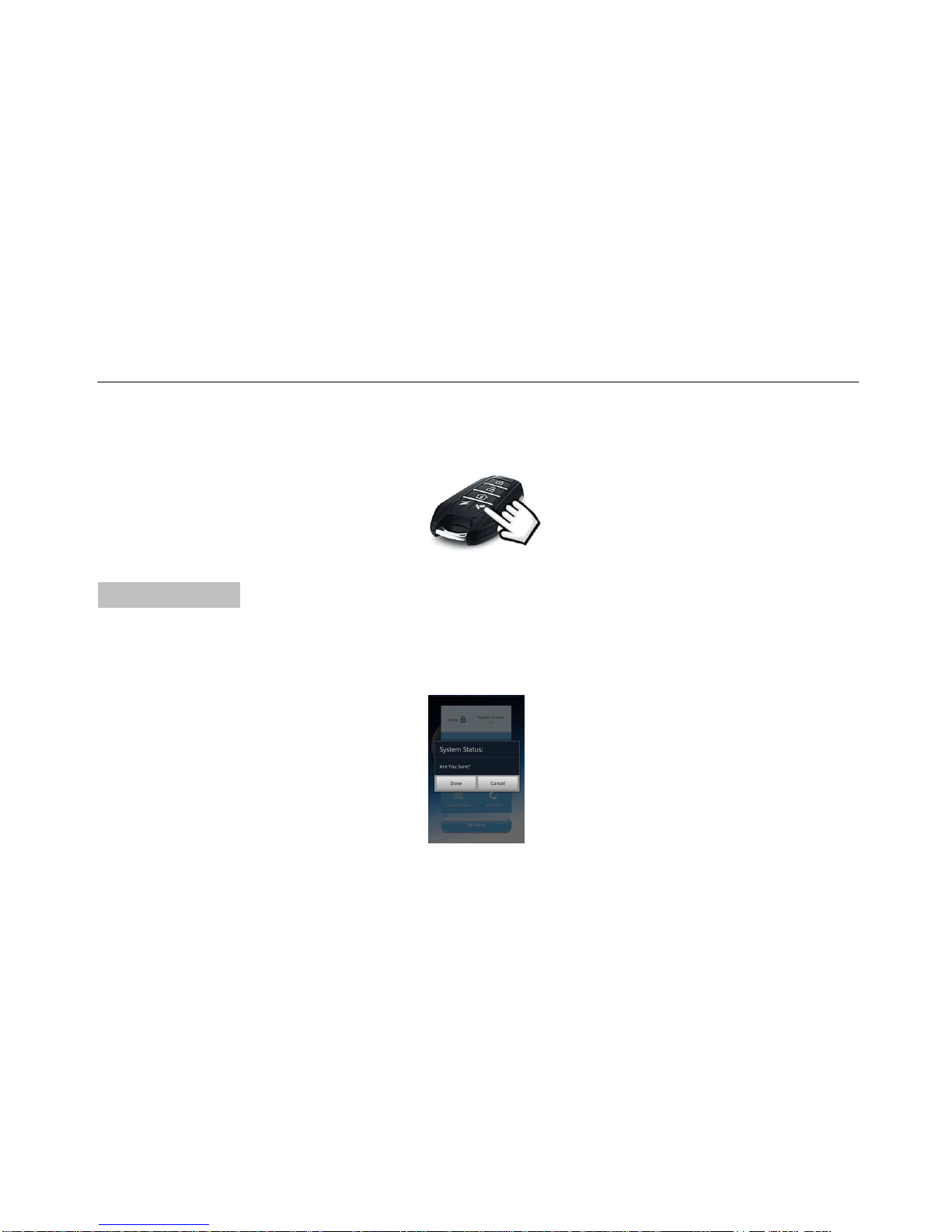

①Press “Home Arm” on remote control:

Home Alarm System User Manual
12

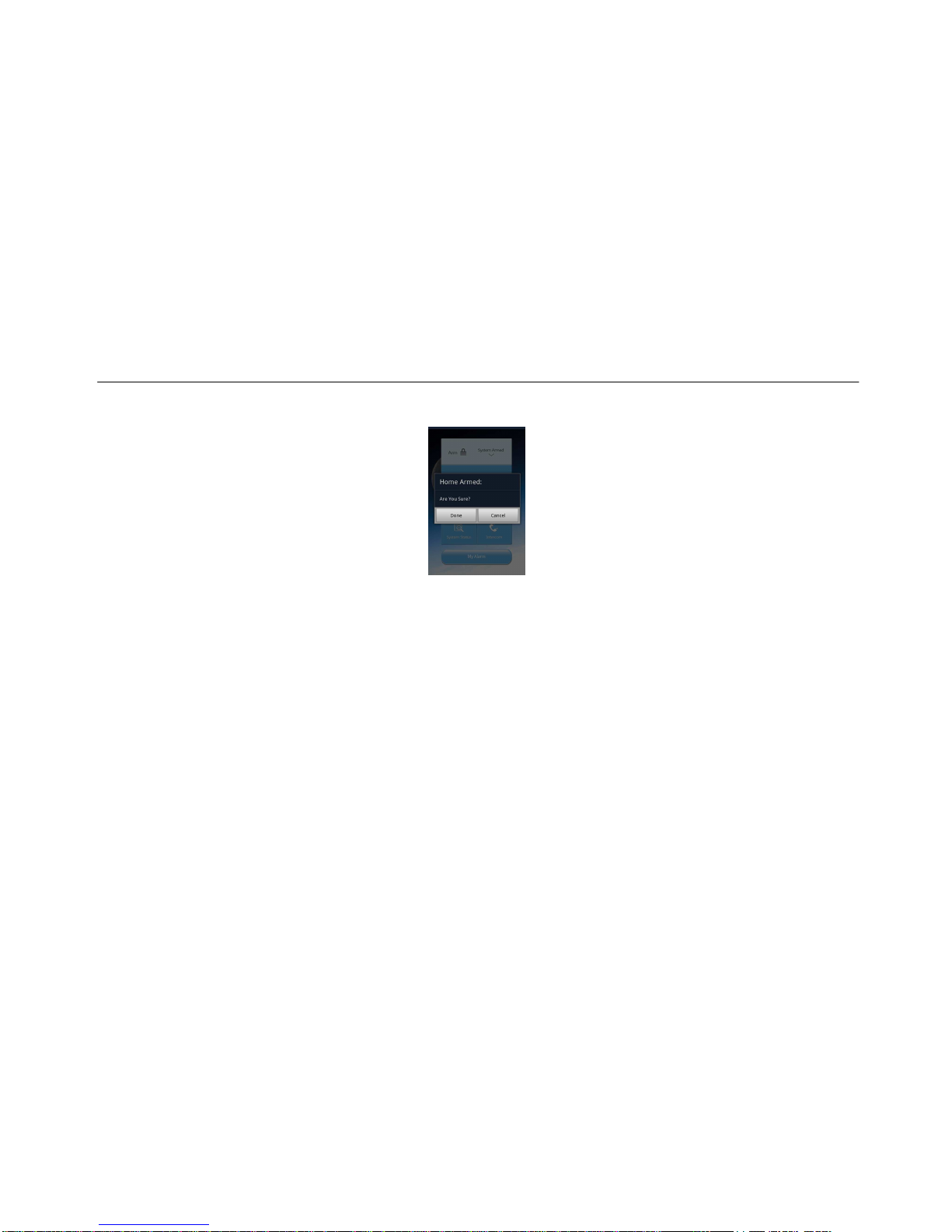

②Click “Home Arm” by APP:
③Send message with content “8888883” to alarm panel. 8888883 :888888 represents six digits
password . If you have changed the password, please use your own password . For example ,if
new password is 112233,then message to alarm panel phone number should be 1122333.
④“Home Arm” by using Bluetooth（After the successful match of phone and system host, it can be
used. Please operate as the instruction of "Bluetooth Setting", With the successful connection to
Bluetooth, APP will choose Bluetooth to control first without any cost.）
Note: After the successful setting of home arm in the system, the "Home Arm" Operation will work.
Please check the "Edit" of the "Sensors" to start the "Home Zone"

Home Alarm System User Manual
13
SOS
No matter what status the control panel is in, once SOS button on the remote control is pressed, the
system immediately goes into emergent alarming state.
Press the SOS button on remote control and the panel will trigger SOS alarm.
Doorbell Function
Doorbell function. If you press the key directly, the doorbell will start to ring. If you press again, the
doorbell will stop. It can be used only on the door detector with doorbell function.

Home Alarm System User Manual
14
After the successful setting in the system, the defense zone which need to open the doorbell
function will work.（Please check the "Edit" of the "Sensor" to start the "Chime Zone"）
System Status
When you are not clear of the system status, you could use the query function
There are 3 methods to start Home Mode
①Being queried by APP, the system will reply the information:

Home Alarm System User Manual
15
②Send message with content “8888884” to alarm panel 8888884: 888888 represents six digits
operate password .Please type your own password if you have renewed .
③“System Status” by using Bluetooth（After the successful pair of phone and system host, it can
be used. Please operate as the instruction of "Bluetooth Setting", With the successful
connection to Bluetooth, APP will choose Bluetooth to control first without any cost.）
Intercom
There are 2 methods to start Home Mode
①USE APP to make the intercom. After getting through the phone, input the password as the voice
prompt. The default password is “888888”. Press the key “4” to make the intercom.

Home Alarm System User Manual
16
②call the system host by phone and input the password as the voice prompt. The default password
is 888888. Press key “4” to make the intercom.
Note: You could make the intercom for 30 seconds. If you need to continue the intercom, press the
key “4” again to prolong the intercom.
Use the host calling
After installing the 2G SIM card, you could use the G66A as a telephone. You could talk with anyone
by dial the phone number directly via host.

Home Alarm System User Manual
17
Chapter 2：
：：
：System Settings
Insert a SIM card
Insert a SIM card in the right direction as the following picture indicates .Push until you hear a click.
Do not insert or take out the SIM card when the main panel is powered on

Home Alarm System User Manual
18

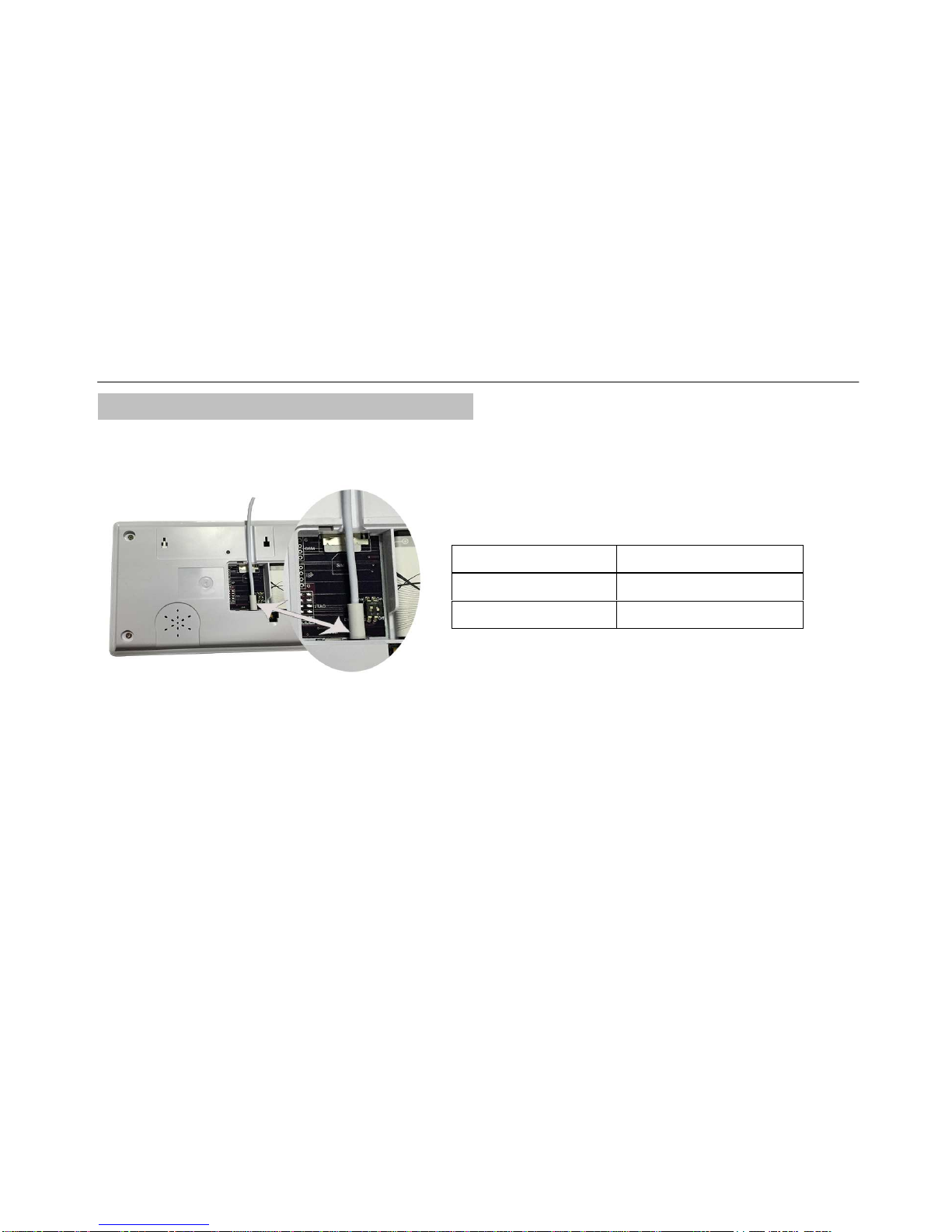

Connect wired accessories with Panel
There is a cable in the package with one side connecting panel ,and another side having 3 wires in
different color and connecting 2 wired accessories.:
Wired zone test
We could test the wireless defense zones first to make the installation convenient. The system has
voice prompt in the testing. The test process is as follows:
Disarm the system and enter into “Program” →ENTER →Input the password (888888) →into
setup state →Press “DOWN” to find the" Hardware Test "→ENTER →Press “DOWN” to find the
Wired Zone 1 Blue wire
Wired Zone 2 Yellow wire
Grounding red wire

Home Alarm System User Manual
19
“Wired Zone Test”→ENTER →“Please Trigger Wired Zone” (Please touch two lines) →If you
touch the right, the system will prompt: Z1 or Z2.
