DynaLock 3002 TJ32 Series User manual

Page 1
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame
header. The door mounted armature is supplied with an adjustable mounting bracket and hardware that allows it
to pivot slightly to compensate for reasonable misalignment.
NOTE: If this lock is supplied with the DSM option be certain that disc magnets are present inside the
armature housing.
Care must be taken that the lock face and armature face are kept free of dirt, rust, paint, or any other obstruction
which may interfere with the lock and armature making good contact. These faces may be cleaned with a non-
abrasive pad and wiped with an oil dampened cloth.
The Series 3002xTJ32 is a 1500 pound holding force top jamb mounted electromagnetic lock designed to secure a
double inswing door. The lock requires both installation procedures as described herein and in the separate wiring
instructions included.

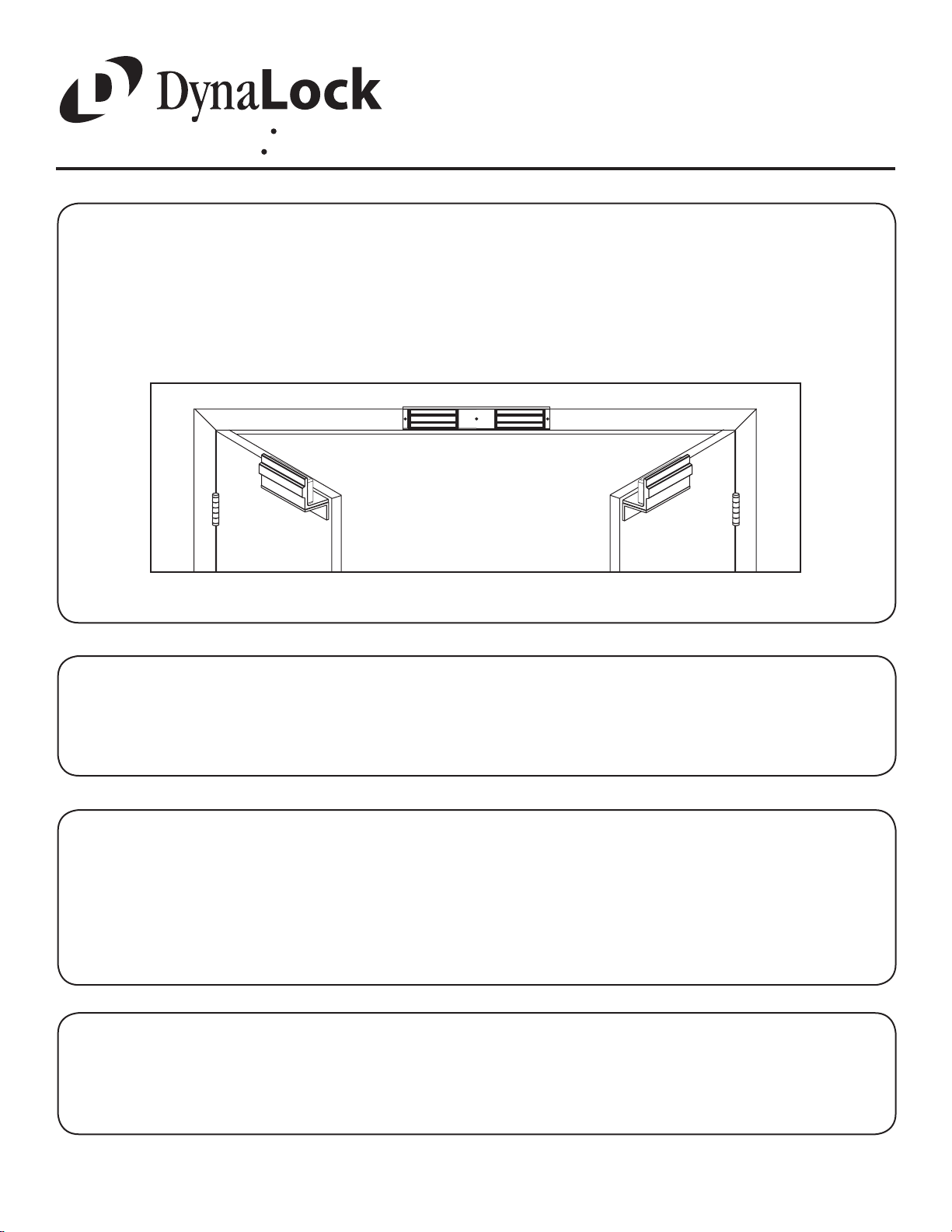

Typical installation of the lock on a double inswing door:
HANDLING
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low
voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate
wiring instructions included for further information.
INSTALLATION DESCRIPTION

Page 2
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
MOUNTING CONSIDERATIONS
INSTALL THE LOCK ASSEMBLY
Individual door and frame
conditions may vary. Dimensions
shown at right are for a typical
hollow metal door and frame.
The lock assembly should be
mounted at the center of the
frame for maximum performance.
Verify that there is proper
clearance for the lock assembly
at the planned mounting location.
1.
2.
Drill out the six dimpled mounting hole locations inside the
back of the lock housing using a 3/16” drill. Position the lock
assembly on the face of the frame header, on the pull side
of the door as shown. Locate and mark the centers of the
mounting holes.
Drill the marked holes in the face of the frame header:
Six (6) 1/8” dia. mounting holes.
Attach the lock mounting bracket to the frame header using
eight (6) #10 x 1” pan head Tek screws. Firmly tighten the
screws using a #2 phillips screwdriver.
1.
2.
3.
C
L
1/8”
ABOVE
HEADER
RABBET
MOUNTING HOLES
CENTERLINE
MOUNTING HOLES
2-1/2”
REF
1-1/4"
1/4"
REF. 2-3/4"
REF.
5-1/8"
REF.
1/8"
GAP
1/4"
TYP.
LOCK ASSEMBLY
ARMATURE BRACKET
MOUNTING SCREW
DOOR
1/8"
GAP
ARMATURE
SEX NUT

Page 3
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
Repeat process for second
armature mounting bracket.

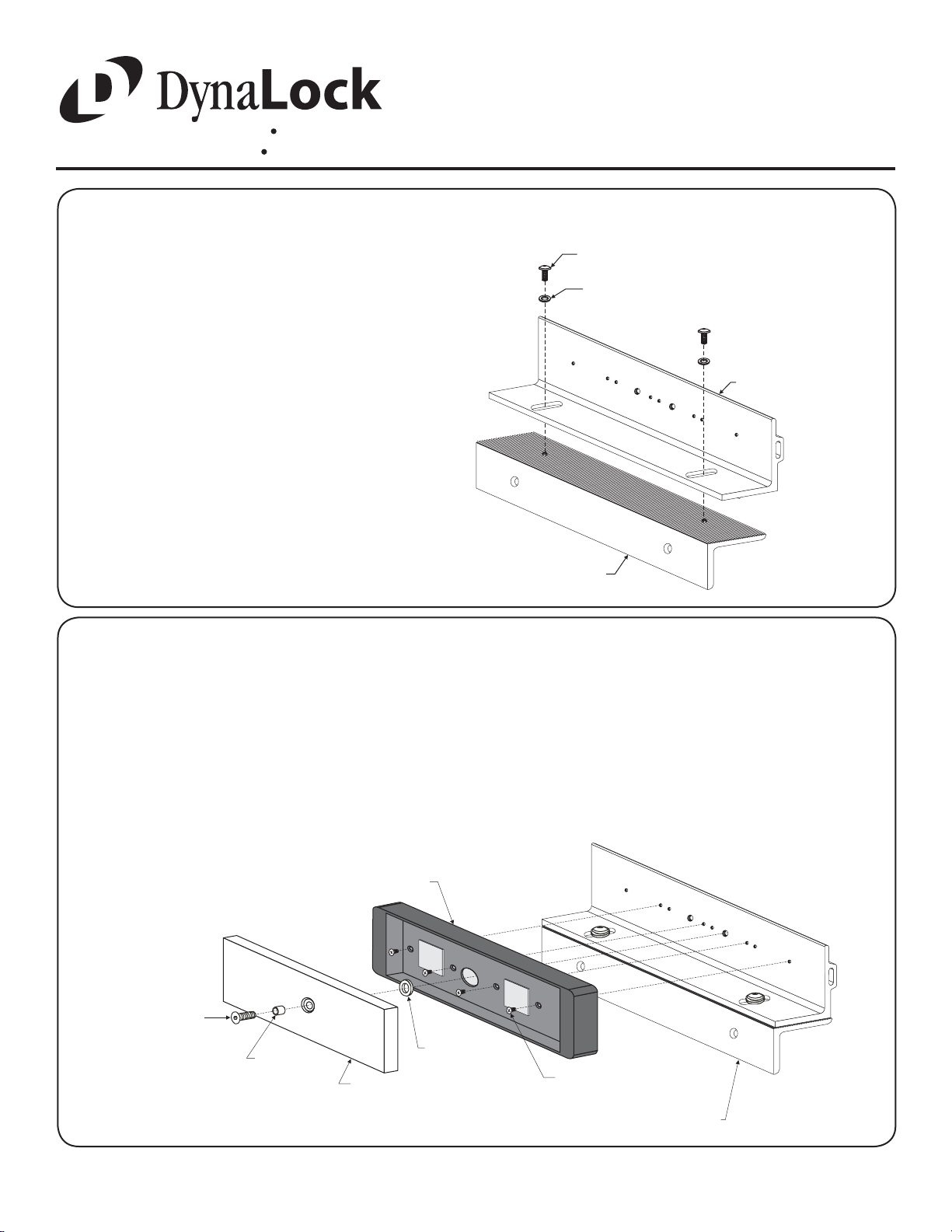

ATTACH THE ARMATURE TO THE ARMATURE MOUNTING BRACKET
ASSEMBLE THE ARMATURE MOUNTING BRACKET
Locate the two armature mounting bracket
assembly screws and lock washers from
the hardware kit and assemble the bracket
as shown.
Firmly tighten the mounting screws with a
5/32” hex wrench. They may be loosened
later for adjustment, as necessary.
Attach the Armature Housing to the top Armature Mounting Bracket using four (4) 8-32x3/8” Armature Housing
Screws.
Attach the armature to the armature mounting bracket as shown for LH door (Use alternate holes for RH door).
Firmly tighten the Armature Mounting Screw using a 3/16” hex wrench.
Failure to properly secure the armature to the bracket could result in serious injury or possible security
breach.
UPPER ARMATURE
BRACKET
LOWER ARMATURE BRACKET
LOCK WASHER
BRACKETASSEMBLY SCREW
ARMATURE
SPACER
FLAT
STEEL WASHER
ARMATURE
MOUNTING
SCREW
ARMATURE MOUNTING BRACKET
ARMATURE HOUSING
ARMATURE ARMATURE HOUSING SCREW
Repeat process for second armature mounting bracket.

Page 4
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
INSTALL THE ARMATURE MOUNTING BRACKETS
Use the figure below to identify and mark the locations of the armature mounting bracket screw holes on each door
leaf. Refer to door and frame prep drawing #301097 for further information.
1.
Mount the armature and mounting bracket assembly to the door using the appropriate hardware for you door type.
Firmly tighten the mounting screws with a 3/16” hex wrench.
Repeat process for second armature mounting bracket.
3.
4.
ARMATURE BRACKET
MOUNTING SCREW
LOWER ARMATURE
MOUNTING BRACKET
21/32”
SEX
NUT
DOOR
SPACER
ARMATURE BRACKET
MOUNTING SCREW
LOWER ARMATURE
MOUNTING BRACKET
5/16”-18
THREAD
Drill an 11/32” diameter hole
through door. From sex nut
side only enlarge the 11/32”
hole to 21/32” diameter.
Drill an 11/32” diameter hole
through door. From sex nut
side only drill 1/2” diameter
hole to 1” depth.
Drill an 11/64” diameter hole
and tap for 5/16”-18 thread.
GLASS & ALUMINUM
OR HOLLOW METAL DOOR SOLID CORE DOOR REINFORCED DOOR
From the illustrations below select the one that resembles your door type and follow the instructions for drilling the
two (2) armature mounting bracket screw holes.
2.
ARMATURE BRACKET
MOUNTING SCREW
1/2”
1”
LOWER ARMATURE
MOUNTING BRACKET
SEX
NUT
C
L
C
L
1-3/8”
FROM
FRAME
RABBET
1-5/8” FROM
CENTER OF
OPENING
CENTERLINE
1-5/8” FROM
CENTER OF
OPENING
7-3/4” 7-3/4”
1/4” MIN

Page 5
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
ARMATURE ADJUSTMENT
Using a 5/32” hex wrench, temporarily
loosen the armature bracket assembly
screws roughly 1-1/2 turns to allow the
upper armature bracket to move in and out
freely (Ref. Figure “A”).
Close and latch the door. The mating
surfaces of the lock and armature should
fully contact each other. If necessary, slide
the armature in or out to ensure full contact
is made with the lock while still allowing the
door to properly close and latch.
When the desired adjustment is achieved,
slowlyopenthe door takingcaretomaintain
the position of the armature. Firmly tighten
the armature bracket assembly screws,
making sure that the locking ribs on the
upper and lower bracket halves properly
mesh (Ref. Figure “A”)
1.
2.
3.
Figure “A”
ASSEMBLY
SCREW
UPPER ARMATURE BRACKET
LOWER
ARMATURE
BRACKET
ARMATURE BRACKET
ADJUSTMENT RANGE
DOOR
ARMATURE
0” 1”
LOCK ASSEMBLY
NOTE:
Make sure the door hits the frame just
before the armature hits the maglock, to
prevent loosening over time (armature not
slamming against the lock).
1/8”

Page 6
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
EXPLODED PARTS VIEW LEGEND
Refer to Page 7 for parts locations.
ITEM DESCRIPTION PART #
1 Housing Assembly 300007
2 Armature 300013
3 Upper Armature Bracket 301254
4 Lower Armature Bracket 301260
5 Access Cover 300009
6 8-32x3/8” Machine Screw 300608
7 End Cover 300010
8 1/4-20x1/2” Button Head Screw *
9 Lock Washer *
10 #10x1” Self-Tapping Screw *
10 10-24x1/2” Machine Screw *
ITEM DESCRIPTION PART #
11 5/16-18x3/4” Arm. Screw, Turned *
12 0.235”LArmature Spacer *
14 Flat Steel Washer *
15 Sex Nut *
16 Door Spacer Tube *
17 5/16-18x1-3/4” Bolt *
18 Armature Housing 301244
19 8-32x3/8” Machine Screw *
20 Disc Magnet (DSM & HSM only) 301289
* Part of Hardware Kit (301315 x 2)

Page 7
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
Note: Refer to Page 6 for parts legend.
EXPLODED PARTS VIEW
1-1/2”
22”
2-3/4”
7-3/8”
2-3/8”
1/2”
8-3/4” 2-9/16”
5/8”
1
2
3
4
5
7
6
8
9
10
11
12 14
15 16
17
18
19
ARMATURE
ASSEMBLY
(TYPICAL)
20

Page 8
3002xTJ32 MANUAL - FORM 3002TJ-003
MODEL 3002xTJ32
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
02/07
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
FOR PRODUCT SUPPORT AND PARTS
ORDERING INFORMATION CONTACT:
DynaLock Corp.
705 Emmett Street
Bristol, CT 06010
Bus: [phone] Toll-Free
[phone]
Fax: [phone]
DYNALOCK ON THE INTERNET:
E-mail: [email protected]
Website: www.dynalock.com
U
L
C
R
US
LISTED
GWXT Auxiliary Lock
CSFM
NYC Mea #23-92-E
PLEASE DELIVER THIS MANUAL
TO THE END-USER UPON COMPLETION
OF THE INSTALLATION

PLEASE READ BEFORE ATTEMPTING INSTALLATIONS
3000/ 3000LC/ 2000/2050/2280 SERIES

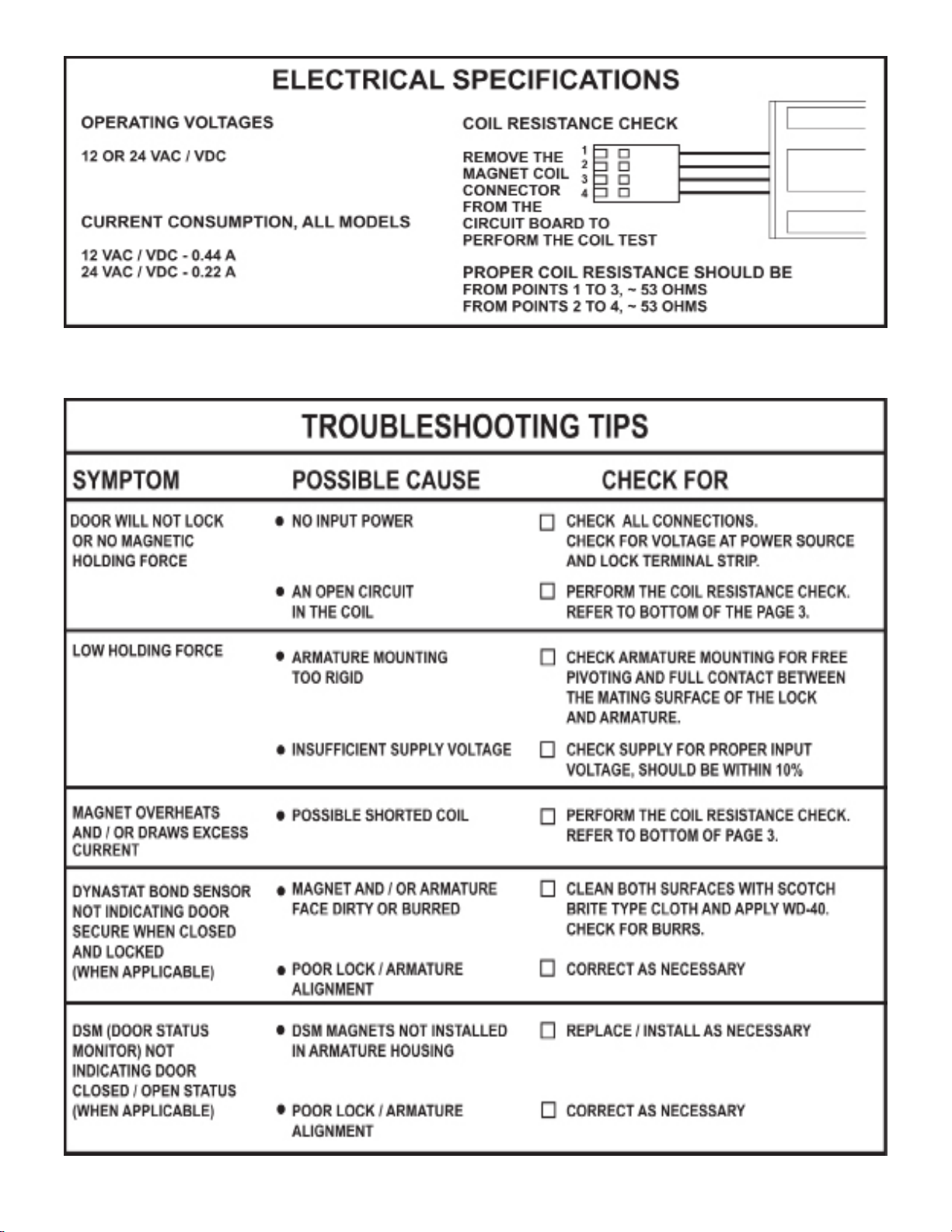

CIRCUIT BOARD DESCRIPTION
Refer to Page 2 & 3 for wiring instructions
1 Rev.B
DynaLock Corp. 705 Emmett Street P.O. Box 2728 Bristol, CT 06011-2728Phone [phone] Fax [phone]
DynaLock Electromagnetic Locking Systems

2 Rev. B

3 Rev. B

4 Rev. B
