Dynatone DPP610 User manual

OWNER'S MANUAL
New feel, new look and new sound
수출 DPP-610 표지_표지 2013-11-22 오후 3:31 페이지 2

PRECAUTIONS
PRECAUTIONS WARNING
1
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or
even death from electrical shock, short-circuiting, damages, fire or other hazards. These
precautions include, but are not limited to, the following:
ㆍDo not open the piano or attempt to
disassemble the internal parts or modify in
anyway. The piano contains no user-
serviceable parts. If it should appear to be
malfunctioning, discontinue use immediately
and have it inspected by qualified service
personnel.
ㆍDo not expose the piano to rain, use it near
water or damp or wet conditions, or place
containers on it containing liquids which
might spill into any openings.
ㆍIf the power cord or plug becomes frayed or
damaged, or if there is a sudden loss of sound
during use of the piano, or if any unusual
smells or smoke should appear to be caused
by it, immediately turn off power switch,
disconnect the electric plug from outlet, and have
the inspected by qualified service personnel.
ㆍOnly use the voltage specified as correct for
the piano. The required voltage is printed on
the name label of the piano.
ㆍBefore cleaning the piano, always remove the
electric plug from the outlet. Never insert or
remove an electric plug with wet hand.
ㆍCheck the electric plug periodically and
remove any dirt or dust which may have
accumulated on it.
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep these precautions in a safe place for future reference.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 1

PRECAUTIONS CAUTION
2
CAUTION
ㆍDo not place the power cord near heat sources
such as heaters or radiators, and do not
excessively bend or otherwise damage the
cord, place heavy object on it or, place it in a
position where anyone could walk on, trip over
or roll anything over it.
ㆍWhen removing the electric plug from the
piano or an outlet, always hold the plug itself
and not the cord. Pulling by the cord can
damage it.
ㆍDo not connect the piano to an electrical
outlet using a multiple-connector. Doing so
can result in lower sound quality, or possibly
cause over-heating in the outlet.
ㆍRemove the electric plug from the outlet
when the piano is not to be used for extended
periods of time, or during electrical storms.
ㆍBefore connecting the piano to other electronic
components, turn off power for all components.
Before turning the power on or off for all
components, set all volume levels to minimum.
ㆍDo not expose the piano to excessive dust or
vibrations, or extreme cold or heat such as in
direct sunlight, near heater, or in the car during
the day to prevent the possibility of panel
disfiguration or damage to the internal
components.
ㆍDo not use the piano near other electrical
products such as televisions, radios, or speakers,
sing this might cause interference which can
affect proper operation of other products.
ㆍDo not place the piano in an unstable position
where it might accidentally fall over.
ㆍBefore moving the piano, remove all connected
cables
ㆍWhen cleaning the piano, use a soft, dry cloth.
Do not use paint thinners, solvent, cleaning
fluids or chemical-impregnated wiping cloths.
Also, do not place vinyl, plastic or rubber
object on the piano, since might discover the
panel or keyboard.
ㆍDo not rest your weight or place heavy objects
on the piano.
ㆍDo not use excessive force on the buttons,
switches and connectors.
ㆍTake care that the key cover does not pinch
your fingers, and do not insert a finger or hand
in the key cover gap.
ㆍNever insert or drop paper or metallic or
liquids or other objects between the slits of the
key cover and keyboard. If this happens,
immediately turn off the power and remove
electric plug from outlet and inspect by
qualified service personnel.
ㆍDo not place the piano against a wall (allow at
least 3 cm/one inch from the wall), since this can
cause inadequate air circulation, and possibly
result in the piano overheating.
ㆍRead carefully the 'GENERAL GUIDE' section in
this manual. Failure to assemble the piano in
the proper sequence might result in damage to
the piano or even injury.
ㆍDo not operate the piano for a long period of
time at a high or uncomfortable volume level,
since this can cause permanent heating loss. If
you experience any hearing loss or ringing the
ears, consult a physician.
ㆍDuring thunderstorms, turn the product off and
disconnect the plug from the power.
Always follow the basic precautions listed below to avoid the possibility of physical injury to
you or others, damage to the piano or other property. These precautions include, but are not
limited to, the following:
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 2

Welcome
PRECAUTIONS Welcome / Main Features
3
Thank you and congratulations on your purchase of the High-Performance STAGE PIANO.
Your new High-Performance STAGE PIANO delivers various specifications in compact body. Sharing much
in common with high-end models, your piano offers 128-polyphony, new Advanced Real Hammer Action
keyboard (ARHA), USB MIDI interface and hundreds of additional sounds and rhythm styles.
Its modern and stylish design will match most home interiors.
The piano's compact size will allow it to fit into many places compared to a traditional piano or large digital
piano.
Main Features
128 Voices
A wide selection of tones includes stereo piano and synthesized sounds, drum sets, and much more. Other
features include digital effects that control the acoustical characteristic of tones.
Auto Accompaniment
Simply play a chord and the corresponding rhythm, bass, and chord parts play along automatically.
Registration Memory
Piano setups can be stored in memory for later recall and instant settings whenever you need them.
Recording and Play Back
Performance recording lets you record your performances, including Auto Accompaniment, in real time.
USB port
A USB port provides quick and easy connection to a computer.
Powerful Stereo 15W + 15W amplifier with 6 Speakers
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 3

Recording
Recording Music
Registration
Storing a Registration Memory
Recall a Registration Memory
MIDI
MIDI Local Control
DEMO
Playback of Demo Music
Demo Music List
MIDI Implementation
GM Voice & Drum Table
GM Voice List
Drum Table
Troubleshooting
Specifications
Table of Contents
Table of Contents
4
PRECAUTIONS
PRECAUTIONS
Welcome
Main Features
Table of Contents
Unpacking
General Guide
Turning ON the Power
Headphone
Connecting Your Computer
Pedal Connector
Panel Controls and Terminals
Basic Operation
Adjusting the Volume
Selecting Voices
GM Voice
Layer
Adjusting the Layer Volume
Split
Adjusting the Split Volume
Changing the Split Point
Reverb
Effect
Using the Metronome
Using PITCH BEND Wheel
Setup
Tune
Transpose
Octave Shift
Brilliance
Pitch Bend Range
Touch
Pedal
Auto-Accompaniment
Selecting a Rhythm
Rhythm List
Tempo Control Adjustment
Adjusting Accompaniment Volume
Starting the Rhythm
Main Loops
Fill-in
Stopping the Rhythm
Changing the Split Point
Types of Auto Accompaniment mode
Using the Auto Accompaniment
1
1
3
3
4
5
6
6
6
7
8
9
11
11
11
12
14
14
15
15
16
16
17
18
18
19
19
19
20
20
20
21
21
22
22
22
23
23
23
24
24
24
25
25
28
29
29
30
30
30
30
30
31
31
32
33
34
34
35
37
38
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 4

Unpacking
Carefully remove the Digital Piano and its accessories
from the packing box. The Digital Piano set consists of
the following items.
Unpacking
5
☞Inspect each item carefully to make sure that it is in good condition. If you find any item missing or
damaged, contact the place of purchase immediately for replacement.
Main Unit
Music Stand AC Adapter Owner's Manual
Non-Slip Pedal
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 5

Turning ON the Power
General Guide Turn ON the Power / Headphone
6

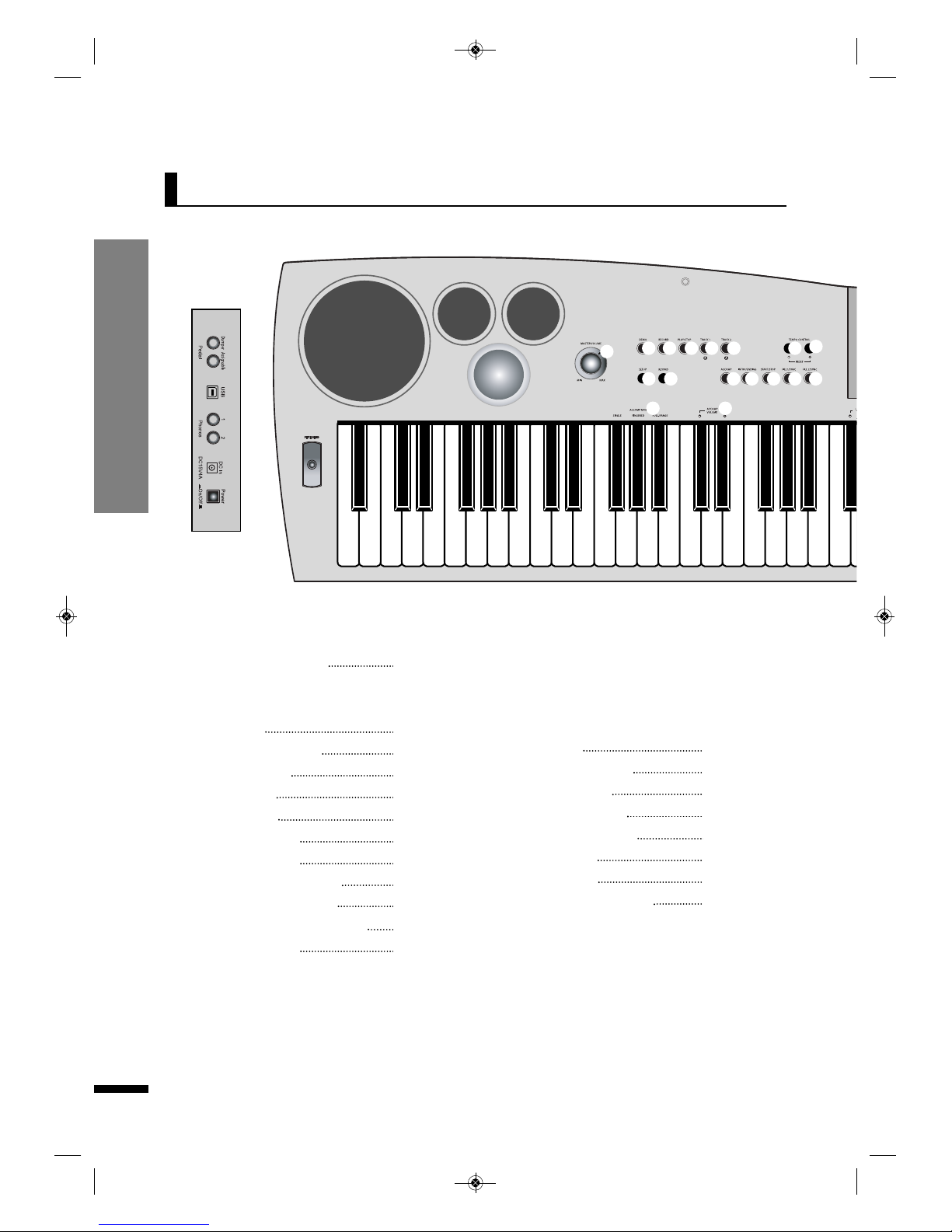

General Guide
Headphone
SIDE PANEL
SIDE PANEL

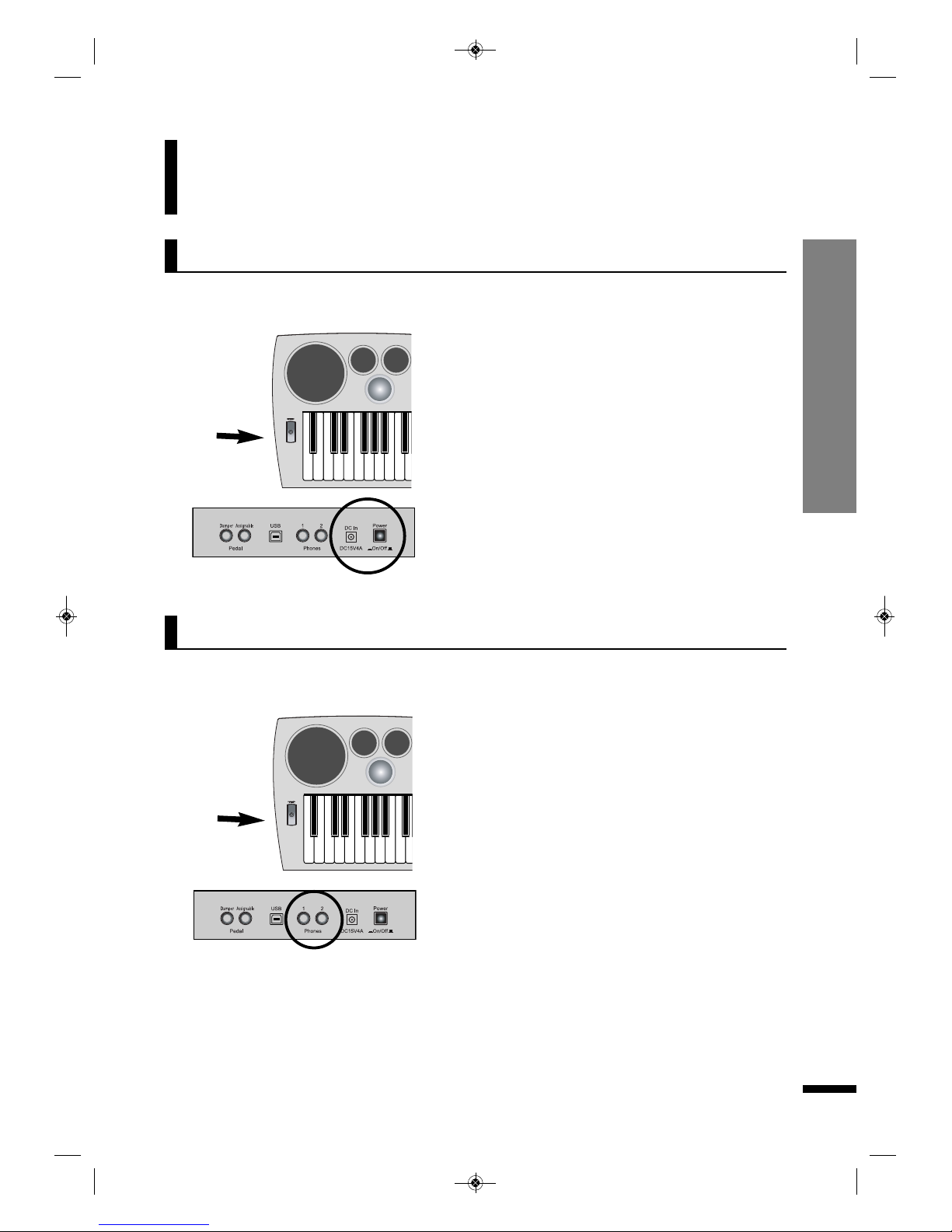

ⓐConnecting the AC adapter. First insert the DC plug
of AC Adapter into DC In connector on the piano then
plug a AC plug of AC adapter into the proper AC outlet
on the wall.
ⓑPress POWER switch. The power is turned on and the
initial display appears in the Multi Function Display.
The voice of Grand Piano is selected automatically at first.
☞Adjust the volume by using MASTER VOLUME.
Press POWER switch again when turning off the power.
All lamps and LED display will turn off.
Connect a set of stereo headphones(optional) to
HEADPHONE jack (standard 1/4" phone jacks).
Insert the headphone plug into the HEADPHONE jack
on the bottom panel of the piano.
When headphones are connected, the internal speaker
system is automatically shut off.
Since the piano has two HEADPHONE jacks, two sets
of headphones can be used simultaneously, allowing
two people to enjoy listening to the performance.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 6

General Guide Connecting Your Computer (USB Terminal)
7
By connecting a computer to the USB, you can transfer data between the instrument and the
computer via MIDI, and take advantage of sophisticated computer music programs. Keep in mind
that you also need to install an appropriate USB MIDI driver.
The instructions below explain how to connect and use the terminals.
☞CAUTION
This instrument cannot be connected with both USB terminal and MIDI Terminals.
☞CAUTION - Precautions when using the USB terminal.
When connecting the computer to the USB terminal, make sure to observe the following points. Failing to do so risks freezing
the computer and corrupting or losing data. If the computer or the instrument freezes, turn the power to the instrument off
and restart the computer.
Before connecting the computer to the USB terminal, exit from any power-saving mode of the computer (such as suspended,
sleep, standby), and quit any open application software, also turns off the power to the instrument.
Execute the following before turning the power to the instrument off or unplugging the USB cable to/from the
instrument/computer.
- Quit any open application software on the computer.
- Make sure that data is not being transmitted from the instrument. (Data is transmitted only by playing notes on the keyboard
or playing back a song.)
- While a USB device is connected to the instrument, you should wait for six seconds or more between these operations: When
turning the power of the instrument off then on again, or when alternately connecting/disconnecting the USB cable.
Local Control On/Off
Press and hold down the KEYPAD button and press Right (C8) key of keyboards.
☞Under Local control off, the piano doesn't make any sound without PC connection(USB or MIDI).
Connecting Your Computer (USB Terminal)
SIDE PANEL
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 7

General Guide Pedal Connector
8
Pedal Connector
q DAMPER PEDAL CONNECTOR
With piano tones, depressing the pedal causes notes to linger, much like a piano's damper pedal.
With organ tones, depressing the pedal causes notes to continue to sound until the pedal is released.
w ASSIGNABLE PEDAL CONNECTOR
This pedal connector can be assigned to one of following functions.
(see the PEDAL section on page 21)
1) Sustain Pedal
With piano tones, depressing the pedal causes notes to linger, much like a piano's damper pedal.
2) Soft Pedal (Default)
Depressing the pedal softens the sound of the notes being played.
3) Sostenuto Pedal
As with the sustain pedal function described above, depressing the sostenuto pedal causes notes
to be sustained. This difference between a sostenuto pedal and sustain pedal is the timing. With a
sostenuto pedal, you press the keys and then depress the pedal before you release the keys.
Only the notes that are sounding when the pedal is depressed are sustained.
4) Rhythm Fill1/Synchro Start Pedal
In this case, the pedal performs the same function as the Fill1/Synchro button.
5) Rhythm Fill2/Synchro Start Pedal
In this case, the pedal performs the same function as the Fill2/Synchro button.
6) Rhythm Start/Stop Pedal
In this case, the pedal performs the same function as the Start/Stop button.
Pedal Cable
qw
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 8

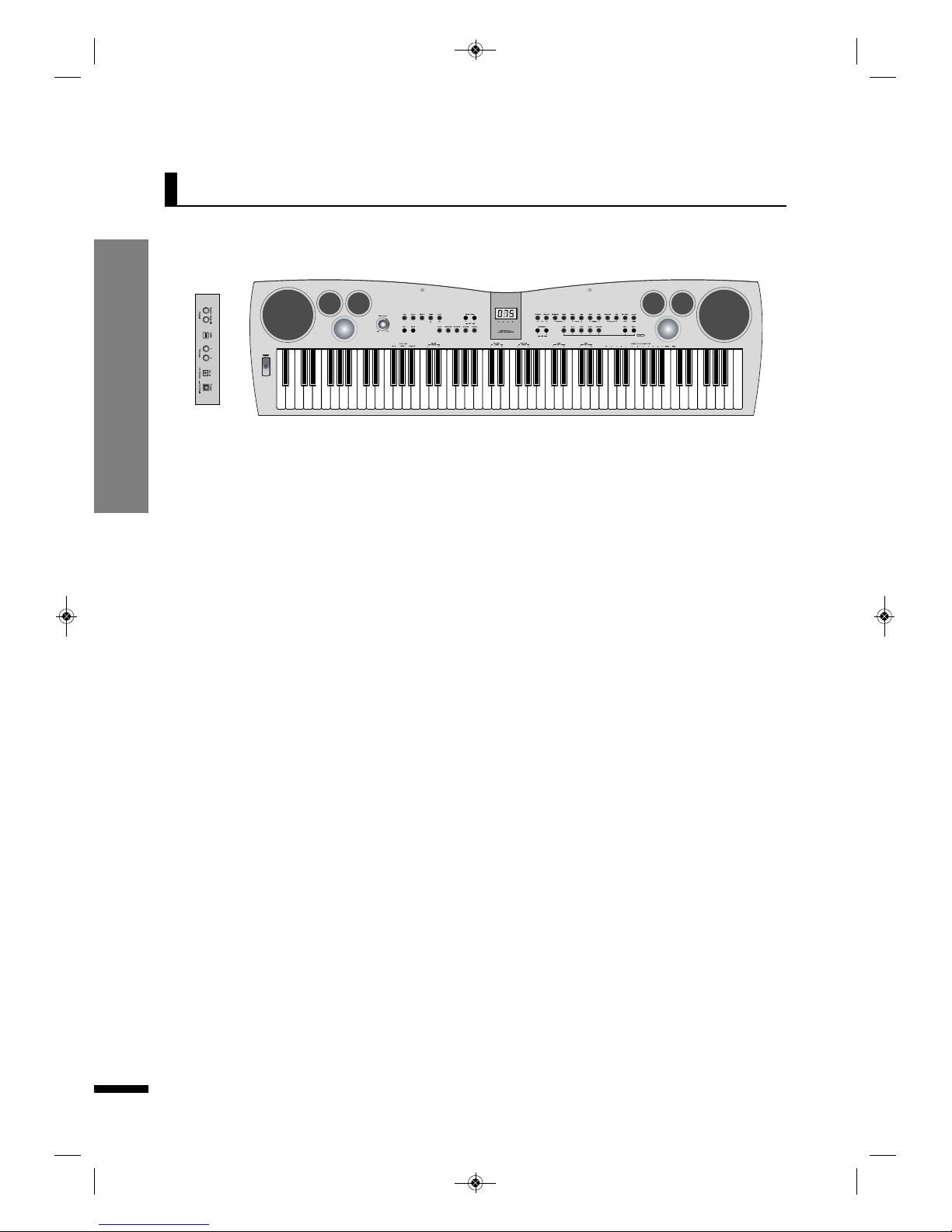

Panel Controls and Terminals
General Guide Panel Controls and Terminals
9
u
y
q
t
e
rⓑⓒ ⓓ ⓔ
ⓗ
ⓕ
ⓚ
ⓟⓠ

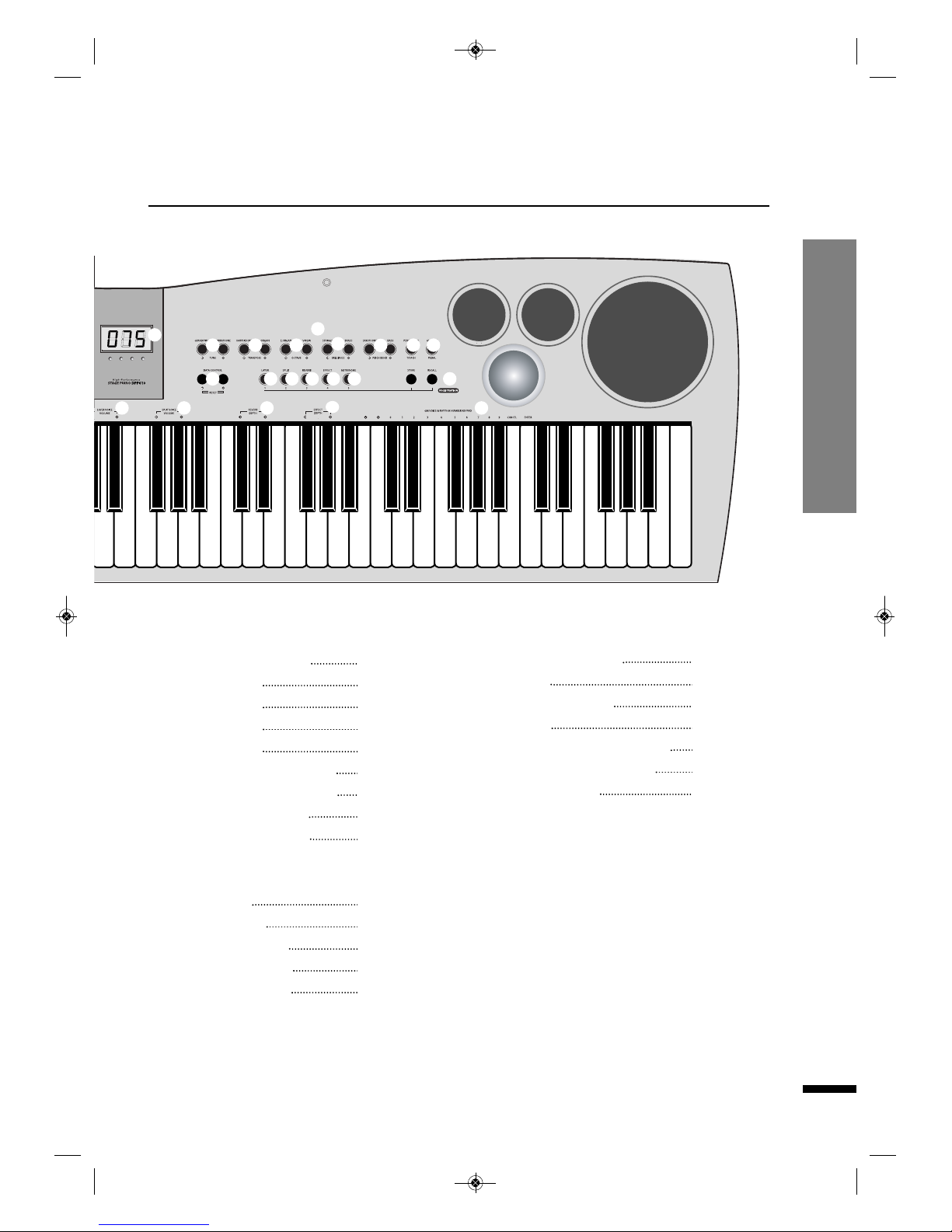

VOLUME SECTION
ⓐMASTER VOLUME
STYLE SECTION
ⓑACCOMP
ⓒINTRO/ENDING
ⓓSTART/STOP
ⓔFILL1/SYNC
ⓕFILL2/SYNC
ⓖTEMPO UP
ⓗTEMPO DOWN
ⓘSTYLE SELECT KEYS
ⓙACMP. MODE KEYS
ⓚACMP. VOLUME KEYS
ⓜMETRONOME
SETUP SECTION
ⓝMulti Function Display
ⓞDATA UP/DOWN
ⓟSETUP
ⓠKEYPAD
ⓡTUNE
ⓢTRANSPOSE
ⓣOCTAVE
ⓤBRILLIANCE
ⓥPITCH BEND
ⓦTOUCH
ⓧPEDAL
ⓨREGISTRATION
Page 11
Page 22
Page 23
Page 23
Page 24
Page 24
Page 23
Page 23
Page 22
Page 25, 28
Page 23
Page 18
ⓐ⑪ ⑫ ⑬⑭
⑩
Page 19
Page 19
Page 20
Page 20
Page 20
Page 21
Page 21
Page 30
ⓖ
w
ⓙ
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 9

General Guide Panel Controls and Terminals
10
TERMINAL SECTION
q POWER switch
w DC IN
e HEADPHONE
r USB
t ASSIGNABLE PEDAL IN
y DAMPER PEDAL IN
u PITCH BEND
Page 6
Page 6
Page 6
Page 7
Page 8
Page 8
Page 18, 20
⑥
VOICE SECTION
①VOICE buttons
②LAYER
③SPLIT
④REVERB
EFFECT
⑥LAYER VOICE VOL.
⑦SPLIT VOICE VOL.
⑧REVERB DEPTH
⑨EFFECT DEPTH
PLAYER SECTION
⑩DEMO
⑪RECORD
⑫PLAY/STOP
⑬TRACK 1/R
⑭TRACK 2/A
ⓘ
ⓜ
ⓝ
ⓞ
ⓡ ⓢ ⓣⓤⓦⓧ
ⓨ
②③④ ⑤
⑦⑧⑨
Page 11
Page 14
Page 15
Page 16
Page 17
Page 14
Page 15
Page 16
Page 17
Page 31
Page 29
Page 29, 31
Page 29, 31
Page 29, 31
ⓥ
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 10

Adjusting the Volume
Basic Operation
Basic Operation
11
Selecting Voices
qSelect a Voice.
Select the desired voice by pressing the appropriate VOICE button.
The piano has one volume knob on the panel for adjusting the volume.
MASTER VOLUME
This determines the entire volume of the piano.
☞This also determines the volume level of the HEADPHONE(s).
The piano features a wealth of rich, authentic voices, including piano, strings and brass instruments. It also
features a keyboard percussion function that lets you play realistic drum, percussion sounds, and various
effect sounds directly from keyboard.
Voice Types
☞50 Sounds and GM 128 Voice Sounds
☞3 Drum kits
☞2 Sound Effect sets
The voices of the piano are assigned to 50 voices select buttons. Each button is assigned to an upper
voice and lower voice.
☞Piano has total 11 voice groups and each voice group has 5 voices.
☞When pressing a VOICE button, the lamp in the LED display flashes for 3 seconds and the pop-up display shows the
location of the selected voice as follows,
- Left digit of the pop-up display lets you know the location of the selected voice button: 1~9, A, b.
- Right digit of the pop-up display lets you know the location of the voice of the selected button: 1 ~ 5.
☞After selecting a voice, while the lamp is flashing, you can select one of five voice of the selected voice group by
pressing the VOICE button. Also, the voice can be selected by pressing DATA UP and DOWN buttons.
☞POP-UP Display
The pop-up display returns to the previous display after 3 seconds.
☞Backing Up the Selected Voice.
The last selected voice in each button will be retained in memory.
Adjusting the Volume / Selecting Voices
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 11

Basic Operation GM Voice
12
VOICE LIST
wPlay the selected voice.
Adjust the volume by using MASTER VOLUME and play the piano with the selected voice.
GM Voice
There are 128 different voices in the piano. When the GM VOICE button is selected, one of 128 GM
voices can be assigned
CHANGING GM VOICE BY DATA BUTTONS.
qPress the GM VOICE button.
The Pop-up display shows you the current selected voice number.
☞Default GM voice: 025 Guitar
wSelect the desired voice by pressing the DATA buttons.
☞Instead of the DATA buttons, you can change the GM voice by using GM number keys and GM voice button.
☞See the GM VOICE TABLE on page 34 in this manual.
Grand
Piano
Vibra-
phone
Harpsi-
chord Organ E.Organ Violin Strings Brass Saxo- phone Bass Per- cussion
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group A Group b
G. Piano 1
G. Piano 2
G. Piano 3
E. Piano 1
E. Piano 2
Vibraphone
Marimba
Xylophone
Tubular Bell
Dulcimer
Harpsichord
Clavi
Celesta
Glocken
MusicBox
Pipe
Organ
Reed Organ
Accordion
Harmonica
Bandonion
E. Organ 1
E. Organ 2
E. Organ 3
Voice Oohs
Synth Voice
Violin
Viola
Cello
Clarinet
Flute
Strings 1
Strings 2
Voice 3
SynthStr. 1
SynthStr. 2
Brass
Synth Brass 1
Synth Brass 2
Trumpet
Trombone
Tenor Sax
Alto Sax
Oboe
English Horn
Basson
Acst. Bass
Finger Bass
Pick Bass
Synth Bass 1
Synth Bass 2
Drum 1
Drum 2
Drum 3
SFX 1
SFX 2
①
②
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 12

Basic Operation GM Voice
13
CHANGING GM VOICE BY GM NUMBER KEYS.
Instead of the DATA buttons, you can change the GM voice by using GM number keys.
qPress and hold down the GM VOICE button.
The Pop-up display shows you the current selected voice number.
wPress GM number keys and Enter key.
☞See the GM VOICE TABLE on page 34 in this manual.
☞Backing Up the Selected Voice.
The last selected voice in each button will be retained in memory.
①②③
☞EXAMPLE
If you want to choose JAZZ GUITAR (No. 27),
1) Press and hold down the GM VOICE button.
2) Press GM number 2 (D#), 7(G#) and Enter key.
Piano shows 027 in the pop up display and makes bell sound.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 13

Layer
Basic Operation Layer / Adjusting the Layer Volume
14
The Layer mode of the piano allows you to select and play two different voices simultaneously in a
layer. This makes it easy to create exceptionally rich and thick tonal textures. The volume balance can
be set for the two voices.
qSelect the main voice.
Select a voice in the normal way. (see the SELECTING VOICE section on page 11)
wCall up the Layer mode.
To call up the layer mode, press the LAYER button. Lamp lights and the layer is set on.
eSelect the layered voice.
Select a voice in the normal way. (see the SELECTING VOICE section on page 11)
Adjusting the Layer Volume
This determines the volume of the Layered voice.

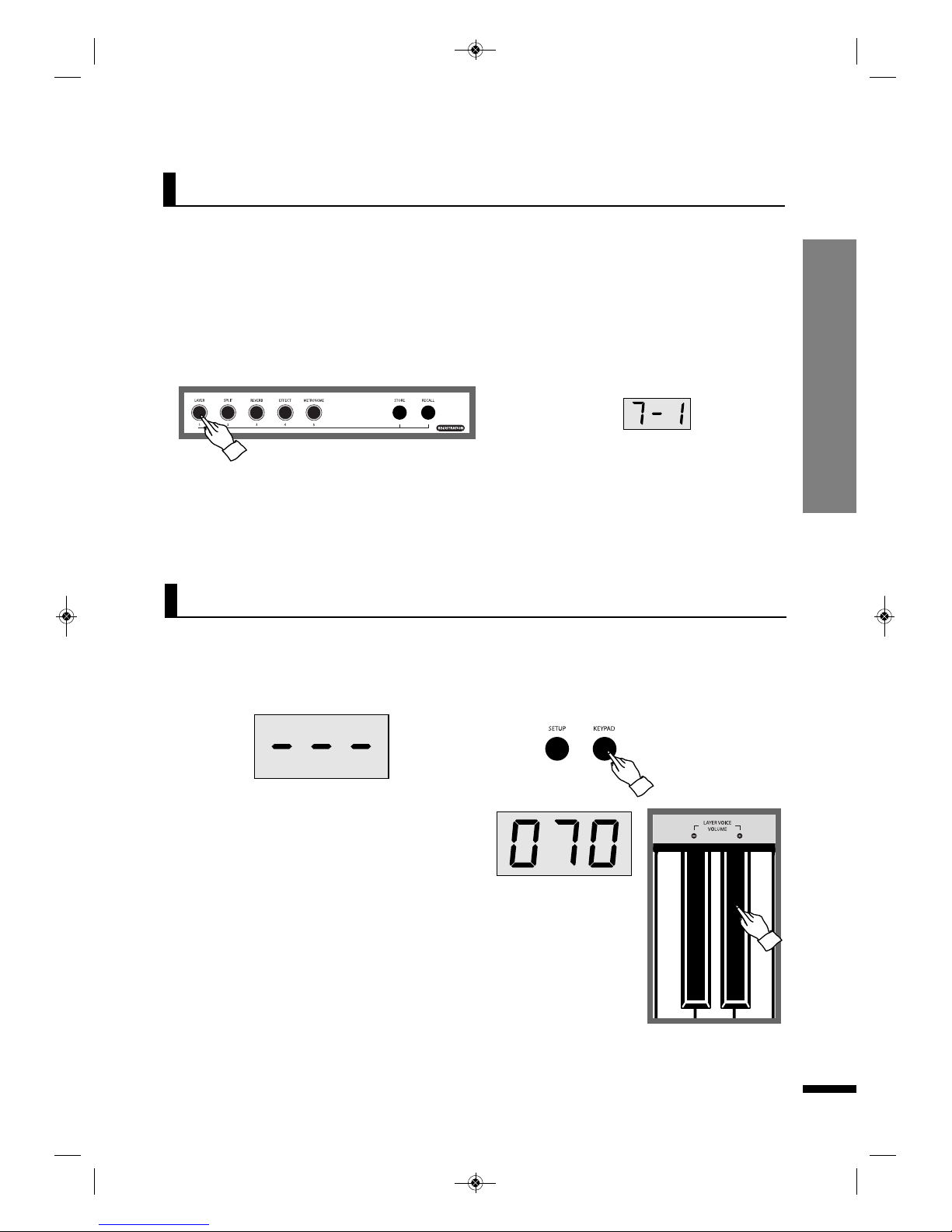

q Call up the KEYPAD SETUP mode.
Press and hold down the KEYPAD button. The Keypad pop-up appears in the LED display.
☞The default Layer Voice is the 7-1
STRINGS in the Layer mode.
w Adjust the Layer Volume.
Adjust the Layer Volume by using the LAYER
VOLUME UP and DOWN keys .
e Return to Play mode.
Release the KEYPAD button.
☞If you press both Volume UP and DOWN Keys at the same time automatically return to
the default Layer Volume(70).
☞The range of volume is 0 ~ 100.
☞Hold the button for continuous decrementing or incrementing.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 14

Basic Operation Split / Adjusting the Split Volume
15
Adjusting the Split Volume
This determines the volume of the split voice.
Split
The Split mode of the piano allows you to select and play two different voices with your left and right
hands - For example, play bass with the left and piano with the right .
PLAYING WITH SPLIT VOICE
qSelect the main voice.
Select a voice in the normal way. (see the SELECTING VOICE section on page 11)
wCall up the Split mode.
To call up the layer mode, press the SPLIT button. Lamp lights and the split is set on.
eSelect the split voice.
Select a voice in the normal way. (see the SELECTING VOICE section on page 11)
☞The default Split Voice is the A-1
ACOUSTIC BASS in the split mode.
q

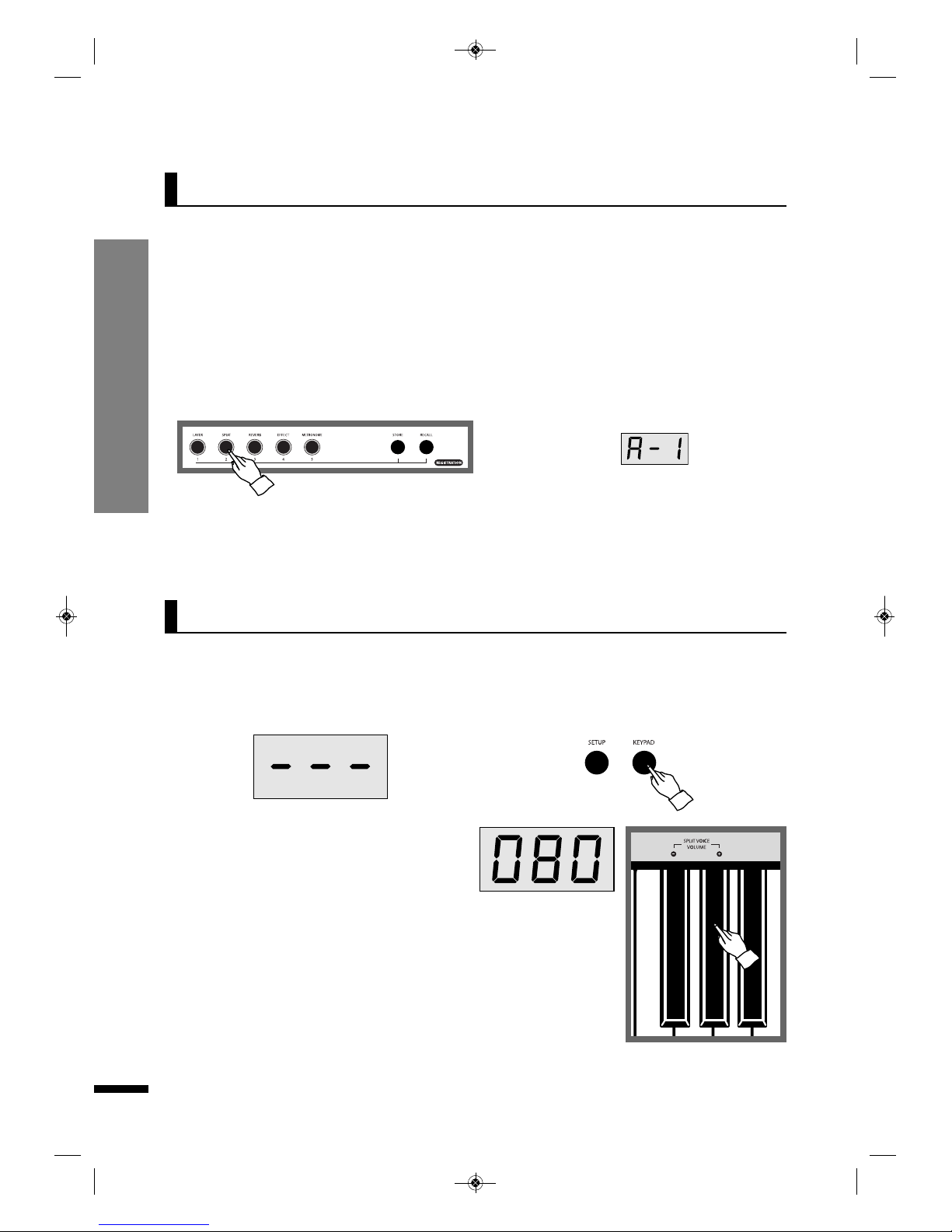

Call up the KEYPAD SETUP mode.
Press and hold down the KEYPAD button. The Keypad pop-up appears in the LED display.
w
Adjust the Split Volume.
Adjust the Split Volume by using the SPLIT
VOLUME UP and DOWN keys .
e
Return to Play mode.
Release the KEYPAD button.
☞If you press both Volume UP and DOWN Keys at the same time
automatically return to the default Split Volume(80).
☞The range of volume is 0 ~ 100.
☞Hold the button for continuous decrementing or incrementing.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 15

Basic Operation Changing the Split Point / Reverb
16
To assign new split point, hold down the SPLIT button and press a key. (Default F3#)
▼SPLIT POINT (Default F#3)
ASSIGNABLE SPLIT POINT RANGE
(C2 ~ C7)
Changing the Split Point
Reverb
Reverb is an effect that recreates the decaying reflections of a sound in a performance space, and
reproduces the special ambience of a concert hall.
REVERB ON/OFF
To turn on reverb, press the REVERB button. The lamp lights
and reverb is set ON.
To turn off reverb, press the REVERB button again. The lamp turns off and reverb is no longer active.
SELECTING REVERB TYPE
Press and hold down the SETUP button and press the REVERB button.
☞The Reverb type pop-up display appears and shows current reverb type.
☞Press the button again, the reverb type is changed.
☞There are 8 Reverb types in the piano. r-1 : ROOM , r-2 : ROOM 2 (Default), r-3 : ROOM 3, r-4 : HALL 1,
r-5: HALL 2, r-6: PLATE, r-7: DELAY, r-8: PAN DELAY
ADJUSTING THE REVERB DEPTH
This determines the depth of the reverb.
q
Call up the KEYPAD SETUP mode.
Press and hold down the KEYPAD button. The Keypad pop-up appears in the LED display
w
Adjust the Reverb Depth.
Adjust the Reverb Depth by using the REVERB DEPTH UP and DOWN keys .
☞If you press both UP and DOWN Keys at the same time automatically return to the default Reverb Depth (50).
☞The range of volume is 0 ~ 100.
☞Hold the key for continuous decrementing or incrementing.
e Return to Play mode.
Release the KEYPAD button.
+
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 16

Effect
Basic Operation Effect
17
This control adds richness to the sound. There are 8 different Effect types: Chorus 1, 2, 3, 4 , Feedback, Flanger Short
delay and Feedback Delay.
EFFECT ON/OFF
To turn on effect, press the EFFECT button. The lamp lights and effect
is set ON.
SELECTING EFFECT TYPE

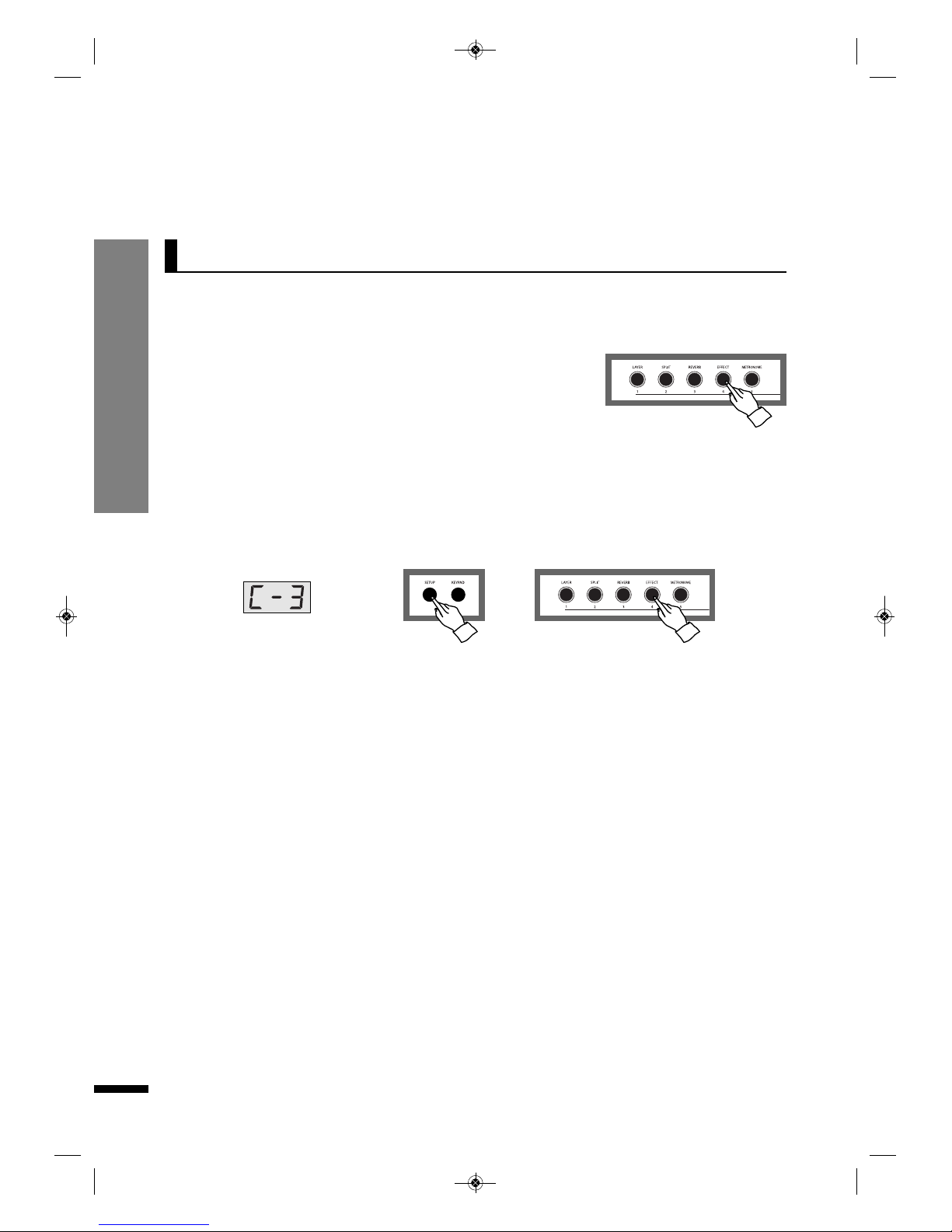

Press and hold down the SETUP button and press the EFFECT button.
☞The EFFECT type pop-up display appears and shows current effect type.
☞Press the button again, the effect type is changed.
☞There are 8 effect types in the piano.
C-1 : CHORUS 1, C-2 : CHORUS 2, C-3 : CHORUS 3 (Default), C-4 : CHORUS4,
C-5: FEEDBACK, C-6: FLANGER, C-7: SHORT DELAY, C-8: FEEDBACK DELAY
ADJUSTING THE EFFECT DEPTH
This determines the depth of the effect.
q
Call up the KEYPAD SETUP mode.
Press and hold down the KEYPAD button. The Keypad pop-up appears in the LED display
w
Adjust the Effect Depth.
Adjust the Effect Depth by using the EFFECT DEPTH UP and DOWN keys .
e Return to Play mode.
Release the KEYPAD button.
☞If you press both UP and DOWN Keys at the same time automatically return to the
default Effect Depth (70).
☞The range of volume is 0 ~ 100.
☞Hold the key for continuous decrementing or incrementing.
+
To turn off reverb, press the EFFECT button again. The lamp turns off and
effect is no longer active.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 17

Basic Operation Using the Metronome / Using the PITCH BEND Wheel
18
SELECTING THE BEAT
Press and hold down the SETUP button and press the METRONOME button.
☞The Metronome Beat pop-up display appears and shows current beat of the metronome.
☞Press the button again, the beat is changed.
☞Beat Range: 1 ~ 9
Using the Metronome
Using the PITCH BEND Wheel
START/STOP OF THE METRONOME
To start the metronome, simply press the METRONOME button.
Press the METRONOME button again to stop the metronome sound.
The piano features a convenient metronome that is ideal for practicing.
ADJUSTING THE TEMPO OF THE METRONOME
You can set the tempo over range 40 ~ 250 beats per minute by using the TEMPO buttons.
☞Hold the button for continuous decrementing or incrementing.
☞If you press both UP and DOWN Keys at the same time automatically return to the default Tempo (♩= 128).
TO USE THE PITCH BEND WHEEL
While holding down a keyboard key with your right hand, use your left hand
to rotate the PITCH BEND wheel up and down.
Releasing the PITCH BEND wheel returns the note to its original pitch.
As its name suggests, the PITCH BEND wheel lets you "bend" the pitch of a sound. This makes it possible to add a
touch of realism to saxophone and other tones.
☞With saxophone and electrical guitar tones, the most realistic sounding effects can be produced if you play notes and
operate the PITCH BEND wheel simultaneously.
☞See the PITCH BEND RANGE section on page 20. (Default: 2 seminotes) to change the bend range of the PITCH BEND wheel.
☞Never turn on keyboard power while the PITCH BEND wheel is rotated.
☞The PITCH BEND Wheel works for main and layered voice.
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 18

Tune
Setup
The Tune function lets you make fine adjustments to the pitch, allowing you to accurately match the
tuning with that of other instruments.
Press and hold down the SETUP button and press the TUNE UP or DOWN button.
☞The Tune pop-up display appears and shows current value.
☞The value can be changed by pressing TUNE UP and DOWN buttons.
☞If you press both UP and DOWN buttons at the same time automatically return to the default value.
☞Range : A3 440Hz ± 100 cents (Default 00)
☞Hz(Hertz)
The pitch is measured in units of Hertz (abbreviated Hz), which represents the number of times the sound wave vibrates
in a second.
☞Cent : Cent is unit of pitch, equal to 1/100 of a seminote.
☞Backing Up adjusted value. The last adjusted value of each Function can be retained in memory.
Transpose
The TRANSPOSE function makes it's possible to shift the pitch of the keyboard in seminote units,
allowing you to match the pitch of the keyboard to the range of other instruments or singers, or
letting you easily play in a different key without having to change your fingering. For example, if the
TRANSPOSE is set F key, playing C results in a pitch of F, or in other words, you can play in the key of C
major on the keyboard and automatically have the pitch transposed to F major.
Press and hold down the SETUP button and press the TRANSPOSE UP or DOWN button.
☞The Transpose pop-up display appears and shows current value.
☞The value can be changed by pressing TRANSPOSE UP and DOWN buttons.
☞If you press both UP and DOWN buttons at the same time automatically return to the default value.
☞Range : -12 seminote ~ 0 ~ 12 seminote (Default 00)
☞Backing Up adjusted value. The last adjusted value of each Function can be retained in memory.
Setup Tune / Transpose
19
+
+
수출 DPP-610 신규_131025_내지 2013-11-22 오후 3:28 페이지 19
