Dynatone UPRIGHT PIANO DPR2200 User manual

OWNER'S MANUAL
New feel, new look and new sound
High Performance Digital Piano
UPRIGHT PIANO DPR2200
GRAND PIANO GPR2200

Part No. 11958210
DYNATONE CORP.
www.dynatone.biz

CAUTION
1
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS.
Precautions
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
RISK OF ELECTRIC
SHOCK
CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL
This Symbol is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of fire or electric shock.
This Symbol is intended to alert the user to the presence of important in
the literature accompanying this appliance.
All information should be read carefully to avoid misuse of product.
WARNING DO NOT OPEN THE CABINET.
DANGEROUS HIGH VOLTAGE IS PRESENT, SERVICING SHOULD ONLY BE PERFORMED
BY QUALIFIED PERSONNEL.
CAUTION TO PREVENT ELECTRIC SHOCK. MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
ATTENTION POUR EVITER LES CHOC ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU
FOND.

2
Precautions
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electric products, basic precautions should always be followed, including the
following:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, close supervision in necessary when a product is used near children.
3. Do not use this product near water -for example, near a bathtub, washbowl, kitchen sink, in a wet
basement, or near a swimming pool.
4. This product should be used only with a cart or stand that is recommended by the manufacturer.
5. This product, either alone or in combination with an amplifier and headphones or speakers, may be
capable of producing hearing loss. Do not operate for a long period of time at a high volume level or
at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should
consult an audiologist.
6. The product should be positioned so that its location does not interfere with its proper ventilation.
7. The product should be positioned away from heat sources such as radiators, heat registers, or other
products that produce heat.
8. The product should only be connected to the type of power supply described in the operating
instructions or as marked on the product.
9. This product may be equipped with a polarized line plug (one blade wider than the other). This is a
safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the plug.
10. The power-supply cord of the product should be unplugged from the outlet when left unused for a
long period of time.
11. Care should be taken so that objects do not fall and liquids are not spilled into the openings of the
enclosure.
12. The product should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged;
B. Objects have fallen, or liquid has been spilled into the product;
C. The product has been exposed to rain;
D. The product does not appear to operate normally or exhibits a marked change in performance;
E. The product has been dropped, or the enclosure damaged.
13. Do not attempt to service the product beyond what is described in the user maintenance instruction. All
other servicing should be done by qualified service personnel.
14. To clean the exterior surfaces, wipe lightly with a clean, dry cloth. Never use solvents such as benzine
or paint thinners.
15. The product should be positioned away from a television, radio, or any heavy equipment that can
generate electromagnetic fields.
16. The product should be located on a flat, stable surface that is free of vibration.
17. Be careful to protect the product from knocks, particularly when carrying it.
18. During thunderstorms, turn the product off and disconnect the plug from the power outlet.

3
Precautions
INFORMATION TO THE USER
This equipment has been tested and is found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This product is equipped with a
power supply cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet which is properly installed and grounded in accordance with all local
codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Do not modify the plug provided with the the product - if it will not fit the outlet, have a proper
outlet installed by a qualified electrician. Do not use an adapter which defeats the function of the
equipment-grounding conductor. If you are in doubt as to whether the product is properly grounded,
check with a qualified serviceman or electrician.

Welcome
4
Welcome...
Thank you and congratulations on your purchase of the High-Performance DIGITAL PIANO.
Your new High-Performance DIGITAL PIANO delivers various specifications. Sharing much in common with
high-end models, your piano offers 128-polyphony, new Advanced Real Hammer Action keyboard(ARHA3),
useful external memory(SD Card)slot, USB MIDI interface and hundreds of additional sounds and rhythm
styles.
Your DIGITAL PIANO is ideal for beginners or experienced musicians. In order to enjoy the features and functions
of this unit to their fullest, be sure to carefully read this manual and follow the instructions contained herein.
MAIN FEATURES
128 Voices
A wide selection of tones includes stereo piano and synthesized sounds, drum sets, and much more. Other
features include digital effects that control the acoustical characteristic of tones.
VP PLAYER System
Piano comes with over 1000 VP music tunes. You can playback the VP tunes for your own listening pleasure, or
you can use them for practice.
SMF PLAYER System with SD Memory Card
Piano can playback Standard MIDI file. Simply download SMF into your SD card via your PC.
You can listen the downloaded SMF on your piano.
Auto Accompaniment
Simply play a chord and the corresponding rhythm, bass, and chord parts play along automatically.
Registration Memory
piano setups can be stored in memory for later recall and instant settings whenever you need them.
Recording and Play Back
Performance recording lets you record your performances, including Auto Accompaniment, in real time.
USB port
A USB port provides quick and easy connection to a computer.

Precaution
Welcome/Main Features
Contents
Care of Your Digital Piano
Unpacking (Upright Piano/ Grand Piano)
Assembling Your Piano (Upright Piano/ Grand Piano)
Setting up Your Piano

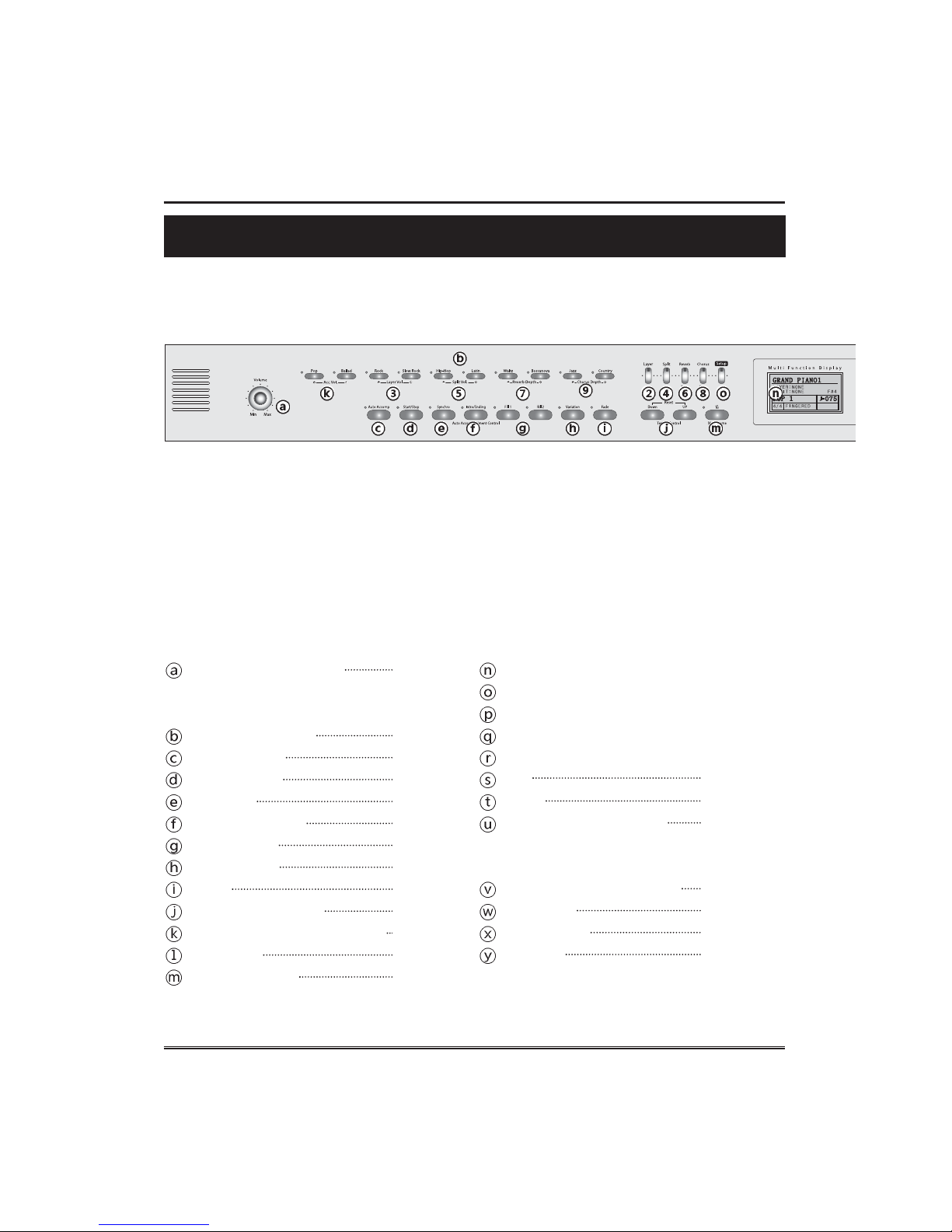

Panel Controls and Terminals

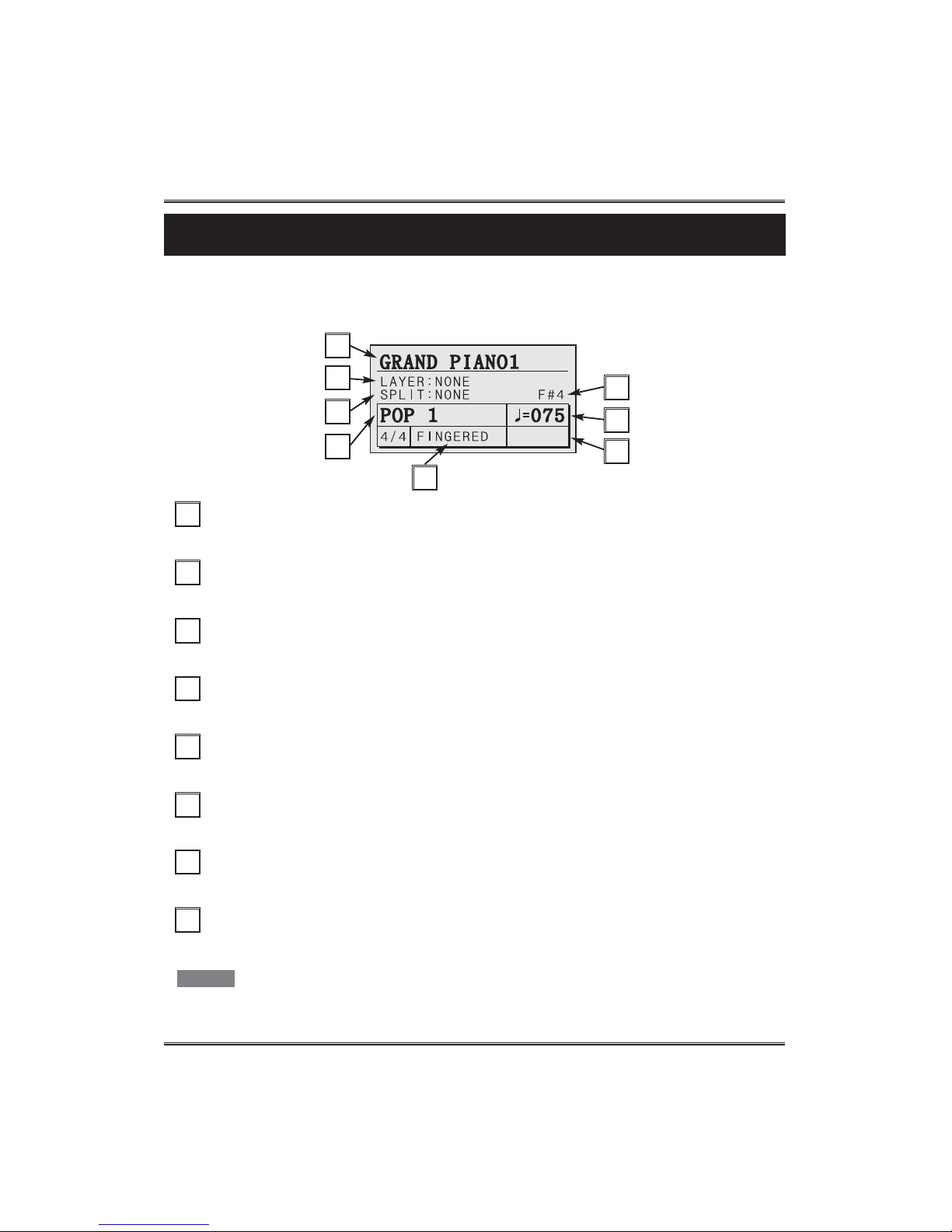

Performance Screen
Adjusting the Volume
VP Player
Selecting Voices
GM Voice
Main Voice Volume
Layer
Split
Reverb
Chorus
Using the Metronome
SETUP (Tune, Transpose)
SETUP (Touch)
SETUP (Brilliance, Octave Shift, Pedal)
EQ
MIDI
Auto Accompaniment
Recording
Registration
SMF Player
General MIDI Voice & Drum Table
MIDI Implementation Chart
VP Music Library
Troubleshooting
Specifications
Contents
5
1
4
5
6
7/10
8/11
13
16
18
19
20
23
24
24
25
27
30
32
34
35
36
37
38
39
40
47
50
52
54
57
58
80
81

6
Avoid heat, humidity or direct sunlight.
Keep the unit free from liquids, dust, etc...
During thunderstorms, turn the product off
and disconnect the plug from the power.
Take care not to drop the unit and avoid
strong impact.
Never attempt to modify any parts of the unit.
Care of your Digital Piano
Care of your Digital Piano

Owner's Manual
SD Card
7

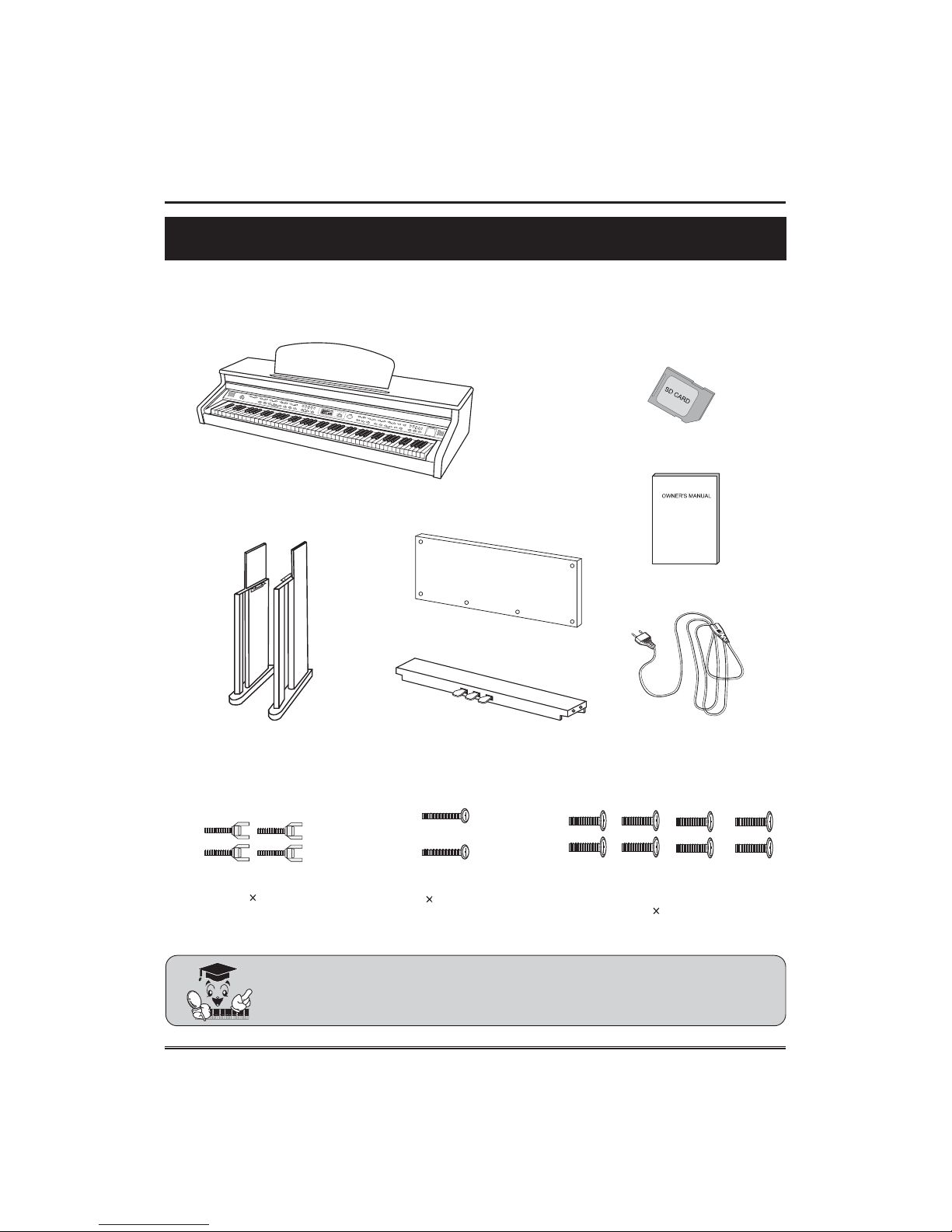

Unpacking (Upright Piano)
Unpacking (Upright Piano)
Carefully remove the Digital Piano and its accessories from the packing box. The
Digital Piano set consists of the following items.
Rear Plate (d)
Four Bolts for Main Unit
(g) (M6 15)mm
Eight Bolts
for Pedal Box and Rear Panel
(f) (6 24)mm
Tow Bolts for Rear Plate
(h) (4 22)mm
Main unit
Right, Left Legs (a, b) Pedal Box (c) Power Cord
Inspect each item carefully to make sure that it is in good condition. If you find
any item missing or damaged, contact the place of purchase immediately for
replacement.

1
8

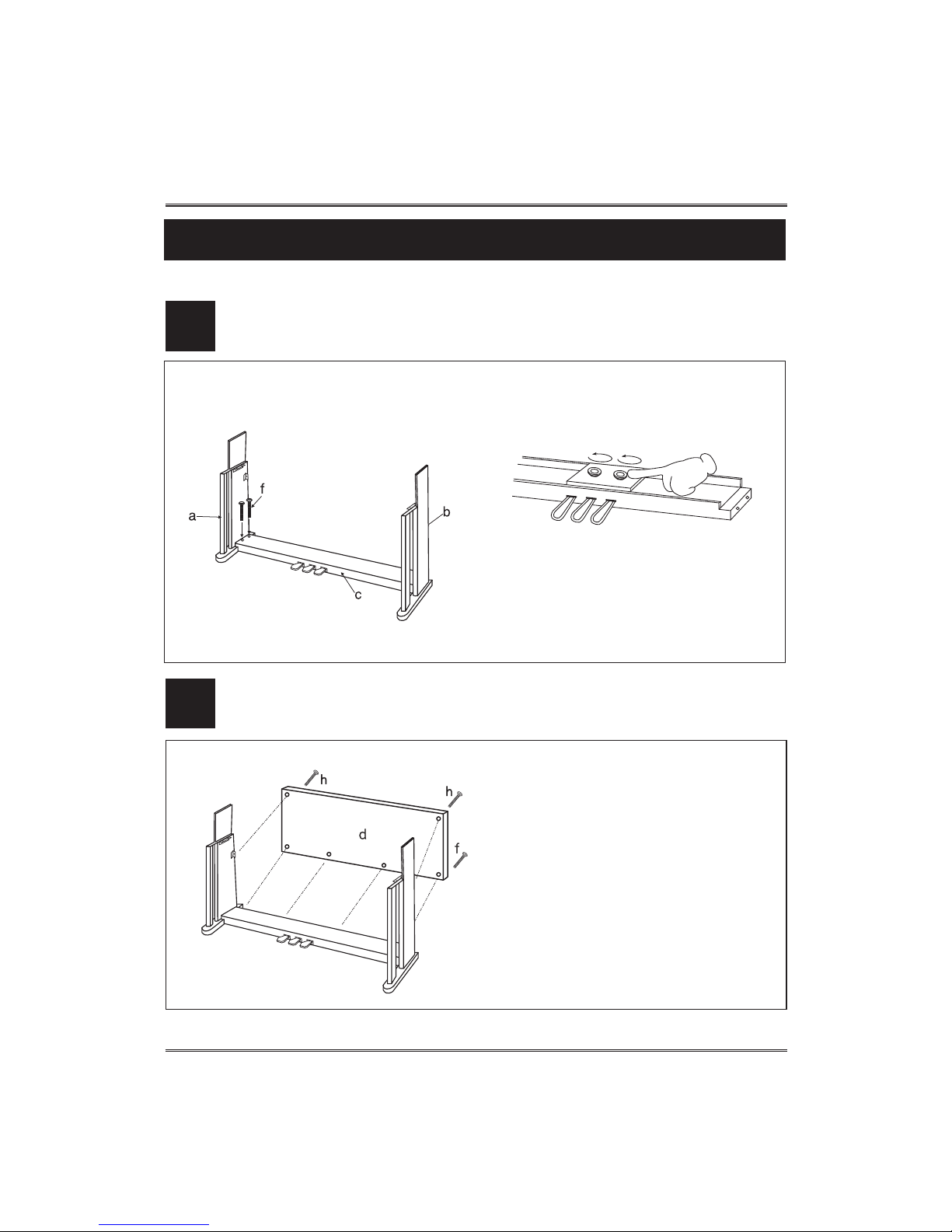

Assembling Your Piano (Upright piano)
Attaching the both legs and pedal box assembly
Assembling the stand
Securely combine both legs(a,b) and pedal
box(c) by using four bolts(f) for pedal box.
For pedal stability, rotate the adjusters on
the bottom of the pedal assembly until
they come in firm contact with the floor
surface.
2
Attach the rear plate(d) to the legs and
pedal box using two bolts(h) and four
bolts(f) for rear plate.
Assembling Your Piano(Upright Piano)

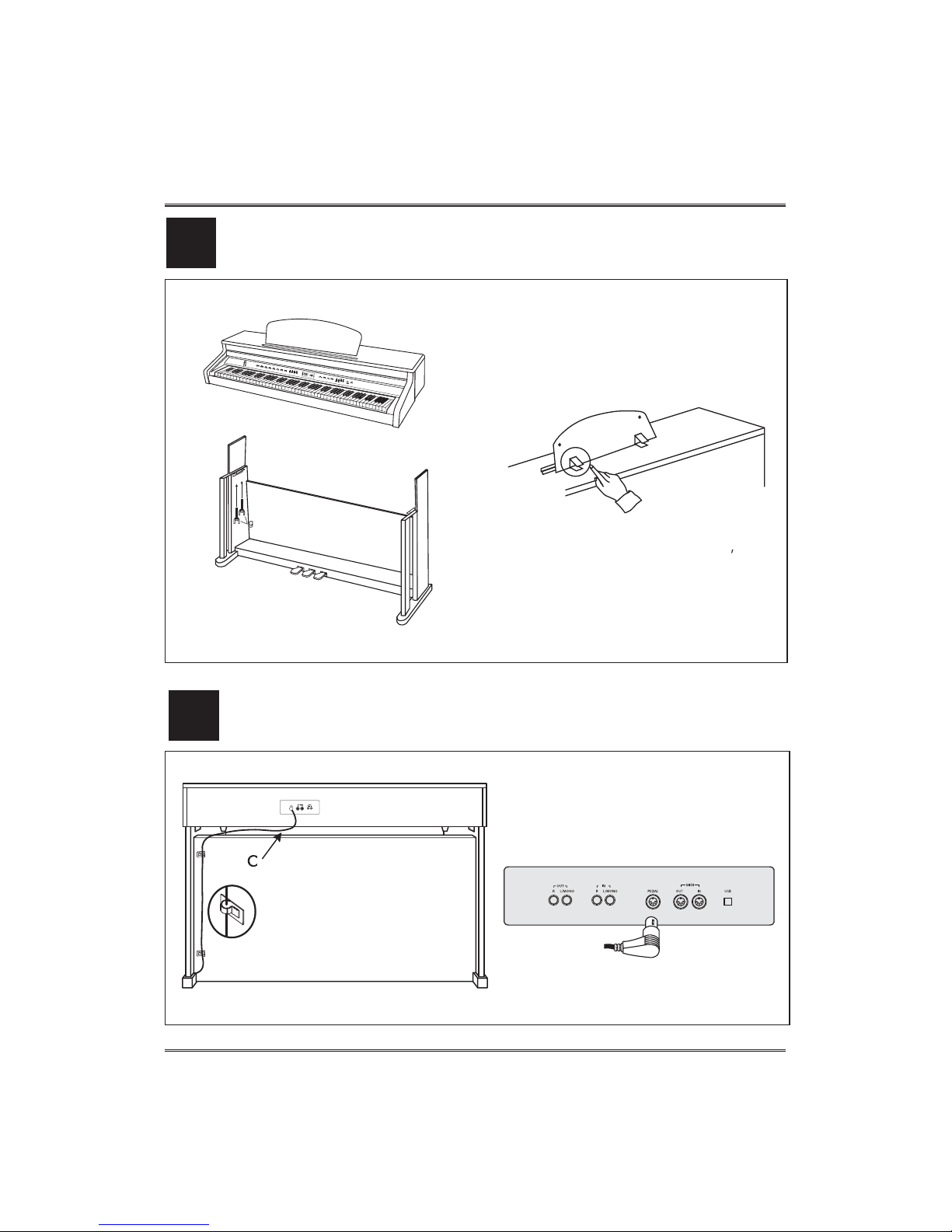

Connecting the pedal cord
4
Plug pedal cord(c), which is protruding
from the top of the pedal assembly, into
the corresponding port in the back of the
main unit.
9
3
Set the stand upright and gently lower the
main unit on the stand, then tighten the
main unit with four bolts (g) for main unit
as shown in illustration.
Music Stand
Raise the music stand on the piano s top
panel by lifting two brackets on the back
of the music stand.
Assembling Your Piano (Upright piano)
Attaching the main unit and stand

10
Unpacking (Grand Piano)
Carefully remove the Digital Piano and its accessories from the packing box. The
Digital Piano set consists of the following items.
Inspect each item carefully to make sure that it is in good condition. If you find
any item missing or damaged, contact the place of purchase immediately for
replacement.
Main Unit
Keyboard Protection Cover
Power Cord
Legs(3EA)
Pedal Nuts (2EA)
Bolt M10 X 60 (8EA)
Pedal
Pedal Stand Brace(2EA)
Wrench (1EA)
Screw 3.5 X 25 (8EA)
Washer 20 X1T (8EA)
Owner's Manual
SD Card
Unpacking (Grand Piano)

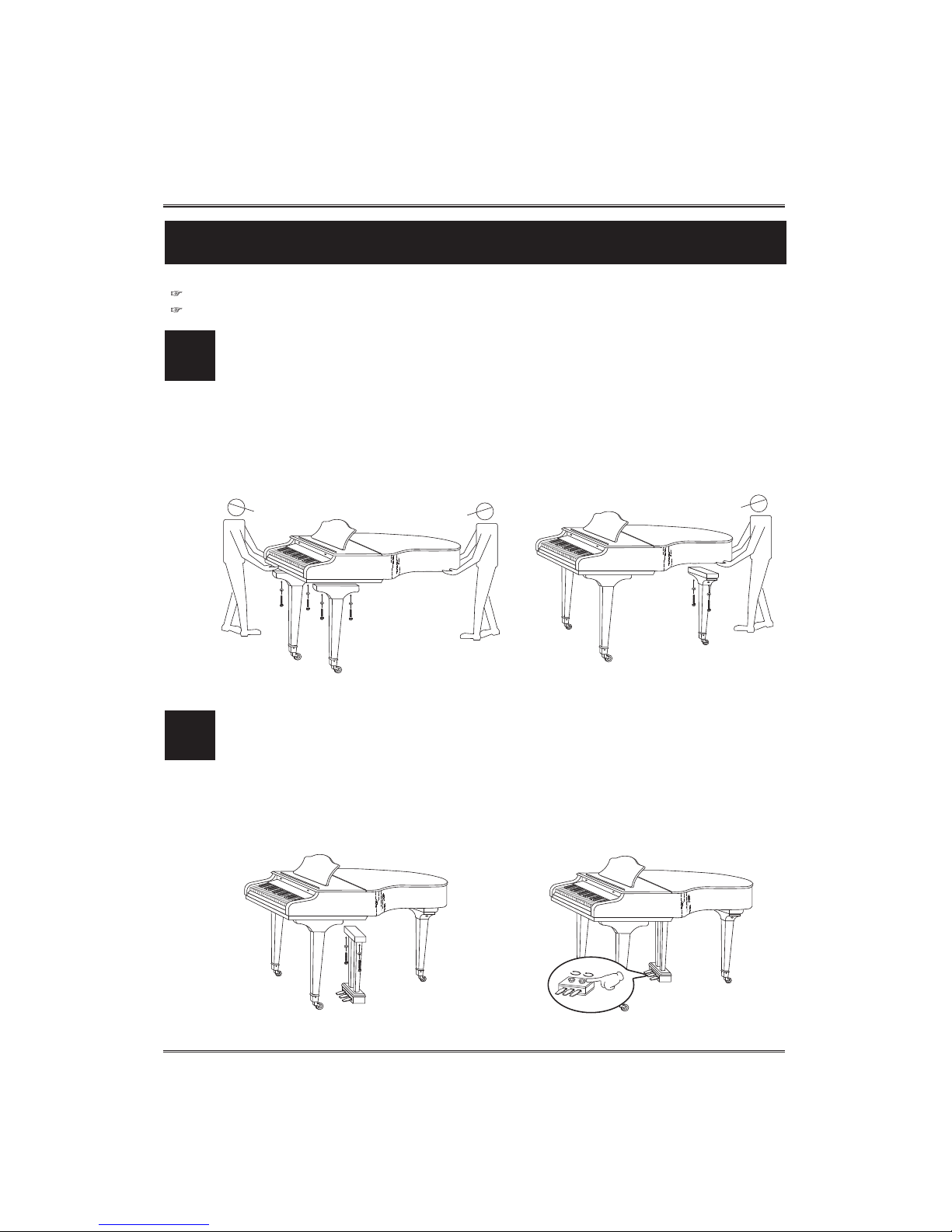

Attaching the main unit and three legs.
The first, Set the both legs upright and
hang the both legs at the main unit, then
tighten the main unit with four bolts for
main unit as shown in the illustration.
After fixing the both legs to the main unit,
the remainder leg upright and hang the leg
at the main unit, then tighten the main unit
with two bolts for main unit.
Set the pedal stand assembly upright and
securely attach the pedal stand assembly
and the main unit assembly by using two
bolts.
For pedal stability, rotate the adjuster on
the bottom of the pedal stand assembly
until it comes in firm, contact with the floor
surface.
Attaching the main unit and pedal stand assembly
To reduce the risk of injury, The Digital Piano should be assembled by qualified service personnel.
Take care not to drop the unit and avoid strong impact.
11
Assembling Your Piano (Grand Piano )
1
2
Assembling Your Piano (Grand Piano)

12
Assembling Your Piano (Grand Piano)
Attach the pedal stand brace to the main unit and pedal stand assembly using four screws.
Make sure the screws are securely tightened.
Plug the Pedal Cord which is protruding from the top of the pedal assembly into the
corresponding port in the bottom of the main unit.
Connecting the Pedal Cord
3

Connect a set of stereo headphones(optional) to
HEADPHONE jack (standard 1/4" phone jacks).
Insert the headphone plug into the HEADPHONE jack
on the bottom panel of the piano.
When headphones are connected, the internal speaker
system is automatically shut off.
Since the piano has two HEADPHONE jacks, two sets
of headphones can be used simultaneously, allowing
two people to enjoy listening to the performance.
13
Setting Up Your Piano
TURNING ON THE POWER Connecting the power cord. Insert the plug at the
ends of cord, one into AC inlet on the rear panel of the
piano, and other into a standard AC outlet.
Press POWER switch. The power is turned on and the
initial display appears in the LCD screen.
The voice of Grand Piano 1 and the accompaniment style
of Pop1 are selected automatically at first.
Adjust the volume by using MASTER VOLUME.
Press POWER switch again when turning off the power.
All lamps and LCD display will turn off.
HEADPHONE
Setting Up Your Piano

14
Setting Up Your Piano
CONNECTING THE PEDAL
Connecting the pedal cord.
Insert the pedal plug into the pedal connector on the rear panel of the piano.
RIGHT PEDAL (Damper Pedal )
With piano tones, depressing the pedal causes notes to linger, much like a piano's damper
pedal.
With organ tones, depressing the pedal causes notes to continue to sound until the pedal is
released.
CENTER PEDAL (Sostenuto Pedal)
As with the sustain pedal function described above, depressing the sostenuto pedal causes
notes to be sustained. This difference between a sostenuto pedal and sustain pedal is the
timing. With a sostenuto pedal, you press the keys and then depress the pedal before you
release the keys.
Only the notes that are sounding when the pedal is depressed are sustained.
LEFT PEDAL (Assignable Pedal)
This pedal can be assigned to one of following functions. (see the PEDAL section on page 37)
1) Soft Pedal (Default) Depressing the pedal softens the sound of the notes being played.
2) Rhythm Fill1/Synchro Start Pedal In this case, the pedal performs the same function as the Fill1/Synchro button.
3) Rhythm Fill2/Synchro Start Pedal In this case, the pedal performs the same function as the Fill2/Synchro button.
4) Rhythm Variation Pedal In this case, the pedal performs the same function as the Variation button.
5) Rhythm Start/Stop Pedal In this case, the pedal performs the same function as the Start/Stop button.
6) Rhythm Intro/Ending Pedal In this case, the pedal performs the same function as the Intro/End button.
6) Rhythm Fade Pedal In this case, the pedal performs the same function as the Fade button.
7) SETUP function Pedal In this case, the pedal performs the same function as the SETUP button.
PEDAL CORD
RIGHT PEDAL
CENTER PEDAL
LEFT PEDAL

15
Setting Up Your Piano
CONNECTING AUDIO DEVICES
Line out jacks (Standard phone jacks of L/Mono and R)
When these are connected, you can use the instrument's MASTER VOLUME control to adjust the
volume of the sound output to the external device.
Connect the instrument's Line Out 'L/Mono' and 'R' jacks and the input jacks of a pair of powered
speakers using appropriate audio cables. Use only the L/Mono jack for connection with a monaural
device.
Line in jacks(Standard phone jacks of L/Mono and R)
The stereo outputs from another instrument can be connected to these jacks, allowing the sound of
an external instrument to be reproduced via the instrument's speakers.
Connect the output jacks (LINE OUT etc.) of an external synthesizer or the tone generator module and
the instrument's Line In 'L/Mono' and 'R' jacks using appropriate audio cables.
CAUTION
When the sound of an external device is output to the instrument, first turn on the power to the external device, then to the
instrument. Reverse this order when you turn the power off.
REAR PANEL
CONNECTING OTHER DEVICES
Connecting the external MIDI devices (MIDI Terminals)
Use the built-in MIDI terminals and standard MIDI cables to connect external MIDI devices.
MIDI IN Receives MIDI messages from an external MIDI device.
MIDI OUT Transmits MIDI messages generated by the instrument.
What's MIDI?
MIDI(Musical Instrument Digital Interface) is the international standard for digital communication of electronic musical
instrument data.
This means that any equipment that has a MIDI terminal (such as electronic musical instruments or personal computers ) can easily
exchange digital data with other MIDI equipment without complicated conversions or connections.
Connecting a computer (USB Terminal)
By connecting a computer to the USB, you can transfer data between the instrument and the
computer via MIDI, and take advantage of sophisticated computer music programs. Keep in mind
that you also need to install an appropriate USB MIDI driver.
The instructions below explain how to connect and use the terminals.
CAUTION - Precautions when using the USB terminal.
When connecting the computer to the USB terminal, make sure to observe the following points. Failing to do so risks freezing
the computer and corrupting or losing data. If the computer or the instrument freezes, turn the power to the instrument off
and restart the computer.
Before connecting the computer to the USB terminal, exit from any power-saving mode of the computer (such as suspended,
sleep, standby), and quit any open application software, also turns off the power to the instrument.
Execute the following before turning the power to the instrument off or unplugging the USB cable to/from the
instrument/computer.
- Quit any open application software on the computer.
- Make sure that data is not being transmitted from the instrument. (Data is transmitted only by playing notes on the keyboard
or playing back a song.)
- While a USB device is connected to the instrument, you should wait for six seconds or more between these operations: When
turning the power of the instrument off then on again, or when alternately connecting/disconnecting the USB cable.

16
Panel controls and Terminals
VOLUME SECTION
MASTER VOLUME
STYLE SECTION
RHYTHM buttons
AUTO ACCOMP.
START/STOP
SYNCHRO
INTRO/ENDING
FILL1/FILL2
VARIATION
FADE
TEMPO UP/DOWN
ACCOMP. VOLUME buttons
BEAT LED
METRONOME
SETUP SECTION
Multi Function LCD Display
SETUP
DATA CONTROL buttons
DATA WHEEL
DISPLAY HOLD
EQ
MIDI
REGISTRATION buttons
PLAYER SECTION
RECORD CONTROL buttons
VP Player
SMF Player
SD card
Panel Controls and Terminals
Page 19
Page 40
Page 43
Page 42
Page 42
Page 42
Page 42
Page 42
Page 42
Page 41
Page 41
Page 43
Page 34
Page 18
Page 38
Page 39
Page 50
Page 47
Page 31
Page 20
Page 20

VOICE SECTION
VOICE buttons
LAYER
LAYER VOLUME
SPLIT
SPLIT VOLUME
REVERB
REVERB DEPTH
CHORUS
CHORUS DEPTH
TUNE
TRANSPOSE
TOUCH
BRILLIANCE
OCTAVE
PEDAL
DAMPER PEDAL
SOSTENUTO PEDAL
ASSIGNABLE PEDAL
POWER switch
AC INLET
HEADPHONE
LINE OUT
LINE IN
PEDAL
MIDI IN/OUT
USB
SD CARD IN
PEDAL
A
B
C
POWER
D
K
TERMINAL SECTION
E
F
G
H
I
J
L
17
Panel controls and Terminals
Page 23
Page 25
Page 25
Page 27
Page 28
Page 30
Page 31
Page 32
Page 33
Page 35
Page 35
Page 36
Page 37
Page 37
Page 37
A
B
FGHJK
L
I
CD
E
Page 14
Page 14
Page 14
Page 13
Page 13
Page 13
Page 15
Page 15
Page 14
Page 13
Page 13
Page 20

18
Performance Screen
Performance Screen
When you first turn on your piano. The power up status screen briefly appears in the display followed
by the Performance Screen. The performance screen shows you all of the most important playing
parameters.
Main Voice
This shows the selected main voice. There are preset 128 voices in this piano.
A
B
A
Layer Voice
This shows the selected layer voice.
B
Split Voice
This shows the selected split voice.
C
Split Point
When using the auto-accompaniment or the split, the keyboard splits on this point.
D
Rhythm
This shows the selected rhythm style. There are 80 available rhythm styles.
E
Tempo
F
Name of the Chord you specified for the Auto-Accompaniment
Example) C, Fm, G
G
Auto-Accompaniment mode
This shows the selected auto-accompaniment mode.
When the performance screen or a value is changed, the tempo may go slow .
H
NOTE
C
E
D
F
G
H
