E-Collar Technologies Barkless Pro BP-504 User manual

Thank you for purchasing the newly designed Barkless Pro
BL-504 bark elimination e-collar. We have incorporated a
conditioning tone prior to the stimulation sensation to allow for
better learning and less stress on your dog. Our product are
designed and produced in compliance with stringent quality
methods and standards.
They are subject to rigorous environmental tests including high
and low temperature, humidity, shock, dust, vibration and drop
tests.
We assemble and test all of our products in the USA.
Please feel free to contact us should you have any questions
concerning this product and our line of modern remote e-collars.
Your complete satisfaction is our only concern.
Barkless Pro BP-504

02
TABLE OF CONTENTS
BarkLess BP-504 Manual
CHARACTERISTICS
COMPONENTS
GETTING STARTED
CHARGING THE COLLAR UNIT
POWER ON/OFF
5 PROGRAMMING MODE
LCD DISPLAY
HOW TO PROGRAM
COUNT MODE
STIMULATION LEVELS SETTING MODE
SENSOR SENSITIVITY MODE
PAVLOVIAN TONE ON/OFF MODE
TEST MODE
HOW TO SELECT THE CORRECT STIMULATION LEVEL
INDICATOR LIGHT
RRECTLY FITTING THE COLLAR
CONTACT POINTS
REPLACEMENT OF CONTACT POINTS FOR THICKER FUR BREEDS
WARRANTY AND REPAIR
ONE YEAR WARRANTY
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
..............................................
...................................................
..............................................
.................................
..................................................
........................................
...................................................
..............................................
...................................................
.........................
....................................
..............................
......................................................
........
...............................................
................................
...............................................
....
........................................
..........................................

03
CHARACTERISTICS
BarkLess BP-504 Manual
- Incorporates Time Delay Between Stimulation Routines.
- On/Off Function and 10 level Stimulation Modes.
- Support 3 Levels of Sensitivity.
- Provide Pavlovian Tone On/Off Function
- LED Light to indicate Battery Levels.
- Employs 2 hours Quick Charge Li-Po Battery.
- Adaptable to Various Size Dogs.
-Vibration Sensor Technology is Activated by Dog’s Barking Only.
- Fully Waterproof and Shock Resistance.
- Employs Antibacterial Plastic and Medical Grade Contact
Points to Protect the Dog’s Skin from Irritation.

04
COMPONENTS
BarkLess BP-504 Manual
· BP-504 Collar Unit with
Collar Strap
· Lithium Polymer
Charge Adaptor
BP-504
Owner's Manual
· Owner’s Manual · Stainless Steel
Contact Points
· Contact Point Tool · Seneor Post Cap

05
GETTING STARTED
BarkLess BP-504 Manual
Barkless Pro BP-504 has one control button which can program
10 stimulation level, sensitivity, and Pavlovian mode and LCD
display.
LCD display
On/Off and Mode
Selection Button
Bark Sensor
Contact Point
Indicator Light
Battery Charging Receptacle
& Rubber Cover
Collar Strap

06
CHARGING THE COLLAR UNIT
BarkLess BP-504 Manual
Indicator Light will blink “Green” under normal operation.
Solids “Red” when stimulation is applied.
Blinks “Red” when recharging is required.
Indicator light will turn solid red during charge cycles and will turn
green once it is fully charged. (approximately 2 hours)
Special Note about Battery Care
Collar Receiver is outfitted with Li-Polymer batteries which
requires specific care to assure longevity. It is best not to let the
battery be fully discharged. If it does, recharge immediately or
irreversible damage may occur.
Keep the units away from extreme heat and cold temperatures.

07
POWER ON/OFF
BarkLess BP-504 Manual
To turn on the Barkless Pro, press the button for 0.25 second
when power is off.
Barkless Pro will be turned on with buzzer sound. Initial status is
count mode.
To turn off the Barkless Pro, press the button for 5 sec when
power is on. Barkless Pro will be turned off with long buzzer
sound. LCD display will show software version before it is turned
off.

08
5 PROGRAMMING MODE
BarkLess BP-504 Manual
Barkless Pro provides 5 programming modes. Initial state is Count
Mode. When turned on or during idle, state will be changed to
Count Mode.
User can switch each mode by press the button shortly.
Count Mode
TEST Mode
Stimulation
Level Setting
Mode
Sensor
Sensitivity
Mode
Pavlovian
Tone
ON/OFF
Mode
Initial Mode

09
LCD DISPLAY
BarkLess BP-504 Manual
Mode
The number of barking
Tone only
Stimulation Level 1
Stimulation Level 2
Stimulation Level 3
Stimulation Level 4
Stimulation Level 5
Stimulation Level 6
Stimulation Level 7
Stimulation Level 8
Auto mode
Low Sensitivity
Medium Sensitivity
High Sensitivity
Pavlovian Tone On
Pavlovian Tone Off
Stimulation
Level Setting
Mode
Count Mode
Mode
Sensor
Sensitivity
Mode
Pavlovian
Tone On/Off
Test Mode Make test stimulation with current setting value
LCD Display
00~99
L 0
L 1
L 2
L 3
L 4
L 5
L 6
L 7
L 8
L 9
L
H
1
0

10
HOW TO PROGRAM
BarkLess BP-504 Manual
1. Change Mode
- When pressing the button shortly, 5 modes (Count Mode,
Stimulation Level Setting Mode, Sensor Sensitivity Mode,
Pavlovian Tone On/Off Mode, Test Mode) will be cycled in turns.
2. Change Mode Setting
- To change the mode setting, press the button for 1.5 second
after moving to the mode you want to change. LCD display will
be blinking with buzzer sound.
- Press the button shortly to change the value. All the settings will
be switched in turns whenever pressing the button.
- To save the setting and exit setting mode, press the button for 2
second. LCD display will stop blinking with buzzer sound.
- If 10 second passed without button touch during change mode,
the last setting will be saved automatically and exit the setting
mode. The status will be switched to Count Mode.
3. Idle State : If there is no button touch or sensing barking,
Barkless Pro will be switched to Count Mode and LCD display
will be turned off.

11
COUNT MODE
BarkLess BP-504 Manual
Count Mode shows how many times dog barks. Whenever you
turn on the LCD display, Barkless Pro will show barking count.
- Count number is increased whenever barking is detected.
- Press the button for 1.5 second to reset the count number.

12
STIMULATION LEVELS SETTING MODE
BarkLess BP-504 Manual
Barkless Pro has 10 levels of stimulation mode. L.0 is Tone Only
mode. L.1 to L.8 are Stimulation mode and L.9 is Auto mode.
- To change stimulation level, press the button for 1.5 second at
Stimulation Level Setting Mode. LCD display will blink and show
current setting.
- Initial value is L.0 which means “tone only”.
- Press the button to change the stimulation level.
Level will be switched from L.0 to L.9 in turns.
- Press the button for 2 seconds to save the changed value.
LCD display will stop blinking.
- If Auto mode is selected, Barkless Pro will increase the stimula
tion level in order from L.1 when dog barks within 3 second from
latest barking. If there is no barking during 10 minute,
stimulation level will be reset to L.1 again.
- Auto mode is great for owners who want to have the stimulation
level adjusted automatically. Not all dogs respond to the auto
mode. Please make sure your dog responds appropriately
before leaving him alone.

13
SENSOR SENSITIVITY MODE
BarkLess BP-504 Manual
Barkless Pro provides 3 sensitivity modes which are S.L(Low),
S.M(Medium) and S.H(High).
- To change sensor sensitivity, press the button for 1.5 second at
Sensor Sensitivity Mode. LCD display will blink and show
current setting value.
- Press the button to change the sensor sensitivity.
Sensor sensitivity will be switched from S.L to S.H in turn.
- Press the button for 2 seconds to save the selected setting.
LCD display will stop blinking.

14
PAVLOVIAN TONE ON/OFF MODE
BarkLess BP-504 Manual
Barkless Pro provides Pavlovian tone on/off function.
- Pavlovian mode off (t.0) : Stimulation will be emitted when
barking is detected.
- Pavlovian mode on (t.1) : Pavlovian tone will be followed by
stimulation in 1 second when barking is detected.

15
TEST MODE
BarkLess BP-504 Manual
User can test if BP-504 is working well at Test Mode.
- Press the button for 2~2.5 second at Test mode, stimulation or
tone with current setting will be emitted.

16
HOW TO SELECT THE
CORRECT STIMULATION LEVEL
BarkLess BP-504 Manual
The lower the stimulation, the better. Always start with level 1 and
increase the level should your dog not respond appropriately.
Your dog should not vocalize when administered the corrective
stimulus. He may twist his head as if a bee was buzzing him.
Increase one level at time to prevent over stimulation. Some dogs
respond to the buzzer/tone mode after being conditioned with the
stimulation. If you are close to your dog you should hear the
buzzer/tone after your dog bark followed by the stimulation
sensation. Often more stubborn barkers need to have the mode
increased as they become accustomed to the sensation. Don’t
rush for change in behavior by turning it higher than necessary.
However, make it signficant enough to communicate barking is
not fun anymore.

17

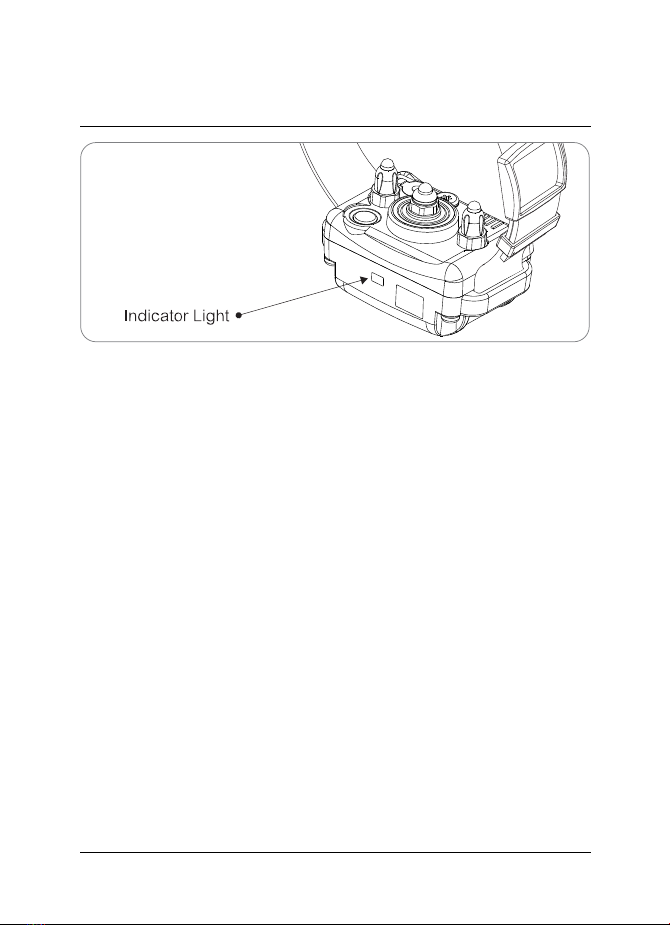

INDICATOR LIGHT
BarkLess BP-504 Manual
When turned on, Indicator light will be on for 1 second and flicker
thereafter. If there is no bark sound for a while, the BP-504 will go
to sleep mode and LED is off also.
Before the BP-504 goes to sleep mode, LED will flicker based on
the battery charge level. Battety charge level is signified by the
light going from “green” (ready for use) to “amber” (need to
charge soon) and then to “red” (charge immediately).

18
CORRECTLY FITTING THE COLLAR
BarkLess BP-504 Manual
The collar should be adjusted to allow the “contact point” to have
direct contact with the skin. You should be able to fit a couple of
fingers between the collar strap and your dog. Too tight poses the
risk of skin irritaion and discomfort. Too loose and the contact
points will not be able to administer the stimulation reliably. The
optimal position for the collar receiver is on either side of the dog’s
windpipe, directly on the windpipes works but may not be as
comfortable for your dog.

19
CONTACT POINTS
BarkLess BP-504 Manual
To protect your dog’s skin the contact points are made of stainless
steel. The selection of the correct length of contact points should
make direct contact with the dog’s skin. We offer hypoallergenic
contact points for dogs sensitive to nickel, look for redness in the
contact area.
Important Notice :
To prevent the occurrence of skin irritations the BarkLess Collar
should never bo worn for more than 2 hours per day at first and 10
hours maximum after your dog is conditioned to the contact
points. Should your dog experience skin irritations from over
exposure to the contact points remove the collar receiver unit
immediately and stop using your Barkless Pro until all skin
irrirations are totally healed. Antibiotic ointment will aid in the
healing process. Some dog breeds have very thick fur that
requires special contact points, please contact customer service
or www.ecollar.com for more information on our thick hair contact
points.
- Barkless Pro BP-504 is designed for dogs only.
Do not test the BP-504 on humans or other animals.
- The dog should be healthy during bark reduction training.
- Not for dogs younger than 4 months old.
IMPORTANT : When BP-504 is powered ON, please don’t touch the two
contact points at the same time. You may get stimulated.
