E-Collar Technologies 1000 Series User manual

Operation Manual
“Happiness is a Dog
that Stays Home”
1000 Series
Contact Information
Copyright 2018 E-Collar Technologies, Inc. All Rights Reserved.
E-Collar Technologies, Inc.
2120 Forrest Park Drive
Garrett, IN 46738
Toll-Free 1-855-326-5527
Toll-Free Fax [phone]
International : 001-260-357-0051
www.ecollar.com
[email protected]

1000 Series E-Fence01 1000 Series E-Fence 02
1000 Series Operation Manual
1000 Series E-Fence System
Thank you for purchasing the 1000 Series Wired E-Fence System from
E-Collar Technologies, Inc. We have made every attempt to provide you
with the most technologically advanced product using the most stringent
quality and
manufacturing standards.
Good luck with your dog’s safe containment and please feel free to
contact us should you have any questions.
1-260-357-0051 / 1-855-326-5527
- Characteristics
- Contents
- Wall Mount Controller
- Collar Receiver
- Special Features
- Charging the Battery of Collar Receiver
- Customizing Collar Receiver
- Replacing the Contact Points
- Correctly Fitting the Collar
- To Register for the 2 Year Warranty
- Accessories
03
04
05
08
09
10
11
12
13
14
15
...............................................................................
.......................................................................................
......................................................................
...............................................................................
............................................................................
..............................................
.............................................................
...........................................................
.............................................................
...............................................
..................................................................................
Table of Contents

• Supports Multiple Dogs
• Stimulation Level Adjustable up to 30 levels
• Over-Stimulation Prevention
• Run Through Prevention
• Anti-Linger Protection
• Tone Only Test Mode
• Waterproof & Shock Resistant
• Employs Quick Charge Li-Polymer Batteries
ContentsCharacteristics
03 041000 Series E-Fence 1000 Series E-Fence
• Extra Contact Points 3/4”
Operation Manual
“Happiness is a Dog
that Staus Home”
1000 Series
• Owner’s Manual
• Test Light• Contact Point Tool
• Collar Receiver with Strap• Controller
• AC adapter for Controller • USB Charging Cable for
Collar Receiver

05 06

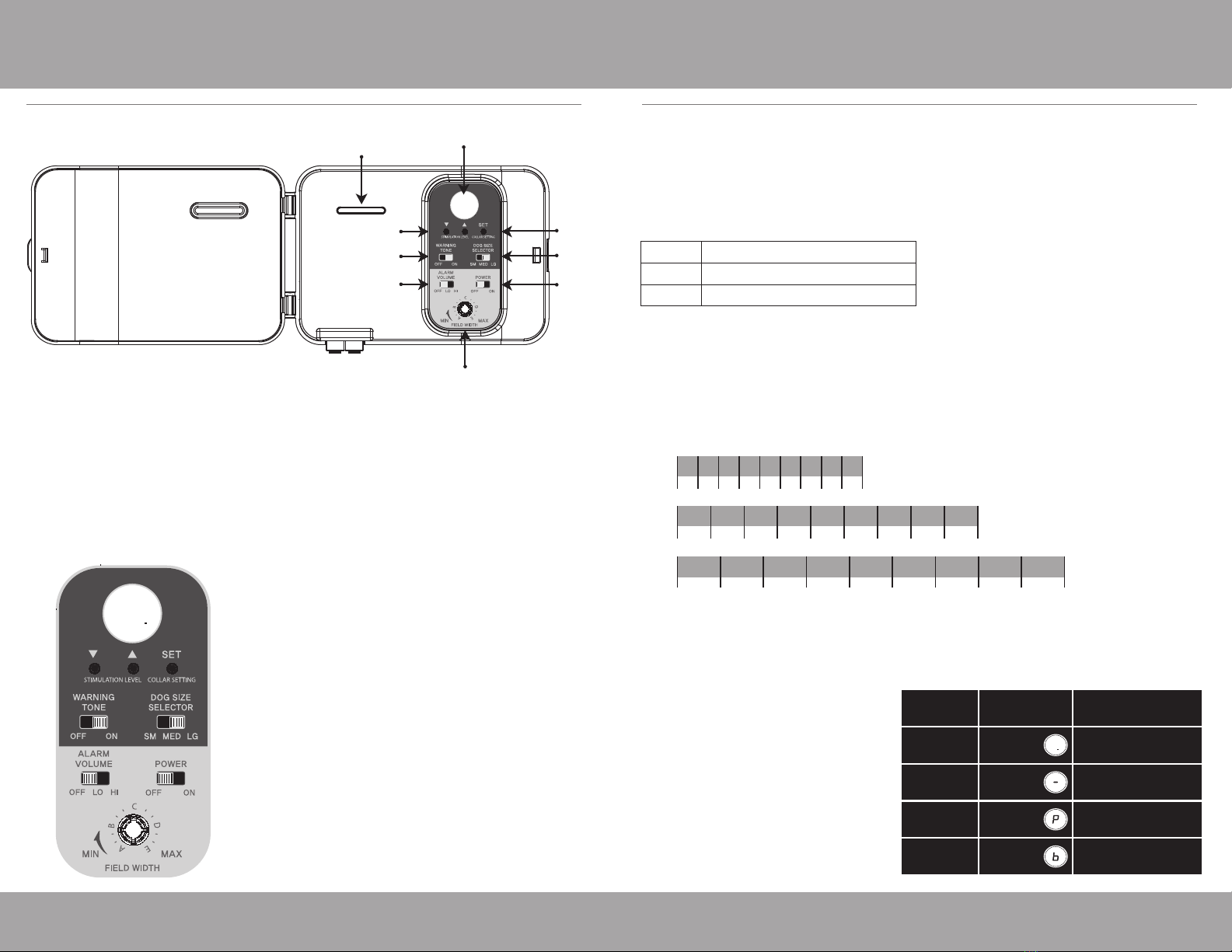

Wall Mount Controller Wall Mount Controller
1000 Series E-Fence 1000 Series E-Fence
① Power Switch : The containment system can be turned on or off by sliding the POWER
switch to the ON or OFF position.
② Field Width Adjustment Dial : Field Width Adjustment Dial controls the
distance from the wire. The dog receives the warning tone and containment
stimulation. To increase the field width, simply turn the dial clockwise, to reduce the field
width, turn it counter-clockwise. A minimum of 6' containment field is suggested.
③ Alarm Volume Adjustment : When containment
system senses an error, there will be an alarm to alert
the user. Alarm volume can be adjusted by sliding
Alarm Volume slide switch.
④ Warning Tone : If warning tone is turned “ON”,
there will be a warning tone with containment stimula-
tion. Default value is “ON”.
②
⑧LCD Display
①
⑤
⑦
③
④
⑥
⑤ Dog Size Selector : Dog Size Selector consists of small(SM), medium(MED), and
large(LG) options. The below chart is a recommended starting point. Dogs of different size
exhibit varying sensitivities to stimulation. You, the owner, are better at determining the
tolerance and temperament of your dog. It is recommended to start lower and adjust
upwards until the boundary is well understood.
⑥ Stimulation Level Control : The correction level of each collar receiver is set separately.
Stimulation levels consist of 11 settings from “1” to “H (10)” stimulation levels and "0" (tone
only). You can change the level by pressing up & down arrow button. Default value is tone
only. If you select tone "0" (tone only), there will be no stimulation. The output of each
level varies depending on the dog size setting selected. See chart below.
⑦ Collar Receiver Setting Button : To change the setting of a collar receiver, place the
collar receiver on top of the controller and press the set button. ( See section 8. “Customiz-
ing the Collar Receiver” for more details.)
⑧ Status Light and Alarm :
The status light and LCD display
provide the operational condition of the
wall mount transmitter.
SM Less than 20 lb dogs
MED From 10 lb to 50 lb dogs
LG Larger than 50 lb dogs
910 (High)
LG
SM
9 10
MED
9 10
Power Failure
(Operating on Batteries)
Backup Batteries Low
Broken Wire
(Alarm On)
Blinking 'P'
Blinking 'b'
Blinking '-'
Blinking
Dot
Normal
Operation
Status Light
Solid Red
Solid Red
Blinking Red
Solid Blue
LCD Display Condition

07 08
1000 Series E-Fence 1000 Series E-Fence
Wall Mount Controller Collar Receiver
⑨ Power Connection : The power for the 1000 Series Controller is provided by a
supplied UL certified 24 V, 400mA AC adapter.
⑩ USB Port : USB port provides charging the collar receiver, however any USB port
connected with 5V DC adaptor can be used.
⑪ Loop Wire Terminals : The containment wires connect to the wall mount controller
through the bottom of the case via the quick connect terminals.
⑬
⑫Yard Switch : You can choose Normal Yard
or Large Yard by sliding the yard switch.*
* On select models.
⑬ Back-up Battery : 8 hours of backup power
can be provided by installing 6 AA Alkaline
batteries when power to the controller is
disconnected.
⑩
⑨
⑪
⑧
⑫
Battery
Charging Port
Battery Level
Indicator
5/8” Contact Point
Biothane Strap

09 10
1000 Series E-Fence 1000 Series E-Fence
Over Stimulation Prevention :
To protect your dog from accidental over stimulation, the collar receiver will turn off after
10 seconds of stimulation for 10 seconds of relaxation. If the dog chooses to remain in
the containment field, the 10 seconds on and 10 seconds off cycle will repeat for 4
repetitions. After the fourth cycle, the collar receiver will no longer stimulate until the dog
returns to the safe area.
Anti-Linger Protection :
This feature will administer the containment stimulation if the dog lingers in the contain-
ment field. The stimulation level will gradually increase as a cycle below.
Run Through Prevention :
The collar receiver will sense if the dog is attempting to run through, the system will
administer the selected level of containment stimulation instantly.
Important Note :
The special features mentioned on this page are integrated into the collar receiver and
work without any programming.
10sec
Shut Down
ex) 2sec 2sec 2sec 4sec
1 cycle
Stim Level 4567 8
Special Features Charging the Battery of Collar Receiver
Indicator Light will blink “Green” under normal operation.
Rapid Green when warning tone is applied.
Rapid Red when stimulation is applied.
Blinks Amber when charging is required.
The indicator light will turn solid red during charge cycles and will turn green once it is
fully charged. (approximately 2 hours)
Special Note About Battery Care
Collar Receiver is outfitted with Li-Polymer batteries which requires specific care to
assure longevity. It is best not to let the battery be fully discharged.
If it does, recharge immediately or irreversible damage may occur.
Keep the units away from extreme heat and cold temperatures.

11 12
1000 Series E-Fence 1000 Series E-Fence
Customizing Collar Receiver Replacing the Contact Points
The default setting is tone on and low stimulation mode. Each collar receiver can be
programmed to offer a warning tone, small, medium, & large dog stimulation profiles, with
10 levels of stimulation within the selected dog size stimulation profile.
Before you put the collar on your dog, the collar should be programmed. Each collar can
be programmed differently by the combination of warning tone, stimulation level and dog
size selection.
How to customize the Collar Receiver.
①Change the value of warning tone, stimulation level, and dog size on the controller.
②Place the collars on the top of the controller.
③ Press the “SET” button until the LED on the collar flashes from red to green.
④ If the LED keeps blinking green, it means collar setting is finished.
The standard 5/8” contact points are used for most dogs.
Thicker fur breeds require the longer 3/4” contact points.
Replace the 5/8” contact points by following the instructions below using the enclosed
contact point tool.
A. Loosen both contact points by rotating the contact point counter-clockwise using the
contact point tool.
B. Install the 3/4” contact points onto the bolt and tighten the contact points by rotating
them clockwise with the contact point tool.
* For dogs with either very short or very long or thick coats, please contact customer
service for an appropriate size set of contact points.

13 14
The collar should be adjusted to allow the “contact points” to have direct contact with the
dog’s skin.
You should be able to fit a couple of fingers between the collar strap and your dog.
Too tight poses the risk of skin irritation and discomfort.
Too loose and the contact points will not be able to
administer the stimulation reliably and can cause skin
irritation due to chafing.
Short hair breeds may need the micro-probes
offered as an accessory item, contact customer
service for details. The optimal position for the
collar receiver is on either side of the dog’s neck.
IMPORTANT NOTICE
To prevent the occurrence of skin irritations the Collar Receiver should never be worn for
more than 12 hours per day.
Should your dog experience skin irritations from over exposure to the contact points
remove the collar receiver unit immediately and stop using your Containment system until
all the skin irritations are totally healed.
Antibiotic ointment will aid in the healing process. Some dog breeds have very thick fur
that requires special contact points, please contact our customer service.
1000 Series E-Fence 1000 Series E-Fence
Correctly Fitting the Collar To Register for the 2 Year Warranty
To register your 1000 Series , please select one of the following procedures
(1) Go to https://www.ecollar.com/productregistration (located near the bottom of the
ecollar.com home page).
(2) Fill out the provided warranty registration card and mail it or fax it to us at
1-855-226-5527.
(3) Call us at [phone] and one of our customer service representatives will register
your products for you, please have your serial number available.
(4) E-mail your registration information to [e-mail]
Two Year Full Warranty:
Your product is covered by our full two year warranty.
During the warranty period we will repair and or replace your product for any reason due
to workmanship and component failures.
Dog chews and misuse are not covered by the warranty and are subject to a repair /
replacement fee.
Lightning damage is not covered. Please consider a lightning protection module if lightning
is common in your area.
OR
OR
OR

15 16
1000 Series E-Fence 1000 Series E-Fence
Accessories Memo
• Long Hair Comfort Adapter
• 3/4" Titanium Contact Points
• Lightning Protection Module
• Short Hair Comfort Adapter
• Micro Probe Contact Points
• 5/8" Titanium Contact Points
• Outdoor Environmental Box
