EAST OAK TORCH EO-PH001 User manual

TORCH Firecove
Patio Heater 50000 BTU
Owner’s Manual
MODEL:
EO-PH001
EO-PH22002
EO-PH22003
EO-PH22004

1
EASTOAK.COM PATIO HEATER
Claim 3-year warranty
at eastoak.com/warranty
Question? Comments?
Reach out to us to get expert support!
[e-mail]
eastoak.com
1-833-EAST-OAK (USA)
(1-833-327-8625)
eastoak.com
Follow eastoakliving on

2
[email protected]1-833-327-8625
IMPORTANT CAUTION
Please verify all parts and components present and check for any damaged
pieces before assembly. If you have any damaged or missing parts, please
contact customer service at suppor[email protected].
• Some parts may contain sharp edges and may cause injury or property
damage. We recommend you wear protective gloves during assembly.
• If you are using power tools, please set the speed to the lowest setting
possible to ensure there will be no damage to the parts.
DANGER
If there is any gas odor present:
• Shut off all gas valves immediately. Turn off the heater.
• Extinguish any open ames.
• If the odor continues, stay away from the appliance and immediately call your
gas supplier or dial 911 to call the re department.
CAREFUL
• Please use it when the temperature is higher than 5 degrees, if the
temperature is too low, the propane gas will not be liqueed, and the heater
will not work normally.
• Please do not use it when the wind spcod is higher than 3.2m/s,
otherwise it will cause the heater to turn off or be blown down.
CAUTION: CARBON MONOXIDE HAZARD
This appliance may produce an odorless carbon monoxide. Using this appliance
in an enclosed space may cause injury, damage, or death. NEVER use this
product in an enclosed space, such as a tent, car, or house.
IMPORTANT INFORMATION

3
EASTOAK.COM PATIO HEATER
WARNING
• Do not store or use any gasoline or other ammable vapors or liquids close
to this appliance. All propane tanks not connected to the heater should be
stored at a separate location.
• Improper installation, alteration, service, or maintenance may cause property
damage, injury, or death. Please read the manual for installation, use, and
maintenance instructions before assembly and operating this product. If
instructions are not followed thoroughly, a re or explosion may occur and
result in property damage, injury, or death.
CONSUMER
Retain this manual for future reference.
SAFETY GUIDE
• The installation of this unit must adhere to local codes or Propane Storage
and Handling Code, CSA B149.2.
• THIS APPLIANCE IS INTENDED FOR OUTDOOR USE ONLY. Do not use
this product in an enclosed space.
• ONLY use this appliance with a propane gas tank (sold separately).
• Do not use this heater with any natural gases.
• Do not attach a remote gas supply to this unit.
• Converting this unit to natural gas is dangerous and not recommended. The
conversion of this unit will void the manufacturer warranty.
• Do not use any solid fuel or charcoal for this unit.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss.
Do the following:
◦ Disconnect the propane gas tank.
◦ Do not attempt to x the problem yourself.
◦ Contact your gas supplier or re department for help.
• Applying too much propane may result in gas pooling and will not burn.
Allow fresh air into the unit so that the remaining gas may escape.
5020959

4
[email protected]1-833-327-8625
• Do not attempt to use re to check for gas leaks.
• Max. supply pressure is 11 WC.
• Recommended propane gas tank size is as follows – diameter: 12”, height:
18”, weight: 20 lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• DO not ll tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and
dents may be hazardous and should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this patio heater.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Do not attempt to move the appliance while in use. It is extremely hot.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any ammable items away.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or ngers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Combustible material should not be within 48 inches of the top of the unit,
or within 48 inches around the entire unit.
• Keep the appliance area clear and free from combustible material, gasoline
and other ammable vapors and liquids.
• If the ame goes out while burning, turn the gas valve off. Wait 5 minutes
before repeating the initial lighting procedure. Once you have a ame started,
hold down the control knob for 1 minute.
• Never add water to the unit.
• If water gets into the appliance for any reason, please contact our customer
service at [e-mail] to replace any damaged parts.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
SAFETY GUIDE

5
EASTOAK.COM PATIO HEATER
• Do not operate on a boat or vehicle. This unit must be used on a at surface
and outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while
near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• The maximum gas supply pressure is 250psi.
• Inspect all elements of this heating unit before each use. If there is damage,
the burner must be replaced.
• High temperatures are extremely hazardous. Stay at least 6 ft away from the
unit to prevent any burns, injury, or deaths.
• The gas supply tank should be constructed and marked with the
specications for the LP gas tanks of the U.S. Department of Transportation
or the National Standard of Canada CAN/CSA-B339, LP gas tanks, spheres
and tubes for Transportation of Dangerous Goods; and Commission.
• For appliances designed to use a CGA No. 791 Connection: “Place the dust
cap on the cylinder valve outlet whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder valve that is provided with the
cylinder valve. Other types of caps or plugs may result in leakage of
propane”.
• This heating appliance should not be used on plastic or articial wood decks.
• Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
• Children and pets should stay away from the unit and carefully supervised
when ignited.
• Clothing or other ammable materials should not be hung from the
appliance or placed on or near the appliance.
• Any guard or other protective device removed for servicing the appliance
shall be replaced prior to operating the appliance.

6
[email protected]1-833-327-8625
• Be mindful to not block the ow of combustion and ventilated air. Proper
ventilation allows for the appliance to burn effectively.
• Make sure the ventilation openings are free of debris.
• Visually checking burner ames, with pictorial representations.
• Clean all parts of the appliance with recommended cleaning agents,
if needed.
• Lubrication of moving parts and the type and amount of lubricant to be used.
• When applicable, visually checking portions of the hose assembly located
within the connes of the heater post.
NOTE: You must follow all steps to properly assemble this heating item. Make
sure the gas valve is turned “OFF” before assembling. Do NOT attempt to
assemble without proper tools.
Any items stored above, next to, or under this heater may be subject to
radiant heat and in result may be damaged. Combustible materials should
not be within 48 inches of the product.
SAFETY GUIDE
BE CAREFUL
48’’
48’’48’’

7
EASTOAK.COM PATIO HEATER
• Before any maintenance, always disconnect the propane gas tank.
• Ensure the heater is free from any debris or combustible materials.
• Use a soft brush to clean any mild stains, loose dirt, or soil only after the
heater has completely cooled down. Wipe appliance with a soft cloth.
• Harsh weather conditions may result in stain, discoloration, or rust.
• Certain powders or solvents may cause permanent damage if used on the
appliance.
• Store the heating unit away from direct sunlight.
• Indoor storage is only applicable if the cylinder is disconnected and removed
from the product.
• Unapproved parts or accessories may result in product defect and will void
the warranty of this appliance.
• Always place a protective cover on the appliance when not in use.
CARE AND MAINTENANCE

8
[email protected]1-833-327-8625
PARTS DIAGRAM
B
A
I
C
D
J
E
F
G
H
6

9
EASTOAK.COM PATIO HEATER

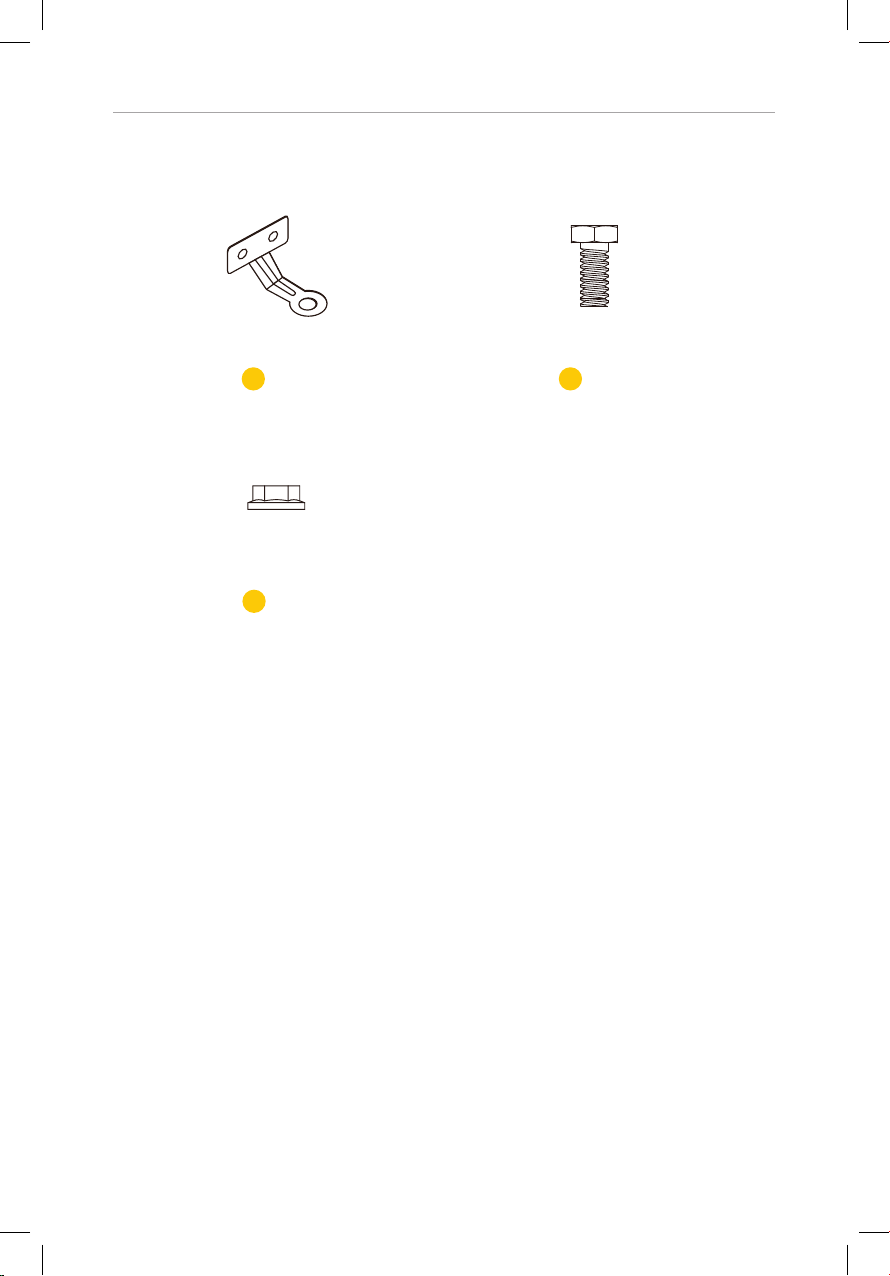

PARTS LIST
Bolt M6x30
M6 Flange Nut
EE (X6)
*spare part X1
CC (X6)
*spare part X1
FF (X3)
DD (X4)
*spare part X1
Reector Spacer
Stainless Steel Bolt
M8 Flange Nut
(packed with part I)
AA (X2) BB (X3)
*spare part X1
Bolt M8x16
(2 pcs packed with part I)

10
[email protected]1-833-327-8625
PARTS LIST
Screw M6x8
II (X12)
*spare part X1
JJ (X12)
*spare part X1
Cap Nut
Wing Nut
KK (X3)
*spare part X1
LL (X1)
Wrench
Washer
GG (X9)
*spare part X1
HH (X4)
*spare part X1
Post Bolt

11
EASTOAK.COM PATIO HEATER
Anchoring Arm
MM (X3) NN (X6)
*spare part X1
Bolt M6x10
M6 Nut
OO (X6)
*spare part X1
Before assembly, check and conrm all parts are present. Compare parts present
with the content lists, including all hardware.
If any parts or hardware pieces are missing or damaged, please contact customer
service at [e-mail]. In your email, include your shipping address
and product purchased. We will send you replacement parts for free.
Estimated Assembly Time: 30 minutes

12
[email protected]1-833-327-8625

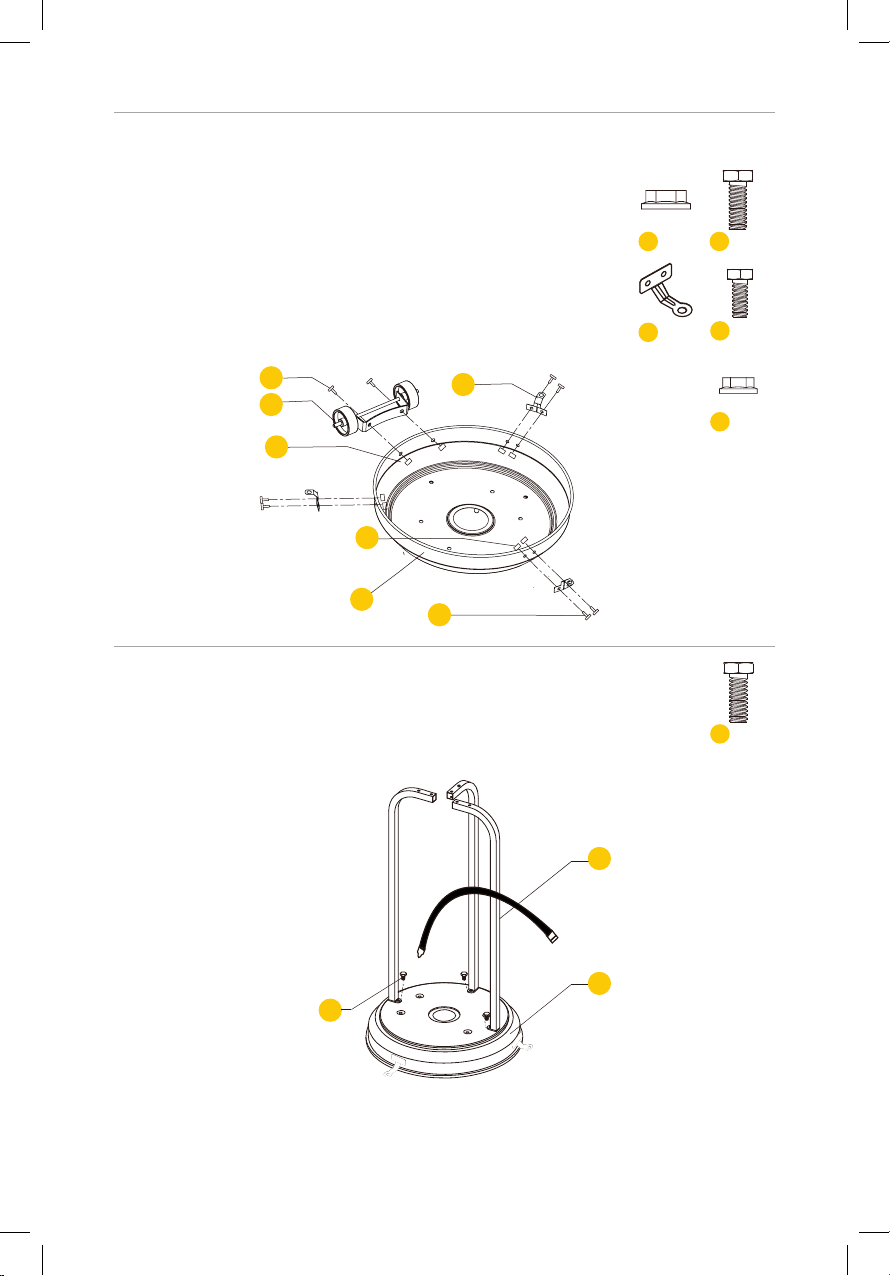

1
2
AA (X2) BB (X2)
Flip the base upside down with the hollow side
facing up.
Attach the wheel assembly (I) to base (H) using 2
M8 ange nuts (AA) and 2 M8x16 bolts (BB). Then,
connect the arm (MM) to the base (H) with 6 M6 nuts
(OO) and 6 M6x10 bolts (NN).
Ensure the wheel assembly is parallel to the base
and secure bolts tightly.
Screw 3 support brackets to the base with 3 M8x16
bolts (BB).
Note: Keep the bracket with the belt in the middle.
B
ASSEMBLY INSTRUCTIONS
BB
AA
I
OO
MM
NN
H
MM (X3) NN (X6)
OO (X6)
G
H
BB (X3)

13
EASTOAK.COM PATIO HEATER
EE (X6)CC (X6)

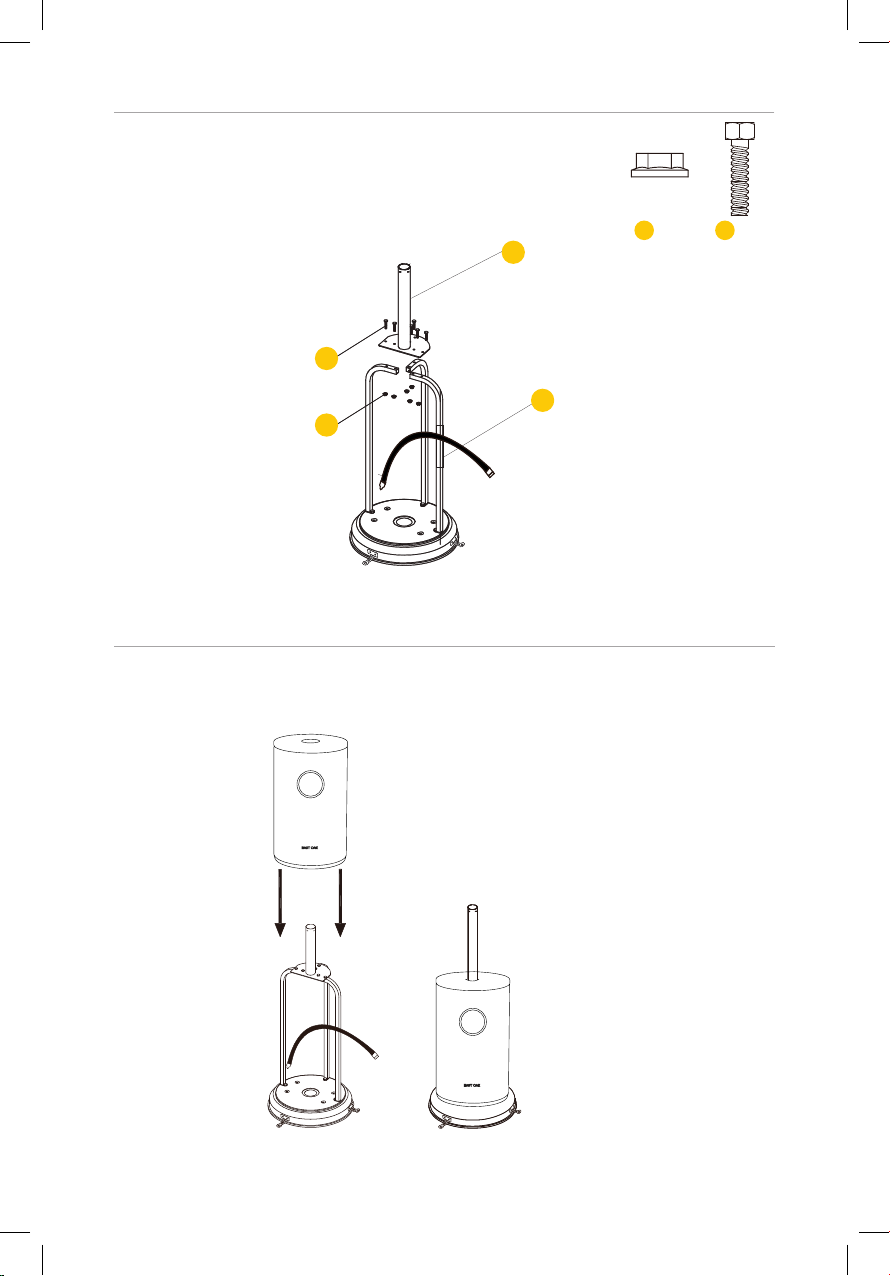

3Attach lower post (F) to support brackets (G) using
6 pcs bolts M6x30 (EE) and 6pcs M6 ange nuts (CC).
Secure bolts tightly.
EE
CC
F
G
4Place the tank housing on top of the post and slide
the tank housing down towards the base.

14
[email protected]1-833-327-8625
6

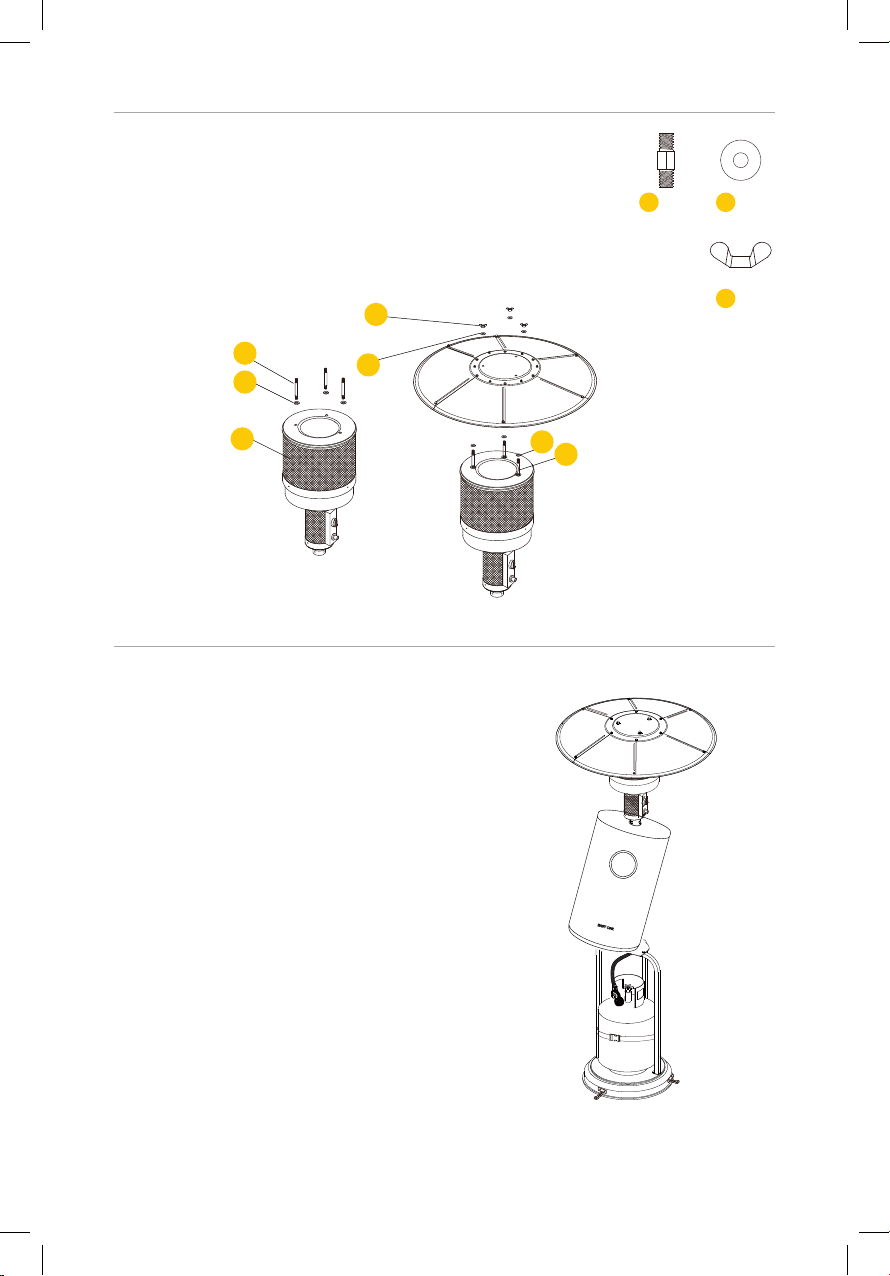

5Insert the regulator (J) from the top end of the upper
post (E), then attach the burner assembly (C) to upper
post (E) using the 4 bolts (DD).
Secure bolts tightly.
Insert the regulator (J) from the top end of the lower
post (F).
Insert upper post (E) to lower post (F), then tighten 2
posts using the 4 bolts (HH).
DD (X4)
HH (X4)
F
E
J
HH
C
E
J

15
EASTOAK.COM PATIO HEATER
7WARNING: Remove protective covers before assembly.
Note: If needed, loosen each screw prior to further
assembly.
Re-tighten screws once all sections are aligned.
Attach 6 pcs reector panels (A) to center reector (B)
using 12 pcs Screws M6x10 (II) and 12 pcs cap nuts (JJ).
Fully tighten all of the screws.
JJ (X12)II (X12)
A
B
JJ
II

16
[email protected]1-833-327-8625
9
8Attach 3 pcs reector spacers (FF) and 3 pcs washers
(GG) to burner assembly (C) rstly. Tighten the reector
spacers. Slide 3 pcs washers (GG) over threaded end of
spacer.
Attach the reector assembly to the top of reector
spacer (FF) using 3 pcs washers (GG) and 3 pcs wing
nuts (KK).
Place the propane gas tank (sold
separately) on top of the base. The
cylinder must have a listed overlling
prevention device. All cylinders must
have a listed overlling prevention
device. The cylinder used must include
a collar to protect the cylinder valve.
Never connect an unregulated propane
cylinder to the heater. Attach the
regulator to the cylinder to complete
attachment.
Fix the gas cylinder with the belt.
Suggestion:
• While using the heater, xing the
heater on the ground is better by
xing pins (not included).
• Otherwise, assemble a weighted
base (sell separately in the East
Oak heater accessories) at the
bottom.
GG (X9)
KK (X3)
FF (X3)
FF
C
GG
KK
GG
GG
FF

17
EASTOAK.COM PATIO HEATER
10
CYLINDERVALVE
PRESSURE
RELIEFVALVE
BLEED-OFF
VALVE
turn clockwise
to reseal
BLACK COUPLING NUT
turn clockwise to connect
REGULATOR
Turn the cylinder valve on the tank clockwise to close the propane tank.
Attach the regulator (J) to the cylinder valve by turning the regulator
coupling nut clockwise. Make sure it is fastened securely and tighten
connections by hand only.
J

18
[email protected]1-833-327-8625
OPERATION
• Before performing a leak test, ensure that there are no open ames or
ammable items nearby. Only move forward with the leak test in an open,
spacious, outdoor area. Connect the propane tank to the regulator and
turn the valve to the “OFF” position. Clean all connections with mild soap
and water. If you smell gas or nd a leak, ensure the gas valve is “OFF,”
disconnect the propane, and do not use the appliance until the leak is xed.
• Do not use the heating unit without inspecting the gas hose. If there are signs
of wear or abrasion you must replace the hose immediately (if applicable).
• Turn the variable control knob to the ‘LO’ position for 5 minutes or more before
turning the knob to desired temperature setting. If a small ame is needed,
turn the variable control knob to the ‘LO’ position.
• If the burner ame goes out accidentally or it is blown out by wind, turn off
the heater and wait at least 5 minutes or more to let the gas dissipate before
lighting again to avoid possible gas explosion. Repeat steps 2 through 3.
TO TURN THE HEATER ON
• Turn on the valve to the “ON” position on the
gas supply cylinder for 3-5 seconds.
• Press and turn the variable control knob to
the ‘HI’ position.
• While holding down the variable control knob,
press the igniter button several times until
the burner head ame ignites. Release the
variable control knob 30 seconds after the
ignition.
• If a new tank has just been connected, allow
at least one minute or more for the air in the
gas pipeline to purge out.
• The ame can be watched and checked from
the viewing hole located on the base of the
burner.
Variable
Control
Knob
