Eastwood 11797 User manual

4" THROATLESS
SHEARS
INSTRUCTIONS
Item #11797

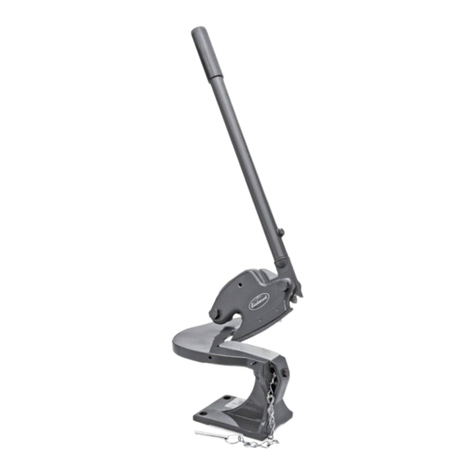

The Eastwood 4” Throatless Shear for metal cutting is precision designed
and manufactured to allow precise control when making straight or intricately
curved cuts of any length, in any direction.
Hardened, fi nely honed blades produce clean, burr-free cuts in aluminum,
steel and other mild metals. The gear-driven, design delivers maximum
shearing power with minimal handle force.
position with the Locking Pin inserted through both
the Upper Blade Housing and the Body in the
CLOSED position (FIG A). The weight of the handle left
in the up position can cause the upper blade to suddenly
INCLUDE
S
(1)
4” Metal Shear Body (1) Safety Chain & Pin
(1)
17” Handle
SPECIFICATIO
NS
Maximum material cutting thickness: 14 Gauge•
READ
INSTRUCTIONS!
• Read this entire manual before set up and use.
• Keep this manual in a safe location as it will be necessary to refer to it often.
INJURY
HAZARDS!
• WARNING
!
This tool has
EXTREMELY
SHARP cutting blades with amplified
leverage on the upper blade which can
quickly cause severe injury or loss of
fingers!
Keep fi ngers and hands away
from
moving parts when operating and always
keep blades closed with the Locking Pin
inserted through both the Upper Blade
Hous-
ing and the Body in the
CLOSE
D
position
(FIG
A
)
when the tool is not in use.
Wear thick, well fi tting work gloves to• prevent cuts from sharp metal.
Frequently inspect blades. If cracks or chips• develop, discontinue tool use immediately
and replace damaged
blades.
• Always place the handle in the down
SAFETY
INFORMATION
FIG. A
FIG. A1
Close
d
Ope
n

STORAGE
•Lower the Upper Blade assembly, insert the Locking Pin through both
the Upper Blade Housing and the Body in the CLOSED position (FIG
A). and Remove Handle.
•Apply a thin fi lm of light oil or a rust-preventive product to all bare steel
areas. CAUTION! The blades are extremely sharp! Use extreme care
when handling to avoid severe cuts or loss of fi ngers!
•Store in a clean, dust-free, dry, dampness free area preferably covered
with plastic sheeting.
MAINTENANCE
NOTE: Maintenance should be performed before each use.
•Check tightness of all hardware.
•Check operation for binding. Lubricate pivot points and gears
periodically with a medium bodied lubricating oil.
•Inspect Blades for cracks, damage or premature wear. Replace if
damaged.
•Clean dirt and debris from Shear Deck.

TROUBLESHOOTING
•PRODUCES A ROUGH, JAGGED CUT:
- Blades out of adjustment. Follow adjustment procedure.
- Worn Blades. Replace blades.
- Material too thick.
•FAILS TO CUT:
- Blades out of adjustment. Follow adjustment procedure.
- Worn Blades. Replace blades. - Material too thick.
ADDITIONAL ITEMS
#11798 Replacement Blades
