Eaton Power Defense IZMX16 User manual

Instruction Leaflet IL0131087EN Supersedes April 2015
Effective January 2019 Power Defense – ICCB
Power
Defense™
Instructions for Undervoltage Release,
Shunt Trip, and Overcurrent Trip Switch
WARNING
(1) ONLY QUALIFIED ELECTRICAL PERSONNEL SHOULD BE PERMITTED TO WORK
ON THE EQUIPMENT.
(2) ALWAYS DE-ENERGIZE PRIMARY AND SECONDARY CIRCUITS IF A CIRCUIT
BREAKER CANNOT BE REMOVED TO A SAFE WORK LOCATION.
(3) DRAWOUT CIRCUIT BREAKERS SHOULD BE LEVERED (RACKED) OUT TO THE
DISCONNECT POSITION.
(4) ALL CIRCUIT BREAKERS SHOULD BE SWITCHED TO THE OFF POSITION AND
MECHANISM SPRINGS DISCHARGED.
FAILURE TO FOLLOW THESE STEPS FOR ALL PROCEDURES DESCRIBED IN THIS
INSTRUCTION LEAFLET COULD RESULT IN DEATH, BODILY INJURY, OR PROPERTY
DAMAGE.
WARNING
THE INSTRUCTIONS CONTAINED IN THIS IL AND ON PRODUCT LABELS HAVE TO
BE FOLLOWED. OBSERVE THE FIVE SAFETY RULES:
– DISCONNECTING;
– ENSURE THAT DEVICES CANNOT BE ACCIDENTALLY RESTARTED;
– VERIFY ISOLATION FROM THE SUPPLY;
– EARTHING AND SHORT-CIRCUITING; AND
– COVERING OR PROVIDING BARRIERS TO ADJACENT LIVE PARTS.
DISCONNECT THE EQUIPMENT FROM THE SUPPLY. USE ONLY AUTHORIZED
SPARE PARTS IN THE REPAIR OF THE EQUIPMENT. HE SPECIFIED MAINTENANCE
INTERVALS AS WELL AS THE INSTRUCTIONS FOR REPAIR AND EXCHANGE MUST
BE STRICTLY ADHERED TO PREVENT INJURY TO PERSONNEL AND DAMAGE TO
THE SWITCHBOARD.
Instructions apply to:
UL489 : PD-RF
IEC : PD-RF, IZMX40
UL489 : PD-NF
IEC : PD-NF, IZMX16

2EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Section 1: General Information
The left accessory tray will accommodate a maximum of four
accessory devices as follows (see Figure 1):
• Zero or two (OTS);
• Zero or one (UVR);
• Zero, one, or two (ST); and
• Combination (one ST and one UVR).
Shunt Trip (ST)
The shunt trip opens the circuit breaker when its coil is energized
by a voltage input (see Table 1). It is supplied with yellow and white
secondary leads connected to a secondary connector plug
(see Figure 2).
Undervoltage Release (UVR)
The undervoltage release opens the circuit breaker when its supply
voltage falls to between 35 - 60% of rated voltage. If the release is not
energized to 85% of its supply voltage, the circuit breaker cannot be
closed electrically or manually (see Table 2). It is supplied with orange
and brown secondary leads connected to a secondary connector plug
(see Figure 3). A UVR should only be installed in the right side of the
tray.
Overcurrent Trip Switch (OTS)
An overcurrent trip switch (bell alarm) provides an electrical indication
when a circuit breaker trips as a result of the trip unit reacting to an
overcurrent condition. An electrical indication will not occur unless a
standard or interlocking Trip Indicator is installed (refer to IL01301058E).
Opening as a result of a circuit breaker’s manual open button, ST
or UVR does not cause the overcurrent trip switch to operate (see
Table 3). OTSs are always supplied as a two-switch combination. The
combination is supplied with red, blue, and black secondary leads
connected to three secondary connector plugs (Figure 3).
ote:N A number of graphics in this instruction leaflet use the NF Frame breaker
only as typical examples. The RF Frame is similar in those situations.
Figure 1. Unpopulated Left Accessory Tray (NF Frame Shown).
Figure 2. Unpopulated Left Accessory Tray (RF Frame Shown).
Figure 3. Left Tray Accessories.
CAUTION
ANY SPECIFIC ACCESSORY LEAD ROUTING INSTRUCTIONS PRESENTED
IN THIS DOCUMENT SHOULD BE CAREFULLY ADHERED TO AT ALL TIMES.
FAILURE TO DO SO COULD RESULT IN LEAD DAMAGE AND/OR NO/
INAPPROPRIATE TRIPPING.
OTS Mounting Location
UVR Mounting Location
or Second ST
Shunt Trip and Undervoltage
Release with Secondary Connector
Two OTS Combination with
Secondary Connectors
OTS
Mounting
Location
Mounting
Location
Front Side Back Side
ST Mounting
Location
UVR or Second
ST Mounting
Location

3
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Table 1. Shunt Trip Ratings.
Control
Voltage Frequency
Operational
Voltage
(Range 70 - 110%)
Inrush/Continuous
Power
Consumption (VA)
Opening
Time (ms)
24 DC 17 - 26 400/2 25
48 DC 34 - 53 500/3 25
60 DC 42 - 66 500/4 25
110–127 50 - 60 Hz 77 - 140 800/8 25
110–125 DC 77 - 138 800/8 25
208–240 50 - 60 Hz 146 - 264 850/8 25
220–250 DC 154 - 275 850/8 25
Table 2. Undervoltage Release Ratings.
Control
Voltage Frequency
Operational
Voltage
Range
(85 - 110%)
Dropout
Voltage
Range
(35 - 60%)
Inrush/Continuous
Power
Consumption (VA)
Opening
Time (ms)
24 DC 20 - 26 8 - 14 425/2 50
32 DC 27 - 35 11 - 19 N/A 50
48 DC 41 - 53 17 - 29 750/3 50
60 DC 51 - 66 21 - 36 825/4 50
110 - 127 50–60 Hz 94 - 140 44 - 66 1150/8 50
110 - 125 DC 94 - 138 44 - 66 1150/8 50
208 - 240 50–60 Hz 177 - 264 84 - 125 1200/8 50
220 - 250 DC 187 - 275 88 - 132 1200/8 50
380 - 415 AC 323 - 457 145 - 228 N/A 50
480 AC 408 - 528 168 - 288 N/A 50
600 AC 510 - 660 210 - 360 N/A 50
Table 3. Overcurrent Trip Switch Ratings.
Control Voltage Frequency Contact Rating (Amperes)
250 50 - 60 Hz 10
125 DC 0.5
250 DC 0.25
Section 2: Installation of Undervoltage Re-
lease and/or Shunt Trip in Left Accessory Tray
Proceed with the following 13 steps:
Step 1: Remove the four screws holding the front cover in place (two
on each side of the cover).

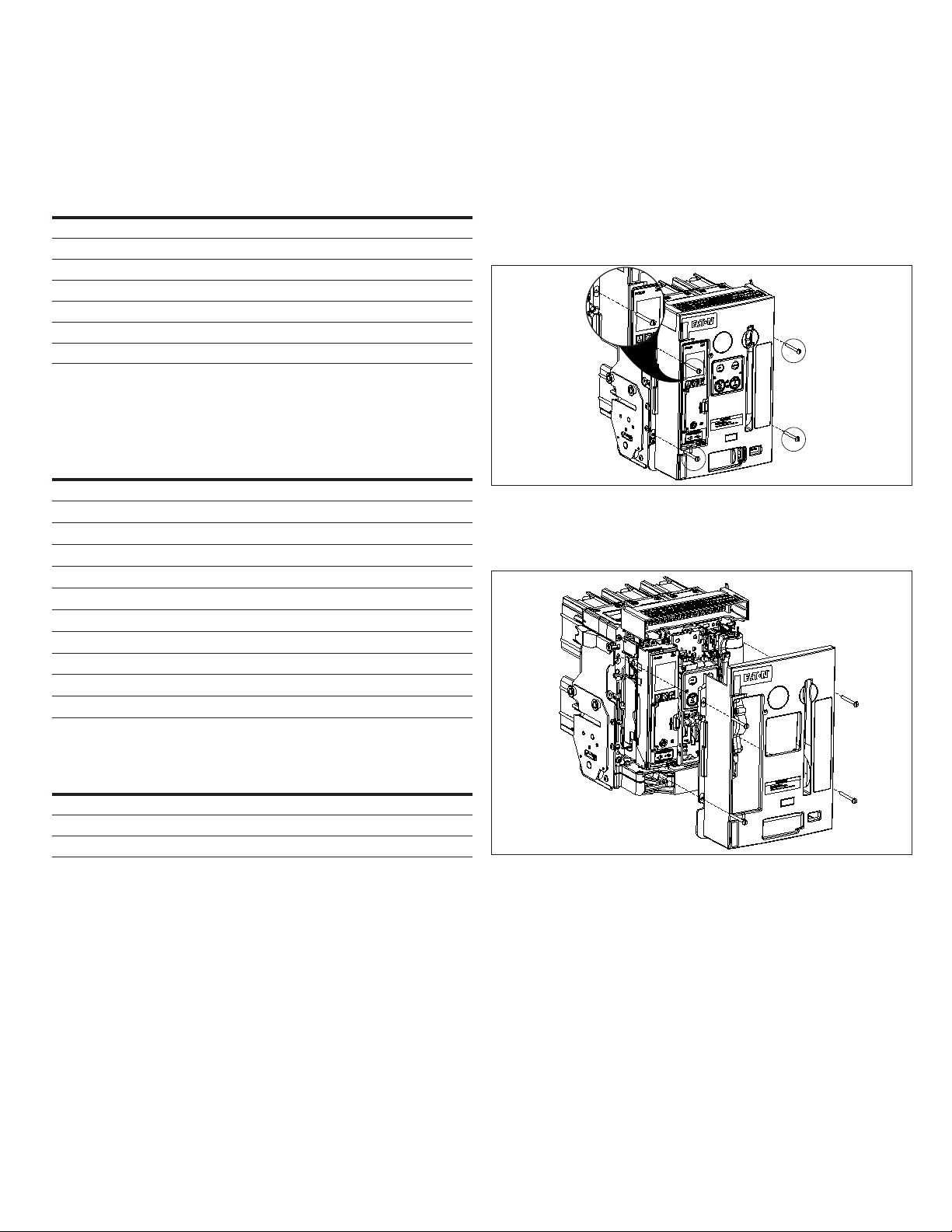

Figure 4. Step 1 (NF Frame Shown).
Step 2: Remove the front cover. Pull down on the charging handle to
simplify removal.
Figure 5. Step 2 (NF Frame Shown).

4EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Step 3: Locate the left accessory tray behind the trip unit. For the NF
Frame, place a finger on each end of the tray and slide the tray to the
left for removal. For the RF Frame, press the thumb tab down and
slide the tray to the left for removal.
ote:N A minimum of 2 inches (50.8 mm) for NF Frame and 3 inches (77 mm)
for RF Frame of side clearance is required on an installed fixed breaker for tray
removal.
Figure 6. Step 3 (NF Frame Shown).
Figure 7. Step 3 (RF Frame Shown).
Step 4: With the left accessory tray positioned as shown, tilt the UVR
or ST back to properly position it in the tray.
Figure 8. Step 4 (NF Frame shown).
Figure 9. Step 4 (RF Frame Shown).
Step 5: Carefully push the other end of the UVR or ST down into
the tray until a snapping sound is heard. This sound indicates the
accessory is locked in position.
Figure 10. Step 5 (NF Frame Shown).
Thumb Tab
ST
ST
ST
Accessory
Locking Tab

5
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Figure 11. Step 5 (RF Frame Shown).
Step 6: Route the two secondary leads behind the first molded tab,
down under a second molded tab, and out the end of the accessory
tray.
Figure 12. Step 6 (NF Frame Shown).
Figure 13. Step 6 (RF Frame Shown).
Step 7: If there is another UVR or ST to install in the other available
space of the left accessory tray, install it by repeating Steps 4 and 5.
Step 8: Carefully route the secondary leads of the second installed
accessory by following the same routing path and using the same
molded tabs as the first installed accessory from Step 6.
Figure 14. Step 8 (NF Frame Shown).
Figure 15. Step 8 (RF Frame Shown).
Step 9: The left accessory tray should look as shown in Figure 15 with
two accessories installed and secondary wires properly routed.
Step 10: Place the left accessory tray with the installed UVR and/
or ST accessories back in its original position. Be careful not to bind
secondary wires or connector plugs.
Figure 16. Step 10 (NF Frame Shown).
ST
ST Molded Tab 1
Molded Tab 1
Accessory Locking Tab
Molded Tab 2
Molded Tab 2
ST
UVR
ST
UVR
ST UVR

6EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019

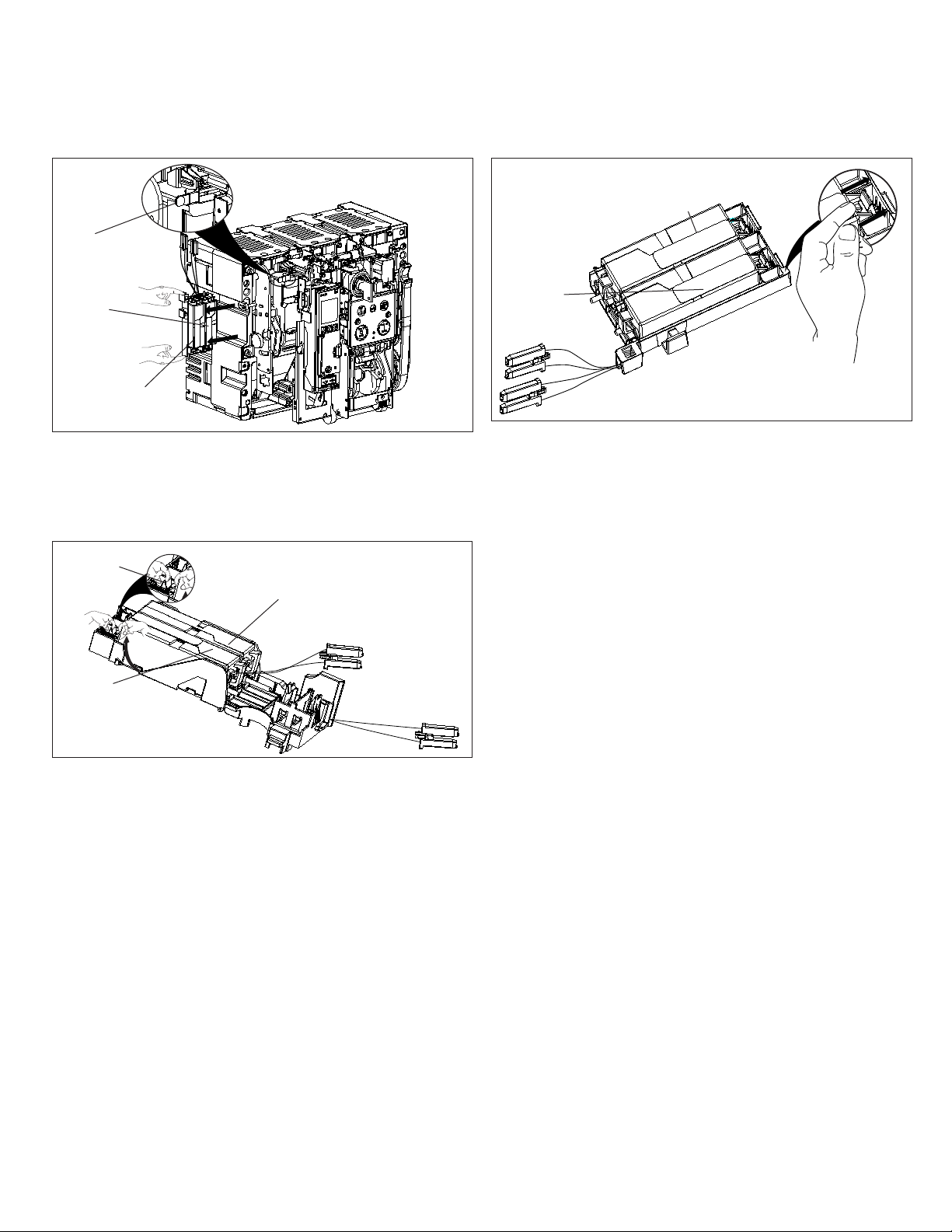

Figure 17. Step 10 (RF Frame Shown).
ote:N The Proper routing of leads will prevent the wires from being pinched by
the trip unit interlock plate in the RF Frame breaker.
Step 11: The installed left accessory tray should look as shown
with secondary leads extending out behind the trip unit. Secondary
connections can now be made.
Figure 18. Step 11 (NF Frame Shown).
Step 12: Make the appropriate secondary connections as outlined
in Section 6. If necessary, bundle secondary wires using industry-
accepted wire tie practices.
Step 13: Replace the front cover, and secure it in place with the four
mounting screws previously removed in Step 1.
Section 3: Removal of Undervoltage Release
and/or Shunt Trip in Left Accessory Tray
Proceed with the following seven steps:
Step 1: If necessary, remove the front cover from the breaker by first
performing Steps 1 and 2 of Section 2.
Step 2: Locate the left accessory tray behind the trip unit and
disconnect the appropriate secondary connections as described in
Section 6.
Figure 19. Step 2 (NF Frame Shown).
Step 3: Once the secondary leads are disconnected, finger depress
the tabs on each end of the NF Frame tray and slide it to the left for
removal. For the RF Frame tray, press the thumb tab down and slide
the tray to the left for removal.
ote:N A minimum of 2 inches (50.8 mm) for NF Frame and 3 inches (77 mm)
for RF Frame of side clearance is required on an installed fixed breaker for tray
removal.
Figure 20. Step 3 (NF Frame Shown).
ST UVR
Trip Unit Interlock Plate
Accessory Tray
Installed
Secondary Connectors
Connected Secondary
Connectors
ST
UVR

7
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Figure 21. Step 3 (RF Frame Shown).
Step 4: Position the tray as shown and remove secondary leads
from behind molded retaining tabs of the accessory being removed.
Pull back on the locking tab to unlock the UVR or ST from the left
accessory tray.
Figure 22. Step 4 (NF Frame Shown).
Figure 23. Step 4 (RF Frame Shown).
Step 5: Remove the UVR or ST by lifting it upward and out.
Step 6: Repeat Steps 4 and 5 if the other accessory is also to be
removed.
Step 7: If the tray will have a new ST and/or UVR installed, follow
steps 4 through 13 of Section 2. If not, just complete Steps 10
through 13 of Section 2.
ST
UVR
ST
ST
UVR
UVR
Thumb
Tab
Accessory Locking
Tab

8EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Section 4: Installation of Overcurrent Trip in
Left Accessory Tray
Proceed with the following seven steps:
Step 1: If necessary, remove the front cover from the breaker by first
performing Steps 1 and 2 of Section 2.
Step 2: Position the left accessory tray as shown and bring the two
OTS switches down for insertion into the left accessory tray. Carefully
push the OTS switches down until they lock in place.

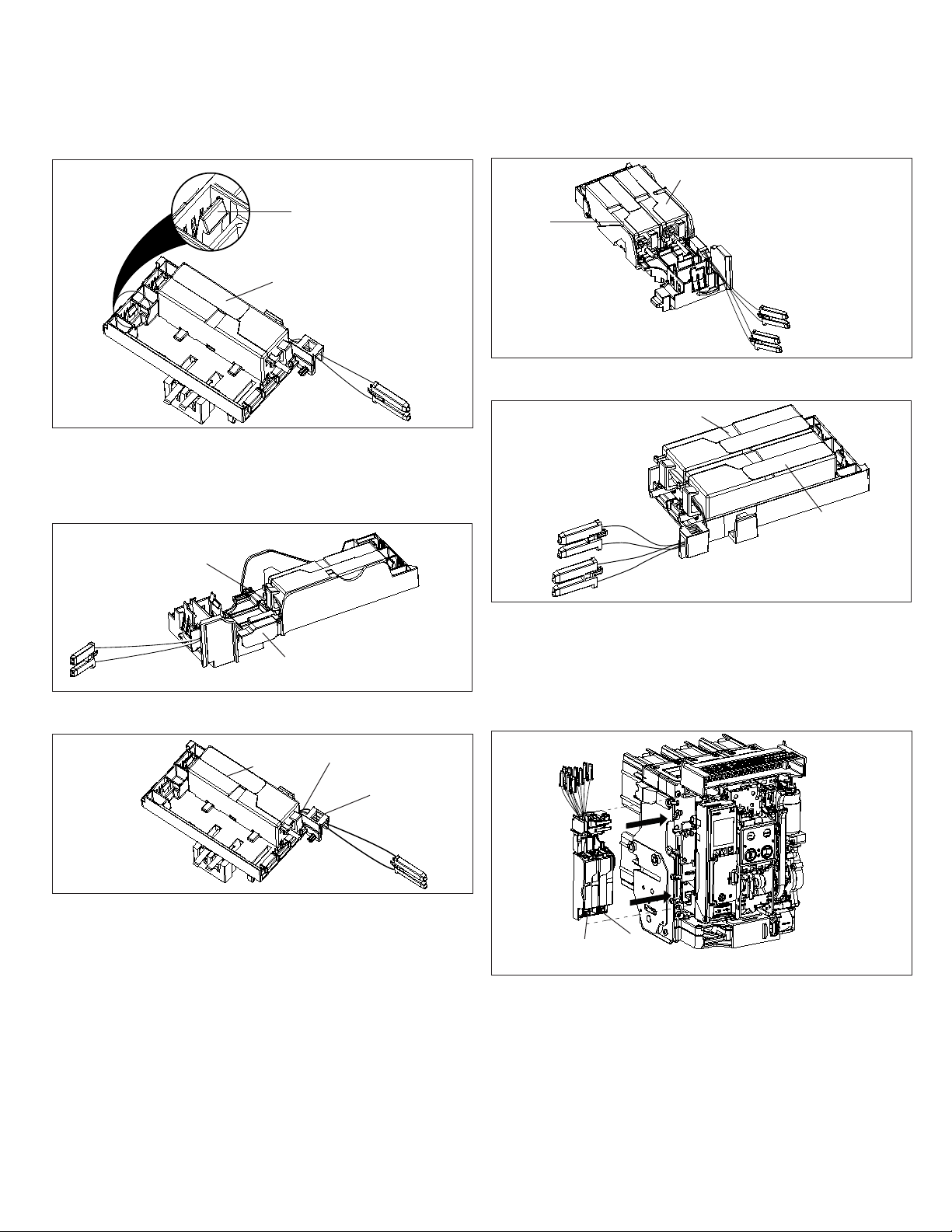

Figure 24. Step 2 (NF Frame Shown).
Figure 25. Step 2 (RF Frame Shown).
ote:N For the RF Frame, the metal lever must pass through the opening
before locking switch in place.
Step 3: Route the six secondary leads and three connectors forward
and to the right out the end of the accessory tray for the NF Frame.
For the RF Frame, route the leads out as shown.
Figure 26. Step 3 (NF Frame Shown).
Figure 27. Step 3 (RF Frame Shown)
Step 4: Place the left accessory tray with the installed OTS switches
back in its original position as shown. Be careful not to bind secondary
wires or connector plugs.
Figure 28. Step 4 (NF Frame Shown).
ST
UVR

9
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Figure 29. Step 4 (RF Frame Shown).
ote:N The Proper routing of leads will prevent the wires from being pinched by
the trip unit interlock plate in the RF Frame breaker.
Step 5: The installed left accessory tray should look as shown in
Figure 30 with secondary leads extending out behind the trip unit
mounting plate location. Secondary connections can now be made.
Figure 30. Step 5 (NF Frame Shown).
Step 6: Make the appropriate secondary connections as outlined
in Section 6. If necessary, bundle secondary wires using industry-
accepted wire tie practices.
Step 7: Replace the front cover and secure it in place with the four
mounting screws previously removed in Step 1.
Section 5: Removal of Overcurrent Trip from
Left Accessory Tray
Proceed with the following six steps:
Step 1: If necessary, remove the front cover from the breaker by first
performing Steps 1 and 2 of Section 2.
Step 2: Locate the left accessory tray behind the trip unit and
disconnect the appropriate secondary connections as described in
Section 6.

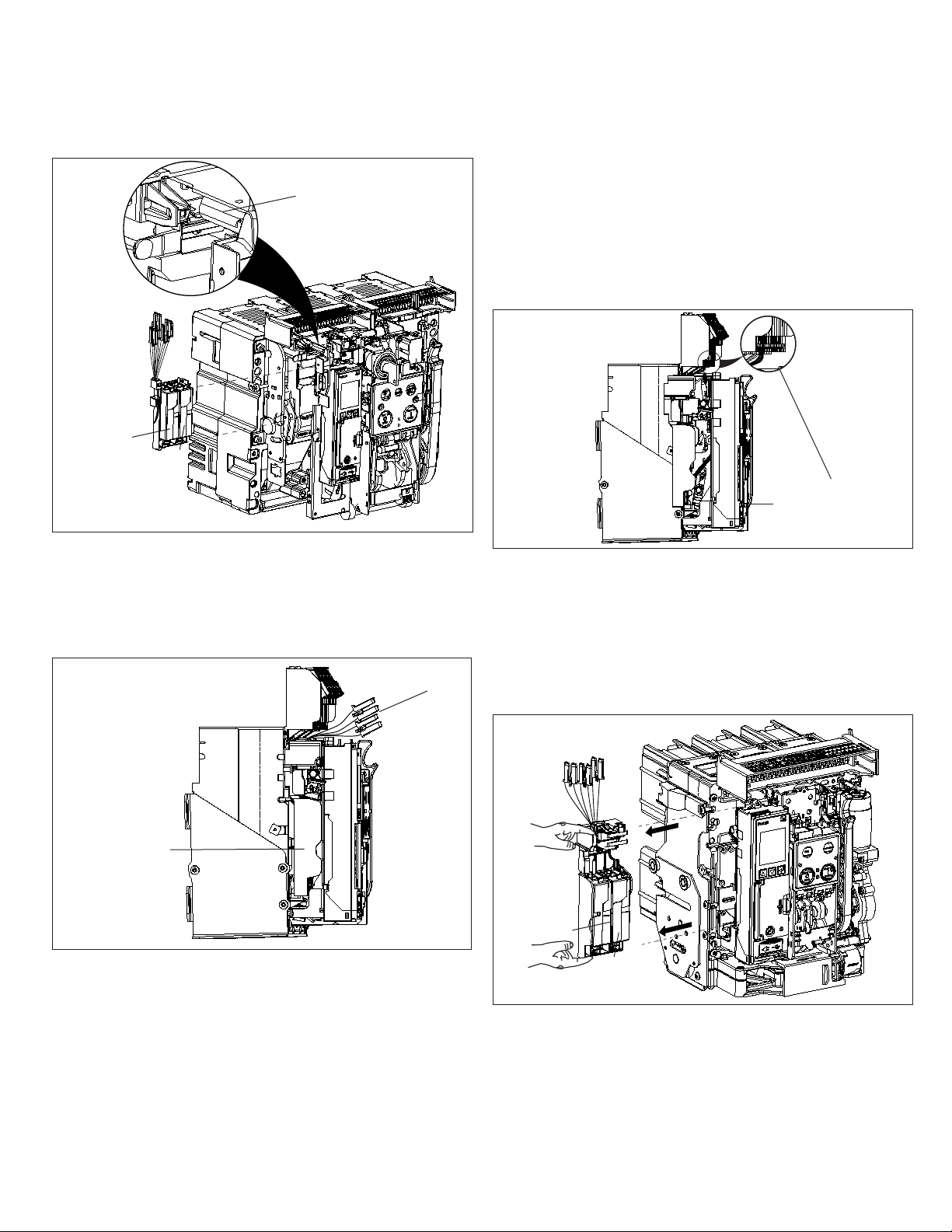

Figure 31. Step 2 (NF Frame Shown).
Step 3: Once the secondary leads are disconnected, finger depress
the tabs on each end of the NF Frame tray and slide it to the left as
shown for removal. For the RF Frame tray, press the thumb tab down
and slide the tray to the left for removal.
ote:N A minimum of 2 inches (50.8 mm) for NF Frame and 3 inches (77 mm)
for RF Frame of side clearance is required on an installed fixed breaker for tray
removal.
Figure 32. Step 3 (NF Frame Shown).
Accessory Tray
Installed
Secondary
Connectors
Connected Secondary
Connectors
Trip Unit Interlock Plate
ST
UVR
ST
UVR

10 EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Figure 33. Step 3 (RF Frame Shown).
Step 4: With the left accessory tray positioned as shown, pull back
on the locking tab of each OTS switch to unlock them from the left
accessory tray.
Figure 34. Step 4 (NF Frame Shown).
Figure 35. Step 4 (RF Frame Shown).
Step 5: Remove both OTS switches by lifting them upward and out of
the tray.
Step 6: If the tray will have a new two OTS switch combination
installed, follow Steps 2 through 7 of Section 4. If not, just complete
Steps 4 through 7 of Section 4.
Section 6: Accessory Secondary Connections
CAUTION
BECOME FAMILIAR WITH THIS CAUTION ON POLARITY BEFORE
PROCEEDING. FAILURE TO APPLY THE CORRECT POLARITY WILL RESULT IN
DAMAGE TO THE DEVICE.
When connecting a 24 Vdc shunt trip or a 24 Vdc undervoltage release,
be certain to apply positive (+) voltage to either secondary terminal
1 (ST) or secondary terminal 3 (UVR).
General Information
1 Electrical accessory leads are tagged with numbers associated with
the applicable connection diagram located in technical document
TD013001EN. Leads are also supplied with keyed secondary
connector plugs to ensure proper connections (Figure 36).
2 Secondary connections are made by plugging the connector plugs
into the appropriate location. A connector plug already connected
can be removed by squeezing two release tabs together with small
needle nose pliers and pulling out (Figure 37).
Figure 36. Leads and Connectors.
Figure 37. Connector Plug Removal.
Fixed Breaker Connections
Proceed with the following five steps:
Step 1: Become familiar with the fixed terminal block DIN rail type
mounting plate where secondary connections are made.
ote:N Secondary connection points have numerical and descriptive laser-etched
identifications.
3
4
DC Pos. (+)
DC Neg. (–)
UVR
1
2
DC Pos. (+)
DC Neg. (–)
ST
Thumb Tab
Accessory
Locking
Tabs
Accessory Locking
Tabs
Tagged Leads
Keyed Connector
Release Tab

11
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019

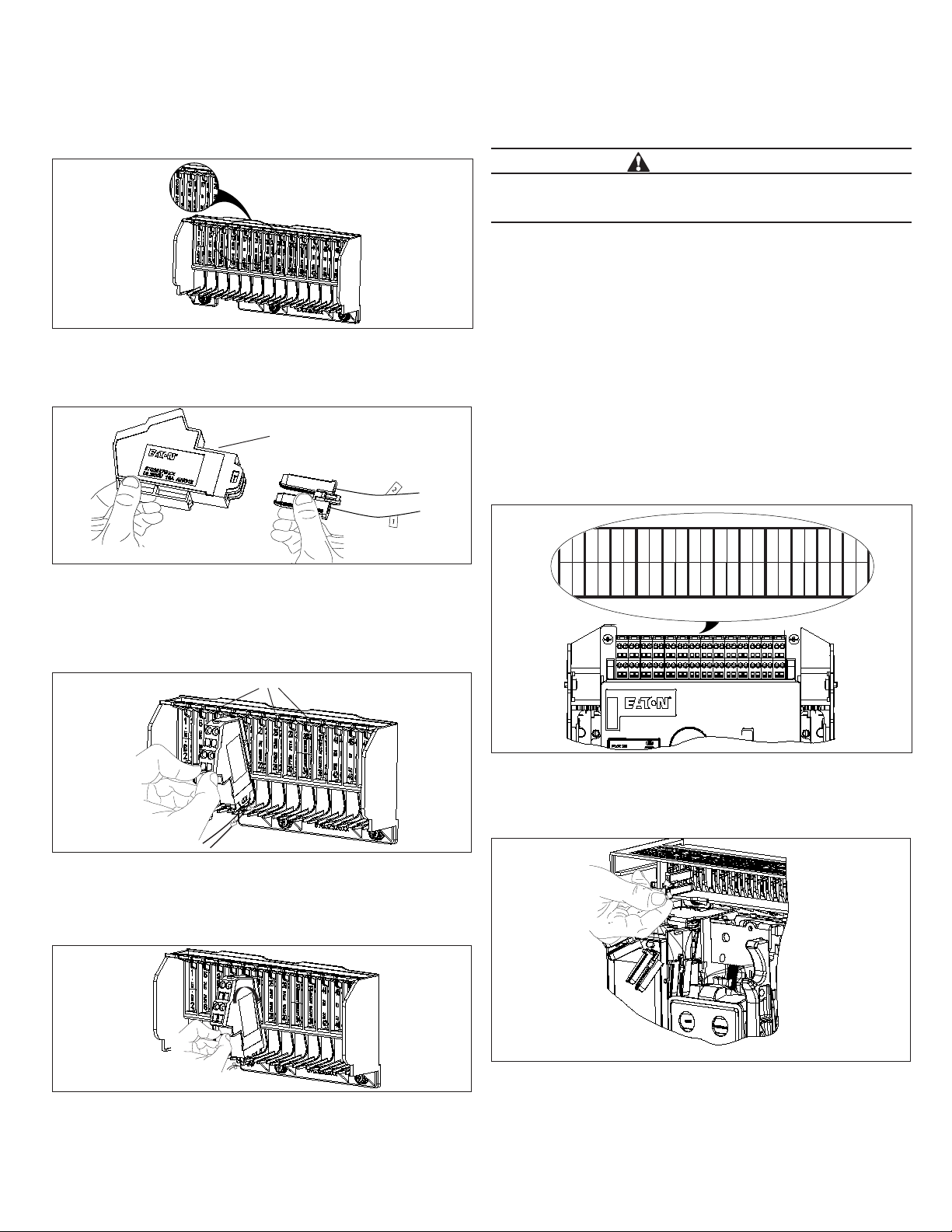

Figure 38. Step 1.
Step 2: Plug accessory connector plug into fixed secondary terminal
block.
Figure 39. Step 2.
Step 3: Identify correct mounting location on fixed terminal block
mounting plate for mounting fixed secondary terminal block. First
insert the bottom end of the fixed secondary terminal block into the
proper location on the DIN rail type mounting plate.
Figure 40. Step 3.
Step 4: Rotate the top end of the terminal block in until it engages the
appropriate flexible mounting tab at the top of the mounting plate with
a clicking sound.
Figure 41.
14
13
Step 4.
IMPORTANT
TO REMOVE RIGHT AND LEFT ACCESSORY TRAYS OR ANY OTHER
ELECTRICAL ACCESSORY, THE APPROPRIATE ACCESSORY CONNECTOR PLUG
MUST FIRST BE DISCONNECTED.
Step 5: To remove an accessory plug on a fixed circuit breaker, the
appropriate fixed secondary terminal block must first be removed. To
remove a fixed secondary terminal block, lift up on the small flexible
mounting tab at the top of the fixed terminal block mounting plate, and
rotate the terminal block out in the opposite direction shown in Step 4.
Once the terminal block is removed, the accessory connector plug can
be unplugged from the bottom of the terminal block. Refer to Item 2
and Figure 37 under the heading “General Information” in this section
for detailed assistance with the removal.
Drawout Breaker Connections
Proceed with the following three steps:
Step 1: Become familiar with the drawout secondary plug housing
where secondary connections are made.
ote:N Secondary connection points have numerical and descriptive laser-etched
identifications on top of the housing directly matching the plug-in locations
below.
Figure 42.
ST1
1
2
ST2
UV1
3
4
UV2
OT1C
5
6
OT1M
OT1B
7
8
OT2B
OT2C
9
10
OT2M
N1
11
12
N2 ALM1
ALM2
15
16
ALM3
G1
17
18
G2
+24V
19
20
AGND
ZIN
21
22
ARMSIN
ZCOM
23
24
ZOUT
CMM1
25
26
CMM2
CMM3
27
28
CMM4 PTVB PTVN RR2 RR1
PTVC
MODBA
33
34
MODBB
35
36
37
38
39
40
2CMM2 MODBG
2CMM3 2CMM1
41
42
2CMM4 ARCON1
ARCON2
ARCON3
43
44
45
46
PTVA
29
30 32
31
ALMC
13
14
47
48
+
-
+
-
Step 1.
Step 2: Plug accessory connector plug into position in the secondary
plug housing matching the laser-etched identification on top of the
housing.
Figure 43.
1
2
Step 2.
Fixed Secondary
Terminal Block
Flexible Mounting Tabs

12 EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
IMPORTANT
TO REMOVE RIGHT AND LEFT ACCESSORY TRAYS OR ANY OTHER
ELECTRICAL ACCESSORY, THE APPROPRIATE ACCESSORY CONNECTOR PLUG
MUST FIRST BE DISCONNECTED.
Step 3: To remove an accessory connector plug on a drawout circuit
breaker, unplug it from its secondary plug housing. Refer to Item 2 and
Figure 37 under the heading “General Information” in this section for
detailed assistance with the removal.
Section 7: UVR and ST Testing
Before performing any test activities, lever a drawout circuit breaker
to the Test position. For fixed type circuit breakers, make sure primary
circuits are de-energized.
Undervoltage Release Testing
1. Charge the breaker using the manual handle. With no voltage
applied to the UVR, attempt to close the circuit breaker using the
manual pushbutton. Verify that the breaker does not toggle to the
Closed position.
2. Apply rated voltage to the UVR as shown in Table 2. Ensure the
breaker is in the Charged position, then close the breaker using the
manual pushbutton. Verify that the breaker is in the Closed position.
3. Remove voltage from the UVR and verify that the breaker toggles
to the Open position.
Shunt Trip Testing
1. Charge the breaker using the manual handle. With no voltage
applied to the shunt trip, close the circuit breaker using the manual
pushbutton. Verify that the breaker toggles to the Closed position.
2. Apply rated voltage to the shunt trip as shown in Table 1. Verify that
the breaker toggles to the Open position.
OTS Testing
1. Remove the Accessory Tray and verify continuity between leads 5
and 6 for OT1 and continuity between leads 9 and 10 for OT2.
2. Reinstall the Accessory Tray and ensure the Trip Indicator is
depressed. Then verify continuity between leads 5 and 7 for OT1
and continuity between leads 8 and 9 for OT2.
OR, if an Eaton approved Trip Unit Tester is available, perform the
following steps with the Accessory Tray installed in the circuit breaker.
1. Ensure the Trip Indicator is depressed and verify continuity between
leads 5 and 7 for OT1 and continuity between leads 8 and 9 for
OT2.
2. Trip the breaker using the Trip Unit Tester.
3. The Trip Indicator will extend from the breaker.
4. Verify continuity between leads 5 and 7 for OT1 and continuity
between leads 8 and 9 for OT2.
5. Depress the Trip Indicator.

13
EATON CORPORATION www.eaton.com
Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Notes:

Instructions for Undervoltage Release, Shunt Trip, and Overcurrent
Trip Switch
Instructional Leaflet IL0131087EN
Effective January 2019
Disclaimer of warranties and limitation of liability
The information, recommendations, descriptions, and safety
notations in this document are based on Eaton Corporation’s
(“Eaton”) experience and judgment, and may not cover all
contingencies. If further information is required, an Eaton sales
office should be consulted.
Sale of the product shown in this literature is subject to the terms
and conditions outlined in appropriate Eaton selling policies or other
contractual agreement between Eaton and the purchaser.
THERE ARE NO UNDERSTANDINGS, AGREEMENTS, WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY,
OTHER THAN THOSE SPECIFICALLY SET OUT IN ANY EXISTING
CONTRACT BETWEEN THE PARTIES. ANY SUCH CONTRACT
STATES THE ENTIRE OBLIGATION OF EATON. THE CONTENTS OF
THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY
ANY CONTRACT BETWEEN THE PARTIES.
In no event will Eaton be responsible to the purchaser or user in
contract, in tort (including negligence), strict liability, or otherwise
for any special, indirect, incidental, or consequential damage or loss
whatsoever, including but not limited to damage or loss of use of
equipment, plant or power system, cost of capital, loss of power,
additional expenses in the use of existing power facilities, or claims
against the purchaser or user by its customers resulting from the use
of the information, recommendations, and descriptions contained
herein.
The information contained in this manual is subject to change
without notice.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2019 Eaton
All Rights Reserved
Printed in USA
Publication No. IL0131087EN / LNT06
Part No. IL0131087ENH02
January 2019
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
