Eden 25439 User manual

water timer
A smart, efficient and convenient method to manage
garden watering and large scale irrigation.
This Manual is a universal manual for all of our 1,2 and
4 zone Bluetooth® timers.
By using our free app on your Android or iOS smartphone
(minimum required iOS 9 or Android V7.0), this water timer
can be programmed wirelessly, allow you to use your
smart phone or tablet to control all the programming and
interface functions on your water timers or irrigation
controllers. The app has easy-to-follow cues that are
displayed on your smartphone to guide you through the
process. The timer can be set to water on any or all days
of the week, from 10 times or more per day, with a
duration ranging from one minute to 12 hours.
The water-delay setting lets you postpone your irrigation
cycle without losing your preset program. You can also
manually control the settings right at the faucet, without
using the app. You can even manage multiple timers from
the same app. These tap timers will automatically water
sequentially once they are programmed via your
smartphone or tablet. No need to open the user’s guide to
figure which buttons to push. The App is highly intuitive
and programming is simple.
User’s Guide
Features >
Pairing your Smart Phone with EDEN® Bluetooth® Controller >
EDEN® Bluetoth® Timer Spec >
Managing the App >
Useful Tips >
Contact Us >

• Smart Bluetooth® garden timer where you change
the method of watering your garden from a range
up to 10 m (30 ft). Enables you to control your
garden’s watering schedule from your smart
phone, tablet remotely.
• Easy to install application and simple to operate.
• Daily, Weekly and cyclical programming.
A four zone timer allowing you to water four different
areas from the same faucet. Each zone can be
programmed with different start time.
(Single and two zone timers follow this same guide)
• Manage one or many controllers from a single app
with the ability to name each controller, capture an
image or uploaded from your gallery. You can
replace the valve’s photo and name to easily
distinguish between them where you want to water
• The timer is constructed using weather and UV-
resistant ABS material housing and requires
4 x AA (1.5v)
*Alkaline batteries, not incuded
• Works with water pressure from 10 to 120 psi
• Manual settings from the App is simple task
(Manual watering in 1 minute increments up to 360 minutes)
• No need to open the user’s guide to figure which
buttons to push. The App is highly intuitive and
programming is simple to use.
• Follow-up on scheduling by viewing the "Next
Watering" feature
User’s Guide
Features:

Compatible with Bluetooth® 4.0 devices (minimum
required iOS 9 and Android V7.0). Pairing is required
only once. On subsequent operations of the app, the
app will synch automatically with the controller and will
display the paired controller status screen.

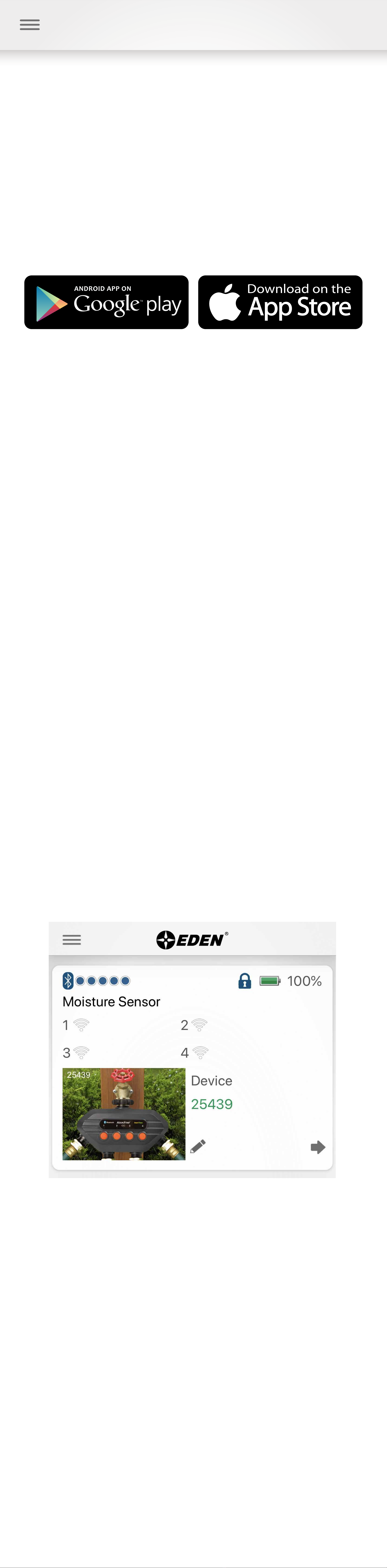

Please visit Google Play Store or App Store, search for
“Eden Water Timer”, or scan the bar code on the
controller package to download the app. You need to
have an account on both sites to have access to the
store. The EDEN® Water Timer App is free.
User’s Guide
Pairing your Smart Phone with
EDEN® Bluetooth® Controller:
1. Download and install the EDEN® Water Timer App :
2. Insert 4 Alkaline batteries to the Bluetooth® timer
controller (batteries are not included). Remove the
battery tray and install the batteries. Firmly reinstal
the battery tray back into the Bluetooth® timer.
3. Your Bluetooth® timer is now in pairing mode and
will flash a green light every 2 seconds. You will
also hear two clicks about 2 seconds apart, this is
normal and ensures the valve is closed before you
turn on the water.
*Replace batteries when timer flashes a red light or when
the app notifies you that batteries need replacing.
Please use only Alkaline batteries.
4. After the app is installed, tap to launch the app.
The app prompts you to set up Bluetooth®
controller. The app displays the various Bluetooth®
controllers. Don’t forget to activate Bluetooth of your
smartphone or tablet. If you have forgoetten to
activate your smartphone or tablet, the app will
suggest you to activate it.
5. Install the Bluetooth® timer:
Connect the timer to an outdoor hose faucet. Make
sure the timer is securely fastened. Your timer is now
ready to be used with any product that can be
attached to a standard hose adaptor. You can attach
up to 4 hose devices per timer.
6. Turn on Your Water:
The water supply must remain on for the timer to
work properly.
*Stop Watering: You can stop watering at any time
whether it is during manual watering, or during a
programmed time.

Model:
Range: 30 ft. (10 meters) without interference
Pressure Operating: 10 - 120 PSI
Temperature Operating: 32 - 110˚ F (0 - 45˚ C)
Frequency Band: 2402 - 2480 MHz
Operating Frequency: 915 (N.Amer.) / 868 (EU) MHz
Max Power: < 20 dbm
For outdoor use with cold water only!
Not for use with household appliances
Do not mix Alkaline, carbon-zinc, or rechargeable batteries
Used or dead batteries must be removed from the timer
and disposed properly
User’s Guide
Timer Spec:
O N LY
WATE R
COLD
O N LY
OUTDOOR MIX
DO
NOT
DIFFERENT
BATTERIES
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Caution: Any changes or modifications not expressly
approved by our Yuan Mei Corp. could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
To comply with FCC RF exposure requirements, the
device and the antenna for this device must be
installed to ensure a minimum separation of 20cm or
more from a person’s body. Other operating
configurations should be avoided.
FCC Statement:
This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and (2)
This device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil
doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en
compromettre le fonctionnement
The device meets the exemption from the routine
evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l'exemption des limites
courantes d'évaluation dans la section 2.5 de RSS 102
et la conformité à l'exposition de RSS-102 rf,
utilisateurs peut obtenir l'information canadienne sur
l'exposition et la conformité de rf
CAN ICES-3 (B)/NMB-3(B) Canada
Statement

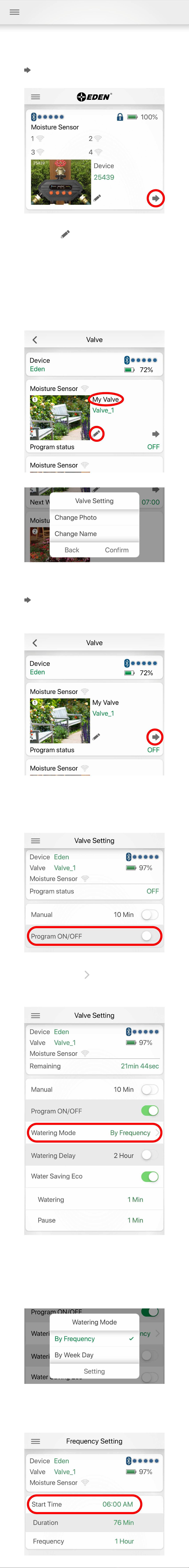

Tap or the “device” name on the screen to setup.
You can change the Device profile for device icon,
name and password.
You can name your Bluetooth® timer if you have more
than one. This helps you identify your timers.
Any programming changes can be overridden by any
auhorized user.
You can add more Bluetooth® timer. If you are using
more than one timer controller unit, you can also
replace the unit’s photo and the name to easily
distinguish between them.
Caution: Two people can not connect simultaneously!
Only one user at a time can be connected to the device.
User’s Guide
Edit Device Profile:
Tap “Change Photo” to replace it with a new one from
the phone camera or gallery. Then Tap Confirm or
back to previous settings.
Select photos from Camera, Albums or Pre-set Photo.
Noted: If you select Camera, you will take a photo
from the camera.
To change device name (max. 12 characters), tap
“Change Name” and confirm
Tap Confirm once the desired name is entered for
your device. (12 characters in length)
Tap “Change Password” if you wish to enter a new
password
There is no default password. If you forgot the
password, you will need to reset it. To reset, just
remove the battery case and while you re-insert the
battery case back, hold #1 button until you see the
law battery indicator turns on red, release the #1
button. The unit has been reset.
Other users will have to enter the password if you
have set up one.
Setting up password allow you to protect your
Bluetooth® timer from“Unauthorized users”
Tap “About” to find out more about the device
information such as Firmware version, Bluetooth®
address, etc.

Tap or valve photo to “Valve Setting” to set up
User’s Guide
Setup Zone Valves:
Tap “valve 1” or to change valve name (12
characters in length) and icon. Repeat the step for
the rest valves
Tap Valve 1, 2, 3 or 4 to rename
If you are using more than one valve on your controller
unit, you can also replace the valve’s photo and the
name to easily distinguish between them where you
want to water.
Tap the watering mode  to change watering mode to
“By Frequency” or “By Week Day”
Select “By Frequency”, then tap the “Setting” key
By selecting Frequency, you can have the device run
multiple times in one day
Tap “Start Time” to select desire watering time

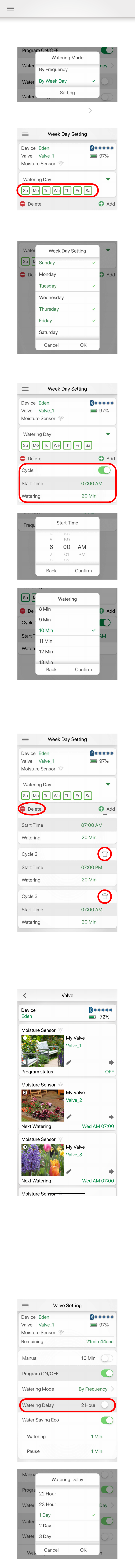

Program Your Watering Schedule:

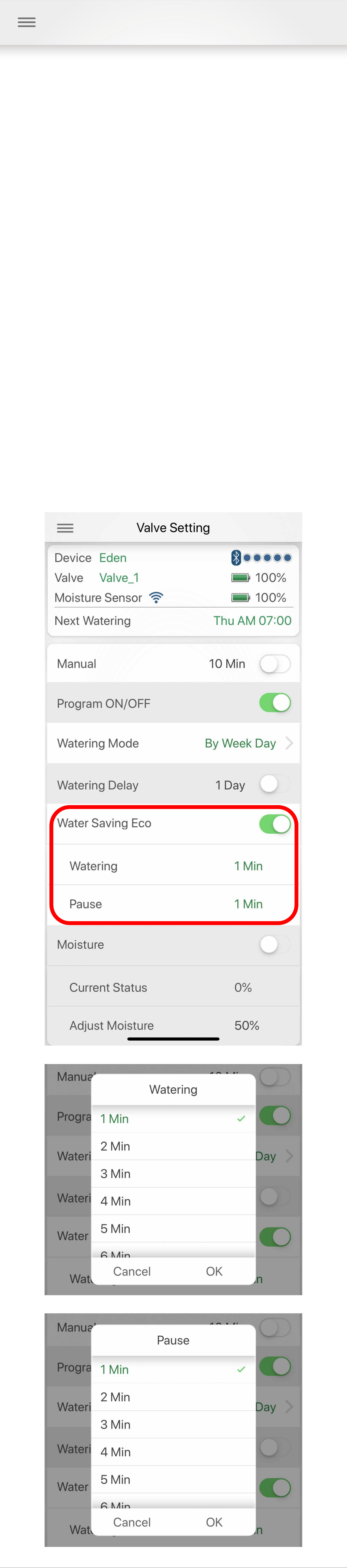

Tap to “Valve Setting” to adjust the watering
schedule
Swipe the “Program” bar to turn on the programming
mode to select your watering selections

Scroll up or Down to select the desired watering time,
then press the “Confirm” key
Move up and down to select the duration then confirm
Tap “Duration” Scroll up or down to select your
desired watering time. Then press the “Confirm” key
Tap “Frequency”. You can select how many times per
hour, or day your want to do water in
Select the desired Frequency then “Confirm”
Depending the operating system of your phone, tap
“Back” to go to previous setting
Tap the Watering mode to change the watering
mode to “By Week Day”
By week day allows you to have the valve run once
every day or every other day
User’s Guide

Change the watering mode to “By Week Day”, then
tap Setting
User’s Guide
Tap any place in “Watering Day” or  to select the
day you wish to watering
Select or Deselect the day, then “Confirm”. The
selected day will be enclosed by a square box
Add cycle (up to 30 watering cycles), select desire
start time and watering duration.
Delete cycle if it is needed by tapping the Delete Key,
then select the trash bin of the cycle you want to
remove.
*Caution, once it is deleted, it will be removed permanently
from the setting. You will need to reprogram it again.
Watering Delay Function:
If there is rain in the forecast and you wish to temporarily
stop watering, set the “Water Delay” by swiping the bar
to the right then tap the “Water Delay” key.
Water Delay mode will stop all watering for up to 7 days
After the delay period, the watering program will begin to
run automatically.
You can turn off the rain delay function at anytime by
swiping the bar to the left
Once programming is completed review the main value
dashboard which shows all the values status. Your
scheduling should show the next watering schedule and
other info.

Set Eco function by sliding the bar to the right.
The Eco Function creates a pause in the watering
cycle, which provides absorption time for the soil. It
can also prevent water run-off
Set the water duration and pause duration according
to the watering needs.
“Water Min” and “Pause Min” can be customized
according to different watering applications (ie:
irrigation or lawn & garden), landforms (ie: at or
mountain slope) and soil density (ie: high as soil or
low as sand). 3. Examples and suggestions as below:
A. Irrigation: Water 5 MIN PAUSE 2 MIN
B. Lawn: Water 4 MIN PAUSE 1 MIN
C. Lawn slope: Water 2 MIN PAUSE 2 MIN
Note: you can skip this setting if no needed.
Note: once the ECO function is activated, the set
intervals is applied on all the set water cycles
User’s Guide
Set Eco Water Saving:

You can add Moisture Sensor (not included) to pair
with your Bluetooth® Timer.
The moisture sensor can be used to reduce your
water use. Pairing can only be done with one zone at
a time.
First, obtain 2 fresh AAA alkaline batteries and insert
them into the battery tray of the sensor. Once they are
inserted, press the yellow button on your sensor for
about 5 seconds to start the pairing with the timer.
Press the co-ordinating zone button on your timer for 5
seconds. You will notice on your timer that the sensor
has been paired. The indicator light will flash blue.
Repeat this step for every sensor you want to add for
the rest of valves.
Then place the sensor into the soil at the location you
want to monitor the moisture from. The sensor will
show the moisture levels after a few minutes have
expired.
Additional sensors can be added for multi zoned
timers using the same above instructions.
User’s Guide
Bluetooth® Moisture Sensor Pairing :

Moisture Sensor Spec:
User’s Guide
For outdoor use with cold water only!
Not for use with household appliances
Do not mix Alkaline, carbon-zinc, or
rechargeable batteries
Used or dead batteries must be removed
from the timer and disposed properly
Model: 25417
Range:
100 ft.(30 meters)
without interference
Temperature Operating:
32 - 110˚ F (0 - 45˚ C)
Operating Frequency:
915 (N.Amer.) / 868 (EU) MHz
Max Power: < 10 dbm
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Caution: Any changes or modifications not expressly
approved by our Yuan Mei Corp. could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
To comply with FCC RF exposure requirements, the
device and the antenna for this device must be
installed to ensure a minimum separation of 20cm or
more from a person’s body. Other operating
configurations should be avoided.
FCC Statement:
This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and (2)
This device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil
doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en
compromettre le fonctionnement
The device meets the exemption from the routine
evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l'exemption des limites
courantes d'évaluation dans la section 2.5 de RSS 102
et la conformité à l'exposition de RSS-102 rf,
utilisateurs peut obtenir l'information canadienne sur
l'exposition et la conformité de rf
CAN ICES-3 (B)/NMB-3(B) Canada
Statement

User’s Guide
Set Moisture Levels:
You can setup the moisture levels according to your
soil requirement. 10% increments are selectable up
to 100%.
The current status will be shown once a Bluetooth®
moisture sensor is connected. Please wait three
minutes to receive a sensor reading.
Noted that more Moisture Sensors are connected to
the timer, the more battery use will be used. The
center light is a battery indicator. If it is flashing red,
change the batteries.

This Bluetooth® timer has the ability to allow you to
manually water without interrupting the programming
schedule. There are 2 ways of activating this function.
1) You can actiavte the manual function by swiping
the “Manual” bar to turn on:
User’s Guide
Manual Watering:
or 2) any of the four red buttons of the timer can be
pushed to allow for manual watering use. Push the
corresponding water circuit you want to activate
manual watering for 1 or 2 seconds then release. You
will hear the circuit valve open. Water will start to flow
according to the time setup in the manual
programming settings.
When you want to stop the manual cycle, press the
circuit button once more or swiping “Manual” to the
right in the App to deactive the manual watering.
Once the manual function is turned on, the App will
show Manual Remaining Duration how many minutes
left.

If you wish to stop watering for an extended period,
swipe the bar to the left of “Program” . The timer will
not water automatically while in this mode. The
program status will display the word “Off”.
To start watering automatically again, simply turn the
program on again.
User’s Guide
Off Mode:

You can access your device or valve setting more
rapidly by tapping the top left corner to change
their settings the individual device settings
User’s Guide
Quick Access:

Seasonal storage:
Freezing temperature can cause timer to freeze and
expand, damaging the timer. At the end of the season
or when there is frost in the forecast, remove your
timer from the faucet, remove the batteries and be
sure store the timer indoor, away from freezing
temperatures.
Tips for Battery:
- Ensure to use fresh Alkaline batteries
- Do not use rechargeable or any other type of
batteries
- Remove the batteries at the end of the season
before storing
- Batteries should last about one season. A schedule
with more frequent watering times can cause the
batteries to drain faster
Understanding Zones:
- This is four zone timer allowing you to water four
different areas from the same faucet. Each zone can
be programmed with different start time.
- Do not run two zones at the same time as this will
reduce your water pressure flow.
- When using additional external sensors, it is
advisable to check the batter levels on a monthly
basis.
User’s Guide
Useful Tips:

ADD :
No.21, Ln. 409, Sec. 1, Luhe Rd. Lukang Township,
Changhua County Taiwan (R.O.C.) 50547
TEL : [phone]
FAX : [phone]
E-MAIL : [e-mail]
User’s Guide
Contact Us:
We manufacture more than just watering tools.
We strive to protect the earth and improve the
environmental quality by providing innovative
products in this irrigation industry..
