EFG Active User manual

EFG Active
Assembly Instruction 039115
For more information,
please visit www.efg.info 039115/ Produced by: EFG Marketing Support
The product contains one or more of following materials:
Metal, plastic, wood, fabric, foam.
100kg

2 3

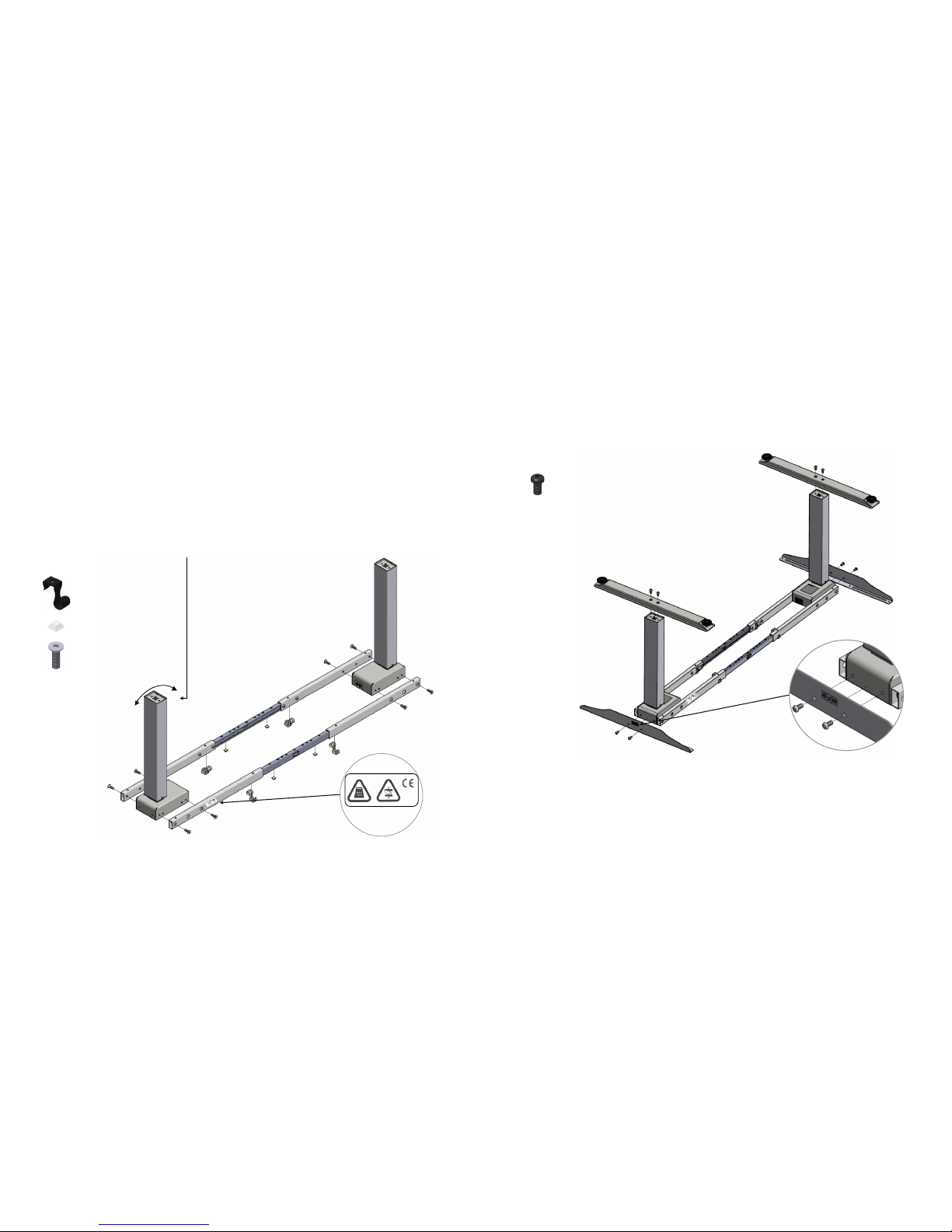

EFG Active - Frame assembly
Step 1 - Assembly beams, legs, hooks, spacer and decal.
Recommended beam length for following table top length:
1600 = Beam length 1248 mm (Overhang on table according to page 7)
1800 = Beam length 1548 mm (Overhang on table according to page 7)
For sliding table top = Do not lock beams and let the inserts in the
table top guide you, see pages 9 or 11 depending on which sliding
bracket being assembled. x8 (M8x16)
Match colour of screw to
colour of side support
Mount the sidebars with
the EFG logo outwards.
EFG Active - Frame assembly
Step 2 - Assembly foot and sidebars.
Warning decal positioned
towards the end user.
x4 - Cable hook
x4 - Bumper
x8 (M8x25)
Hole in hook should be
concentric with hole in
crossbar.
Wiggle the leg when mounting the
beams. It makes it easier to mount the
screws.
Warning decal.

4 5

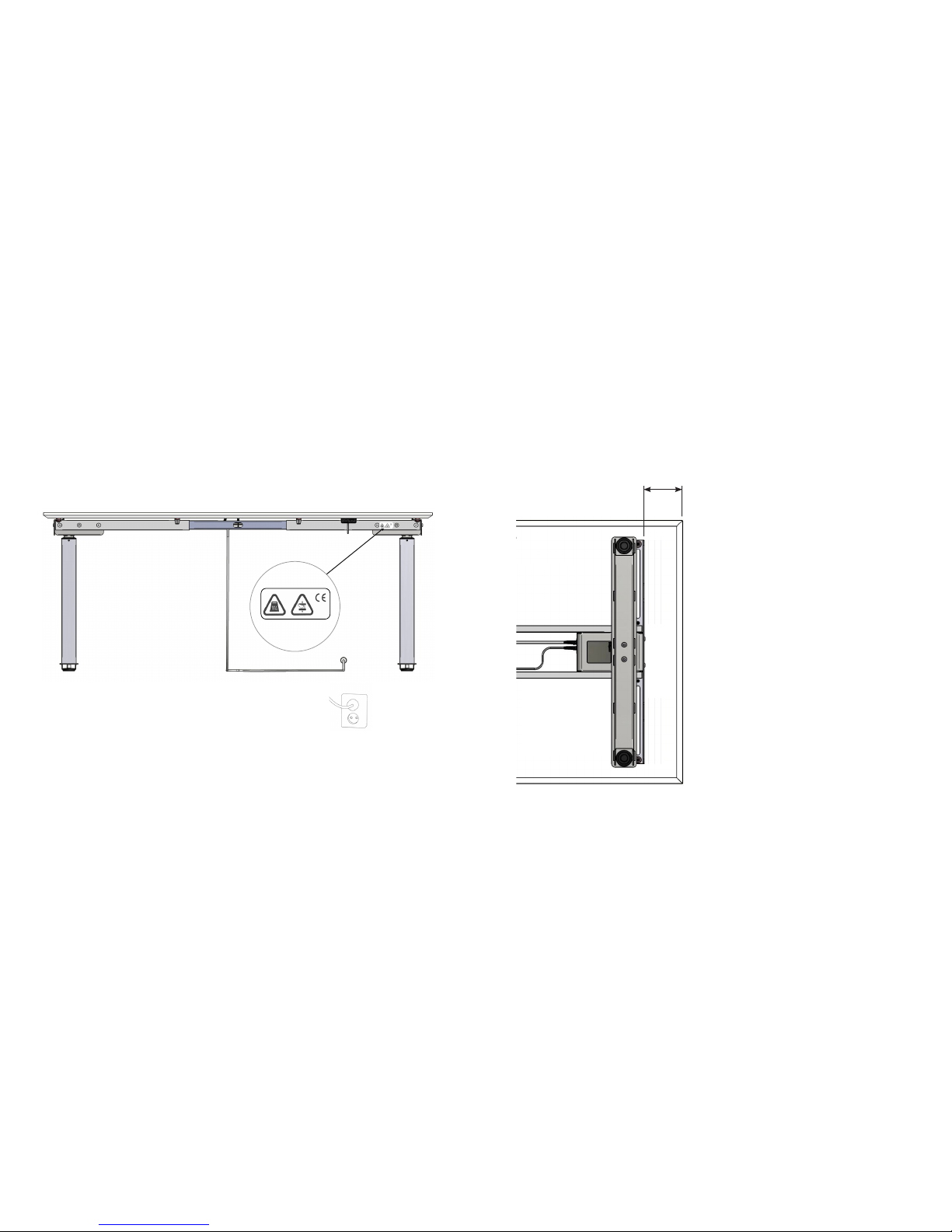

EFG Active - Frame assembly
Step 3 - Assembly frame to table top.
Loosen screws slightly in beams and adjust frame width symmetric to
wished position (Do not loosen the screws entirely)
EFG Active - Frame assembly
Step 4 - Assembly cables and handset.
Structure excess cabling under the table top, use the cable clips to
strap the cables. Use cable clips and hooks to place and fasten Power
Supply. If cable tray is used, place Power Supply there.
”Click!”
Cable clips + screws (x3)
”Click!”
”Click!”
”Click!”
Screw - Handset
3,5x16 (x2)
Screw - Sidebars
4,5x20 (x6) Use 4 pcs with
washer and bumper in
corners.
KIT Silence x1.
Center the inner beams with the
oval holes, as illustrated.
For sliding top the cable hooks needs to be
upgraded with spacers instead of bumpers.
See pages 8-11.

EFG Active - Frame assembly
Step 5 - Observe and nish.
OBSERVE:
Make sure every screw is tightened before use.
Turn the table around to standing position and plug
the cable.
Ready to use!
Warning decal.
EFG Active - Acessories (Gables)
Below you can see recommended distance to table top edge on gables
for enabling other acessories to be added.
6 7
120 mm
SUITED ACESSORIES:
- TAB Screens (Ex: A29F01)
- ADD Stack (Ex: ADDSTACKK)
- Butler (Ex: ADDBUTLK)
- ScreenIT Standard (Ex: A30B81)

8 9

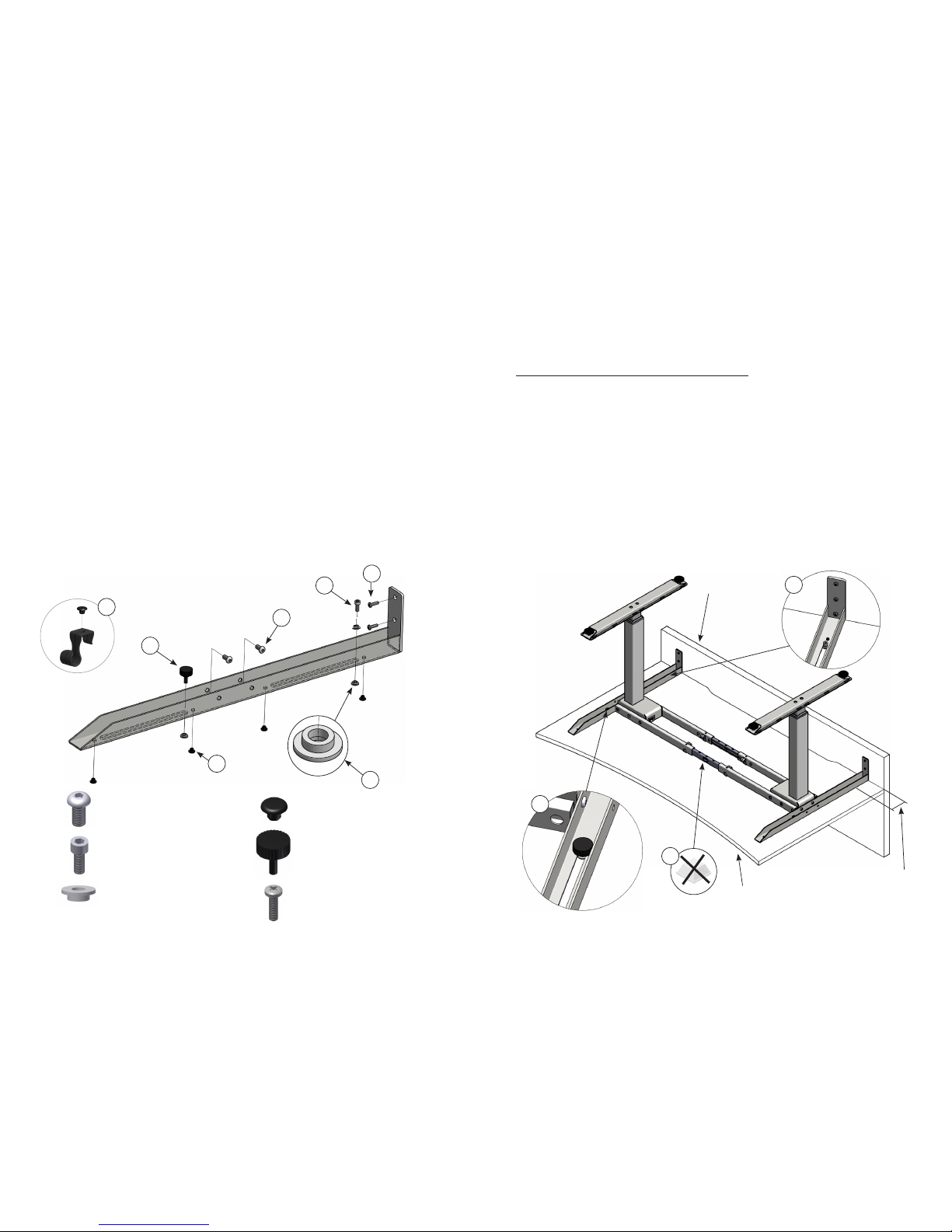

EFG Active - Sliding top (without screen)
Exploded overview of the different parts used for a sidebar with sliding
top without screen. The amount of parts are for both sidebars.
Mount the spacers in the Ø7-holes on the surface towards the table top.
Place the washers (C) from the same surface as the spacers and let
the smaller outer diameter be placed inside the slots. Use a second
one and place it on the inside with the screws. No second washer for
the Knob (E).
Cable hooks need to be upgraded with spacers (D). Illustration 1.
EFG Active - Sliding top (without screen)
Start with doing steps 1 and 2 from Frame assembly (Page 2 and 3).
Except bumbers, do NOT use these! (1)
Step 3 - Assembly Frame to table top.
Loosen screws in beams and adjust frame width symmetric. Match the
threaded inserts in table top with slots on the sidebars of the frame.
Use washer and screw (B) for the inserts positioned at the back of the
table top with the shortest distance to the edge (2). For the remaining
two inserts, use washer and knob (3) and screw (B) and washer.
Tighten the screws (x3) just enough so you will get a steady slide on
table top. Use knobs for releasing the table top when to slide.
4x same screw as in Step 2 (Page 3).
Screw M6x15 (x3)
Washer (x7)
Spacers (x8)
A=
B=
C=
D=
E= Knob (x1)
2
3
Shortest
distance
Towards user
(Front edge)
1
D
AB
C
C ( 3 )
C
Denna ritning får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan
eller eljest obehörigen användas. Överträdelse härav beivras med stöd av gällande lag.
This drawing must not be copied, loaned or shown to unauthorized persons without our permission.
This drawing is the property of EFG Europen Furniture Group.
No Qty Alteration CM noDate Sign
Monteringsanvisning - Skjutbar skiva
Utan skärmfäste
EFG Active
137997 1
2015-04-28
efgsmka 1:2
A3
Name
Customer
Drawing No.
Pos.
Drawn
Phone. [phone]
573 28 Tranås
Box 1017
Size
Name
Date.
E
Scale
Material/Surface.
Prod. group
Drawing no./Article no.
Dim.
Index
Qty.
0,1
0,1
Tol.
±
0,5- 3
3- 6
6- 30 0,2
Where tolerance is not specified: SS-ISO 2768-1 medium.
Nom. dim Tol.
±
Nom. dim Tol.
±
Nom. dim
400-1000 0,8
120- 400 0,5
30- 120 0,3 1,2
2
34000-8000
2000-4000
1000-2000
1. Control dimension
Denna ritning får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan
eller eljest obehörigen användas. Överträdelse härav beivras med stöd av gällande lag.
This drawing must not be copied, loaned or shown to unauthorized persons without our permission.
This drawing is the property of EFG Europen Furniture Group.
No Qty Alteration CM noDate Sign
Monteringsanvisning - Skjutbar skiva
Utan skärmfäste
EFG Active
137997 1
2015-04-28
efgsmka 1:2
A3
Name
Customer
Drawing No.
Pos.
Drawn
Phone. [phone]
573 28 Tranås
Box 1017
Size
Name
Date.
E
Scale
Material/Surface.
Prod. group
Drawing no./Article no.
Dim.
Index
Qty.
0,1
0,1
Tol.
±
0,5- 3
3- 6
6- 30 0,2
Where tolerance is not specified: SS-ISO 2768-1 medium.
Nom. dim Tol.
±
Nom. dim Tol.
±
Nom. dim
400-1000 0,8
120- 400 0,5
30- 120 0,3 1,2
2
34000-8000
2000-4000
1000-2000
1. Control dimension
E
1
Denna ritning får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan
eller eljest obehörigen användas. Överträdelse härav beivras med stöd av gällande lag.
This drawing must not be copied, loaned or shown to unauthorized persons without our permission.
This drawing is the property of EFG Europen Furniture Group.
No Qty Alteration CM noDate Sign
Monteringsanvisning - Skjutbar skiva
Utan skärmfäste
EFG Active
137997 1
2015-04-28
efgsmka 1:2
A3
Name
Customer
Drawing No.
Pos.
Drawn
Phone. [phone]
573 28 Tranås
Box 1017
Size
Name
Date.
E
Scale
Material/Surface.
Prod. group
Drawing no./Article no.
Dim.
Index
Qty.
0,1
0,1
Tol.
±
0,5- 3
3- 6
6- 30 0,2
Where tolerance is not specified: SS-ISO 2768-1 medium.
Nom. dim Tol.
±
Nom. dim Tol.
±
Nom. dim
400-1000 0,8
120- 400 0,5
30- 120 0,3 1,2
2
34000-8000
2000-4000
1000-2000
1. Control dimension

10 11
EFG Active - Sliding top (with screen)
Start with doing steps 1 and 2 from Frame assembly (Page 2 and 3).
Except bumbers, do NOT use these! (1)
Step 3 - Assembly Frame to table top.
Loosen screws in beams and adjust frame width symmetric. Match the
threaded inserts in table top with slots on the sidebars of the frame.
Use washer and screw (B) for the inserts positioned at the back of the
table top with the shortest distance to the edge (2). For the remaining
two inserts, use washer and knob (3) and screw (B) and washer.
Tighten the screws just enough so you will get a steady slide on table
top. Use knobs for releasing the table top when to slide.
4x same screw as
in Step 2 (Page 3).
Screw M6x15 (x3)
Washer (x7)
Spacers (x8)
A=
B=
C=
D=
E= Knob (x1)
F= Screw KXTB Ø5x20 (x6)
For mounting screen
2
3
Shortest
distance
Towards user
(Front edge)
Screen
EFG Active - Sliding top (with screen)
Exploded overview of the different parts used for a sidebar with sliding
top with screen. The amount of parts are for both sidebars.
Mount the spacers in the Ø7-holes on the surface towards the table top.
Place the washers (C) from the same surface as the spacers and let
the smaller outer diameter be placed inside the slots. Use a second one
and place it on the inside with the screws, not the Knob (E).
Cable hooks need to be upgraded with spacers (D). Illustration 1.
Use all three screws (F) for best result. Third screw not illustarted,
detailed illustration on page 11 with all screws (2).
Don´t tighten the screws (F) to hard. This will damage the
chipboardandthescreenwillnotbexedpropertothedesk.
1
D
A
B
C
C ( 3 )
C
Denna ritning får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan
eller eljest obehörigen användas. Överträdelse härav beivras med stöd av gällande lag.
This drawing must not be copied, loaned or shown to unauthorized persons without our permission.
This drawing is the property of EFG Europen Furniture Group.
No Qty Alteration CM noDate Sign
Monteringsanvisning - Skjutbar skiva
Utan skärmfäste
EFG Active
137997 1
2015-04-28
efgsmka 1:2
A3
Name
Customer
Drawing No.
Pos.
Drawn
Phone. [phone]
573 28 Tranås
Box 1017
Size
Name
Date.
E
Scale
Material/Surface.
Prod. group
Drawing no./Article no.
Dim.
Index
Qty.
0,1
0,1
Tol.
±
0,5- 3
3- 6
6- 30 0,2
Where tolerance is not specified: SS-ISO 2768-1 medium.
Nom. dim Tol.
±
Nom. dim Tol.
±
Nom. dim
400-1000 0,8
120- 400 0,5
30- 120 0,3 1,2
2
34000-8000
2000-4000
1000-2000
1. Control dimension
E
F
1
