Elan ViA 2-8.4 User manual

Revision A

© ELAN Home Systems 2006 • All rights reserved. i
Purpose of This Manual
This manual provides step-by-step installation instructions and connec-
tion examples, along with basic user information for installation and ongo-
ing use of the VIA®!2-8.4 Wireless 8.4” Color LCD Touch Panel. This
manual is written for the user of this equipment.
Organization
The following information is contained in this manual:
Certifications
Compliance Certifications
The VIA!2-8.4 computing device and any similarly-branded peripherals are
subjected to testing and quality controls to ensure that the devices will
perform as set forth in the published specifications. All VIA!2-8.4 devices
have been tested and designed to comply with the identified information
technology standards.
Regulatory Notices
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
Chapter 1 Provides an introduction to ELAN Home Systems’
VIA!2-8.4 Wireless 8.4” Color LCD Touch Panel,
along with a system description, system features
and system specifications. Describes the VIA!2-8.4
Wireless 8.4” Color LCD Touch Panel front & rear
panel controls and indicators, using the desktop
cradle and turning the touch panel ON or OFF. Also
provides motif style and button layout for the ELAN
user interface.
Chapter 2 Provides step-by-step instructions for setting the
the VIA!2-8.4 Wireless 8.4” Color LCD Touch Panel
timeouts, volume & brightness, screen calibration,
and battery power management.
Chapter 3 Describes the ELAN Network, gives a brief descrip-
tion of the VIA!2-SS1 System Station, & VIA!SC4
Four Port System Controller.
Preface

PREFACE VIA!2-8.4
ii © ELAN Home Systems 2006 • All rights reserved.
including interference that may cause undesired operation. To identify this
device, refer to the part, series, or model number on the product.
FCC Class B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference with radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence as follows:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Plug the equipment into an outlet on a circuit different from the
one connected to the receiver.
• Consult the dealer or an experienced radio or television techni-
cian
CE (EU) Declaration of Conformity
This product conforms to the essential protection requirements of the
European Council Directive 89/336/EEC that relates to electromagnetic
compatibility, EN55022:1998, Class B; and EN61000- 3-2, 3-3, 4-2, 4-3, 4-
4, 4-5, 4-6, 4-8, and 4-11.
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by device provider
can invalidate FCC approval.
Acknowledgements
Windows and Windows CE are registered trademarks of Microsoft Corpo-
ration. AMD is a registered trademark of AMD Corporation. All other trade-
marks and registered trademarks are property of their respective
corporations.

VIA!2-8.4 PREFACE
© ELAN Home Systems 2006 • All rights reserved. iii
Safety Summary
Please review the following material carefully. Failure to follow the instruc-
tions or failure to heed the warnings contained herein could lead to seri-
ous injury.
CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to
the instructions. Failure to comply may result in serious
injury.
Special Battery Cautions
The following are special precautions you should take when using and
handling batteries.
• Do not expose batteries to direct sunlight or extreme heat
• Do not submerge batteries in liquid
• Do not incinerate batteries
• Do not handle damaged or leaking battery packs
• Do not attempt to discharge batteries by short-circuiting them
• Do not attempt to charge batteries with a charger other than one
approved for use with the VIA!2-8.4
• Do not leave or operate the VIA!2-8.4 or VIA!2-8.4 batteries in an
excessively hot environment such as a closed vehicle under hot
sunshine or beside a fire, heater, or blow dryer. Do not leave the
VIA!2-8.4 exposed to excessive heat for any period of time.
Excessive heat exposure may result in melting, or cause the elec-
tronics/battery to overheat resulting in fire.
• Use only the supplied batteries and AC Adapter. Failure to follow
this instruction may result in battery burst or liquid leak, and may
cause fire, or injury.
• Store and Dispose of all batteries in accordance with the instruc-
tions contained herein. Never dispose of the battery by burning.
Any such action may result in excessive heating, explosion, or fire.
• Do not disassemble, modify, puncture, or strike any battery with
force or allow batteries to become wet. Any such action may
result in excessive heat, explosion, or ignition.
• If at anytime the VIA!2-8.4 batteries should smell, heat up,
become discolored, leak fluid, change shape, or experience an
abnormal occurrence, remove the battery from the VIA!2-8.4 and
do not use it.
• Should leaking fluid from the battery make contact with skin, eyes
or clothes, flush immediately with water. If there is contact with
eyes, seek medical treatment immediately. Failure to follow these
instructions may result in skin rash or significant eye damage.

PREFACE VIA!2-8.4
iv © ELAN Home Systems 2006 • All rights reserved.
CAUTION:
Replace only with the same type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions.
Rechargeable Lithium-ion Battery Disposal
Unwanted lithium-on battery packs may be returned to the battery manu-
facturer for disposal.
Caring For the VIA!2-8.4
To clean the VIA!2-8.4’s screen, first use a soft dry cloth to remove con-
tamination. If dirt is still present, use a damp cloth that has been squeezed
of excess water. If dirt is still present, spray a non-abrasive very mild or
highly diluted glass cleaning solution on to a damp cloth and re-clean. Do
not spray directly on the panel screen. Use of strong chemicals and/or
some cleaning agents may discolor the polyester film that makes up the
touch screen.
It is important to properly care for your VIA!2-8.4 wireless panel. Follow
these guidelines to ensure your device is preserved and protected.
• Avoid scratching the screen by always using the supplied stylus
or a plastic-tipped pen intended for use with touch sensitive
screens.
• Do not expose the VIA!2-8.4 to rain, liquids or moisture for an
extended period of time.
• Do not expose the VIA!2-8.4 to temperature extremes.
• Do not place any objects on top of the VIA!2-8.4 to prevent screen
damage.
Operating Temperatures & Environments
• Operating Temperature: 32-104°F (0-40° C)
• Humidity: 0-90%
Precautions
• Always exercise care when operating and handling the VIA!2-8.4.
• Do not apply excessive pressure to the display screen.
• ELAN strongly recommends that you do not touch the display
screen directly with your fingers. Oil from your fingertips may be
difficult to remove. Please use the stylus provided.
• Avoid exposing the panel screen to direct sunlight or other heat
source. Where possible, the VIA!2-8.4 should be facing away from
direct lighting to reduce glare.
• DO NOT use any 12 VDC adapter other than the one provided with
the device or acquired from the manufacturer or its distributors, to
recharge or power the touch panel.

VIA!2-8.4 PREFACE
© ELAN Home Systems 2006 • All rights reserved. v
• In the unlikely event that smoke, abnormal noise, or strange odor
is present, immediately power the VIA!2-8.4 off. Please report the
problem to your device provider immediately.
• Never attempt to disassemble the VIA!2-8.4. You will lose any
product warranty on the VIA!2-8.4.
Package Contents
• VIA!2-8.4 (with internal Battery Pack) and Stylus
• Protective Jacket
• 12 VDC Power Adapter
• Desktop Cradle/Recharging Station
• Power Cord (USA Type)
VIA!2-8.4 Power Source
The primary sources of VIA!2-8.4's power are the internal and optional
external battery packs. A DC-in jack connects the 12 VDC adapter with the
VIA!2-8.4 to recharge the battery pack. Both the VIA!2-8.4 and the charg-
ing cradle are equipped with a DC-in jack. The 12 VDC adapter can be
connected directly to the VIA!2-8.4 for charging and operation or con-
nected to the cradle so the battery packs may charge and the unit oper-
ates while the VIA!2-8.4 is docked in the cradle. Follow all precautions
listed in this manual when using, charging or disposing of batteries.
CAUTION:
Severe personal injury and equipment damage can result by not
following proper charging procedures. Recharge the panel using only
the 12 VDC adapter designated for the VIA!2-8.4.

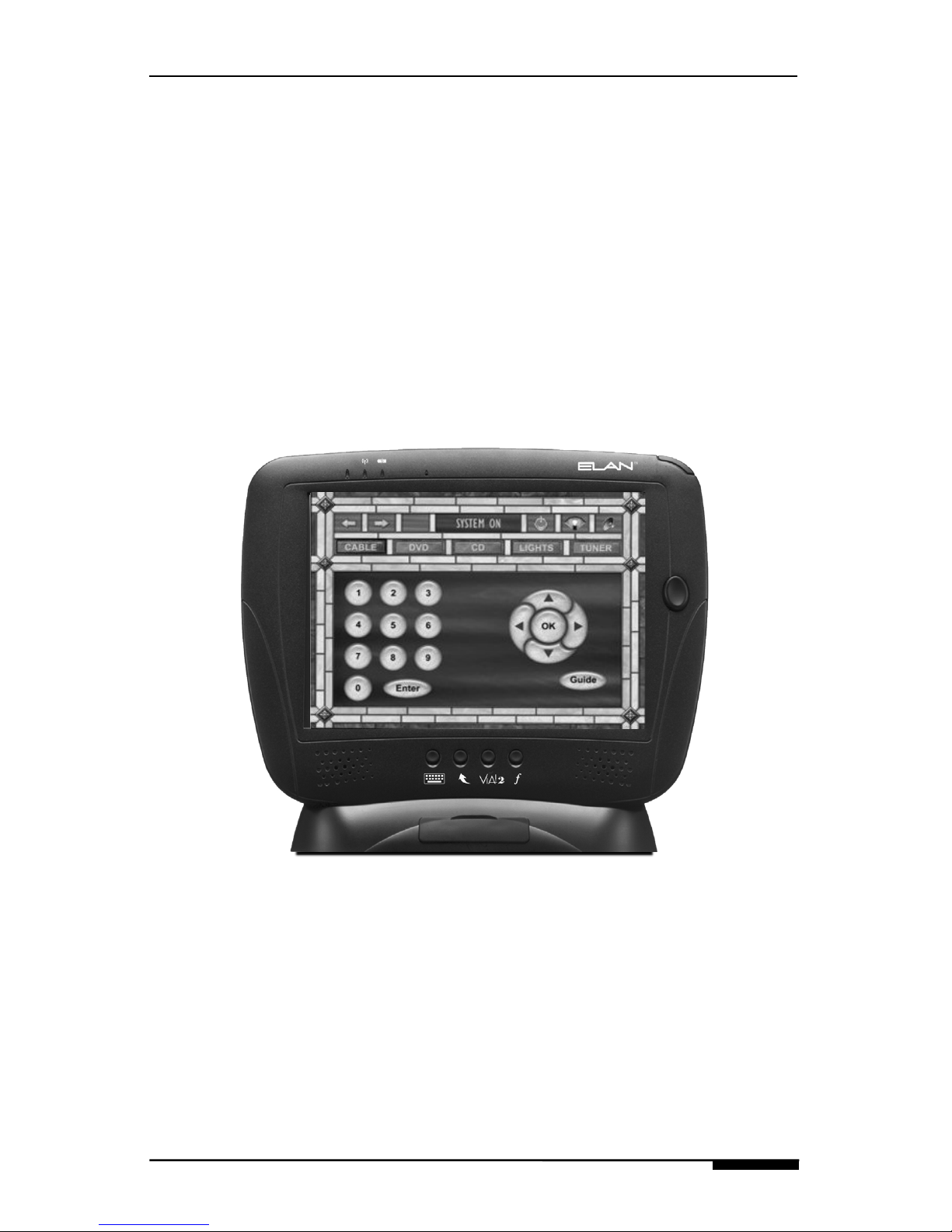

VIA!2-8.4 Display Screen
The VIA!2-8.4's specially enhanced display screen makes it the premium
choice in wireless displays. It provides SVGA (800x600) resolution on a
high brightness transmissive display with touch screen, while keeping
power draw to a minimum. The stylus for the VIA!2-8.4's touch screen is
located in the upper right corner of the panel.

PREFACE VIA!2-8.4
vi © ELAN Home Systems 2006 • All rights reserved.
Read information - All the safety and operating information should be read prior
to equipment operation.
Follow information - All operating and use information should be followed.
Retain information - All safety and operating information should be retained.
Heed Warnings - All the warnings on the equipment and operating instructions
should be heeded.
Ventilation - The equipment should be situated so that its location or position
does not interfere with proper ventilation. This equipment should never be placed
near a heat source. This equipment should not be placed in a cabinet that might
impede the flow of air through the ventilation openings.
Non-Use Periods - Equipment that is left unattended and unused for long peri-
ods of time should be de-energized.
Power Sources - The equipment should be connected to a power supply of the
type described in the in this manual or as marked.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instruction in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INFORMATION

VIA!2-8.4 CONTENTS
© ELAN Home Systems 2006 • All rights reserved. vii
Table of Contents
Chapter 1 VIA!®2-8.4 Wireless 8.4” Color LCD Touch
Panel
Introduction ...........................................................................................1-1
Touch Screen Technology ...........................................................1-2
Features ..........................................................................................1-2
Specifications ................................................................................1-3
Accessories ....................................................................................1-4
Operation ...............................................................................................1-5
Panel Buttons & Features ............................................................1-5
Control Surfaces ........................................................................1-7
Message Bar ..............................................................................1-9
Desktop Cradle ............................................................................1-10
12 VDC Adapter .......................................................................1-10
Screen Time-Outs & Battery Management ..............................1-11
Time-Outs ................................................................................1-11
Battery Conservation Tips ......................................................1-11
Battery Deep Discharge State ................................................1-12
Good Tips To Know ................................................................1-12
Screen Cleaning Information ..................................................1-13

CONTENTS VIA!2-8.4
viii © ELAN Home Systems 2006 • All rights reserved.
Table of Contents (Cont’d)
Chapter 2 VIA!2-8.4 Wireless Touch Panel System Set-
up
Introduction ...........................................................................................2-1
Volume and Brightness Settings ..............................................2-3
Calibrate Screen ........................................................................2-4
VIA!2-8.4 Touch Panel Time-outs .............................................2-6
Installer Setup ................................................................................2-7
Battery & Power Management ....................................................2-7
Low Battery Condition ..............................................................2-8
Chapter 3 The ELAN Network
Introduction ...........................................................................................3-1
VIA2-SS1 System Station ..........................................................3-1
Router ........................................................................................3-1
Wireless Access Point ...............................................................3-1
Limited Warranty ..................................................................... Back Page

© ELAN Home Systems 2006 • All rights reserved. 1-1
Chapter 1: VIA!®2-8.4 Wireless 8.4” Color LCD
Touch Panel
Introduction
The VIA!®2-8.4 is a wireless 8.4” color LCD touch panel remote control for
the ultimate in home theater control and local zone control. The VIA!2-8.4
Wireless 8.4” Color LCD Touch Panel provides the freedom to control your
home theater A/V, along with lighting, drapes, blinds and even tempera-
ture control from anywhere in your home theater using standard 802.11b/g
WiFi wireless networks. It is incorporated into your home theater solution
using a router, a wireless access point (WAP) and an ELAN VIA!2-SS1 Sys-
tem Station. As of this writing, an ELAN VIA!-SC4 System Controller would
be required for 2-way RS-232 feedback and control.
Figure 1-1 VIA!2-8.4 Wireless 8.4” Color LCD Touch Panel
VIA!2-8.4 graphics are designed to operate similarly to ELAN’s award win-
ning VIA! family of products. Its specially enhanced display screen makes
it the premium choice in wireless displays, providing SVGA (800x600) res-
olution on a high brightness transmissive display with touch screen, while
keeping power draw to a minimum.
The VIA!2-8.4 Wireless Touch Panel sits in a desktop cradle for support
and charging.
On the desktop cradle, you will find the following interfaces: a DC-in jack
for the 12 VDC adapter, two USB ports for keyboard and mouse input, (for
future applications).

USER’S GUIDE VIA!2-8.4
1-2 © ELAN Home Systems 2006 • All rights reserved.
Always seat the VIA!2-8.4 securely onto the cradle by placing the touch
panel directly over the connectors in the top of the cradle, holding the cra-
dle with the other hand and inserting the VIA!2-8.4 downward until the bot-
tom of the VIA!2-8.4 meets the cradle. When seated correctly the battery
LED will light blue.
NOTE: Two hands should be used when seating and
removing the VIA!2-8.4 Wireless Touch Panel from the
desktop cradle.
Touch Screen Technology
The VIA!2-8.4 Wireless Touch Panel runs on a high-performance proces-
sor. It is equipped with 64 MB of Flash ROM memory, 128 MB of SDRAM
and operates on Windows CE 5.0. It features an 8.4" SVGA (800x600) bril-
liant, touch-enabled display and with the internal battery pack, weighs in
at just under 2 pounds.
Features
• Wireless Touch Panel Control via Wireless 802.11b/g Home Net-
works
• Windows CE Embedded Operating System
• 8.4” 800x600 LCD Touch Screen
• IR and RS-232 Control Options With VIA!2-SS1 System Station &
VIA!-SC4 System Controller
• Rechargeable Internal Battery
• Desktop Cradle/Charging Station & Power Supply
• Easy, Powerful VIA!®Tools Programming
• Protective Jacket

VIA!2-8.4 USER’S GUIDE
© ELAN Home Systems 2006 • All rights reserved. 1-3
Specifications
Table 1-1 Specifications
Item Description
Display 8.4" High Brightness LCD, SVGA 800x600
Wireless LAN Internal 802.11b/g WiFi
SDRAM 64MB
Host Port USB HID compliant (Type A)
Viewing Angles 60º Up, 35º Down, 45º Left/Right from Center
Power 12VDC, 3.5A
Battery Lithium-Ion (Li-Ion)
Dimensions 9.6”(W)x7.9”(H)x0.8”(D)
Weight w/Internal
Battery
1.9 lbs
Operating Temperature 32-104°F (0°- 40°C)

USER’S GUIDE VIA!2-8.4
1-4 © ELAN Home Systems 2006 • All rights reserved.
Accessories
See your ELAN authorized dealer to purchase accessories for your VIA!2-
8.4 Wireless Touch Panel. The accessories below are currently being
offered by ELAN Home Systems:
Table 1-2 Accessories
Item Picture Description
ACC00101
12 VDC Power Adapter with Cord
Use to recharge battery or touch panel
operation through direct connection to
the touch panel or via the12 VDC Power
port on the Desktop Cradle. (US power
cord included).
ACC00503UK
ACC00504US
ACC00505EU
UK Version (Cord Only)
US Version (Cord Only)
EU Version (Cord Only)
ACC00606
Internal Battery Pack (Li-Ion, 14W)
Replacement or spare for internal bat-
tery pack.
ACC00607
External Battery Pack (Li-Ion, 20W)
External, snap-on battery pack - more
than doubles panel.
ACC00704
Protective Jacket with Shoulder Strap
Custom designed and fitted to protect
your touch panel.
ACC00810
Desktop Cradle
Touch panel docking and recharging
with AC power.
ACC00705
Stylus
Tool used to operate the touch panel
display. (3 pack).

VIA!2-8.4 USER’S GUIDE
© ELAN Home Systems 2006 • All rights reserved. 1-5
Operation
The VIA!2-8.4 Wireless Touch Panel is simple and intuitive to operate.
Each source can be custom programmed to work just the way the user
desires.
ELAN recommends using the provided stylus to operate the touch screen.
Avoid touching with your fingers, as oil from your fingertips can be difficult
to remove. The stylus for the VIA!2's touch screen is located in the upper
right corner of the panel.
Panel Buttons & Features
Figure 1-2: VIA!2-8.4 Wireless Touch Panel Buttons & Features
Table 1-3: Front Panel Buttons & Features
Item Item Description
A Battery
Indicator
Indicates power is on and VIA!2-8.4 is active.
Also indicates unit is docked in the desktop cra-
dle. A solid blue LED means panel is fully
charged, a blue LED flashing means battery is
charging. A solid amber LED means battery is
low, a flashing amber LED indicates battery
power critically low and the panel is preparing to
go in to turn off.

USER’S GUIDE VIA!2-8.4
1-6 © ELAN Home Systems 2006 • All rights reserved.
BNETWORKActiv-
ity Indicator
Indicates wireless network connection when
flashing.
C Antenna Provides greater signal strength when extended.
D Panel Standby
Button
Standby/Resume:
Push/release of the Power button toggles
between Standby & Resume. The system can-
not enter into Standby mode again within 30
seconds after Resuming.
Power On-Off/Boot:
Use the Power button to restart the VIA!2-8.4 in
the unlikely event of device lock-up. To execute,
push and hold the button until the unit powers
off (approx 4 seconds). Push Power again to
restart.
E Speakers Audible click feedback.
FKEYBOARD
Button
Brings up on-screen Keyboard.
G Task Bar Button Brings up the panel task bar. Selecting the Tool
icon displays user configurable settings.
H VIA!2 Button Returns to VIA!2 control screen.
I “f” Button Future use.
J 12V DC in Port Plug in for external the 12 VDC adapter.
K Multiple Function
Button
This 4-way button (Up/Down Left/Right) is used
for common functions, i.e. Volume and Channel
Up/Down.
LMUTE
Button
Mutes audio in zone.
M Stylus Wand Used to make operator selections.
N Protective Jacket Protect touch panel from inadvertent damage.
Table 1-3: Front Panel Buttons & Features
Item Item Description

VIA!2-8.4 USER’S GUIDE
© ELAN Home Systems 2006 • All rights reserved. 1-7
Control Surfaces
The VIA!2-8.4 Wireless Touch Panel uses three different display styles or
“motifs”. Motif styles A and B display the Source Select buttons on the left
side of the screen. Motif style C places the Source Select buttons across
the top of the screen just below the message bar. Since every VIA!2-8.4
Touch Panel can be designed to reflect your personal preferences and the
type of source components you are using, button placement in the figure
below may be different from the touch panel you have designed.
Figure 1-3 Control Surfaces
1
Source Select
Buttons
3
Mute
Button
6
Message Bar
2
Function Buttons
5
Zone/System
Off Button
1
Source Select
Buttons
4
Lights
Button
8
System Bar Buttons
7
Previous/Next
Source Page
Motif Style C
Motif Styles A & B
2
Function
Buttons
7
Previous/Next
Source Page
4
Lights
Button
2
Function
Buttons
6
Message Bar
5
Zone/System
Off Button

USER’S GUIDE VIA!2-8.4
1-8 © ELAN Home Systems 2006 • All rights reserved.
Table 1-4: VIA!2-8.4 Touch Panel Control Surface Buttons
Item # Name Description
1 Source Select Buttons Press to select the A/V source or house-
hold system that you wish to control.
2 Function Buttons Allow you to control the source selected.
3 Mute Button Mutes audio in zone.
4 Lights Button Controls one light directly when pressed,
or brings up a Lighting Control Function
Page for controlling many lights.
5 Zone/System Off Button Used to power on or off some or all sys-
tems in your ELAN Network.
6 Message Bar Provides system status feedback.
7 Previous/Next Source
Page
Scrolls back and forth between Source
Pages.
8 Function Page Select
Buttons
Each source can have multiple Function
Pages. For example, If CD is your
Source, selecting the Direct Function
Page button would bring up a 10-key
numeric keypad that would allow direct
access to any track on the CD disc.
9 *System Bar Buttons These handy buttons appear in the same
location regardless of what Source is
selected, giving you room Volume UP/
DOWN, MUTE and two additional com-
mands (i.e. Channel UP/DOWN).
* Only available on Motif Style A & B.
When using Motif Style C, Volume Up/Down and Channel Up/Down is accom-
plished using the Multiple Function button located on the front panel.

VIA!2-8.4 USER’S GUIDE
© ELAN Home Systems 2006 • All rights reserved. 1-9
Message Bar
The table below provides a description of the system status symbols and
descriptions found in the Message Bar on the VIA!2-8.4 Wireless Touch
Panel.
Table 1-5: Message Bar System Status Symbols
Status Symbol Description
Audio detected
Audio detected/source is being shared in another
zone
Audio not detected
Zone is in Mute
Zone is in Do-Not-Disturb. (no door chimes or
paging allowed)
ELAN system is ON
ELAN system is OFF
All the zones in the house are grouped to a single
source you
When pressed, returns to the last selected source
on the VIA!2-8.4 panel
Message occurs when the communication link
between the VIA!2-8.4 Touch Panel and VIA!2-SS1
System Station is lost. Moving back into the wire-
less coverage area will re-establish the communi-
cation link
Indicates loss of communication with the SC4
System Controller
Indicates that the VIA!TOOLS program download
between the VIA!2-8.4 and VIA!2-SS1 System Sta-
tion do not match.
WHM
SEARCHING...
V-NET ERROR
CONFIG MISMATCH

USER’S GUIDE VIA!2-8.4
1-10 © ELAN Home Systems 2006 • All rights reserved.
Desktop Cradle
The VIA!2-8.4 comes with a convenient desktop cradle/charging station
that holds the touch panel and charges the battery.
NOTE: Always carefully seat the VIA!2-8.4 securely onto the
cradle using two hands to avoid damaging the contact
pins on the cradle.
12 VDC Adapter
You can also charge the battery by connecting the 12 VDC adapter directly
into the 12V (DC in) port on the VIA!2-8.4.
Figure 1-4: Desktop Cradle/Charging Station
