VL10
Tabletop/Under-Cabinet
10” Color Touch Screen
INSTALLATION MANUAL






Important Safety Instructions 17. The power supply cord (sometimes referred to as the
“Mains Plug”) is used as the disconnect device and shall
remain accessible and operable at all times.
1. Read these instructions. 18. Do not expose batteries to excessive heat such as
sunshine, fire or the like.
2. Keep these instructions. 19. Open flame sources, such as lighted candles, should NOT
be placed on the apparatus.
3. Heed all warnings.
4. Follow all instructions. WARNING: To reduce the risk of fire
or electric shock, do not expose this
apparatus to rain or moisture.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth. The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades
and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet. The exclamation point within an
equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles and the point
where they exit from the apparatus. FCC Required Text:
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate, radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during
lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
15. Do not expose this apparatus to dripping or splashing and
ensure that no objects filled with liquids, such as vases, are
placed on the apparatus.
—Consult the dealer or an experienced radio/TV technician
for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment
16. To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from the AC
receptacle.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 2  
TableofContents
Introduction............................................................................................................3
TouchScreenTechnology............................................................................3
Features...............................................................................................................3
PackageContents.............................................................................................4
MovableSwivelDisplay................................................................................4
PowerButton.....................................................................................................6
MiniUSBPort....................................................................................................6
Planning....................................................................................................................7
SystemWiring........................................................................................................8
Wiring...................................................................................................................8
VideoTerminationSwitch......................................................................9
UnderCabinetInstallations....................................................................9
PowerSupplyOptions...........................................................................10
CableStrainRelief...................................................................................10
nderCabinetInstallation.............................................................................11U





ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 3  
Introduction
The VL10 Tabletop/Under-Cabinet Color Touch Panel is an affordable
interface for controlling audio, video, and automation equipment in a
multi-room or Home Theater environment. Whether it’s on a desk in a
home office, a nightstand by the bed, or in the kitchen on the counter or
mounted under a cabinet, the VL10 is the right choice.
TouchScreenTechnology
The VL10 utilizes a polyester plastic film suspended over a glass panel,
which is then adhered to the front of a color LCD (Liquid Crystal Display)
screen. Depressing the polyester film with a finger allows the film to
touch the glass panel underneath, generating a location signal that is
read by the electronics. The 10-inch diagonal color LCD display is an
active matrix TFT Liquid Crystal Display. Please use fingers only when
operating this unit. Do not use pens, pencils, or styluses as these
may damage the polyester film.
Features
•Ideal for Desk or Countertop Use
•Mounts Easily Under Cabinetry
•Folds Down Flat and Out of the Way
•135 Back/Front 45°- 330°Left/Right Display Swivel
•Full Touch Screen Capabilities
•Full Motion Color Video Capabilities, Widescreen, Landscape Aspect Ratio
•10 Inch Color Active Matrix TFT Liquid Crystal Display
•Easy, Powerful g!®Tools Programming




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 4  
PackageContents
A. Mounting Template (Part # 9801872)
B. Mounting Hardware
C. Finishing Washers
D. VL10
E. VL 10 Precision Panel
F. Cable Assembly (Part # 7600205)
Figure 1-1: Package Contents
MovableSwivelDisplay
The VL10 display pivots back 90° on a central axis as shown below in
Figure1-2, it also pivots forward 45° from its central axis as shown in
Figure1-3. The display rotates up to 330° from stop to stop about the
vertical axis, allowing you to view the display from almost anywhere in
the room as shown in Figure1-3. When the VL10 is not being used,
simply rotate the display back to the stowed position. This feature helps
protect the polyester plastic film display from environmental damage
such as grease splatter.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 5  
Figure 1-2: Back to Front Pivoting Display
Figure 1-3: Display Rotation




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 6  
PowerButton
The power button has two functions. The first function is to turn the
VL10 off and on. To turn the VL10 on, press and release the power
button, the red light beneath the power button will come on and the VL10
will startup. To turn the VL10 off, press and hold the power button for
approximately 5 seconds until the VL10 shut downs. The second function
is to toggle the back light off and on while the VL10 is in operation. This
function can be activated by pressing and releasing the power button.
See figure 1-4 for the power button location.

MiniUSBPort
The mini USB port is not used during normal operation. See Figure 1-4.
Figure 1-4: Display Rotation




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 7  
Planning
The VL10 can be installed and placed on almost any flat surface such as
a desk, table or countertop, or easily mounted underneath a cabinet.
Because it folds flat, the VL10 can be tucked neatly out of view when not
in use.
When planning specific under cabinet installation locations for LCD
Touch Panels, please keep the following tips in mind:
•When properly installed, nothing should be applying contact pressure to
the touch panel except for the operator’s finger. If something is touching
the touch screen window, a false signal can be generated causing the touch
panel to respond incorrectly.
•Avoid installation in direct sunlight or strong ultraviolet light (such as grow
lamps for plants). This can degrade or discolor the polyester film.
•Avoid installation over heat generating devices and/or in moist areas where
condensation can form on the polyester film.Both heat and condensed
moisture can affect touch screen performance.
•The touch panel/LCD assembly should not be mounted near electronics
that emit radio frequencies orelectromagnetic interference (such as CRT
monitors, light dimmers, and some power supplies).
•Do not mount the VL10 outdoors or in areas exceeding its operating
temperature range of -10°F (-23°C) to +115°F (+46°C). If the LCD display is
over-heated or its temperature reduced below its recommended minimum,
the liquid crystal polymer can be damaged and the display image may not
recover.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 8  
SystemWiring
Wiring
The VL10 requires power, Ethernet and optionally, video connections.
The VL10 comes with a Precision Panel and a 12’ Cable Assembly to
simplify the installation. See Figure 3-1 and Figure 3-2 for more wiring
details.
Figure 3-1: VL10 Wiring Example




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 9  

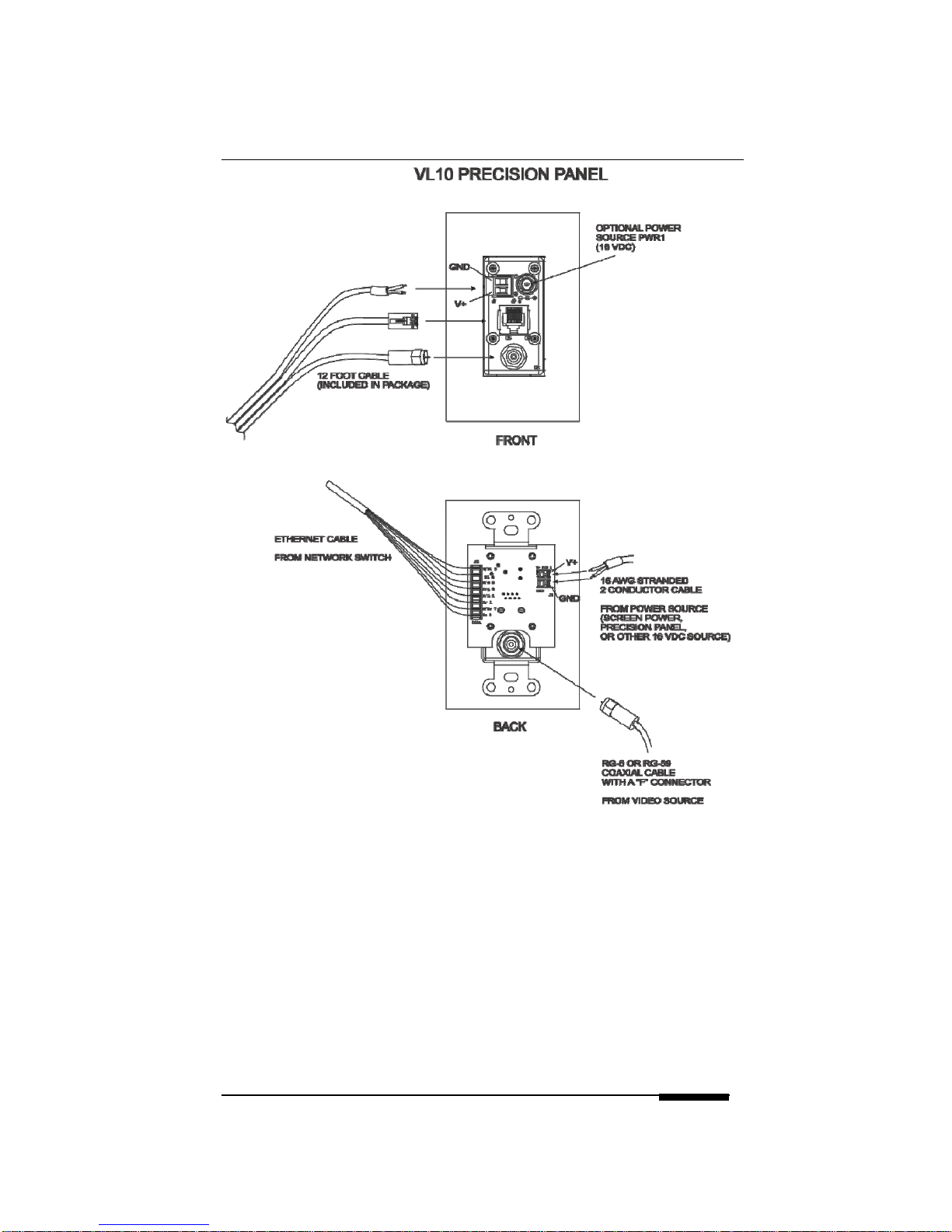

Figure 3-2: VL10 Precision Panel Wiring Example
VideoTerminationSwitch
When the video signal coming into the VL10 Touch panel is to be looped
back out of the panel to another Touch Panel or TV, an
F connector (VIDEO OUT) is provided. The Video Termination Switch
must be moved from the factory default to the OPEN position.
UnderCabinetInstallations
For under cabinet installations you may choose to wire the panel directly
and not use the VL10 Precision Panel and the Cable Assembly.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 10  
PowerSupplyOptions
The VL10 Precision Panel allows for power to be supplied from a remote
or a local source. If you choose to power the VL10 locally you will need
to purchase a PWR1.
CableStrainRelief
The VL10 has a cable clamp system on the underside of the base cover,
along the rear edge. After the cables have been connected, loosen the
clamp screw and place the Ethernet and power cables into the cutouts.
Tighten the clamp screw to hold the cables in place. Do not over
tighten.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 11  
UnderCabinetInstallation
The VL10 is ideal for use installed underneath a kitchen or workshop
cabinet. This instruction assumes all pre-wiring has been previously
completed. To install VL10 under a cabinet:
1. Choose an appropriate mounting location underneath desired
cabinet or shelf.
2. Remove and remount the ELAN badge. Remove (2) screws from
rear panel location as shown in Figure 4-1. Remove the ELAN
badge, rotate it 180 degrees and replace. Tighten mounting
screws carefully. DO NOT OVER TIGHTEN.

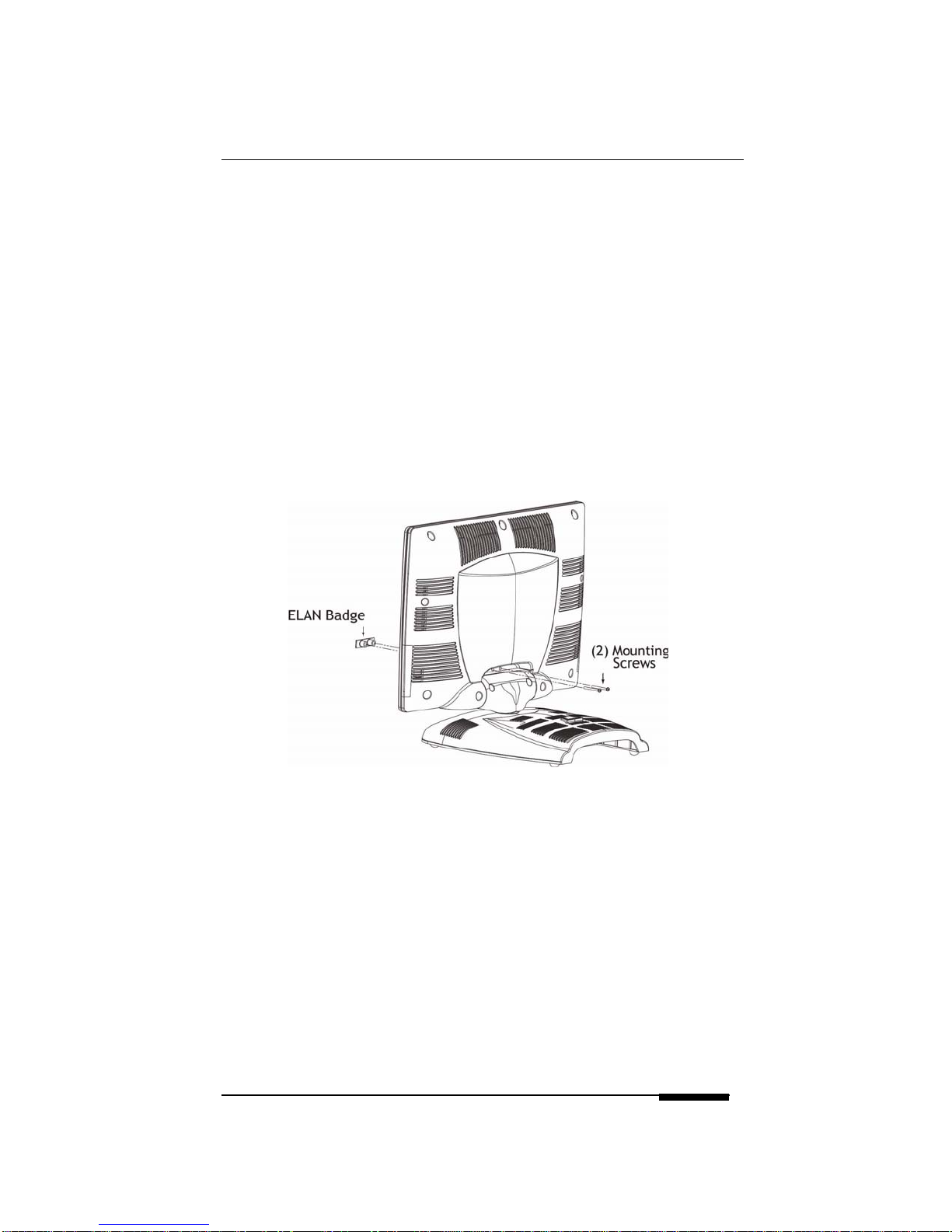

Figure 4-1 Badge Removal
3. Invert the image and touch screen input by placing the switch in
the rear most position, as shown in Figure 4-2.




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 12  
Figure 4-2 Image Inversion Switch
4. Measure the thickness of the bottom of the cabinet or shelf. Select
the shortest screw length that will pass completely through the cup
washer and cabinet shelf. Screw length must protrude from
underside of cabinet less than 0.5 inch. See Figure 4-4.
5. Using the provided VL10 Adhesive Backed Vinyl Mounting
Template, remove the protective backing material and carefully
place the template in position the bottom side of the cabinet. Make
sure the arrow on the template is pointing toward the forward edge
of the cabinet, as shown below in Figure 4-3. Drill out the 4 holes
shown on the template with a 3/16” drill bit.
Figure 4-3: Template Center Marks




ELAN HOME SYSTEMS VL10

© ELAN Home Systems 2011 • All rights reserved. Page 13  
6. Remove the factory installed screw-in rubber feet from the
underside of the VL10.
Figure 4-4: Remove Feet
7. Make the required cable connections (Power, Ethernet and
optional Video) to the rear of the VL10.
8. Install the #6-32 screws through the cabinet bottom to the VL10
base. Secure the VL10 to the cabinet by tightening the four
screws by hand. DO NOT OVER TIGHTEN.
Figure 4-5: Base Mounting





ELAN HOME SYSTEMS VL10
Figure 4-6: Under Cabinet Mount
NOTE: A VL10 may replace a previously installed VIA!Valet64
VIA!Valet100 with no modifications to the cabinet. Two extra
holes are provided on the base plate of the VL10 that will allow
the mounting holes to align exactly when upgrading from a
VIA!Valet64. The hole pattern for the VL10 and the VIA!Valet100
are identical.
© ELAN Home Systems 2011 • All rights reserved. Page 14


Limited Warranty
ELAN HOME SYSTEMS L.L.C. (“ELAN”) warrants the Valet10/VL10 to be free from defects in
material and workmanship for the period of two years (2 years) from date of purchase. If within the
applicable warranty period above purchaser discovers that such item was not as warranted above
and promptly notifies ELAN in writing, ELAN shall repair or replace the item at the company’s option.
This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment which
shall have been installed by other than an ELAN authorized installer, (c) to installed equipment which
is not installed to ELAN’s specifications, (d) to equipment which shall have been repaired or altered
by others than ELAN, (e) to equipment which shall have been subjected to negligence , accident, or
damage by circumstances beyond ELAN’s control, including but not limited to lightning, flood,
electrical surge, tornado, earthquake, or other catastrophic events beyond ELAN’s control, or to
improper operation, maintenance or storage, or to other than normal use of service. With respect to
equipment sold by, but not manufactured by ELAN, the warranty obligations of ELAN shall in all
respects conform to the warranty actually extended to ELAN by its supplier. The foregoing warranties
do not cover reimbursement for labor, transportation, removal, installation or other expenses which
may be incurred in connection with repair or replacement.
Except as may be expressly provided and authorized in writing by ELAN, ELAN shall not be subject
to any other obligations or liabilities whatsoever with respect to equipment manufactured by ELAN or
services rendered by ELAN.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED
AND IMPLIED WARRANTIES EXCEPT WARRANTIES OF TITLE, INCLUDING BUT NOT LIMITED
TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
ATTENTION: TO OUR VALUED CUSTOMERS
To ensure that consumers obtain quality pre-sale and after-sale support and service, ELAN
Home Systems products are sold exclusively through authorized dealers. ELAN products are
not sold online. The warranties on ELAN products are NOT VALID if the products have been
purchased from an unauthorized dealer or an online E-tailer. To determine if your ELAN
reseller is authorized, please call ELAN Home Systems at [phone].
