Elation Design LED 36 Brick User manual

Rev. 1/4/2010 – visage
Design LED 36 Brick
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com
TABLE OF CONTENS
1. General Information……………………………………………………………………… 2
a. Introduction………………………………………………………………………. 2
b. Unpacking………………………………………………………..…...………..…2
c. Customer Support…………………………………………….………………… 2
d. Warranty Registration……………………………………………….……..…… 3
2. Safety Instructions………………………………………………………........…………. 4
3. Features……………………………………………………………………………………6
4. General Guidelines………………………………………………………………………. 7
5. Fixture Overview…………………………………………………………………………. 8
6. Mounting and Installation…………………………………………………….…….…….10
a. Yoke Assembly…………………………………………………….……………..10
b. Mounting Positions……………………………………………….………………12
c. Mounting Points…………………………………………………………………. 13
d. Clamp Mounting…………………………………………………………………. 14
e. Securing………………………………………………………………………….. 14
7. Understanding DMX……………………………………………………………………... 15
a. DMX Connections………………………………………………………………. 16
b. DMX Terminator………………………………………………………………….17
c. 3-Pin to 5-Pin Conversion……………………………………………………….17
d. Fixture DMX Addressing.……………………………..…………………………17
8. Fixture Menu..…………………………………………………………………………… 19
9. DMX Traits…………………………………………………………………………………21
a. 3-Channel Mode………………………………………………………………… 21
b. 4-Channel Mode…..…………………………………………………………..… 22
c. 6-Channel Mode………………………………………………………………….23
d. 12-Channel Mode…..…………………………………………………………… 24
e. 15-Channel Mode…..…………………………………………………………… 27
10. Lens Replacement……… ……………………………………………………………… 30
11. Cleaning and Maintenance………………………………………………………………31
12. Warranty…………………………………………………………………………………...32
13. Photometric Data………………………………………………………………………… 34
14. Dimensional Drawings………………………………………………….……………….. 36
15. Circuit Schematic………...……………………………………………………………….37
16. Technical Specifications…………………………………………...………….………… 38

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable LED fixtures on the market today! The Design LED 36 Brick,™ has been designed to
perform reliably for years when the guidelines in this booklet are followed. Please read and
understand the instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information regarding safety during
use and maintenance.
UNPACKING: Thank you for purchasing the Design LED 36 Brick™ by Elation
Professional®. Every Design LED 36 Brick™ has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for damage and be sure all accessories necessary to operate the fixture have
arrived intact. In the event damage has been found or parts are missing, please contact our
customer support team for further instructions. Inside the box you should find: the fixture, a
DMX XLR cable, a safety cable, and this manual. Please do not return this unit to your
dealer without first contacting customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com
yourself. Doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The Design LED 36 Brick™ carries a two year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com
2. SAFETY INSTRUCTIONS
To guarantee proper and consistent operation, it is important to
follow the guidelines in this manual. Elation Professional will not
accept responsibility for damages resulting from the misuse of
this fixture due to the disregard of the information printed in this
manual.
1. Always be sure that the fan and the air inlets remain clean and are never
blocked. Allow about 6” (15cm) between this fixture and other devices or a wall
to allow for proper cooling.
2. Never touch the fixture during normal operation.
3. Never look directly into the light source. You risk injury to your retina, which may
induce blindness.
4. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the Design LED 36 Brick™ without suited safety aids such
as safety cables or clamps can increase the risk of damage and/or personal
injury.
5. Qualified and certified personnel should only perform installation.
6. When mounting this fixture, use only the original rigging points included with this
fixture. Any structural modification will void the original manufactures warranty
and may increase the risk of damage and/or personal injury.
7. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
8. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
9. Never open this fixture while in use.
10.This device falls under protection-class I. Therefore it is essential that the device
be grounded properly.
11.Qualified personnel should perform all electrical connections.
12.Be sure the available voltage matches the voltage requirements of the unit. Be

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com
sure the power cord is never crimped or damaged. If the power cord is damaged,
replace it immediately with a new one of similar power rating.
13.Always disconnect from main power before performing any type of service or
any cleaning procedure.
14.Only handle the power cord by the plug. Never pull out the plug by tugging the
wire portion of the cord.
15.Please be aware that damages caused by modifications to the device are
not subject to warranty.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com
3. FEATURES
• 25˚ Lens Kit Standard (14˚ Beam Angle)
• 45˚ Optional Lens Kit (15˚ Beam Angle)
• Minimal heat emission
• Maintenance free operation
• Equipped with 12 3-Watt LEDs (4 x Red, 4 x Green, 4 x Blue)
• 100,000 hours rated LED life
• Seamless RGB color changing
• USITT DMX-512 Complaint
• Preprogrammed colored macros
• Strobe-effect with a maximum flash rate of 18fps
• DMX-controlled operation or stand-alone operation with Master/Slave-function
• 8 built-in programs can be called up via DMX-controller
~ 48 preprogrammed scenes per a program
• Sound-controlled via built-in microphone
• Five DMX Control Modes:
15 DMX channels
12 DMX channels
6 DMX channels
4 DMX channels
3 DMX channels
• DMX-control via standard DMX-controller
• 3-pin and 5-pin DMX connectors
• Flicker-free operation for television and film
• Compact design: fits in 12” box truss
• Brilliant light output

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, and other types of architectural installations. Do not attempt operation or
installation without a proper knowledge on how to do so.
This fixture was designed for indoor use only; use of this fixture outside will void the
manufacture’s warranty.
Consistent operational breaks will ensure that the fixture will function properly for many
years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the fixture.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat
surface should be at least 0.5 meter (about 1.5ft).
Always install the fixture with an appropriately rated safety cable. When installing the fixture
in a suspended environment always be sure to use mounting hardware no less than M10 x
25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.
Do not attempt to operate this fixture until you have familiarized yourself with all of its
functions.
Do not permit operation by persons not qualified for operating this type of theatrical fixture.
Most damages are the result of improper operation.
Please use the original packaging to transport the fixture in for service.
For your own safety, please read this user manual carefully before installing the device.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com
5.FIXTUREOVERVIEW
1. LED Lens Assembly – The lens assembly may be user replaced in the event repair
is needed or a different beam angle is required.
2. Lens Cover –This cover holds the lens assemblies in place and is easily removed.
3. Hanging Bracket Locking Knob – This knob is used to secure the hanging bracket
in to place.
4. On/Off Power Switch – Controls main power to the unit.
5. Power Output Jack – Use this jack to jump power to another Design LED 36 Brick™

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com
in an array system.
6. Power Input/Fuse Holder Assembly – This assembly holds the safety fuse and
provides a female IEC connector for power. If needed, always replace fuse with an
exact match unless otherwise specified by an Elation Service Technician. Using a
fuse other than that specified could damage the unit and will void your warranty.
7. Eyebolt – Use this bold as a safety-cable rigging point. Always secure any
installation with a properly rated safety-cable.
8. Menu Button – This button is used to access the fixtures menu functions.
9. Up Button – The up button is used to toggle forward through the menu functions and
settings.
10. Down Button – The down button is used to toggle backwards through the menu
functions and settings.
11. Enter Button – The enter button is used to enter in to a certain menu function or to
lock a menu setting in to memory.
12. LED Display – 4-segment menu display. Used to display the DMX address as well
as all other menu functions.
13. 5-pin DMX In Jack – This jack accepts an incoming DMX signal via a male, 5-pin
XLR jack.
14. 5-pin DMX Out Jack –This jack is used to send an incoming DMX signal to the next
fixture in the DMX chain via a female, 5-pin XLR jack.
15. 3-pin DMX Out Jack –This jack is used to send an incoming DMX signal to the next
fixture in the DMX chain via a female, 3-pin XLR jack.
16. 3-Pin DMX In Jack – This jack accepts an incoming DMX signal via a male, 3-pin
XLR jack.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 10 www.ElationLighting.com
6. MOUNTING AND INSTALLATION

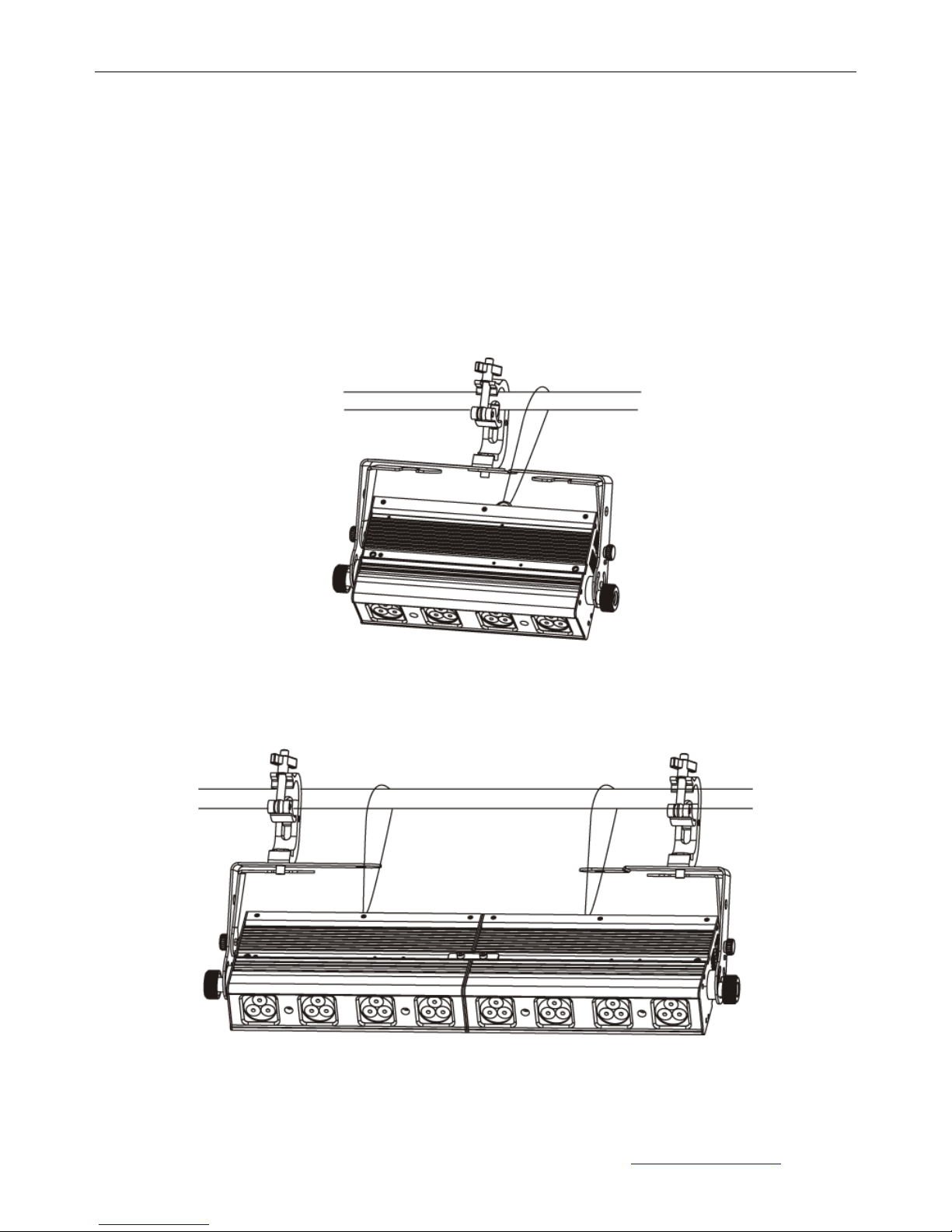

Yoke Assembly – Single Unit Operation
The device can be placed directly on the stage floor or rigged in any orientation on a truss
without altering its operation characteristics. When connecting the hanging yoke to the
fixture, refer to the illustration below.
Yoke Assembly – Multiple Unit Operation
You can connect up to four Design LED Bricks together in a bar assembly. To connect
multiple units together use the included mounting hardware and refer to the diagram below.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 11 www.ElationLighting.com
Please note: To ensure maximum stability, no more than for units should be mounted
together in this fashion. Connecting more than four units will result in an unstable
assembly, which could collapse and damage the units.
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, and
away from areas were the fixture might be reached by unauthorized personal.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
To avoid injury, never stand directly below the device when mounting, removing, or servicing
the fixture.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217
for proper installation in Europe To ensure proper installation, only
qualified staff should attempt installation.
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, a fine knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If you lack these qualifications, do
not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure a qualified electrician performs all electrical
connections.
Be sure to complete all rigging and installation procedures before connecting the main

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 12 www.ElationLighting.com
power cord to the appropriate wall outlet.
Mounting
The Design LED Brick™ is fully operational in any mounting position, hanging upside-down
from a ceiling, side mounted, or set on a flat level surface, etc. Be sure this fixture is kept at
least 0.5m away from any flammable materials (decoration etc.). When clamp mounting;
always use and install the supplied safety cable as an added safety measure to prevent
accidental damage in the event of a clamp failure. See the image below.
Clamp Mounting
The Design LED Brick™ provides a unique mounting bracket assembly that allows the unit
to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple units
to rigged together (see the illustration below). Regardless of the mounting option you choose

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 13 www.ElationLighting.com
please refer to the safety guidelines in this manual to avoid damage to the unit and/or injury
to persons.
When mounting this fixture to truss be sure to secure an appropriately rated clamp to the
hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an
added safety measure be sure to attach at least one properly rated safety cable to the fixture.
See illustrations below.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 14 www.ElationLighting.com
Securing the Design LED Brick™
Always be sure to secure your fixture with a safety cable when
suspending the unit from truss or other means. The fixture
provides a built-in rigging point for a safety cable as illustrated
above. Be sure to only use the designated rigging point for the
safety cable and never secure a safety cable to the hanging
bracket.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 15 www.ElationLighting.com
7. UNDERSTANDING DMX
DMX-512:DMX is short for Digital Multiplex. This is a universal protocol used by lighting and
controller manufactures as a form of communication between intelligent fixtures and
controllers. DMX allows all makes and models of different manufactures to be linked
together and operate from a single controller. This is possible as long as all the fixtures and
the controller are DMX compliant. A DMX controller sends the DMX data instructions to a
fixture allowing the user to control the different aspects of an intelligent light. DMX data is
sent out as serial data that travels from fixture to fixture via data “IN” and “OUT” XLR
terminals located on the fixtures (most controllers will only have output jacks).
DMX Linking: To ensure proper DMX data transmission, always use proper DMX cables
and a terminator, never use microphone cables. When using several DMX fixtures try to use
the shortest cable path possible. Never split a DMX line with a “Y” style connector. The order
in which the fixtures are connected in a DMX line does not influence the DMX addressing.
For example; a fixture assigned a DMX address of 1 may be placed anywhere in the DMX
chain, at the beginning, at the end, or anywhere in the middle. The DMX controller knows to
send data assigned to address 1 to that fixture no matter where it is located in the DMX
chain. The Design LED 36 Brick™ can be controlled via DMX-512 protocol. The Design LED
36 Brick™ is a fixture that can operate in five different DMX modes; 3, 5, 6, 12, or 15
channels (see page 22 for the different DMX operations). The DMX address is set
electronically using the controls on the LED menu.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): Your
fixture and your DMX controller require a standard 3-pin or 5-pin XLR connector for data
input and data output (the illustration on the next page is of a 3-Pin XLR connector). If you
are making your own cables, be sure to use two conductor shielded digital DMX cable rated
at 120 ohms, this cable is designed for DMX transmission and may be purchased from your
Elation dealer or at most professional lighting retailers. Your cables should be made with a
male and female XLR connector on either end of the cable. Also, remember that a DMX line
must be daisy chained and cannot be split, unless using an approved DMX splitter such as
the Elation Opto Branch 4™ or DMX Branch/4™.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 16 www.ElationLighting.com
Be sure to follow the above figure when making your own cables. Do not use the ground lug
on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the
shield could cause a short circuit and erratic behavior.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the fixture (Please refer to the diagram below.). You
can chain multiple fixtures together through serial linking. The cable needed should be two
conductor, shielded cable with XLR input and output connectors. Always be sure daisy chain
your in and out data connections, never split or “Y” your DMX connections unless you are
using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 17 www.ElationLighting.com
DMX-512 connection with DMX terminator
A DMX terminator should be used in all DMX lines especially in longer runs. The use of a
terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt
resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy
chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease
the possibilities of erratic behavior.
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA
transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX
line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must
be used, these adaptors are readily available at most electric stores. The following chart
details a proper cable conversion.
Fixture DMX addressing;
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 18 www.ElationLighting.com
channel number from which the fixture starts to “listen” to the digital control information sent
out from the DMX controller. The allocation of this starting DMX address is achieved by
setting the correct DMX address on the digital display located on the back of the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different
address for each individual fixture. Be advised that setting all you fixtures to the same DMX
address will subsequently control all fixtures in the same fashion, in other words, changing
the settings of one channel will affect all the fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the
channel number you have set, based on the quantity of control channels (DMX channels) of
each fixture. That means changing the settings of one channel will only affect the selected
fixture.
In the case of the Design LED 36 Brick™, which is up to a 15 channel fixture, you should set
the starting DMX address of the first unit to 1, the second unit to 16 (15 + 1), the third unit to
31 (15 + 16), and so on.
Note: During start-up the Design LED 36 Brick™ will automatically detect whether a DMX
data signal is being received or not. If a DMX data signal is being received, the display will
show "A.XXX" (XXX representing the actual DMX address). If the fixture is not receiving a
DMX signal the display will flash "A.XXX" (XXX representing the actual DMX address).
If your fixture is connected to a DMX controller and the display is flashing (not receiving a
DMX signal), please check the following:
- The 3-pin or 5-pin XLR plug (cable with DMX signal from controller) may not be
connected or is not inserted completely into the DMX input jack.
-The DMX controller is switched off or defective.
-The DMX cable or connector is defective.
-A DMX terminator has been inserted into the last fixture in your DMX chain.

DESIGN LED 36 BRICK™
©Elation Professional, Los Angeles Ca. 19 www.ElationLighting.com
8. FIXTURE MENU
Default settings shaded.
ADDR
AXXX (1-512)
Set the starting DMX address
DISP
ON/OFF
Display “Blackout” function. When activated the display
will automatically blackout when not in use.
FLIP
ON/OFF
When “ON” this function rotate the display 180°
3 CH
3 DMX CHANNELS (RGB)
4 CH
4 DMX CHANNELS (RGB+MASTER DIM)
6 CH
6 DMX CHANNELS
12CH
Set 12 channel mode
CHAN
15CH
Set 15 channel mode
MODE
SLAV
ON/OFF
UNIT FUNCTIONS AS SLAVE
MAST
Fixture will function as a master unit in Master/Slave
mode
CNTL
ALON
Fixture will function “Stand Alone” mode
BLAC
BLACKOUT –All LEDs off
RED
RXXX
Manual Mode -Manual setting of RED levels
GREN
GXXX
Manual Mode -Manual setting of GREEN levels
BLUE
BXXX
Manual Mode -Manual setting of BLUE levels
MANU
COLR
STRB
SXXX
Manual Mode -Manual setting of STROBE rate
SPED
XXX
Adjust program 1 speed
FADE
XXX
Adjust program 1 fade time
CHS1
STRB
XXX
Adjust strobe rate of program 1
SPED
XXX
Adjust program 2 speed
FADE
XXX
Adjust program 2 fade time
CHS2
STRB
XXX
Adjust strobe rate of program 2
SPED
XXX
Adjust program 3 speed
FADE
XXX
Adjust program 3 fade time
CHAS
CHS3
STRB
XXX
Adjust strobe rate of program 3
