Elba EACI-D1051I(WH) User manual

Model: EACI-D1051I(WH) / EACO-D1051I(WH)
EACI-D1551I(WH) / EACO-D1551I(WH)
EACI-D2081I(WH) / EACO-D2081I(WH)
EACI-D2591I(WH) / EACO-D2591I(WH)

2
SAFETY PRECAUTIONS
Keep this appliances out of reach from children. Do not let them to
operate the appliance without supervision.
To protect against the risk of electrical shock, do not immerse the
product, cord or plug into water or any other liquids.
This product is for household and indoor use only.
This product is not intended for use by person (including children)
with reduced physical, sensory or mental capabilities unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
If the power cord or plug is damaged, it must be replaced by the
service centre or a qualified person to avoid hazard.
Before installation, check if the mains supply voltage is matched
with the voltage stated on the rating plate on the product.
There is a risk of fire if cleaning is not carried out in accordance with
this instruction.
●
●
●
●
●
●
●

3
Make sure to have the authorized dealers or our service centre to carry out installation of the appliance.
1. The units are not to be installed at places where
there might be leakage of combustible gases.
Earth leakage-
circuit breaker
Make sure that the earth leakage-circuit breaker
is installed.
After the connecting of the wires between the indoor unit and the
outdoor unit, check whether the connection is loose or not by pulling
the wire with a little force.
The loose connection might result in fire hazard.
Make sure that the air conditioner is properly grounded.
The grounding wire on the air
conditioner should be tightly connected
to the ground of the power source.
Improper grounding might cause
electric shocks or other hazards.
S K
Do not press, stretch, damage, heat
or modify the power line.
It might cause electric shocks, overheating, fire
hazards, etc. If the power line wire is damaged or
needs to be replaced due to some other reasons,
please make sure to have the authorized service
technician to do the replacement.
Never try to stop the operation of
the air conditioner by pulling out the
power supply line.
Such action might cause electric shocks
or fire hazards.
Do not connect the power supply line to an
intermediate connector. Use of prolonged power
line is strictly forbidden. Do not share the same
plug connector with other electric appliances.
It might cause electric shocks, overheating,
fire hazards or other accidents.
Do not operate the switch by wet
hands.
It might cause electric shocks.
Before the connector is plugged
in, please make sure that there is
no dust on it and that it is plugged
fully in place
If there is dust on
the plug or if the
plug is not in place,
it might cause
electric shocks or
fire hazards.
copper
wire
Never use the fuse with incorrect
capacity or any other metal wires.
The use of metal or copper wires for fuse might
cause operational failures or fire hazards.
In case that the leaked gas accumulates around the units, there
might occur the accident of fire hazards.
Absence of the earth leakage-circuit breaker might lead to electric
shock and some other hazards.
Wrong!

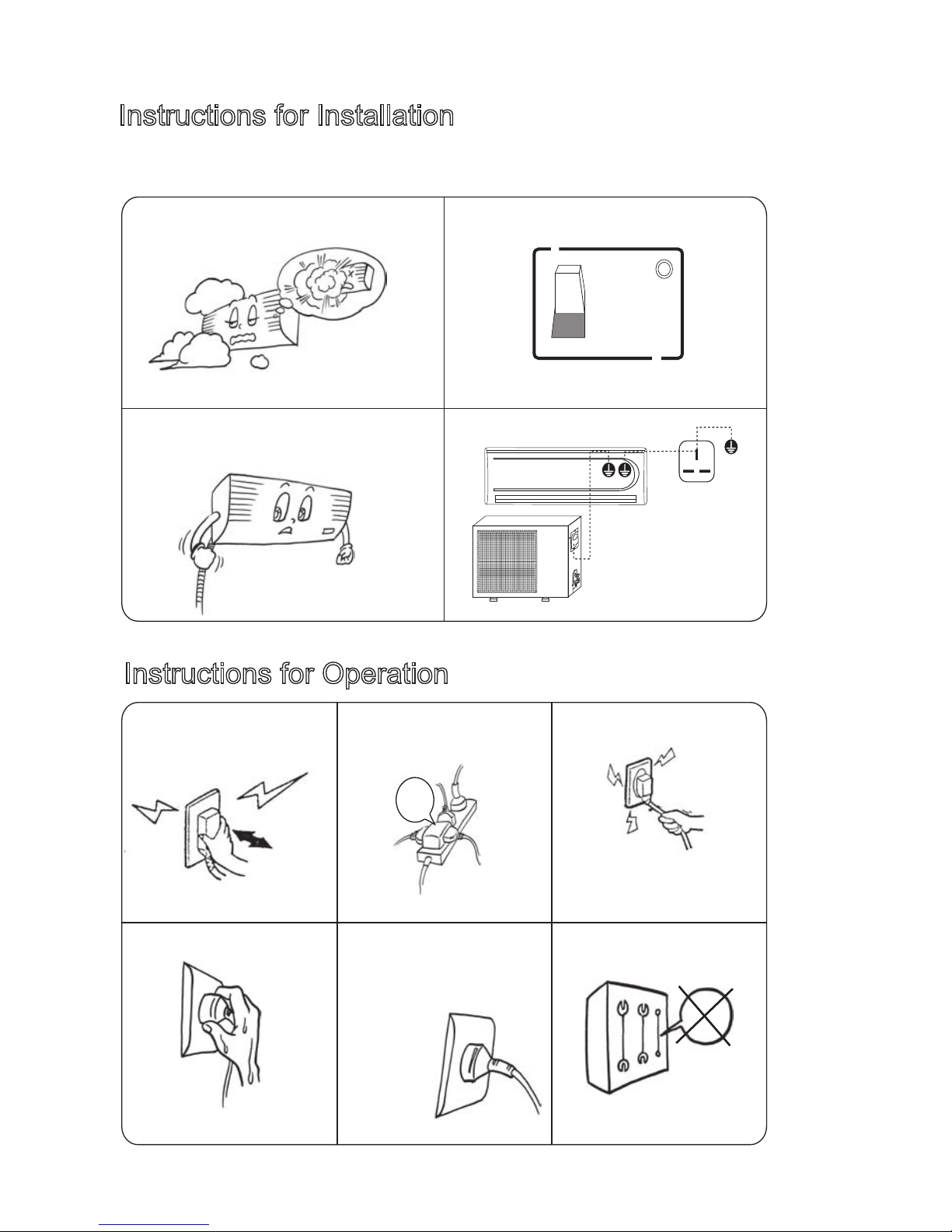

Instructions for Installation
Instructions for Operation

4
* When removal or repair is needed, please contact the authorized dealer or service centre.
* In case of any abnormal occurrences (smell of burning), please stop the operation at once, cut off the power supply
and contact the authorized dealer or service centre.
Do not sit, stand on the outdoor unit
or place any other objects on it.
The falling down of
the unit or the objects
might cause human
injuries and other
accidents.
Try to avoid the sunlight and hot air
from entering the room.
During the cooling operation, curtains or window-
blinds should be used to shade off the sunlight.
Try to minimize the generation of heat
during the operation of cooling.
Place the heating sources out of the room.
Check the supporting structures of
the units carefully.
In case of damages, the supporting structures should
be immediately repaired so as to avoid falling down
of the unit, which might cause human injuries or
other accidents.
Pull out the plug when the unit is not
in use for long time so as to ensure
safety.
Do not keep exposed to the cool air
for long time.
It might cause discomforts of the
body, which is harmful to your
health.
Do not insert sticks or bars into the air
vents.
As the fan is in high-speed operation, the insertion
might lead to accidents.
Adjust the air direction correctly.
Properly adjust the up/down and left/right directions
of the air flow so as to get the even room temperature.
Do not use combusting apparatuses
in the air-conditioned room.
It might lead to the incomplete combustion of these
apparatuses.
Do not place insecticides or paints
and other flammable sprays near the
air conditioner, or spray them directly
at the air conditioner.
It might cause fire hazards.
Lack of
oxygen!
When it is necessary to use the air
conditioner and the combusting
apparatuses in the same room, make
sure the air ventilation is smooth.
Insufficient ventilation might lead to
lack of oxygen or some other dangers.
Prior to the maintenance of the air
conditioner, please cut off the power
supply first. Never do the cleaning of
the appliance when the fan is in high-
speed operation.
Do not attach, hang or stack articles
on the air conditioner.
It might lead to the falling down of the air conditioner
unit, which will result in accidents or injuries.
Do not clean the air conditioner with
water when it is operating.
It might cause electric shocks.
Do not use the following substances:
I'm scorched!
Dangerous!
Hot water (over 40
0
C or 104˚F )
The use of hot water will deform the air conditioner
or make it fade in color.
Gasoline, paint diluent, benzene and polishing
agents, etc.
These substances will deform the air conditioner
or cause scratches. When the plug is to be pulled out, make sure that
the switch of the air conditioner is turned off.
Instructions for Removal and Repair

5
Product Descriptions
Air discharge vent
Air inlet
at sides & rear surface
Refrigerant piping
connection, Electric
wiring cord
Air blows out from here
Air return grid
Takes in the indoor air
Lelf/right air flow direction
adjusting fin
Air outlet
Air filter
Removes dust or dirt out of the inlet air
Drain the water dehumidified out of the air conditioner
Indoor Unit
Up/down air flow direction
adjusting flap
Outdoor Unit
Drain tube
d
Operational performance/indications
LED Indications

6
* Note: Do not open the grid at an angle over 60 degrees.
How to close

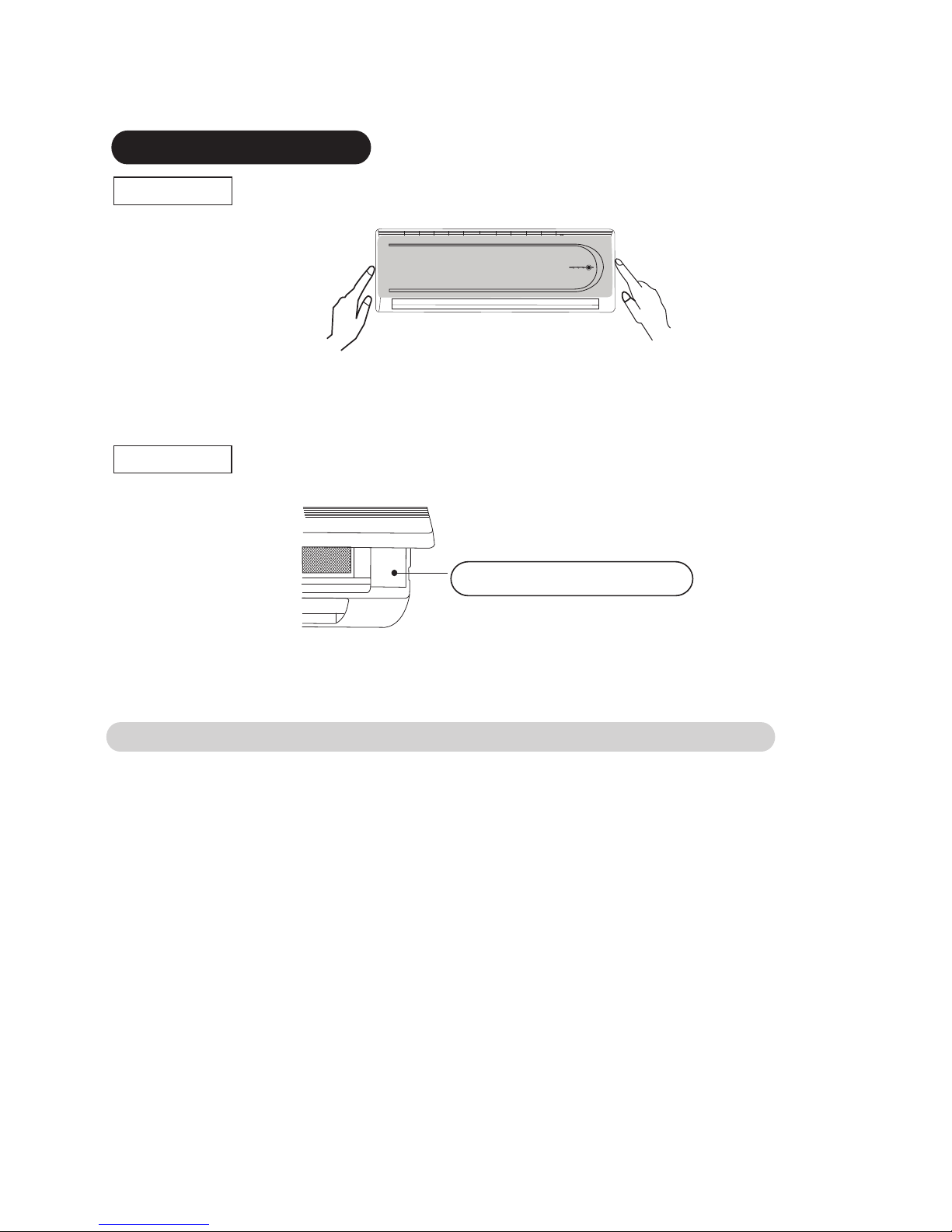

How to open
Unit operation section
Emergency operation key
Lightly push both sides of the air inlet grid at the bottom and pull it towards yourself until a resistance is felt.
Push down the air inlet grid and then push both sides of air inlet grid at the bottom.
The emergency operation key can be used as an emergency measure to turn on/off the unit when remote
controller is not available.

7
Operation and Indication Sections of Remote Controller
NOTE:
* When TURBO operation is selected, room temperature cannot be set accordingly. If you feel the room temperature is too cold, please cancel
the TURBO operation.
Attention:
1.Please check and refer the instruction for the remote controller.
AUTO
ON
OFF
COOL
DRY
FAN
SLEEP
LAMP
TURBO
HOLD
MODE TEMP
ON/OFF
SLEEP button
This button changes to SLEEP operation.
FAN SPEED button
This button set air delivery rate.
HOLD button
Press this button to lock or unlock the
remote controller.
TIMER button
This button is used to set the switch-on or
switch-off the timer.
TURBO button
This button changes to TURBO operation
(It does not work in AUTO,DRY,and FAN
mode.)
TIMER indicator
Indicates timer time.
Temperature indicator
Indicates the set temperature.
ON/OFF button
This button starts and stops the operation
when pressed.
SWING indicator
Indicates selected swing mode.
Indicates the air delivery speed.
Indicates during sleep operation.
OPERATION MODE indicator
Indicates selected operation mode
SWING
TIMER HOLD SLEEP
FAN SPEED
MODE selection button
This button changes the operation mode:
AUTO,COOL,DRY,FAN.
FAN SPEED indicator
SLEEP indicator
TURBO indicator
Indicates during TURBO operation.
SET TEMPERATURE button
This button sets the room temperature.
TURBO
Key lock indicator
AIR FLOW
This button used for selection of the left/right
air flow direction,whenever pressed the in
flap will swing or fix.
SWING button
This button changes the flap mode:natural
flow, swing or fixed wind.
AIR FLOW button

8
Remote Controller
OPERATING INSTRUCTIONS
1. Point the remote controller at the unit,press the ON/OFF button,then press the MODE button,select the required
mode: AUTO, COOL, DRY or FAN.
2. Press the SET TEMPERATURE button to increase or decrease the readings until the required temperature is
displayed.The room set temperature range is from 16˚C-32˚C(61
˚F-90˚F ).
(It would be automatically set at 25˚C(76
˚F ) and not adjustable in AUTO mode.)
3. Press the FAN SPEED button to choose the air rate you want:Low(display indicates " "), Med (display indicates
" ", Hi (display indicates " ", Auto (display " " indicator flashing).
(It would be automatically set at low speed and not adjustable in DRY mode.)
4. Press the SWING button to choose the up/down air flowdirection you required: natural flow(display
indicates " "), swing (display" " indicator flashing), fixed wind (display indicates " ").
(It would be automatically set at fixed wind air flow direction in DRY mode.)

9
Set OFF Timer
Set the time for the unit to turn off and when the timer reaches, the air conditioner will automatically stop operating.
Set ON Timer
Set the time for the unit to turn on and the time reaches, the air conditioner will automatically start operating.
Use this mode to reduce operation sound when sleeping, etc.
Press the SLEEP button,the air flow sound from the indoor unit is decreased.
Press the SLEEP button again to turn off the mode.
Methods 2: Horizontal & vertical auto swing
Adjust the direction by remote controller.Press the AIR FLOW button, the air swinging fins will constantly make the left/right
swinging or fixed direction in air delivery.
Press TURBO button during COOL operation, the air rate can be set in HIGH. Press the TURBO button again
to turn off the TURBO operation.
Note: During TURBO operation, the air rate cannot be changed.
Adjust the direction by moving the left/right air flow direction adjusting
fin by hand.
Caution: Always turn off the air conditioner before adjustment.
1. When the air conditioner is operating, press the TIMER button and the air conditioner will enter the timed
switch-off mode.
2. Continuely press the TIMER button to set the needed time for switching off the air conditioner. The timer can
make the setting in the range from 1-24 hours. When the button is pressed, indication changes in the following
sequence: 1
* 2 * ........ * 24 *cancel (no indication)* 1.
3. After the timer is set, the digits shown on the display screen will go down by 1 for every elapsed hour. The
displayed digits indicate the remaining time prior to the timed switch-off.
1. When the air conditioner is in the standby mode, press the TIMER button and the air conditioner will enter the
timed switch-on mode.
2.Continuely press the TIMER button to set the needed time for switching on the air conditioner. The timer can
make the setting in the range from 1-24 hours. When the button is pressed, indication change is the following
sequence: 1
* 2 * ........ * 24 *cancel (no indication)* 1.
3. After the timer is set, the digits shown on the display screen will go down by 1 for every elapsed hour. The
displayed digits indicate the remaining time prior to the timed switch-on.
Cancelling the Timer
When the indication on display screen is 24 hour,press the TIMER button again to cancel the timer.
ADJUSTING LEFT/RIGHT AIR FLOW DIRECTION
Methods 1: Manually adjust
TURBO OPERATION
TIMER OPERATION
SLEEP OPERATION

10
* When the signal from the remote controller
becomes weak and the indoor unit can not
receive it properly;or the indications on the
display screen becomes blurred,please slide
the back cover and replace with two new
AAA batteries.
* The positive and negative poles must
match the installation positions.
* New batteries of the same type have to
be used for replacement.
* If the remote controller is not to be used
for long time,take out the batteries so as to
prevent the leakage of the electrolyte from
damaging the controller.
* If when the remote controller is at abnormal
state,you can take out the batteries on the
back cover to clear off the display.
NOTE:
* Use the sleep mode when you are going to bed.If this mode is used in the day,the capacity is reduced since the
ambient temperature is too high.(COOL MODE).
* During the operation of cooling,the room temperature will be raised gradually by 2
0
C(4
0
F)higher than the setting
after the air conditioner begins to operate in the sleeping mode.

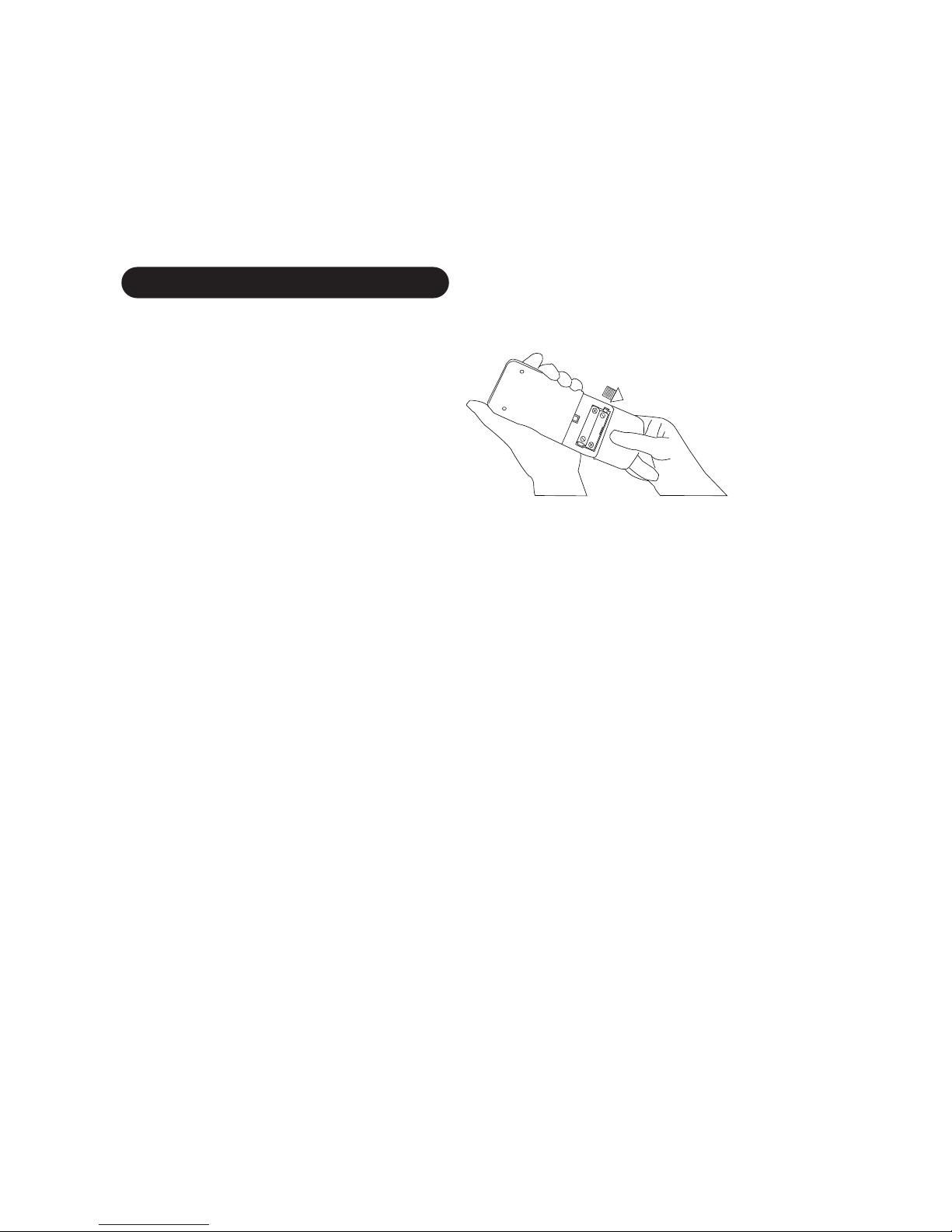

REPLACEMENT OF BATTERIES
Remote Controller
slidethebackcover

11
Grounding
terminal
Set the temperature at 30
0
C or 86˚F and operate
in the fan status for about half a day.
Stop the operation of the machine and turn off
the power switch.
The air conditioner will consume about 5W of electric
power after the machine is turned off. For the purpose
of energy saving and safety, it is advisable to pull the
plug out during the non-operational seasons.
Clean and install the air filter screen.
Clean the indoor and outdoor units.
Take the batteries out from the remote controller.
Check if there are any blocking materials
in the intake and outlet vents of the indoor
and outdoor units.
Check if the installation stand is corroded
or rusty.
Check if the air filter is clean.
Connect to the power source.
Put batteries in the remote controller.
To make the interior of the units dry
After the season of operation
Check if the
machine is
properly
grounded.
The cleaning of the air filter screen (Standard intervals should be once every two weeks).
During the season of operation
Note:
If the air filter screen is blocked by dust or dirt, the
performance of cooling will be affected, with the operation
noise and power consumption increased. Therefore, the
air filter screen should be cleaned regularly.
Before the season of operation
The air conditioner must be turned off and unplugged before the maintenance is
to be carried out.
Remove the air filter screen from the unit.
* Gently press the two lower ends of
the grid and open it.
* Gently pull up the air filter screen and
take it out in the direction of your body.
Clean the air filter screen.
if the screen is very dirty, please use lukewarm water (about
30
0
C or 86˚F ) to clean it. Air it dry after the cleaning.
Note:
* Do not use boiling water to clean the screen.
* Do not bake the screen dry over a fire.
* Do not exert too much force in pulling and stretching the screen.
Install the air filter screen.
To operate the air conditioner without the air filter screen on will cause the interior of the
indoor unit dirty which might lead to poor performances or damages to the appliance.
Clean the air conditioner
* Use a soft and dry cloth to rub the air conditioner,
or use a vacuum cleaner to clean it.
* If the air conditioner is very dirty, use a piece of
cloth and soak it with mild detergent to do the
cleaning.

12
Treatment at service call
Please check the following before requesting after-sale service from your dealer .
The air conditioner does not operate at all .
Is the power plug into
an outlet ?
Is the timer set to
"ON" position ?
Is there a power
failure or a blown
fuse ?
Poor cooling performance.
Is the room temperature
setting suitable ?
Are the air filters
clean (Not clogged )?
Are the window (s) and
door (s) opened ?
Is direct sunlight
entering the room ?
Poor cooling performance .
Is there a heat source
in the room ?
Are there too many
people in the room ?
suitable TEMP
Cases requiring immediate contact with the service centre
Pull out the power plug immediately and contact the service centre in the following situations:
Fuse or breaker often breaks off
Fuse often blow off
Power plug or code is excessively hot . Power plug or cord has broken.
Malfunction is observed in TV , radio
or other devices .
Remote controller dose not
response accurately.
Fuse offen
breaks off
Abnormal noise is heard during
operation

13
The unit will not stop blowing out the air immediately after shut
down at COOL operation.
Because the unit is doing mould proofing operation and indoor
fan motor runs at low speed. The louver will not close down until
after 30 seconds.
If the unit is operated for a long period of time with the high
humidity , moisture may form on the air outlet grilles and drip
down .
The unit can not be restarted just after shut down.
(Power On lamp is illuminating)
Not operate
Please wait for
3 minutes .
Three-minute protection timer incorporated in the microcomputer actuates
automatically . Except that power is connected , this function does not
actuate .
Air is not blown out at DRY operation. Indoor fan is sometimes stopped to prevent vapor of dehumidified
moisture and save energy .
Mist is blown out at COOL operation.
This phenomenon sometimes occurs when the temperature and
humidity of the room are very high, but it will disappear with the
lowering of the temperature and humidity .
Odor is sent out. Air blown out during operation may smell . This is the smell
of tobacco or cosmetics sticked to the unit .
Noise of cracking sound is heard. This is caused by the refrigerant that is circulating inside the unit.
Operation can not be restarted even if the power is recovered.
Noise of cracking sound is heard after a power stoppage or after
disconnecting the power supply plug.
The memory circuit of the microcomputer is cleared. Operate
the remote controller again to restart the operation .
Remote control signals are not received.
Remote control signals may not be received when signal receiver
on the air conditioner body is exposed to direct sunlight or strong
lighting. In that case, avoid the sunlight or darken the lighting.
Moisture may form on the air outlet grilles.
Restart is stopped for 3 minutes after shut down to protect
the unit .
This is caused by heat expansion or contraction of plastics.
TROUBLESHOOTING
