USER MANUAL
PORTABLE AIR-CONDITIONER
Thank you for selecting super quality air conditioner. Please be sure to
read this manual carefully before using it. Any question, please
contact the professional service for help.

- - 1 - -
CONTENTS
CONTENTS……………………………………………………………1
IMPORTANT SAFEGUARD…………………………………………2
FEATURES AND PARTS LIST………………………………………3
CONTROL PANEL……………………………………………………4
REMOTE CONTROL…………………………………………………6
OPERATION METHODS……………………………………………..8
INSTALLATION……………………………………………………….10
WATER & DRAINAGE METHODS…………………………….…..13
MAINTENANCE………………………………………………………14
TROUBLE SHOOTING………………………………………………15
INSTALLATION ACCESSORIES…………………………………...16
APPENDIX……………………………………………………………..17

- - 2 - -
SAFEGUARDS
Read all instructions for the safety of yourself and your family.
＊Install the unit on a flat and dry place. Leave at least 50cm space
around the unit.
＊Installation suits to national electrical net layout rules.
＊Install the air conditioners where the power supply is enough.
＊After installation, please check if the plug is perfect and firmly
insert in the jack.
＊Keep the air inlet and air outlet open.
＊Insure the drainage pipe connects well.
＊Keep far from the oil, cooking range and other heat source.
＊Place the electrical wire in order and avoid being blundered and
plugs pulled out.
＊Correctly use the power cord. If destroyed, please close the air
conditioner and pulled out of the plug. Please find a service
specialist for help.
Please do not
＊No other use, only for home appliance.
＊Do not install in the washhouse.
＊Do not let children play himself or herself. Children and deformity
suffer do not use the conditioner without guard of adult.
＊Never use the main plug as a switch to start and turn off the air
conditioning unit. Use the provided ON/OFF switch located on the
control panel.
＊Do not let your skin or eyes enjoy the cooling wind directly.
＊Do not put anything on the air conditioners.
＊Do not put anything on the air-inlet and air-outlet.
＊Do not use insects-killing spray and other flammability near the
conditioner
＊Do not scratch the surface by aculeate things.
＊Do not spray oil or water into the conditioner.
＊Do not place where have water or other liquid.
＊Do not clean the conditioner by water, use waterish cloth to wipe.
＊Do not use chemist solvent to clean the conditioner, such as
benzene, oil and alcohol. Use neutral cleanser to wipe
conditioner.
Suggestion:
Stop the conditioner if higher than 40℃under cooling or lower than
7℃under heating function.

- - 3 - -
FEATURE AND PARTS LIST
Feature
＊No installation is required.
＊Easily moved . The handle makes moving more convenient.
＊Totally luxury panel and modern appearance design.
＊LCD Blue screen display．
＊Water-cooled mode and adding water mode is most energy
saving and environment protect.
＊Low noise and strong wind.
＊Auto swing makes wind blow from left to right automatically.
＊Three-minute restart delay to protect compressor.
Parts list:
1. Control panel
2. Horizontal louver
3. Vertical louver
4. Handle
5. Air-inlet grille
6. Castor
7. Exhaust pipe
8. Water injection port
9. Power cord pothook
10.Air filter
11.Air-outlet grille
12.Connector of Outer water tank
13.Inner water tank
14.power cord and plug
1
2
3
5
4
7
6
Fig 1
11
10
14
13
8
12
9
Fig 2

- - 4 - -
CONTROL PANEL
CAUTIONS: If the unit is turned off in cool/dry/ heat mode and
restarted immediately, it will wait at least 3minutes before running.
1. Buttons
ON/OFF：Press this button to turn on/off the unit.
Mode: Press this button to select cool, heat, dry or fan mode
(heat mode only in YPH-H models).
Up/down: Press up or down button to set temperature or adjust
the time in Timer mode. Press both buttons to vary from
Celsius to Fahrenheit.
Swing: press this button to make the vertical louver swing
automatically. Press once again, the swing will stop.
Speed: Press this button for 5 seconds to select high, middle
or low fan Speed.
Timer indicator.
Econ: press this button to a set energy saving mode (only in
heat and cool mode). This set temperature is 27℃in cool
mode and 23℃in heat mode . The fan speed is low. These
data can’t be changed. The LED display will flash or
accordingly. Press again to cancel it when or is flashing.
Fig 3

- - 5 - -
2. LCD display
：Cool mode indicator.
：Dry mode indicator.
：Press this button for 5 seconds to select high, middle or low
fan speed.
：Heat mode indicator and flashes when choose cooling mode.
：Water Full indicator.
：Setting temperature under cooling and heating mode. Room
temperature under fanning and dehumidifying. TEMP means
temperature,℃indicates centigrade,℉indicates Fahrenheit.
When 88 is E2, it means room temperature sensor faulty;
When 88 is E3, evaporator sensor faulty; When 88 is E5,
cooling faulty abnormal; When 88 is df, the cooling system is
prevent frosting or defrosting.
：Water Injection indicator.
：Press this button to turn/off the unit in the setting time.
On is the time turning on and off is the time turning off.
：Fan speed to be low, middle and high. You can choose swing
or not swing.
：Energy saving status (only in heat and cool mode).

- - 6 - -
REMOTE CONTROL
Power Press this button to turn/off the unit.
Timer Press this button to set the timer.
Swing Press this button to make the vertical
louver swing automatically.
℃℉Vary from Celsius degree to Fahrenheit
degree.
Cool Press this button to choose Cool mode.
Heat Press this button to choose Heat mode.
Dry Press this button to choose Dry mode.
Fan Press this button to choose Fan mode.
Up Press Up or Down button to set
Down temperature or adjust the time
in Timer mode.
High Press this button to select high fan speed.
Med Press this button to select middle fan speed.
Low Press this button to select low fan speed.
Econ Press this button to a set energy saving mode only in
Cool and Heat mode. The set temperature is 27℃in
cool mode and 23℃heat mode The fan speed is low.
These data can’t be changed.

- - 7 - -
OPERATION METHODS
Timer set
1. Set timer-off
Press the Timer button when the unit is on. The LED will flash - -
five times. During this period, press Up or Down button to adjust set
time from 0.5h to 24h. It will vary 0.5h each time in first 3h and 1h
each time hereafter. The set time will flash 5 times after adjusting.
Once the set time end, the unit will turn off automatically.
2. Set timer-on
Press the Timer button when the unit is off. Same as timer-off set.
Once the set time end, the unit will turn on automatically.
3. Change the set time
When Timer is on, you can check remnant time by pressing Timer
button. It will flash 5 times. Press Up or Down button to adjust set
time. The set time can also be cancelled if you press the Timer
button once again during the flashing time.
Cooling/Heating and Dehumidifying operation
1. Cooling/Heating operation
＊Press Mode button to choose Cool/heat mode.
＊Press Up or Down button or to set a proper room
temperature.
＊The range is 18~30℃(64-84°F). The temperature will increase
or decrease 1℃or 1°F each time.
＊Press Speed buttonto choose a proper fan speed.
＊Automatically press Econ and set the room temperature in the
cooling or heating mode, cooling“27℃or 81℉”，heating“23℃or
73℉, speed low. If want to change temperature or speed, please cancel
Econ.
＊Humidity unworkable under cooling or heating function.
＊Press Swing button to adjust the direction of vertical louver.
＊Adjust horizontal louver by hand.
2. Dehumidifying operation

- - 8 - -
＊Press Mode buttonto choose Dry mode.
＊The fan speed and room temperature cannot be adjusted.
＊Press Swing buttono adjust the direction of vertical louver.
＊Adjust horizontal louver by hand.
3. Fan mode
＊Press MODE button (or Fan button) to choose Fan mode, the
LCD will display .
＊Select the fan speed by press SPEED button or press
High/Mid/Low button directly.
＊The temperature and humidity can not be set.
＊Do not use the air outlet duct.
＊Press Swing button to make the fins swing (use remote control
only) and adjust the direction of vertical louver.
＊Adjust horizontal louver by hand.
NOTE:
1. In cool mode, when the water Injection indicates lights, you
can inject some water through the top, where has an
injection port, before cooling operation (no longer than
High level).
2. You should drain water with the drainpipe in heat and
dehumidifying mode. The unit will stop work when water
level exceeds the high level.
3. Do not use air exhaust duct when in Dry or Fan modes.
4. If your room is directly exposed to the sun, draw the
curtains please.

- - 9 - -
INSTALLATION

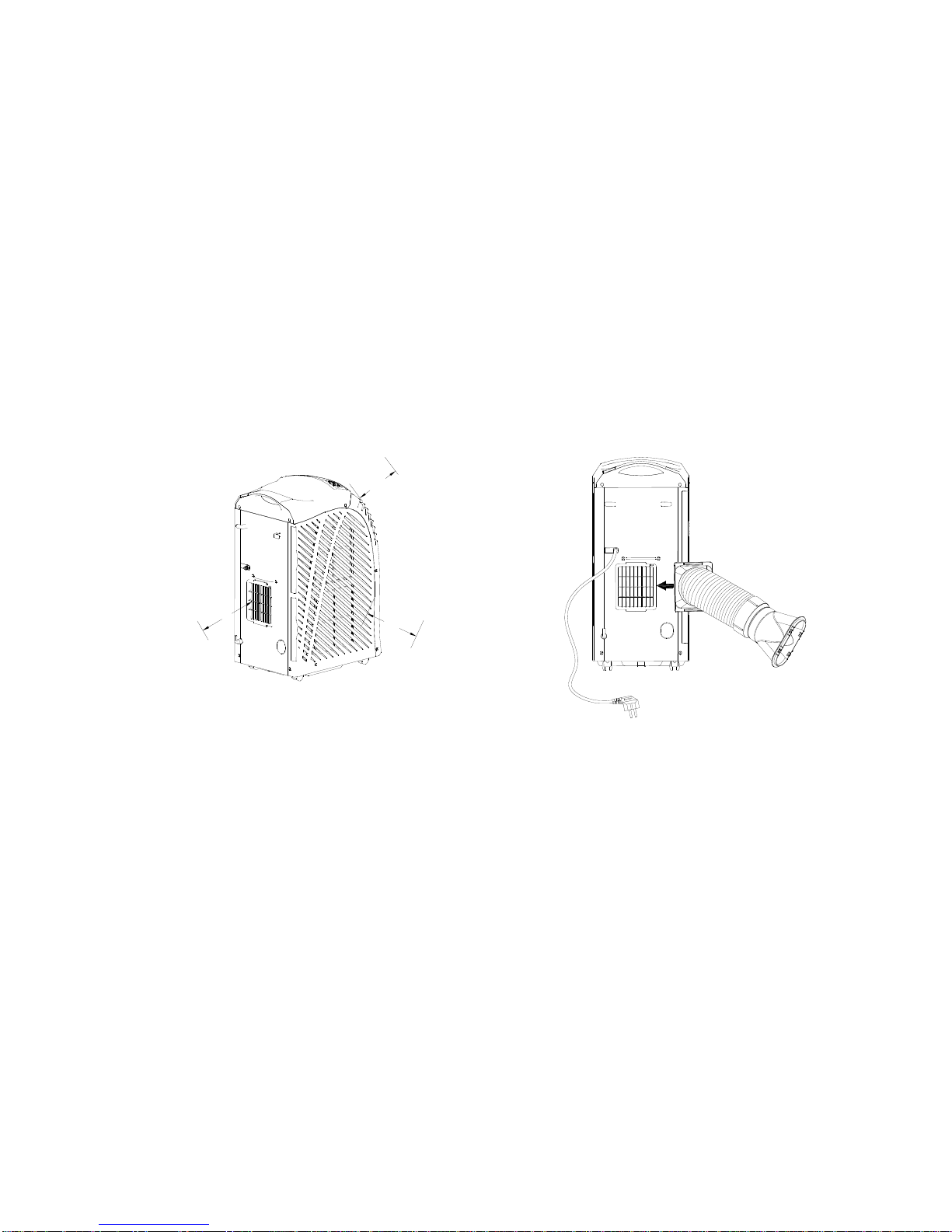

1. Selection of Installation Place
Please pay attention to install the unit where is flat and dry.
Leave at least 50cm space around the Unit (when the hose is not
connected). (Fig.5)
2. AIR Exhaust Duct Mounting Method
1) Fix the square end of the exhaust dust to the exhaust terminal
of the unit. (Fig.6)
2) Put the other end (discharge) to the nearest window. Leave at
least 50cm place around it.
NOTE:
The length of the air exhaust duct is between 600cm to 1700cm or
1800cm (adapters included). We suggest using the minimum length
of the air exhaust dust. That can save energy for you.
This length has been designed especially according to the
specifications of the air conditioner .Do not use an extension
or exchange of a different hose as that may lead to
malfunction.
Fig 6
50
50
Fig 5
50

- - 10 - -
3. Window Kit Installation
The window kit has been designed to fit most standard vertical and
horizontal windows. However, it may be necessary for you to
modify some aspects of the installation procedures for certain types
of windows. Please refer to the illustrations. (Fig.7 and Fig.8)
4. Mounting illustrations
1) Mounting in the wall
Fig 7 Fig 8
Vertical Horizontal
Window Kit Size:
Min Size:90cm
Max Size:130cm
Window
Window
Window Kit Size:
Min Size:90cm
Max Size:130cm
130cm
40cm
Fig 9

- - 11 - -

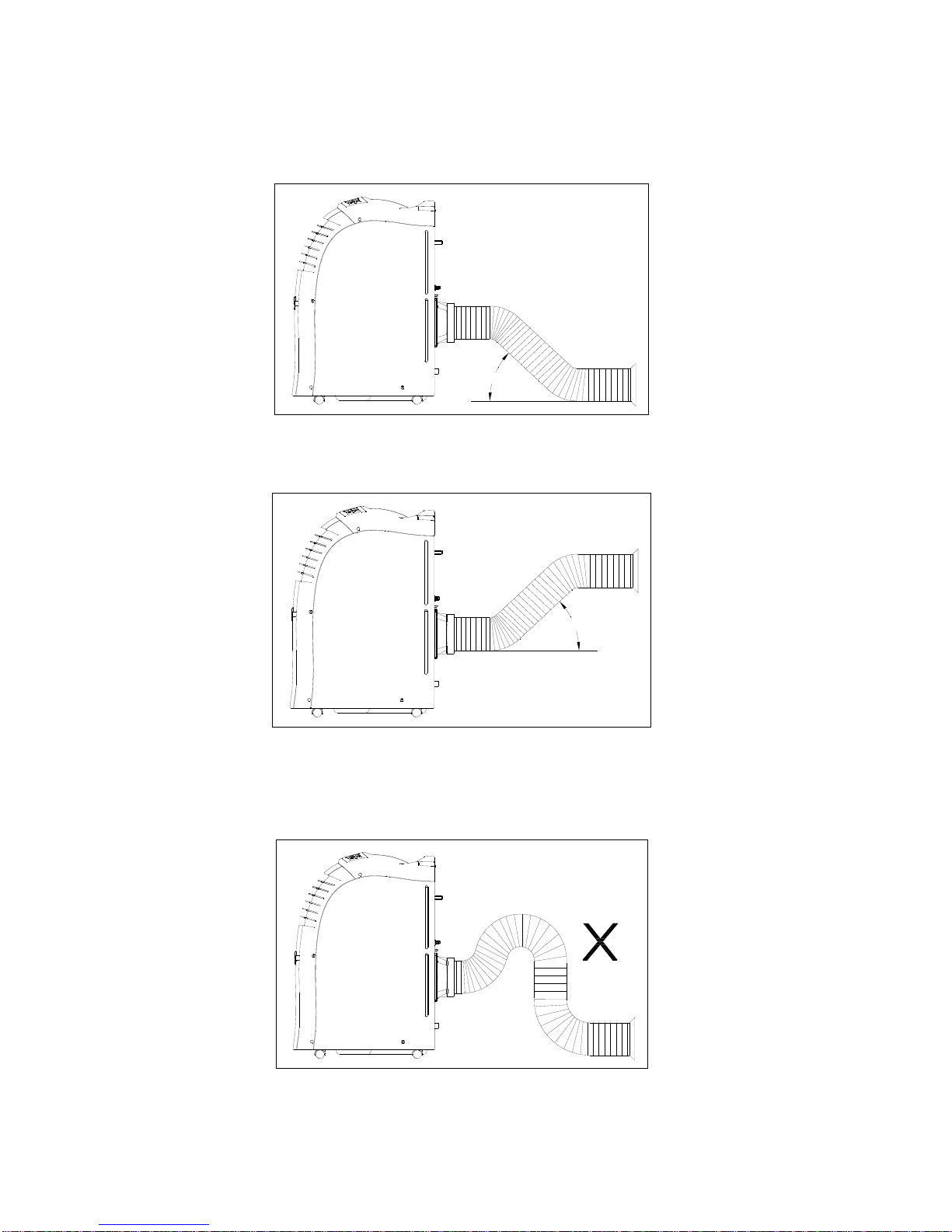

2) Correct bending
3) Wrong bending
θ≤45°
Fig 10
Fig 12
θ≤45°
Fig 11

- - 12 - -
Water and Water drainage

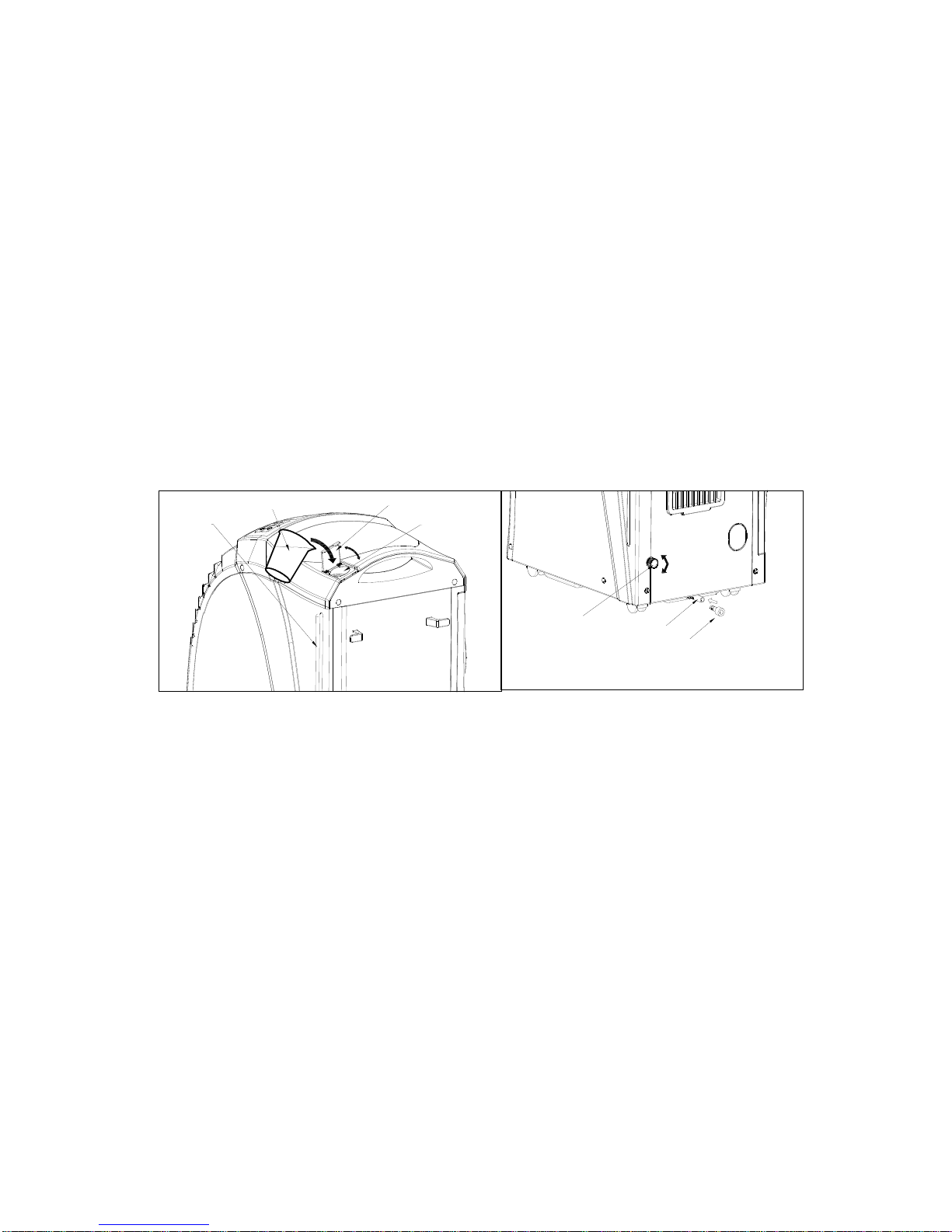

Water injection
＊The condensing water is recycled to improve efficiency through
cooling condenser. Also we could lower the noise and save
energy.
＊When the condensing water is not enough for pumping, the
Water Injection indicator on the control panel will illuminate, you
had better inject some water into the water draw, right of the
handle, there is a cover. Meanwhile, pay attention the water
level pole at your right, where show the water quantity.
Note: The unit is not working under dehumidifying,
fanning and heating. Do not add water.
Drainage
＊When the water is full, the water full indicator will light and the
compressor will stop working. The buzzer will buzz 10 times every
5 minutes until the water is below the high level or drained by hand.
When the alarm stops and after three-minutes restart delay, the unit
will work normally.
＊Before you empty the unit you will need to turn the unit off and
pull the plug out of the power supply.Upcap the lid, remove the
rubber plug on the drainage port, then let the water flow out.Once
drained, put the rubber plug back and screw the lid up an switch it
on. The compressor will delay restarting for three minutes,then the
unit will work normally. (Fig.14)
Note
Move the unit gently when the water is high. If not, the water may
spill from the inside of the unit.
Fig 14
Plug
Drainage Port
Cover
Fig
13
Water Draw
Clean Water
Water Level
Small Cover

- - 13 - -
MAINTENANCE
Cleaning
Turn off the unit and pull the plug out of the socket before any
cleaning.
1. Clean the surface
Clean the surface of the unit with a duster or a half-wet soft cloth.
Do not use chemical solvent like benzene, alcohol, gasoline and
etc. Or the surface may be damaged or even deformed.
2. Clean the air filter
If the air filter is blocked with a lot of dust,
the efficiency will reduce. You’d better
Clean the filter every two weeks.
1) Pull out the air filter as Fig.15.
2) Wash the air filter by immersing it
gently into warm(under 40°C or 104°F)
water with neutral detergent. Rinse the
filter and dry it in a shaded place.
2) Push the air filter back into the original
position.
End of season
1. Pull out the plug from the drain mouth and remove the water from
the drain pan. You can remove the water entirely by slanting the
unit back.
Setting the fan mode, then press the Fan button for 5 seconds until
the lower fan works. After that, operate the unit in fan mode for half
a day until the pipe is dry. In this way the inside of the unit can be
dried and the mildew growth can be suppressed.
2. Switch off the unit and disconnect the plug from the power
supply.
3. Tie the cable with sting.
4. Remove the air exhaust duct and keep it carefully.
5. Wrap the unit with the plastic bag, and keep it in a dry place.
6. Take the batteries out of the remote control and keep them well.
Fig 15

- - 14 - -
TROUBLE SHOOTING
Before contacting professional service, please firstly
check it yourself referring to the followings.
Trouble Check Solution
The unit doesn’t
operate at all.
Is power fail?
Is plug out?
Is power fuse or switch off?
Is the set time suitable?
Is water full alarm on?
It is normal.
Insert the plug into the
socket steadily.
Change the fuse or switch
on.
Change the set time.
Pour the water.
Cooling/Heating
efficiency is not
good.
Is air inlet or outlet blocked?
Is there any other heat source in
room?
Are air filters very dirty?
Is the temperature suitable?
Is fan speed set at low?
Clear off the blocks.
Move the heat source.
Clean the air filter.
Change temperature.
Select suitable fan
speed.
Noisy
Vibration
It is the inner refrigerant flowing
inside.
Is it inclined?
It is normal.
Place it in a flat place.
Stop running and pull the plug out in case
something enumerated below happens. Then
contact the professional service for help.
·The fuse and switch often break.
·The power cord superheat or sleeve of the cord is broken.
·There is abnormal odor or smoke comes out of the unit.
Self-diagnosis function
code Indication Check
E2 Room temperature faults Room temperature sensor faulty
E3 Faulty coil temperature Coil temperature faulty
E5 Unit faults
(Restart the unit) Room temperature stick to evaporator refrigerant leakage
Note:When display “df”, it means that the coil is defrosted. That is
the normal status.

- - 15 - -
INSTALLATION ACCESSORIES
Flexible exhaust hose with adapters…………………………….1/set
Stretch from
YPH-07/08/09:14 ” (36cm) up to 59” (150cm)
Square connector…………………………………………………..1 pc
Flat and round connector…………………..………………………1 pc
Adjustable window slider kit….…………………………………….1/set
Stretch from 36” (90cm) to 51” (130cm)
Screw (the length is 3/8”)…………………………………………...1 pc
Plug (square)………………………………………………………....1 pc

- - 16 - -
APPENDIX
Fuse Parameter
Type: FSD
Voltage: 250V
Current: 3.15A
Disposal: Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special treatment is
necessary.
