Elba EGC-C9783E(SS) User manual

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
GAS COOKER
ELECTRIC OVEN SERIES

2
INDEX
SAFETY PRECAUTIONS Page 03
INSTRUCTIONS FOR INSTALLATION Page 04
Dimensions and Installation Features Page 05
Electrical Connection Page 06
Connection of the Feeding Cable to the Mains Page 06
Electrical Features Page 06
Ventilation Page 07
Combustible Surfaces Page 07
Gas Connection Page 07
Conversion of Universal LPG to Natural Gas Page 08
Abnormal Operation Page 08
INSTRUCTIONS FOR USE –GAS HOB
Description of Symbols Page 09
Description of the Main Parts of the Gas Hob Page 10
Ignition and Operation of the Burners Page 10
Recommendations Page 11
Advice on the Use of Gas Burners Page 11
INSTRUCTIONS FOR USE –OVEN

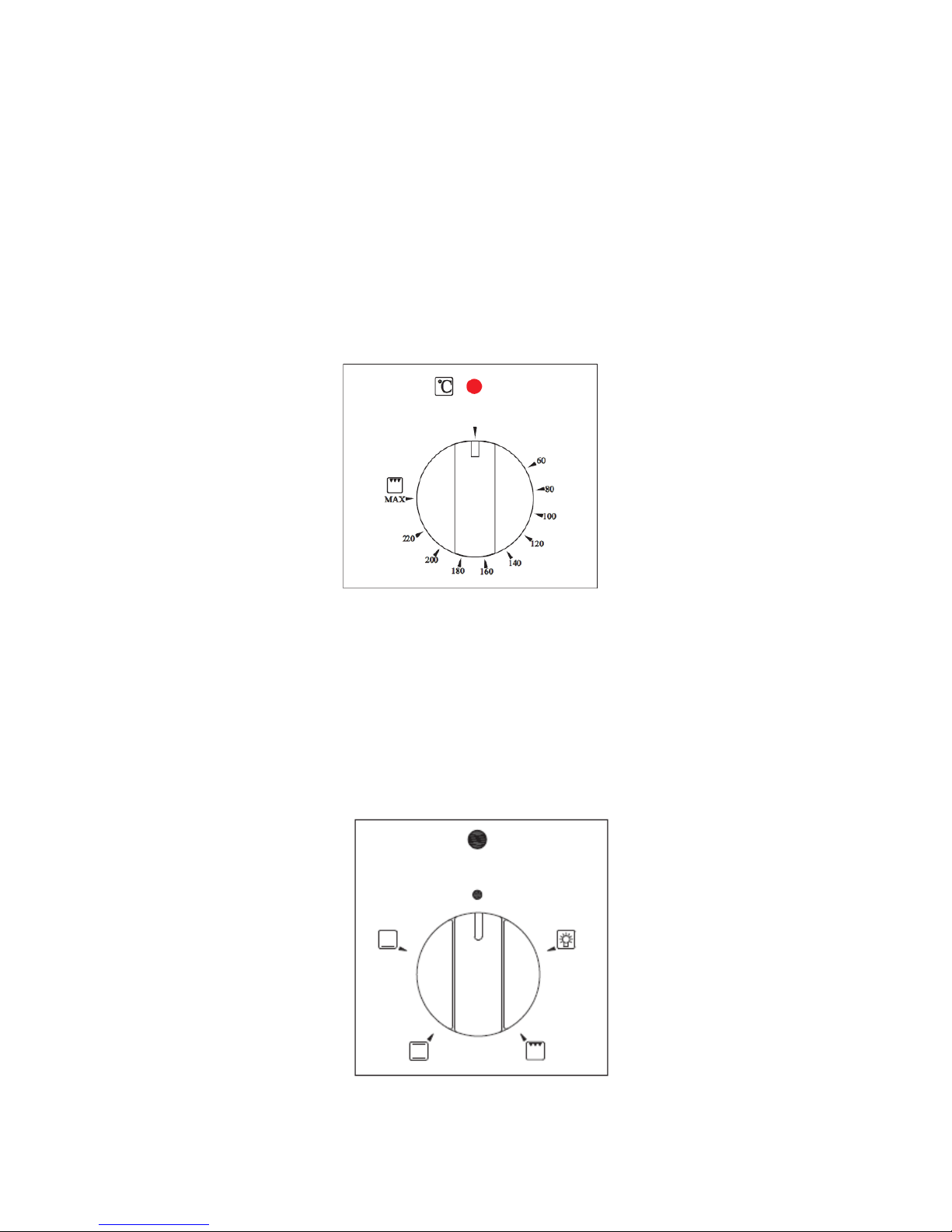

Electric Oven Thermostat and Function Knob Page 12
Electric Oven Functions and Timer Knob Page 13
INSTRUCTIONS FOR COOKING Page 14
MAINTENANCE AND CLEANING Page 15
Cleaning the Oven Page 16
Cleaning the Enamel Trivet Page 16

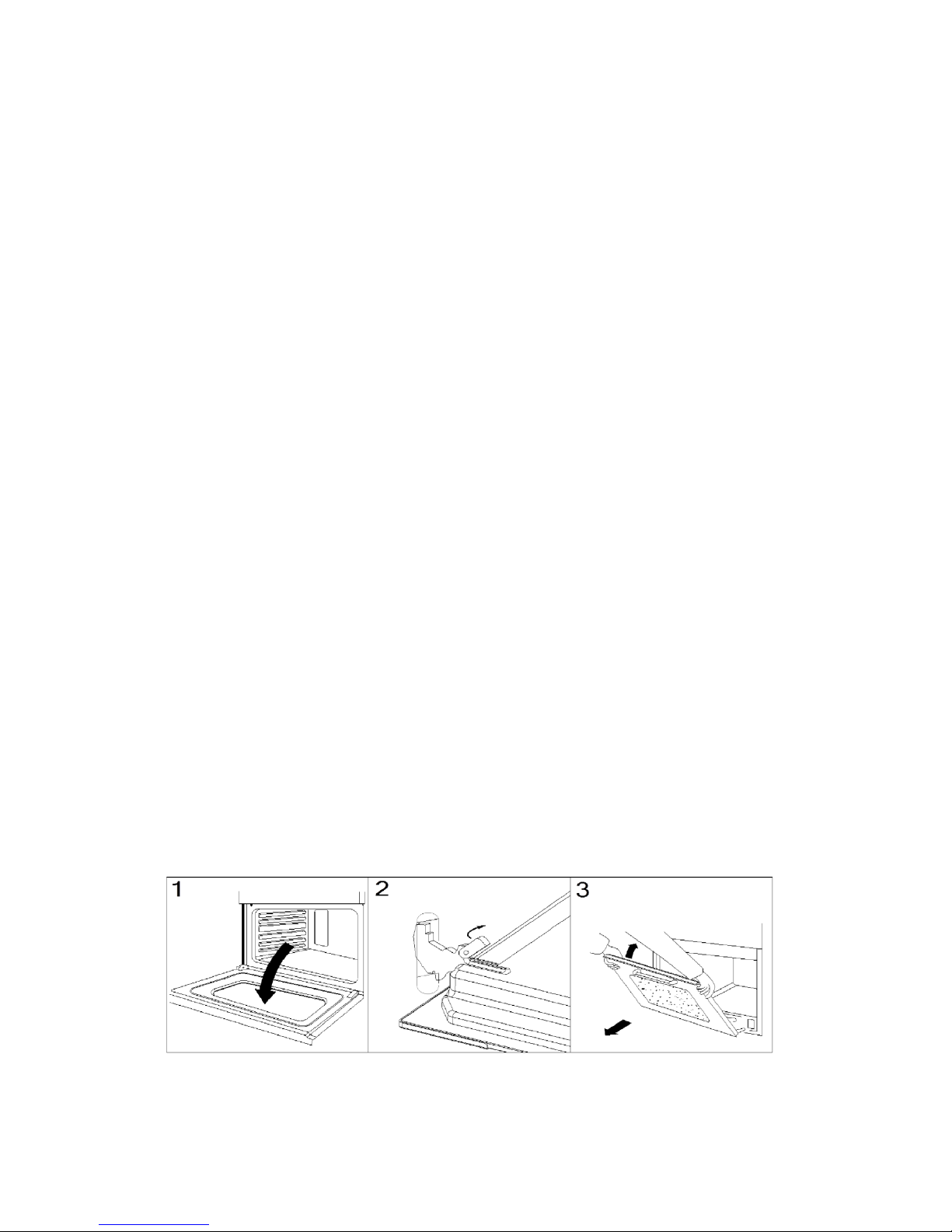

Removing the Oven Door Page 16
Replacing the Oven Bulb Page 17
MAIN SPECIFICATIONS Page 18

3
Please read this instruction carefully. It is advisable to keep this instruction
manual in a safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them to
operate the appliances without supervision.
2. This product is for household and indoor use only.
3. This product is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
4. If the power cord has damaged, it must be replaced by the service centre or
a qualified service technician to avoid hazard.
5. Before installation, check if the mains supply voltage is matched with the
voltage stated on the rating plate of the appliance.
6. There must be adequate air ventilation of the room when the product is
used.
7. There is a risk of fire if cleaning is not carried out in accordance with this
instruction.
8. Do not touch the oven interior during or after cooking with bare hand.
9. Before maintenance or cleaning, disconnect the appliance from the mains
and wait for it to cool down.
10. Always use oven gloves to remove and replace food in the oven.
11. Do not remove the plug by pulling the cable.
12. Do not store or place flammable liquids or items in the vicinity of this
appliance.
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.

4
INSTRUCTIONS FOR INSTALLATION
WARNING:
a) Before using the appliance, please remove all plastic films and packaging
material from the appliance.
b) Do not use the appliance as a space heater.
c) When the appliance is not in use for a long period, it is recommended to
disconnect the current and to shut off the gas supply.
d) Prior to installation, ensure that the local distribution conditions (nature of
the gas and gas pressure) and the adjustment of the appliance are compatible;
e) The adjustment conditions for this appliance are stated on rating plate;
f) This appliance is not connected to a combustion evacuation device. It shall
be installed and connected in accordance with current installation regulations.
Particular attention shall be given to the relevant requirements regarding
ventilation.
g) Do not store items that are attractive to children above or near the
appliance.
h) When the oven or the grill is in use, accessible parts can become very hot,
it is necessary to keep children well away from the appliance.
i) Never cook food directly on the lower wall of the oven.
j) Do not let children sit down or play with the oven door. Do not use the
drop down door as a stool to reach above cabinets.
IN CASE OF FIRE
In case of fire, close immediately the main valve of the gas pipe line, disconnect
current and never pour water on firing oil in any case.
Do not store flammable products or aerosol containers near the burners, and do
not vaporize them near lighted burners.

5

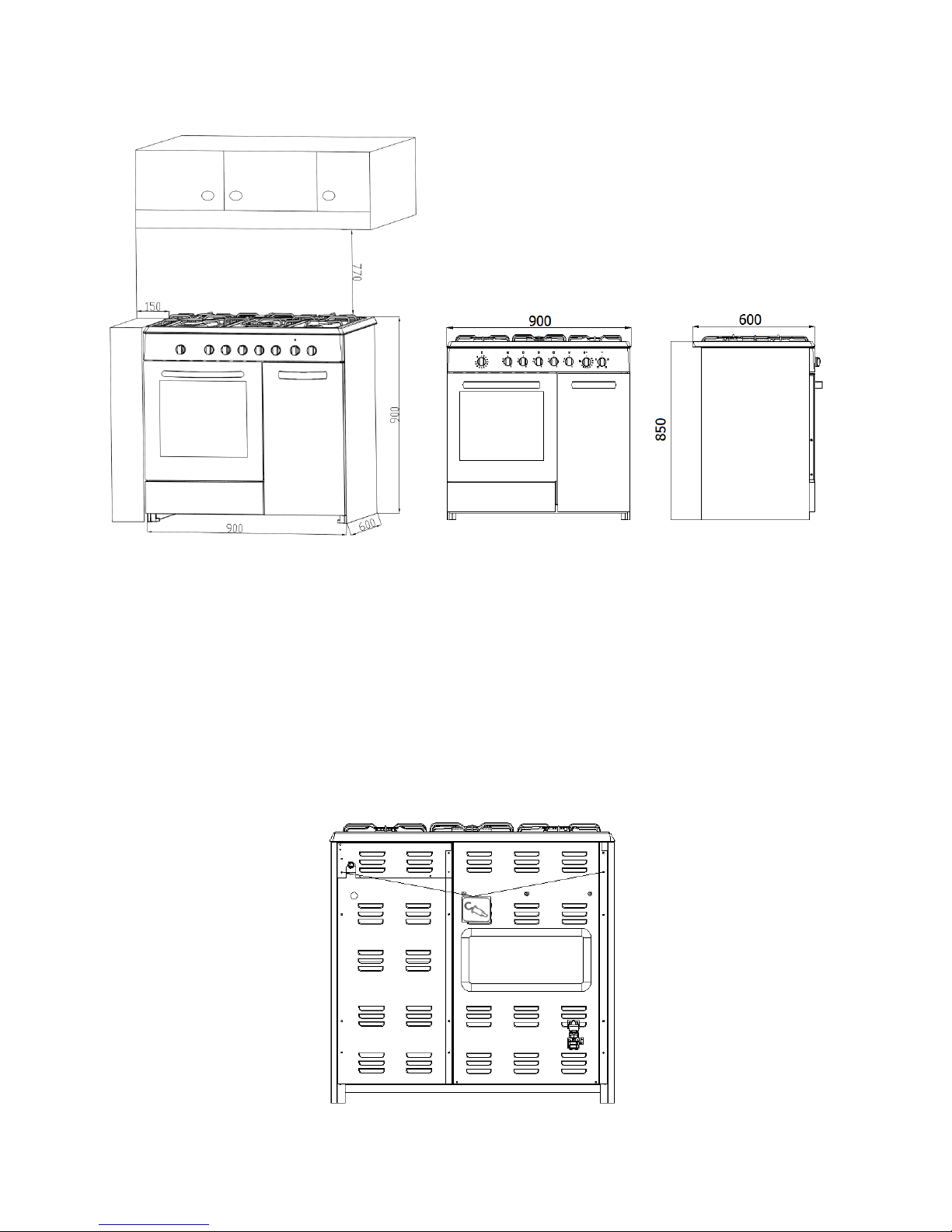

DIMENSIONS AND INSTALLATION FEATURES
The cooker is supplied with an anti-tilting chain to prevent the appliance from
tilting forward and causing accidental damage to the gas pipe. Take the
expansion with hook and make an adequate hole in the wall behind, at the same
height as the chain fixing area. Insert the plug into the hole and then screw in
the hook until it is firmly fixed to the wall. Fix the chain to the hook. Adjust to
level of the cooker by inserting the feet provided.

6
ELECTRICAL CONNECTION
This appliance must be installed by a qualified person in accordance with the
latest edition of the IEE Regulations and in compliance with the manufacturer
instruction. Ensure that the voltage is the same as stated on the rating plate.
The rating plate can be found at the rear panel of the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Be sure that the earth wire (green/yellow) is not interrupted by the switch. We
recommend that the oven circuit is rated to 15 amps.
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the rating
plate of the product. In case of a direct connection to the mains (cable without
plug), it is necessary to insert a suitable omnipolar switch before the appliance,
with minimum opening between contacts of 3 mm (the grounding wire should
not be interrupted by the switch).
Before connecting to the mains, make sure that:
1) The electrical counter, the safety valve, the feeding line and the socket are
adequate to with stand the maximum load required (see rating plate).
2) The supply system is regularly grounded, according to the regulations in
force.
3) The socket or the omnipolar switch can easily be reached after the
installation. After connecting to the electrical mains, check the supplying
cable does not come into contact with parts subject to heating. Never use
reductions, shunts, adaptors which can cause overheating or burning.
4) The manufacturer is not liable for any direct or indirect damage caused by
faulty installation or connection. It is therefore necessary that all installation
and connection operations are carried out by qualified personnel complying
with the local and general regulations in force.
ELECTRICAL FEATURES
Oven light 25W
Top inner heating element 2250W
Top outer heating element 1800W
Bottom heating element 1250W
Cooling fan 18W

7
VENTILATION
In general, the appliance should have adequate ventilation for complete
combustion of gas, proper piping of flue and to maintain temperature of
immediate surroundings within safe limits.
Make sure the kitchen is well ventilated for safety purpose. Do not leave
unattended flame in the kitchen. If excessive gas is detected, remove the
regulator from the gas cylinder and request for service immediately.
COMBUSTIBLE SURFACES
Any adjoining wall surface situated within 200mm from the edge of any hob
burner must be a suitable non-combustible and heat resistant material for a
minimum distance of 150mm for the entire length of the hob.
Any construction above the appliance must be at least 770mm above the top of
the burner and no construction shall be done within 450mm above the top of the
burner.
GAS CONNECTION
This appliance is manufactured to match the Universal LPG gas supply. It must
be connected to the gas supply or the cylinder according to the specifications of
the standards and after checking that it is adjusted for the type of gas available.
Once the appliance has been installed, make sure that the gas pipe is neither
squashed nor damaged by moving parts. Before leaving, check all connections
for gas leaks with soap and water.
DO NOT use a naked flame for detecting leaks. Ignite all burners both
individually and separately to ensure correct operation of gas valves, burners
and ignition.

8
CONVERSION OF UNIVERSAL LPG TO NATURAL GAS
When converting from Universal LPG to Natural Gas ensure to replace with the
approved NG regulator (not included). Please contact service centre to purchase
the injector for conversion.

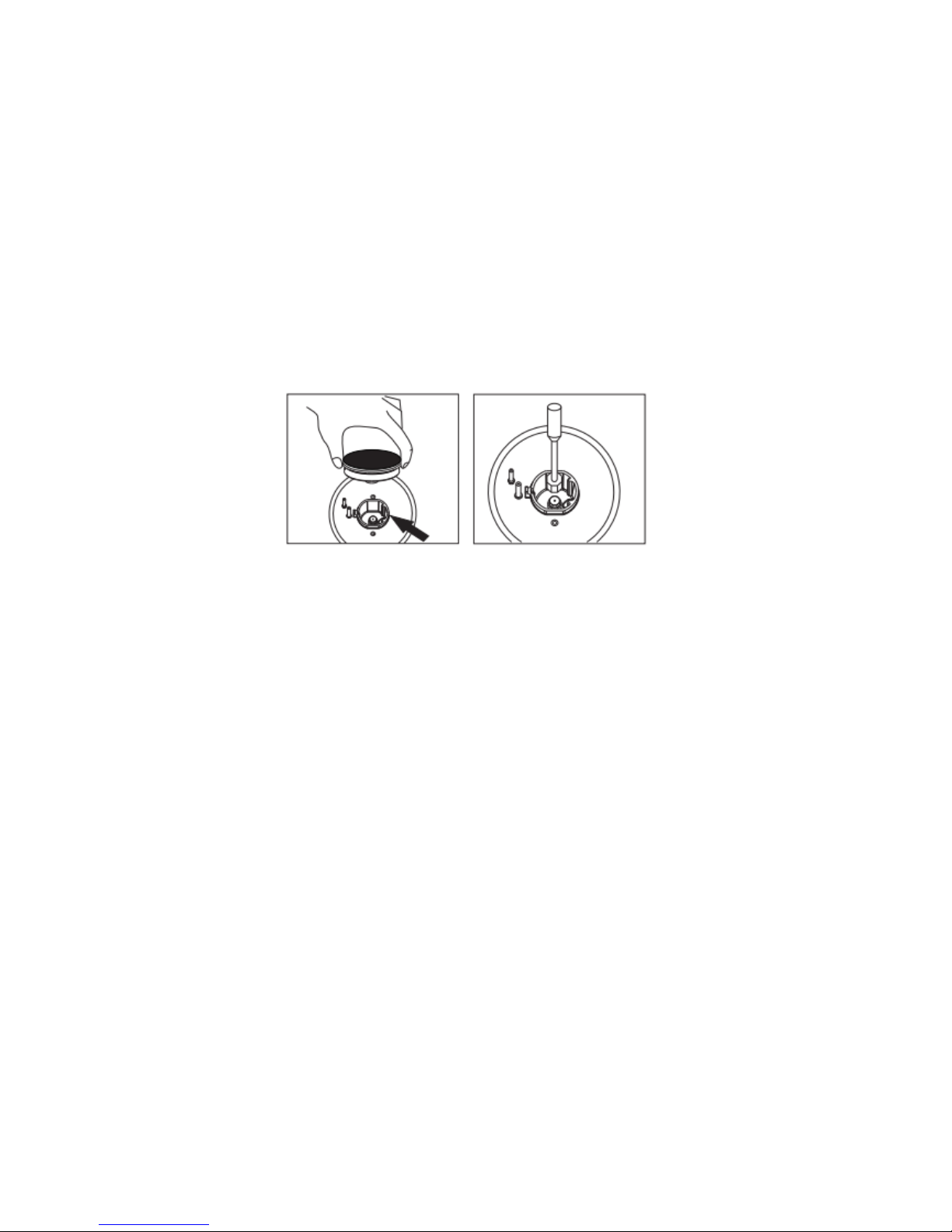

To change the gas supply from Universal LPG to Natural Gas, remove the
enamel trivet on top of the burner. Remove the burner cap and burner heads.
Using a 7mm socket spanner, unscrew and remove the injectors. Replace the
injectors with those matched corresponding to the gas available.
THIS APPLIANCE REQUIRES NO REGULATION OF THE PRIMARY AIR.
ABNORMAL OPERATION
ANY OF THE FOLLOWING ARE CONSIDERED TO BE ABNORMAL OPERATION
AND MAY REQUIRE IMMEDIATE SERVICING:
- Yellow tipping of the hob burner flame.
- Sooting on cooking utensils.
- Burners not igniting properly.
- Burners failing to remain alight.
- Gas valves, which are difficult to turn.

9
INSTRUCTIONS FOR USE - GAS HOB
3-Burners
4-Burners

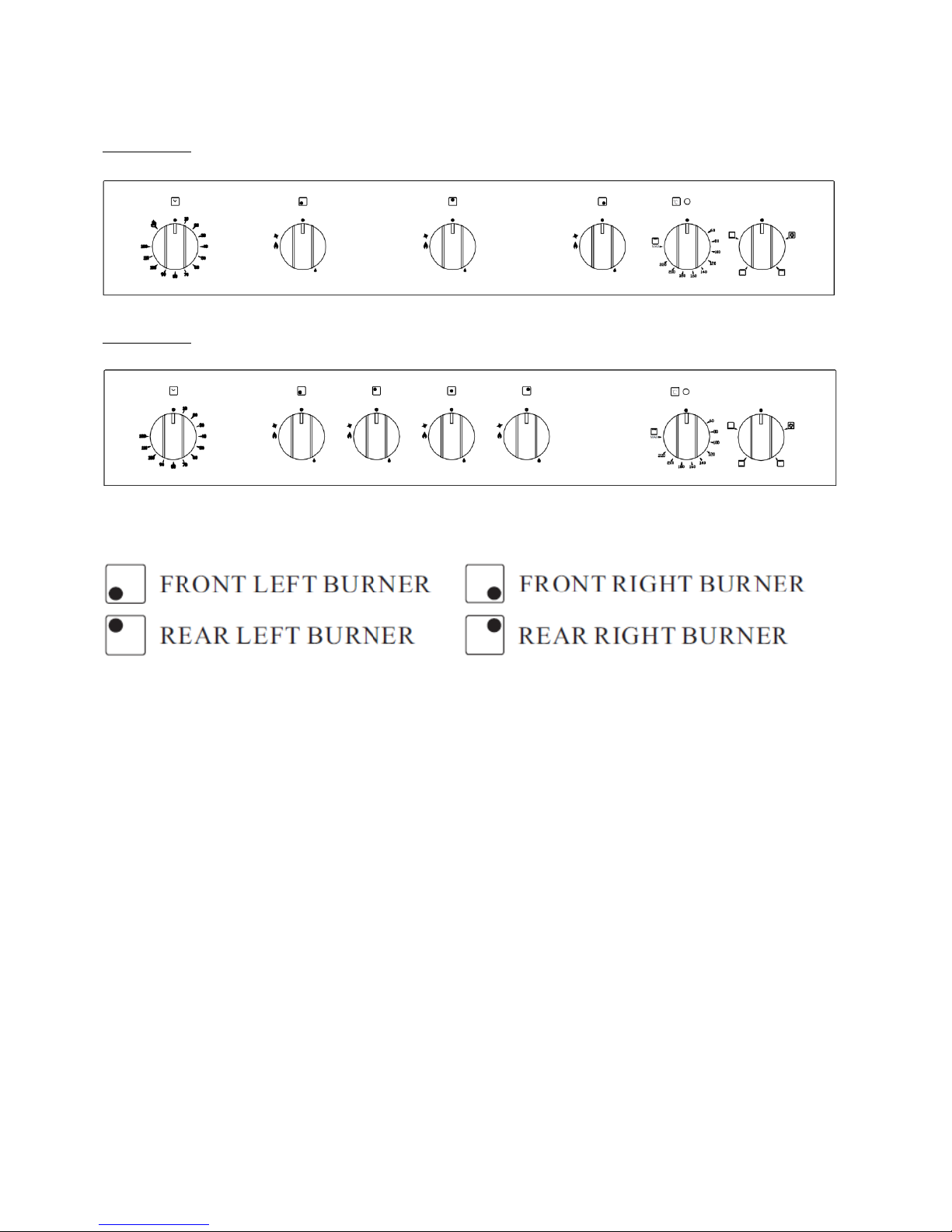

DESCRIPTION OF SYMBOLS
WARNING:
1) This appliance shall be installed in accordance with the regulations in force
and only used in a well-ventilated space. Do not use the appliance in the
car barn, basement and room without windows.
2) The use of a gas cooking appliance might result the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well
ventilated.
3) Keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
4) Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window for better and effective ventilation.

10

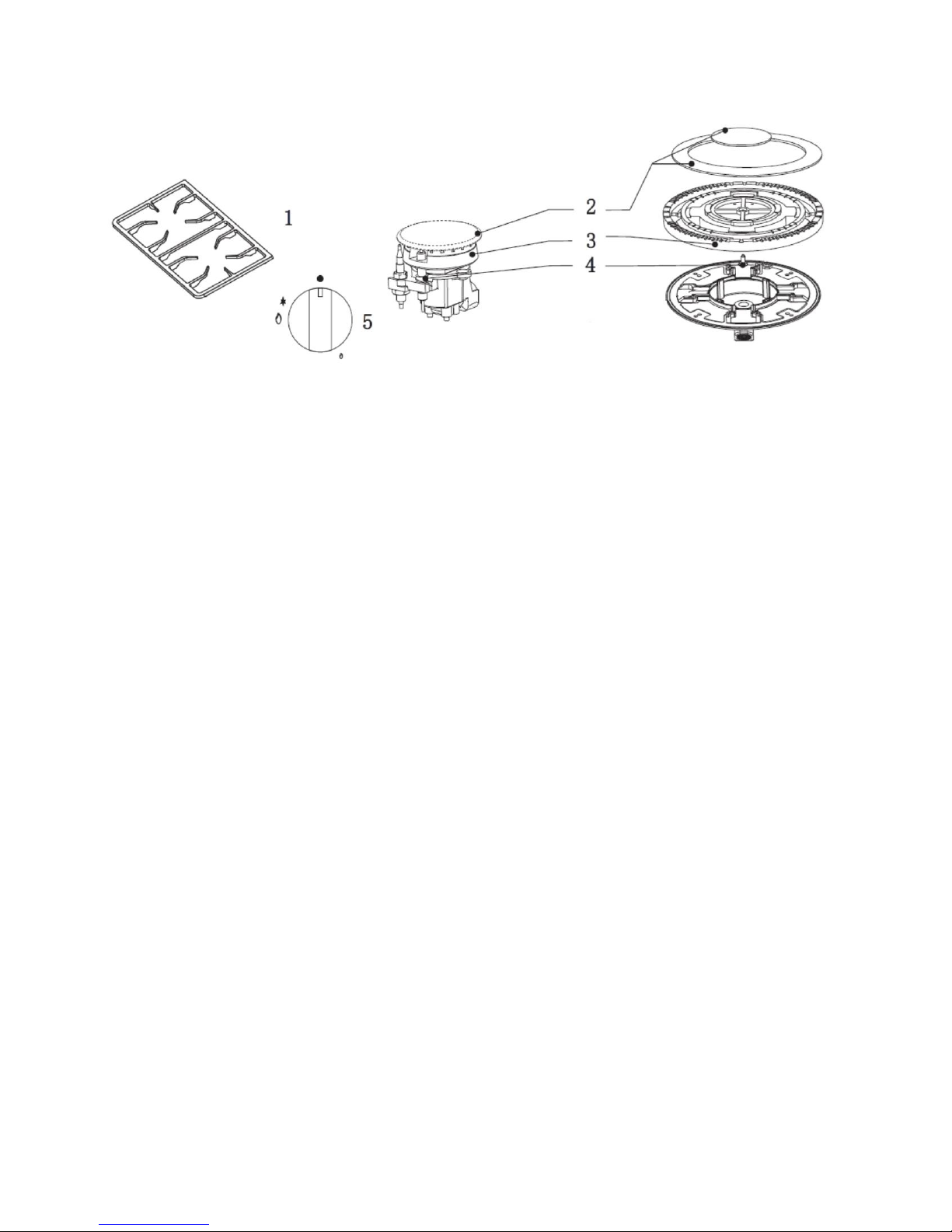

DESCRIPTION OF THE MAIN PARTS OF THE GAS HOB
1 = Grid
2 = Burner Cap
3 = Burner Head
4 = Ignition
5 = Actuation Knob
IGNITION AND OPERATION OF THE BURNERS
In order to ignite a burner, it is necessary to depress the knob while rotating it
anticlockwise, until the index is aligned with the position corresponding to the
maximum gas delivery (i.e. the large flame symbol on picture No. 5).
WARNING: If the burner fails to ignite, wait one minute for the gas to dissipate
before attempting to reignite.
After the ignition, it is possible to adjust the flame intensity by rotating the knob
anticlockwise from maximum position to the minimum one (i.e. the small flame
symbol on picture No. 5).
In order to turn the burner off, rotate the knob clockwise bringing the index
back to the position corresponding to the closure symbol (●).
WARNING: PLEASE MAKE SURE THE KNOB INDEX HAS BEEN SWITCHED TO
SYMBOL (●) WHEN THE APPLIANCE IS NOT IN USE.
IN CASE THE APPLIANCE FAILS TO OPERATE CORRECTLY, CONTACT THE
AUTHORISED SERVICE CENTRE.

11
RECOMMENDATIONS
In case of electric power failure, it is necessary to carry out the above-described
operations by putting a gas lighter or a flame near the burner (in such an event,
pay the utmost attention not to burn yourself).
In any case, the ignition device must not be actuated for longer than 15 seconds.
Should the ignition manoeuvre fail, or should the burner be accidentally turned
off, immediately close the actuation knob and repeat the ignition after one
minute at least.
Once the ignition has taken place, adjust the flame according to your needs.

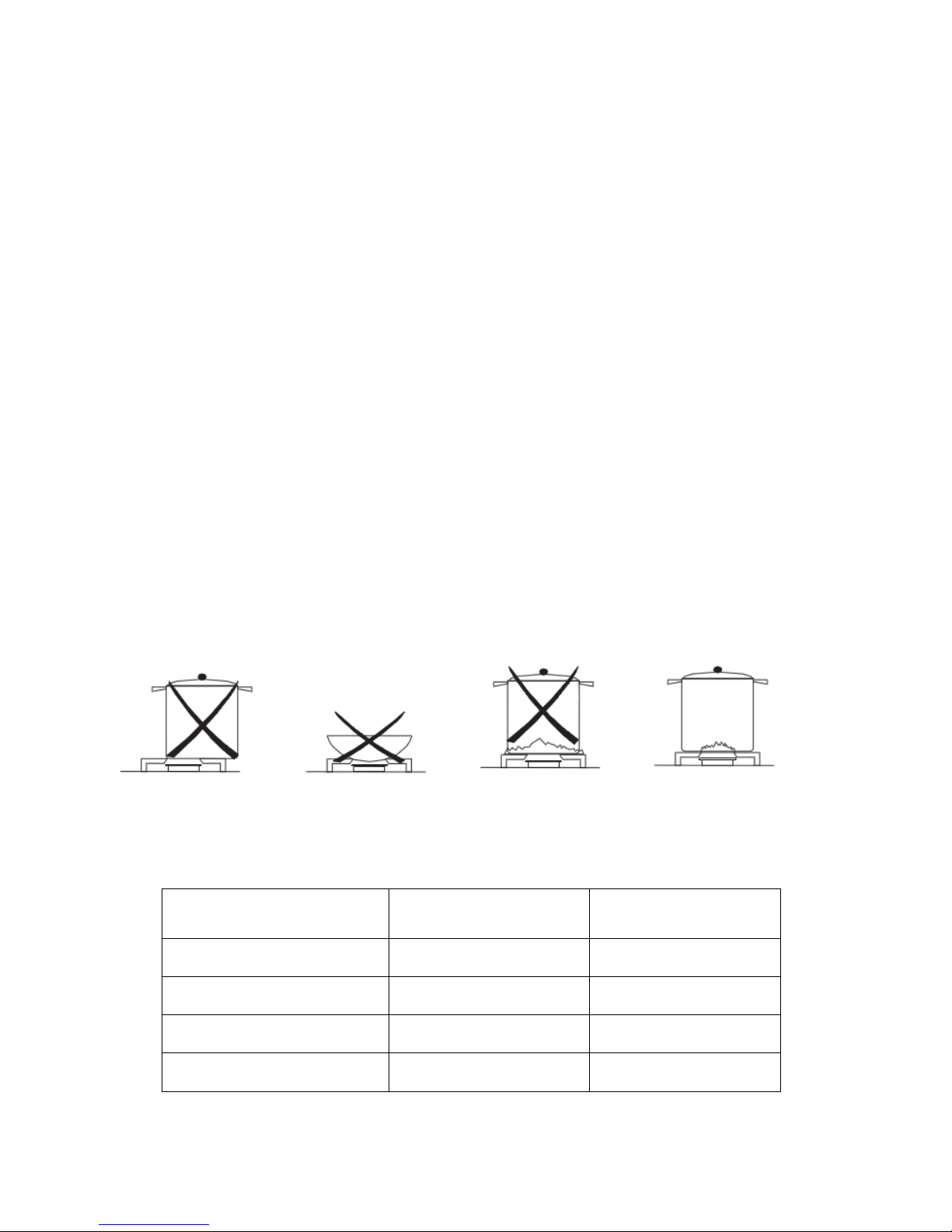

ADVICE ON THE USE OF GAS BURNERS
For lower gas consumption and a better yield, use saucepans with diameter
suitable for the burners, avoiding the flame coming up round the side of the
saucepan (see the Container Table). Use only flat-bottomed pans.
As soon as a liquid starts to boil, turn the flame down to a level sufficient to
maintain boiling. During cooking, when using fats and oils, be very careful
because if they overheat they could catch fire.
CONTAINER TABLE (USE FLAT-BOTTOMED SAUCEPANS)
Burner
Φmin Saucepan
(mm)
Φmax Saucepan
(mm)
Auxiliary
90
160
Semi-rapid
130
180
Rapid
150
260
Triple Ring
210
280

12
INSTRUCTIONS FOR USE - OVEN
ELECTRIC OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by turning the knob clockwise to
the required temperature, between 60º to MAX. If the appliance is operating
with an electric oven, the warning light will come on when the oven is heating
up. When the light goes out it means that it has reached the required
temperature. Regular flashing means that oven temperature is being constantly
maintained at the programmed level.
ELECTRIC OVEN FUNCTION KNOB
Each of the functions listed below can be used only together with the correct
temperature. The programme selector and thermostat knob is used to select
various oven functions and to choose the cooking temperatures best
corresponding to the food to be cooked. During oven operation the lamp will
always remain on.

13
ELECTRIC OVEN FUNCTIONS
The oven door must be closed for all cooking methods.
LAMP
The lamp of the oven is on, with no heating elements operated
(electrical resistances). During oven operation the lamp will always
remain on.
GRILLING
THERMOSTAT KNOB SWITCH FROM 60º TO MAX
Grill element is ideal to use for toasting and melting cheese. The
cooking time should be no longer than 5 minutes.
CONVENTIONAL COOKING
THERMOSTAT KNOB SWITCH FROM 60º TO MAX
The heat is provided from the top and bottom elements. The oven
must be preheated before the food is placed inside. Static cooking
provides optimum results for cakes, pizzas, bread and for gentle slow
cooking of casseroles. Heating from top and bottom, cooking is
possible only on middle shelf and should be centrally located in the
oven.
BOTTOM ELEMENT COOKING
THERMOSTAT KNOB SWITCH FROM 60º TO MAX
Ideal to use for pastries, cakes and non-dry sweets in baking tins or
moulds.
ELECTRIC OVEN TIMER KNOB
The timer of the electric oven is controlled by a mechanical
timer knob. According to the desired duration, adjust the
timer knob clockwise from 10 to 120 minutes. When the
timer runs out to original position, a bell will ring notifying
the cooking has been completed.

14
INSTRUCTIONS FOR COOKING
OVEN COOKINGS
For a perfect cooking, it is necessary to pre-heat the oven to preset cooking
temperature. To minimise food splashes into the oven (which can produce
smoke sometimes) deep baking dishes are recommended. Use instead high
edged containers, preferably terracotta containers, put on the grate at about half
the height of the oven.
Function
Knob
Setting
Food to be cooked
Weight
(in KG)
Shelf
Position
Pre-
Heating
Time
(Minutes)
Temp
(ºC)
Time in
Minutes
(*)
Traditional
cooking
Duck
Roast veal or beef
Roast Pork
Biscuits (Short pastry)
Tarts
1
1
1
1
1
3
3
3
3
3
15
15
15
15
15
200
200
200
180
180
65-75
70-75
70-80
15-20
30-35
Bottom
Oven
Pizza
Lasagne
Golden Rolls
0.3
0.5
0.4
2
2
2
15
15
15
220
200
180
12
25
20-25
Grilling
Soles and cuttlefish
Squid and prawn
Kebabs
Cod filet
Grilled vegetables
Veal steak
Cutlets
Hamburgers
Mackerels
1
1
1
1
1
1
1
1
1
4
4
4
4
3/4
4
4
4
4
5
5
5
5
5
5
5
5
5
Max
Max
Max
Max
Max
Max
Max
Max
Max
8-10
6-8
10
10
10
15-20
15-20
7-10
15-2
The table shows some examples of how to set the thermostat and the cooking
time. The cooking time varies depending to the type and volume of the food.

15
MAINTENANCE AND CLEANING
Do not use jet of steam for cleaning.
Before any operation carried out, disconnect the appliance from electrical mains. Wash the
enamel parts with lukewarm water and detergent.
Do not use abrasive products. Wash the burner ring frequently with hot water and detergent.
Make sure to remove any deposits which could block the flame outlet.
Rinse the stainless steel parts with water and dry them with a soft cloth.
To clean the hob use slightly damp sponges and wiping cloths. Avoid using too much water
which could spill into the internal parts and damage the electrical components.
For persistent stains use normal non-abrasive detergents or a little bit of vinegar.
Clean the glass parts with hot water, avoiding the use of rough cloths.
Do not use stainless steel pads or acids for cleaning. To prevent difficulties in ignition,
carefully clean the ignition spark plug regularly.
Periodically check if the knobs become difficult to turn. Contact a qualified engineer to service
the appliance. Contact a qualified engineer to deal with any other problems which may arise
during usage.
To keep the brightness of the enamelled parts for a long time it is necessary to clean the oven
after each cooking. Once the oven is cold, you will be able to easily remove the fat deposits
by means of a sponge or a cloth damp with warm soapy water.
Never use abrasive cloths or sponges that could irreparably damage the enamel.
Clean the appliance immediately after any food spillage.
TO MAINTAIN SAFE OPERATION, IT IS RECOMMENDED THAT THE PRODUCT TO BE
INSPECTED EVERY FIVE YEARS BY AN AUTHORISED SERVICE TECHNICIAN.

16
CLEANING THE OVEN
WARNING: ENSURE THAT ALL CONTROLS ARE IN THE “OFF” POSITION AND WAIT FOR THE
GRILL ELEMENT TO COOL DOWN.
1) Support the front of the grill element while you remove the knurled screw retaining the
element.
2) Lower the front of the element carefully to the rest position.
3) When cleaning the oven make sure do not apply any forces to the grill element.
4) When the cleaning is completed, carefully remove any cleaning chemicals and water
from the grill element.
5) Carefully raise the front of the element into position and secure with the knurled screw.
NEVER USE THE OVEN WITH THE GRILL ELEMENT HANGING DOWN.
CLEANING THE ENAMEL TRIVET
The enamel trivets of the appliance are equipped with suitable rubber pads to provide better
stability and avoid scratches on the plane surface during usage.
The enamel trivet of the hob can be washed in the dishwasher.
After washing, make sure it is dry and carefully put back on the correct position. Ensure that
the trivet is placed in a proper position and at the center of the burner.
REMOVING THE OVEN DOOR
For a thorough cleaning, you can remove the over door assembly. Procedures are as follows:
1) Open the door completely.
2) Lift up and turn the small levers located on the two hinges.
3) Grip the door on the two external sides and close it approximately half way.
4) Pull the door towards yourself, pulling it out of its seat.
5) To reassemble the door, reverse this sequence.

17
REPLACING THE OVEN BULB
Once the oven has been electrically disconnected, unscrew the glass protection cap and the
bulb. Always remember to use high temperatures resistant (300ºC / E14) bulb for the oven.
Reassemble the glass cap and reconnect the oven after replacing the bulb.
Voltage : 220-240V
Wattage : 25W
Type : E14

18
MAIN SPECIFICATIONS
Rated Voltage : 220-240V / 50Hz
Oven Light : 300 / E14 x 1
Oven Capacity : 70 Litres
Oven Output Power: 2.56kW
Rated Power : 3-Burner
2 x Triple Ring Burner (3.8kW x 2)
1 x Semi Rapid Burner (1.75kW x 1)
4-Burner
1 x Triple Ring Burner (3.8kW x 1)
1 x Rapid Burner (3.0kW x 1)
1 x Semi Rapid Burner (1.75kW x 1)
1 x Auxiliary Burner (1.0kW x 1)
Product Dimension: 900mm (W) x 850mm (H) x 600mm (D)
MODEL
SIZE
COLOR
GAS
BURNER
OVEN
TYPE
OVEN
LAMP
IGNITION
GAS CYLINDER
COMPARTMENT
EGC-C9783E(SS)
90cm
STAINLESS
STEEL
3
70L
ELECTRIC
YES
ELECTRIC
YES
EGC-C9784E(SS)
4
YES
YES
EGC-C9783E(BK)
BLACK
3
YES
YES
EGC-C9784E(BK)
4
YES
YES
EGC-C9783E(WH)
WHITE
3
YES
YES
EGC-C9784E(WH)
4
YES
YES
NOTICE
This product must not be disposed together with domestic waste. It has to be
disposed at an authorized place for recycling of electrical and electronic appliances. By
collecting and recycling waste, you help to save natural resources and make sure the
product is disposed in an environmental friendly and healthy way.

19
