Elba OB60 Series User manual

Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our
local website listed at the end of this document or contact your local Fisher & Paykel dealer.
SAFETY AND WARNINGS
1
WARNING!
Electrical shock hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Fire hazard
Do not use adapters, reducers, or branching devices to connect this appliance to
the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
Important safety instructions!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could reduce
your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably qualified
person according to these installation instructions and in compliance with any applicable local
building and electricity regulations. Failure to install the appliance correctly could invalidate any
warranty or liability claims.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Built-in ovens
Installation instructions
OB60 TOP-OPENING DOOR models NZ AU
(1,1) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM
(1,1) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM

2PRODUCT & CABINETRY DIMENSIONS
Product and cabinetry dimensions (mm)
OB60S3
OB60SC
Aoverall height* of product 597
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 582
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of oven door when fully open (measured from front of
control panel) 435
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 585
JIoverall height of cavity 600
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
*All height measurements include mounted feet.
Product and cabinetry dimensions (mm)
OB60B
Aoverall height* of product 888
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 874
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of upper oven door when fully open
(measured from front of control panel) 261
HIdepth of lower oven door when fully open
(measured from front of control panel) 435
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 877
JIoverall height of cavity 893
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
*All height measurements include mounted feet.
OB60S3 & OB60SC MODELS
Installation diagrams for illustration purposes only Installation diagrams for illustration purposes only
2.5 mm
16-20 mm
A
CE
D
F
G
H
J
K
L
L
I
II
JI
B
2.5 mm
16-20 mm
L
A
CE
D
F
G
H
HI
J
K
L
I
II
JI
B
OB60B MODELS
(1,2) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM
(1,2) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM

LOWER TRIM
OVEN DOOR
LOWER TRIM
AIR FLOW
FEET
PRIOR TO INSTALLATION
UNPACKING THE OVEN
3
4

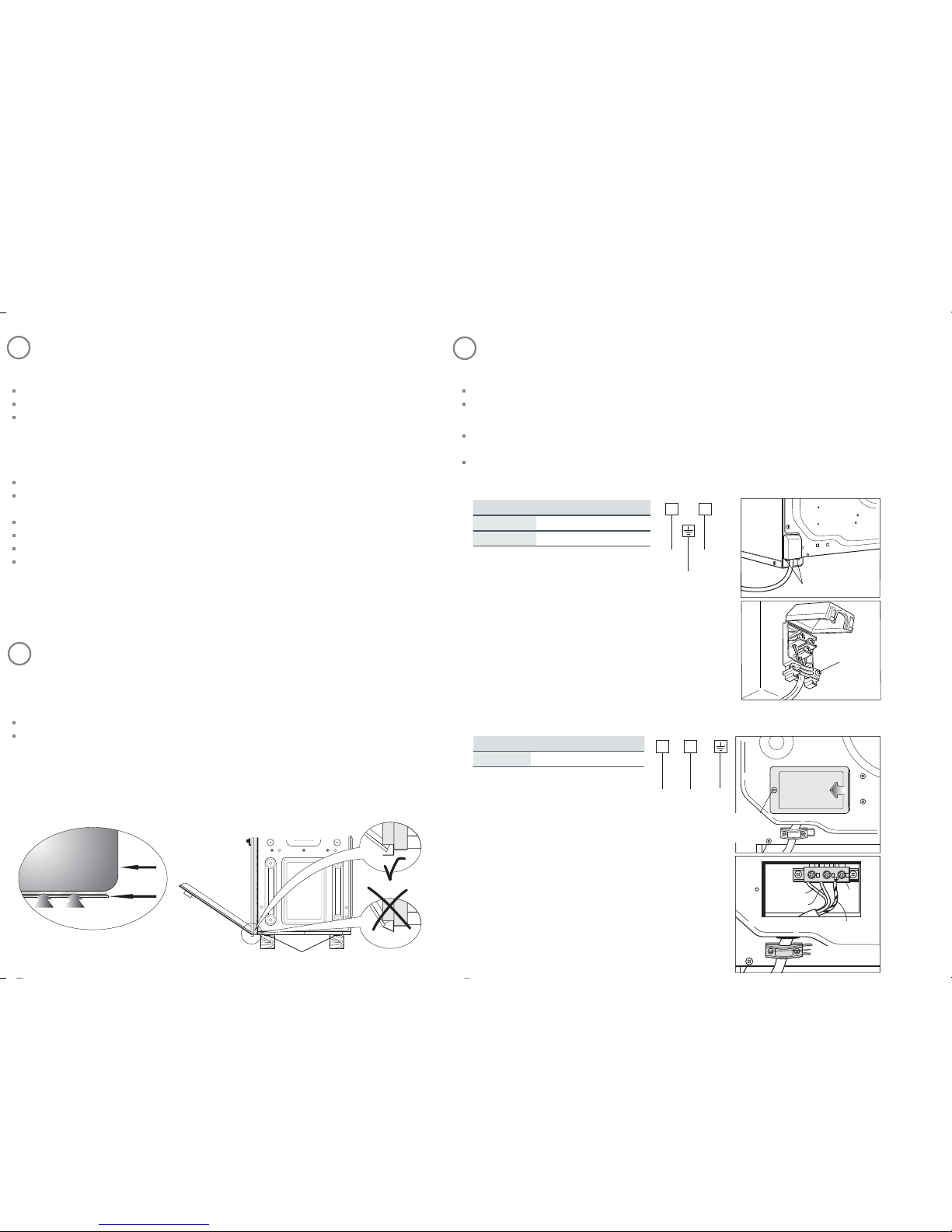

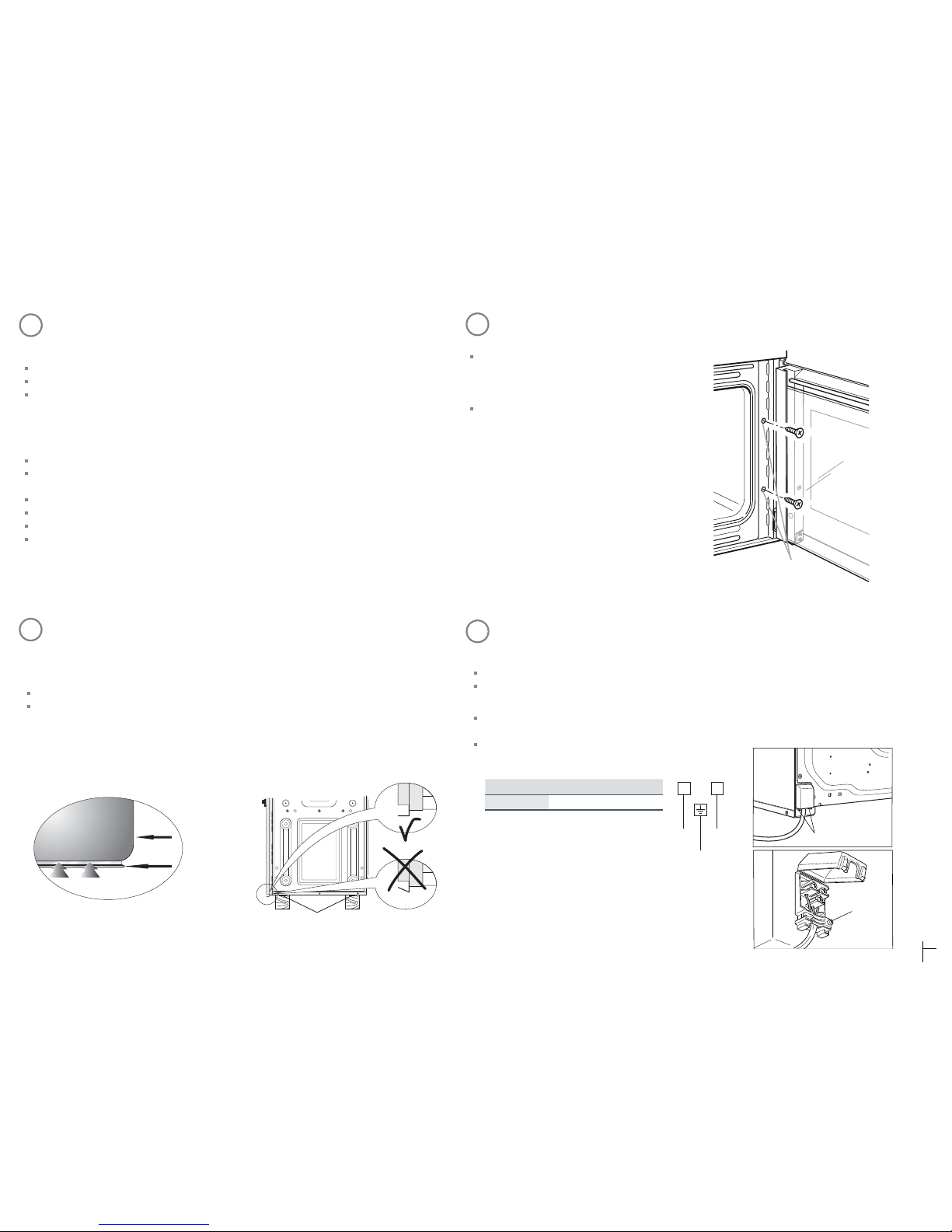

5ELECTRICAL CONNECTION
Before you install the oven, make sure that
the benchtop and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and regulations
a suitable isolating switch providing full disconnection from the mains power supply is incorporated in
the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap contact separation
in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the
requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for
ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
Important!
Some environmental factors and cooking habits can cause condensation in and around the oven during use.
To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we
recommend moisture-proofing the oven cavity.
Important!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
Important!
Do not lift the oven by the door handle.
Remove all packaging and dispose of it responsibly. Recycle items that you can.
Place the unpacked oven onto wooden blocks or similar supports to prevent damaging the lower trim.
You may remove the feet, but ensure the oven does not sit on the lower trim
Important!
The lower trim ensures correct air circulation and allows the door to open and close without obstruction. The
manufacturer does not accept any responsibility for damage resulting from incorrect installation.
OB60B MODELS
OB60S3 & OB60SC MODELS
Model code Power Voltage
OB60S3... 2250-2450 W 230 - 240 V~
OB60SC... 2350-2550 W 230 - 240 V~
Model code Power Voltage
OB60B... 4400-4800 W 230 - 240 V~
E
N
L
1 (L ) 2
Unhook to open cover
1
2
Unscrew to open
cable clamp
E
N
L1(L )2
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
D
1
2
Unscrew to
remove cover
plate
Unscrew to remove
cable clamp
(2,1) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM
(2,1) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM

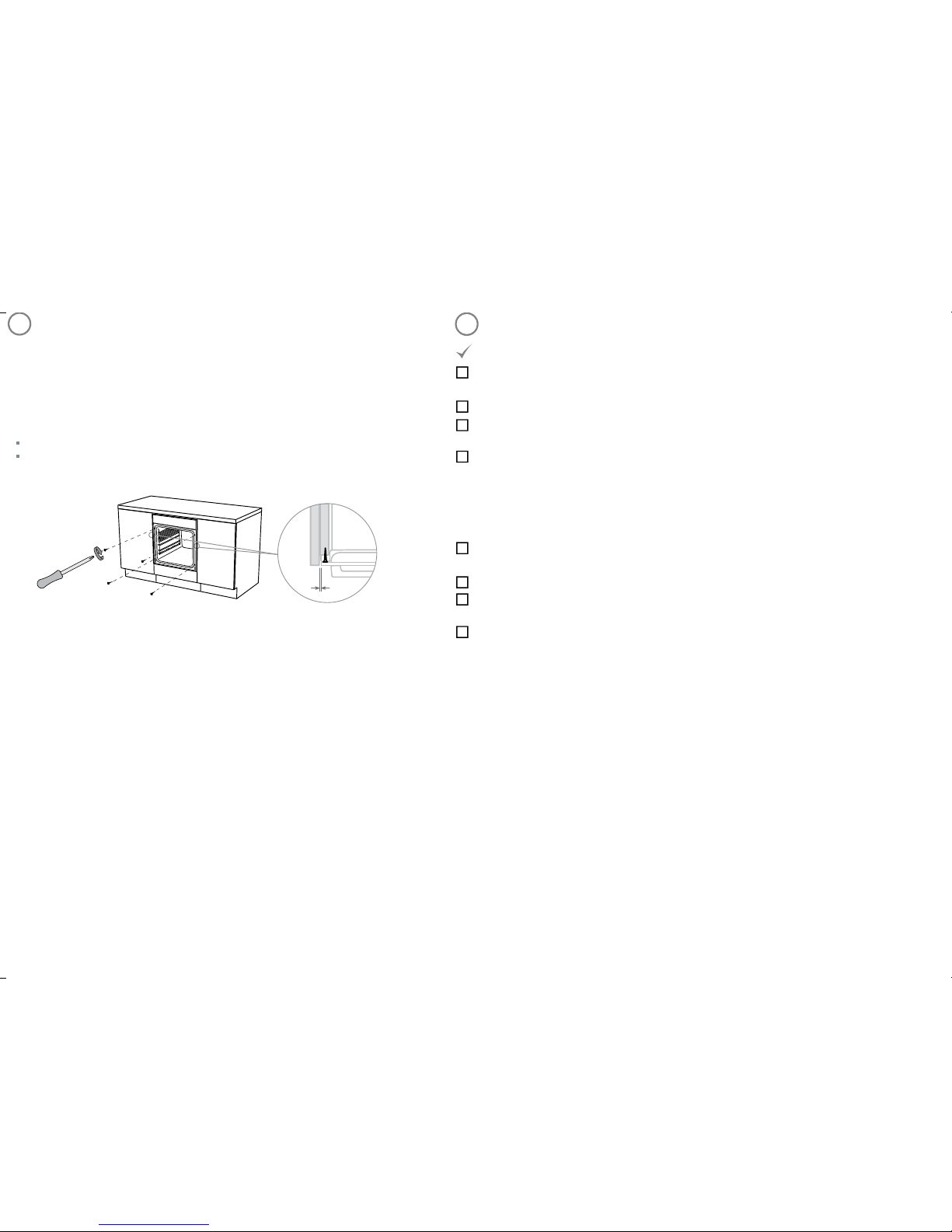

SECURING OVEN TO CABINETRY
6
1 Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2 Open the oven door fully.
3 Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher
& Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
2.5 mm
Make sure the oven is level and securely fitted to the cabinetry and the oven
door opens and closes freely.
Make sure all the internal packaging has been removed from the oven cavity.
Make sure all oven vents and openings are clear and are free of any
obstruction/damage.
Check the lower trim is still undamaged - open the oven door slowly to its fully
open position and check if there is adequate clearance between the bottom of
the door and the lower trim. This is to ensure correct air circulation. Should the
lower trim become damaged, straighten it and ensure the oven door opens
fully without obstruction.
Check that the power supply cable does not touch any metal parts that can
become hot during use.
Make sure that the isolating switch is easily accessible by the customer.
Turn the power to the oven on. On some models, the display should light up
and show 0:00.
Advise the customer to follow the instructions in their user guide in section
‘First use’.
7FINAL CHECKLIST
www.elba.co.nz www.elba.com.au F&P Italy Part No. 1103610-ß1 590093A NZ AU 07.10
(2,2) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM
(2,2) -1- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:28 AM

Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our
local website listed at the end of this document or contact your local Fisher & Paykel dealer.
SAFETY AND WARNINGS
1
WARNING!
Electrical shock hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Fire hazard
Do not use adapters, reducers, or branching devices to connect this appliance to
the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
Important safety instructions!
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could reduce
your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably qualified
person according to these installation instructions and in compliance with any applicable local
building and electricity regulations. Failure to install the appliance correctly could invalidate any
warranty or liability claims.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Built-in ovens
Installation instructions
OB60 SIDE-OPENING DOOR models NZ AU
(2,2) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM
(2,2) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM

2PRODUCT & CABINETRY DIMENSIONS
Product and cabinetry dimensions (mm) – proud installation
OB60SL
Aoverall height* of product 597
Boverall width of product 595
Coverall depth of product (excluding handle, knobs & door hinge) 567
Dheight of chassis 582
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs & door hinge) 22
Hmaximum depth of oven door
(measured from front of control panel) 595
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 585
JIoverall height of cavity 600
Kminimum inside depth of cavity 550
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
*All height measurements include mounted feet.
Product and cabinetry dimensions (mm) – ush installation
OB60SL
Aoverall height* of product 597
Boverall width of product 595
Coverall depth of product (excluding handle, knobs & door hinge) 567
Dheight of chassis 582
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs & door hinge) 22
Hmaximum depth of oven door
(measured from front of control panel) 595
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 585
JIoverall height of cavity 600
Kminimum inside depth of cavity 550
Lush tting cabinetry clearance 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
*All height measurements include mounted feet.
PROUD INSTALLATION FLUSH INSTALLATION
Installation diagrams for illustration purposes only Installation diagrams for illustration purposes only
2.5 mm 5 mm
16-20 mm 16-20 mm
A A
C C
E E
D D
F F
G G
H H
J J
K K
L
L
I I
IIII
JIJI
B B
Important!
Doors of adjacent
cabinetry may need
adjusting to allow the
oven door to open
properly: a minimum
clearance of 5mm is
recommended.
(2,1) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM
(2,1) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM

PRIOR TO INSTALLATION SPECIAL REQUIREMENTS
ELECTRICAL CONNECTION
34
6
Before you install the oven, make sure that
the benchtop and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and regulations
a suitable isolating switch providing full disconnection from the mains power supply is incorporated in
the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap contact separation
in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the
requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for
ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
Important!
Some environmental factors and cooking habits can cause condensation in and around the oven during use.
To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we
recommend moisture-proofing the oven cavity.
Depending on the model, the door is either left- or
right-hinged. When determining the location of the
oven, ensure there will be enough space for the door
to open to its full extent.
This is to ensure that you have access to the fixing
screw holes on the hinged side when securing the
oven to the cabinetry.
Important!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
Model code Power Voltage
OB60SL... 3070 W 220-240 V~
E
N
L
1 (L ) 2
Unhook to open cover
1
2
Unscrew to open
cable clamp
Fixing screw holes
OVEN DOOR
LOWER TRIM
AIR FLOW
LOWER TRIM
FEET
5UNPACKING THE OVEN
Important!
Do not lift the oven by the door handle.
Remove all packaging and dispose of it responsibly. Recycle items that you can.
Place the unpacked oven onto wooden blocks or similar supports to prevent damaging the lower trim.
You may remove the feet, but ensure the oven does not sit on the lower trim
Important!
The lower trim ensures correct air circulation and allows the door to open and close without obstruction. The
manufacturer does not accept any responsibility for damage resulting from incorrect installation.
(1,2) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM
(1,2) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM

SECURING OVEN TO CABINETRY
7
1 Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2 Open the oven door fully.
3 Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher
& Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
Make sure the oven is level and securely fitted to the cabinetry and the oven
door opens and closes freely.
Make sure all the internal packaging has been removed from the oven cavity.
Make sure all oven vents and openings are clear and are free of any
obstruction/damage.
Check the lower trim is still undamaged - check if there is adequate clearance
between the bottom of the door and the lower trim. This is to ensure correct
air circulation. Should the lower trim become damaged, straighten it and
ensure the oven door opens without obstruction.
Check that the power supply cable does not touch any metal parts that can
become hot during use.
Make sure that the isolating switch is easily accessible by the customer.
Turn the power to the oven on. The display should light up and show 0:00.
Advise the customer to follow the instructions in their user guide in section
‘First use’.
8FINAL CHECKLIST
www.elba.co.nz www.elba.com.au F&P Italy Part No. 1103610-ß1 590093A NZ AU 07.10
(1,1) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM
(1,1) -2- 590093A ELBAOB60 installA2 NZAU.indd 24/6/10 9:04:32 AM
