ElectrIQ EQODHMSS User manual

USER MANUAL
GAS PATIO HEATER
EQODHMSS
EQODHMBL
WARNING: FOR OUTDOOR USE ONLY OR IN WELL VENTILATED AREAS
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE

2
CONTENTS
SAFETY
3
PARTS LIST
5
ASSEMBLY
6
SECURING THE BASE
9
OPERATION
10
LEAK TESTING
11
GAS INFORMATION
11
MAINTENANCE
12
STORAGE
12
TROUBLESHOOTING
13
SPECIFICATIONS
14
SUPPORT
14

3
IMPORTANT SAFETY INFORMATION
Please read this user manual before using this heater and keep it safe for future
reference.
⚫Read the following instructions carefully and be sure your patio heater is properly
installed, assembled and cared for. Retain the instructions for future reference.
⚫Failure to follow these instructions may result in serious bodily injury and/or
property damage.
⚫WARNING - Risk of Suffocation! Gas heaters must be used outdoors and must
not be used in enclosed areas such as sheds or marquees!
⚫Read the instruction manual before using the appliance.
⚫WARNING: Accessible parts may be very hot. Keep young children away.
⚫This appliance must be kept away from flammable materials during use.
⚫Do not move the appliance during use.
⚫The appliance should be secured to the ground when in use.
⚫Turn off the gas supply at the gas cylinder after use.
⚫Do not modify this appliance.
⚫If you have any questions concerning assembly or operation, consult the retailer
or Bottled Gas Company.
⚫Always place the appliance and cylinder on flat level ground.
⚫Turn off the gas cylinder if gas leak is suspected.
⚫Parts sealed by the manufacturer must not be altered by the user. No
modifications should be made to any part of this heater and repairs and
maintenance should only be carried out by a registered Gas Safe service
engineer.
⚫Use only regulator and hose approved for LP Gas at the correct pressures and
gas type.
⚫The regulator should comply with the standard EN16129 and current regulations
in the country where it is installed, which may be found at your nearest retailer of
gas items.
⚫Refer to the technical data. It is strictly prohibited to use adjustable pressure.
⚫The life expectancy of the regulator is estimated as 10 years. It is recommended
that the regulator is changed within 10 years of the date of manufacture or the
national conditions require it.
⚫The type of replaceable hose should be compliant with EN16436-1.
⚫The hose used must conform to the relevant standard for the country of use. The
length of the hose must be 0.7 meters (minimum) and 1.5 meters (maximum). A
worn or damaged hose must be replaced. Ensure that the hose is not obstructed
or kinked. It is recommended that the hose is changed within 1 year of the date of
manufacture or as the national conditions require.

4
915mm
915mm
IMPORTANT SAFETY RULES
•For use outdoors or in well ventilated areas.
•A well ventilated area must have a minimum of 25%
of the surface area open.
•The surface area is the sum of the walls surface.
•The use of this appliance in enclosed areas can be
dangerous and is PROHIBITED.
•Children and adults should be aware of the high
operating temperatures of areas above the post
when operating this heater. Children should be
carefully supervised when in the vicinity of the heater.
NEVER hang anything, including clothes or any other
flammable items, on this heater.
DO NOT operate this heater unless it is fully
assembled with its reflector in place.
Respect the minimum clearances from combustible
materials.
GENERAL INFORMATION FOR
SUCCESSFUL ASSEMBLY
Please read the assembly instructions carefully and follow the safety precautions. Allow sufficient
time for assembly. Before starting assembly, clear an area measuring approximately two to three
square meters. Remove the item from the packaging and lay out all of the parts and any necessary
tools so that they are within easy reach.
Only tighten all of the screw connections firmly when you have finished assembly or are instructed
to within the manual. Otherwise this can result in unwanted tension and instability.
Ceiling/Overhang
Wall

5
PART LIST
PART
DESCRIPTION
QUANTITY
A
Reflector Panel
3
B
Reflector Plate
1
C
Head Assembly
1
D
Deck Ring
1
E
Top of Housing (Preassembled)
1
F
Door (Preassembled)
1
G
Door Lock (Preassembled)
1
H
Rear of Housing (Preassembled)
1
I
Gas Pipe
1
J
Hose & Regulator
1
K
Post
1
L
Base (Preassembled)
1
M
Wheel Kit
1
PART
DESCRIPTION
QTY.
PART
DESCRIPTION
QTY.
AA
M8 flange
2
GG
Cap Nut
12
BB
M8x16mm bolt
2
HH
M5x10mm
Screw
3
CC
M6x16mm bolt
and M6 nut
4
II
Reinforced Ring
1
DD
Washer
16
JJ
Lock Washer
13
EE
Washer
9
KK
M5x12mm
Screw
6
FF
M6x8mm
screw
9
LL
Base stand
3
A
B
C
D
E
F
G
H
I
J
K
L
M

6
PATIO HEATER ASSEMBLY
Required Tools: Philip Screwdriver and Adjustable Spanner.
Leak Detection Solution: One-part detergent and three parts water
Before assembly, ensure all packing material and any transit protection is removed.
Line up holes on the bracket of the wheel assembly (M)
with the corresponding holes on base (L). Then insert
M8 x 16 mm bolts (BB) through the holes. Hand tighten
with the M8 flange nuts (AA). Be sure the wheel
assembly (M) is parallel to the base (L).
Put the Post (K) on the top of the Housing (E), place the
Reinforced Ring (II) under top of Housing (E). Secure
the post (K) and Reinforced Ring (II) using the M6 x 16
mm Bolts and M6 Nuts (CC), Lock Washers (JJ), Φ6
Washers (DD). Fasten and cover with the Deck Ring
(D).
DD
AA
BB
CC
II
JJ

7
Attach the Reflector Plate (B) to the Reflector Panels (A)
using M6 x 8mm Screws (FF), Φ6 washers (DD) and
Cap Nuts (GG). Do not fully tighten at this point.
Attach the Reflector Panels (A) together using the M6 x
8mm Screws (FF), Φ6 Washers (DD) and Cap Nuts
(GG). Do not fully tighten at this point.
Note: In order to achieve proper alignment of reflector
sections, it may be necessary to loosen the
preassembled bolts prior to assembly and retighten once
complete.
DD
DD
FF
FF
GG
GG
DD
FF
GG

8
Attach the Reflector Assembly to the Head Assembly
(C). Secure with cap nuts (GG) and Φ6 washers (DD).
All bolts previously fitted can now be tightened but
Do not over tighten!
Insert the hose & regulator assembly (I/J) through top of
housing (E) and Post (K), tighten gas pipe (I) to head
assembly(C).
Secure head assembly (C) to the post (K) using bolts M5
x 10 (HH), lock washer (JJ), and Φ5 washers (EE).
Note: The control dial on head assembly (C) should
be aligned with door (F).
The pressure regulator and hose assembly to be
used must conform to local standard codes.
DD
GG
HH
EE
JJ

9
Attach the regulator (J) to the gas cylinder (not
included).
Place the gas cylinder into the rear of the unit and close
the door (F).
Note: See instruction Gas requirement and
Connecting to a gas cylinder before buying a gas
cylinder.
SECURING THE BASE
Secure 3pcs base brackets to the base using preassembled 6pcs bolts M5 x 12 (KK), 6pcs Φ5 washers (EE) and 6pcs
lock washers (JJ) firstly, then strike suitable hook bolts or raw bolts through the stand holes into the ground. (See
figure 1)

10
OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, THE GAS DELIVERY SYSTEM MUST BE
PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL DIAL ANTI-CLOCKWISE TO THE
PILOT SETTING. PRESS THE DIAL IN AND HOLD FOR 1 MINUTE BEFORE ATTEMPTING IGNITION.
TO LIGHT THE PILOT
⚫Check all connections prior to each use.
⚫Turn on gas supply at the bottle.
⚫Press and turn the control dial anti-clockwise to the PILOT
position, see right photo.
⚫Hold the dial down while pressing the IGNITION button
repeatedly until the pilot flame is lit, then continue to hold the
dial down for 10 seconds until the pilot remains lit after
releasing dial.
⚫If pilot fails to ignite, press and turn the dial clockwise to the
OFF position before repeating.
TO LIGHT THE PATIO HEATER
•Before lighting the patio heater, the pilot light should be lit with the dial set to PILOT.
•Press the dial and turn anti-clockwise to the HIGH position.
•When the mesh glows, the dial can be turned clockwise to the desired setting.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner, turn
the control dial to the pilot position. Then turn the dial to the level of heat desired.
RE-LIGHTING
•Turn Control Dial to OFF.
•Wait at least 5 minutes, to let gas dissipate, before attempting to re-light the pilot.
•Repeat the “Lighting” steps.
AFTER USE
•Press the dial down & turn clockwise to the OFF position
•Turn off the valve on the gas cylinder or regulator after use.
•Disconnect the gas bottle and allow this appliance to cool before moving the appliance.
Note: After use, some discoloration of the emitter screen is normal. Close regulator after use, allow the
appliance to cool before moving.
PILOT
IGNITION
OFF
HIGH
LOW

11
LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak tested at the factory prior to
shipment.
This appliance needs to be periodically checked for leaks and an immediate
check is required if the smell of gas is detected.
•Make a soap solution using 1 part of washing up liquid to 3 parts water.
The soap solution can be applied with a soap bottle, brush, or rag to the
leak tested points shown in the figure above.
•The valve of the gas cylinder should be in the OFF position at this point
of the leak test. Once the soapy solution is applied to the gas
connections, the valve of the gas cylinder needs to be turned to the ON
position.
•Soap bubbles will begin to form in the soapy solution if a leak is present.
•In case of a leak, turn off the gas supply. Tighten any leaking fittings,
then turn the gas supply on and recheck.
GAS REQUIREMENTS
•The regulator and hose assembly to be used must conform to local requirements.
•Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas cylinder may be
hazardous and should be checked by a gas supplier.
•Never connect this appliance to an unregulated gas source.
•When the appliance is not in use, turn the gas cylinder OFF, before disconnecting the gas bottle.
•Always perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in the leak test
solution, do not use. Never use a flame to test for leaks.
CONNECTING TO A GAS CYLINDER
•Use a 9 kg gas cylinder. Please refer to your gas supplier for suitable gas cylinder.
•Refer to your gas supplier for instructions on the use of your gas cylinder.
•Only change gas cylinders outdoors or in well-ventilated areas away from naked flames and any other source of
ignition.
•The gas cylinder must always be used in an upright position.
•Ensure the control dial on the appliance is in the OFF position.
•Ensure the regulator is in the OFF position before connecting to the gas cylinder.
•Tighten all connections firmly and with a spanner where appropriate. The cylinder should be located in the base of
the unit.
•Check for leaks at all joints using soapy water. If a leak is found, tighten the joint and then re-test.
Leak Test Point ① ② ③ ④

12
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
•Keep exterior surfaces clean.
•Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
•While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times. If the gas
control is exposed to water in any way, DO NOT try to use it. It must be replaced.
•Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs of possible
blockage include:
•Gas odour with extreme yellow tipping of flame.
•Heater does NOT reach the desired temperature.
•Heater glow is excessively uneven.
•Heater makes popping noises.
•Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it
unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away
smaller particles.
•Carbon deposits may create a fire hazard. If any carbon deposits develop, clean the dome and burner with warm
soapy water.
Note: In environments with a high salt content (such as near the sea), corrosion occurs more quickly than
normal. Frequently check the corroded areas and repair them.
SERVICING
•Please consult your supplier for servicing this appliance and replacement of its parts. The servicing of the appliance
shall be carried out only by authorised personnel.
•Do not use unauthorised parts or components for this appliance, only use original equipment replacement parts
and components. The use of unauthorised parts or components will void the warranty and can create unsafe
condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that the cylinder is disconnected and
removed from the appliance.
Between uses or before storage:
•Turn the control dial OFF
•Turn the gas cylinder OFF
•Disconnect the gas bottle.
Store the heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris). If desired, cover to protect exterior surfaces and to prevent build up in air passages.
Note: Wait until heater is cool before covering.

13

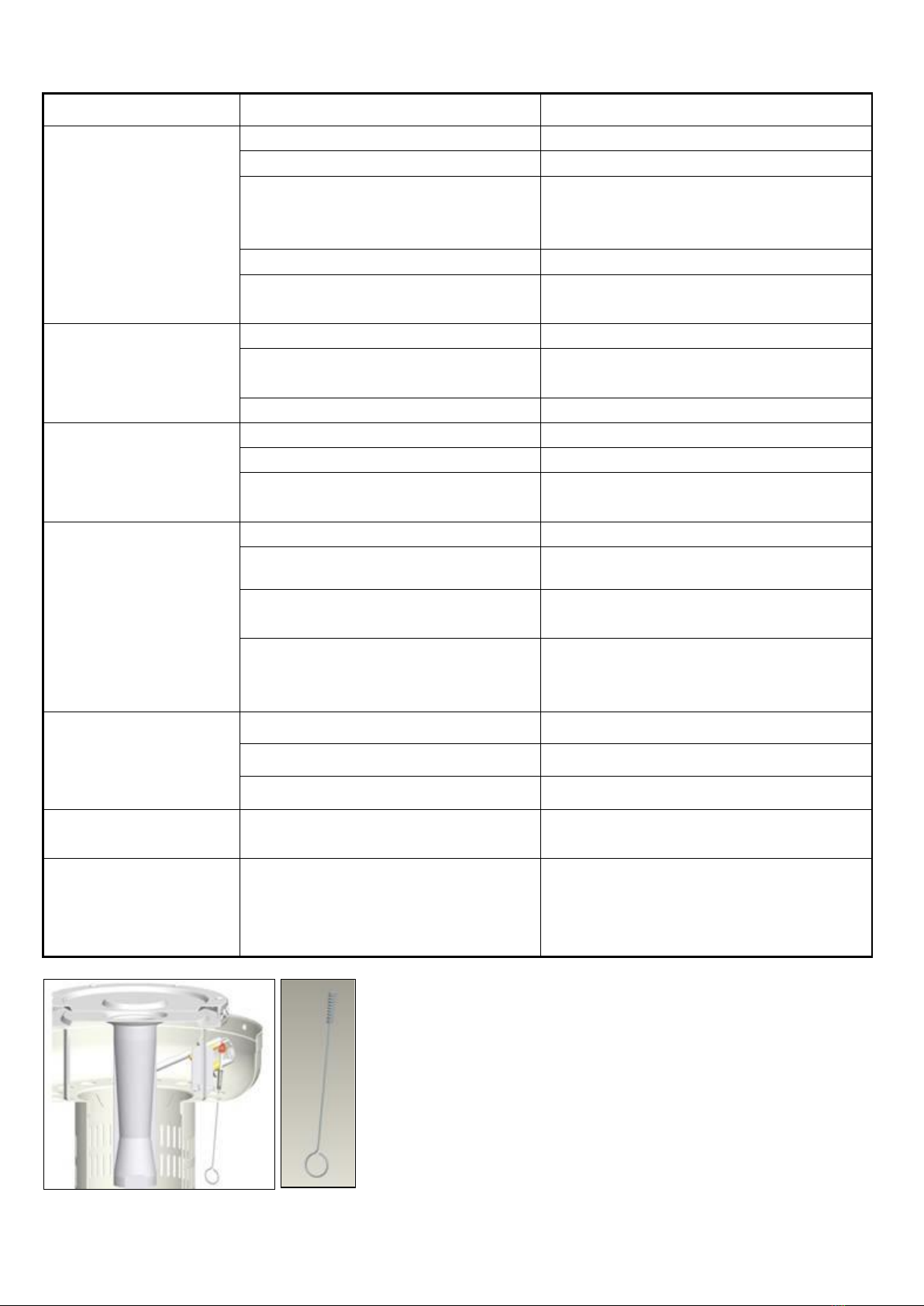

TROUBLESHOOTING
PROBLEM
CONDITION
FIX
Pilot won’t light
Cylinder valve is closed
Open valve
Blockage in orifice or pilot tube
Clean or replace orifice or pilot tube
Air in the gas line
Open gas line and bleed it (pressing
control dial in) for not more than 1-
2 minutes or until you smell gas
Low gas pressure
Gas cylinder low or empty
Ignition fails
Use match to light pilot, and obtain new
ignitor and replace. (See below pictures)
Pilot won’t stay lit
Dirt build up around the pilot
Clean dirt from around the pilot
Connection between the
gas valve and pilot assembly is loose
Tighten the connection and perform a
leak test
Bad thermocouple
Replace the thermocouple
Burner won’t light
Gas pressure is low
Replace the gas cylinder
Blockage in the orifice
Clear the blockage
Control dial is not in the
"HIGH" position
Turn control dial to the "HIGH" position
Burner flame is low
Note: Do not operate
heater below 5 ℃ (40°F)
Gas pressure is low
Replace the gas cylinder
Tank is almost empty.
Replace the gas cylinder
Supply hose is bent or kinked
Straighten hose and perform leak test on
the hose
Control dial is fully " ON"
Turn control dial to "OFF", let it cool to
room temperature and check burner and
orifices for blockage
Emitter glows uneven
Note: Bottom 2.5cm of
emitter does not
normally glow
Gas pressure is low
Replace the gas cylinder
Base is not on a level surface
Place heater on a level surface
Heater not level
Level the heater
Carbon build-up
Dirt or film on
the reflector and/or emitter
Clean the reflector and emitter
Thick black smoke
Blockage in burner
Turn the control dial to the OFF position, let
it cool to room temperature and remove
blockage and clean burner inside and
outside.
IN THE EVENT OF ANY PROBLEM, PLEASE CONSULT THE
SUPPLIER.
If for some reasons your ignition fails to deliver a spark, the heater
can be started by inserting a lit match using supplied match holder
through the burner hole (see left photo) while pushing the control
dial in the “PILOT” position.

14
SPECIFICATIONS
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0330 390 3061 or complete the online form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Product Name
Patio Heater
Model
EQODHMSS, EQODHMBL
Country Code
BE-CY-CH-CZ-
FR-ES-GB-GR-
IE-IT-PT-SK-SI-
TR
BG-HR-CH-CY-DK-
EE-FI-GR-HU-IT-IS-
LT-LV-MT-NL-NO-PT-
SE-SI-SK-RO-TR
CZ-FR-GB-
GR-IE-PT
PL
AT-CH-DE
AT-CH-DE-
NL
Category
I3+(28-30/37)
I3B/P(30)
I3P(37)
I3B/P(37)
I3B/P(50)
I3P(50)
Gas
G30
G31
G30/G31
G31
G30/G31
G30/G31
G31
Pressure(mbar)
28-30
37
30
37
37
50
50
Heat input
12.5KW
12KW
13.5kW
12.5KW
Consumption
909g/h
873g/h
982g/h
909g/h
Injector size (mm)
1.70
1.60
1.60
1.60
Pin No.
0063CO7365
Warning:
The appliance shall only be installed or operated with maximum height from the rim of reflector to the ground, so the
adjustable device shall be fixed according to this requirement. Close the valve of the gas cylinder or the regulator after use.
