ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
A
H
B
C
F
G
30” Min. *
(76.2 cm)
D
E
All dimensions are in inches (cm).
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the junction box on the
wall at the back of the cooktop.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
P/N 318201428 (0509) Rev. A
English – pages 1-5
Español – pages 6-10
Français - pages 11-15
Notes - 16

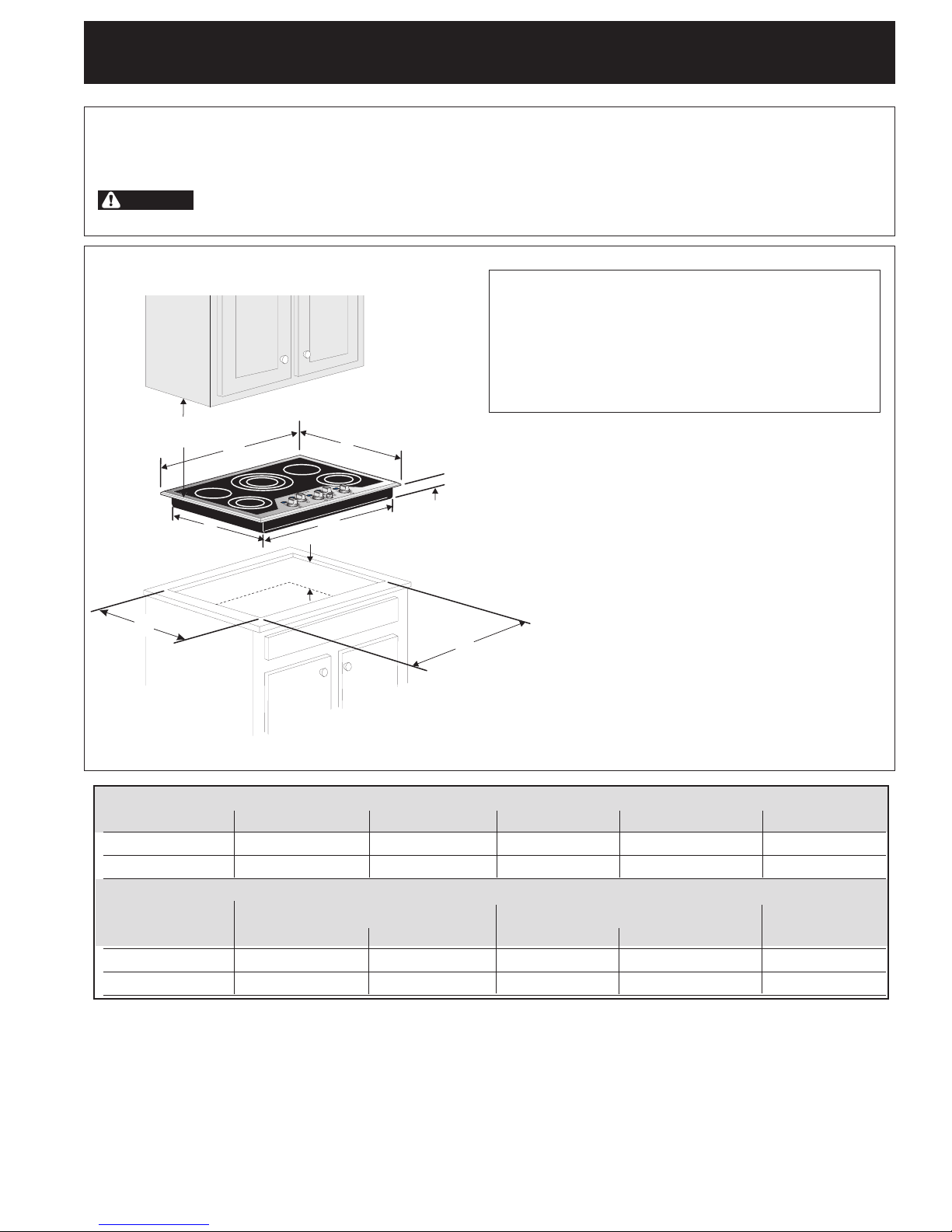

Cooktop Dimensions IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
• Minimum distance between cooktop and overhead
cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Cooktop Cutout
Dimensions
Figure 1
WARNING
PRODUCT DIMENSIONS
MODEL A. LENGTH B. WIDTH C. DEPTH D. BOX LENGTH E. BOX WIDTH
30" Ceramic Model 30¾ (78.1) 21½ (54.6) 4 (10.2) 28
5
/ 8
(72.7) 19¼ (48.9)
36" Ceramic Model 36¾ (93.3) 21½ (54.6) 4 (10.2) 34
5
/ 8
(87.9) 19¼ (48.9)
CUT OUT DIMENSIONS
F. LENGTH G. WIDTH H. DEPTH BELOW
MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM COOKTOP*
30" Ceramic Model 29
5
/ 8
(75.2) 30 (76.2) 20¼ (51.4) 20½ (52.1) 6 (15.2)
36" Ceramic Model 35
5
/ 8
(90.5) 36 (91.4) 20¼ (51.4) 20½ (52.1) 6 (15.2)
Printed in United States

2
ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
Figure 2 – COUNTERTOP CUTOUT OPENING
CAUTION
To eliminate the risk of burns or
fire by reaching over heated surfaces, cabinet
storage space located above the cooktop
should be avoided. If cabinet storage is
provided, risk can be reduced by installing a
range hood that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom
of the cabinets.
Letters on this figure refer to chart on front page except for J & K.
H
G
F
A
Overhead Cabinet Should Not Exceed a
Maximum Depth of 13" (33 cm)
30" (76.2 cm) Min.
Clearance Between the
Top of the Cooking
Platform and the Bottom
of an Unprotected Wood
or Metal Cabinet
24" (61 cm) Min. when
Bottom of Wood or
Metal Cabinet is
Protected by Not Less
Than 1/8" Flame
Retardant Millboard
Covered With Not Less
Than No. 28 MGS Sheet
Steel, 0.015" (0.4 mm)
Stainless Steel, 0.024"
(0.6 mm) Aluminum or
0.020" (0.5 mm)
Copper
2 1/2" (6.4 cm) Min. From Edge
of Cutout to Front Edge of
Countertop
Approximate Location
of Junction Box
18"
(45.7 cm)
It is not recommended to use
drawer underneath cooktop. Empty
space is needed for installation
purpose.
JMin. From Edge of
Cooktop to Nearest
Combustible Wall
(Either Side of Unit).
12"
(30.5 cm)
10"
( 25.4 cm)
Min.
KMin. Recommended
Distance Between Rear
Edge of Cutout and
Nearest Combustible
Surface Above
Countertop
24"
(61 cm)
MODEL JK
30" Ceramic Glass 7½" (19.1 cm) 2" (5.1 cm)
36" Ceramic Glass 7½" (19.1 cm) 2" (5.1 cm)

3
ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing the cooktop.
2. Remove all packing material before connecting the
electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your Use and Care Guide for
future reference.
IMPORTANT SAFETY
INSTRUCTIONS
•Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
•These cooktops must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70—latest edition in the United States, or with
CSA Standard C22.1, Canadian Electrical Code, Part
1, in Canada.
WARNING
The electrical power to the cooktop
must be shut off while line connections are being
made. Failure to do so could result in serious injury
or death.
Provide Electrical Connection
Install the junction box under the cabinet and run 120/
240 or 120/208 Volt, AC wire from the main circuit
panel. DO NOT connect the wire to the circuit panel at
this time.
Electrical Requirements
Observe all governing codes and local ordinances.
1. A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on a
separate circuit fused on both sides of the line (time-
delay fuse or circuit breaker is recommended). DO
NOT fuse neutral. The fuse size must not exceed the
circuit rating of the appliance specified on the
nameplate.
2. These units can consume up to 9700W at 240 Vac, a
circuit breaker of 40 Amp with wire gauge #8AWG
shall be used.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance
with the National Electrical Code ANSI/NFPA No. 70–
latest edition, and local codes and ordinances.
WARNING
An extension cord must not be used
with this appliance. Such use may result in a fire,
electrical shock, or other personal injury.
3. The appliance should be connected to the fused
disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible
armored cable extending from this appliance should
be connected directly to the grounded junction box.
The junction box should be located as shown in
Figure 2 with as much slack as possible remaining in
the cable between the box and the appliance, so it
can be moved if servicing is ever necessary.
4. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.
Unpacking Instructions
Figure 3
1. Leave corner supports on cooktop until completion
of Electrical Connection.
2. Be sure the bottle of cleaner conditioner packed in
the literature bag is left where the user can find it
easily. It is important that the ceramic-glass
smoothtop be pretreated before use. See Cooktop
Cleaning and Maintenance section in the Use and
Care Guide.

4
ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
Electrical Connection
Connect the flexible armored cable that extends from the
surface unit to the junction box using a suitable strain
relief at the point the armored cable enters the junction
box. Then make the electrical connection as follows.
Electrical ground is required on this appliance.
This appliance is equipped with a
copper conductor flexible cable. If connection is
made to aluminum house wiring, use only special
connectors which are approved for joining cooper
and aluminum wires in accordance with the National
Electrical Code and local codes and ordinances.
Improper connection of aluminum house wiring to
copper leads can result in a short circuit or fire.
Follow the connector manufacturer recommended
procedure closely.
This appliance is manufactured with a frame connected
green (or bare copper) ground wire.
DO NOT ground to a gas supply pipe.
DO NOT connect to electrical power supply until
appliance is permanently grounded. Connect the
ground wire before turning on the power.
Where local codes permit connecting the appliance-
grounding conductor to the neutral (white) wire:
If your cooktop is to be connected to a 3-wire
grounded junction box (see figure 4):
1. Disconnect the power supply.
2. In the circuit breaker, fuse box or junction box:
connect appliance and power supply cable wires as
shown in figure 4.
You may not ground the cooktop
through the neutral (white) wire if cooktop is used
in a new branch circuit installation (1996 NEC),
mobile home, recreational vehicle, or where local
codes do not permit grounding through the
neutral (white) wire. When grounding through the
neutral (white) wire is prohibited, you must use a
4-wire power supply cable. See Figure 5. Failure
to heed this warning may result in electrocution or
other serious personal injury.
If cooktop is used in a new branch circuit
installation (1996 NEC), mobile home, recreational
vehicle, or where local codes DO NOT permit
grounding through the neutral (white) wire:
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the circuit breaker, fuse box or junction box:
connect appliance and power supply cable wires as
shown in figure 5.

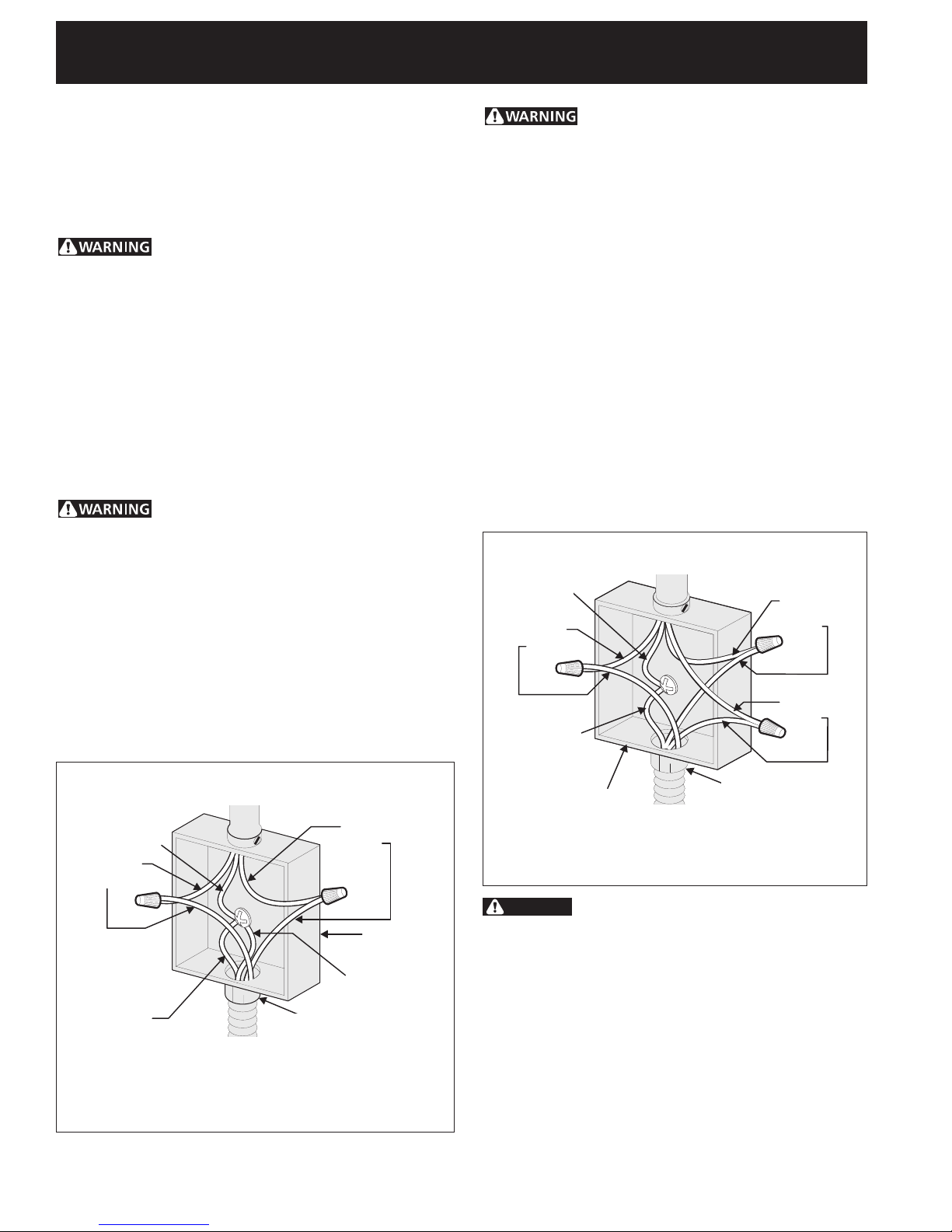

Figure 4
3-WIRE GROUNDED JUNCTION BOX
Cable from Power Supply
Black
Wires
Junction
Box
Cable from appliance
Ground Wire
(Bare or Green Wire)
White Wire
(Neutral)
U.L.-Listed Conduit
Connector (or CSA listed)
Red
Wires
White Wire
(Neutral)
Figure 5
4-WIRE GROUNDED JUNCTION BOX
Cable from Power Supply
Junction Box
Cable from appliance
White
Wires
Black
Wires
Red
Wires
Ground Wire
Ground Wire
(Bare or Green
Wire)
U.L.-Listed Conduit
Connector (or CSA listed)
WARNING
If connecting to a 4-wire power
supply cable electrical system, the appliance frame
connected ground wire MUST NOT be connected to
the neutral wire of the 4-wire electrical system.

5
ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
Cooktop Installation
1. Visually inspect the cooktop for damage. Also make
sure all cooktop screws are tight (see Figure 6).
3. Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
WARNING
Do not remove the nylon spacers on
the edges of the cooktop. These spacers center the
cooktop in the space provided. The cooktop must
be centered to prevent excess heat buildup that
may result in heat damage or fire (see Figure 8).
2. Install the retainer brackets. See Figure 7
The retainer brackets MUST be installed, to meet
local codes or, in their absence, with the National
Electrical Code ANSI/NFPA No. 70—latest edition, or
with CSA Standard C22.1, Canadian Electrical Code,
Part 1 (see Figure 7).
Screws
Figure 6
Figure 7
Cooktop
Nylon
spacer
Countertop
Retainer bracket
Figure 8
6 Nylon spacers
2 Retainer
brackets
Position brackets
on unit cutout
center line
Checking Operation
Refer to the Use and Care Guide for operation.
CAUTION
Do not touch cooktop glass or elements.
They may be hot enough to burn you.

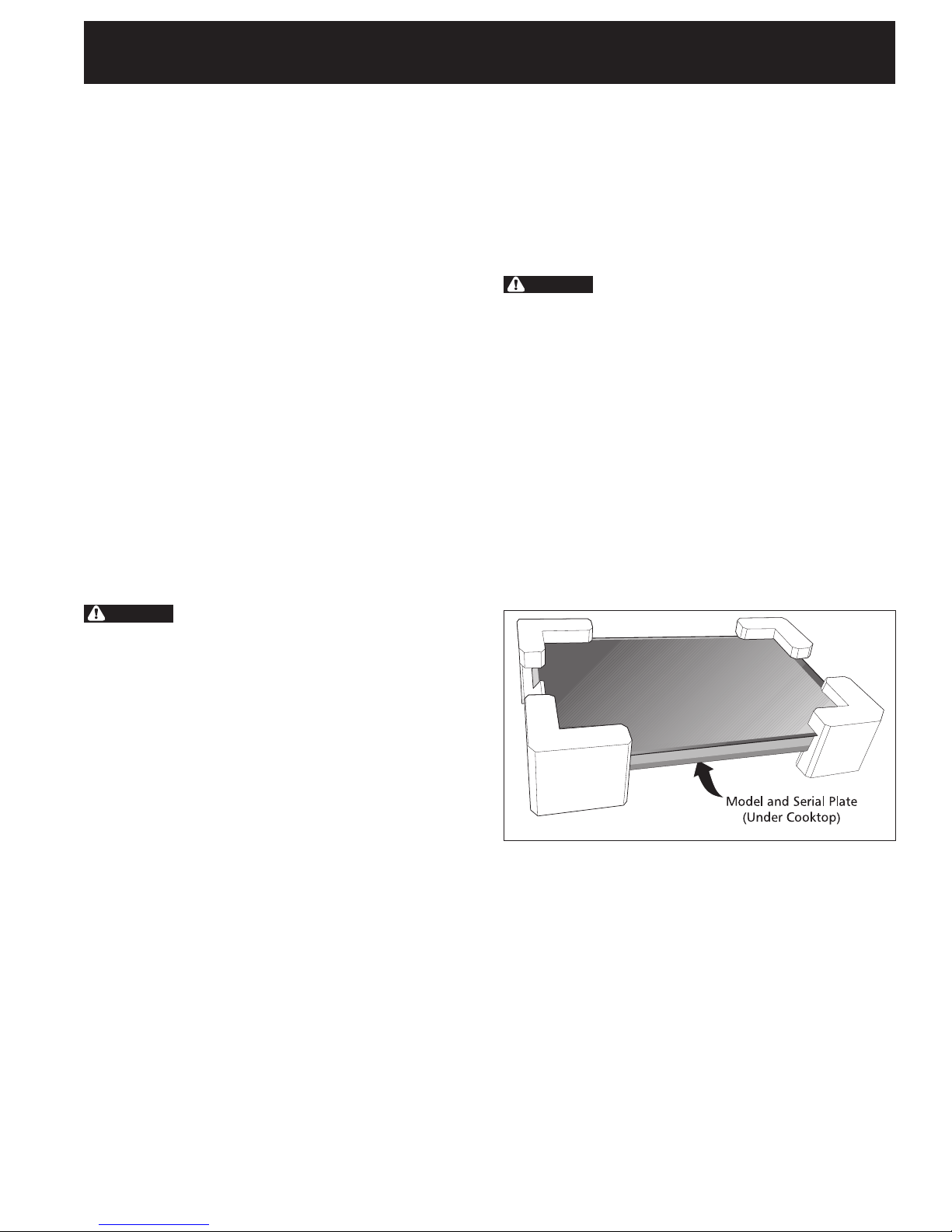

Model and Serial Number Location
The serial plate is located under the cooktop.
When ordering parts for or making inquires about your
cooktop, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your cooktop.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide. It
may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to your Use and Care Guide for service phone
numbers.

6
INSTRUCCIONES PARA LA INSTALACION DE LA ESTUFA ELECTRICA
A
H
B
C
F
G
30” Min. *
(76.2 cm)
D
E
Todas las dimensiones se dan en pulgadas (cm).
* Deje 2" (5 cm) de hueco debajo de la estufa para espacio para el cable eléctrico y la instalación de la caja de empalmes en la
pared detrás de la estufa.
LA INSTALACION Y EL SERVICIO DEBEN SER EFECTUADOS POR UN INSTALADOR CALIFICADO.
IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR LOCAL DE
ELECTRICIDAD.
LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA.
PARA SU SEGURIDAD: No almanece ni utilice gasolina u otros vapores y líquidos inflamables
en la proximidad de este o de cualquier otro artefacto.
P/N 318201428 (0509) Rev. A
English – pages 1-5
Español – pages 6-10
Français - pages 11-15
Notes - 16
INFORMACION IMPORTANTE PARA LA
INSTALACION
• Todas las estufas eléctricas funcionan con una
alimentación eléctrica con puesta a tierra de fase singular,
3 o 4 alambres, 240/208 voltios, 60 hertz y sólo AC.
• Favor de notar que la distancia mínima entre la superficie
de la estufa y los gabinetes adyacentes y por encima son
de 30" (76.2 cm).
* 30" (76.2 cm) mín. para un gabinete desprotegido.
24" (61 cm) mín. para una superficie protegida.
Figura 1
Dimensiones de la Estufa
Dimensiones del
Recortado de la Estufa
DIMENSIONES DE LA ESTUFA
MODELO A. LONGITUD B. ANCHRA C. PROFUNDIDAD D. LARGO DE LA CAJA E. ANCHO DE LA CAJA
Modelo 30" 30¾ (78.1) 21½ (54.6) 4 (10.2) 28
5
/ 8
(72.7) 19¼ (48.9)
Modelo 36" 36¾ (93.3) 21½ (54.6) 4 (10.2) 34
5
/ 8
(87.9) 19¼ (48.9)
DIMENSIONES DE RECORTADO
F. LONGITUD G. ANCHURA H. PROFUNDIDAD
MODELO MINÍMA MÁXIMA MINÍMA MÁXIMA DEBAJO DE LA ESTUFA*
Modelo 30" 29
5
/ 8
(75.2) 30 (76.2) 20¼ (51.4) 20½ (52.1) 6 (15.2)
Modelo 36" 35
5
/ 8
(90.5) 36 (91.4) 20¼ (51.4) 20½ (52.1) 6 (15.2)
Imprimido en los Estados Unidos

7
INSTRUCCIONES PARA LA INSTALACION DE LA ESTUFA ELECTRICA
H
G
F
A
Para evitar riesgos de
quemaduras o incendios al tocar superficies
calientes, se deben evitar los armarios sobre
la superficie de los quemadores. Si existe un
armario, se pueden reducir los riesgos
instalando una campana que se extienda
horizontalmente en un mínimo de 5" (12.7
cm) por sobre la parte inferior de los
armarios.
Figura 2 – EL CORTE DE LA PARTE SUPERIOR DEL ARMARIO
Jmin. desde el borde
del corte hasta el
compartimiento de
combustible (ambos
lados del artefacto)
El armario superior no debe sobrepasar una
profundidad máxima de 13" (33 cm)
24" (61 cm) min. cuando la
parte inferior del armario de
madera o metal está protegida
por una placa cortafuego
retardante de llama de no
menos de 1/4", cubierta con
una lámina de acero msg no
inferior al No. 28, de acero
inoxidable de 0.015",
aluminio de 0.024" o cobre de
0.020".
30" (76.2 cm) min. de espacio
entre la parte superior del fogón
y la parte inferior de un armario
de madera o metal sin protección.
2 1/2" (6.4 cm) mín. desde el borde delantero
del corte hasta el borde delantero de la parte
superior del armario
Ubicación aproximada
de la caja de empalmes
k min. distancia
recomendada entre el
borde trasero del corte y el
compartimiento de
combustible más cercano
sobre la parte superior del
armario
10"
(25.4 cm)
12"
(30.5 cm)
18"
(45.7 cm)
Min.
Para las dimensiones Jy K, véase la tabla en la página 1.
24"
(61 cm)
No es recomendable utilizar
cajones debajo de la estufa.
MODELO JK
Modelo 30" 7½" (19.1 cm) 2" (5.1 cm)
Modelo 36" 7½"(19.1 cm) 2" (5.1 cm)
