Electrolux EW36GC55G S User manual

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from aneighbor's phone.
Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by aqualified installer,
service agency or the gas supplier.
30" Min.
(76.2 cm) C
Gas Cooktop
Dimensions
21/2"Min.
(6.4 cm Min.)
Gas Cooktop
Cutout Dimensions
Figure 1
MODEL A.WIDTH B.DEPTH C HEIGHT D.BOXWIDTH E.BOXDEPTH
30"GasCooktop 30 (76.2) 213A(55.2) 4_A(10.8) 27(68.6) 19 (48.3)
36"GasCooktop 36 (91.4) 213A(55.2) 4_A(10.8) 331/4(84.5) 19(48.3)
MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM COOKTOP
30"GasCooktop 271/4(69.2) 281/2(72.4) 191/8(48.6) 1934(50.2) 8 (20.3)
36"GasCooktop 337/8(86.1) 34_A(87) 191/8(48.6) 1934(50.2) 8 (20.3)
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Printed in United States
318201472 (O701) Rev. A
English - pages 1-9
Espahol- paginas 10-17
Fran_ais - pages 18-26
Wiring Diagram 27-28

Important Notes to the Installer
1. Readall instructions contained in these installation
instructions before installing the cooktop.
2. Remove all packing material before connecting the
electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leavethese instructions with the consumer.
5. Note: For operation at 2000 ft. elevations above see
level, appliance rating shall be reduced by 4 percent
for each additional 1000 ft.
Important Note to the Consumer
Keep these instructions with your Useand Care Guide for
future reference.
IMPORTANT SAFETY
INSTRUCTIONS
Installation of this cooktop must conform with local codes
or, in the absence of local codes, with the National Fuel
Gas Code ANSI Z223.1/NFPA 54 in the United States, or
in Canada, with the Canadian Fuel Gas Code, CAN/CGA
B149 and CAN/CGA B149.2.
• When installed in a manufactured (mobile) home
installation must conform with the Manufactured Home
Construction and Safety Standard, title 24 CFR, part
3280 [Formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD (part 280)] or,
when such standard is not applicable, the Standard for
Manufactured Home Installation, ANSI/NCSBCS A225.1
or with local codes where applicable.
This cooktop has been design certified by CSA
International. As with any appliance using gas and
generating heat, there are certain safety precautions you
should follow. You will find them in the Use and Care
Guide, read it carefully.
• Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
• This cooktop must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70--latest edition in the United States, or in
Canada, with the Canadian Electrical Code, CSA
C22.1 Part 1.
• The burners can be lit manually during an
electrical power outage. To light a burner, hold a
lit match to the burner head, then slowly turn the
Surface Control knob to LITE. Use caution when
lighting burners manually.
• Do not store items of interest to children in
cabinets above the cooktop. Children could be
seriously burned climbing on the cooktop to reach
items.
• To eliminate the need to reach over the surface
burners, cabinet storage space above the burners
should be avoided.
• Adjust surface burner flame size so it does not
extend beyond the edge of the cooking utensil.
Excessive flame is hazardous.
•Never use your cooktop for warming or heating
the room. Prolonged use of the cooktop without
adequate ventilation can be hazardous.
•Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
The electrical power to the cooktop
must be shut off while gas line connections are
being made. Failure to do so could result in serious
injury or death.

13"(33cm)
Max.Depth
ForCabinet
InstalledAbove
Cooktop.
A
18" Min.
(45.7 cm)
1V2" (3.8 cm) Minimum Distance
Between RearEdge of Cutout
and Nearest Combustible Surface
Above Countertop.
4
Clearance
30" (76.2 cm)
Min. Clearance
Between the
Top of the
Cooking
Platform and
Unprotected
Wood or Metal
Cabinet
C
24" cm)
\
_To eliminate the risk of
burns or fire from reaching over heated
surfaces, cabinet storage space located
above the cooktop should be avoided. If
cabinet storage is provided, risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5"
(12.7 cm) beyond the bottom of the
cabinets.
Drawers Cannot Be Used with This
Cooktop Since Burner Box Extends
3sh2" (8.02 cm) Below Surface of
Countertop.
MODEL A B, Minimum C. Minimum
Clearancef[om Clearancefrom
I I Left Side IRight Side
30" Cooktop 30" (76.2 cm) I 7" (17.8 cm) I 7" (17.8 cm)
36" Cooktop 36" (91.4 cm) 7"(17.8 cm) 7"(17.8 cm)
Figure 2-CABINET DESIGN

Typical Under Counter Installation of an Electric Built-in
Oven with a Cooktop Mounted Above
All mounting hardware must be
used to secure the built-in oven to
the cabinets. Refer to the built-in
oven installation instructions.
Junction box must
be located approx.
3" to the left of
the built-in oven
cutout.
This cooktop may
be installed over
certain built-in elec-
tric oven models.
Side filler panels are necessary to iso-
late the unit from adjoining cabinets.
Panel height should allow for installa-
tion of approved cooktop models. See
"Typical Gas Cooktop Installation Over
an Electric Built-in Oven Installed Un-
der the Counter" on next page.
208/240 Volt
grounded junction
box for built-in oven.
G •
36"
(91.4 cm)
Min.
Use 3/4" (1.9 cm) ply-
wood, installed on two
runners, flush with toe
plate. Must be capable
of supporting 200 Ibs.
Cut an opening in wood base minimum 4"
(10.2 cm) x4" (10.2 cm) to route armored
cable to junction box.
-,_4 1/2" (11.4 cm)
Max.*
If no cooktop is installed directly
over the oven unit, 5" (12.7 cm)
maximum isallowed.
CUTOUT DIMENSIONS (inches)
OVEN SIZE E F G
Min. Max. Min. Max.
30" 28¼" 287/8'' 28Y2" 29" 24"
(76.2 cm) (71.8 cm) - (73.3 cm) (72.4 cm) - (73.7 cm) (61 cm)
Figure 3
4

an
Wall
Typical Gas Cooktop Installation Over
Electric Built-in Oven Installed Under the Counter
18" (45.7 cm) Max.----_
Manifold Pi 61/2"
5" ,(16.5 cm)
Flare (12.7cm) Min.
Union
Flexible Connector
Oven Cabinet
Cabinet sides or
filler panel
- Flare
Union
_J
_J
120V/6OHz
Grounded
Outlet
Pressure
Regulator
4" (10.2 cm)
Right Side of
Cabinet
Manual Shutoff Valve
(To be accessible for
shut-off valve opera-
tion)
_L Cooktop
Wall Oven
Side view
Front
Figure 4

Wall Outlet Location
12 ''_
: 10"
i i iiii iii i:
Recommended area for
120V grounded outlet
on rear wall.
_ OFUINNET 22"
NOTE: If an outlet
I is not available
have one installed by
i a qualified technician. _,
• I_OF UNIT
Figure 5
Cooktop Installation
1. Visually inspect the cooktop for damage.
2. Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
Granite countertop Installation Kit
A Granite Countertop Installation kit # 903103-9010 can be
ordered through a Service Center or by phone at 1-877-
ELECTROLUX(1-877-435-3287).
Clamp Down Information
Once the cooktop is installed in the counter opening, you
must clamp the unit down as shown.
Cooktop
I
Seal
To clamp down, insert an angle bracket into the slot on
each side of the unit as shown. Run thumb screw up
through the bracket, up against the bottom of the
counter. Tighten until the unit draws down and issecure.
Provide an Adequate Gas Supply
This cooktop isdesigned to operate on natural gas at 4"
of manifold pressure only.
A pressure regulator is connected in series with the
manifold on the cooktop and must remain in series with
the supply line.
For proper operation, the maximum inlet pressure to
the regulator must be no more than 14" of water column
(W.C.) pressure.
For checking the regulator, the inlet pressure must be at
least 1" (or 2.5 kPa) greater than the regulator manifold
pressure setting. The regulator is set for 4" of manifold
pressure, the inlet pressure must be at least 5".
The gas supply line to the range should be 1/2" or 3/4"
pipe.
LP/Propane Gas Conversion
This appliance can be used with Natural gas or LP/
Propane gas. It is shipped from the factory for use with
natural gas.
A kit for converting to LP gas is supplied with your
cooktop. The kit is marked "FOR LP/PROPANEGAS
CONVERSION".
The conversion must be performed by a qualified service
technician in accordance with the kit instructions and all
local codes and requirements. Failure to follow
instructions could result in serious injury or property
damage. The qualified agency performing this work
assumes responsibility for the conversion.
Failure to make the appropriate
conversion can result in serious personal injury and
property damage.
Important: Remove all packing material and literature
from cooktop before connecting gas and electrical supply
to cooktop.
Figure 66

Install Pressure Regulator
Installthepressureregulatorwiththearrowonthe
regulatorpointinguptowardtheunitinapositionwhere
youcanreachtheaccesscap.
Donotmaketheconnectiontootight.
Theregulatorisdiecast.Overtighteningmaycrackthe
regulatorresultinginagasleakandpossiblefireor
explosion.
Manual GAS FLOW Pressure
Shutoff Flare _-I_ Flare Regulator
Valve Union Union ,
On, L i J
X.. Nipple Flexible Access
Off Connector Cap
All connections must be wrench-tightened
Figure 7
Assemble the flexible connector from the gas supply pipe
to the pressure regulator in the following order:
1. manual shutoff valve
2. 1/2" (1.3 cm) nipple
3. 1/2" (1.3 cm) flare union adapter
4. flexible connector
5. 1/2" (1.3 cm) flare union adapter
6. I/2" (1.3 cm) nipple
7. pressure regulator
Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If flexible
connectors are used, be certain connectors are not
kinked.
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in the
same room as the cooktop and should be in a location
that allows ease of opening and closing. Do not block
access to the shutoff valve. The valve is for turning on or
shutting off gas to the appliance.
Shutoff Valve -
Open position
Figure 8
Once regulator is in place, open the shutoff valve in the
gas supply line. Wait a few minutes for gas to move
through the gas line.
Check for leaks. After connecting the cooktop to the
gas supply, check the system for leaks with a
manometer. If a manometer is not available, turn on the
gas supply and use a liquid leak detector (or soap and
water) at all joints and connections to check for leaks.
Do not use a flame to check for leaks
from gas connections. Checking for leaks with a flame
may result in a fire or explosion.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
Check alignment of control knob valves after
connecting the cooktop to the gas supply to be sure the
cooktop manifold pipe has not moved. A misalignment
could cause the valve stems to rub on the control panel,
resulting in a gas leak at the valve.
Disconnect this cooktop and its individual manual
shutoff valve from the gas supply piping system during
any pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa or 14" water column).
Isolate the cooktop from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa or 14" water column).
Electrical Requirements
120 volt, 60 Hertz, properly grounded branch circuit
protected by a 15 amp circuit breaker or time delay fuse.
Do not use an extension cord with this cooktop.
Grounding Instructions
IMPORTANT Please read carefully.
For personal safety, this appliance must be properly
grounded.
The power cord of this appliance isequipped with a 3-
prong (grounding) plug which mates with a standard 3-
prong grounding wall receptacle (see Figure 9) to
minimize the possibility of electric shock hazard from the
appliance.
The wall receptacle and circuit should be checked by a
qualified electrician to make sure the receptacle is
properly grounded.
Where a standard 2-prong wall receptacle is installed, it
is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded 3-
prong wall receptacle.

Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Disconnect electrical supply cord from
wall receptacle before servicing cooktop.
Preferred Method
Grounding type
wall receptacle
Power supply cord with 3-
prong grounding plug.
Figure 9
Model and Serial Number Location
The serial plate is located on the underside of the
cooktop (see Figure 10).
When ordering parts for or making inquires about your
range, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
of your cooktop.
Your serial plate also tells you the rating of the burners,
the type of fuel and the pressure the cooktop was
adjusted for when it left the factory.
Check Operation
Refer to the Use and Care Guide packaged with the
cooktop for operating instructions and for care and
cleaning of your cooktop.
Do not touch the burners. They may be hot enough to
cause burns.

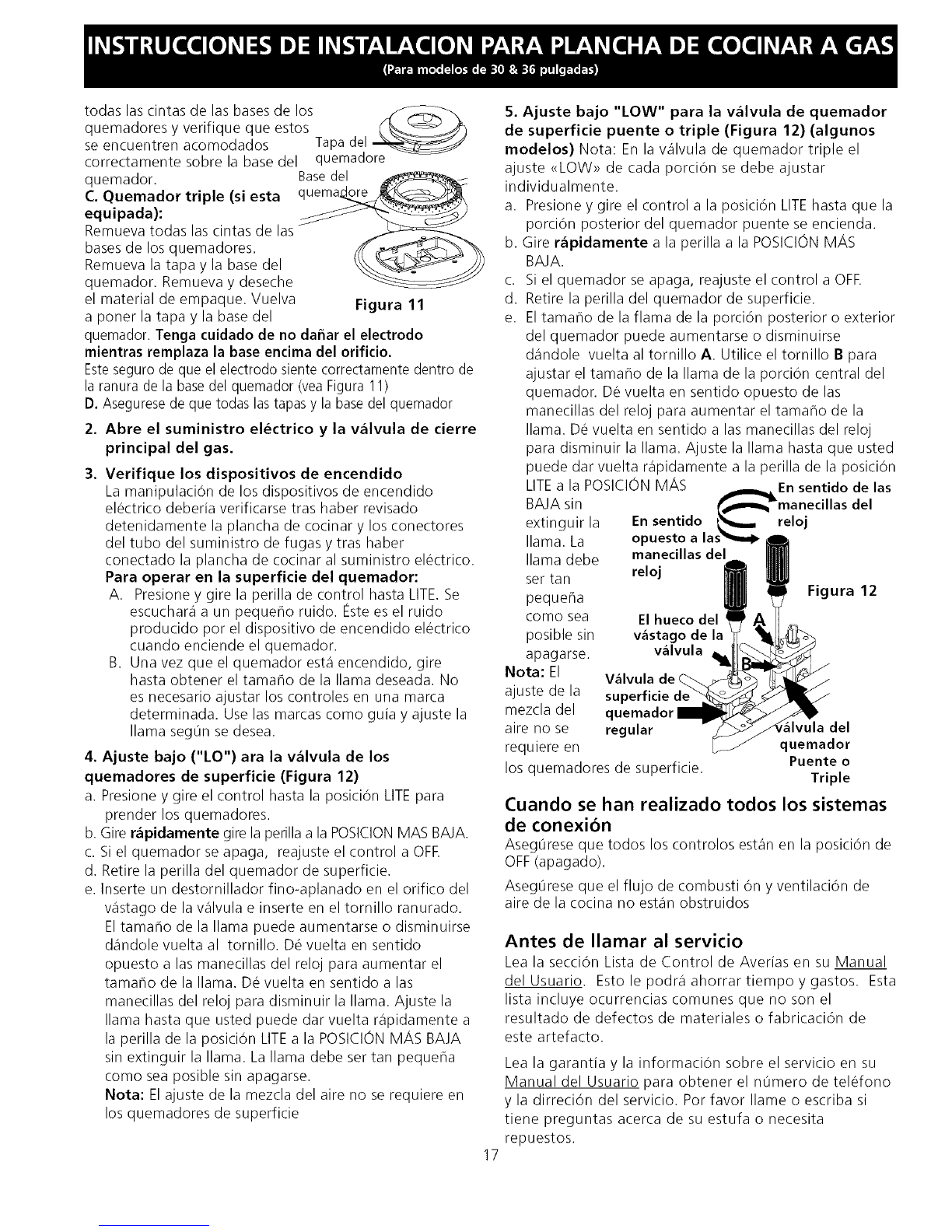

,Install Burner Caps and Triple burner head
This cooktop is equipped with sealed burners.
A. Unpack the burner grates.
B. Regular Burners: Burner heads and burner caps
are already on the surface. Remove all tapes
from burner caps and verify if they are correctly
place on the burner heads.
C. Triple Burner (if equipped): Remove all tapes
from burner cap. Remove the burner cap and
head. Remove and discard the packaging
material. Replace head and cap on the triple
burner. Be careful not to damage the
electrode while placing the head over the
orifice. Make sure electrode fits correctly into
slot in burner head (see Figure 11).
D. Be sure that all the burner caps and the triple
burner head are correctly placed BEFOREusing
your cooktop.
Burner Ca_
Burner Head
Serial plate is
located under the
burner box.
Figure 10 Figure 11
NOTE: There are no burner adjustments necessary on
this cooktop.

2. Turn on Electrical Power and Open Main Shutoff
Gas Valve
3. Check the Igniters
Operation of electric igniters should be checked after
cooktop and supply line connectors have been
carefully checked for leaks and the cooktop has
been connected to electric power.
To operate the surface burner:
A. Push in and turn a surface burner knob to the
LITEposition. You will hear a small ticking noise;
this isthe sound of the electric ignitor which
lights the burner.
B. After the burner lights, turn to the desired flame
size. The controls do not have to be set at a
particular mark. Use the marks as a guide and
adjust the flame as needed.
4. Adjust the "low" setting for regular surface burner
valves (Figure 12)
Becareful when performing this operation.
a. Push in and turn control to LITEuntil burner ignites.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside. Flame size
can be increased or decreased with the turn of the
screw. Turn counterclockwise to increase flame size.
Turn clockwise to decrease flame size. Adjust flame
until you can quickly turn knob from LITEto LOWEST
POSITIONwithout extinguishing the flame. Flame
should be as small as possible without going out.
Note: Air mixture adjustment is not required on surface
burners.
5. Adjust the "LOW" Setting of the Dual Burner
Surface Valve (Figure 12)
Note: On the dual valve the low setting of each portion
should be adjusted individually.
a. Push in and turn control to LITEuntil the rear portion
of the bridge burner ignites only.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. The rear or outer portion of the burner flame size can
be increased or decreased with the turn of the screw
A. Use screw Bto adjust the flame size of the center
portion of the burner. Turn counterclockwise the
screw to increase flame size. Turn clockwise the
screw to decrease flame size. Adjust flame until you
can quickly turn knob from LITEto LOWEST POSITION
without extinguishing the flame. Flame should be as
small as possible without going out.
Note: Air mixture adjustment is not required on surface
burners.
Counterclo_
Clockwise
Hollow
Valve
Stem
Regular
Burner
Valve Dual
Valve
Figure 12
When All Hookups are Complete
Make sure all controls are left in the OFFposition.
Make sure the flow of combustion and ventilation air to
the cooktop isunobstructed.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide. It
may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to the warranty in your Use and Care Guide for
our service phone number and address. Please call or
write if you have inquiries about your product and/or
need to order parts.

LA INSTALACION Y EL SERVICIO DEBEN SER REALIZADOS POR UN INSTALADOR CALIFICADO.
IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR ELI_CTRICO LOCAL.
LEA Y GUARDE ESTAS INSTRUCCIONES PARA FUTURAS REFERENCIAS
Si todas las instrucciones de este manual no son observadas a la letra, se puede
ocurrir incendios o explosiones que pueden causar da6os materiales, lesiones o la muerte.
PARA SU SEGURIDAD:
-- No almacene o utilice gasolina u otros vapores y liquidos inflamables cerca
de este o cualquier otro artefacto.
-- QUE HACER SI HAY FUGAS DE GAS :
• No intente de encender ningun artefacto
•No toque ningun interruptor el&trico; no utilice ningun aparato telefonico en su edifi
•Llame inmediatamente el abastecedor de gas desde el telefono de un vecino. Siga
las instrucciones del abastecedor de gas.
•En caso que no puede contactar el abastecedor de gas Ilame al departamento de
bomberos.
--La instalacion y el servicio telefonico deben ser realizados por un instalador
calificado, por un servicio tecnico certificado o por el abastecedor de gas.
Dimensiones
de la parrilla de
cocinar
2V2" Min.
(6.4 cm Min.)
30" Min.
(76.2 cm) C
Dimensiones
del hueco de la
parrilla de cocinar Figure 1
MODELO A.ANCHURA B.PROFUNDIDAD C.ALTURA DANCHODELACAJA E.PROFUNDIDADDELACAJA
Modelo30" 30(76.2) 213A(55.2) 41/+(10.8) 27(68.6) 19(48.3)
Modelo36" 36(91.4) 213A(55.2) 41/+(10.8) 33IA(84.5) 19(48.3)
DIMENSIONESDELHUECODELAPARRILLADECOCINAR
6 PRoFuNDiDAD H ALTU_PoR
MODELO MINIMA MAXIMA MINIMA MAXIMA DB#JODELABTUFA
Modelo30" 271/4(692) 28I/2(72.4) 191/+(48.6) 193A(50.2) 8(20.3)
Modelo36" 337/s(86.1) 341/4(87) 191/+(48.6) 193A(50.2) 8(20.3)
Todas las dimensiones se dan en pulgasdas (cm).
La dimensi6n Hincluye un espacio de 5" por debajo de la plancha de cocinar para la conexi6n 318201472 (O701) Rev.A
de la linea de suministro de gas, English- pages1-9
NOTA: Se adjunta los diagramas de cables de esta plancha de cocinar con el libreta. Espafi_ol- paginas 10-17
Fran%is- pages18-26
Imprimido en los Estados Unidos Diagrama de la instalaci6n alfimbrica - pfiginas 27-28
