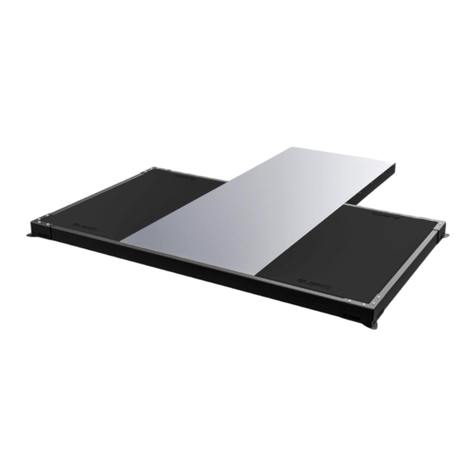

Eleiko SVR INSERT PLATFORM PRESTERA POWER RACK... User manual

ELEIKO SVR INSERT
PLATFORM PRESTERA
POWER RACK - SMALL
Art.no. 3085565
HOW TO USE THE TEMPLATE:
- Edit or remove all red text.
- Follow instructions in the document
- Use the following styles for all text:
o Title - DIN Pro bold
o Subtitle - DIN Pro bold
o Body Text - DIN Pro
o List Paragraph - Text in ordered and unordered lists

Read before installation and use
Safety instructions
List of components
Assembly instructions
Tools needed
User guide
Purpose
General instructions for use
Product specifications
Care and maintenance
Preventive maintenance and inspections
Spare parts and service
Warranty
3
3
4
6
6
20
20
20
20
21
21
21
21
CONTENTS

Install and use this equipment in a place where access and supervision are specifically controlled by the owner.
Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all
equipment is installed by a licensed contractor or an Eleiko installer.
This equipment is intended for indoor use only.
SAFETY INSTRUCTIONS
It is the responsibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on
proper usage of the equipment.
All included warnings (labels) and instructions MUST be read before the use of any Eleiko 1.
equipment. Only use the equipment as it is intended.
A user MUST get a medical examination and proper instructions before using any Eleiko 2.
equipment.
DO NOT let anyone, under any circumstances, use equipment that appears to be damaged. Do not 3.
try to repair any equipment before consulting an Eleiko technician.
DO NOT replace components of Eleiko equipment with other, none Eleiko, equipment (magnetic 4.
safety pin, frames, bars etc.). Do not improvise! If there are any doubts, consult an Eleiko
representative prior to any intervention.
DO NOT overload the equipment and DO NOT try to exceed personal strength levels. 5.
Children under the age of 14 must be supervised by an adult. 6.
DO NOT remove any safety labels from the Eleiko equipment. Eleiko is not responsible if a label is 7.
removed. Replace damaged labels immediately.
Eleiko packaging for products an be made of wood. Be aware of splinters! You MUST use 8.
protective gloves and proper work wear.
Eleiko packaging material could be a risk when handling. Be aware of crushing! You MUST use 9.
work wear including protective gloves and hard shoes.
Eleiko products and packing material are heavy, You MUST use proper lifting techniques, work 10.
wear and hard shoes.
- 3 -
READ BEFORE
INSTALLATION AND USE

2000688 a1
4x
2001365
1x
2001366
1x
2000688 p2
4x
2001367
2x
2001370
1x
2000687 p2
1x
2000687 p1
2x
2001362p1
2x
M10x25
2001124-L25
20x
M6S M10x80
2001385-L80
15x
2000719
11x
1x
2001431
1x
2001432
1x
2001561
- 4 -
LIST OF COMPONENTS

4x
Bonded Foam
666x695x70 mm
2000820
ARP Black
666x685x12,7 mm
2001901
4x
Rubber Tile
2000803
2x
Bonded Foam
1330x975x70 mm
2001363
1x
2001357
1x
2x
Bonded Foam
1200x1000x70 mm
2001434
1x
2001433
- 5 -
LIST OF COMPONENTS

Torx Wrench
T-50
Allen Key Size 5
0,6 0,6
0,6 0,6
- 6 -
Before assembly, make sure you have enough clearance on all
sides of the equipment, not less than 0,6 meters. Take in account
the accessibility to remove and replace bar and weights.
TOOLS NEEDED
You need the following tools to assemble the equipment.
NOTE: Do not use electric power tools for assembly.
Socket Wrench Size 17mm Tape Measure
ASSEMBLY INSTRUCTIONS

1.
- 7 -
Remove the two end plates from the front
floor beams.

1x
Bonded Foam
1330x975x70 mm
2001363
2x
Bonded Foam
1200x1000x70 mm
2001434
1200
1000
2001434
2001363
LEAVE A SMALL GAP BETWEEN
RACK AND BONDED FOAM!
2.
- 8 -

2001357
1x
2001433 2001357
LEAVE A SMALL GAP BETWEEN
PLATFORM AND RACK!
1x
2001433
3a.
- 9 -
CAREFULLY PLACE THE WOODEN PLATFORM IN THE RACK,
STANDING DECK FACING UP!

1x
2001561
3b.
- 10 -
SLIDE THE FLAT IRON INTO THE GROOVE IN THE WOODEN PLATFORM,
MAKE SURE THE HOLE IN THE FLAT IRON IS TO THE LEFT, THE SAME SIDE AS THE
CUT OUT IN THE WOODEN PLATFORM!

2001370
1x
1x
2001431
1x
2001432
4.
- 11 -

2001365
1x
2001367
2x
M10x25
4x
2001366
1x
5.
- 12 -
LOOSE SCREWS!

M6S M10x80
15x
2000719
11x
CLOSE THE GAP BETWEEN
RACK AND PLATFORM FIRST!
3812,2
I
CLOSE THE GAP BETWEEN
RACK AND PLATFORM FIRST!
2529,35
J
CLOSE THE GAP BETWEEN
RACK AND PLATFORM FIRST!
6.
- 13 -
LOOSE SCREWS!

ARP Black
666x685x12,7 mm
2001901
4x
Rubber Tile
2000803
2x
666
666
2000820
2001901
4x
Bonded Foam
666x695x70 mm
2000820
7.
- 14 -

2001362p1
2x
SMALLER HOLE TOWARDS RACK!
8.
- 15 -

2000688 a1
4x
2000688 p2
4x
M10x25
16x
9.
- 16 -
4x
LOOSE SCREWS!

2000687 p1
2x
10.
- 17 -

2000687 p2
1x
11.
- 18 -

12.
- 19 -
TIGHTEN FRAME AND SCREWS!

2465
3794
1420
1072
- 20 -
PURPOSE
Reduce noise, dampen vibration and minimize bounce.
GENERAL INSTRUCTIONS FOR USE
Only drop weights on dropzone. 1.
Stand on the lifting deck when lifting. 2.
285 kg / 628 lbs
3794 x 2465 x 102 mm
149,37 x 97,05 x 4,02"
PRODUCT SPECIFICATION
Product weight
Dimensions (L x W x H)
USER GUIDE
