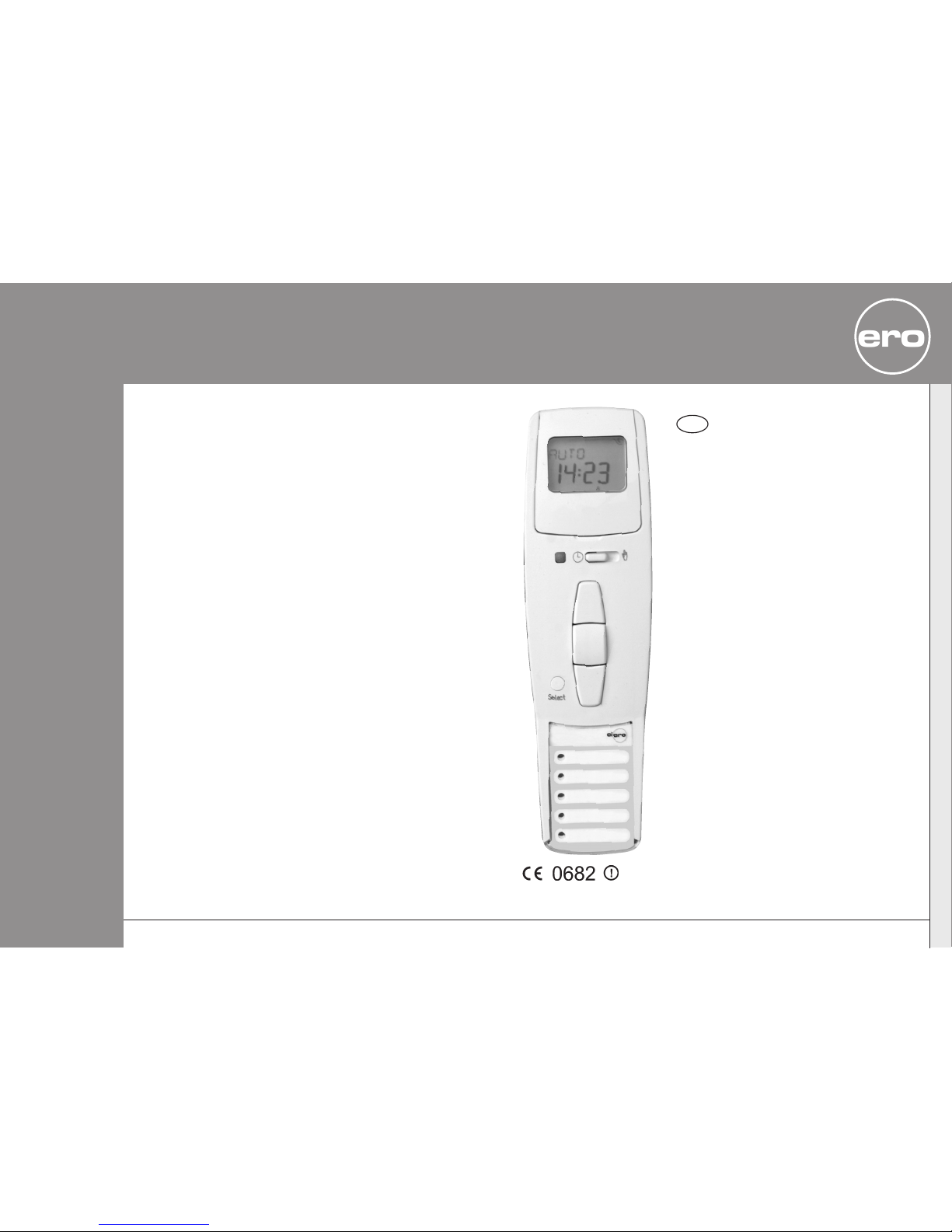

elero TempoTel 28 260.0001 User manual

TempoTel
Nr. 28260.0001
Operating instructions
Please keep these instructions in a safe place!
elero GmbH
Antriebstechnik
Linsenhofer Str. 59–63
D-72660 Beuren
[e-mail]
www.elero.com
Nr. 18100.4201/0204
GB
309053
Timer is
preprogrammed
elero

Safety instructions......................................... GB- 3
Explanation of displays and buttons ..................... GB-4
General information ...................................... GB-5
Designated use ............................................ GB-5
Notes........................................................ GB-6
Wall holder installation ................................... GB-6
Initial operation / Factory settings ...................... GB-7
Explanations of functions ................................ GB-8
Transmission control light, Group control,
Select button........................................... GB-8
Manual / Automatic sliding switch, Operating mode,
OK button, Menu buttons ............................ GB-9
Time / date, Programme, Astro Evening, Separate ... GB-10
Blocking time, Switching time........................ GB-11
Settings menu.............................................. GB-12
Holiday function, End limit, Intermediate position.. GB-12
Ventilation / Reverse,Language selection, Astro shift,
City selection, Longitude / Latitude / Time zone .... GB-13
Automatic summer / winter time changeover....... GB-14
Function menu (for qualified staff only!)
Expert mode............................................ GB-14
Programming radio channels ............................. GB-15
Programming transmitters / channels ............... GB-15
Programming additional transmitters ............... GB-15
Deleting radio channel settings........................... GB-16
Deleting individual transmitters ..................... GB-16
Deleting all transmitters.............................. GB-16
Contents
Programming menu........................................ GB-17
Menu overview......................................... GB-17
Time / date settings ................................... GB-17
Astro Evening function ................................ GB-18
Separate switching times vb......................... GB-19
Holiday function ....................................... GB-20
Intermediate position,Ventilation / Reverse,End limit GB-21
Language selection / Astro shift...................... GB-22
City selection, Longitude/Latitude,Time zone....... GB-23
Automatic summer / winter time changeover....... GB-24
Function menu (for qualified staff only!) ................ GB-25
Shutter/blind selection, Expert mode ................ GB-25
Technical data .............................................. GB-26
Changing the batteries .................................... GB-26
Cleaning .................................................... GB-26
Troubleshooting............................................ GB-27
General declaration of conformity........................ GB-28
Contents
GB-1 GB-2
GB

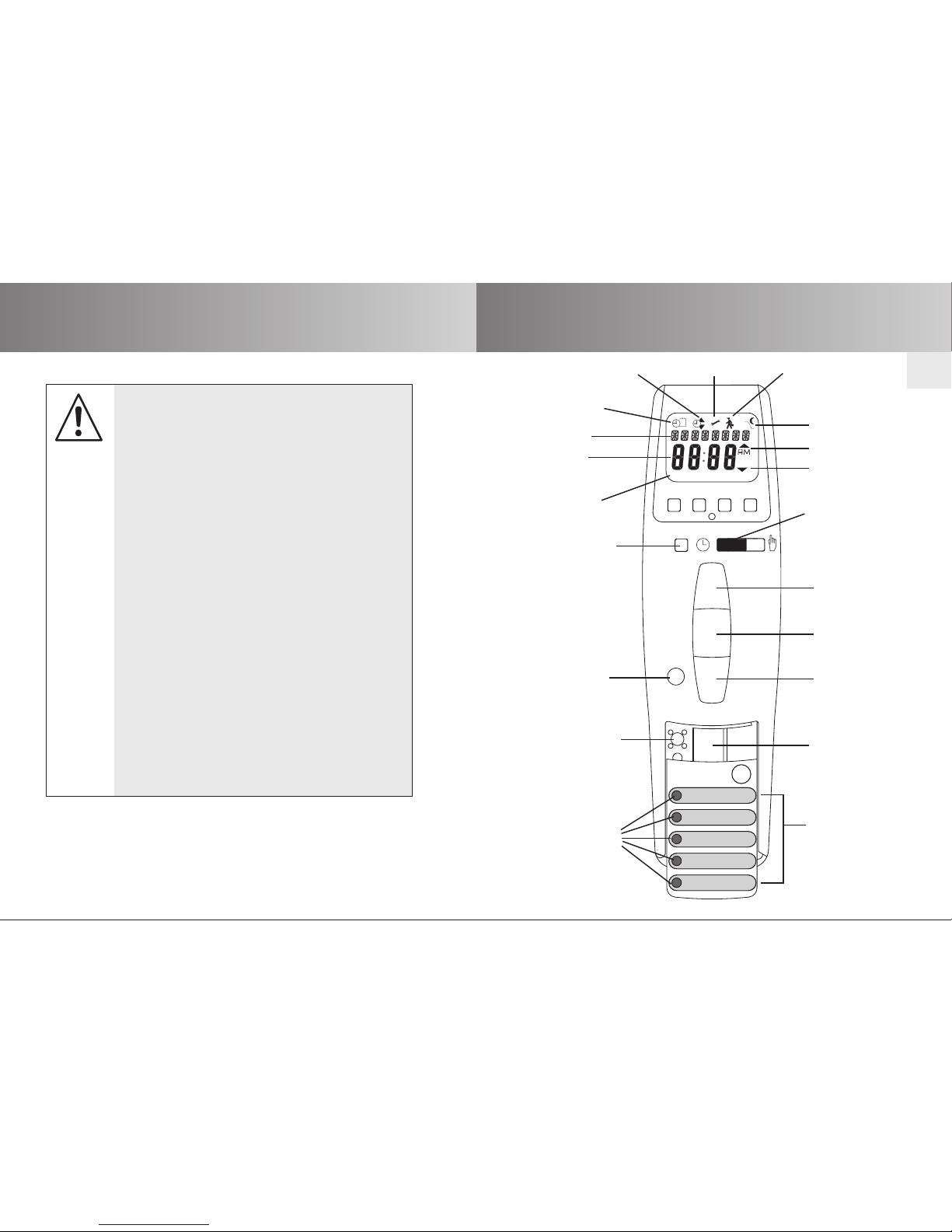

Explanation of displays and buttons
GB-3 GB-4
elero
31
min
S
1 2 3 4 5 6 7
Reset
OK+
–
MENÜ
Select
Transmission
control light
Text line
Display
10. Days
(Mon-Sun)
Time/date
Select button
Programming
button P
Group
control
lights
vUP button
ySTOP button
bDOWN button
Battery
compartment
Astro Evening
DOWN command
UP command
GB
Labelling fields
Safety instructions
Important safety instructions!
Always observe the following instructions.
Risk of injury by electric shock.
• For use in dry rooms only.
• Use unmodified elero original parts only.
• Keep persons away from the systems guide
track.
• Keep children away from controls.
• Always comply with national stipulations.
• Dispose of used batteries properly.
Replace batteries with identical type
(LR 03; AAA) only.
• If the system is controlled by one or more
devices,the system guide track must be visible
during operation.
• The equipment contains small parts that could
be swallowed.
Warning!
Function
Programme Setting
MANUAL/AUTOMATIC
sliding switch

Installation
GB-5 GB-6
GB
Note: Radio stations transmitting in the same frequency range
may cause reception interference.
Please note that the operating range of the radio signal is
limited by legislation as well as by the product design.
Wall holder installation
• Before installing the wall holder, always ensure that the
transmitter and receiver are in proper working order.
• Mount the holder onto the wall using the two raw plugs and
screws provided.
General information/Designated use
General information
The TempoTel, which is supplied with pre-programmed factory
date and time settings (CET), operates your drive in the
morning at the programmed switching time and in the
evening at the set astro time (sunset time).
The TempoTel can be operated manually at any time.
The TempoTel allows up to 5 receivers to be operated
individually or as a group.
This device is characterised by its user-friendly operation.
Designated use
The TempoTel may be used to drive roller shutters and sun
protection systems only.
• Please note that radio-controlled systems may not be used in
areas with a high risk of interference (e.g. hospitals,airports).
• The remote control is solely for use with equipment and
systems in which malfunctions in the hand-held transmitter
or receiver would not pose any risk to persons, animals or
property or which contain safety devices to eliminate such
risks.
• The operator is not protected from interference from other
telecommunications systems and terminal equipment
(e.g. even from radio-controlled systems which are properly
operated in the same frequency range).
• Radio receivers may only be used in combination with
equipment and systems stipulated in manufacturers’
specifications.

Explanation of functions
GB-7 GB-8
GB
Transmission control light
The transmission control light is illuminated when a radio
signal is being transmitted.
If battery power is low, the transmission control light will flash
during transmission.
The transmission power or radio operating range will decrease
as battery power decrease.If the transmission control light
does not light up when the buttons are pressed, the batteries
must be replaced.
Group control
Group control refers to the operation of one or more receivers
at the same time.The selected group is controlled via a control
command.
The TempoTel has five radio channels which can be used for
group control.
Select button
The select button may be used to select and programme up to
5 channels.The LED lights for the different channels light up to
indicate when a given channel is being used.
An additional channel is reserved for central command control.
This is allocated automatically.When the central command is
active,all five LEDs light up.
NB: The label under the see-through cover can be used to
make a note of the groups which have been programmed.
Initial operation/Factory settings
Initial operation
Press any button on the timer to activate it.The +/- buttons can
now be used to select the desired language and confirm your
selection by pressing the OK button.The timer is now is automatic
mode.
Factory settings
TIME/DATE: – Current CET and current date
PROGRAMME: – ASTRO EVENING WSwitching times Mon-Fri (1-5)
v7.00 a.m.
bASTRO EVENING
Switching times Sat and Sun (6,7)
v8:00 a.m.
bASTRO EVENING
SETTING: – HOLIDAY OFF
– END LIMIT
– SUMMER/WINTER ON
FUNCTION: – ROLLER SHUTTER
– EXPERT MODE OFF
Note: If the RESET button is pressed (using a ballpoint pen or
similar object), theTempoTel will revert to the default factory
settings.
Exception: Function,language and city menu levels..

GB-10
GB
Explanation of functions
GB-9
Time/date
TIME/DATE
This menu is used to set the time and the date.
Programme menu
PROGRAMME
The PROGRAMME menu allows you to set various switching times:
• Astro evening (1-5 and 6,7)
• Separate (1,2,3, 4, 5,6, 7)

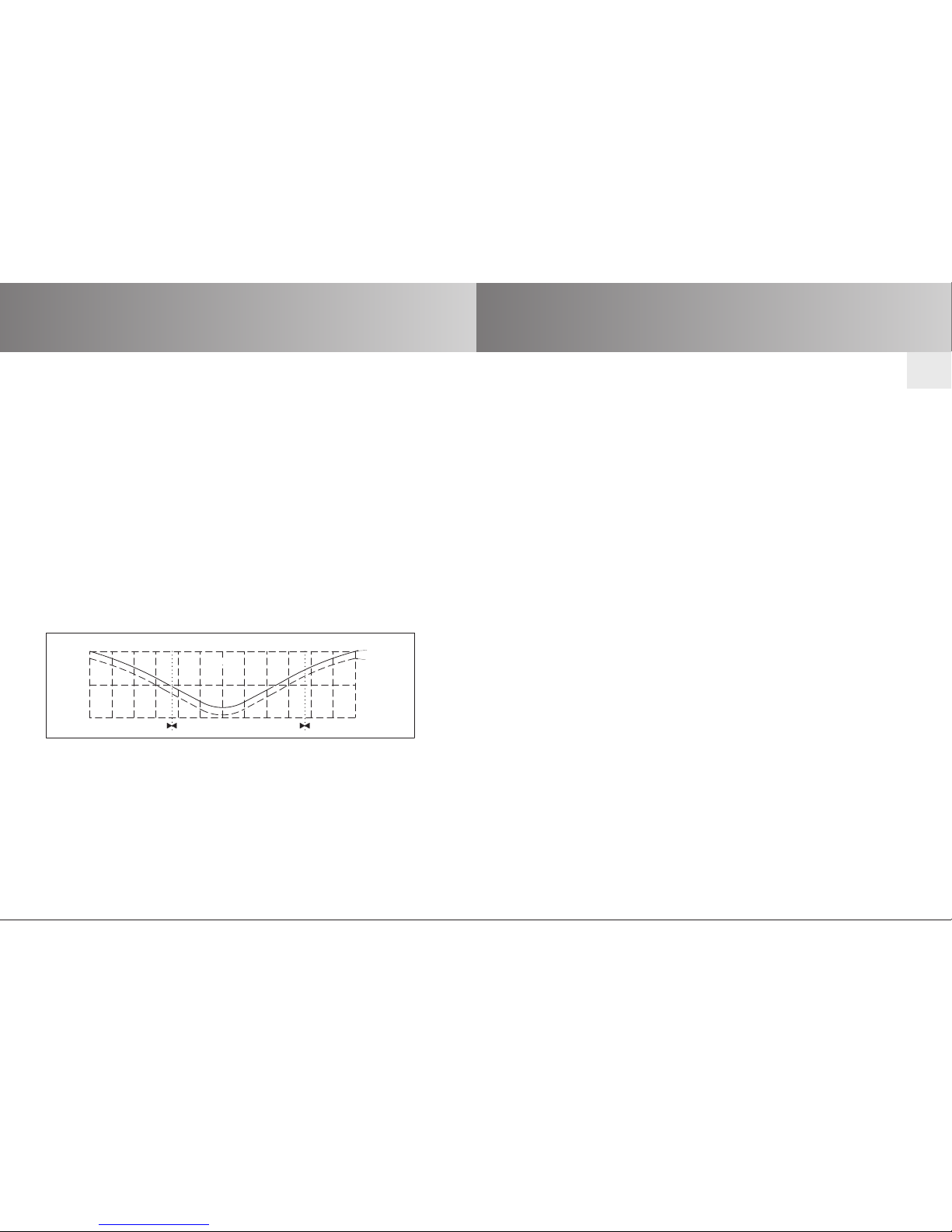

ASTRO EVENING
Your roller shutters/blinds are raised according to the set switching
time.
Your roller shutters/blinds are lowered on the basis of the astro
function.
SEPARATE
Triggers the UP and DOWN control commands according to the
pre-programmed switching times.

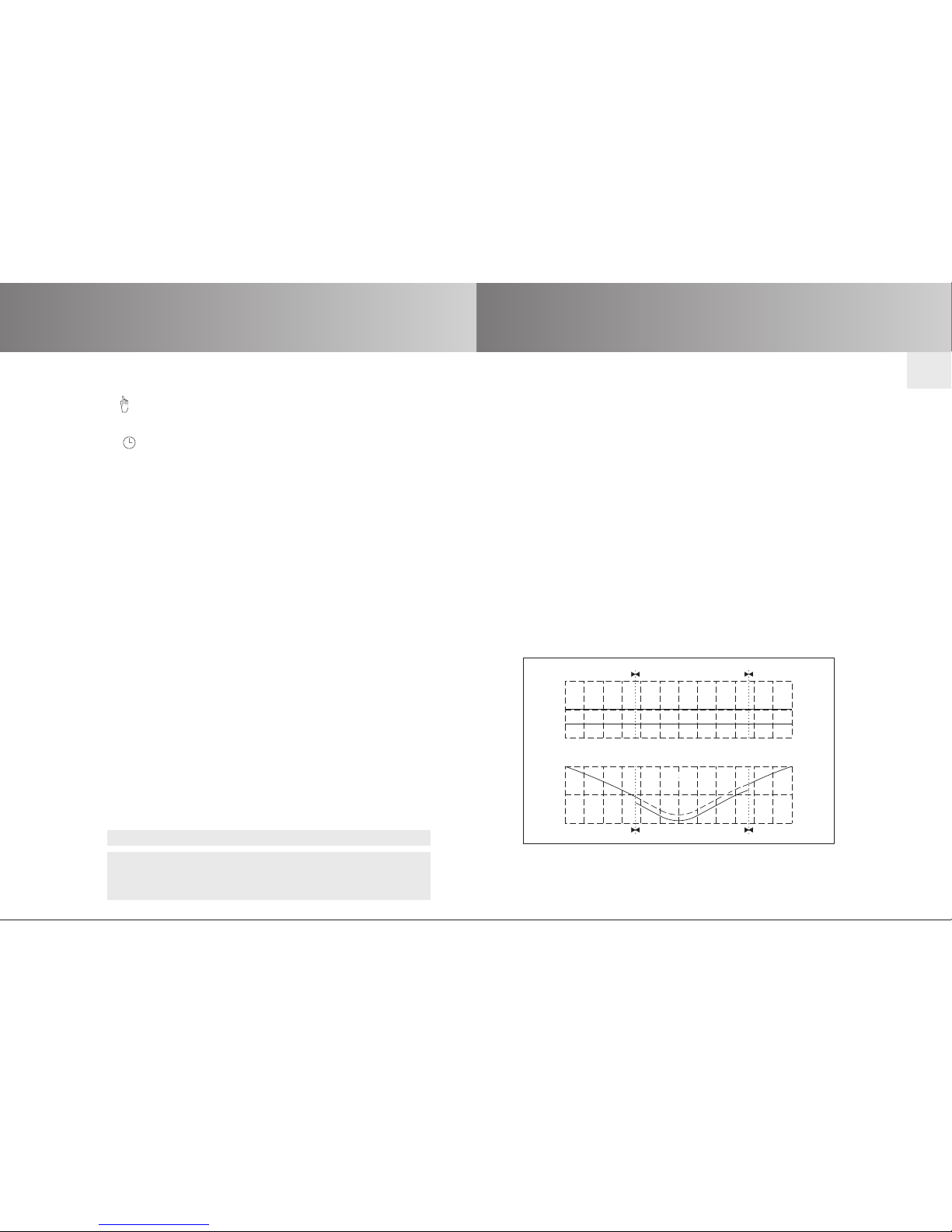

09:00 Time
07:00 Time
05:00 Time
Close
19:00 Time
22:00 Time
16:00 Time
Dec. Jan. Feb. Mar. Apr. Jun. May Jul. Aug. Sept. Oct. Nov. Dec.
Sunset
UP
switching
time
Astro
Evening
Winter time Summer time Winter time
Summer time
Summer time
Winter time Summer time Winter time
08:00 Time
Mon-Fri
Sat+Sun
Explanation of functions
MAN/AUTO sliding switch
In the“MAN ”sliding switch setting, only manual command
controls are carried out.
In the“AUTO ”sliding switch setting,automatic command
controls are carried out (e.g. time,astro evening function,...)
Operating mode
The time is shown on the timer display.
OK button
When the OK button is pressed, the currently displayed values are
saved.
+/- buttons
The following operations are possible using the +and -buttons:
•Menu Wchange value
•Automode Wrequest information
• + button Wnext automatic switching time v
• – button Wnext automatic switching time b
• – button and OK button Wrequest astro time b
MENU button
By pressing the MENU button, you can see an overview of the menu
or the operating mode.
The values displayed are not saved.
RESET button
When the RESET button is pressed (using a ballpoint pen or similar
object), theTempoTel reverts to the default factory settings .
Exception: Function, language and city menu levels.
Note: If the TempoTel is in programming mode and no
buttons are pressed within a period of 1 minute,the
timer will automatically return to operating mode.

Sunset
GB-11 GB-12
SETTINGS
The following settings can be made via the SETTING menu:
• HOLIDAY
• INTERMEDIATE POSITION
• VENTILATION/REVERSE
• PROG (END LIMIT, INTERMEDIATE POSITION,
VENTILATION/REVERSE)
• Select language (ENGLISH GB)
• ASTRO SHIFT b
• Select town/city (LONDON)
• LENGTH
• WIDTH
• TIME ZONE
• SUMMER/WINTER (Automatic summer/winter time
changeover)
To set a function, press the OK button until you reach the menu level
required.
HOLIDAY SETTING
The holiday setting simulates an occupied house while you are on
holiday.
If the function is activated (ON),the roller shutter/blind switching
times deviate from the programmed times (random variation: max.
+ 30 mins.).
END LIMIT
The end limit is the point where the roller shutter/blind is in the
upper or lower position.
INTERMEDIATE POSITION
The intermediate position is any given position between the upper
and lower limits of the roller shutter/blind and can be freely selected.
This position can also be reached from the upper position after pro-
gramming.
Press the DOWN button twice in rapid succession to move to the
intermediate position.
Displayed in
EXPERT MODE only
k
GB
Explanation of functions
BLOCKING TIME
The ASTRO EVENING function prevents your roller shutters/blinds
from closing too early.
Example:
Astro time b:17:00
Blocking time b:19:30
The roller shutter/blind will not close before 19:30 hrs.
19:00 Time
22:00 Time
16:00 Time
Sunset
Blocking time for closing
Close
SWITCHING TIME
Automatic UP and DOWN switching times for roller shutters
and venetian blinds.

Settings menu/Function menu
GB-13 GB-14
SUMMER/WINTER
SUMMER/WINTER describes the automatic clock adjustment for
daylight saving changes.If the default setting is ON, the timer is
adjusted automatically.
FUNCTION MENU
This mode is intended for qualified staff only!
The FUNCTION menu gives you the option of setting the following
functions:• ROLLER SHUTTER/BLIND (select either roller shutter or
venetian blind)
• EXPERT MODE
• INITIAL OPERATION (for service purposes)
EXPERT MODE
If the town/city selection (EXPERT MODE OFF) is not precise enough
for your requirements,a fine adjustment can be made by setting the
degrees of longitude and latitude (EXPERT MODE ON).
GB
Settings menu
VENTILATION/REVERSE
The ventilation/reverse position is any given position between the
upper and lower limits of the roller shutter/blind and can be freely
selected.This function allows you to raise your shutters from the
lower end limit until the ventilation slits are open.In the case of
venetian blinds, the slats will be turned.
Press the UP button twice in rapid succession to move your
shutters/blinds to the ventilation/reverse position.
Language (ENGLISH GB)
This menu level can be used to select your national language.

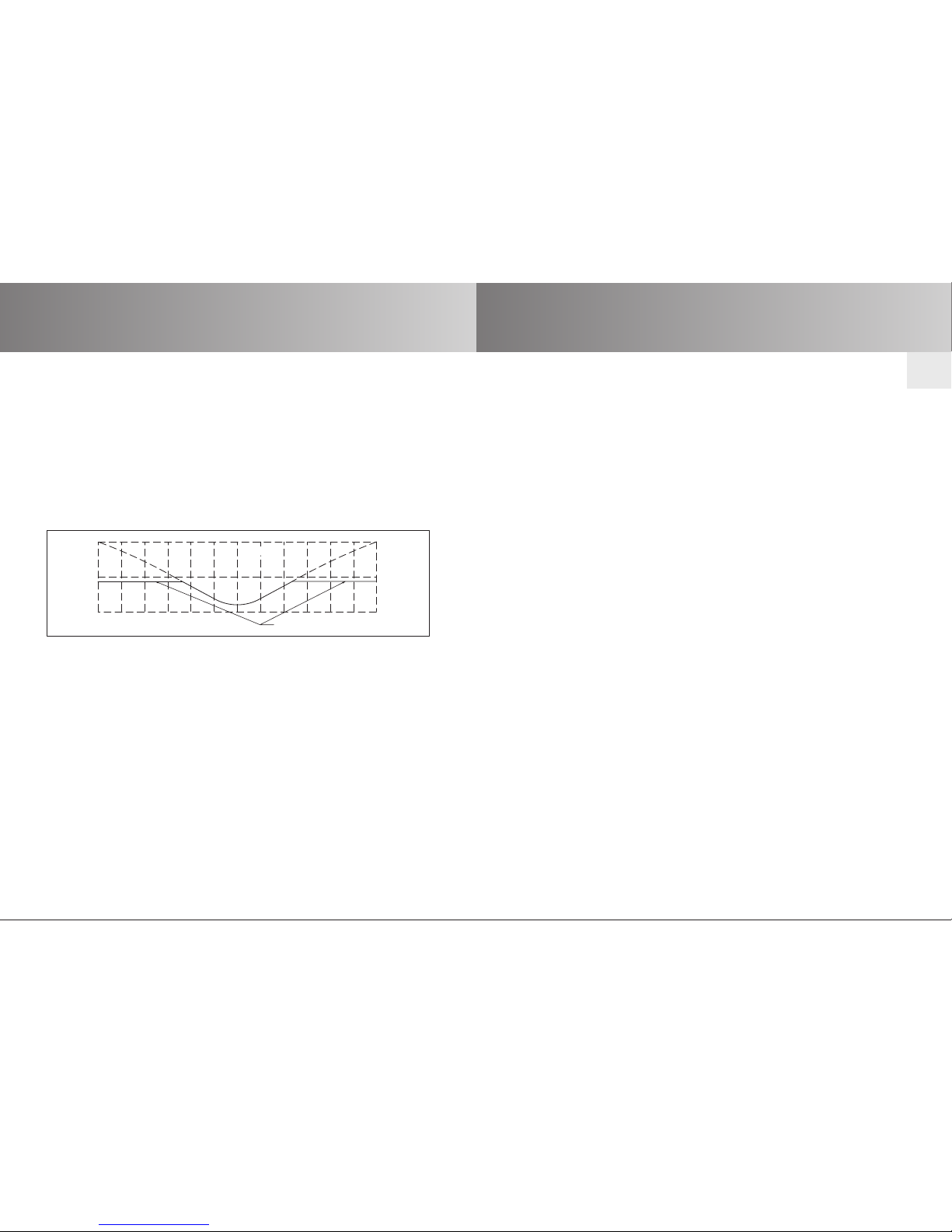

ASTRO SHIFT
With the astro shift setting, the astro time p and astro time bcan
be shifted independently of one another (max. +/- 120 mins.).
Close
19:00 Time
22:00 Time
16:00 Time
Sunset
Offset + 60 min.
Astro
Winter time
Summer
Summer time
Winter time
City (LONDON when the language is set to ENGLISH GB)
It is important to select a city for the astro function. Select the city
nearest to your location.
LONGITUDE/LATITUDE/TIME ZONE (only when EXPERT MODE is ON)
This function can be used to adapt the astro function to your loca-
tion.
Your exact coordinates,for example,can be found with the aid of an
atlas.

Deleting transmitter/channel settings
GB-15 GB-16
Deleting individual transmitters
Disconnect the fuse – and reconnect after a few seconds.
1. Open the front cover on the device and press the following
buttons simultaneously:
• Programming button P
• STOP button
2. Keep these two buttons pressed until the LED goes out briefly.
Deleting all transmitters
Disconnect the fuse – and reconnect after a few seconds.
1. Open the front cover on the device and press the following
buttons simultaneously:
• Programming button P
• UP button
• STOP button
• DOWN button
2. Keep these two buttons pressed until the LED briefly flashes
briefly 3 times.
GB
Programming radio channels
Programming a transmitter/channel
Prerequisite: The receiver must be installed.
1. With pre-installed electric receivers, the fuse must be
disconnected and reconnected after a few seconds.The receiver
will remain in programming mode for approx. 5 minutes.
2. Position yourself in front of the roller shutter/blind with the
remote control in your hand.
3. Open the front cover of the device and press the transmitter
programming button Pbriefly.The roller shutter/blind will
start to move up and down.This will happen for approx.
2 minutes.
4.Select the desired channel using the Select button.
5. To define the keyboard layout,press the UP button on the
transmitter as soon as the shutter/blind begins to move
upwards (after approx. 1 second).The shutter/blind will come
briefly to a halt. As soon as the shutter begins to move again,
press the DOWN button on the handheld transmitter.
The shutter/blind will stop.
The transmitter/channel has been successfully programmed.
Note: If more than one receiver is connected to the same mains
lead, all of these will be in programming mode
simultaneously.The shutters/blinds will begin to move up
and down“at random”.The longer you take to carry out the
programming, the larger the offset becomes.
Individual channels can now be assigned to the relevant
receiver.
The brief UP and DOWN movements can be stopped by
pressing the STOP button on one of the pre-programmed
hand-held transmitters briefly.
Channel assignment /modification can now be carried out
without you having to disconnect individual channels.
If the shutter/blind moves in the wrong direction,the
transmitter must be deleted and re-programmed.
Programming additional transmitters
To programme additional transmitters in one receiver, please
proceed as follows:
1. Press the UP,DOWN and programming button Pon a transmitter
that has already been programmed in the receiver until the LED
goes out.
2. To define the keyboard layout,press the UP button on the hand-
held transmitter as soon as the shutter/blind begins to move
upwards (after approx.1 second).
The shutter/blind will come briefly to a halt.
As soon as the shutter begins to move again,press the DOWN
button on the handheld transmitter.
The shutter/blind will stop.
The transmitter/channel has been successfully programmed.

Programming menu
GB-17 GB-18
PROGRAMME
ASTRO EVENING (UP Wswitching time, DOWN Wsunset)
O
O
v
PROGRAMME
ASTRO EVENING
SWITCHING
Operating mode
OK
OK OK
OK OK
OK
+/–
SWITCHING
+/–
IDLE PERIOD b
+/–
+/–
v
IDLE PERIOD b
1. Press the MENU button.
2. To select the PROGAMME menu press the + button until
PROGAMME appears.
3. Press OK to confirm.
4. Press the +button again until ASTRO EVENING appears.
5. Press OK to confirm.
6. Now set the SWITCHINGTIME vfor Monday - Friday (1-5) using
the +/- buttons.
7. Press OK to confirm.
8. Now set the BLOCKING TIME bfor Monday - Friday (1-5) using
the +/- buttons.
9. Press OK to confirm.
10. Now set the SWITCHING TIME vvfor Saturday and Sunday (6,7)
using the +/- buttons.
11. Press OK to confirm.
12. Now set the BLOCKING TIME bfor Saturday and Sunday (6,7)
using the +/- buttons.
13. Press OK to confirm. PROGRAMME appears.
14. Press the MENU button to switch to operating mode.
GB
Programming menu

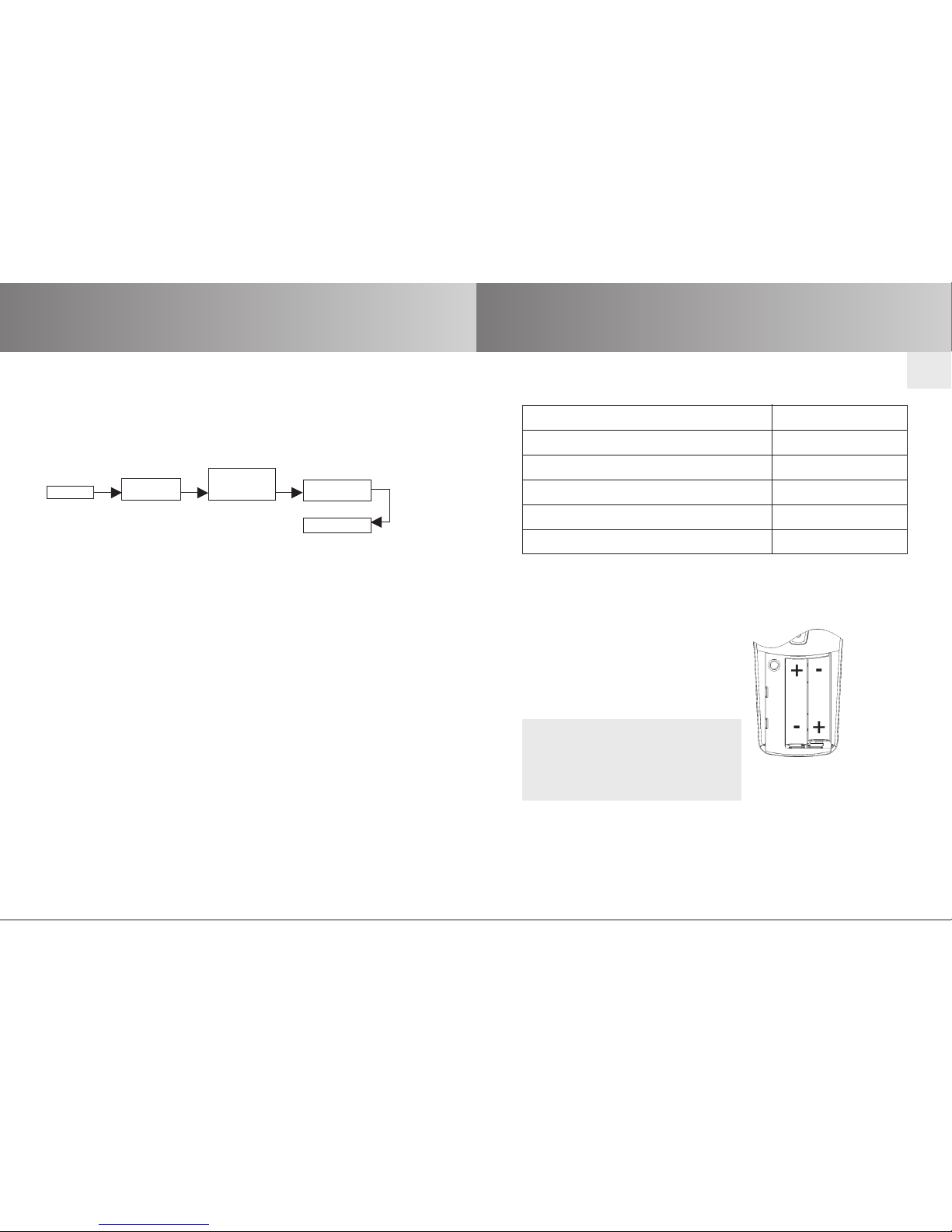

Main menu (menu overview)
1. Press the MENU button untilTIME/DATE appears.
2. To select further menus,press the +/- buttons.
3. Press the MENU button to switch to operating mode.
++
Operating mode
FUNCTIONSETTINGPROGRAMME
TIME/DATE1 +/– +/– +/–
MENU
PROG1 PROG2
+/–
TIME/DATE (time and date settings)
1. Press the MENU button untilTIME/DATE appears.
2. By pressing OK,you get to the time menu level.
3. Now set the current time using the +/- buttons.
4. If the time is set correctly, confirm by pressing OK.
5. Repeat the above procedure for the settings YEAR,MONTH and
DAY. TIME/DATE appears.
6. Press the MENU button to switch to operating mode.
KO
OK
/-
TIME/DATE
TIME YEAR
MONTH
DAY
TIME/DATE
OK OK OK OK
OK
+/– +/– +/– +/–

Programming menu
GB-19 GB-20
SETTING
HOLIDAY (Holiday OFF/ON)
1. Press the MENU button..
2. To select the SETTING menu press the +button until SETTING
appears.
3. Press OK to confirm.HOLDAY ON/OFF appears.
4. The holiday function can be set to ON or OFF using the +/-
buttons.
5. Confirm your selection by pressing OK.
The HOLIDAY function is now set.
For further programme settings in the SETTING menu, see below.
ADJUSTMENT HOLIDAY OFF
HOLIDAY ON
OK
OK
+/–
see
next page
GB
Programming menu
PROGRAMME
ASTRO EVENING (UP/DOWN command Wswitching times)
O
O
b
PROGRAMME
INDIVIDUAL SWITCHING
Operating mode
OK
OK OK
OK OK
OK
+/–
SWITCHING
+/–
SWITCHING
+/–
+/–
SWITCHINGb
v
v
+/–
1. Press the MENU button.
2. To select the PROGAMME menu press the +button until
PROGAMME appears.
3. Press OK to confirm.
4. Press the +button again until SEPARATE appears.
5. Press OK to confirm.
6. Now set the SWITCHINGTIME vand the SWITCHING TIME bfor
Monday - Friday (1-5) and Saturday and Sunday (6,7) using the
+/- buttons.
7. Press OK to confirm.
8. Press the MENU button to switch to operating mode.

GB-21 GB-22

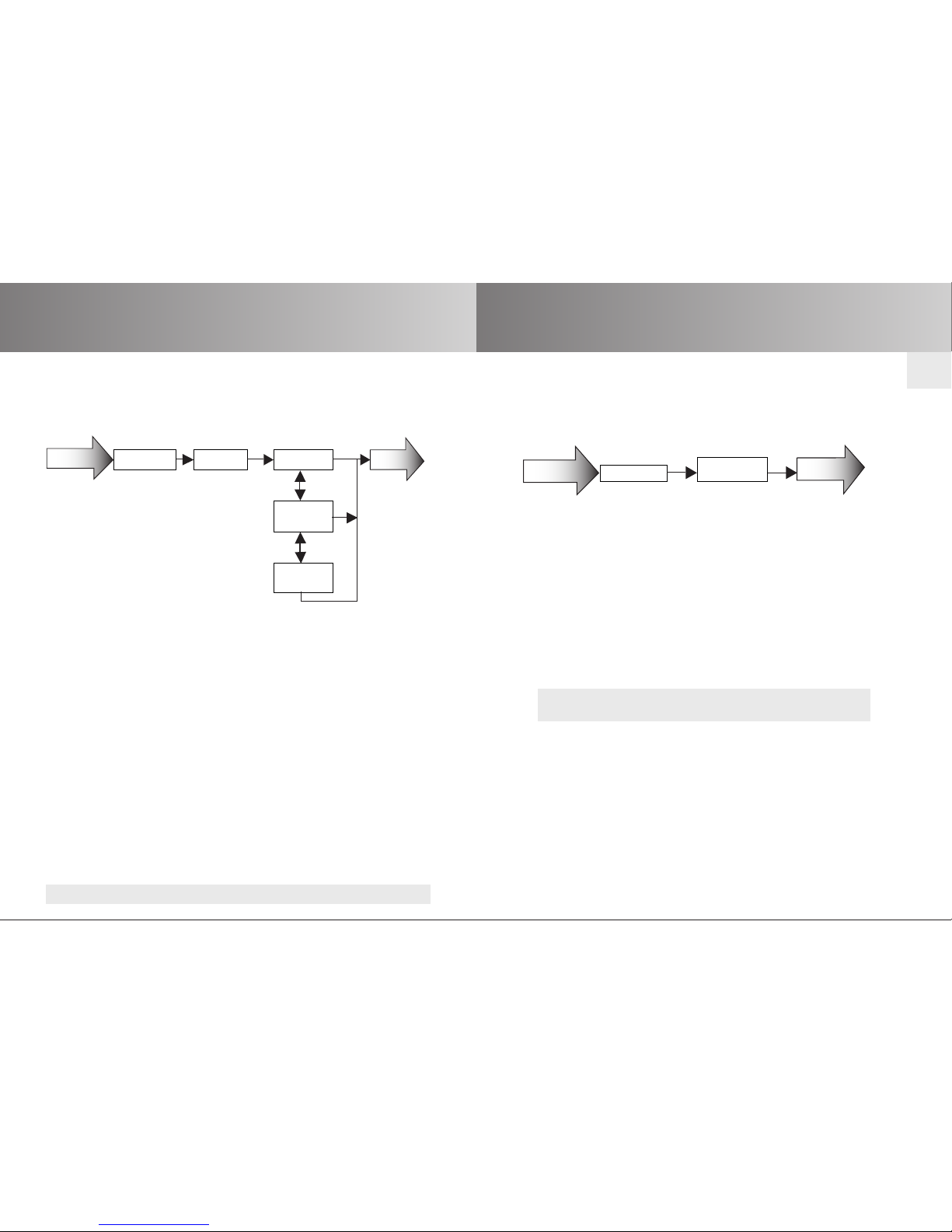

Programming menu
SETTING
ENGLISH GB/ ASTRO SHIFT b
(Language selection, astro shift)
See
previous page ENGLISH GB ASTRO
SHIFT bSee
next page
OK OK
+/– +/–
You have confirmed the PROG END LIMIT function.
ENGLISH GB appears.
1. You can select the desired language using the +/- buttons.
2. Confirm your language selection by pressing OK.ASTROSHIFT b
appears.
3. The desired astro shift bcan be set (max. +/- 120 mins.) using the
+/- buttons.
4. Press OK to confirm.
The ASTRO SHIFT bfunction is now set.
For further programme settings in the SETTING menu,
see below.
GB
Programming menu
SETTING
INTERMEDIATE POSITION,VENTILATION/REVERSE,PROG END LIMIT
(Time/position programming)
See
previous page INTERMEDIATE
POSITITION VENTILATION
(REVERSE) PROG1 END LIMIT
OK
PROG1
INTERMEDIATE
POSITION
PROG1
VENTILATION
See
next page
OK OK
+/– +/– +/–
+/–
OK
OK
You have confirmed the HOLIDAY
function.
INTERMEDIATE POSITION appears.
1. The switching time for the INTERMEDIATE POSITION can be set
using the +/- buttons.The switching time can be set in a few
seconds.Alternatively, you can move the shutter/blind from the
upper end limit into the INTERMEDIATE POSITION using the
DOWN button.
2. Press OK to confirm.VENTILATION/REVERSE appears.
3. 3.The switching time for the VENTILATION/REVERSE position can
be set using the +/- buttons.The switching time can be set in a
few seconds. Alternatively,you can move the shutter/blind from
the lower end limit into the VENTILATION/REVERSE position using
the UP button.Press OK to confirm.
4. You can choose between PROG END LIMIT,PROG INTERMEDIATE
POSITION and PROGVENTILATION/REVERSE using the +/-
buttons.
5. Confirm your selection by pressing OK.
The PROG END LIMIT function is now set.
For further programme settings in the SETTING menu, see below.

Programming menu
GB-23 GB-24
6. Press OK to confirm.TIME ZONE will appear.
7. You can set the TIME ZONE you are in using the +/- button.
8. Press OK to confirm.
The TIME ZONE function has now been set.
Please read on for further programming options using the
SETTING menu.
SETTING MENU
SUMMER/WINTER (Automatic clock adjustment for daylight saving
changes)
See
previous page SUMMER/
WINTER
SUMMER/
WINTER
OFF
Operating mode
OK
+/–
OK
You have confirmed the TIME ZONE function.
SUMMER/WINTER will appear.
1. You can switch the SUMMER/WINTER function on or off using the
+/- button..
2. Confirm your selection by pressing OK.
3. Press the MENU button to switch to operating mode.
GB
Programming menu

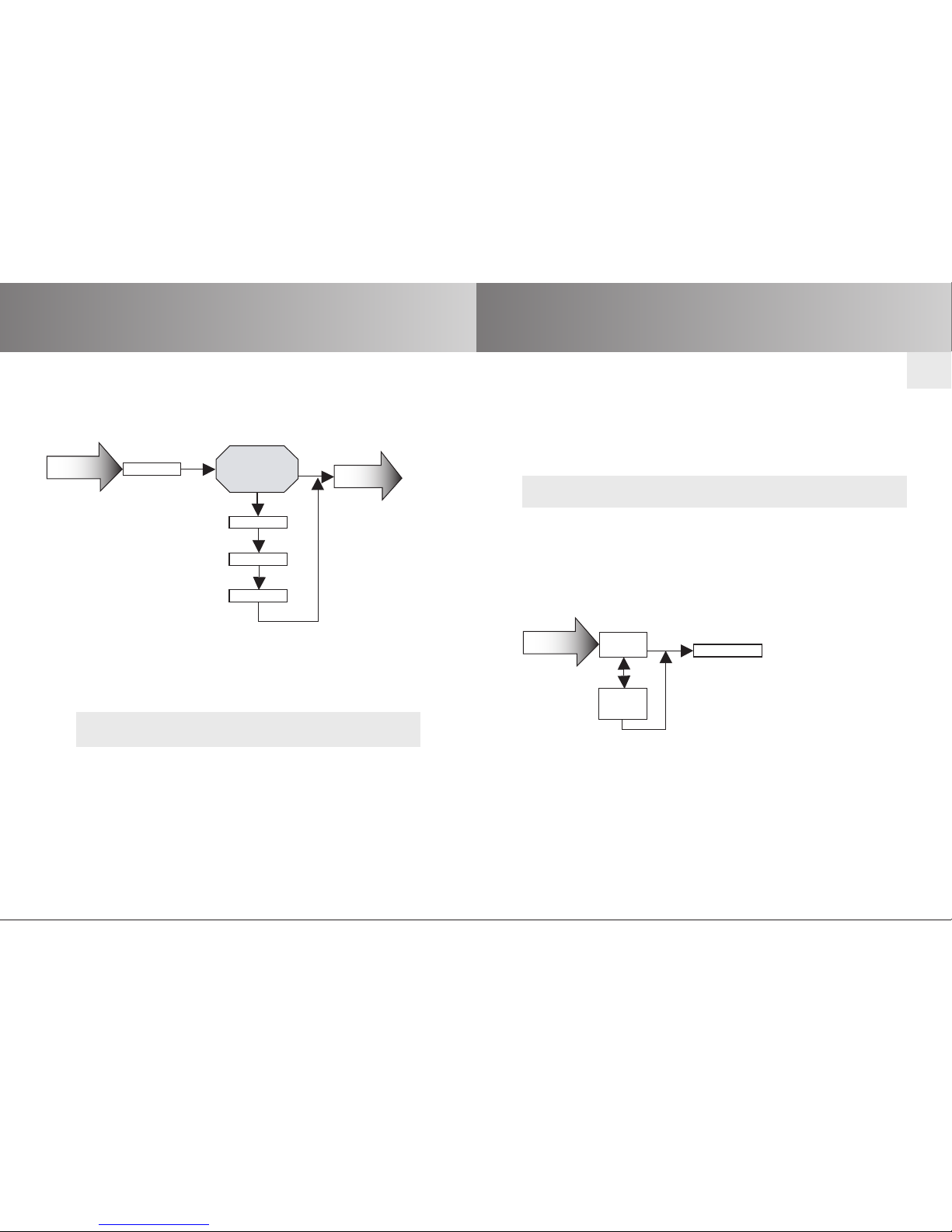

SETTING
LONDON, EXPERT MODE
(City selection,LONGITUDE,LATITUDE,TIME ZONE)
LONDON EXPERT
MODE
ON/OFF
LONGITUDE
LATITUDE
TIME
See
next page
See
previous page
OK
+/–
OK
OK
OK
+/–
+/–
OK
You have confirmed the function ASTRO SHIFT b.
The city selected (LONDON) will appear.
1. You can set your nearest town using the +/- button.
2. Press OK to confirm.
N.B.: These dialogue fields are only displayed when the EXPERT
MODE in the function menu is ON.
LONGITUDE will appear.
(If you prefer to define your location more precisely, you can do so
by setting the degrees longitude and latitude.)
3. The desired degrees LONGITUDE can be set using the +/- button.
4. Press OK to confirm.LATITUDE will appear.
5. The desired degrees LATITUDE can be set using the +/- button.

GB-25 GB-26
Technical data/Changing the batteries/
Cleaning
Technical data
Nominal voltage 3 V DC
Battery type 2 x LR 03 (AAA)
System of protection IP 20
Permissible ambient temperature –10 to +55 °C
Radio frequency 868,3 MHz
Dimensions L 161 x B 43 x H 23
The maximum radio range is up to 25 m indoors and up to 350 m
outdoors.
Changing the batteries
1. Open the battery compartment.
2. Remove the batteries.
3. Insert the new batteries properly.
Note: The batteries must be
replaced within one minute.
When changing the batteries,
ensure that no buttons are
pressed.
Cleaning
Clean the device with a damp cloth only.
Do not use a cleansing agent as this may damage the plastic.
GB
Programming menu
FUNCTION MENU (The operating element must be removed.
For experts only!)
ROLLER SHUTTER/VENETIAN BLIND,INITIAL OPERATION
(Roller shutter/blind selection,date of initial operation)
+
/-
OK
FUNCTION ROLLER
SHUTTER/
OK OK OK
FUNCTION
OK
OK
EXPERT
MODE
OFF / ON
INITIAL
OPERATION
1. Press the MENU button.
2. To select the FUNCTION menu press the +button until
FUNCTION appears.
3. Press OK to confirm.ROLLER SHUTTER/BLIND appears.
4. You can choose between roller shutter/blind using the +/-
button.
5. Press OK to confirm.EXPERT MODE OFF/ON appears.
6. The desired setting can be selected using the +/- button.
7. Confirm your selection by pressing OK.
INITIAL OPERATION appears.
8. Press OK to confirm.FUNCTION appears.
9. Press the MENU button to switch to operating mode.

Troubleshooting
GB-27 DE-28
DE
Troubleshooting/
General declaration of conformity
Troubleshooting
Problem Cause Remedy
Roller shutter does No end limit position Set the end limit
not move to the end is set. position via PROG END
limit position. LIMIT SETTING.
The transmitter does Power supply was Press RESET button
not respond after winterrupted for too and check setting.
battery replacement. long.
General declaration of conformity:
The company elero GmbH hereby declares that theTempoTel device
complies with the basic requirements and other relevant provisions
of the European Directive 1999/5/EC.
Troubleshooting
Problem Cause Remedy
Drive is not 1.Receiver is outside 1.Reduce the distance
functioning. the radio range. to the receiver.
Transmission control
light is illuminated. 2.Transmitter has not 2. Programme the
been programmed transmitter.
into the receiver.
3.Wrong group has 3.Select correct
been selected. group.
Transmission control Batteries are low. Insert new batteries.
light is not
illuminated.
BATTERY is flashing
on the display.
Astro function is not 1.Date is incorrect. 1.Set correct date.
functioning properly. 2.Wrong city or wrong 2.Set correct city
latitude/longitude or exact degrees
setting. latitude/longitude.
3.Holiday function is 3.Switch holiday
switched on. function off.
4.Astro shift is set. 4.Adjust astro shift.
ist eingestellt. anpassen.
The TempoTel does The sliding switch is set Change the sliding
not carry out the to manual operation. switch to automatic
programmed control mode.
commands.
The TempoTel does Holiday function is Switch holiday
not carry out the switched on. function off.
switching commands
precisely.

Warnhinweise
GB-29 GB-30
GB
